CONTA-CLIP

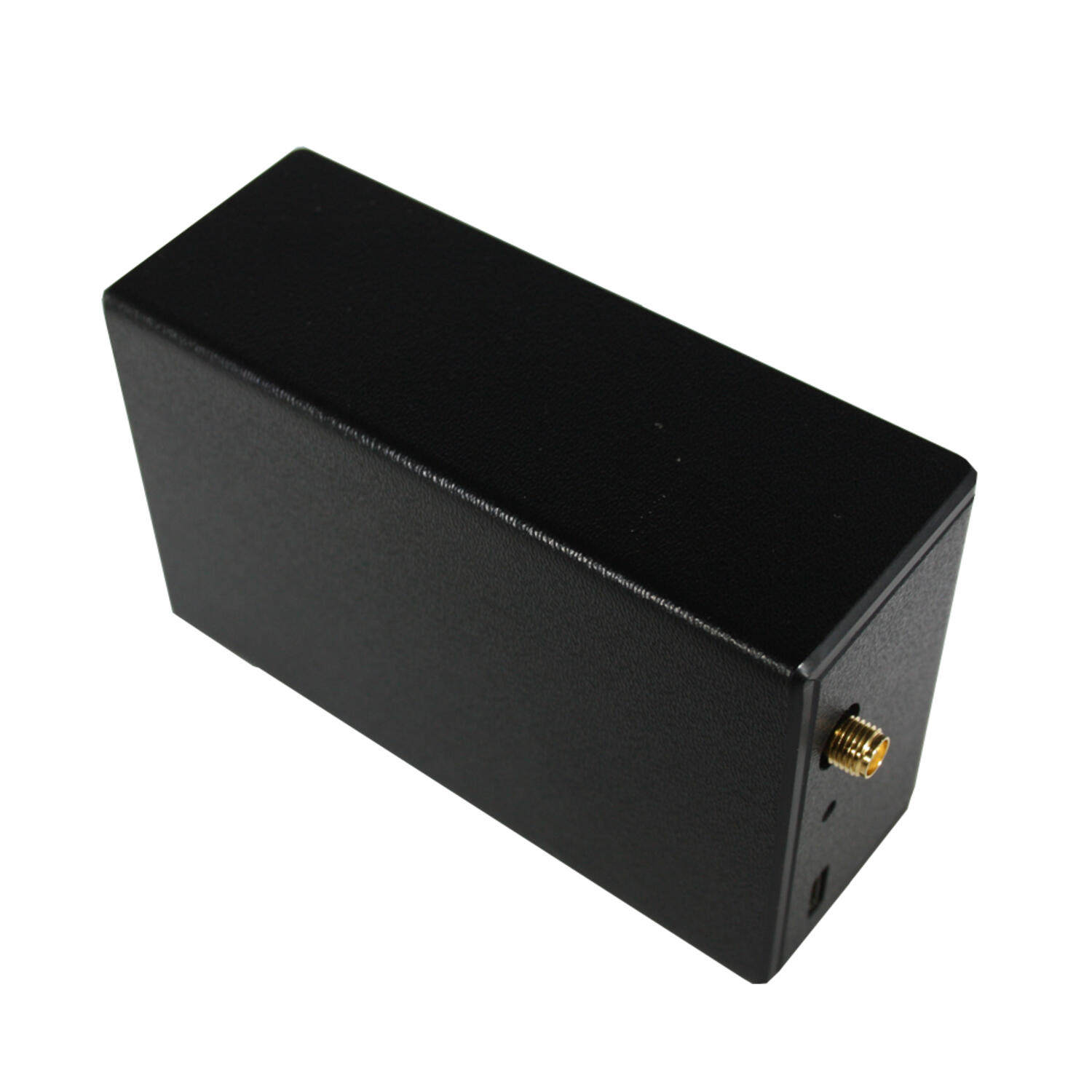

Simple compact SMS device that sends a single SMS to 1-5 recipients on power up, with or without confirmation.
The GSM-TMM (Trigger Message Module) can be wired in series or parallel with any powered device, such as beacon, sounders or switched output.

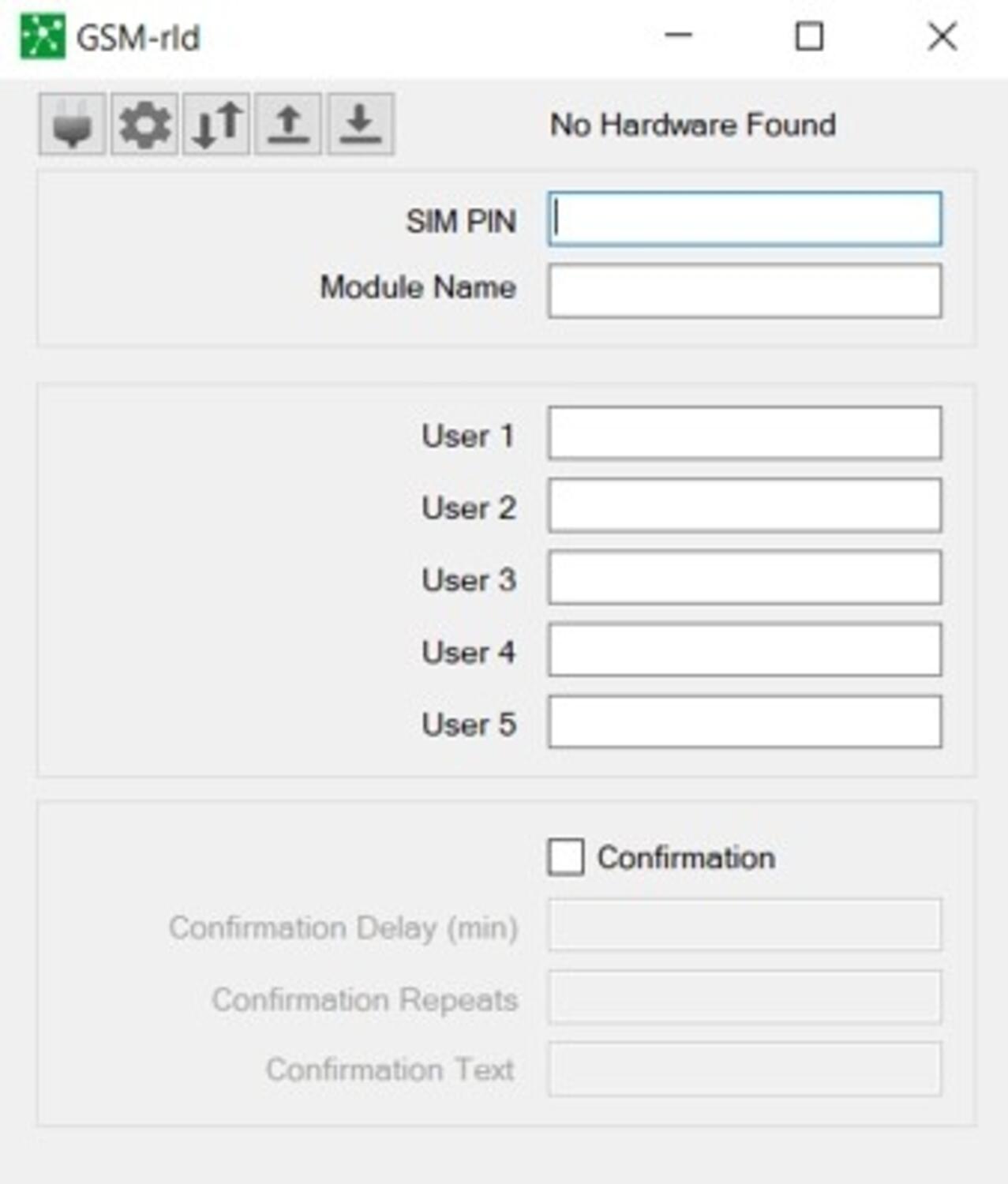

The unit can be programmed via USB (no external power required for programming)

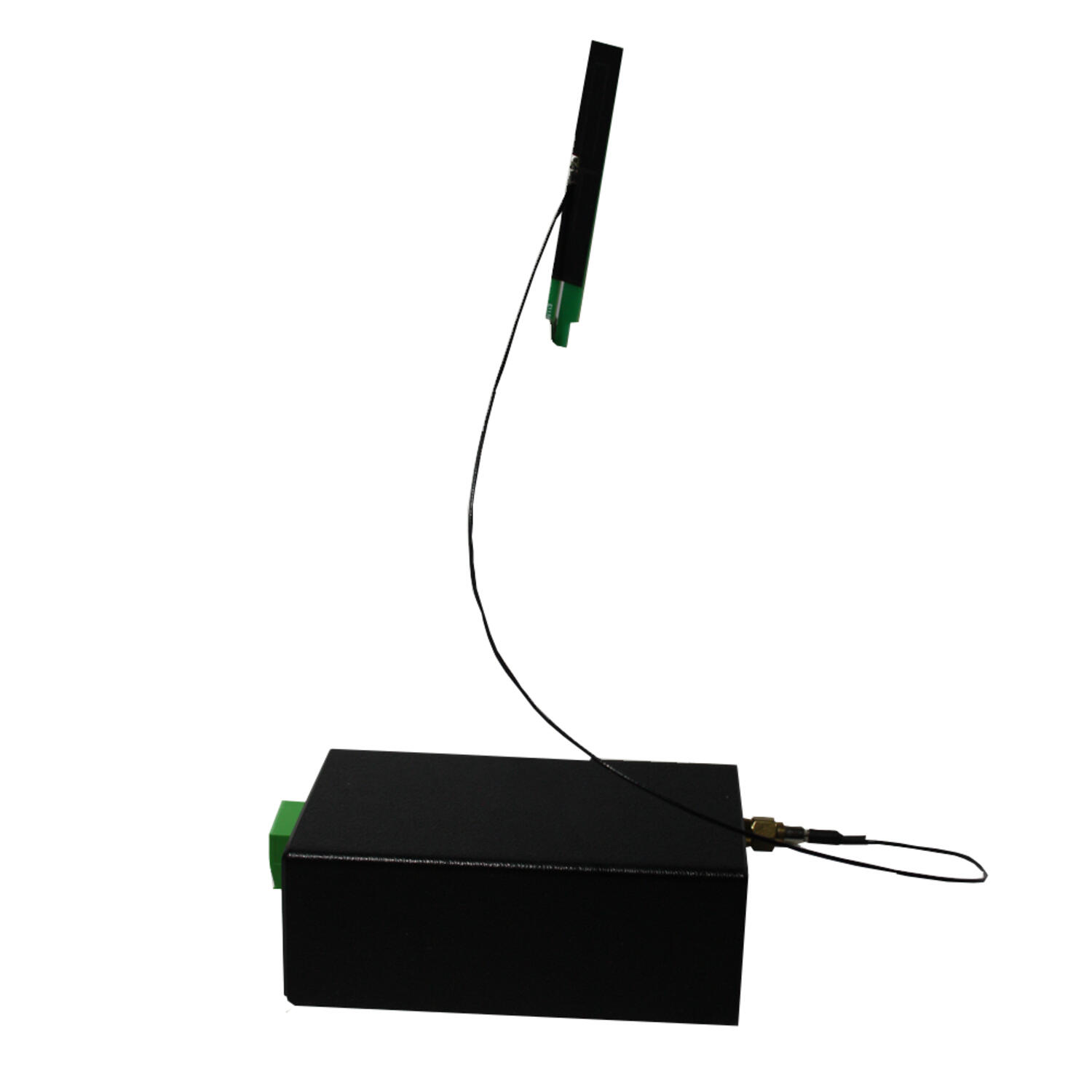

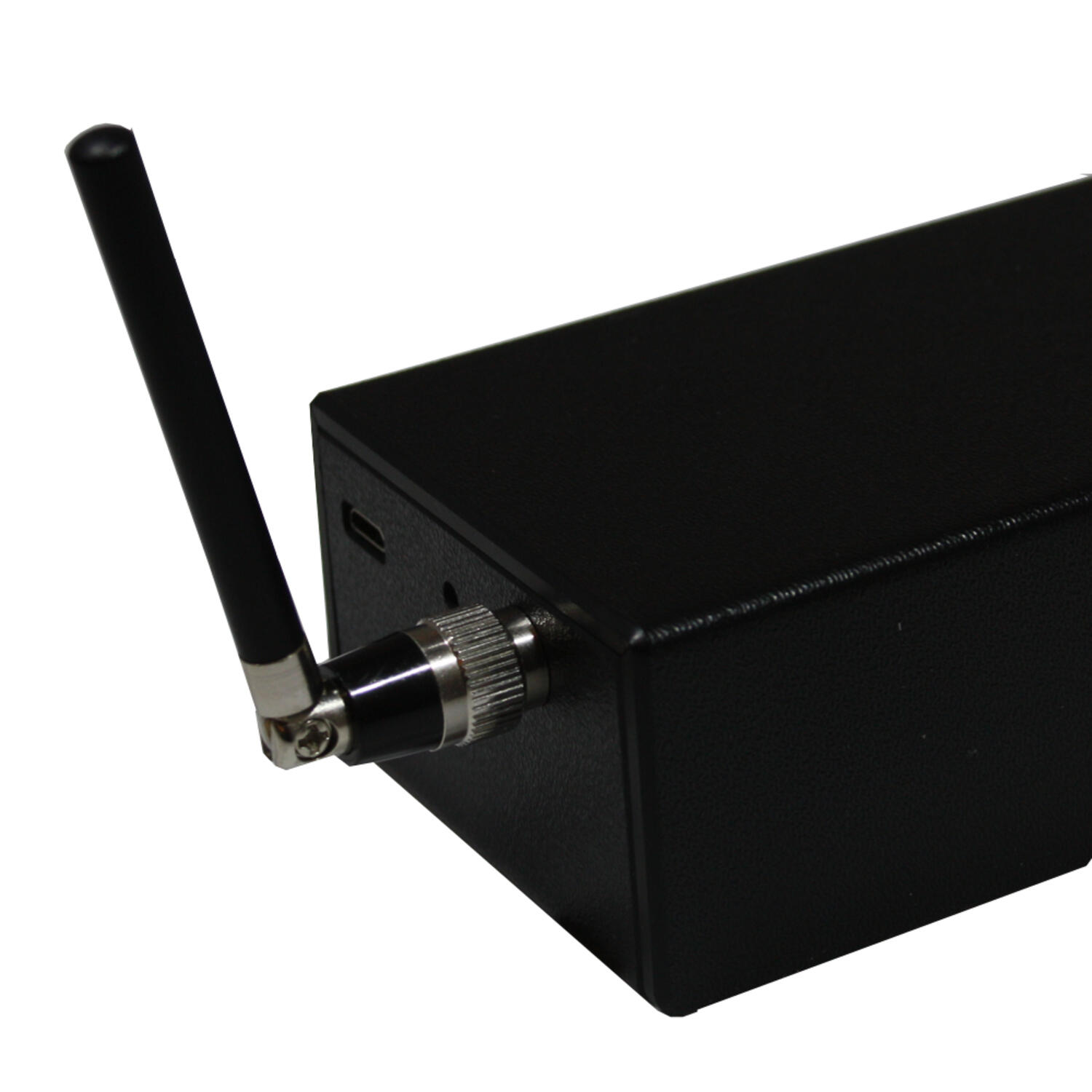

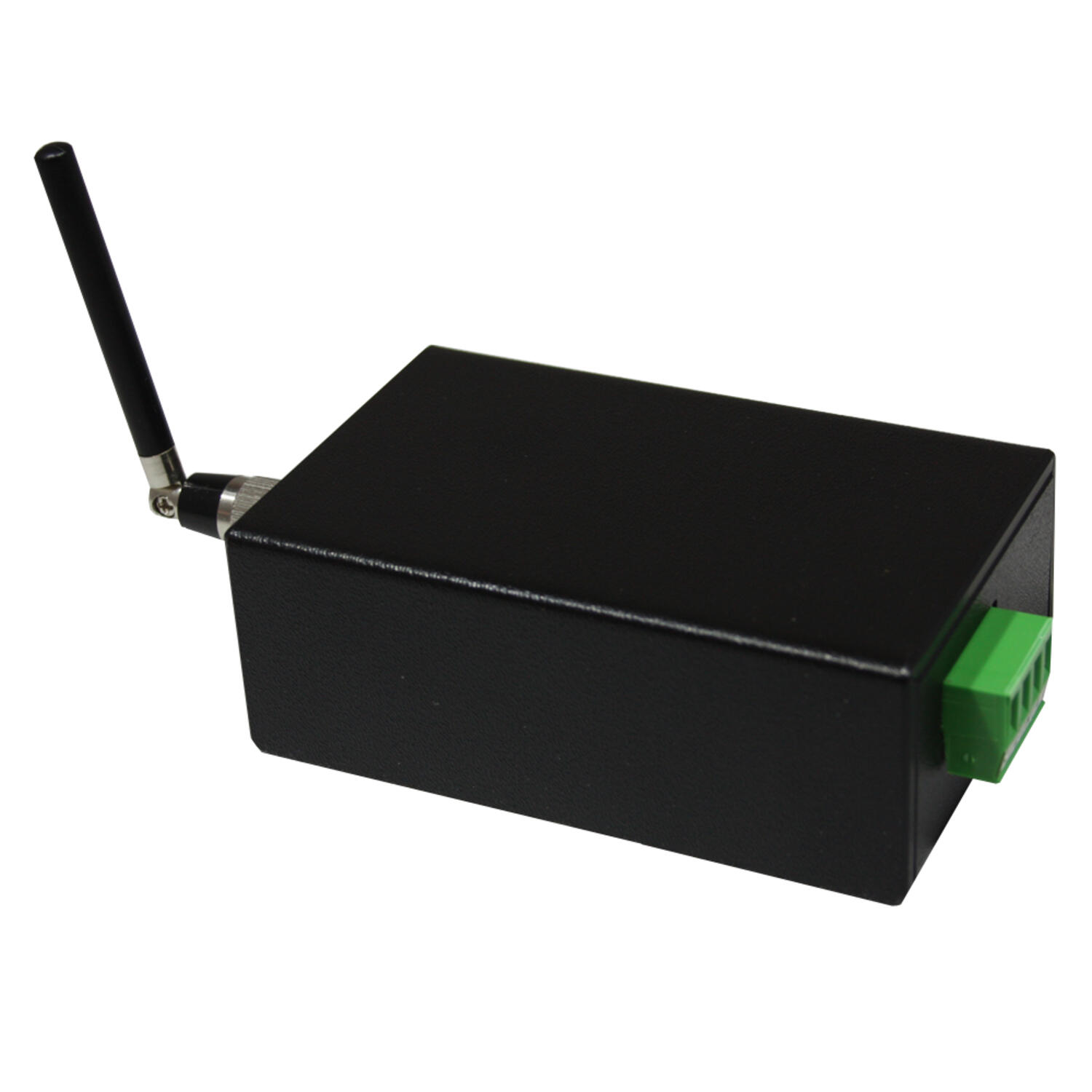

Standard micro SIM, SMA antenna connection.
General Data |
|
|---|---|
| GPS | No |
| Operating temperature from | -30 °C |
| Current consumption | 12V-170mA; 24V-85mA; 24VAC ~210mA |
| Number of inputs | 1 |
| Mounting | Direct mount |
| Operating temperature to | 70 °C |
| Electromagnetic compatibility | EN55011, EN61326-1 |
| Supply voltage | 10..30V dc; 24V ac ±10% |
Dimensions |
|
| Weight | 147 g |
| Length | 106 mm |
| Width | 54 mm |
| Height | 39 mm |
Connections |
|
| Cross section single wire from | 0,2 mm² |
*Invisible Heading* |
|
|---|---|
| Connection type | Pluggable |
| Stripping length | 6 mm |
| Cross section single wire to | 2,5 mm² |
GSM/GPS Data |
|
| 2G | Quad-band GSM bands: 850, 900, 1800 and 1900 MHz |
| Antenna GSM | 50 Ohm, SMA-plug |
| 3G | LTE CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85 |
| SIM card | Nano-SIM |
| Tariff code | 85176990 |
| Pack size | 1 |
| Country of origin | NL |
| DIN-VDE Spec | Low Voltage Directive (LVD) 2014/35/EU, according requirements of EN 62477-1 Directive 2014/30/EU, in compliance with EN 55011 and EN 61326-1, RED 2014/53/EU |
| IP class | IP20 |
Simple compact SMS device that sends a single SMS to 1-5 recipients on power up, with or without confirmation.
The GSM-TMM (Trigger Message Module) can be wired in series or parallel with any powered device, such as beacon, sounders or switched output.
The unit can be programmed via USB (no external power required for programming)
Standard micro SIM, SMA antenna connection.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Current consumption | Supply voltage | Price | ||
|---|---|---|---|---|---|
GSM-TMM, Auto Send SMS Module, 10…30V dc, 24V ac
Art:
16489.2
Copied
|
12V-170mA; 24V-85mA; 24VAC ~210mA
|
10..30V dc; 24V ac ±10%
|
| ||
|
GSM-TMM, Auto Send SMS Module, 230VAC
Art:
16511.2
Copied
|
10 mA @ 230V ac
|
85 -264V AC
|
|
Select a variant in the list
