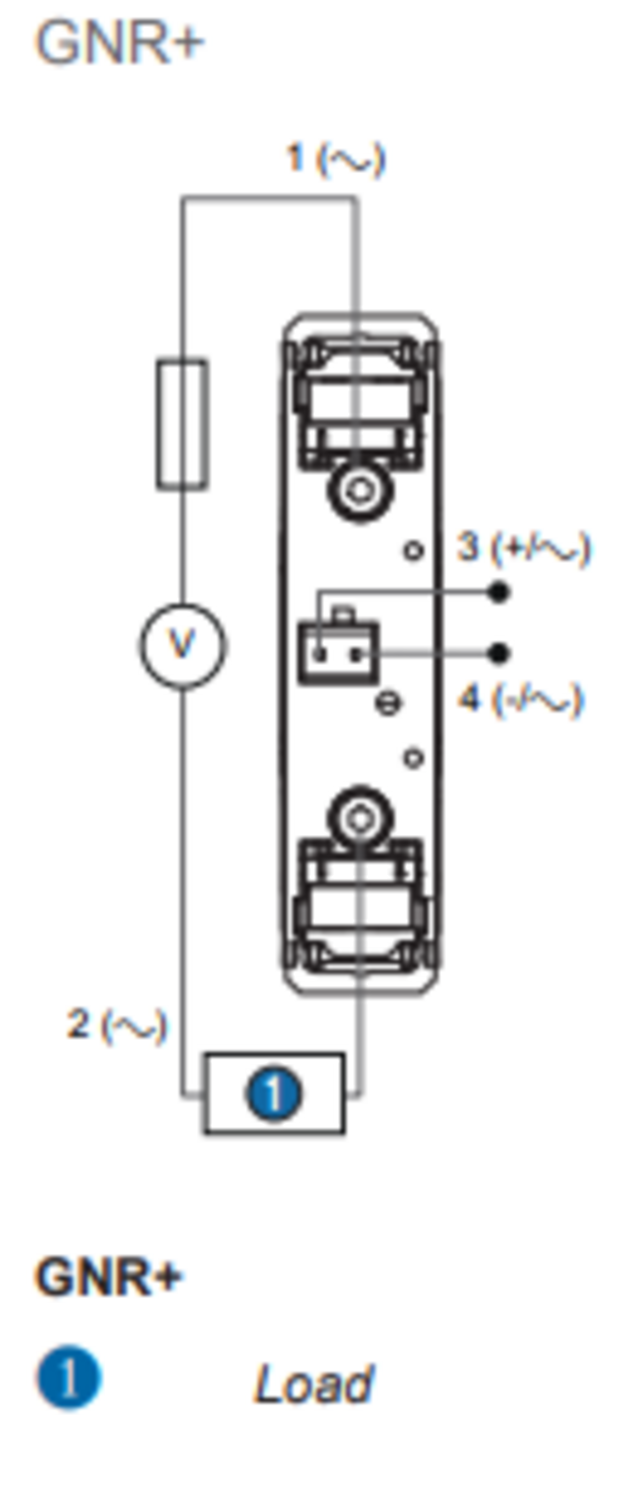

Overview |
|
|---|---|
| Mounting | DIN rail |
| Type of control | Zero voltage turn on |
| Output current | 30 A |
| Control voltage | 4-32V dc |
| Output voltage | 24-500V ac |

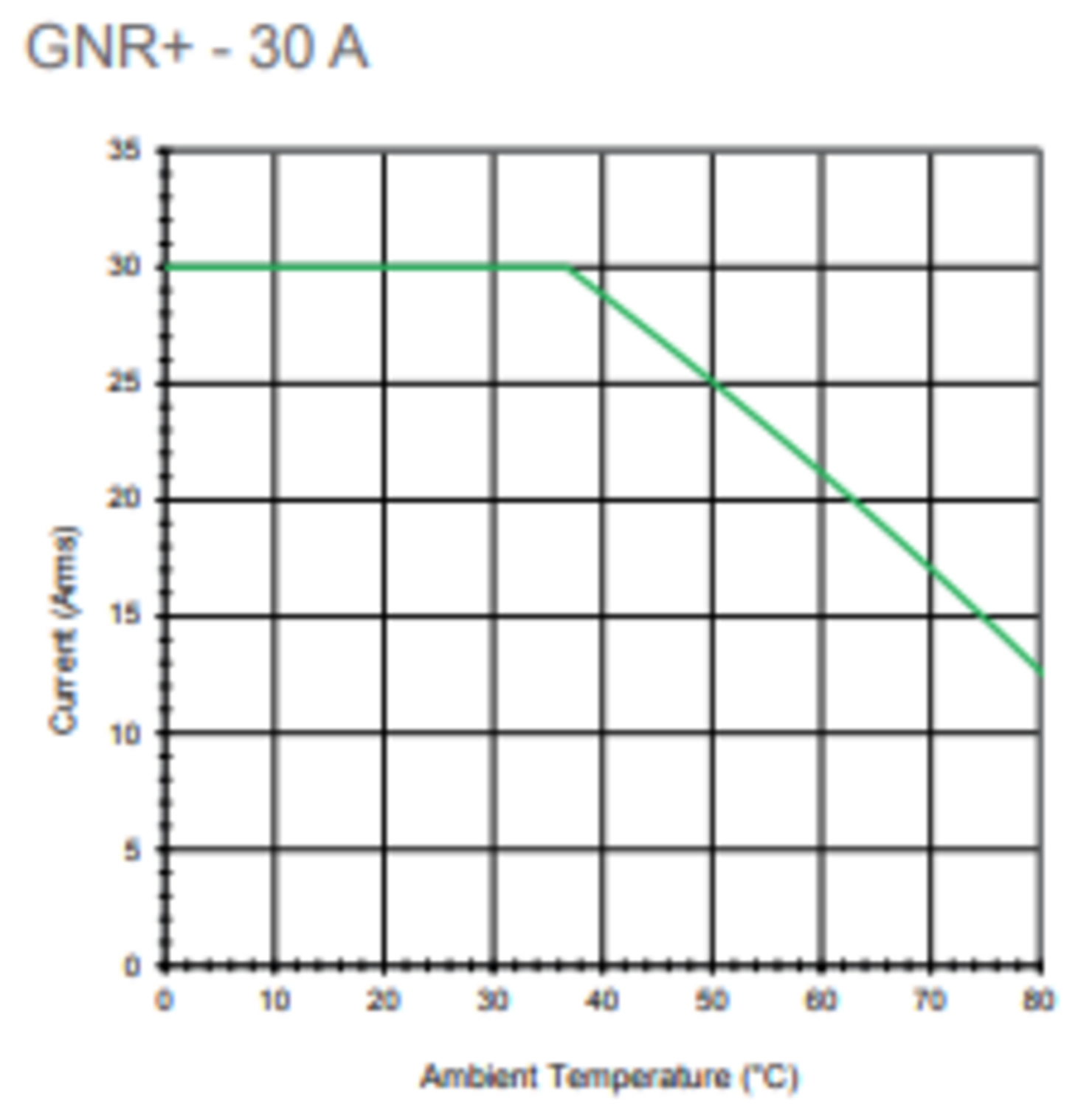

Output Specification |
|
| Transient Voltage | 1200 V pk |
| Maximum off-state leakage current | 1 mA rms |
| Minimum Load Current | 5 mA rms |

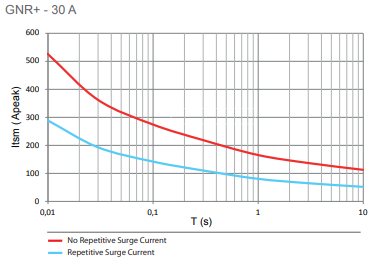

| Maximum 1 cycle surge current | 530/_ (min) 580 (typ) |
| Thermal resistance junction to case | 0,55 °C/W |
| 1 Second surge current | 165 |
| Number of poles | 1 |
| Maximum Load Current | 30 A rms |
| Output voltage | 24-500V ac |
| Maximum 1/2 Cycle I² t for fusing (A² sec) | 1680 |
| Maximum on-state voltage drop | 1.08V pk |

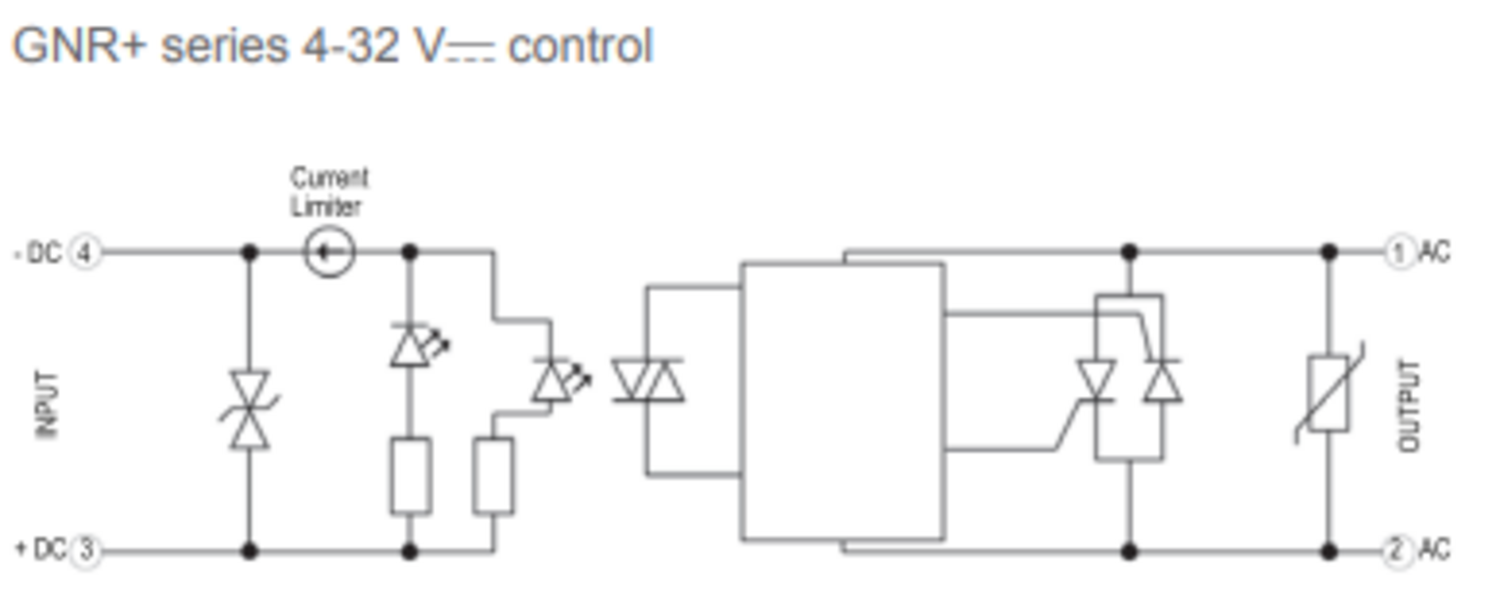

Input Specification |
|

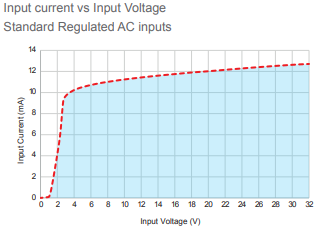

| Input Current Max | 14 mA |
| Minimum turn-on voltage | 3.5V dc |
*Invisible Heading* |
|
|---|---|
| Maximum turn-off time (ms) | 1/2 Cycle |
| Input current min | 10 mA |
| Maximum turn-on time (ms) | 1/2 Cycle |
| Must turn-off voltage | 2V dc |
| Maximum reverse voltage | -32V dc |
| Control voltage | 4-32V dc |
General Specification |
|

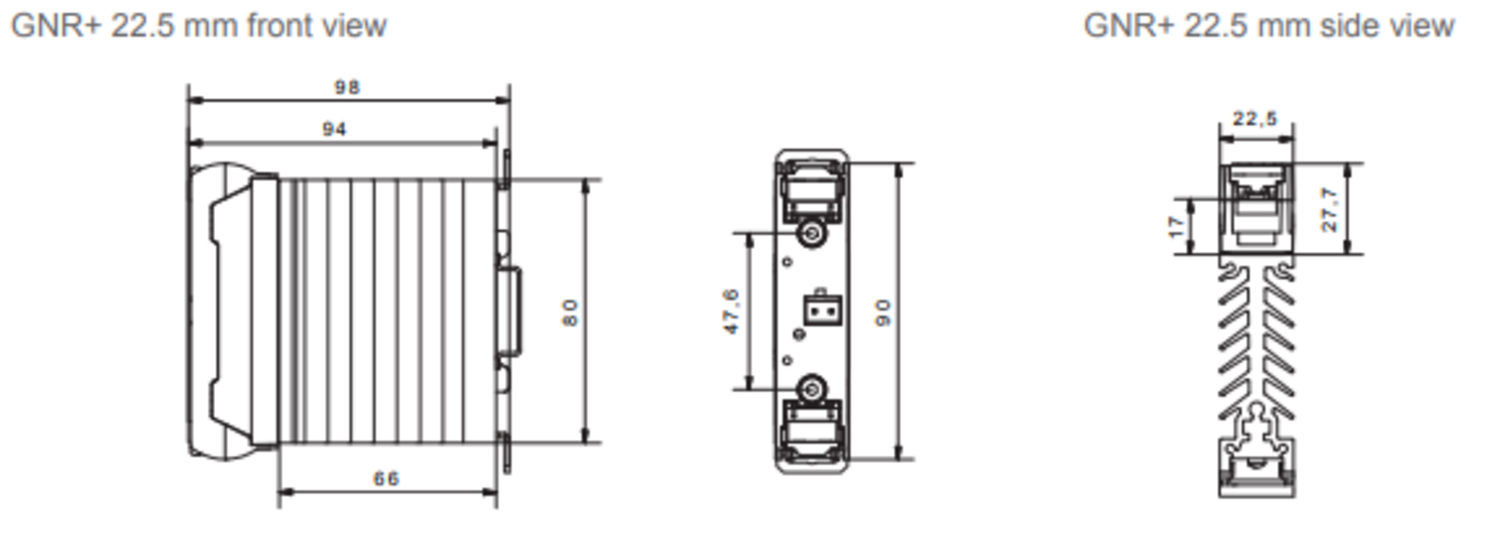

| Depth | 98 mm |
| Weight | 250 g |
| Ambient operating temperature | -40 ... +80°C |
| Dielectric strength input to output (50/60Hz) | 4000 V rms |
| Width | 22,5 mm |
| LED input status indicator | Yellow |
| Housing material | UL94 V-0 |
| Ambient storage temperature | -40 ... +100°C |
| Material base | Aluminium |
| Approvals | CE, cRUus, VDE |
| Height | 90 mm |
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Output current | Maximum 1 cycle surge current | Thermal resistance junction to case | 1 Second surge current | Maximum Load Current | Maximum 1/2 Cycle I² t for fusing (A² sec) | Maximum on-state voltage drop | Input Current Max | Minimum turn-on voltage | Input current min | Must turn-off voltage | Maximum reverse voltage | Control voltage | Weight | Width | Approvals | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

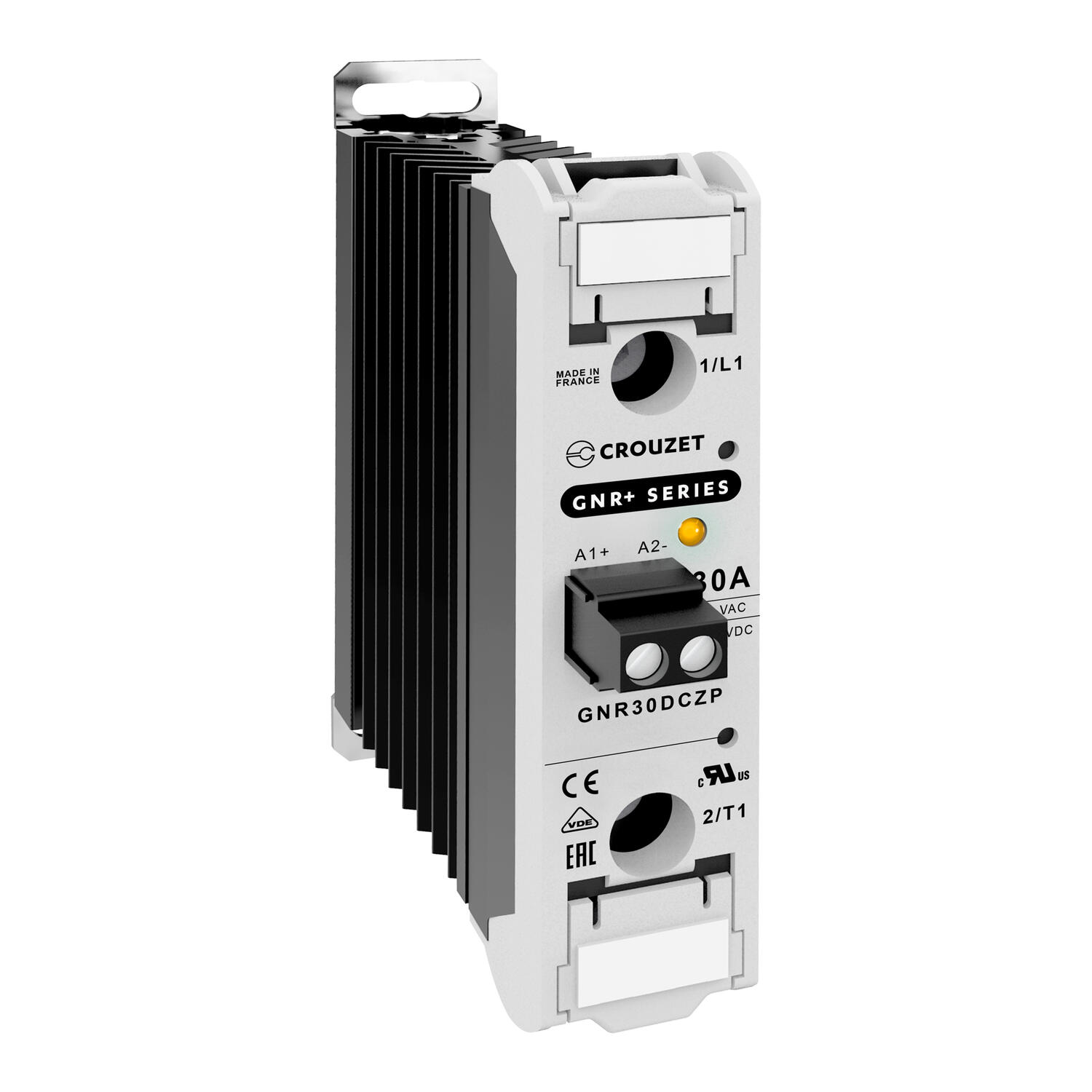

SSR 30A 24-500 VAC Out 4-32 VDC In ZC
Art:
GNR30DCZP
Copied
|
30 A
|
530/_ (min) 580 (typ)
|
0,55 °C/W
|
165
|
30 A rms
|
1680
|
1.08V pk
|
14 mA
|
3.5V dc
|
10 mA
|
2V dc
|
-32V dc
|
4-32V dc
|
250 g
|
22,5 mm
|
CE, cRUus, VDE
|
| ||
|
SSR 30A 24-500 VAC Out 180-280 VAC In ZC
Art:
GNR30ACZP
Copied
|
30 A
|
530/_ (min) 580 (typ)
|
0,55 °C/W
|
165
|
30 A rms
|
1680
|
1.08V pk
|
8 mA
|
180V ac
|
4 mA
|
5V ac
|
|
180-280V ac
|
250 g
|
22,5 mm
|
CE, cRUus, VDE
|
| ||
|
SSR 32A 24-500 VAC Out 4-32 VDC In ZC
Art:
GNR32DCZP
Copied
|
32 A
|
1100/_ (min) 1200 (typ)
|
0,4 °C/W
|
347
|
32 A rms
|
7200
|
1.14V pk
|
14 mA
|
3.5V dc
|
10 mA
|
2V dc
|
-32V dc
|
4-32V dc
|
250 g
|
22,5 mm
|
CE, cRUus, VDE
|
| ||
SSR 45A 24-500 VAC Out 4-32 VDC In ZC
Art:
GNR45DCZP
Copied
|
45 A
|
530/_ (min) 580 (typ)
|
0,55 °C/W
|
165
|
45 A rms
|
1680
|
1.19V pk
|
14 mA
|
3.5V dc
|
10 mA
|
2V dc
|
-32V dc
|
4-32V dc
|
275 g
|
45 mm
|
CE, cRUus
|
|
Select a variant in the list
