Crouzet - GNR series solid state relay

DIN Rail - AC output Single Phase

  • Zero cross or instantaneous switching
  • Output current 20 - 30 Amps
  • Built-in overvoltage protection
  • LED input status indicator

Selected variant

Available in several variants

Selected variant

Technical data

Overview

Mounting DIN rail
Type of control Zero voltage turn on
Output current 20 A
Control voltage 4-32V dc
Output voltage 48-660V ac

Output Specification

Transient Voltage 1200 V pk
Maximum off-state leakage current 1 mA rms
Minimum Load Current 5 mA rms

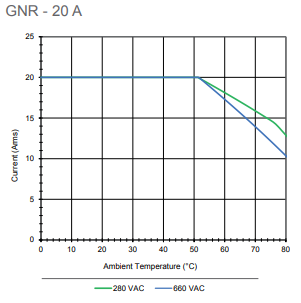

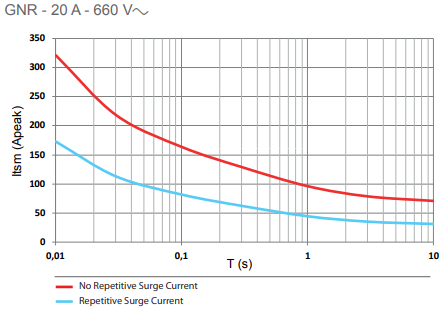

Maximum 1 cycle surge current 320/_ (min) 420 (typ)
Thermal resistance junction to case 0,7 °C/W
1 Second surge current 96
Number of poles 1
Maximum Load Current 20 A rms
Output voltage 48-660V ac
Maximum 1/2 Cycle I² t for fusing (A² sec) 882
Maximum on-state voltage drop 1.04V pk

Input Specification

Input Current Max 14 mA
Minimum turn-on voltage 3V dc

*Invisible Heading*

Maximum turn-off time (ms) 1/2 Cycle
Input current min 10 mA
Maximum turn-on time (ms) 1/2 Cycle
Must turn-off voltage 1V dc
Maximum reverse voltage -32V dc

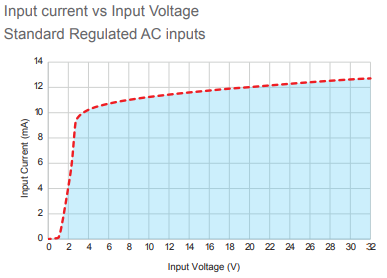

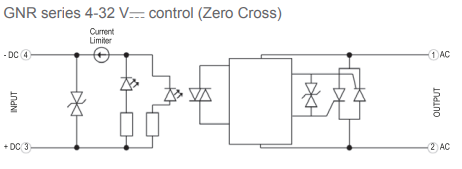

Control voltage 4-32V dc

General Specification

Depth 98 mm
Weight 250 g
Ambient operating temperature -40 ... +80°C
Dielectric strength input to output (50/60Hz) 4000 V rms
Width 22,5 mm
LED input status indicator Yellow
Housing material UL94 V-0
Ambient storage temperature -40 ... +100°C
Material base Aluminium
Approvals CE, cRUus
Height 90 mm

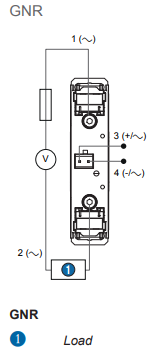

Measurements and connections

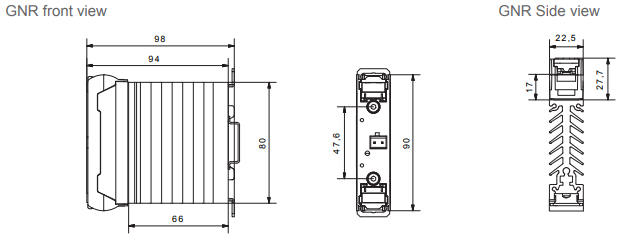

Technical illustrations

Accessories

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Type of control Output current Transient Voltage Maximum 1 cycle surge current Thermal resistance junction to case 1 Second surge current Maximum Load Current Output voltage Maximum 1/2 Cycle I² t for fusing (A² sec) Maximum on-state voltage drop Input Current Max Minimum turn-on voltage Input current min Maximum turn-on time (ms) Must turn-off voltage Maximum reverse voltage Control voltage Weight Approvals Price
Zero voltage turn on
20 A
1200 V pk
320/_ (min) 420 (typ)
0,7 °C/W
96
20 A rms
48-660V ac
882
1.04V pk
14 mA
3V dc
10 mA
1/2 Cycle
1V dc
-32V dc
4-32V dc
250 g
CE, cRUus
Zero voltage turn on
20 A
600 V pk
270/284 (min) 340 (typ)
1,8 °C/W
95
20 A rms
24-280V ac
600
1.17V pk
14 mA
3V dc
10 mA
1/2 Cycle
1V dc
-32V dc
4-32V dc
80 g
CE, cRUus
Zero voltage turn on
20 A
1200 V pk
320/_ (min) 420 (typ)
0,7 °C/W
96
20 A rms
48-660V ac
880
1.04V pk
10 mA
80V ac
4 mA
1/2 Cycle
5V ac
80-140V ac
80 g
CE, cRUus
Zero voltage turn on
20 A
1200 V pk
320/_ (min) 420 (typ)
0,7 °C/W
165
20 A rms
48-660V ac
882
1.04V pk
8 mA
180V ac
4 mA
1/2 Cycle
5V ac
180-280V ac
80 g
CE, cRUus
Zero voltage turn on
30 A
1200 V pk
530/_ (min) 580 (typ)
0,55 °C/W
165
30 A rms
48-660V ac
1680
1.07V pk
14 mA
3V dc
10 mA
1/2 Cycle
1V dc
-32V dc
4-32V dc
250 g
CE, cRUus
Zero voltage turn on
30 A
1200 V pk
530/_ (min) 580 (typ)
0,55 °C/W
165
30 A rms
48-660V ac
1680
1.07V pk
10 mA
80V ac
4 mA
1/2 Cycle
5V ac
80-140V ac
80 g
CE, cRUus
Zero voltage turn on
30 A
1200 V pk
530/_ (min) 580 (typ)
0,55 °C/W
165
30 A rms
48-660V ac
1680
1.07V pk
8 mA
180V ac
4 mA
1/2 Cycle
5V ac
180-280V ac
250 g
CE, cRUus
Random
30 A
1200 V pk
530/_ (min) 580 (typ)
0,55 °C/W
165
30 A rms
24-500V ac
1680
1.07V pk
14 mA
3V dc
10 mA
<0.1
1V dc
-32V dc
4-32V dc
80 g
CE, cRUus, VDE
