CROUZET CONTROL

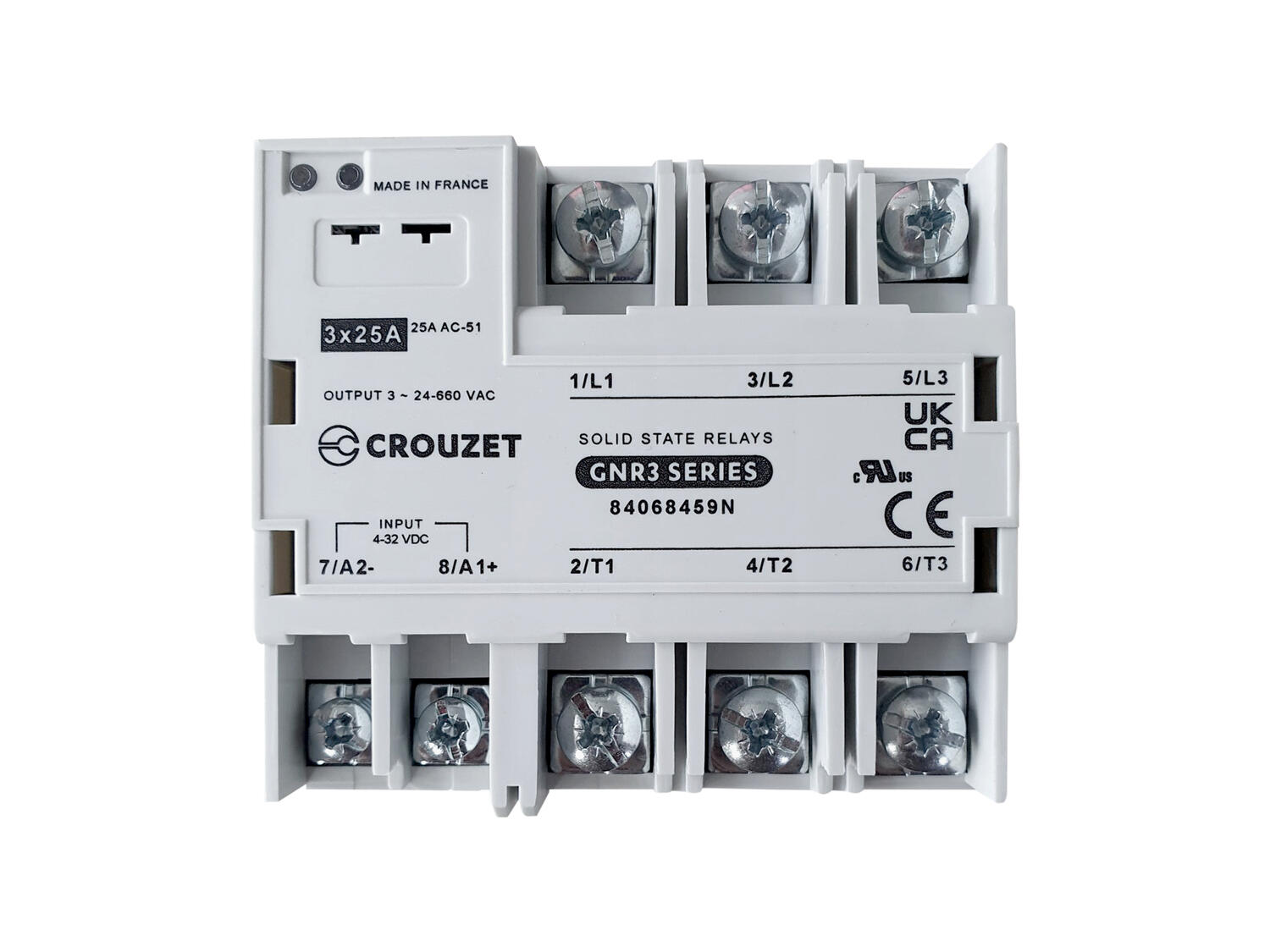

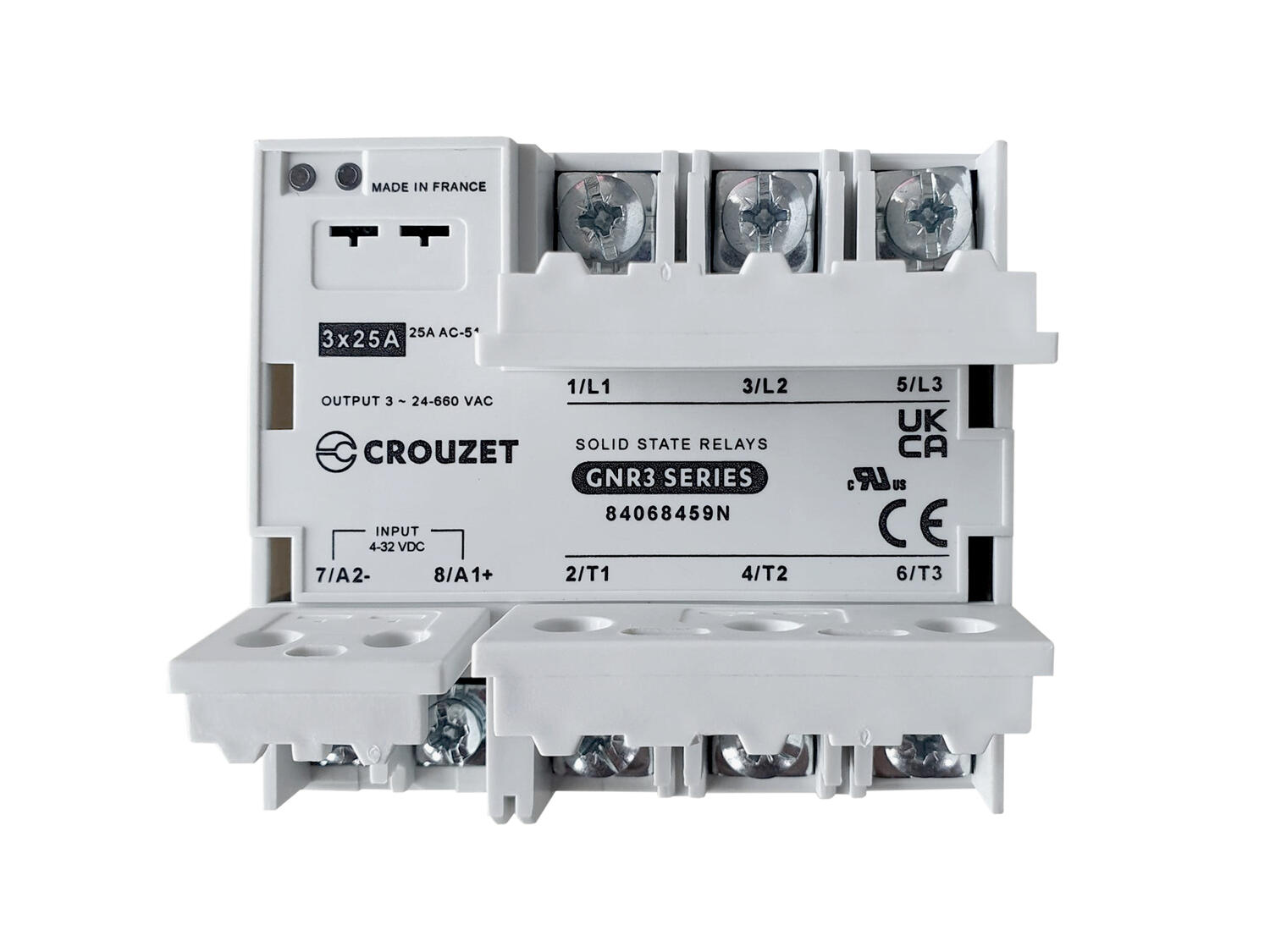

Crouzet - GNR3 series solid state relay

DIN Rail - AC output Three Phase

  • Output current 25 Amps
  • Zero cross and Special zero cross (resistive, inductive and capacitive loads)
  • LED input status indicator
  • Built-in overvoltage protection

Selected variant

Available in several variants

Selected variant

Technical data

Overview

Mounting DIN rail
Type of control Zero voltage turn on
Output current 25 A
Control voltage 4-32V dc
Output voltage 24-660V ac

Output Specification

Transient Voltage 1200 V pk
Maximum off-state leakage current 1 mA rms
Maximum 1 cycle surge current 530/_(min) 580 (typ)
Thermal resistance junction to case 0,55 °C/W
1 Second surge current 165
Number of poles 3
Output voltage 24-660V ac
Maximum 1/2 Cycle I² t for fusing (A² sec) 1404/1680
Maximum on-state voltage drop 1.04V pk

Input Specification

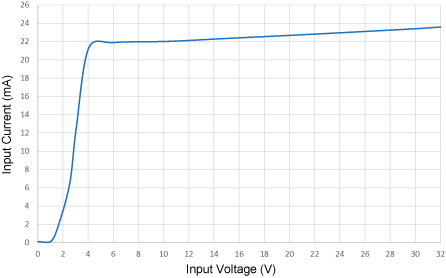

Input Current Max 25 mA
Minimum turn-on voltage 4V dc
Maximum turn-off time (ms) 1/2 cycle

*Invisible Heading*

Input current min 20 mA
Maximum turn-on time (ms) 1/2 cycle
Must turn-off voltage 2V dc
Maximum reverse voltage -32V dc
Control voltage 4-32V dc

General Specification

Depth 104,7 mm
Weight 740 g
Ambient operating temperature -40 … +80°C
Dielectric strength input to output (50/60Hz) 4000 V rms
Width 89,8 mm
LED input status indicator Green
Housing material UL94 V-0
Ambient storage temperature -40 … +100°C
Material base Aluminium
Approvals CE, cRUus, UKCA
Height 98 mm

Accessories

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Type of control Maximum 1 cycle surge current Input Current Max Minimum turn-on voltage Maximum turn-off time (ms) Input current min Maximum turn-on time (ms) Must turn-off voltage Maximum reverse voltage Control voltage Price
Zero voltage turn on
530/_(min) 580 (typ)
25 mA
4V dc
1/2 cycle
20 mA
1/2 cycle
2V dc
-32V dc
4-32V dc
Special zero voltage turn on
530/_ (min) 580 (typ)
7 mArms
24V ac/dc
50
5 mA (AC) / 4 mA (DC)
25
2V ac/dc
24-255 V AC/DC

Selected variant

Select a variant in the list
