SENSATA CRYDOM

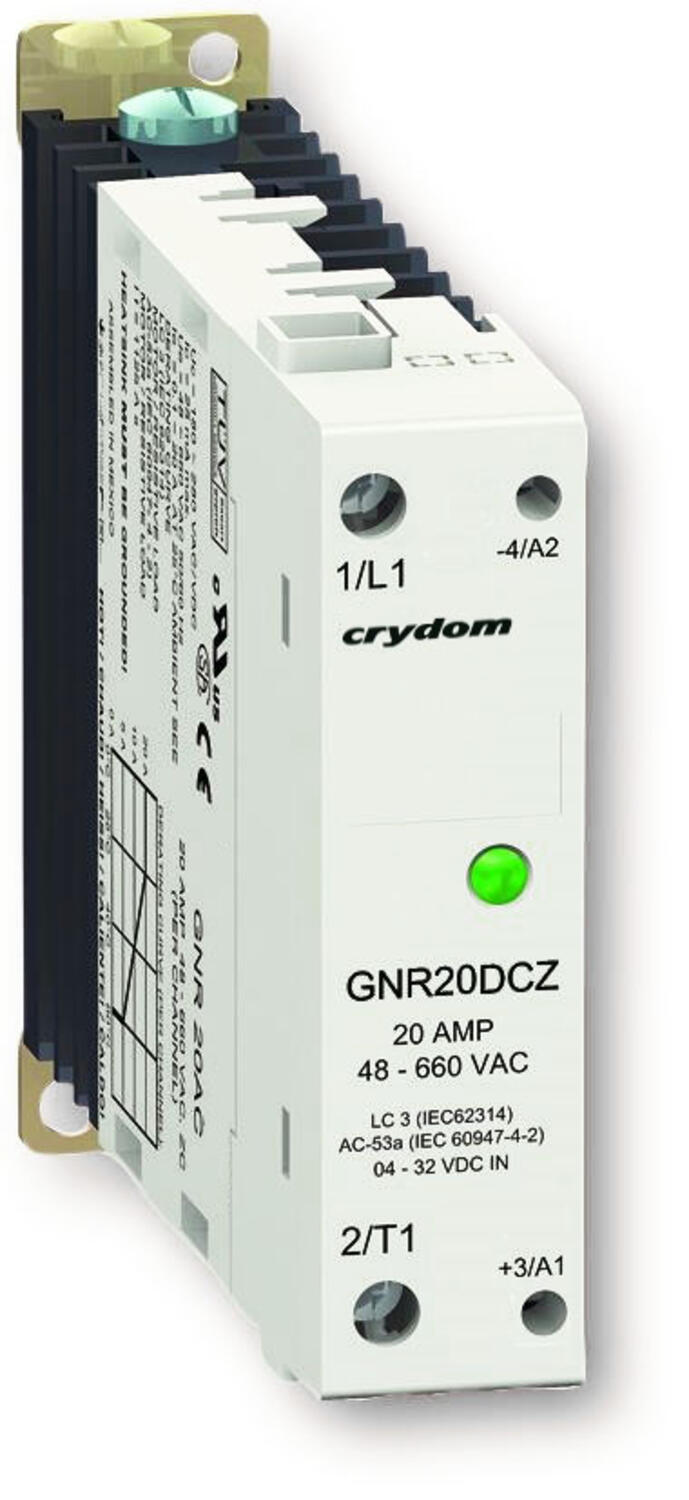

GNR Series 22.5mm Relay

These relays offer a broad range of power ratings which makes them suitable for diverse applications. Their high reliability and efficient design have made of them a market favorite for many years.



  • Current ratings of 10, 20 and 30 amps
  • Output voltage ratings: 24-280 and 48-600 VAC
  • Direct Bond Copper (DBC) Substrate
  • LED input status indicator
  • UL 508 Endurance Rating for Enhanced Reliability
  • UL/CSA/TUV Approved, CE Compliant
  • Built-in overvoltage protection
  • DIN Rail or Panel Mount
  • Zero voltage or Instantaneous turn-on output
Read more
  • Load current 10, 20 and 30A
  • Operating voltage 24-280 VAC and 48-600 VAC
  • Control voltage 4-32 VDC, 90-140 VAC and 180-280 VAC
  • Broad range of power ratings

Selected variant

Available in several variants
Sensata Crydom.jpg

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Overview
Type of control Zero voltage turn on
Additional features Contactor configuration
Output current 10 A
Activation 0 V
Control voltage 4-32V dc
Output voltage 24-280V ac

Output Specification
Peak current 190 A
Number of poles 1
I2t value 182 A²s
Voltage drop over semiconductor at max 1,5 V
Output voltage 24-280V ac

Input Specification
Turn-off voltage 1 V
Input current max 10 mA
Release time 10 ms
Response time 10 ms
Input current min 6 mA

*Invisible Heading*
Control voltage 4-32V dc

General Specification
IP class IP20
Depth 120,8 mm
Storage temperature min -40 °C
Insulation voltage in/out 2500 V
Temperature operational max 80 °C
Weight 225 g
Width 22,5 mm
Storage temperature max 100 °C
Temperature operational min -20 °C
LED indication Input status indication
Approvals CE, CSA, EMC, UL
Height 89,8 mm
Load voltage AC

Downloads

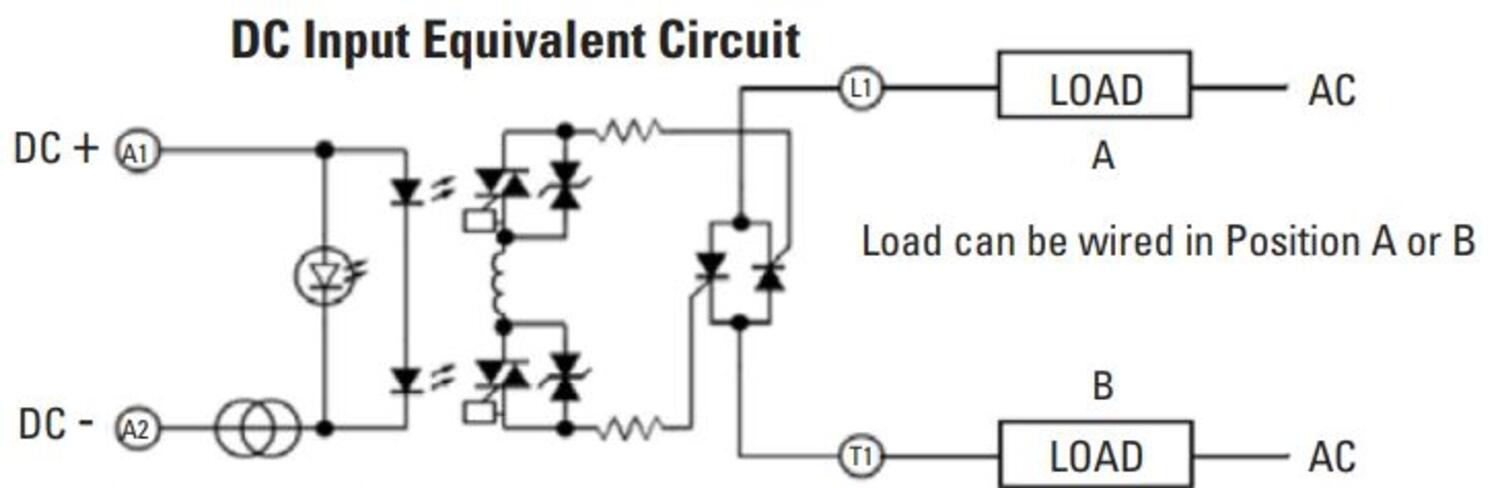

Measurements and connections

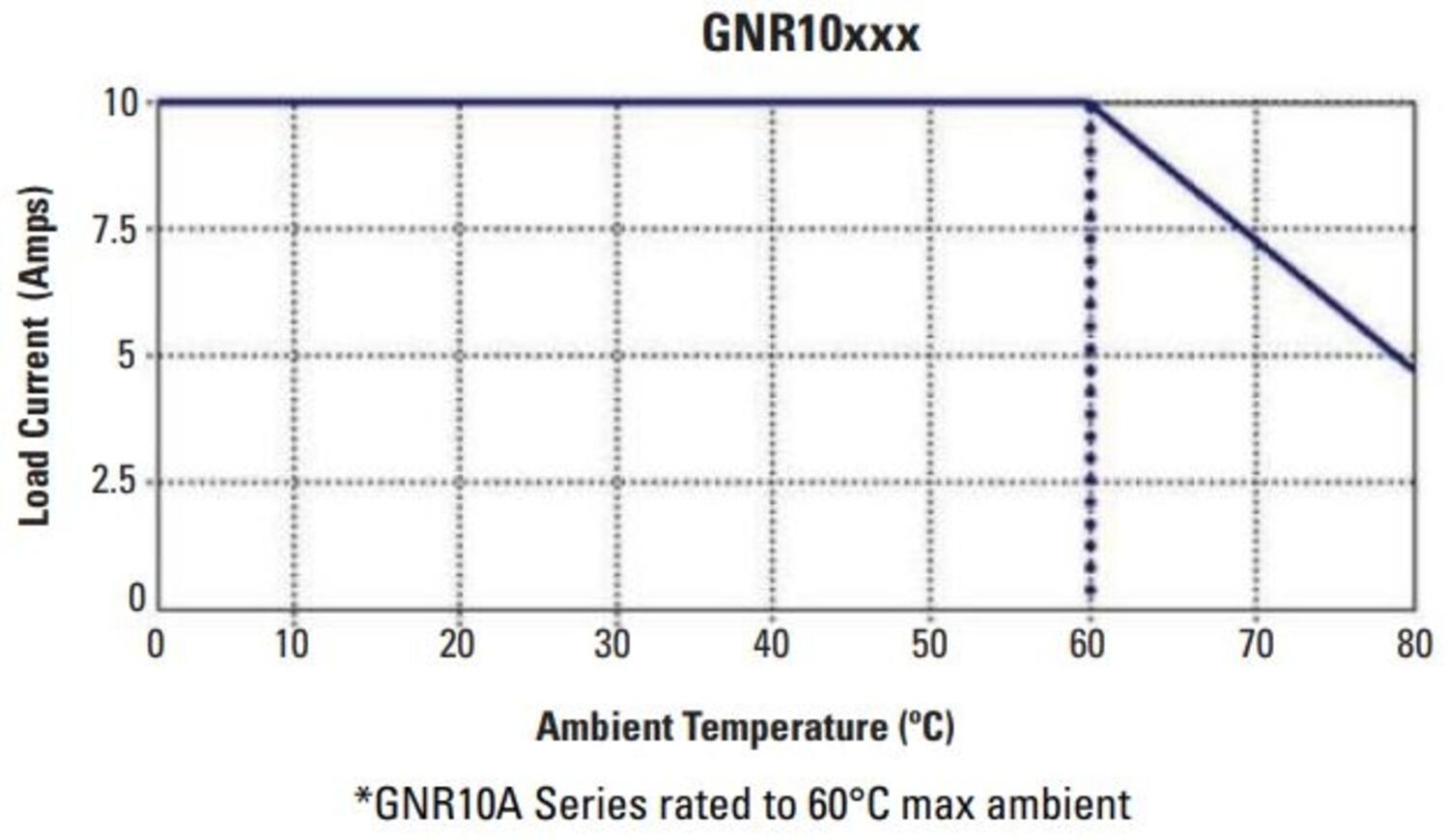

Technical illustrations

Product description

These relays offer a broad range of power ratings which makes them suitable for diverse applications. Their high reliability and efficient design have made of them a market favorite for many years.



  • Current ratings of 10, 20 and 30 amps
  • Output voltage ratings: 24-280 and 48-600 VAC
  • Direct Bond Copper (DBC) Substrate
  • LED input status indicator
  • UL 508 Endurance Rating for Enhanced Reliability
  • UL/CSA/TUV Approved, CE Compliant
  • Built-in overvoltage protection
  • DIN Rail or Panel Mount
  • Zero voltage or Instantaneous turn-on output

Accessories

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Type of control Additional features Output current Activation Peak current I2t value Voltage drop over semiconductor at max Output voltage Turn-off voltage Input current max Release time Response time Input current min Control voltage Price
DIN Rail SSR 22.5mm 240V ac 10A, 4-32V dc In, ZC
Art:
GNR10DCZ Copied
Zero voltage turn on
Contactor configuration
10 A
0 V
190 A
182 A²s
1,5 V
24-280V ac
1 V
10 mA
10 ms
10 ms
6 mA
4-32V dc
DIN Rail SSR 22.5mm 240V ac 10A, 4-32V dc In, ZC
Art:
GNR10DHZ Copied
Zero voltage turn on
Relay configuration
10 A
0 V
190 A
182 A²s
1,5 V
24-280V ac
1 V
10 mA
10 ms
10 ms
6 mA
4-32V dc
DIN Rail SSR 22.5mm 240V ac 10A, 120V ac In, ZC
Art:
GNR10BCZ Copied
Zero voltage turn on
Contactor configuration
10 A
0 V
190 A
182 A²s
1,5 V
24-280V ac
10 V
23 mA
20 ms
30 ms
5 mA
90-140V ac
DIN Rail SSR 22.5mm 240V ac 10A, 120V ac In, ZC
Art:
GNR10BHZ Copied
Zero voltage turn on
Relay configuration
10 A
0 V
190 A
182 A²s
1,5 V
24-280V ac
10 V
23 mA
20 ms
30 ms
5 mA
90-140V ac
DIN Rail SSR 22.5mm 240V ac 10A, 240V ac In, ZC
Art:
GNR10ACZ Copied
Zero voltage turn on
Contactor configuration
10 A
0 V
190 A
182 A²s
1,5 V
24-280V ac
10 V
20 mA
20 ms
30 ms
6 mA
180-280V ac
DIN Rail SSR 22.5mm 240V ac 10A, 240V ac In, ZC
Art:
GNR10AHZ Copied
Zero voltage turn on
Relay configuration
10 A
0 V
190 A
182 A²s
1,5 V
24-280V ac
10 V
20 mA
20 ms
30 ms
6 mA
180-280V ac
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, Inst.
Art:
GNR20DCR Copied
Instantaneous turn on
Contactor configuration
20 A
Instantaneous
286 A
410 A²s
1,35 V
48-600V ac
1 V
10 mA
10 ms
10 ms
6 mA
4-32V dc
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, ZC
Art:
GNR20DCZ Copied
Zero voltage turn on
Contactor configuration
20 A
0 V
286 A
410 A²s
1,35 V
48-600V ac
1 V
10 mA
10 ms
10 ms
6 mA
4-32V dc
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, Inst.
Art:
GNR20DHR Copied
Instantaneous turn on
Relay configuration
20 A
Instantaneous
286 A
410 A²s
1,35 V
48-600V ac
1 V
10 mA
10 ms
10 ms
6 mA
4-32V dc
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, ZC
Art:
GNR20DHZ Copied
Zero voltage turn on
Relay configuration
20 A
0 V
286 A
410 A²s
1,35 V
48-600V ac
1 V
10 mA
10 ms
10 ms
6 mA
4-32V dc
DIN Rail SSR 22.5mm 600V ac 20A, 120V ac In, ZC
Art:
GNR20BCZ Copied
Zero voltage turn on
Contactor configuration
20 A
0 V
286 A
410 A²s
1,35 V
48-600V ac
10 V
23 mA
20 ms
30 ms
5 mA
90-140V ac
DIN Rail SSR 22.5mm 600V ac 20A, 120V ac In, ZC
Art:
GNR20BHZ Copied
Zero voltage turn on
Relay configuration
20 A
0 V
286 A
410 A²s
1,35 V
48-600V ac
10 V
23 mA
20 ms
30 ms
5 mA
90-140V ac
DIN Rail SSR 22.5mm 600V ac 20A, 240V ac In, ZC
Art:
GNR20ACZ Copied
Zero voltage turn on
Contactor configuration
20 A
0 V
286 A
410 A²s
1,35 V
48-600V ac
10 V
20 mA
20 ms
30 ms
6 mA
180-280V ac
DIN Rail SSR 22.5mm 600V ac 20A, 240V ac In, ZC
Art:
GNR20AHZ Copied
Zero voltage turn on
Relay configuration
20 A
0 V
286 A
410 A²s
1,35 V
48-600V ac
10 V
20 mA
20 ms
30 ms
6 mA
180-280V ac
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, Inst.
Art:
GNR30DCR Copied
Instantaneous turn on
Contactor configuration
30 A
Instantaneous
716 A
2562 A²s
1,35 V
48-600V ac
1 V
10 mA
10 ms
10 ms
6 mA
4-32V dc
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, ZC
Art:
GNR30DCZ Copied
Zero voltage turn on
Contactor configuration
30 A
0 V
716 A
2562 A²s
1,35 V
48-600V ac
1 V
10 mA
10 ms
10 ms
6 mA
4-32V dc
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, Inst.
Art:
GNR30DHR Copied
Instantaneous turn on
Relay configuration
30 A
Instantaneous
716 A
2562 A²s
1,35 V
48-600V ac
1 V
10 mA
10 ms
10 ms
6 mA
4-32V dc
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, ZC
Art:
GNR30DHZ Copied
Zero voltage turn on
Relay configuration
30 A
0 V
716 A
2562 A²s
1,35 V
48-600V ac
1 V
10 mA
10 ms
10 ms
6 mA
4-32V dc
DIN Rail SSR 22.5mm 600V ac 30A, 120V ac In, ZC
Art:
GNR30BCZ Copied
Zero voltage turn on
Contactor configuration
30 A
0 V
716 A
2562 A²s
1,35 V
48-600V ac
10 V
23 mA
20 ms
30 ms
5 mA
90-140V ac
DIN Rail SSR 22.5mm 600V ac 30A, 120V ac In, ZC
Art:
GNR30BHZ Copied
Zero voltage turn on
Relay configuration
30 A
0 V
716 A
2562 A²s
1,35 V
48-600V ac
10 V
23 mA
20 ms
30 ms
5 mA
90-140V ac
DIN Rail SSR 22.5mm 600V ac 30A, 240V ac In, ZC
Art:
GNR30ACZ Copied
Zero voltage turn on
Contactor configuration
30 A
0 V
716 A
2562 A²s
1,35 V
48-600V ac
10 V
20 mA
20 ms
30 ms
6 mA
180-280V ac
DIN Rail SSR 22.5mm 600V ac 30A, 240V ac In, ZC
Art:
GNR30AHZ Copied
Zero voltage turn on
Relay configuration
30 A
0 V
716 A
2562 A²s
1,35 V
48-600V ac
10 V
20 mA
20 ms
30 ms
6 mA
180-280V ac
