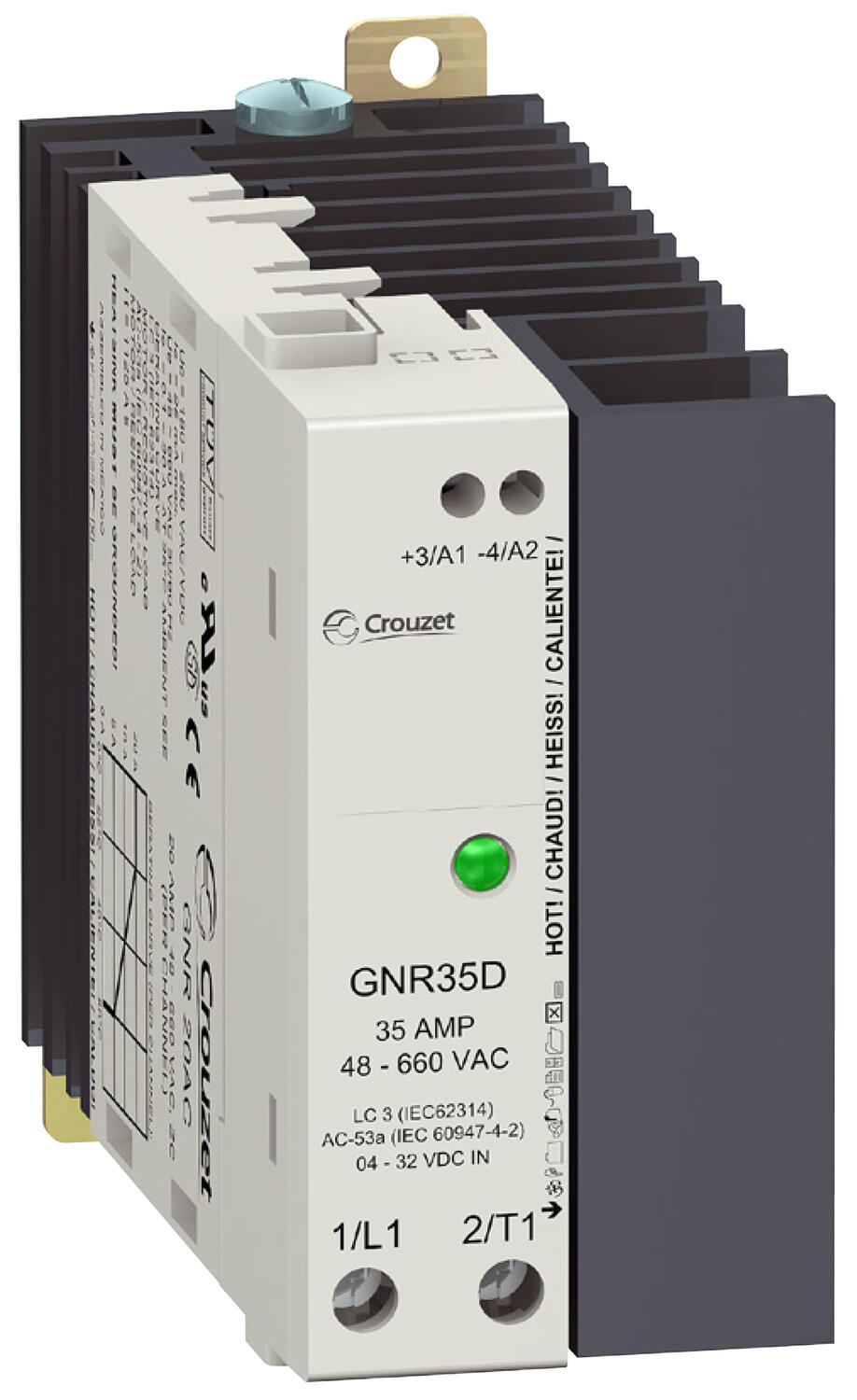

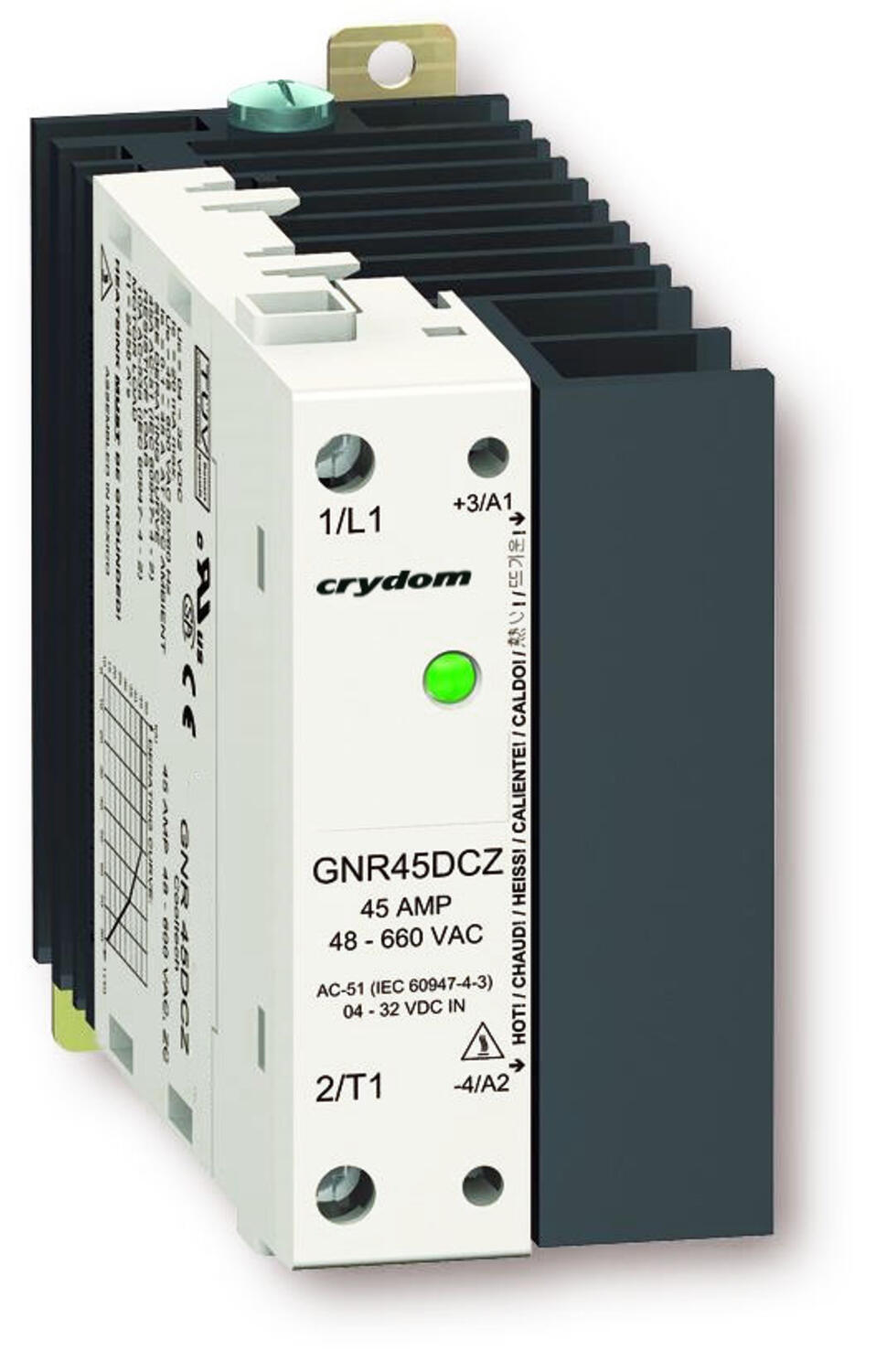

GNR Series 45mm Relay

These relays offer a broad range of power ratings which makes them suitable for diverse applications. Their high reliability and efficient design have made of them a market favorite for many years.



  • Current ratings of 35 and 45 amps
  • Output voltage rating: 48-600 VAC
  • Direct Bond Copper (DBC) Substrate
  • LED input status indicator
  • UL 508 Endurance Rating for Enhanced Reliability
  • UL/CSA/TUV Approved, CE Compliant
  • Built-in overvoltage protection
  • DIN Rail or Panel Mount
  • Zero voltage or Instantaneous turn-on output
Read more
  • Load current 35A and 45A
  • Operating Voltage 48-600 VAC
  • Control Voltage 4-32 VDC, 90-140 VAC and 180-260 VAC
  • Broad range of power ratings

Selected variant

Available in several variants
Sensata Crydom.jpg

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Overview
Output current 35 A
Output voltage 48-600V ac
Control voltage 4-32V dc
Connection Screw connection
Type of control Zero voltage turn on
Activation 0 V
Additional features Relay configuration
Output voltage 48-600V ac

Output Specification
Leakage current at V max, T=25°C max 1 mA
Peak voltage 1100 V
Peak current 130
Voltage drop over semiconductor at max 1,35 V
Number of poles 1
I2t value 2230 A²s
Control voltage 4-32V dc

Input Specification
Turn-off voltage 1 V
Input current min 16 mA

*Invisible Heading*
Input current max 19 mA
Response time 10 ms
Release time 10 ms

General Specification
Insulation voltage in/out 4000 V
Temperature operational min -20 °C
Temperature operational max 80 °C
Storage temperature max 100 °C
Storage temperature min -40 °C
Weight 400 g
Height 88,1 mm
Width 45 mm
Depth 120,7 mm
LED indication Input status indication
Approvals CE, CSA, EMC, UL
IP class IP20
Load voltage AC

Downloads

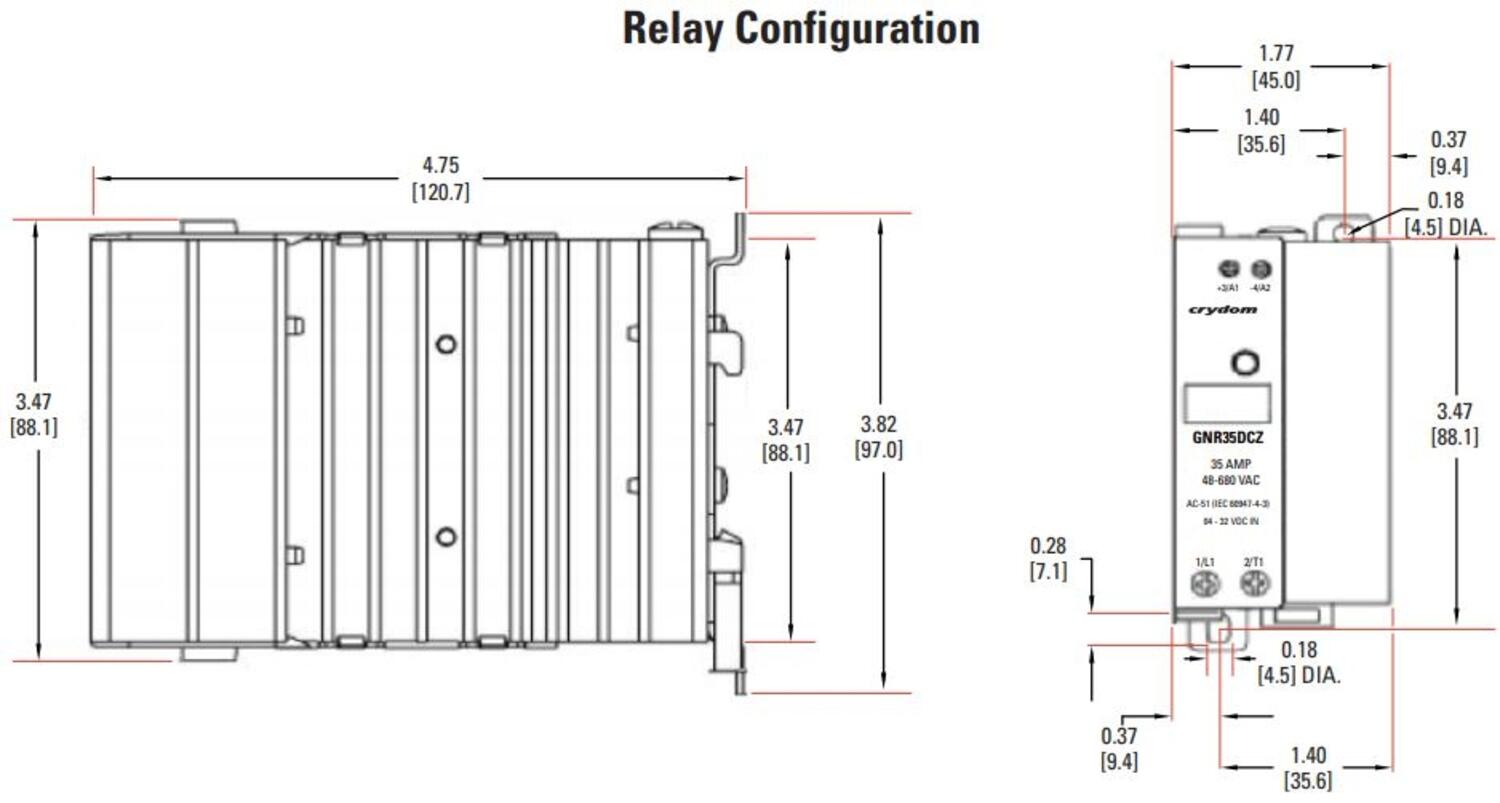

Measurements and connections

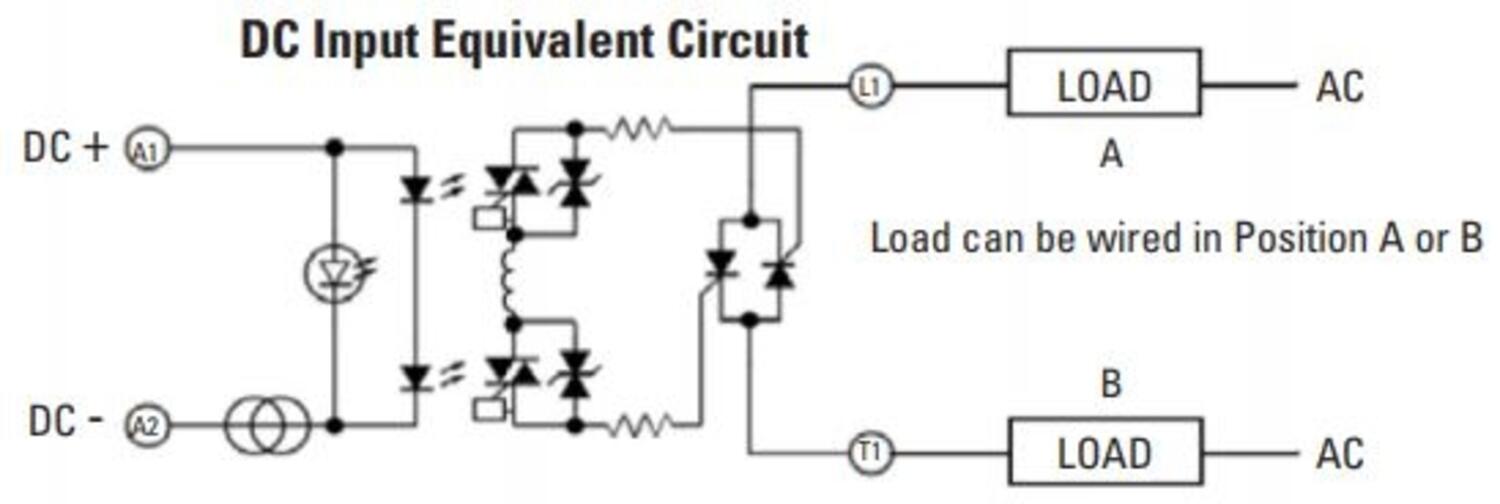

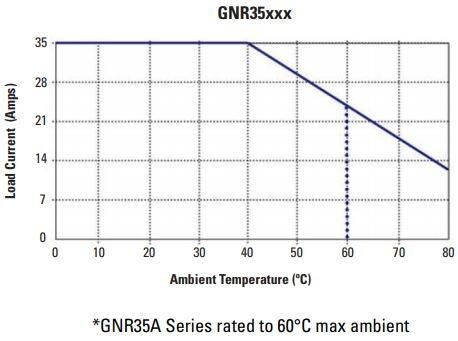

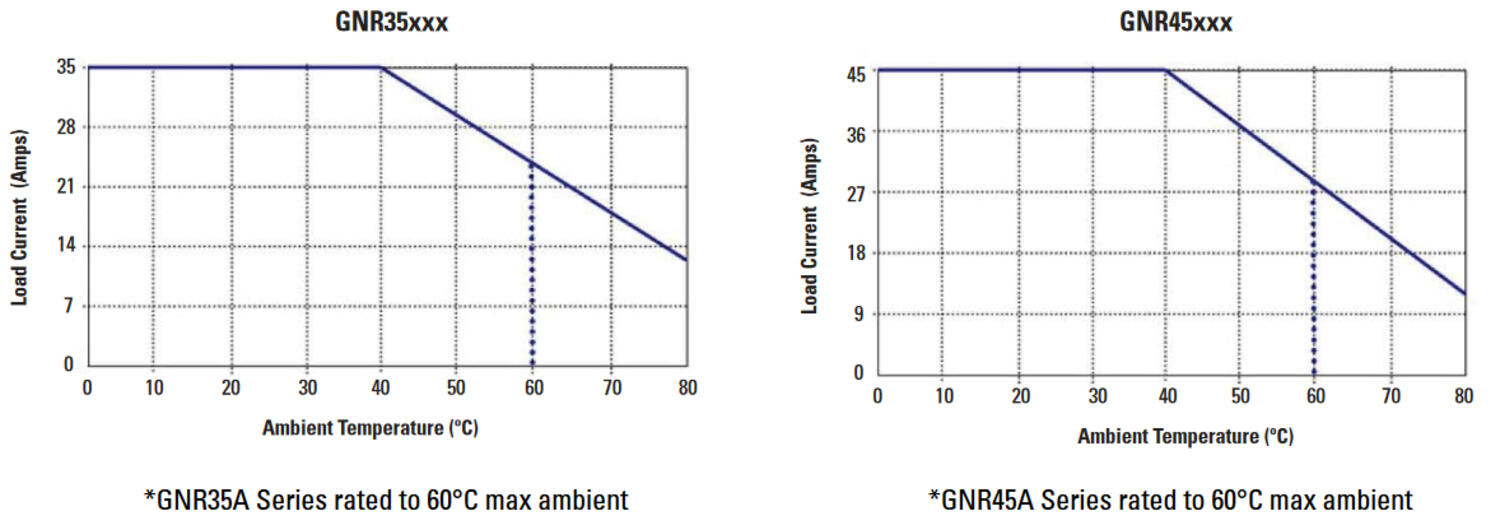

Technical illustrations

Product description

These relays offer a broad range of power ratings which makes them suitable for diverse applications. Their high reliability and efficient design have made of them a market favorite for many years.



  • Current ratings of 35 and 45 amps
  • Output voltage rating: 48-600 VAC
  • Direct Bond Copper (DBC) Substrate
  • LED input status indicator
  • UL 508 Endurance Rating for Enhanced Reliability
  • UL/CSA/TUV Approved, CE Compliant
  • Built-in overvoltage protection
  • DIN Rail or Panel Mount
  • Zero voltage or Instantaneous turn-on output
