SENSATA CRYDOM
These relays offer a broad range of power ratings which makes them suitable for diverse applications. Their high reliability and efficient design have made of them a market favorite for many years.
Â
Overview |
|
|---|---|
| Output current | 25 A |
| Output voltage | 48-600V ac |
| Control voltage | 4-32V dc |
| Connection | Screw connection |
| Type of control | Zero voltage turn on |
| Activation | 0 V |
| Additional features | Overvoltage protection built in |
| Output voltage | 48-600V ac |
Output Specification |
|
| Peak voltage | 1100 V |
| Peak current | 130 |
| Voltage drop over semiconductor at max | 1,3 V |
| Number of poles | 3 |
| I2t value | 410 A²s |
| Control voltage | 4-32V dc |
Input Specification |
|
| Turn-off voltage | 1 V |
| Input current min | 22 mA |
*Invisible Heading* |
|
|---|---|
| Input current max | 28 mA |
| Response time | 10 ms |
| Release time | 10 ms |
General Specification |
|
| Insulation voltage in/out | 4000 V |
| Temperature operational min | -20 °C |
| Temperature operational max | 80 °C |
| Storage temperature max | 100 °C |
| Storage temperature min | -40 °C |
| Weight | 600 g |

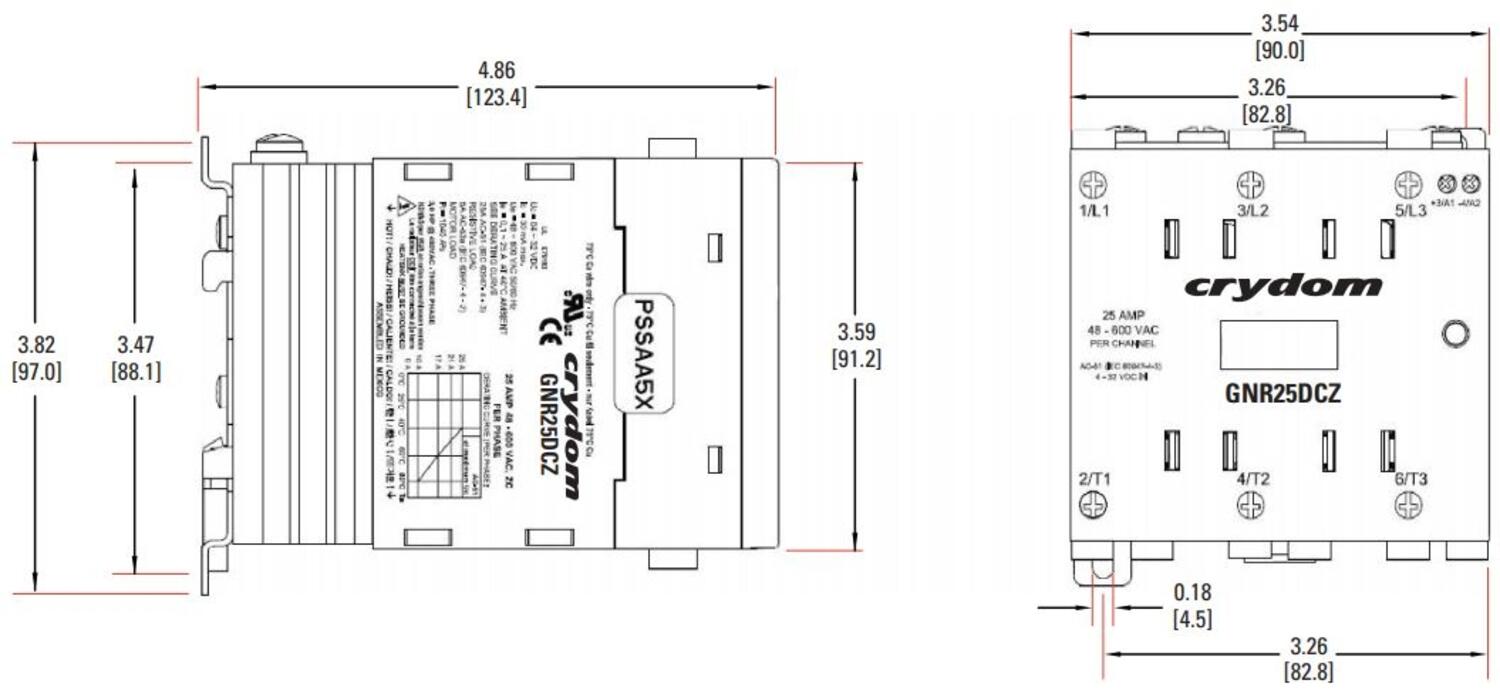

| Height | 91,2 mm |
| Width | 90 mm |
| Depth | 123,4 mm |
| LED indication | Input status indication |
| Approvals | CE, CSA, EMC, UL |
| IP class | IP20 |
These relays offer a broad range of power ratings which makes them suitable for diverse applications. Their high reliability and efficient design have made of them a market favorite for many years.
Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Type of control | Activation | Control voltage | Turn-off voltage | Input current min | Input current max | Response time | Release time | Load voltage | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIN Rail 3ph SSR 90mm 600V ac 25A, 4-32V dc In, ZC
Art:
GNR25DCZ
Copied
|
Zero voltage turn on
|
0 V
|
4-32V dc
|
1 V
|
22 mA
|
28 mA
|
10 ms
|
10 ms
|
|
| ||
|
DIN Rail 3ph SSR 90mm 600V ac 25A, 4-32V dc In, Inst.
Art:
GNR25DCR
Copied
|
Instantaneous turn on
|
Instantaneous
|
4-32V dc
|
1 V
|
22 mA
|
28 mA
|
10 ms
|
10 ms
|
AC
|
| ||
|
DIN Rail 3ph SSR 90mm 600V ac 25A, 240V ac In, ZC
Art:
GNR25ACZ
Copied
|
Zero voltage turn on
|
0 V
|
180-280V ac
|
10 V
|
19 mA
|
24 mA
|
30 ms
|
20 ms
|
|
| ||
|
DIN Rail 3ph SSR 90mm 600V ac 25A, 120V ac In, ZC
Art:
GNR25BCZ
Copied
|
Zero voltage turn on
|
0 V
|
90-140V ac
|
10 V
|
15 mA
|
19 mA
|
30 ms
|
20 ms
|
AC
|
|
Select a variant in the list
