SENSATA CRYDOM

Nova22 Series AC Output

NOVA22 solid state relays were developed combining technology and innovation to offer high performing solid state relays in a 22.5mm industrial package.

The advanced design and technology used in NOVA22 products provide greater power density than any other 22.5 mm wide SSR in the market: 35 A in DIN rail mount and 95 A in Panel Mount package.



Wide and innovative range of connection

The unique range of terminal options and configurations makes NOVA22 the most versatile solution.

  • Relay or contactor terminal configurations
  • Screw or spring cage plug-in input terminals
  • Standard or elevator screws, allowing the use of ring terminals



Diverse range of applications

NOVA22 solid State Relays can be used in a wide range of ac and dc applications. Ideal for heating applications, NOVA22s are also suitable for motion, power and lighting applications; especially for demanding applications that require higher levels of reliability including:

  • Industrial OEMs: Plastic machinery, packaging and material handling equipment, industrial ovens, pumps
  • Food & Beverage: Baking ovens, refrigeration, food processing equipment
  • Building Equipment: HVAC&R, lighting, access control
  • Energy & Infrastructure: Renewable Energy, water and waste water treatments
  • Transportation: Railway vehicles, agricultural machinery
Read more
  • Load current 20, 30 and 35 A
  • Operating voltage 48-600 VAC
  • Control voltage 4-32 VDC and 90-280 VAC/VDC
  • Relay or contactor configurations
  • Load Monitoring Module available for contactor configuration

Selected variant

Available in several variants
Sensata Crydom.jpg

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Overview
Type of control Zero voltage turn on
Connection Screw connection
Output current 20 A
Control voltage 4-32V dc
Output voltage 48-600V ac

Output Specification
Leakage current at V max, T=25°C max 1 mA
Peak current 286 A
Load current min 100 mA
Number of poles 1
I2t value 409 A²s
Voltage drop over semiconductor at max 1,35 V
Peak voltage 1200 V
Output voltage 48-600V ac

Input Specification
Turn-off voltage 1 V
Input current max 15 mA
Control voltage dc min 4 V

*Invisible Heading*
Input current min 10 mA
Control voltage 4-32V dc
Control voltage dc max 32 V

General Specification
IP class IP20
Storage temperature min -40 °C
Insulation voltage in/out 4000 V
Temperature operational max 80 °C
Weight 298 g
Width 22,5 mm
Storage temperature max 100 °C
Temperature operational min -40 °C
LED indication Input status indication
Approvals CE, CSA, EMC, UL
Height 93,2 mm
Load voltage AC

Downloads

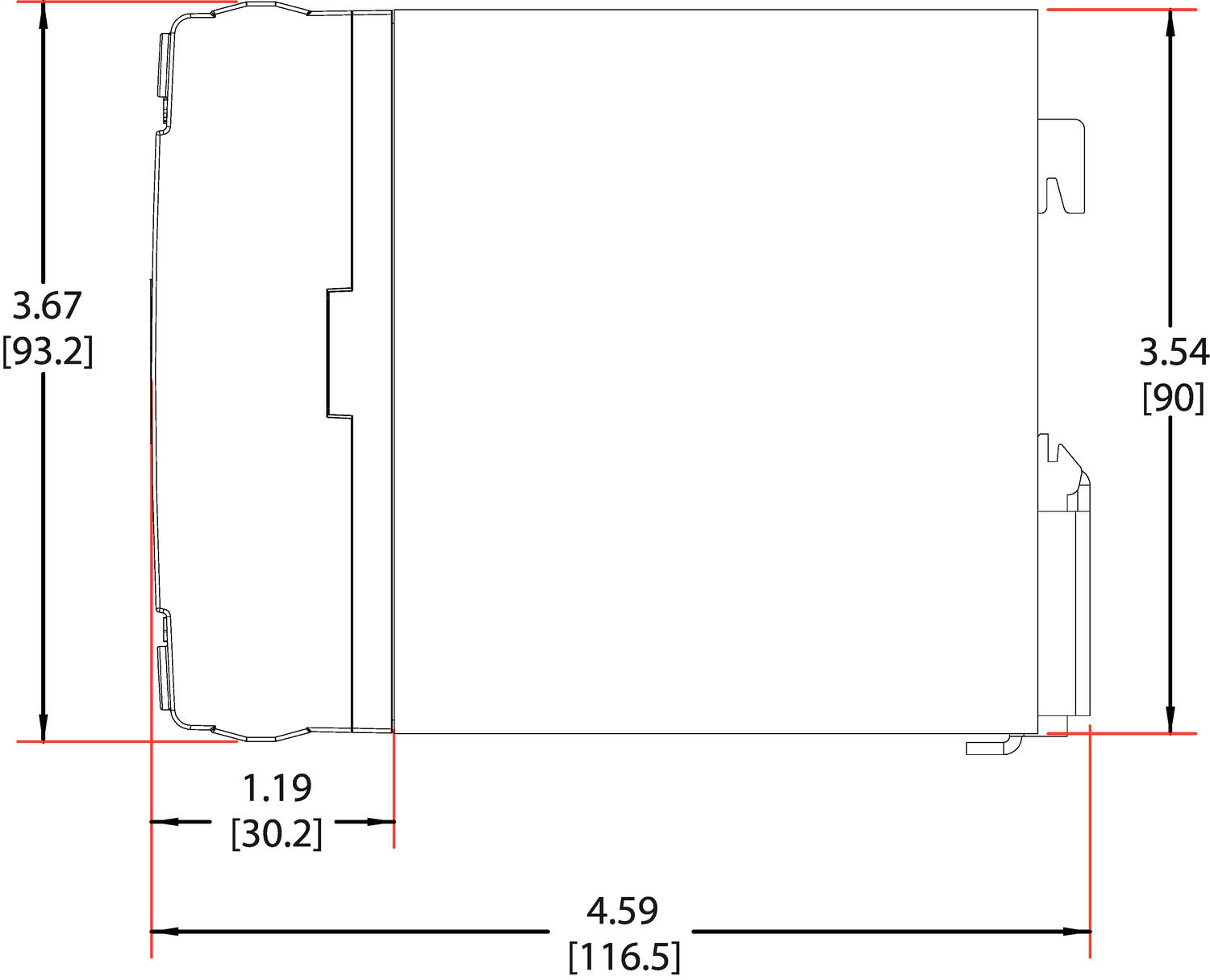

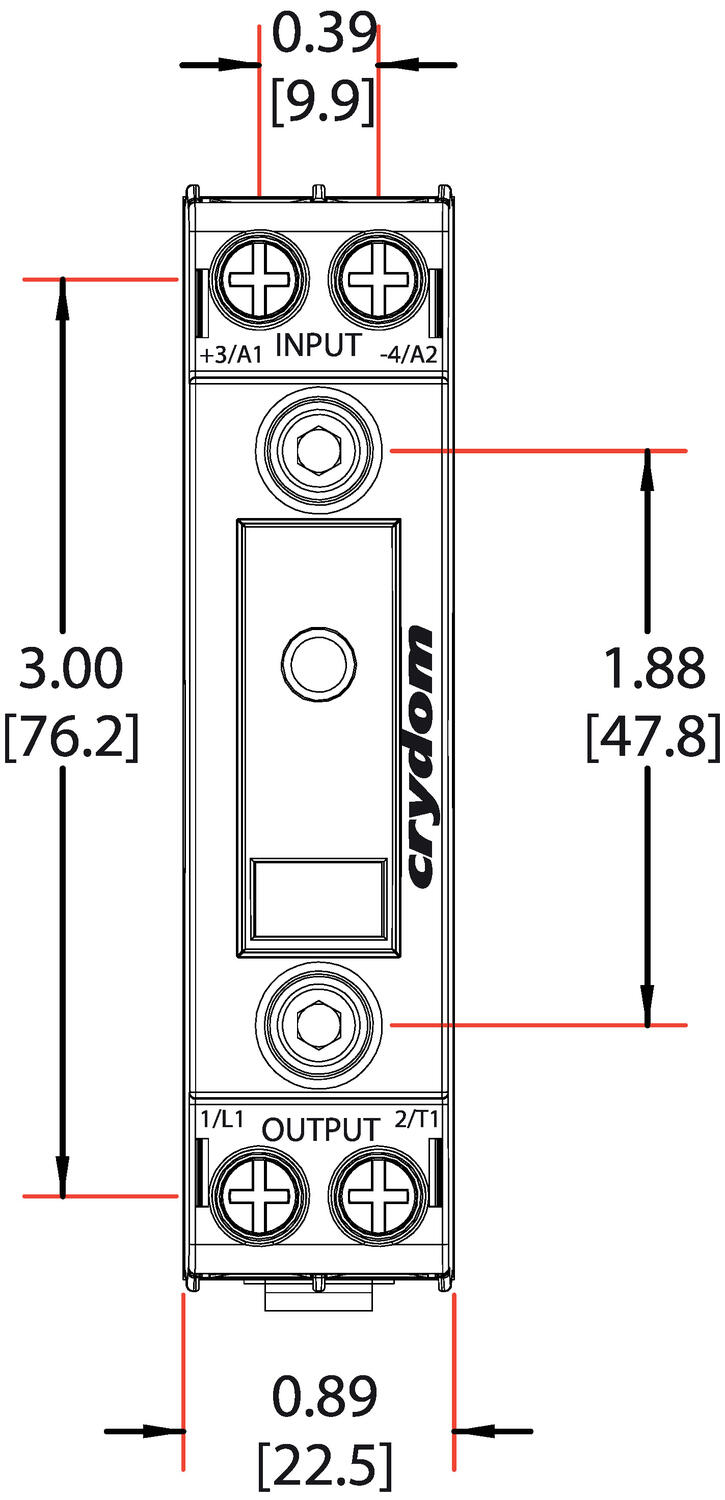

Measurements and connections

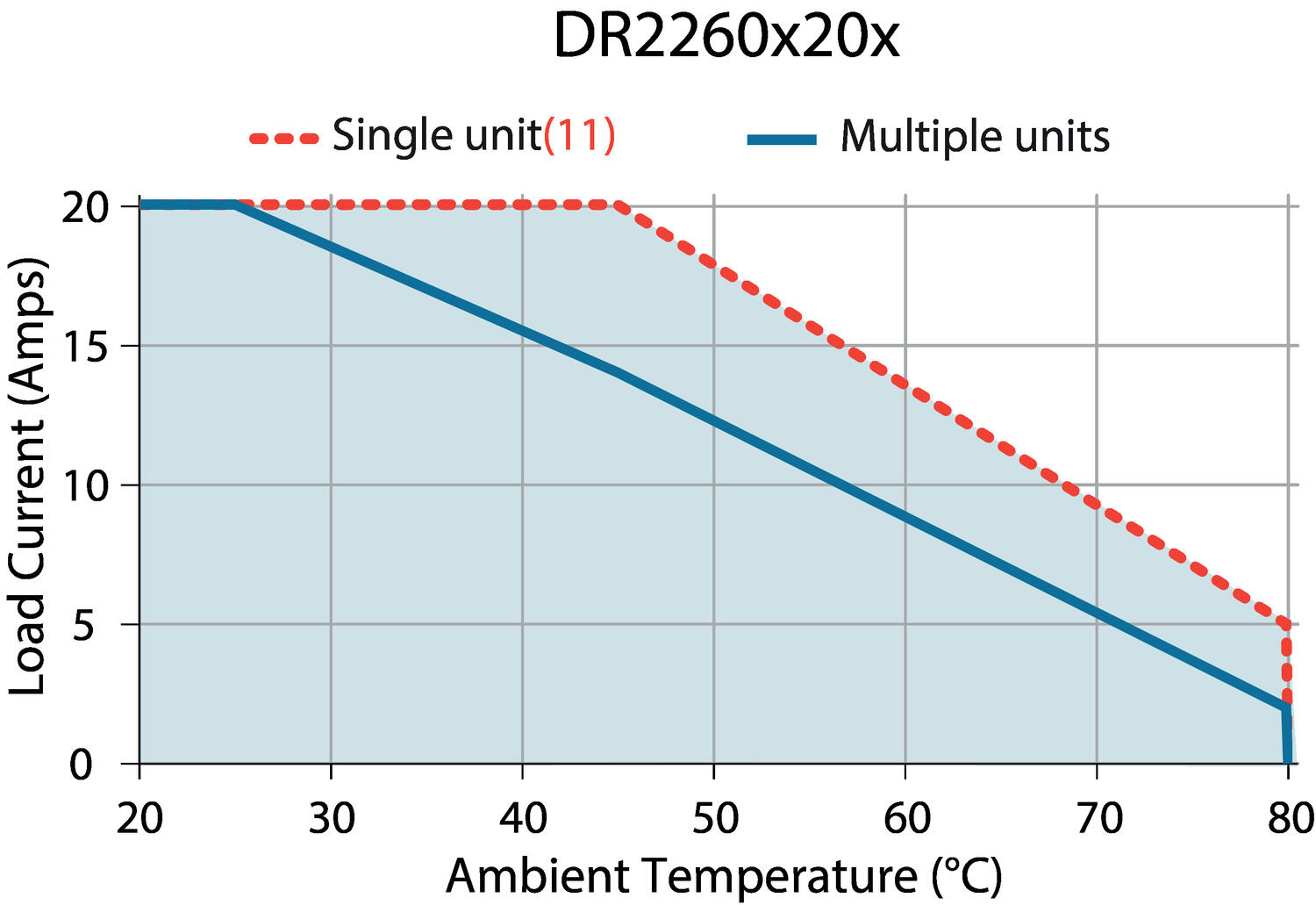

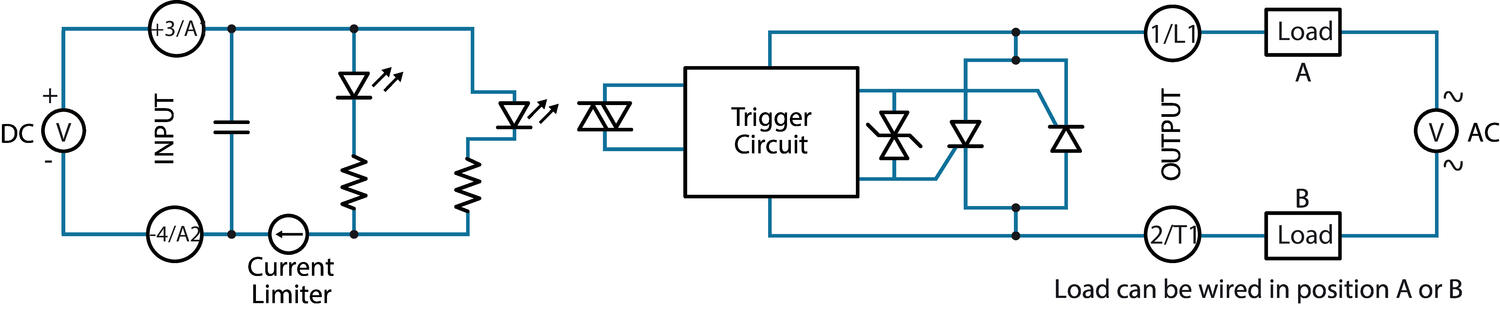

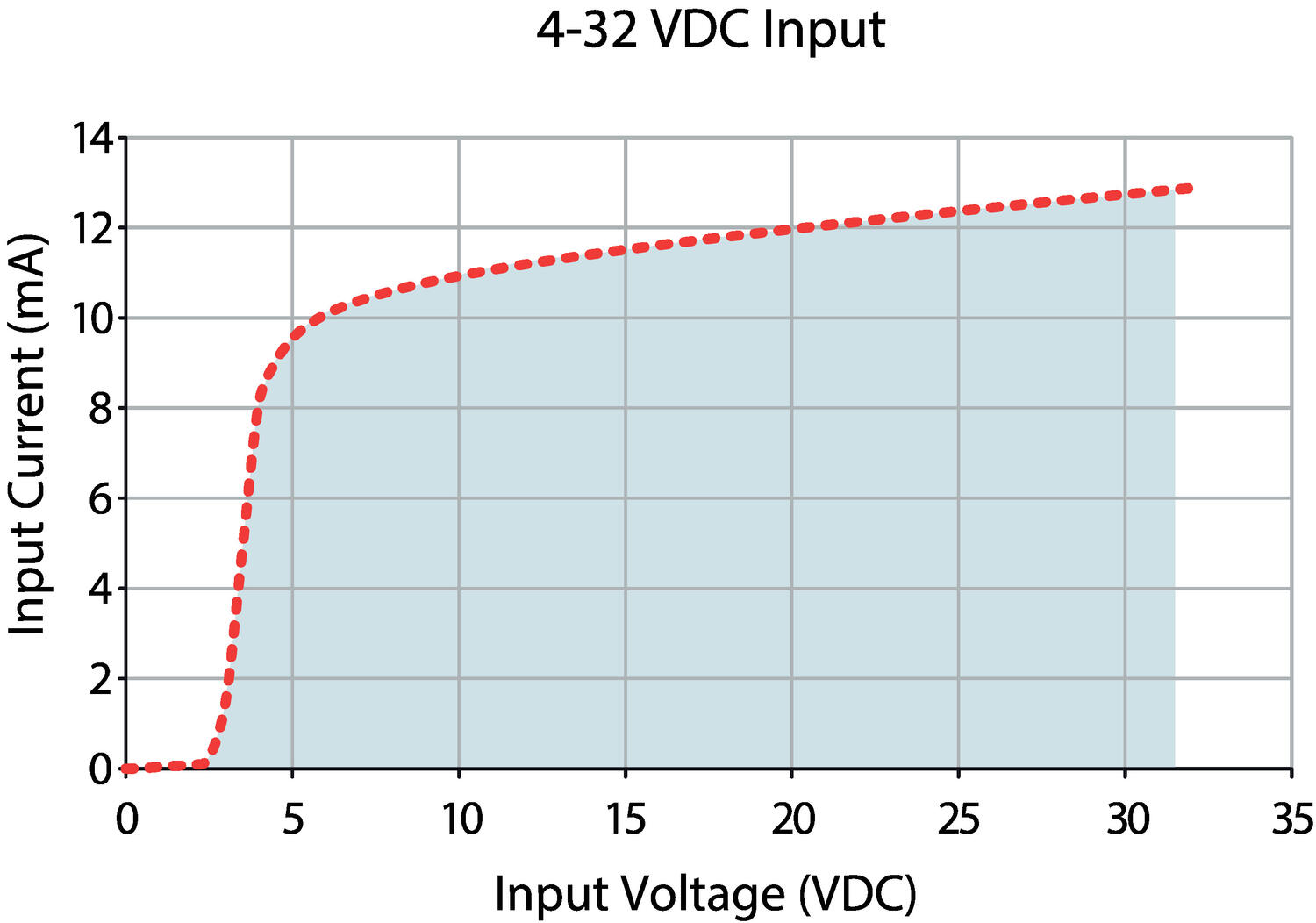

Technical illustrations

Product description

NOVA22 solid state relays were developed combining technology and innovation to offer high performing solid state relays in a 22.5mm industrial package.

The advanced design and technology used in NOVA22 products provide greater power density than any other 22.5 mm wide SSR in the market: 35 A in DIN rail mount and 95 A in Panel Mount package.



Wide and innovative range of connection

The unique range of terminal options and configurations makes NOVA22 the most versatile solution.

  • Relay or contactor terminal configurations
  • Screw or spring cage plug-in input terminals
  • Standard or elevator screws, allowing the use of ring terminals



Diverse range of applications

NOVA22 solid State Relays can be used in a wide range of ac and dc applications. Ideal for heating applications, NOVA22s are also suitable for motion, power and lighting applications; especially for demanding applications that require higher levels of reliability including:

  • Industrial OEMs: Plastic machinery, packaging and material handling equipment, industrial ovens, pumps
  • Food & Beverage: Baking ovens, refrigeration, food processing equipment
  • Building Equipment: HVAC&R, lighting, access control
  • Energy & Infrastructure: Renewable Energy, water and waste water treatments
  • Transportation: Railway vehicles, agricultural machinery

Accessories

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Type of control Connection Output current Peak current Load current min I2t value Voltage drop over semiconductor at max Turn-off voltage Control voltage ac/dc max Input current max Control voltage dc min Input current min Control voltage Control voltage dc max Control voltage ac/dc min Weight Height Load voltage Price
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, ZC
Art:
DR2260D20U Copied
Zero voltage turn on
Screw connection
20 A
286 A
100 mA
409 A²s
1,35 V
1 V
15 mA
4 V
10 mA
4-32V dc
32 V
298 g
93,2 mm
AC
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, ZC
Art:
DR2260D20W Copied
Zero voltage turn on
Screw connection
20 A
286 A
100 mA
409 A²s
1,35 V
1 V
15 mA
4 V
10 mA
4-32V dc
32 V
301 g
91,9 mm
AC
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, ZC
Art:
DR2260D30U Copied
Zero voltage turn on
Screw connection
30 A
716 A
100 mA
2563 A²s
1,35 V
1 V
15 mA
4 V
10 mA
4-32V dc
32 V
298 g
93,2 mm
AC
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, ZC
Art:
DR2260D30W Copied
Zero voltage turn on
Screw connection
30 A
716 A
100 mA
2563 A²s
1,35 V
1 V
15 mA
4 V
10 mA
4-32V dc
32 V
301 g
91,9 mm
AC
DIN Rail SSR 22.5mm 600V ac 30A, 90-280V ac/dc In, ZC
Art:
DR2260A30U Copied
Zero voltage turn on
Screw connection
30 A
716 A
100 mA
2563 A²s
1,35 V
5 V
250 V
10 mA
6 mA
90-250V ac/dc
90 V
298 g
93,2 mm
AC
DIN Rail SSR 22.5mm 600V ac 35A, 90-280V ac/dc In, ZC
Art:
DR2260A35W Copied
Zero voltage turn on
Screw connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
5 V
250 V
10 mA
6 mA
90-250V ac/dc
90 V
301 g
91,9 mm
AC
DIN Rail SSR 22.5mm 600V ac 35A, 4-32V dc In, ZC
Art:
DR2260D35W Copied
Zero voltage turn on
Screw connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
1 V
15 mA
4 V
10 mA
4-32V dc
32 V
301 g
91,9 mm
AC
DIN Rail SSR 22.5mm 600V ac 20A, 90-280V ac/dc In, ZC
Art:
DR2260A20U Copied
Zero voltage turn on
Screw connection
20 A
286 A
100 mA
409 A²s
1,35 V
5 V
250 V
10 mA
6 mA
90-250V ac/dc
90 V
298 g
93,2 mm
DIN Rail SSR 22.5mm 600V ac 20A, 90-280V ac/dc In, Inst.
Art:
DR2260A20UR Copied
Instantaneous turn on
Screw connection
20 A
286 A
100 mA
409 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
298 g
93,2 mm
DIN Rail SSR 22.5mm 600V ac 20A, 90-280V ac/dc In, ZC
Art:
DR2260A20V Copied
Zero voltage turn on
Screw connection
20 A
286 A
100 mA
409 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 90-280V ac/dc In, ZC
Art:
DR2260A20VJ Copied
Zero voltage turn on
Spring connection
20 A
286 A
100 mA
409 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 90-280V ac/dc In, Inst.
Art:
DR2260A20VR Copied
Instantaneous turn on
Screw connection
20 A
286 A
100 mA
409 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 90-280V ac/dc In, Inst.
Art:
DR2260A20VRJ Copied
Instantaneous turn on
Spring connection
20 A
286 A
100 mA
409 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 90-280V ac/dc In, ZC
Art:
DR2260A20W Copied
Zero voltage turn on
Screw connection
20 A
286 A
100 mA
409 A²s
1,35 V
5 V
250 V
10 mA
6 mA
90-250V ac/dc
90 V
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 90-280V ac/dc In, ZC
Art:
DR2260A20WJ Copied
Zero voltage turn on
Spring connection
20 A
286 A
100 mA
409 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 90-280V ac/dc In, Inst.
Art:
DR2260A20WR Copied
Instantaneous turn on
Screw connection
20 A
286 A
100 mA
409 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 90-280V ac/dc In, Inst.
Art:
DR2260A20WRJ Copied
Instantaneous turn on
Spring connection
20 A
286 A
100 mA
409 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 90-280V ac/dc In, Inst.
Art:
DR2260A30UR Copied
Instantaneous turn on
Screw connection
30 A
716 A
100 mA
2563 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
298 g
93,2 mm
DIN Rail SSR 22.5mm 600V ac 30A, 90-280V ac/dc In, ZC
Art:
DR2260A30V Copied
Zero voltage turn on
Screw connection
30 A
716 A
100 mA
2563 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 90-280V ac/dc In, ZC
Art:
DR2260A30VJ Copied
Zero voltage turn on
Spring connection
30 A
716 A
100 mA
2563 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 90-280V ac/dc In, Inst.
Art:
DR2260A30VR Copied
Instantaneous turn on
Screw connection
30 A
716 A
100 mA
2563 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 90-280V ac/dc In, Inst.
Art:
DR2260A30VRJ Copied
Instantaneous turn on
Spring connection
30 A
716 A
100 mA
2563 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 90-280V ac/dc In, ZC
Art:
DR2260A30WJ Copied
Zero voltage turn on
Spring connection
30 A
716 A
100 mA
2563 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 90-280V ac/dc In, Inst.
Art:
DR2260A30WR Copied
Instantaneous turn on
Screw connection
30 A
716 A
100 mA
2563 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 90-280V ac/dc In, Inst.
Art:
DR2260A30WRJ Copied
Instantaneous turn on
Spring connection
30 A
716 A
100 mA
2563 A²s
1,35 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 90-280V ac/dc In, Inst.
Art:
DR2260A35UR Copied
Instantaneous turn on
Screw connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
5 V
10 mA
6 mA
90-280V ac/dc
298 g
93,2 mm
DIN Rail SSR 22.5mm 600V ac 35A, 90-280V ac/dc In, ZC
Art:
DR2260A35V Copied
Zero voltage turn on
Screw connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 90-280V ac/dc In, ZC
Art:
DR2260A35VJ Copied
Zero voltage turn on
Spring connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 90-280V ac/dc In, Inst.
Art:
DR2260A35VR Copied
Instantaneous turn on
Screw connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 90-280V ac/dc In, Inst.
Art:
DR2260A35VRJ Copied
Instantaneous turn on
Spring connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 90-280V ac/dc In, ZC
Art:
DR2260A35WJ Copied
Zero voltage turn on
Spring connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 90-280V ac/dc In, Inst.
Art:
DR2260A35WR Copied
Instantaneous turn on
Screw connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 90-280V ac/dc In, Inst.
Art:
DR2260A35WRJ Copied
Instantaneous turn on
Spring connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
5 V
10 mA
6 mA
90-280V ac/dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, Inst.
Art:
DR2260D20UR Copied
Instantaneous turn on
Screw connection
20 A
286 A
100 mA
409 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
298 g
93,2 mm
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, ZC
Art:
DR2260D20V Copied
Zero voltage turn on
Screw connection
20 A
286 A
100 mA
409 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, ZC
Art:
DR2260D20VJ Copied
Zero voltage turn on
Spring connection
20 A
286 A
100 mA
409 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, Inst.
Art:
DR2260D20VR Copied
Instantaneous turn on
Screw connection
20 A
286 A
100 mA
409 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, Inst.
Art:
DR2260D20VRJ Copied
Instantaneous turn on
Spring connection
20 A
286 A
100 mA
409 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, ZC
Art:
DR2260D20WJ Copied
Zero voltage turn on
Spring connection
20 A
286 A
100 mA
409 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, Inst.
Art:
DR2260D20WR Copied
Instantaneous turn on
Screw connection
20 A
286 A
100 mA
409 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 20A, 4-32V dc In, Inst.
Art:
DR2260D20WRJ Copied
Instantaneous turn on
Spring connection
20 A
286 A
100 mA
409 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, Inst.
Art:
DR2260D30UR Copied
Instantaneous turn on
Screw connection
30 A
716 A
100 mA
2563 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
298 g
93,2 mm
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, ZC
Art:
DR2260D30V Copied
Zero voltage turn on
Screw connection
30 A
716 A
100 mA
2563 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, ZC
Art:
DR2260D30VJ Copied
Zero voltage turn on
Spring connection
30 A
716 A
100 mA
2563 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, Inst.
Art:
DR2260D30VR Copied
Instantaneous turn on
Screw connection
30 A
716 A
100 mA
2563 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, Inst.
Art:
DR2260D30VRJ Copied
Instantaneous turn on
Spring connection
30 A
716 A
100 mA
2563 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, ZC
Art:
DR2260D30WJ Copied
Zero voltage turn on
Spring connection
30 A
716 A
100 mA
2563 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, Inst.
Art:
DR2260D30WR Copied
Instantaneous turn on
Screw connection
30 A
716 A
100 mA
2563 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 30A, 4-32V dc In, Inst.
Art:
DR2260D30WRJ Copied
Instantaneous turn on
Spring connection
30 A
716 A
100 mA
2563 A²s
1,35 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 4-32V dc In, Inst.
Art:
DR2260D35UR Copied
Instantaneous turn on
Screw connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
1 V
15 mA
10 mA
4-32V dc
298 g
93,2 mm
DIN Rail SSR 22.5mm 600V ac 35A, 4-32V dc In, ZC
Art:
DR2260D35V Copied
Zero voltage turn on
Screw connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 4-32V dc In, ZC
Art:
DR2260D35VJ Copied
Zero voltage turn on
Spring connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 4-32V dc In, Inst.
Art:
DR2260D35VR Copied
Instantaneous turn on
Screw connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 4-32V dc In, Inst.
Art:
DR2260D35VRJ Copied
Instantaneous turn on
Spring connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 4-32V dc In, ZC
Art:
DR2260D35WJ Copied
Zero voltage turn on
Spring connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 4-32V dc In, Inst.
Art:
DR2260D35WR Copied
Instantaneous turn on
Screw connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm
DIN Rail SSR 22.5mm 600V ac 35A, 4-32V dc In, Inst.
Art:
DR2260D35WRJ Copied
Instantaneous turn on
Spring connection
35 A
1290 A
150 mA
8320 A²s
1,3 V
1 V
15 mA
10 mA
4-32V dc
301 g
91,9 mm

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
