DELCON

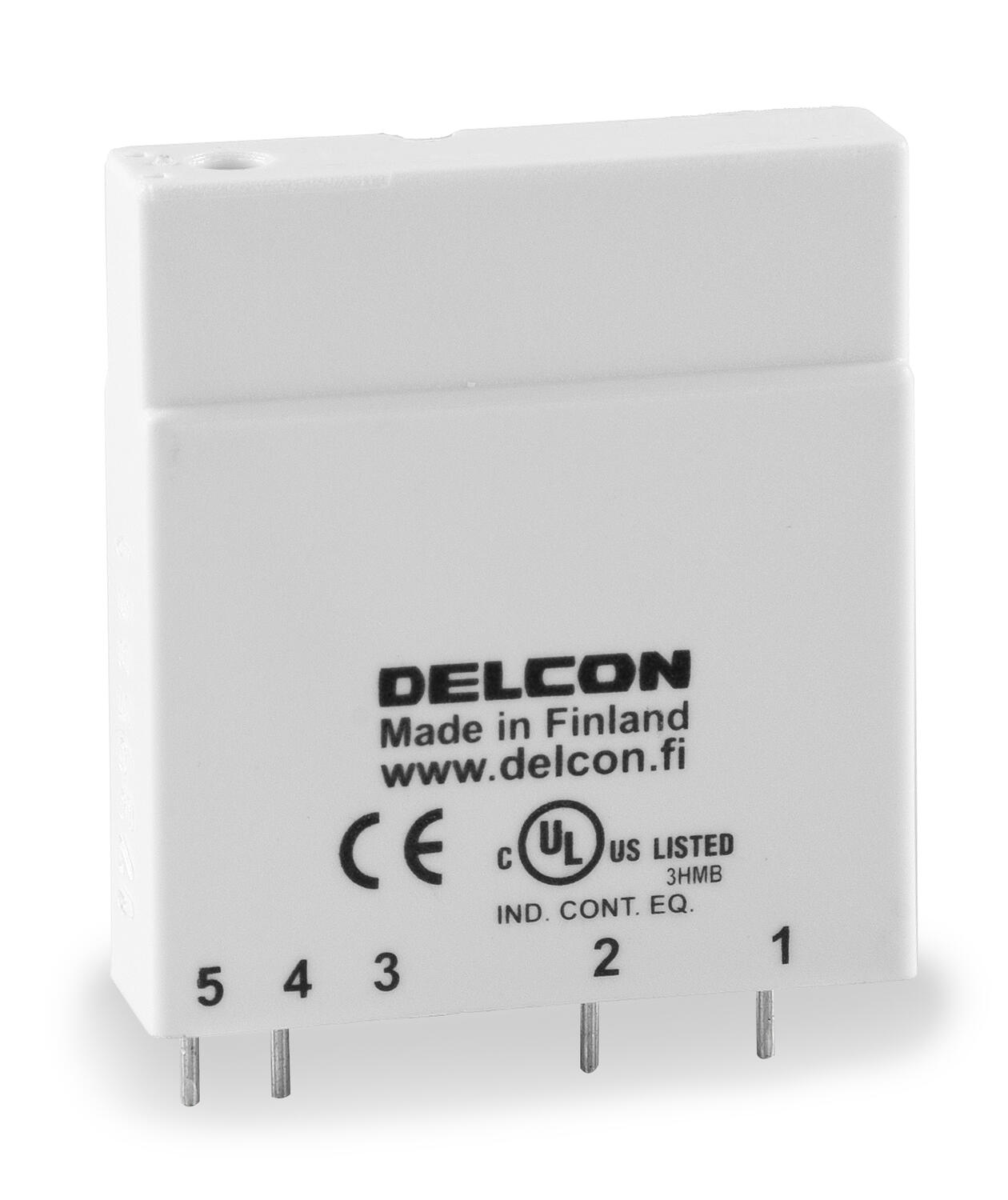

The relays are used as an interface between DC sensors and control systems. The integrated interference protection provides reliable operation even in very demanding electrical environments. Thanks to interference protection, signal cables can be run alongside power cables on, for example, cable racks for more than 1.5 km without capacitive cross-talk affecting relays. The relays have no mechanical parts, which provides very reliable application. If high frequencies occur from sensors for counting inputs, for example, we recommend SLI24CRF.
Input data |
|
|---|---|
| Turn-off voltage | 6 V |
| Input impedance, typ | 1,8 kΩ |
| Input voltage dc max | 18 V DC |
| Release time | 0,3 ms |
| Input current at nominal voltage, typ | 6,5 mA |
| Response time | 0,3 ms |
| Switching voltage | 7,5 V |
| Input current at nominal voltage, max | 7,5 mA |
| Input voltage nom | 12 |
| Input voltage dc min | 9 V DC |
Output data |
|
| Leakage current | 1 µA |
| Number of poles | 1 |
| Voltage drop | 0,2 V |
*Invisible Heading* |
|
|---|---|
| Load voltage dc max | 60 V |
| Voltage drop over semiconductor at max | 0,4 V |
| Load current | 50 mA |
General data |
|
| Colour | White |
| Storage temperature min | -40 °C |
| Temperature operational max | 70 °C |
| Weight | 40 g |
| Width | 12,5 mm |
| Storage temperature max | 70 °C |
| Temperature operational min | -40 °C |
| Approvals | CE, UL |
The relays are used as an interface between DC sensors and control systems. The integrated interference protection provides reliable operation even in very demanding electrical environments. Thanks to interference protection, signal cables can be run alongside power cables on, for example, cable racks for more than 1.5 km without capacitive cross-talk affecting relays. The relays have no mechanical parts, which provides very reliable application. If high frequencies occur from sensors for counting inputs, for example, we recommend SLI24CRF.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Turn-off voltage | Control voltage dc min | Input impedance, typ | Input voltage dc max | Release time | Input current at nominal voltage, typ | Response time | Switching voltage | Input current at nominal voltage, max | Response time | Control voltage dc max | Input voltage nom | Release time | Input voltage dc min | Temperature operational min | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
I/P Plug-in Relay 12V dc
Art:
SLI12CR
Copied
|
6 V
|
|
1,8 kΩ
|
18 V DC
|
0,3 ms
|
6,5 mA
|
0,3 ms
|
7,5 V
|
7,5 mA
|
|
|
12
|
|
9 V DC
|
-40 °C
|
| ||
|
I/P Plug-in Relay 24V dc
Art:
SLI24CR
Copied
|
14 V
|
|
4 kΩ
|
32 V DC
|
0,3 ms
|
6 mA
|
0,3 ms
|
16 V
|
7 mA
|
|
|
24
|
|
18 V DC
|
-40 °C
|
| ||
|
I/P Plug-in Relay 48-60V dc
Art:
SLI48CR
Copied
|
26 V
|
|
8 kΩ
|
70 V DC
|
0,3 ms
|
6 mA
|
0,3 ms
|
36 V
|
7 mA
|
|
|
48
|
|
40 V DC
|
-40 °C
|
| ||
|
I/P Plug-in Relay 125V dc
Art:
SLI125CR
Copied
|
60 V
|
|
31 kΩ
|
140 V DC
|
0,3 ms
|
4 mA
|
0,3 ms
|
80 V
|
4,2 mA
|
|
|
125
|
|
90 V DC
|
-40 °C
|
| ||
|
I/P Plug-in Relay 250V dc
Art:
SLI250CR
Copied
|
110 V
|
190 V
|
68 kΩ
|
|
0,5 ms
|
3,7 mA
|
0,5 ms
|
170 V
|
4 mA
|
|
265 V
|
220
|
|
|
-25 °C
|
| ||
|
I/P Plug-in Relay 24V dc Fast Connection
Art:
SLI24CRF
Copied
|
14 V
|
|
4 kΩ
|
32 V DC
|
|
6 mA
|
|
16 V
|
7 mA
|
5 µs
|
|
24
|
20 µs
|
18 V DC
|
-40 °C
|
|
Select a variant in the list
