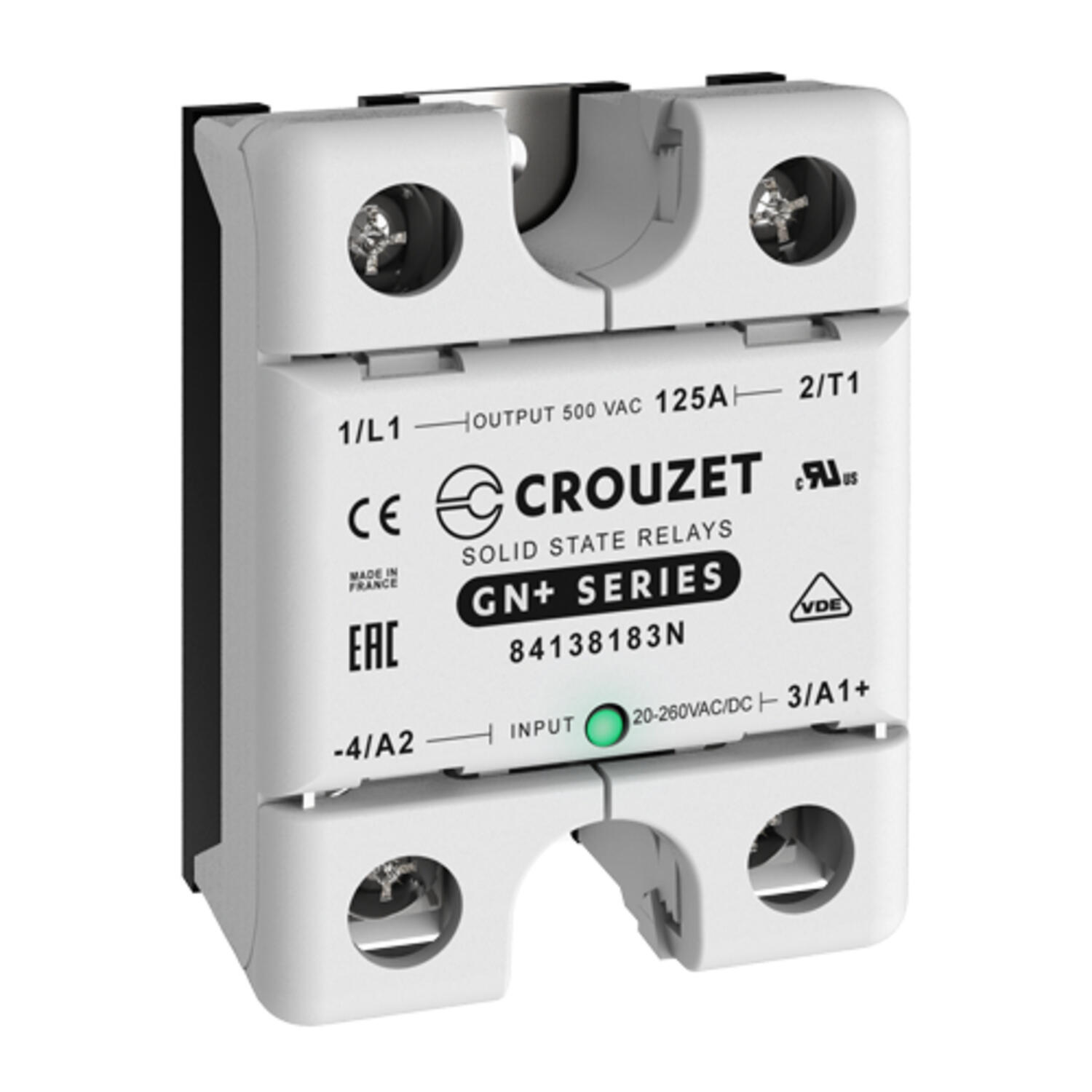

Crouzet - GN+ series solid state relay

Panel Mount - AC Output Single Phase

  • Zero cross switching
  • Output current 25 - 125 Amps
  • Built-in overvoltage protection
  • LED input status indicator

Selected variant

Available in several variants
Crouzet_Control_logo.eps

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Overview
Mounting Panel mount
Type of control Special zero voltage turn on
Output current 25 A
Control voltage 4-32V dc
Output voltage 12-270V ac

Output Specification
Transient Voltage 600 V pk
Maximum off-state leakage current 1 mA rms
Minimum Load Current 5 mA rms
Maximum 1 cycle surge current 250/260 (min) 340 (typ)
Thermal resistance junction to case 1,7 °C/W
1 Second surge current 95 A
Number of poles 1
Maximum Load Current 25 A rms
Output voltage 12-270V ac
Maximum 1/2 Cycle I² t for fusing (A² sec) 340/600
Minimum heat sink for rated current @ 40 °C 1,3 °C/W
Maximum on-state voltage drop 1.25V

Input Specification
Input Current Max 14 mA
Minimum turn-on voltage 3V dc

*Invisible Heading*
Maximum turn-off time (ms) 1/2 cycle
Input current min 10 mA
Maximum turn-on time (ms) 1/2 cycle
Must turn-off voltage 2V dc
Maximum reverse voltage -32V dc
Control voltage 4-32V dc

General Specification
Depth 29,1 mm
Weight 80 g
Ambient operating temperature -40 ... +80°C
Dielectric strength input to output (50/60Hz) 4000 V rms
Width 44,5 mm
LED input status indicator Green
Housing material UL94 V-0
Ambient storage temperature -40 ... +100°C
Material base Aluminium
Approvals CE, cRUus, VDE
Height 59,4 mm

Downloads

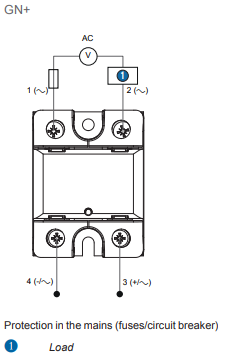

Measurements and connections

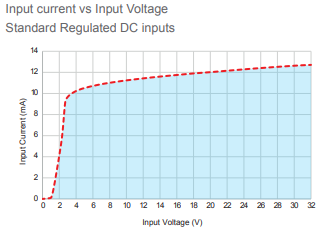

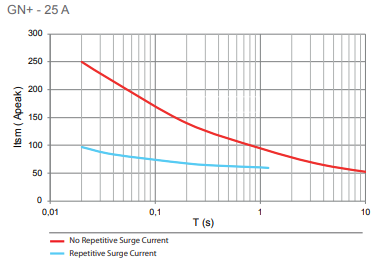

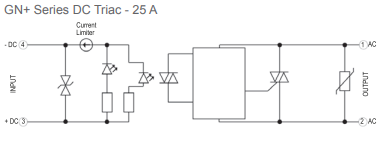

Technical illustrations

Accessories

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Output current Transient Voltage Maximum 1 cycle surge current Thermal resistance junction to case 1 Second surge current Maximum Load Current Output voltage Maximum 1/2 Cycle I² t for fusing (A² sec) Minimum heat sink for rated current @ 40 °C Maximum on-state voltage drop Input Current Max Minimum turn-on voltage Input current min Must turn-off voltage Maximum reverse voltage Control voltage Price
Crouzet GN+ series solid state relay
SSR 25A 12-270 VAC Out 4-32 VDC In SZC
Art:
84138010N Copied
25 A
600 V pk
250/260 (min) 340 (typ)
1,7 °C/W
95 A
25 A rms
12-270V ac
340/600
1,3 °C/W
1.25V
14 mA
3V dc
10 mA
2V dc
-32V dc
4-32V dc
Crouzet GN+ series solid state relay
SSR 25A 12-270 VAC Out 20-260 VAC/DC In SZC
Art:
84138013N Copied
25 A
600 V pk
250/260 (min) 340 (typ)
1,7 °C/W
95 A
25 A rms
12-270V ac
340/600
1,3 °C/W
1.25V
10 mA
18V ac/dc
6.5 mA AC / 4.5 mA DC
5V ac/dc
20-260V ac/dc
Crouzet GN+ series solid state relay
SSR 50A 24-500 VAC Out 4-32 VDC In SZC
Art:
84138120N Copied
50 A
1200 V pk
700/_ (min) 750 (typ)
0,4 °C/W
230 A
50 A rms
24-500V ac
2450/2800
0,78 °C/W
1.37V
14 mA
3V dc
10 mA
2V dc
-32V dc
4-32V dc
Crouzet GN+ series solid state relay
SSR 50A 24-500 VAC Out 20-260 VAC/DC In SZC
Art:
84138123N Copied
50 A
1200 V pk
700/_ (min) 750 (typ)
0,4 °C/W
230 A
50 A rms
24-500V ac
2450/2800
0,78 °C/W
1.37V
10 mA
18V ac/dc
6.5 mA AC / 4.5 mA DC
5V ac/dc
20-260V ac/dc
Crouzet GN+ series solid state relay
SSR 90A 24-500 VAC Out 4-32 VDC In SZC
Art:
84138150N Copied
90 A
1200 V pk
1100/_ (min) 1200 (typ)
0,3 °C/W
347 A
90 A rms
24-500V ac
6000/7200
0,33 °C/W
1.4V
14 mA
3V dc
10 mA
2V dc
-32V dc
4-32V dc
Crouzet GN+ series solid state relay
SSR 90A 24-500 VAC Out 20-260 VAC/DC In SZC
Art:
84138153N Copied
90 A
1200 V pk
1100/_ (min) 1200 (typ)
0,3 °C/W
347 A
90 A rms
24-500V ac
6000/7200
0,33 °C/W
1.4V
10 mA
18V ac/dc
6.5 mA AC / 4.5 mA DC
5V ac/dc
20-260V ac/dc
Crouzet GN+ series solid state relay
SSR 125A 24-500 VAC Out 4-32 VDC In SZC
Art:
84138180N Copied
125 A
1200 V pk
2000/_ (min) 2100 (typ)
0,25 °C/W
613 A
125 A rms
24-500V ac
20000/22000
0,29 °C/W
1.15V
14 mA
3V dc
10 mA
2V dc
-32V dc
4-32V dc
Crouzet GN+ series solid state relay
SSR 125A 24-500 VAC Out 20-260 VAC/DC In SZC
Art:
84138183N Copied
125 A
1200 V pk
2000/_ (min) 2100 (typ)
0,25 °C/W
613 A
125 A rms
24-500V ac
20000/22000
0,29 °C/W
1.15V
10 mA
18V ac/dc
6.5 mA AC / 4.5 mA DC
5V ac/dc
20-260V ac/dc
