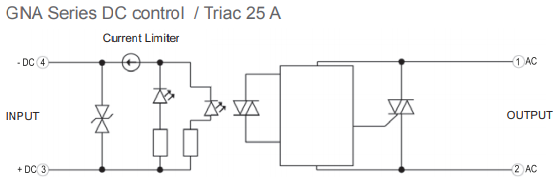

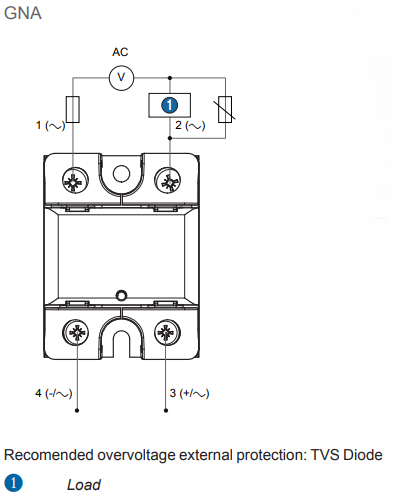

Overview |
|
|---|---|
| Mounting | Panel mount |
| Type of control | Zero voltage turn on |
| Output current | 25 A |
| Control voltage | 4-32V dc |
| Output voltage | 24-280V ac |
Output Specification |
|
| Transient Voltage | 600 V pk |
| Maximum off-state leakage current | 1 mA rms |
| Minimum Load Current | 5 mA rms |

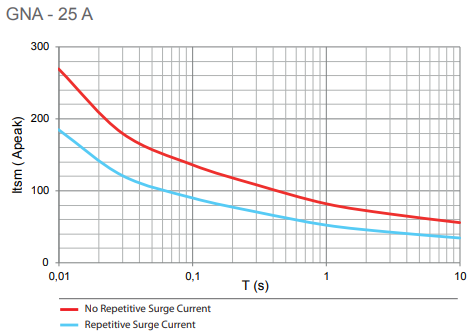

| Maximum 1 cycle surge current | 270/284 (min) 340 (typ) |
| Thermal resistance junction to case | 1,7 °C/W |
| 1 Second surge current | 100 |
| Number of poles | 1 |
| Maximum Load Current | 25 A rms |
| Output voltage | 24-280V ac |
| Maximum 1/2 Cycle I² t for fusing (A² sec) | 487 |

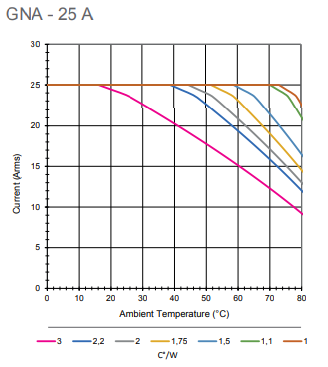

| Minimum heat sink for rated current @ 40 °C | 1,3 °C/W |
| Maximum on-state voltage drop | 1.22V |
Input Specification |
|

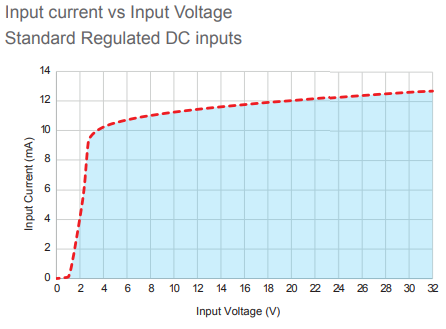

| Input Current Max | 14 mA |
| Minimum turn-on voltage | 3V dc |
*Invisible Heading* |
|
|---|---|
| Maximum turn-off time (ms) | 1/2 Cycle |
| Input current min | 10 mA |
| Maximum turn-on time (ms) | 1/2 Cycle |
| Must turn-off voltage | 1V dc |
| Maximum reverse voltage | -32V dc |
| Control voltage | 4-32V dc |
General Specification |
|

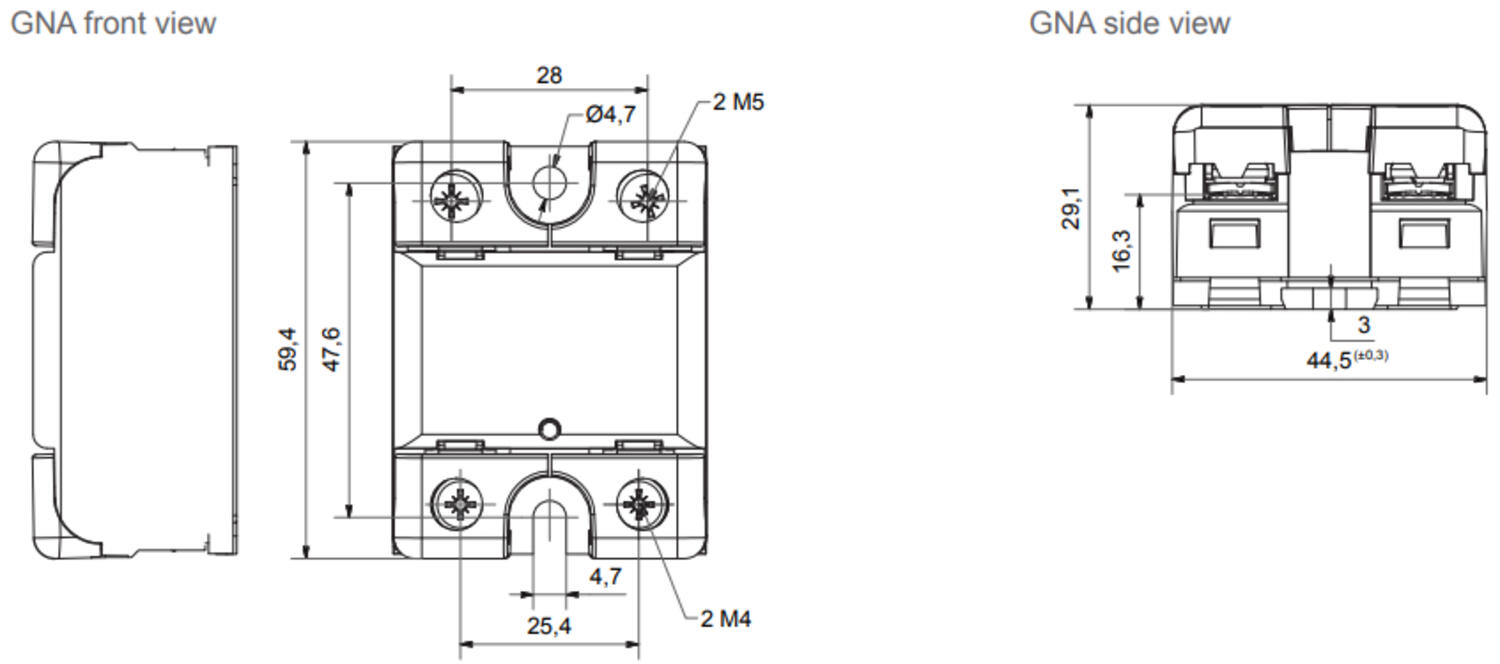

| Depth | 29,1 mm |
| Weight | 80 g |
| Ambient operating temperature | -40 ... +80°C |
| Dielectric strength input to output (50/60Hz) | 4000 V rms |
| Width | 44,5 mm |
| LED input status indicator | Green |
| Housing material | UL94 V-0 |
| Ambient storage temperature | -40 ... +100°C |
| Material base | Aluminium |
| Approvals | CE, cRUus, VDE |
| Height | 59,4 mm |
