Overview |
|
---|---|
Mounting | Panel mount |
Type of control | DC Switching |
Output current | 10 A |
Control voltage | 4-32V dc |
Output voltage | 5-200V dc |
Output Specification |
|
Transient Voltage | 200 V pk |
Maximum off-state leakage current | 3 mA rms |
Minimum Load Current | 5 mA rms |
Thermal resistance junction to case | 0,66 °C/W |
Number of poles | 1 |
Maximum Load Current | 20 A rms |
Output voltage | 5-200V dc |
Minimum heat sink for rated current @ 40 °C | 3,4 °C/W |
Maximum on-state voltage drop | 0.97V pk |
Input Specification |
|

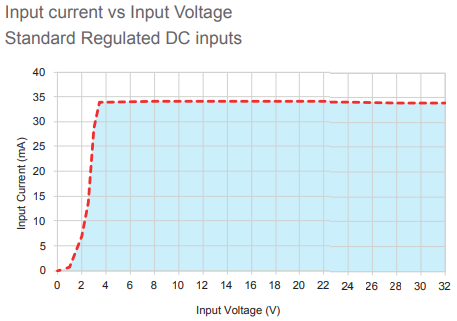

Input Current Max | 35 mA |
Minimum turn-on voltage | 3.5V dc |
Maximum turn-off time (ms) | 0.02 |
*Invisible Heading* |
|
---|---|
Input current min | 34 mA |
Maximum turn-on time (ms) | 0.02 |
Must turn-off voltage | 1V dc |
Maximum reverse voltage | -32V dc |
Control voltage | 4-32V dc |
General Specification |
|
Depth | 29,1 mm |
Weight | 80 g |
Ambient operating temperature | -25 ... +90°C |
Width | 44,5 mm |
LED input status indicator | Green |
Housing material | UL94 V-0 |
Ambient storage temperature | -40 ... +100°C |
Material base | Aluminium |
Approvals | CE, cRUus |
Height | 59,4 mm |
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Output current | Transient Voltage | Thermal resistance junction to case | Maximum Load Current | Output voltage | Minimum heat sink for rated current @ 40 °C | Maximum on-state voltage drop | Price | ||
---|---|---|---|---|---|---|---|---|---|---|
![]()
SSR 10A 5-200 VDC Out 4-32 VDC In
Art:
84137850N
Copied
|
10 A
|
200 V pk
|
0,66 °C/W
|
20 A rms
|
5-200V dc
|
3,4 °C/W
|
0.97V pk
|
| ||
![]()
SSR 40A 5-60 VDC Out 4-32 VDC In
Art:
84137870N
Copied
|
40 A
|
100 V pk
|
0,9 °C/W
|
40 A rms
|
5-60V dc
|
1,15 °C/W
|
1.05V pk
|
|
Select a variant in the list
