Overview |
|
|---|---|
| Output current | 25 A |
| Output voltage | 24-510V ac |
| Control voltage | 12-30V dc |
| Mounting | Panel mount |
| Type of control | Special zero voltage turn on |
| Output voltage | 24-510V ac |
Output Specification |
|
| Transient Voltage | 1600 V pk |
| Maximum off-state leakage current | 1 mA rms |
| 1 Second surge current | 230 |
| Maximum 1 cycle surge current | 320/_ (min) 420 (typ) |
| Maximum on-state voltage drop | 1.18V pk |
| Thermal resistance junction to case | 0,4 °C/W |
| Maximum 1/2 Cycle I² t for fusing (A² sec) | 512/880 |
| Minimum heat sink for rated current @ 40 °C | 7 °C/W |
| Number of poles | 3 |
| Control voltage | 12-30V dc |
Input Specification |
|
| Minimum turn-on voltage | 12V dc |
*Invisible Heading* |
|
|---|---|
| Must turn-off voltage | 1V dc |
| Input current min | 15 mA |
| Input Current Max | 28 mA |
| Maximum turn-on time (ms) | 1/2 cycle |
| Maximum turn-off time (ms) | 1/2 cycle |
General Specification |
|
| Dielectric strength input to output (50/60Hz) | 4000 V rms |
| Ambient operating temperature | -40 ... +80°C |
| Ambient storage temperature | -40 ... +100°C |
| Weight | 200 g |
| Height | 76,5 mm |
| Width | 100 mm |
| Depth | 34,7 mm |
| Housing material | UL94 V-0 |
| Material base | Aluminium |
| LED input status indicator | Green |
| Approvals | CE, UKCA, cRUus |
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Output current | Maximum 1 cycle surge current | Maximum on-state voltage drop | Maximum 1/2 Cycle I² t for fusing (A² sec) | Minimum heat sink for rated current @ 40 °C | Price | ||
|---|---|---|---|---|---|---|---|---|
Art:
GN025DSRL
Copied
|
25 A
|
320/_ (min) 420 (typ)
|
1.18V pk
|
512/880
|
7 °C/W
|
| ||
Art:

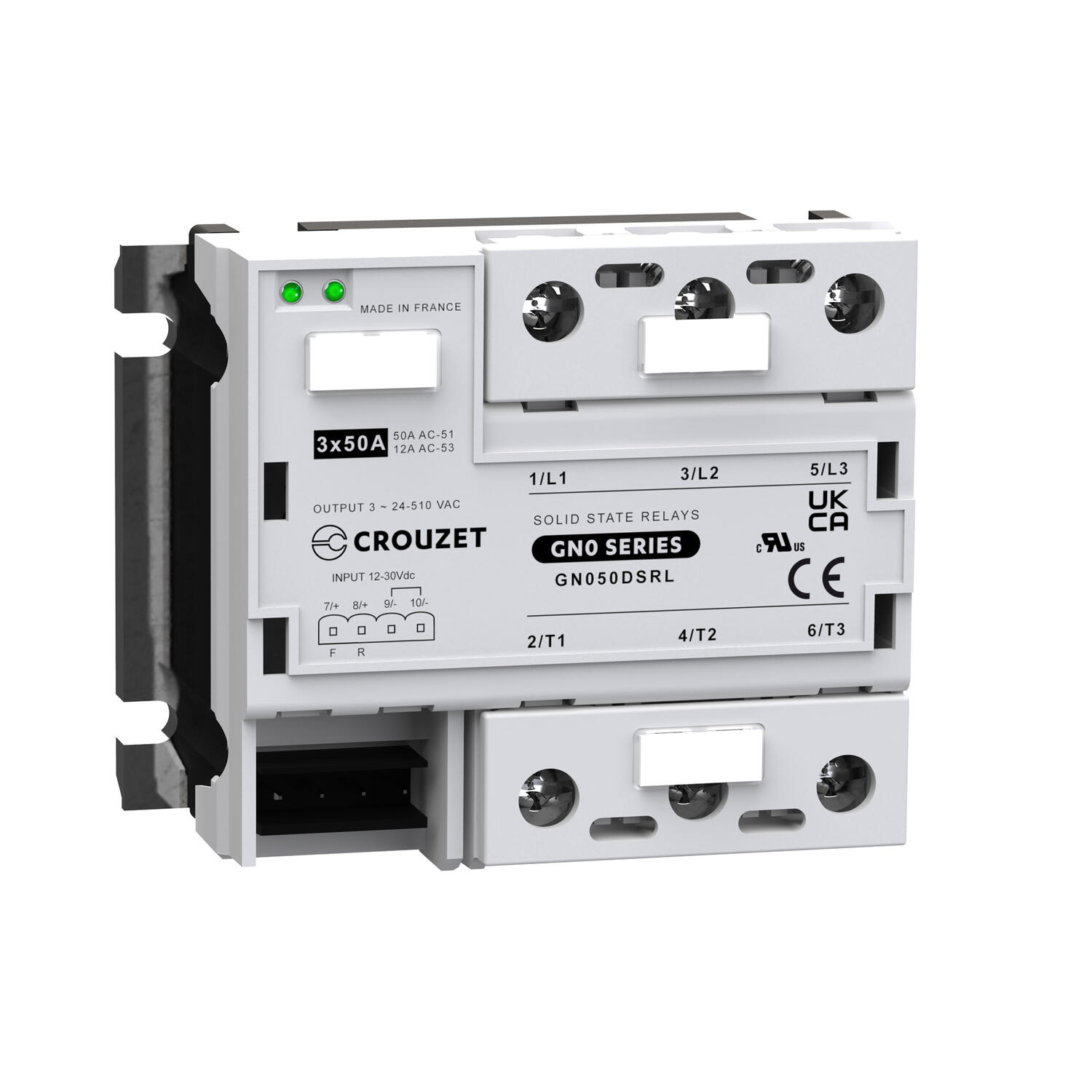

GN050DSRL
Copied
|
50 A
|
700/_ (min) 750 (typ)
|
1.38 Vpk
|
2450/2800
|
2,7 °C/W
|
|
Select a variant in the list
