Overview |
|
|---|---|
| Mounting | Panel mount |
| Type of control | Zero voltage turn on |
| Output current | 25 A |
| Control voltage | 4-32V dc |
| Output voltage | 24-510V ac |
Output Specification |
|
| Transient Voltage | 1200 V pk |
| Maximum off-state leakage current | 1 mA rms |
| Maximum 1 cycle surge current | 320/_ (min) 420 (typ) |
| Thermal resistance junction to case | 0,7 °C/W |
| 1 Second surge current | 96 |
| Number of poles | 3 |
| Output voltage | 24-510V ac |
| Maximum 1/2 Cycle I² t for fusing (A² sec) | 512/880 |
| Minimum heat sink for rated current @ 40 °C | 5,2 °C/W |
| Maximum on-state voltage drop | 1.375 Vpk |
Input Specification |
|
| Input Current Max | 25 mA |
| Minimum turn-on voltage | 4V dc |
| Maximum turn-off time (ms) | 1/2 cycle |
*Invisible Heading* |
|
|---|---|
| Input current min | 20 mA |
| Maximum turn-on time (ms) | 1/2 cycle |
| Must turn-off voltage | 1V dc |
| Maximum reverse voltage | -32V dc |
| Control voltage | 4-32V dc |
General Specification |
|
| Depth | 34,7 mm |
| Weight | 200 g |
| Ambient operating temperature | -40 ... +80°C |
| Dielectric strength input to output (50/60Hz) | 4000 V rms |
| Width | 100 mm |
| LED input status indicator | Green |
| Housing material | UL94 V-0 |
| Ambient storage temperature | -40 ... +100°C |
| Material base | Aluminium |
| Approvals | CE, cRUus, UKCA |
| Height | 69,3 mm |
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Type of control | Output current | Maximum 1 cycle surge current | Thermal resistance junction to case | 1 Second surge current | Maximum 1/2 Cycle I² t for fusing (A² sec) | Minimum heat sink for rated current @ 40 °C | Input Current Max | Minimum turn-on voltage | Maximum turn-off time (ms) | Input current min | Maximum turn-on time (ms) | Must turn-off voltage | Maximum reverse voltage | Control voltage | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Art:
GN325DSZH
Copied
|
Zero voltage turn on
|
25 A
|
320/_ (min) 420 (typ)
|
0,7 °C/W
|
96
|
512/880
|
5,2 °C/W
|
25 mA
|
4V dc
|
1/2 cycle
|
20 mA
|
1/2 cycle
|
1V dc
|
-32V dc
|
4-32V dc
|
| ||
Art:
GN325DSRH
Copied
|
Instantaneous turn on
|
25 A
|
320/_ (min) 420 (typ)
|
0,7 °C/W
|
96
|
512/880
|
5,2 °C/W
|
25 mA
|
4V dc
|
1/2 cycle
|
20 mA
|
1/2 cycle
|
1V dc
|
-32V dc
|
4-32V dc
|
| ||
Art:
GN325ASZH
Copied
|
Special zero voltage turn on
|
25 A
|
320/_ (min) 420 (typ)
|
0,7 °C/W
|
96
|
512/880
|
5,2 °C/W
|
7 mArms
|
24V ac
|
50 ms
|
5 mA
|
25 ms
|
2V ac
|
N/A
|
24-255V ac
|
| ||
Art:
GN350DSZH
Copied
|
Zero voltage turn on
|
50 A
|
700/_ (min) 750 (typ)
|
0,4 °C/W
|
230
|
2540/2800
|
1,5 °C/W
|
25 mA
|
4V dc
|
1/2 cycle
|
20 mA
|
1/2 cycle
|
1V dc
|
-32V dc
|
4-32V dc
|
| ||
Art:
GN350DSRH
Copied
|
Instantaneous turn on
|
50 A
|
700/_ (min) 750 (typ)
|
0,4 °C/W
|
230
|
2540/2800
|
1,5 °C/W
|
25 mA
|
4V dc
|
1/2 cycle
|
20 mA
|
1/2 cycle
|
1V dc
|
-32V dc
|
4-32V dc
|
| ||
Art:

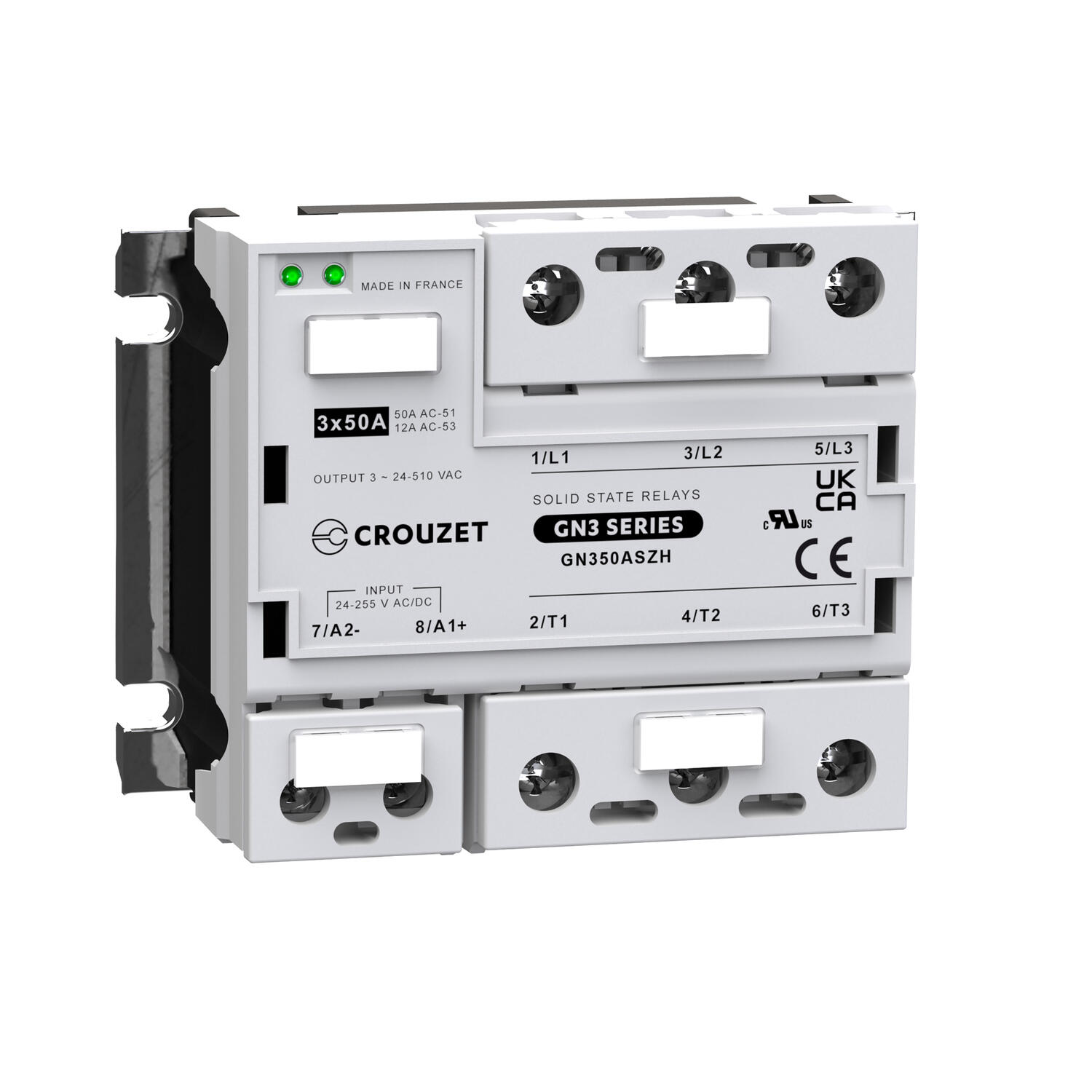

GN350ASZH
Copied
|
Special zero voltage turn on
|
50 A
|
700/_ (min) 750 (typ)
|
0,4 °C/W
|
230
|
2540/2800
|
1,5 °C/W
|
7 mArms
|
24V ac
|
50 ms
|
5 mA
|
25 ms
|
2V ac
|
N/A
|
24-255V ac
|
|
Select a variant in the list
