SENSATA CRYDOM

PM22 Series

The PM22 Series is a family of 22.5mm wide panel mount Solid State Relays that offer the highest power density in the market with ratings up to 95 Amps at 600 VAC. PM22s have a contactor terminal configuration which includes a plug-in connector for the control input, available in either standard “screw” or “spring cage” terminals. PM22 Series models are C-UL-US and TUV approved.

  • Output ratings up to 95 Amps at 600VAC
  • Built-in overvoltage protection
  • DBC substrate for superior thermal performance
  • IP20 touch-safe housing
  • AC or DC control
  • Zero voltage or instantaneous turn-on output
  • 4000 VAC optical isolation
  • LED input status indicator
  • C-UL-US and TUV approved
Read more
  • Load current 25, 50 and 95A
  • Operating voltage 48-600 VAC
  • Control voltage 4-32 VDC and 90-280 VAC/VDC
  • Built-in overvoltage protection

Selected variant

Available in several variants
Sensata Crydom.jpg

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Overview
Type of control Zero voltage turn on
Connection Screw connection
Additional features N/A
Output current 25 A
Control voltage 90-280V ac/dc
Output voltage 48-600V ac

Output Specification
Number of poles 1
Output voltage 48-600V ac

Input Specification
Input current max 10 mA
Input current min 6 mA
Control voltage 90-280V ac/dc

General Specification
IP class IP20
Depth 30,2 mm
Storage temperature min -40 °C
Temperature operational max 80 °C
Weight 65 g
Width 22,5 mm
Storage temperature max 100 °C
Temperature operational min -40 °C
Height 91,9 mm

Downloads

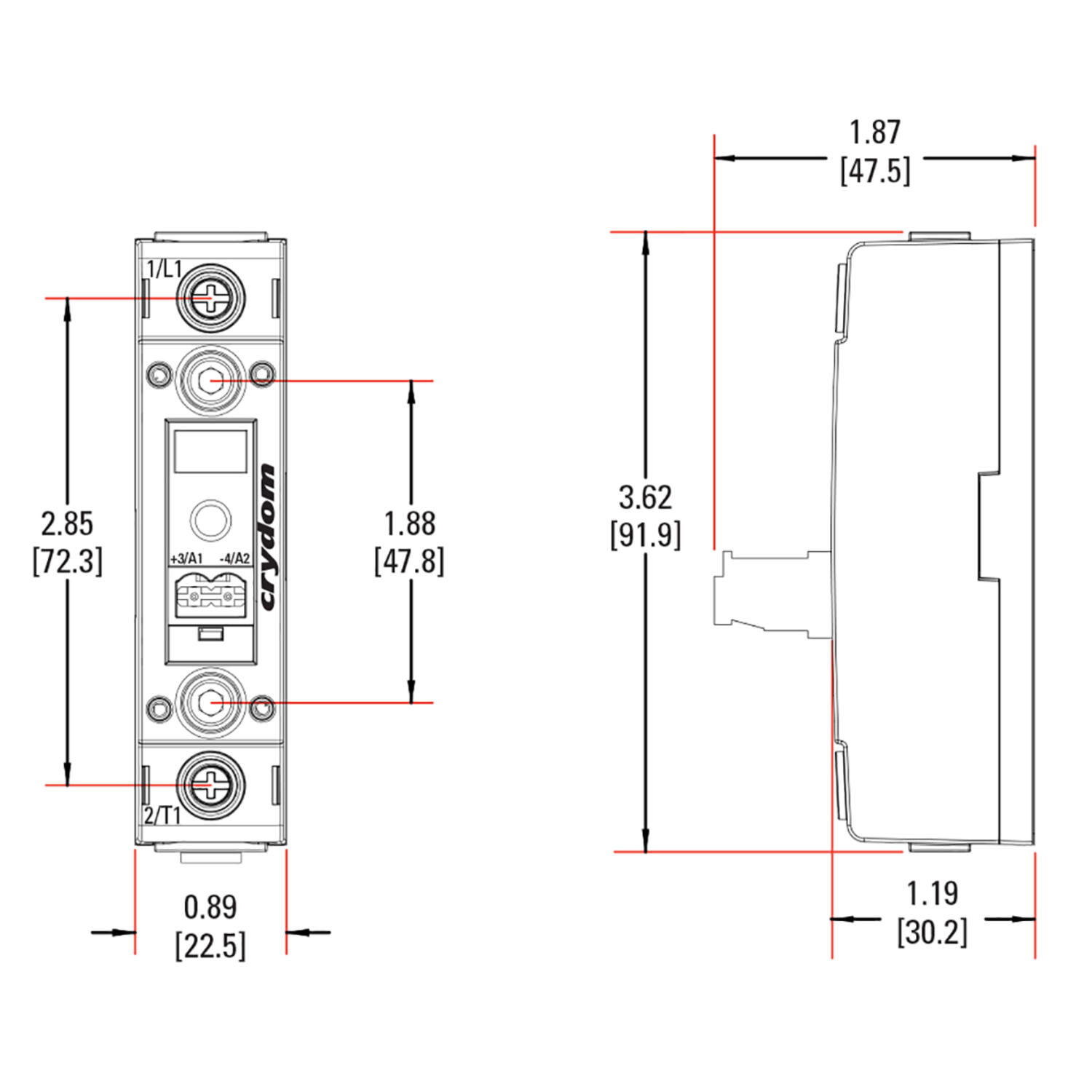

Measurements and connections

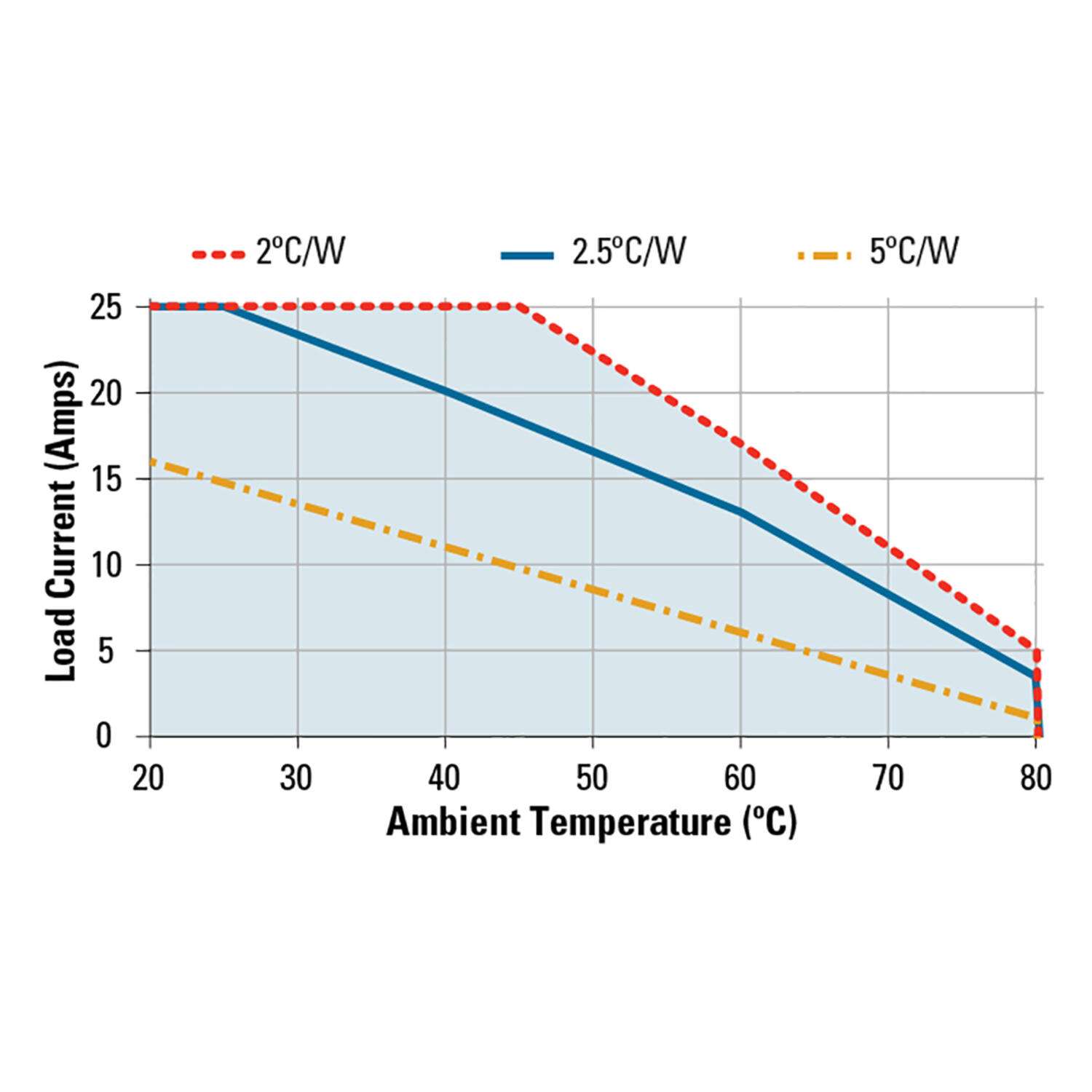

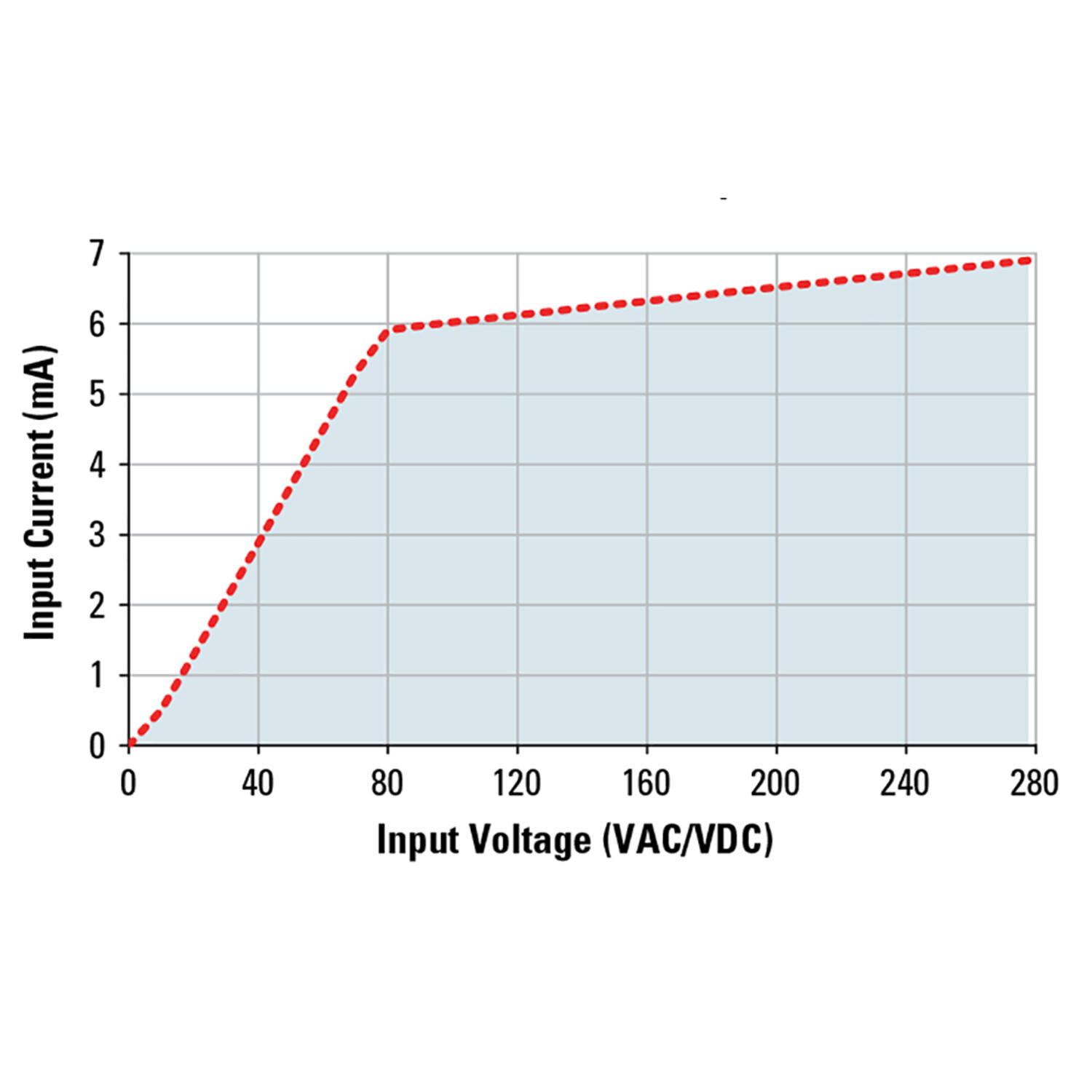

Technical illustrations

Product description

The PM22 Series is a family of 22.5mm wide panel mount Solid State Relays that offer the highest power density in the market with ratings up to 95 Amps at 600 VAC. PM22s have a contactor terminal configuration which includes a plug-in connector for the control input, available in either standard “screw” or “spring cage” terminals. PM22 Series models are C-UL-US and TUV approved.

  • Output ratings up to 95 Amps at 600VAC
  • Built-in overvoltage protection
  • DBC substrate for superior thermal performance
  • IP20 touch-safe housing
  • AC or DC control
  • Zero voltage or instantaneous turn-on output
  • 4000 VAC optical isolation
  • LED input status indicator
  • C-UL-US and TUV approved

Accessories

Related

contaclip kds sr90
