SENSATA CRYDOM

Series 1 240 VAC

Crydom's signature family of solid state relays. Ratings from 10A to 40A @ 24-140 VAC, 12A to 90A @ 80-530 VAC and 10A to 125A @ 24-280 VAC - SCR output for heavy industrial loads - AC or DC control - zero voltage (resistive loads) or random-fire (inductive loads) output - LED input status indicator optional.



  • Ratings from 10A to 125A @ 24-280 VAC
  • SCR output for heavy industrial loads
  • Zero voltage or instantaneous turn-on outputs
  • UL/CSA/VDE Approved, CE Compliant to EN60950-1
  • Improved SEMS screw and washer
  • Redesigned housing with anti-rotation barriers
  • AC or DC control
  • Direct bond copper substrate
  • EMC compliant to Level 3
  • Direct power lead frame
  • Epoxy free design
Read more
  • Load current 10 - 125 A
  • Operating voltage 24-280 VAC
  • Control voltage 90-280 VAC, 4-32 VDC and 18-36 VAC

Selected variant

Available in several variants
Sensata Crydom.jpg

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Overview
Type of control Zero voltage turn on
Connection Screw connection
Output current 50 A
Control voltage 90-280V ac
Output voltage 24-280V ac

Output Specification
Number of poles 1
Output voltage 24-280V ac

Input Specification
Input current max 10 mA
Input current min 5 mA
Control voltage 90-280V ac

General Specification
Depth 22,6 mm
Storage temperature min -40 °C
Temperature operational max 80 °C
Weight 74,9 g
Width 44,5 mm
Storage temperature max 125 °C
Temperature operational min -40 °C
LED indication N/A
Height 57,3 mm

Downloads

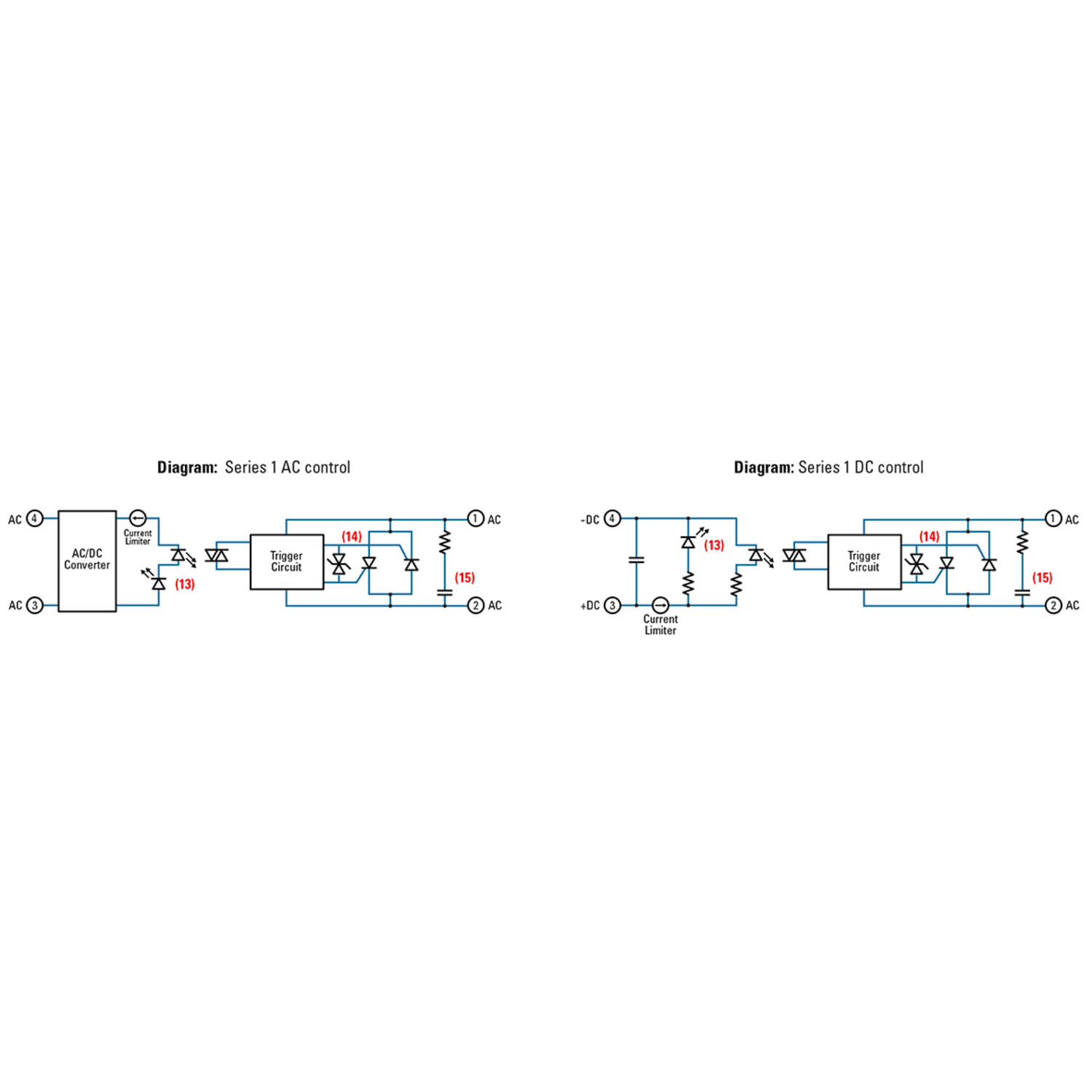

Measurements and connections

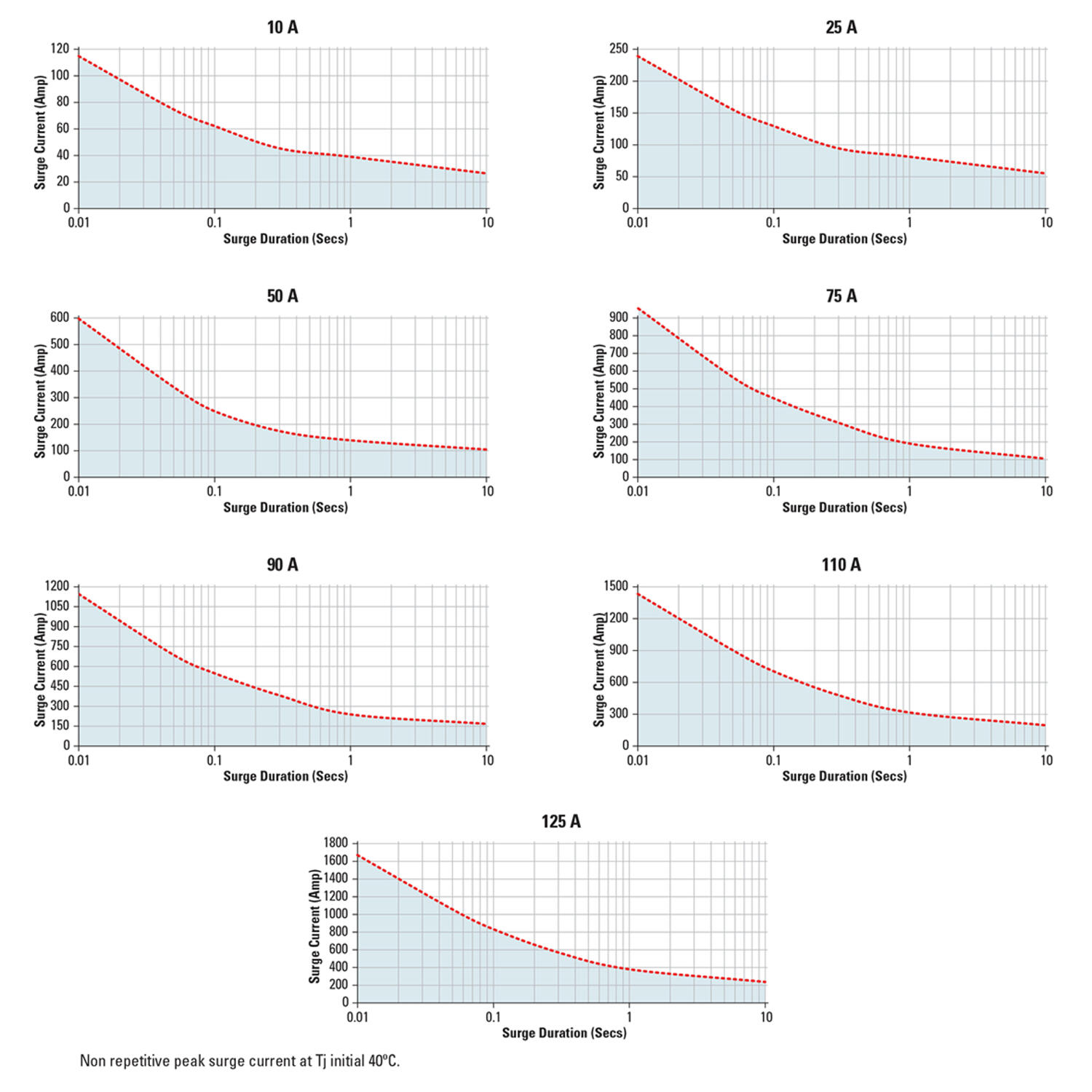

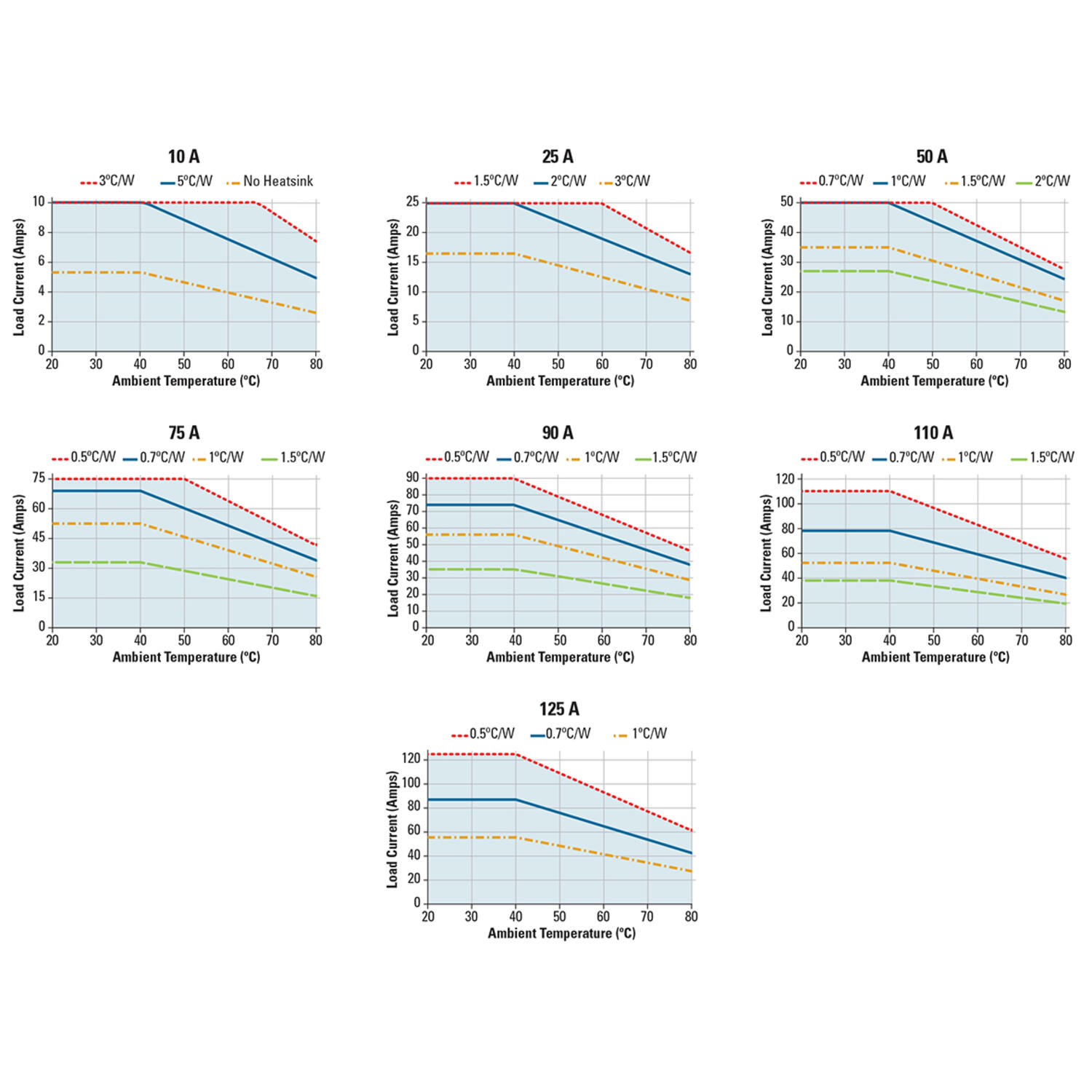

Technical illustrations

Product description

Crydom's signature family of solid state relays. Ratings from 10A to 40A @ 24-140 VAC, 12A to 90A @ 80-530 VAC and 10A to 125A @ 24-280 VAC - SCR output for heavy industrial loads - AC or DC control - zero voltage (resistive loads) or random-fire (inductive loads) output - LED input status indicator optional.



  • Ratings from 10A to 125A @ 24-280 VAC
  • SCR output for heavy industrial loads
  • Zero voltage or instantaneous turn-on outputs
  • UL/CSA/VDE Approved, CE Compliant to EN60950-1
  • Improved SEMS screw and washer
  • Redesigned housing with anti-rotation barriers
  • AC or DC control
  • Direct bond copper substrate
  • EMC compliant to Level 3
  • Direct power lead frame
  • Epoxy free design

Accessories

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Type of control Connection Additional features Output current Input current max Input current min Control voltage Depth LED indication Price
Series1.tif
Panel Mount SSR 280V ac 50A, 90-280V ac In, ZC
Art:
A2450 Copied
Zero voltage turn on
Screw connection
50 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 10A, 90-280V ac In, ZC
Art:
A2410 Copied
Zero voltage turn on
Screw connection
10 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 10A, 90-280V ac In, Inst.
Art:
A2410-10 Copied
Instantaneous turn on
Screw connection
10 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 10A18-36V ac ZC
Art:
A2410E Copied
Zero voltage turn on
Screw connection
10 A
20 mA
16 mA
18-36V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 10A18-36V ac Inst.
Art:
A2410E-10 Copied
Instantaneous turn on
Screw connection
10 A
20 mA
16 mA
18-36V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 10A, 90-280V ac In, ZC
Art:
A2410F Copied
Zero voltage turn on
Quick Mount
10 A
10 mA
5 mA
90-280V ac
33,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 10A, 90-280V ac In, ZC LED
Art:
A2410G Copied
Zero voltage turn on
Screw connection
10 A
10 mA
5 mA
90-280V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 10A, 90-280V ac In, ZC
Art:
A2410K Copied
Zero voltage turn on
Screw connection
10 A
10 mA
5 mA
90-280V ac
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 10A, 90-280V ac In, ZC LED TP
Art:
A2410PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
10 A
10 mA
5 mA
90-280V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 110A, 90-280V ac In, ZC
Art:
A24110 Copied
Zero voltage turn on
Screw connection
110 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 110A, 90-280V ac In, Inst.
Art:
A24110-10 Copied
Instantaneous turn on
Screw connection
110 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 110A18-36V ac ZC
Art:
A24110E Copied
Zero voltage turn on
Screw connection
110 A
20 mA
16 mA
18-36V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 110A, 90-280V ac In, ZC LED TP
Art:
A24110PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
110 A
10 mA
5 mA
90-280V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 125A, 90-280V ac In, ZC
Art:
A24125 Copied
Zero voltage turn on
Screw connection
125 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 125A, 90-280V ac In, Inst.
Art:
A24125-10 Copied
Instantaneous turn on
Screw connection
125 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 125A, 18-36V ac ZC
Art:
A24125E Copied
Zero voltage turn on
Screw connection
125 A
20 mA
16 mA
18-36V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 125A, 90-280V ac In, ZC LED TP
Art:
A24125PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
125 A
10 mA
5 mA
90-280V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 25A, 90-280V ac In, ZC
Art:
A2425 Copied
Zero voltage turn on
Screw connection
25 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 90-280V ac In, Inst.
Art:
A2425-10 Copied
Instantaneous turn on
Screw connection
25 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 18-36V ac ZC
Art:
A2425E Copied
Zero voltage turn on
Screw connection
25 A
20 mA
16 mA
18-36V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 18-36V ac Inst.
Art:
A2425E-10 Copied
Instantaneous turn on
Screw connection
25 A
20 mA
16 mA
18-36V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 18-36V ac ZC LED
Art:
A2425EG Copied
Zero voltage turn on
Screw connection
25 A
20 mA
16 mA
18-36V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 25A, 18-36V ac ZC
Art:
A2425EK Copied
Zero voltage turn on
Screw connection
25 A
20 mA
16 mA
18-36V ac
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 90-280V ac In, ZC LED
Art:
A2425G Copied
Zero voltage turn on
Screw connection
25 A
10 mA
5 mA
90-280V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 25A, 90-280V ac In, ZC LED TP
Art:
A2425GH Copied
Zero voltage turn on
Screw connection
Thermal Pad
25 A
10 mA
5 mA
90-280V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 25A, 90-280V ac In, ZC
Art:
A2425K Copied
Zero voltage turn on
Screw connection
25 A
10 mA
5 mA
90-280V ac
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 90-280V ac In, Inst.
Art:
A2425K-10 Copied
Instantaneous turn on
Screw connection
25 A
10 mA
5 mA
90-280V ac
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 90-280V ac In, ZC LED TP
Art:
A2425PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
25 A
10 mA
5 mA
90-280V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 25A, 90-280V ac In, ZC RC
Art:
A2425S Copied
Zero voltage turn on
Screw connection
Snubber Included
25 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 50A, 90-280V ac In, Inst.
Art:
A2450-10 Copied
Instantaneous turn on
Screw connection
50 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 50A, 18-36V ac ZC
Art:
A2450E Copied
Zero voltage turn on
Screw connection
50 A
20 mA
16 mA
18-36V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 50A, 18-36V ac Inst.
Art:
A2450E-10 Copied
Instantaneous turn on
Screw connection
50 A
20 mA
16 mA
18-36V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 50A, 18-36V ac ZC LED
Art:
A2450EG Copied
Zero voltage turn on
Screw connection
50 A
20 mA
16 mA
18-36V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 50A, 18-36V ac ZC LED TP
Art:
A2450EGH Copied
Zero voltage turn on
Screw connection
Thermal Pad
50 A
20 mA
16 mA
18-36V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 50A, 18-36V ac ZC
Art:
A2450EK Copied
Zero voltage turn on
Screw connection
50 A
20 mA
16 mA
18-36V ac
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 50A, 90-280V ac In, ZC
Art:
A2450F Copied
Zero voltage turn on
Quick Mount
50 A
10 mA
5 mA
90-280V ac
33,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 50A, 90-280V ac In, LED ZC
Art:
A2450G Copied
Zero voltage turn on
Screw connection
50 A
10 mA
5 mA
90-280V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 50A, 90-280V ac In, ZC LED TP
Art:
A2450GH Copied
Zero voltage turn on
Screw connection
Thermal Pad
50 A
10 mA
5 mA
90-280V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 50A, 90-280V ac In, ZC
Art:
A2450K Copied
Zero voltage turn on
Screw connection
50 A
10 mA
5 mA
90-280V ac
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 50A, 90-280V ac In, Inst. IOP RC
Art:
A2450KPS-10 Copied
Instantaneous turn on
Screw connection
Overvoltage Protection, Snubber Included
50 A
10 mA
5 mA
90-280V ac
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 50A, 90-280V ac In, ZC LED TP
Art:
A2450PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
50 A
10 mA
5 mA
90-280V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 75A, 90-280V ac In, ZC
Art:
A2475 Copied
Zero voltage turn on
Screw connection
75 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 75A, 90-280V ac In, Inst.
Art:
A2475-10 Copied
Instantaneous turn on
Screw connection
75 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 75A, 18-36V ac ZC
Art:
A2475E Copied
Zero voltage turn on
Screw connection
75 A
20 mA
16 mA
18-36V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 75A, 90-280V ac In, Inst.
Art:
A2475K-10 Copied
Instantaneous turn on
Screw connection
75 A
10 mA
5 mA
90-280V ac
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 75A, 90-280V ac In, ZC LED TP
Art:
A2475PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
75 A
10 mA
5 mA
90-280V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 90A, 90-280V ac In, ZC
Art:
A2490 Copied
Zero voltage turn on
Screw connection
90 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 90A, 90-280V ac In, Inst.
Art:
A2490-10 Copied
Instantaneous turn on
Screw connection
90 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 90A, 18-36V ac ZC
Art:
A2490E Copied
Zero voltage turn on
Screw connection
90 A
20 mA
16 mA
18-36V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 90A, 90-280V ac In, Inst. TP
Art:
A2490H-10 Copied
Instantaneous turn on
Screw connection
Thermal Pad
90 A
10 mA
5 mA
90-280V ac
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 90A, 90-280V ac In, ZC LED TP
Art:
A2490PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
90 A
10 mA
5 mA
90-280V ac
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 50A, 3-32V dc In, ZC
Art:
D2450 Copied
Zero voltage turn on
Screw connection
50 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 10A, 3-32V dc In, ZC
Art:
D2410K Copied
Zero voltage turn on
Screw connection
10 A
12 mA
7 mA
4-32V dc
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, ZC
Art:
D2425 Copied
Zero voltage turn on
Screw connection
25 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, Inst.
Art:
D2425-10 Copied
Instantaneous turn on
Screw connection
25 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, ZC
Art:
D2425K Copied
Zero voltage turn on
Screw connection
25 A
12 mA
7 mA
4-32V dc
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, ZC LED TP
Art:
D2425PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
25 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 50A, 3-32V dc In, ZC LED TP
Art:
D2450PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
50 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 75A, 3-32V dc In, ZC
Art:
D2475 Copied
Zero voltage turn on
Screw connection
75 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 90A, 3-32V dc In, ZC LED TP
Art:
D2490PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
90 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 10A, 3-32V dc In, ZC
Art:
D2410 Copied
Zero voltage turn on
Screw connection
10 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 10A, 3-32V dc In, Inst.
Art:
D2410-10 Copied
Instantaneous turn on
Screw connection
10 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 10A, 3-32V dc In, ZC
Art:
D2410F Copied
Zero voltage turn on
Quick Mount
10 A
12 mA
7 mA
4-32V dc
33,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 10A, 3-32V dc In, Inst. LED TP
Art:
D2410FPG-10 Copied
Instantaneous turn on
Quick Mount
Overvoltage Protection
10 A
12 mA
7 mA
4-32V dc
33,4 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 10A, 3-32V dc In, ZC LED
Art:
D2410G Copied
Zero voltage turn on
Screw connection
10 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 10A, 3-32V dc In, Inst.
Art:
D2410K-10 Copied
Instantaneous turn on
Screw connection
10 A
12 mA
7 mA
4-32V dc
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 10A, 3-32V dc In, ZC LED IOP
Art:
D2410PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
10 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 110A, 3-32V dc In, ZC
Art:
D24110 Copied
Zero voltage turn on
Screw connection
110 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 110A, 3-32V dc In, Inst.
Art:
D24110-10 Copied
Instantaneous turn on
Screw connection
110 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 110A, 3-32V dc In, ZC LED IOP
Art:
D24110PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
110 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 125A, 3-32V dc In, ZC
Art:
D24125 Copied
Zero voltage turn on
Screw connection
125 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 125A, 3-32V dc In, Inst.
Art:
D24125-10 Copied
Instantaneous turn on
Screw connection
125 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 125A, 3-32V dc In, ZC LED
Art:
D24125G Copied
Zero voltage turn on
Screw connection
125 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 125A, 3-32V dc In, ZC LED IOP
Art:
D24125PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
125 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, ZC
Art:
D2425F Copied
Zero voltage turn on
Quick Mount
25 A
12 mA
7 mA
4-32V dc
33,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, Inst.
Art:
D2425F-10 Copied
Instantaneous turn on
Quick Mount
25 A
12 mA
7 mA
4-32V dc
33,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, ZC LED
Art:
D2425G Copied
Zero voltage turn on
Screw connection
25 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, Inst. LED
Art:
D2425G-10 Copied
Instantaneous turn on
Screw connection
25 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, ZC TP
Art:
D2425H Copied
Zero voltage turn on
Screw connection
Thermal Pad
25 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, Inst.
Art:
D2425K-10 Copied
Instantaneous turn on
Screw connection
25 A
12 mA
7 mA
4-32V dc
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, ZC LED
Art:
D2425KG Copied
Zero voltage turn on
Screw connection
25 A
12 mA
7 mA
4-32V dc
26,4 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, ZC RC
Art:
D2425KS Copied
Zero voltage turn on
Screw connection
Snubber Included
25 A
12 mA
7 mA
4-32V dc
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, ZC IOP
Art:
D2425P Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
25 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 25A, 3-32V dc In, ZC RC
Art:
D2425S Copied
Zero voltage turn on
Screw connection
Snubber Included
25 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 50A, 3-32V dc In, Inst.
Art:
D2450-10 Copied
Instantaneous turn on
Screw connection
50 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 50A, 3-32V dc In, ZC
Art:
D2450F Copied
Zero voltage turn on
Quick Mount
50 A
12 mA
7 mA
4-32V dc
33,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 50A, 3-32V dc In, ZC LED
Art:
D2450G Copied
Zero voltage turn on
Screw connection
50 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 50A, 3-32V dc In, ZC LED TP
Art:
D2450GH Copied
Zero voltage turn on
Screw connection
Thermal Pad
50 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 50A, 3-32V dc In, ZC
Art:
D2450K Copied
Zero voltage turn on
Screw connection
50 A
12 mA
7 mA
4-32V dc
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 50A, 3-32V dc In, Inst.
Art:
D2450K-10 Copied
Instantaneous turn on
Screw connection
50 A
12 mA
7 mA
4-32V dc
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 50A, 3-32V dc In, ZC LED
Art:
D2450KG Copied
Zero voltage turn on
Screw connection
50 A
12 mA
7 mA
4-32V dc
26,4 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 50A, 3-32V dc In, Inst. RC
Art:
D2450KS-10 Copied
Instantaneous turn on
Screw connection
Snubber Included
50 A
12 mA
7 mA
4-32V dc
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 75A, 3-32V dc In, Inst.
Art:
D2475-10 Copied
Instantaneous turn on
Screw connection
75 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 75A, 3-32V dc In, ZC LED
Art:
D2475G Copied
Zero voltage turn on
Screw connection
75 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 75A, 3-32V dc In, Inst.
Art:
D2475K-10 Copied
Instantaneous turn on
Screw connection
75 A
12 mA
7 mA
4-32V dc
26,4 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 75A, 3-32V dc In, Inst. TP
Art:
D2475P-10 Copied
Instantaneous turn on
Screw connection
Overvoltage Protection
75 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 75A, 3-32V dc In, ZC LED TP
Art:
D2475PG Copied
Zero voltage turn on
Screw connection
Overvoltage Protection
75 A
12 mA
7 mA
4-32V dc
22,6 mm
Input Status LED
Series1.tif
Panel Mount SSR 280V ac 75A, 3-32V dc In, Inst. RC
Art:
D2475S-10 Copied
Instantaneous turn on
Screw connection
Snubber Included
75 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 90A, 3-32V dc In, ZC
Art:
D2490 Copied
Zero voltage turn on
Screw connection
90 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A
Series1.tif
Panel Mount SSR 280V ac 90A, 3-32V dc In, Inst.
Art:
D2490-10 Copied
Instantaneous turn on
Screw connection
90 A
12 mA
7 mA
4-32V dc
22,6 mm
N/A

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
