KATKO

Painted Steel Enclosures

Switch Disconnectors housed in high-quality sheet steel enclosures.

All sheet steel enclosures are IP66 rated at a minimum for robust protection against dust and water.

Available in both black/grey and yellow/red.



Tested to IEC 60947-3.

Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector.



Read more
  • 16-1600A switch ratings
  • Other switch configurations available
  • Excellent insulating properties
  • Tested to IEC 60947-3

Selected variant

Available in several variants
Katko_logo_out_cmyk.tif

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General Data
Weight 2,1 kg
Rated thermal current, Ith 25 A
Nominal values with cable size 4
Number of poles 3
Rated insulation voltage Ui 800 V
Enclosure dimensions 200x150x120mm
Terminals / Bolt size Cu 1.5-16

Rated operational current, Ie
Operational current - AC-21A - 500V 25 A
Operational current - AC-23A - 500V 16 A
Operational current - AC-22A - 690V 16 A
Operational current - AC-21A - 690V 25 A
Operational current - AC-21A - 400/415V 25 A
Operational current - AC-23A - 690V 16 A
Operational current - AC-22A - 500V 16 A
Operational current - AC-23A - 400/415V 16 A
Operational current - AC-22A - 400/415V 16 A

Rated operational power for 3-phase (1500 r.p.m.) squirrel cage induction motors (kW)
Operational power - AC-23A - 400/415V 7,5 kW
Operational power - AC-23A - 500V 7,5 kW

*Invisible Heading*
Operational power - AC-23A - 690V 11 kW

Rated fused short circuit current
Peak value 3,8 kA
Back-up fuse 25 A
Rated short circuit making capacity at 690V, lcm 1 kA
Rated short time withstand current at 690V (1 s), lcw 0.7 kA
R.M.S value, IK 50 kA
Rated impulse withstand voltage Uimp 8 kV

Rated breaking capacity, Icn
Breaking capacity - AC-23A - 400/415V 128 A
Breaking capacity - AC-23A - 500V 128 A
Breaking capacity - AC-23A - 690V 128 A

Additional Details
Country of origin FI
Tariff code 85365080
Max terminal torque 1.8 Nm
Electrical endurance 3000 operations
Mechanical endurance 50000 operations
Switch colour Black/grey

Downloads

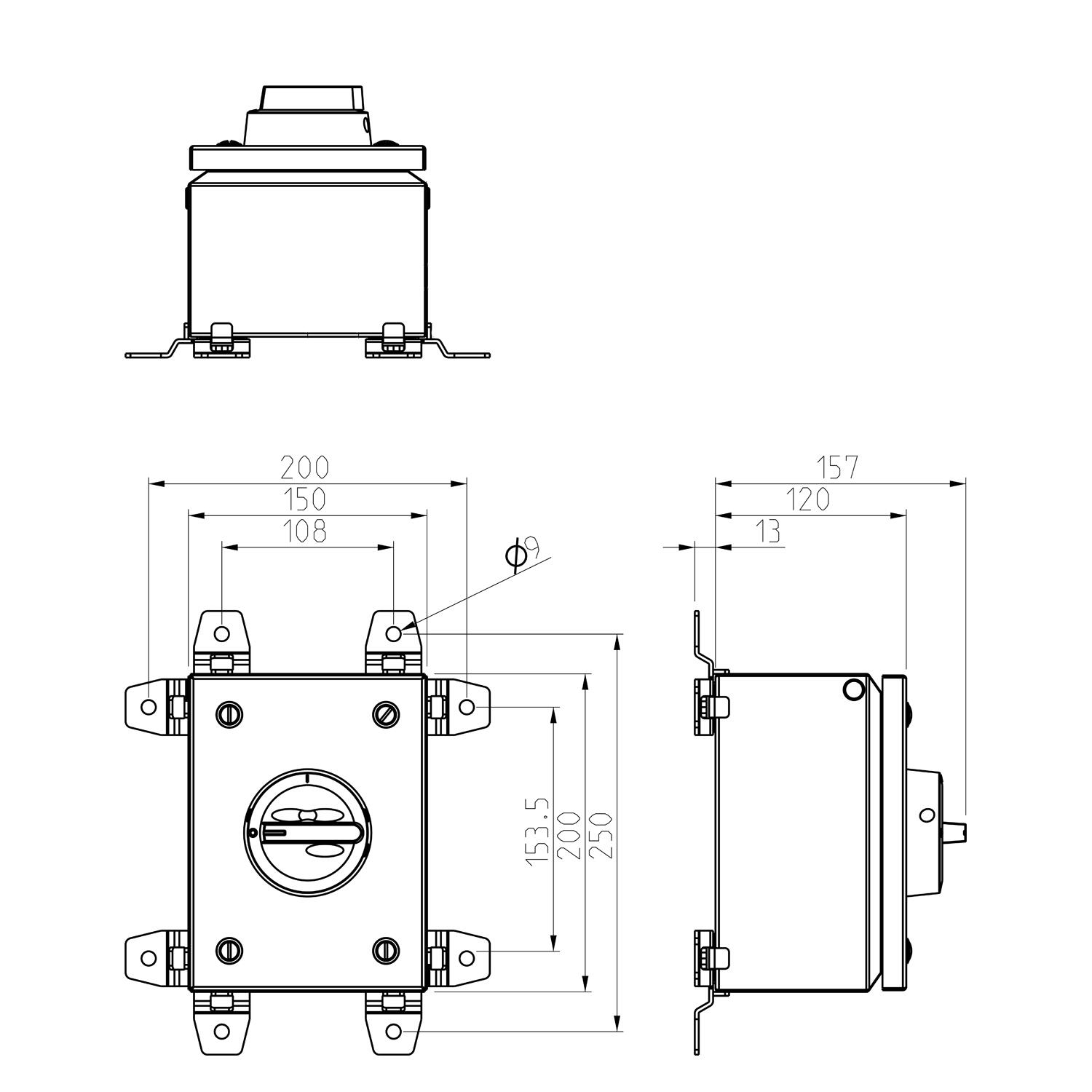

Measurements and connections

Product description

Switch Disconnectors housed in high-quality sheet steel enclosures.

All sheet steel enclosures are IP66 rated at a minimum for robust protection against dust and water.

Available in both black/grey and yellow/red.



Tested to IEC 60947-3.

Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector.



Accessories

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Weight Rated thermal current, Ith Nominal values with cable size Number of poles Rated insulation voltage Ui Enclosure dimensions Terminals / Bolt size Cu Operational current - AC-21A - 500V Operational current - AC-23A - 500V Operational current - AC-23A - 1000V Operational current - AC-22A - 690V Operational current - AC-21A - 690V Operational current - AC-21A - 400/415V Operational current - AC-23A - 690V Operational current - AC-22A - 500V Operational current - AC-23A - 400/415V Operational current - AC-22A - 400/415V Operational power - AC-23A - 400/415V Operational power - AC-23A - 500V Operational power - AC-23A - 690V Peak value Back-up fuse Rated short circuit making capacity at 690V, lcm Rated short time withstand current at 690V (1 s), lcw R.M.S value, IK Rated impulse withstand voltage Uimp Breaking capacity - AC-23A - 400/415V Breaking capacity - AC-23A - 500V Breaking capacity - AC-23A - 690V Max terminal torque Electrical endurance Mechanical endurance Switch colour Price
KET 316 T3, Sheet Steel Enclosure, 3-Pole, 16A
Art:
44369 Copied
2,1 kg
25 A
4
3
800 V
200x150x120mm
1.5-16
25 A
16 A
16 A
25 A
25 A
16 A
16 A
16 A
16 A
7,5 kW
7,5 kW
11 kW
3,8 kA
25 A
1 kA
0.7 kA
50 kA
8 kV
128 A
128 A
128 A
1.8 Nm
3000 operations
50000 operations
Black/grey
KET 316 YR T3, Sheet Steel Enclosure, Yellow/Red, 3-Pole, 16A
Art:
44789 Copied
2,1 kg
25 A
4
3
800 V
200x150x120mm
1.5-16
25 A
16 A
16 A
25 A
25 A
16 A
16 A
16 A
16 A
7,5 kW
7,5 kW
11 kW
3,8 kA
25 A
1 kA
0.7 kA
50 kA
8 kV
128 A
128 A
128 A
1.8 Nm
3000 operations
50000 operations
Red/yellow
KET 325 T3, Sheet Steel Enclosure, 3-Pole, 25A
Art:
44376 Copied
2,1 kg
40 A
10
3
800 V
200x150x120mm
1.5-16
25 A
25 A
25 A
25 A
25 A
25 A
25 A
25 A
25 A
11 kW
15 kW
22 kW
3,8 kA
25 A
1 kA
0.7 kA
50 kA
8 kV
200 A
200 A
200 A
1.8 Nm
3000 operations
50000 operations
Black/grey
KET 325 YR T3, Sheet Steel Enclosure, Yellow/Red, 3-Pole, 25A
Art:
44796 Copied
2,1 kg
40 A
10
3
800 V
200x150x120mm
1.5-16
25 A
25 A
25 A
25 A
25 A
25 A
25 A
25 A
25 A
11 kW
15 kW
22 kW
3,8 kA
25 A
1 kA
0.7 kA
50 kA
8 kV
200 A
200 A
200 A
1.8 Nm
3000 operations
50000 operations
Red/yellow
KET 340 T3, Sheet Steel Enclosure, 3-Pole, 40A
Art:
44383 Copied
2,1 kg
63 A
16
3
800 V
200x150x120mm
1.5-16
40 A
25 A
40 A
40 A
40 A
25 A
40 A
40 A
40 A
22 kW
15 kW
22 kW
4,5 kA
40 A
1 kA
0.7 kA
25 kA
8 kV
320 A
200 A
200 A
1.8 Nm
3000 operations
50000 operations
Black/grey
KET 340 YR T3, Sheet Steel Enclosure, Yellow/Red, 3-Pole, 40A
Art:
44803 Copied
2,1 kg
63 A
16
3
800 V
200x150x120mm
1.5-16
40 A
25 A
40 A
40 A
40 A
25 A
40 A
40 A
40 A
22 kW
15 kW
22 kW
4,5 kA
40 A
1 kA
0.7 kA
25 kA
8 kV
320 A
200 A
200 A
1.8 Nm
3000 operations
50000 operations
Red/yellow
KET 363 T3, Sheet Steel Enclosure, 3-Pole, 63A
Art:
33992 Copied
2,1 kg
80 A
25
3
800 V
200x150x120mm
2.5-35
80 A
40 A
63 A
80 A
80 A
40 A
63 A
40 A
63 A
22 kW
30 kW
37 kW
8,7 kA
80 A
3.1 kA
2 kA
50 kA
8 kV
320 A
320 A
320 A
2.5 Nm
3000 operations
50000 operations
Black/grey
KET 363 YR T3, Sheet Steel Enclosure, Yellow/Red, 3-Pole, 63A
Art:
34163 Copied
2,1 kg
80 A
25
3
800 V
200x150x120mm
2.5-35
80 A
40 A
63 A
80 A
80 A
40 A
63 A
40 A
63 A
22 kW
30 kW
37 kW
8,7 kA
80 A
3.1 kA
2 kA
50 kA
8 kV
320 A
320 A
320 A
2.5 Nm
3000 operations
50000 operations
Red/yellow
KET 380 T3, Sheet Steel Enclosure, 3-Pole, 80A
Art:
33996 Copied
2,1 kg
100 A
35
3
800 V
200x150x120mm
2.5-35
100 A
40 A
80 A
100 A
100 A
40 A
80 A
63 A
80 A
30 kW
30 kW
37 kW
8,7 kA
80 A
3.1 kA
2 kA
50 kA
8 kV
504 A
320 A
320 A
2.5 Nm
3000 operations
50000 operations
Black/grey
KET 380 YR T3, Sheet Steel Enclosure, Yellow/Red, 3-Pole, 80A
Art:
34173 Copied
2,1 kg
100 A
35
3
800 V
200x150x120mm
2.5-35
100 A
40 A
80 A
100 A
100 A
40 A
80 A
63 A
80 A
30 kW
30 kW
37 kW
8,7 kA
80 A
3.1 kA
2 kA
50 kA
8 kV
504 A
320 A
320 A
2.5 Nm
3000 operations
50000 operations
Red/yellow
KET 3100 T4, Sheet Steel Enclosure, 3-Pole, 100A
Art:
31526 Copied
4,3 kg
125 A
70
3
800 V
300x150x120mm
6-70
125 A
63 A
100 A
125 A
125 A
63 A
100 A
100 A
100 A
55 kW
37 kW
55 kW
15 kA
160 A
8 kA
5 kA
65 kA
8 kV
800 A
504 A
504 A
6 Nm
2000 operations
16000 operations
Black/grey
KET 3100 YR T4, Sheet Steel Enclosure, Yellow/Red, 3-Pole, 100A
Art:
31530 Copied
4,3 kg
125 A
70
3
800 V
300x150x120mm
6-70
125 A
63 A
100 A
125 A
125 A
63 A
100 A
100 A
100 A
55 kW
37 kW
55 kW
15 kA
160 A
8 kA
5 kA
65 kA
8 kV
800 A
504 A
504 A
6 Nm
2000 operations
16000 operations
Red/yellow
KET 3125 T4, Sheet Steel Enclosure, 3-Pole, 125A
Art:
33925 Copied
4,3 kg
160 A
70
3
800 V
300x150x120mm
6-70
160 A
80 A
125 A
160 A
160 A
80 A
125 A
125 A
125 A
55 kW
55 kW
75 kW
15 kA
160 A
8 kA
5 kA
65 kA
8 kV
1000 A
640 A
640 A
6 Nm
2000 operations
16000 operations
Black/grey
KET 3125 YR T4, Sheet Steel Enclosure, Yellow/Red, 3-Pole, 125A
Art:
33926 Copied
4,3 kg
160 A
70
3
800 V
300x150x120mm
6-70
160 A
80 A
125 A
160 A
160 A
80 A
125 A
125 A
125 A
55 kW
55 kW
75 kW
15 kA
160 A
8 kA
5 kA
65 kA
8 kV
1000 A
640 A
640 A
6 Nm
2000 operations
16000 operations
Red/yellow
KET 3160 T5, Sheet Steel Enclosure, 3-Pole, 160A
Art:
33929 Copied
9,7 kg
200 A
95
3
800 V
400x300x150mm
6-70
160 A
100 A
160 A
160 A
160 A
100 A
160 A
160 A
160 A
90 kW
55 kW
90 kW
15 kA
160 A
8 kA
5 kA
65 kA
8 kV
1280 A
800 A
800 A
6 Nm
2000 operations
16000 operations
Black/grey
KET 3160 YR T5, Sheet Steel Enclosure, Yellow/Red, 3-Pole, 160A
Art:
33930 Copied
9,7 kg
200 A
95
3
800 V
400x300x150mm
6-70
160 A
100 A
160 A
160 A
160 A
100 A
160 A
160 A
160 A
90 kW
55 kW
90 kW
15 kA
160 A
8 kA
5 kA
65 kA
8 kV
1280 A
800 A
800 A
6 Nm
2000 operations
16000 operations
Red/yellow
KET 3200 T6, Sheet Steel Enclosure, 3-Pole, 200A
Art:
33670 Copied
19 kg
250 A
95
3
1000 V
600x400x200mm
M10
200 A
200 A
200 A
200 A
200 A
200 A
200 A
200 A
200 A
110 kW
132 kW
160 kW
26 kA
250 A
14 kA
8 kA
100 kA
8 kV
1600 A
1600 A
1600 A
15-22 Nm
2000 operations
16000 operations
Black/grey
KET 3200 YR T6, Sheet Steel Enclosure, Yellow/Red, 3-Pole, 200A
Art:
33672 Copied
19 kg
250 A
95
3
1000 V
600x400x200mm
M10
200 A
200 A
200 A
200 A
200 A
200 A
200 A
200 A
200 A
110 kW
132 kW
160 kW
26 kA
250 A
14 kA
8 kA
100 kA
8 kV
1600 A
1600 A
1600 A
15-22 Nm
2000 operations
16000 operations
Red/yellow
KET 3250 T6, Sheet Steel Enclosure, 3-Pole, 250A
Art:
33710 Copied
19 kg
315 A
120
3
1000 V
600x400x200mm
M10
250 A
250 A
135 A
250 A
250 A
250 A
250 A
250 A
250 A
250 A
132 kW
160 kW
250 kW
26 kA
250 A
14 kA
8 kA
100 kA
8 kV
2000 A
2000 A
2000 A
15-22 Nm
2000 operations
16000 operations
Black/grey
KET 3250 YR T6, Sheet Steel Enclosure, Yellow/Red, 3-Pole, 250A
Art:
33712 Copied
19 kg
315 A
120
3
1000 V
600x400x200mm
M10
250 A
250 A
135 A
250 A
250 A
250 A
250 A
250 A
250 A
250 A
132 kW
160 kW
250 kW
26 kA
250 A
14 kA
8 kA
100 kA
8 kV
2000 A
2000 A
2000 A
15-22 Nm
2000 operations
16000 operations
Red/yellow
KET 3315 T6, Sheet Steel Enclosure, 3-Pole, 315A
Art:
33750 Copied
20 kg
315 A
185
3
1000 V
600x400x200mm
M10
315 A
315 A
315 A
315 A
315 A
315 A
315 A
315 A
315 A
160 kW
200 kW
315 kW
42 kA
400 A
27.5 kA
13.5 kA
100 kA
8 kV
2520 A
2520 A
2520 A
40-44 Nm
2000 operations
10000 operations
Black/grey
KET 3315 YR T6, Sheet Steel Enclosure, Yellow/Red, 3-Pole, 315A
Art:
33752 Copied
20 kg
315 A
185
3
1000 V
600x400x200mm
M10
315 A
315 A
315 A
315 A
315 A
315 A
315 A
315 A
315 A
160 kW
200 kW
315 kW
42 kA
400 A
27.5 kA
13.5 kA
100 kA
8 kV
2520 A
2520 A
2520 A
40-44 Nm
2000 operations
10000 operations
Red/yellow
KET 3400 T6, Sheet Steel Enclosure, 3-Pole, 400A
Art:
33790 Copied
20 kg
400 A
240
3
1000 V
600x400x200mm
M10
400 A
400 A
200 A
400 A
400 A
400 A
400 A
400 A
400 A
400 A
200 kW
250 kW
355 kW
42 kA
400 A
27.5 kA
13.5 kA
100 kA
8 kV
3200 A
3200 A
3200 A
30-44 Nm
2000 operations
10000 operations
Black/grey
KET 3400 YR T6, Sheet Steel Enclosure, Yellow/Red, 3-Pole, 400A
Art:
33792 Copied
20 kg
400 A
240
3
1000 V
600x400x200mm
M10
400 A
400 A
200 A
400 A
400 A
400 A
400 A
400 A
400 A
400 A
200 kW
250 kW
355 kW
42 kA
400 A
27.5 kA
13.5 kA
100 kA
8 kV
3200 A
3200 A
3200 A
30-44 Nm
2000 operations
10000 operations
Red/yellow
KET 3630 T7, Sheet Steel Enclosure, 3-Pole, 630A
Art:
33830 Copied
39 kg
630 A
2x185
3
1000 V
800x600x250mm
M12
630 A
630 A
630 A
630 A
630 A
630 A
630 A
630 A
630 A
355 kW
400 kW
630 kW
76 kA
630 A
60 kA
28 kA
100 kA
8 kV
5040 A
5040 A
5040 A
50-75 Nm
2000 operations
10000 operations
Black/grey
KET 3630 YR T7, Sheet Steel Enclosure, Yellow/Red, 3-Pole, 630A
Art:
33832 Copied
39 kg
630 A
2x185
3
1000 V
800x600x250mm
M12
630 A
630 A
630 A
630 A
630 A
630 A
630 A
630 A
630 A
355 kW
400 kW
630 kW
76 kA
630 A
60 kA
28 kA
100 kA
8 kV
5040 A
5040 A
5040 A
50-75 Nm
2000 operations
10000 operations
Red/yellow
KET 3800 T10A, Sheet Steel Enclosure, 3-Pole, 800A
Art:
33836 Copied
60 kg
800 A
2x240
3
1000 V
1200x600x300mm
M12
800 A
800 A
400 A
800 A
800 A
800 A
800 A
800 A
800 A
800 A
400 kW
560 kW
800 kW
76 kA
800 A
60 kA
28 kA
100 kA
8 kV
6400 A
6400 A
6400 A
50-75 Nm
2000 operations
10000 operations
Black/grey
KET 31000T T10A, Sheet Steel Enclosure, 3-Pole, 1000A
Art:
33838 Copied
65 kg
1000 A
1200x600x300mm
6-70
2000 operations
10000 operations
Black/grey
KET 31250T T10A, Sheet Steel Enclosure, 3-Pole, 1250A
Art:
33840 Copied
75 kg
1250 A
3
1000 V
1200x600x300mm
6-70
8 kV
2000 operations
10000 operations
Black/grey
KET 31600T T10A, Sheet Steel Enclosure, 3-Pole, 1600A
Art:
33842 Copied
85 kg
1600 A
3
1000 V
1200x600x300mm
6-70
8 kV
2000 operations
10000 operations
Black/grey
KET 416 T3, Sheet Steel Enclosure, 4-Pole, 16A
Art:
44390 Copied
2,2 kg
25 A
4
4
800 V
200x150x120mm
1.5-16
25 A
16 A
16 A
25 A
25 A
16 A
16 A
16 A
16 A
7,5 kW
7,5 kW
11 kW
3,8 kA
25 A
1 kA
0.7 kA
50 kA
8 kV
128 A
128 A
128 A
1.8 Nm
3000 operations
50000 operations
Black/grey
KET 416 YR T3, Sheet Steel Enclosure, Yellow/Red, 4-Pole, 16A
Art:
44810 Copied
2,2 kg
25 A
4
4
800 V
200x150x120mm
1.5-16
25 A
16 A
16 A
25 A
25 A
16 A
16 A
16 A
16 A
7,5 kW
7,5 kW
11 kW
3,8 kA
25 A
1 kA
0.7 kA
50 kA
8 kV
128 A
128 A
128 A
1.8 Nm
3000 operations
50000 operations
Red/yellow
KET 425 T3, Sheet Steel Enclosure, 4-Pole, 25A
Art:
44397 Copied
2,2 kg
40 A
10
4
800 V
200x150x120mm
1.5-16
25 A
25 A
25 A
25 A
25 A
25 A
25 A
25 A
25 A
11 kW
15 kW
22 kW
3,8 kA
25 A
1 kA
0.7 kA
50 kA
8 kV
200 A
200 A
200 A
1.8 Nm
3000 operations
50000 operations
Black/grey
KET 425 YR T3, Sheet Steel Enclosure, Yellow/Red, 4-Pole, 25A
Art:
44817 Copied
2,2 kg
40 A
10
4
800 V
200x150x120mm
1.5-16
25 A
25 A
25 A
25 A
25 A
25 A
25 A
25 A
25 A
11 kW
15 kW
22 kW
3,8 kA
25 A
1 kA
0.7 kA
50 kA
8 kV
200 A
200 A
200 A
1.8 Nm
3000 operations
50000 operations
Red/yellow
KET 440 T3, Sheet Steel Enclosure, 4-Pole, 40A
Art:
44404 Copied
2,2 kg
63 A
16
4
800 V
200x150x120mm
1.5-16
40 A
25 A
40 A
40 A
40 A
25 A
40 A
40 A
40 A
22 kW
15 kW
22 kW
4,5 kA
40 A
1 kA
0.7 kA
25 kA
8 kV
320 A
200 A
200 A
1.8 Nm
3000 operations
50000 operations
Black/grey
KET 440 YR T3, Sheet Steel Enclosure, Yellow/Red, 4-Pole, 40A
Art:
44824 Copied
2,2 kg
63 A
16
4
800 V
200x150x120mm
1.5-16
40 A
25 A
40 A
40 A
40 A
25 A
40 A
40 A
40 A
22 kW
15 kW
22 kW
4,5 kA
40 A
1 kA
0.7 kA
25 kA
8 kV
320 A
200 A
200 A
1.8 Nm
3000 operations
50000 operations
Red/yellow
KET 463 T3, Sheet Steel Enclosure, 4-Pole, 63A
Art:
33993 Copied
2,2 kg
80 A
25
4
800 V
200x150x120mm
2.5-35
80 A
40 A
63 A
80 A
80 A
40 A
63 A
40 A
63 A
22 kW
30 kW
37 kW
8,7 kA
80 A
3.1 kA
2 kA
50 kA
8 kV
320 A
320 A
320 A
2.5 Nm
3000 operations
50000 operations
Black/grey
KET 463 YR T3, Sheet Steel Enclosure, Yellow/Red, 4-Pole, 63A
Art:
34164 Copied
2,2 kg
80 A
25
4
800 V
200x150x120mm
2.5-35
80 A
40 A
63 A
80 A
80 A
40 A
63 A
40 A
63 A
22 kW
30 kW
37 kW
8,7 kA
80 A
3.1 kA
2 kA
50 kA
8 kV
320 A
320 A
320 A
2.5 Nm
3000 operations
50000 operations
Red/yellow
KET 480 T3, Sheet Steel Enclosure, 4-Pole, 80A
Art:
33997 Copied
2,2 kg
100 A
35
4
800 V
200x150x120mm
2.5-35
100 A
40 A
80 A
100 A
100 A
40 A
80 A
63 A
80 A
30 kW
30 kW
37 kW
8,7 kA
80 A
3.1 kA
2 kA
50 kA
8 kV
504 A
320 A
320 A
2.5 Nm
3000 operations
50000 operations
Black/grey
KET 480 YR T3, Sheet Steel Enclosure, Yellow/Red, 4-Pole, 80A
Art:
34174 Copied
2,2 kg
100 A
35
4
800 V
200x150x120mm
2.5-35
100 A
40 A
80 A
100 A
100 A
40 A
80 A
63 A
80 A
30 kW
30 kW
37 kW
8,7 kA
80 A
3.1 kA
2 kA
50 kA
8 kV
504 A
320 A
320 A
2.5 Nm
3000 operations
50000 operations
Red/yellow
KET 4100 T4, Sheet Steel Enclosure, 4-Pole, 100A
Art:
31527 Copied
4,5 kg
125 A
70
4
800 V
300x150x120mm
6-70
125 A
63 A
100 A
125 A
125 A
63 A
100 A
100 A
100 A
55 kW
37 kW
55 kW
15 kA
160 A
8 kA
5 kA
65 kA
8 kV
800 A
504 A
504 A
6 Nm
2000 operations
16000 operations
Black/grey
KET 4100 YR T4, Sheet Steel Enclosure, Yellow/Red, 4-Pole, 100A
Art:
31531 Copied
4,5 kg
125 A
70
4
800 V
300x150x120mm
6-70
125 A
63 A
100 A
125 A
125 A
63 A
100 A
100 A
100 A
55 kW
37 kW
55 kW
15 kA
160 A
8 kA
5 kA
65 kA
8 kV
800 A
504 A
504 A
6 Nm
2000 operations
16000 operations
Red/yellow
KET 4125 T4, Sheet Steel Enclosure, 4-Pole, 125A
Art:
33927 Copied
4,5 kg
160 A
70
4
800 V
300x150x120mm
6-70
160 A
80 A
125 A
160 A
160 A
80 A
125 A
125 A
125 A
55 kW
55 kW
75 kW
15 kA
160 A
8 kA
5 kA
65 kA
8 kV
1000 A
640 A
640 A
6 Nm
2000 operations
16000 operations
Black/grey
KET 4125 YR T4, Sheet Steel Enclosure, Yellow/Red, 4-Pole, 125A
Art:
33928 Copied
4,5 kg
160 A
70
4
800 V
300x150x120mm
6-70
160 A
80 A
125 A
160 A
160 A
80 A
125 A
125 A
125 A
55 kW
55 kW
75 kW
15 kA
160 A
8 kA
5 kA
65 kA
8 kV
1000 A
640 A
640 A
6 Nm
2000 operations
16000 operations
Red/yellow
KET 4160 T5, Sheet Steel Enclosure, 4-Pole, 160A
Art:
33931 Copied
9,9 kg
200 A
95
4
800 V
400x300x150mm
6-70
160 A
100 A
160 A
160 A
160 A
100 A
160 A
160 A
160 A
90 kW
55 kW
90 kW
15 kA
160 A
8 kA
5 kA
65 kA
8 kV
1280 A
800 A
800 A
6 Nm
2000 operations
16000 operations
Black/grey
KET 4160 YR T5, Sheet Steel Enclosure, Yellow/Red, 4-Pole, 160A
Art:
33932 Copied
9,9 kg
200 A
95
4
800 V
400x300x150mm
6-70
160 A
100 A
160 A
160 A
160 A
100 A
160 A
160 A
160 A
90 kW
55 kW
90 kW
15 kA
160 A
8 kA
5 kA
65 kA
8 kV
1280 A
800 A
800 A
6 Nm
2000 operations
16000 operations
Red/yellow
KET 4200 T6, Sheet Steel Enclosure, 4-Pole, 200A
Art:
34131 Copied
20 kg
250 A
95
4
1000 V
600x400x200mm
M10
200 A
200 A
200 A
200 A
200 A
200 A
200 A
200 A
200 A
110 kW
132 kW
160 kW
26 kA
250 A
14 kA
8 kA
100 kA
8 kV
1600 A
1600 A
1600 A
15-22 Nm
2000 operations
16000 operations
Black/grey
KET 4200 YR T6, Sheet Steel Enclosure, Yellow/Red, 4-Pole, 200A
Art:
34133 Copied
20 kg
250 A
95
4
1000 V
600x400x200mm
M10
200 A
200 A
200 A
200 A
200 A
200 A
200 A
200 A
200 A
110 kW
132 kW
160 kW
26 kA
250 A
14 kA
8 kA
100 kA
8 kV
1600 A
1600 A
1600 A
15-22 Nm
2000 operations
16000 operations
Red/yellow
KET 4250 T6, Sheet Steel Enclosure, 4-Pole, 250A
Art:
34171 Copied
20 kg
315 A
120
4
1000 V
600x400x200mm
M10
250 A
250 A
135 A
250 A
250 A
250 A
250 A
250 A
250 A
250 A
132 kW
160 kW
250 kW
26 kA
250 A
14 kA
8 kA
100 kA
8 kV
2000 A
2000 A
2000 A
15-22 Nm
2000 operations
16000 operations
Black/grey
KET 4250 YR T6, Sheet Steel Enclosure, Yellow/Red, 4-Pole, 250A
Art:
34169 Copied
20 kg
315 A
120
4
1000 V
600x400x200mm
M10
250 A
250 A
135 A
250 A
250 A
250 A
250 A
250 A
250 A
250 A
132 kW
160 kW
250 kW
26 kA
250 A
14 kA
8 kA
100 kA
8 kV
2000 A
2000 A
2000 A
15-22 Nm
2000 operations
16000 operations
Red/yellow
KET 4315 T6, Sheet Steel Enclosure, 4-Pole, 315A
Art:
33754 Copied
20 kg
315 A
185
4
1000 V
600x400x200mm
M10
315 A
315 A
315 A
315 A
315 A
315 A
315 A
315 A
315 A
160 kW
200 kW
315 kW
42 kA
400 A
27.5 kA
13.5 kA
100 kA
8 kV
2520 A
2520 A
2520 A
40-44 Nm
2000 operations
10000 operations
Black/grey
KET 4315 YR T6, Sheet Steel Enclosure, Yellow/Red, 4-Pole, 315A
Art:
33755 Copied
20 kg
315 A
185
4
1000 V
600x400x200mm
M10
315 A
315 A
315 A
315 A
315 A
315 A
315 A
315 A
315 A
160 kW
200 kW
315 kW
42 kA
400 A
27.5 kA
13.5 kA
100 kA
8 kV
2520 A
2520 A
2520 A
40-44 Nm
2000 operations
10000 operations
Red/yellow
KET 4400 T6, Sheet Steel Enclosure, 4-Pole, 400A
Art:
33796-KATKO Copied
20 kg
400 A
240
4
1000 V
600x400x200mm
M10
400 A
400 A
200 A
400 A
400 A
400 A
400 A
400 A
400 A
400 A
200 kW
250 kW
355 kW
42 kA
400 A
27.5 kA
13.5 kA
100 kA
8 kV
3200 A
3200 A
3200 A
30-44 Nm
2000 operations
10000 operations
Black/grey
KET 4400 YR T6, Sheet Steel Enclosure, Yellow/Red, 4-Pole, 400A
Art:
33797 Copied
20 kg
400 A
240
4
1000 V
600x400x200mm
M10
400 A
400 A
200 A
400 A
400 A
400 A
400 A
400 A
400 A
400 A
200 kW
250 kW
355 kW
42 kA
400 A
27.5 kA
13.5 kA
100 kA
8 kV
3200 A
3200 A
3200 A
30-44 Nm
2000 operations
10000 operations
Red/yellow
KET 4630 T7, Sheet Steel Enclosure, 4-Pole, 630A
Art:
33834 Copied
40 kg
630 A
2x185
4
1000 V
800x600x250mm
M12
630 A
630 A
630 A
630 A
630 A
630 A
630 A
630 A
630 A
355 kW
400 kW
630 kW
76 kA
630 A
60 kA
28 kA
100 kA
8 kV
5040 A
5040 A
5040 A
50-75 Nm
2000 operations
10000 operations
Black/grey
KET 4630 YR T7, Sheet Steel Enclosure, Yellow/Red, 4-Pole, 630A
Art:
33835 Copied
40 kg
630 A
2x185
4
1000 V
800x600x250mm
M12
630 A
630 A
630 A
630 A
630 A
630 A
630 A
630 A
630 A
355 kW
400 kW
630 kW
76 kA
630 A
60 kA
28 kA
100 kA
8 kV
5040 A
5040 A
5040 A
50-75 Nm
2000 operations
10000 operations
Red/yellow
KET 4800 T10A, Sheet Steel Enclosure, 4-Pole, 800A
Art:
34201 Copied
62 kg
800 A
2x240
4
1000 V
1200x600x300mm
M12
800 A
800 A
400 A
800 A
800 A
800 A
800 A
800 A
800 A
800 A
400 kW
560 kW
800 kW
76 kA
800 A
60 kA
28 kA
100 kA
8 kV
6400 A
6400 A
6400 A
50-75 Nm
2000 operations
10000 operations
Black/grey
KET 41000 T10A, Sheet Steel Enclosure, 4-Pole, 1000A
Art:
33937 Copied
77 kg
1000 A
1200x600x300mm
6-70
2000 operations
10000 operations
Black/grey
KET 41250 T10A, Sheet Steel Enclosure, 4-Pole, 1250A
Art:
33938 Copied
77 kg
1250 A
4
1000 V
1200x600x300mm
6-70
8 kV
2000 operations
10000 operations
Black/grey
KET 41600 T10A, Sheet Steel Enclosure, 4-Pole, 1600A
Art:
33975 Copied
87 kg
1600 A
4
1000 V
1200x600x300mm
6-70
8 kV
2000 operations
10000 operations
Black/grey

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
