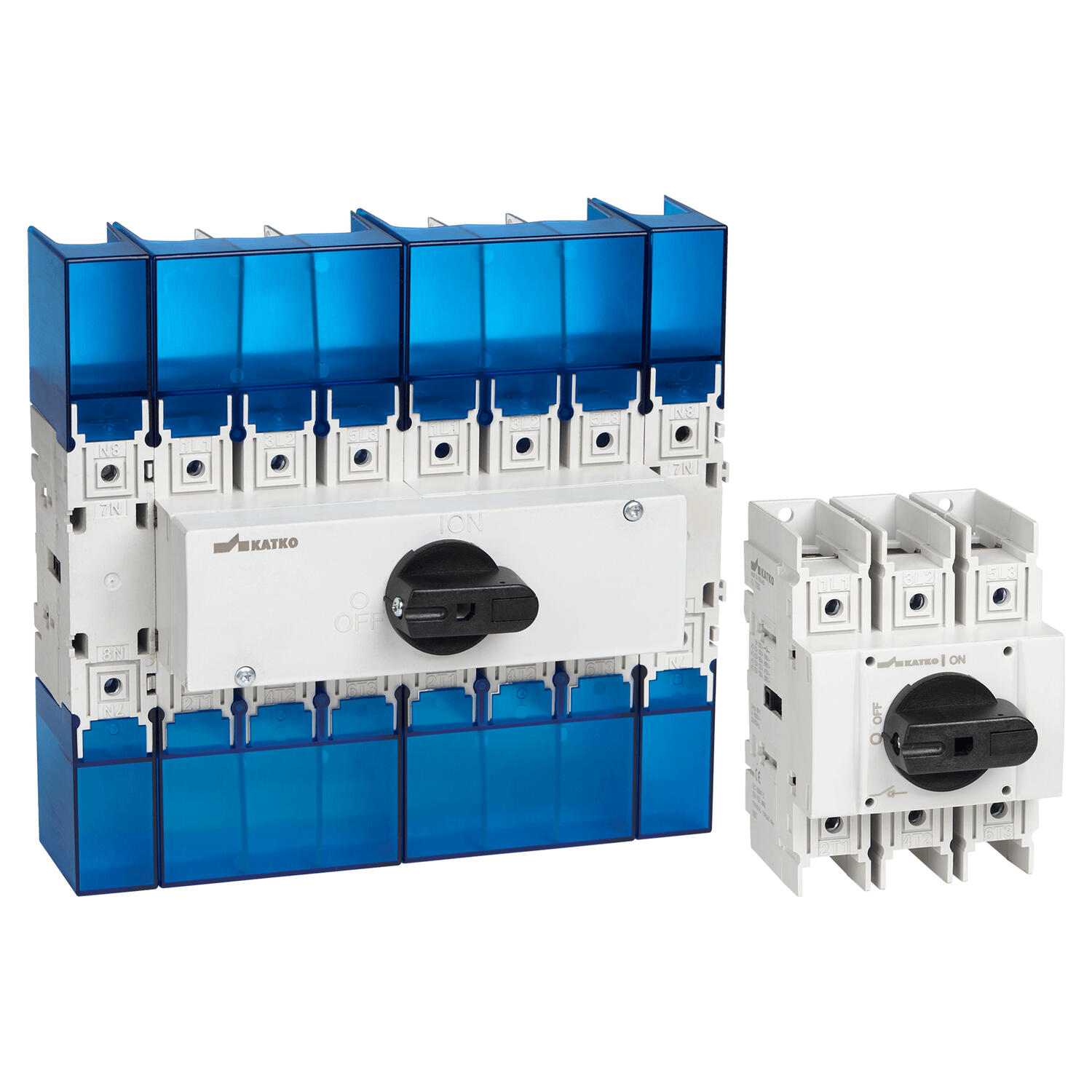

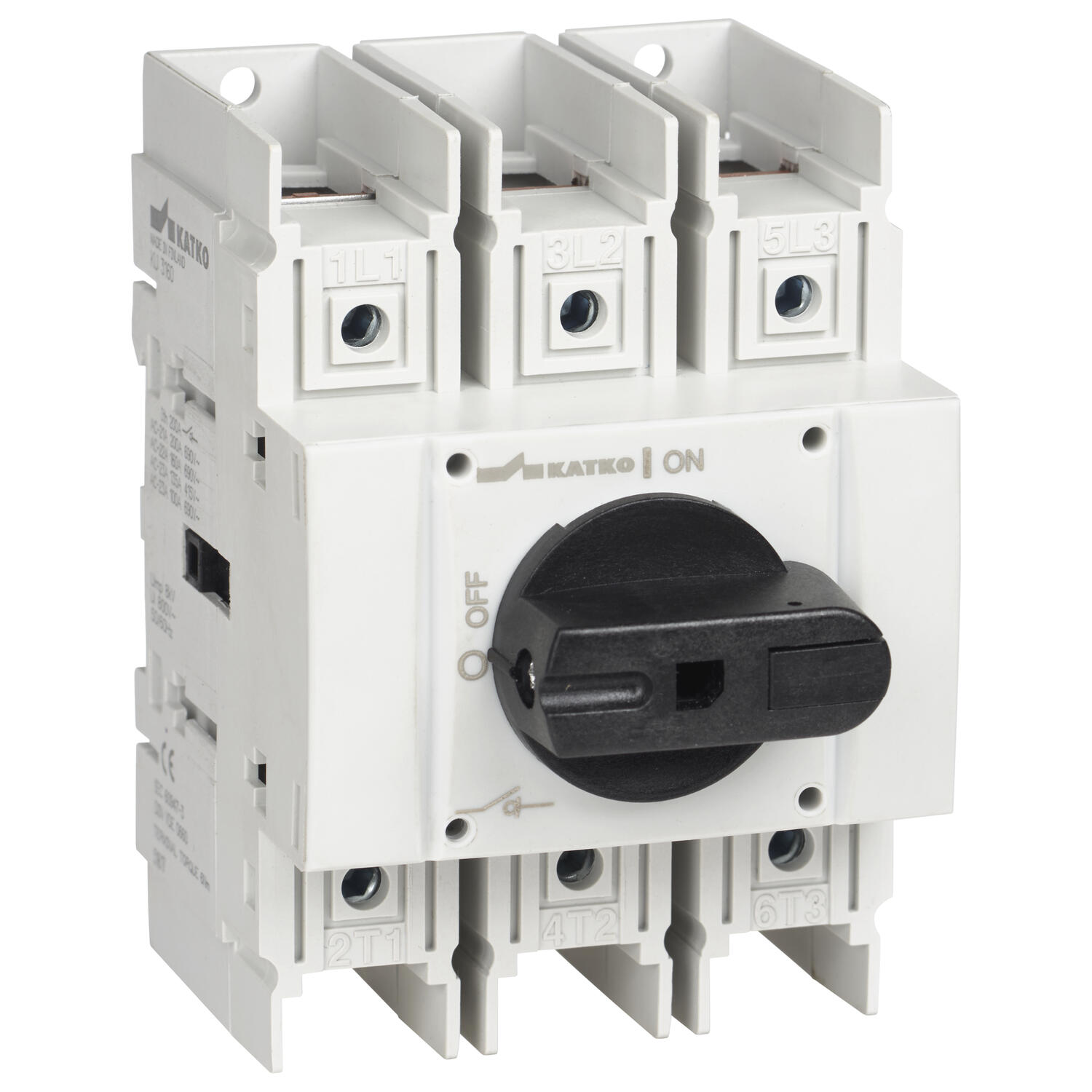

Katko 100-160A switch disconnectors are din rail/screw mountable(KU) and are a modular design.

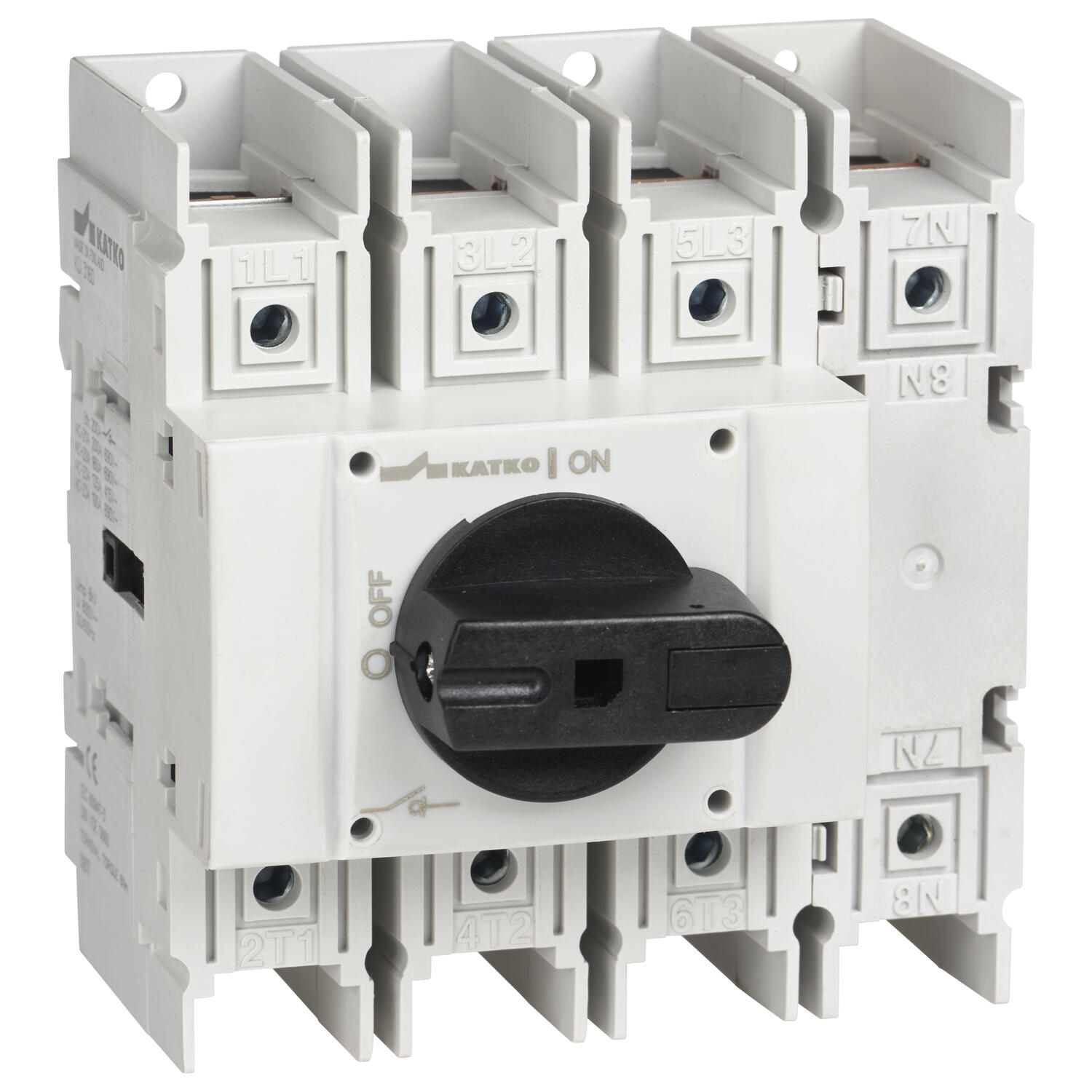

3-pole and 4-pole KU-switches as standard. Other configurations on request.
6-pole and 8-pole versions consist of two 3-pole or 4-pole KU-switches connected by a parallel kit.
Â
Switch technology by means of silver contacts ensures safe and durable operation. Compatible with handles LK10 and LK11 (3 and 4 poles) and LK12 (6 and 8 poles) and LK12CO102 (change-over switch). Shafts L=100/200/300 AD11 and L=100/200/300 AD11/VT (3 and 4 poles), L=100/200/300 AD12/VT (6 and 8 poles and change-over switch).
Â
Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector.

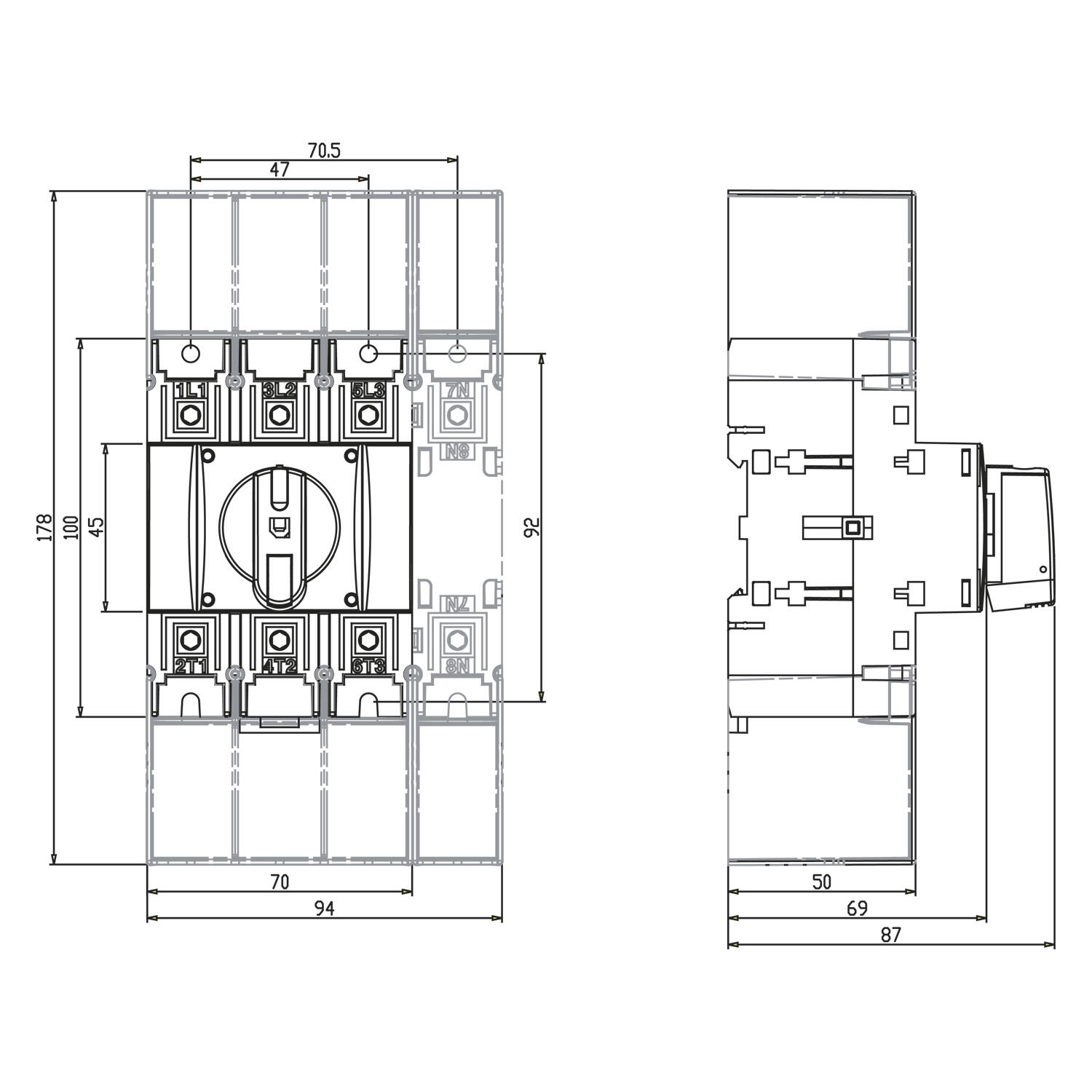

General Data |
|
|---|---|
| Weight | 0,45 kg |
| Rated thermal current, Ith | 125 A |
| Nominal values with cable size | 70 |
| Number of poles | 3 |
| Rated insulation voltage Ui | 800 V |
| Terminals / Bolt size Cu | 6-70 |
| Type | Screw-mounted |
Rated operational current, Ie |
|
| Operational current - AC-21A - 500V | 125 A |
| Operational current - AC-23A - 500V | 63 A |
| Operational current - AC-22A - 690V | 100 A |
| Operational current - AC-21A - 690V | 125 A |
| Operational current - AC-21A - 400/415V | 125 A |
| Operational current - AC-23A - 690V | 63 A |
| Operational current - AC-22A - 500V | 100 A |
| Operational current - AC-23A - 400/415V | 100 A |
| Operational current - AC-22A - 400/415V | 100 A |
Rated operational power for 3-phase (1500 r.p.m.) squirrel cage induction motors (kW) |
|
| Operational power - AC-23A - 400/415V | 55 kW |
*Invisible Heading* |
|
|---|---|
| Operational power - AC-23A - 500V | 37 kW |
| Operational power - AC-23A - 690V | 55 kW |
Rated fused short circuit current |
|
| Peak value | 15 kA |
| Back-up fuse | 160 A |
| Rated short circuit making capacity at 690V, lcm | 8 kA |
| Rated short time withstand current at 690V (1 s), lcw | 5 kA |
| R.M.S value, IK | 65 kA |
| Rated impulse withstand voltage Uimp | 8 kV |
Rated breaking capacity, Icn |
|
| Breaking capacity - AC-23A - 400/415V | 800 A |
| Breaking capacity - AC-23A - 500V | 504 A |
| Breaking capacity - AC-23A - 690V | 504 A |
Additional Details |
|
| Country of origin | FI |
| Tariff code | 85365080 |
| Max terminal torque | 6 Nm |
| Electrical endurance | 2000 operations |
| Mechanical endurance | 16000 operations |
Katko 100-160A switch disconnectors are din rail/screw mountable(KU) and are a modular design.
3-pole and 4-pole KU-switches as standard. Other configurations on request.
6-pole and 8-pole versions consist of two 3-pole or 4-pole KU-switches connected by a parallel kit.
Â
Switch technology by means of silver contacts ensures safe and durable operation. Compatible with handles LK10 and LK11 (3 and 4 poles) and LK12 (6 and 8 poles) and LK12CO102 (change-over switch). Shafts L=100/200/300 AD11 and L=100/200/300 AD11/VT (3 and 4 poles), L=100/200/300 AD12/VT (6 and 8 poles and change-over switch).
Â
Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector.
