200-250A Switch Disconnectors

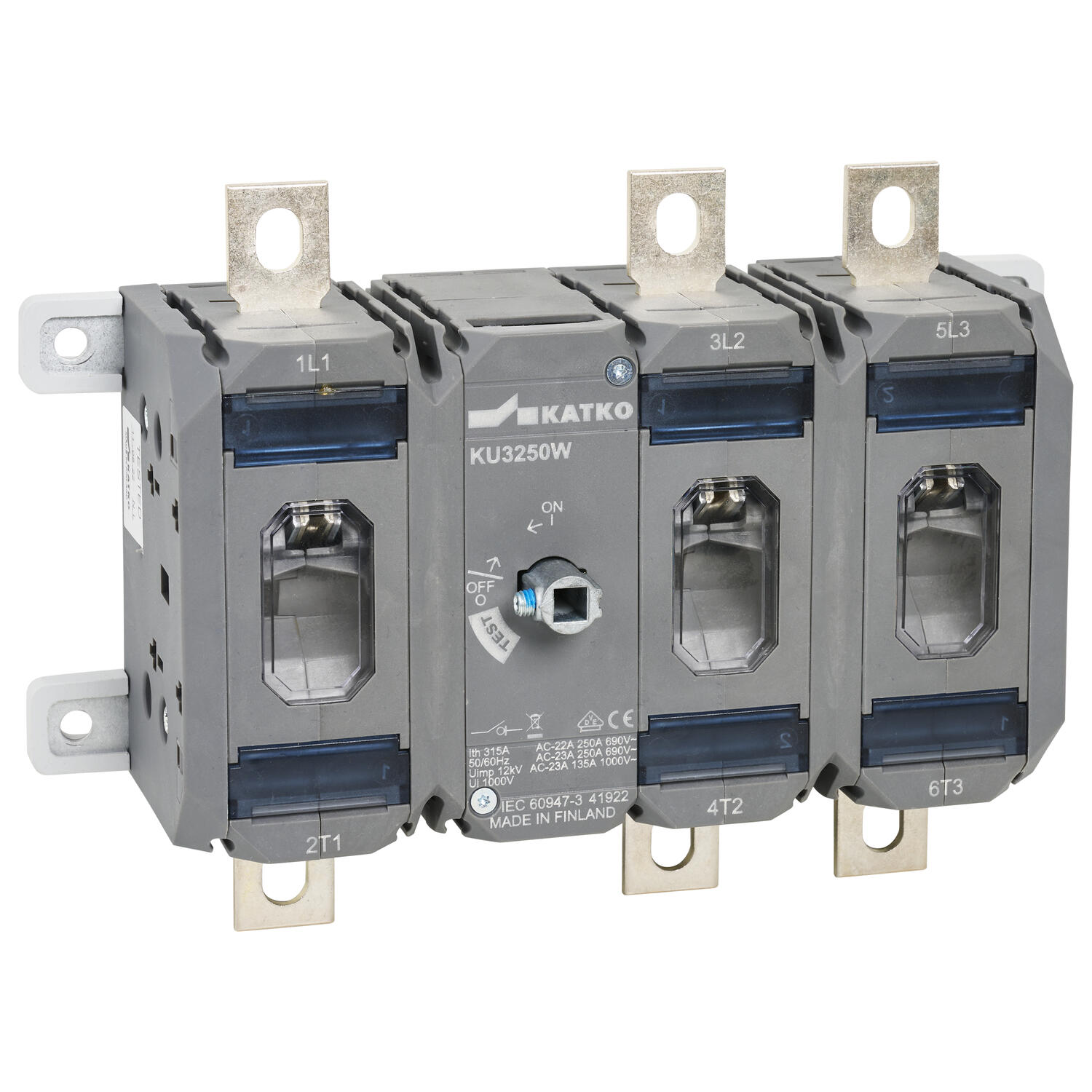

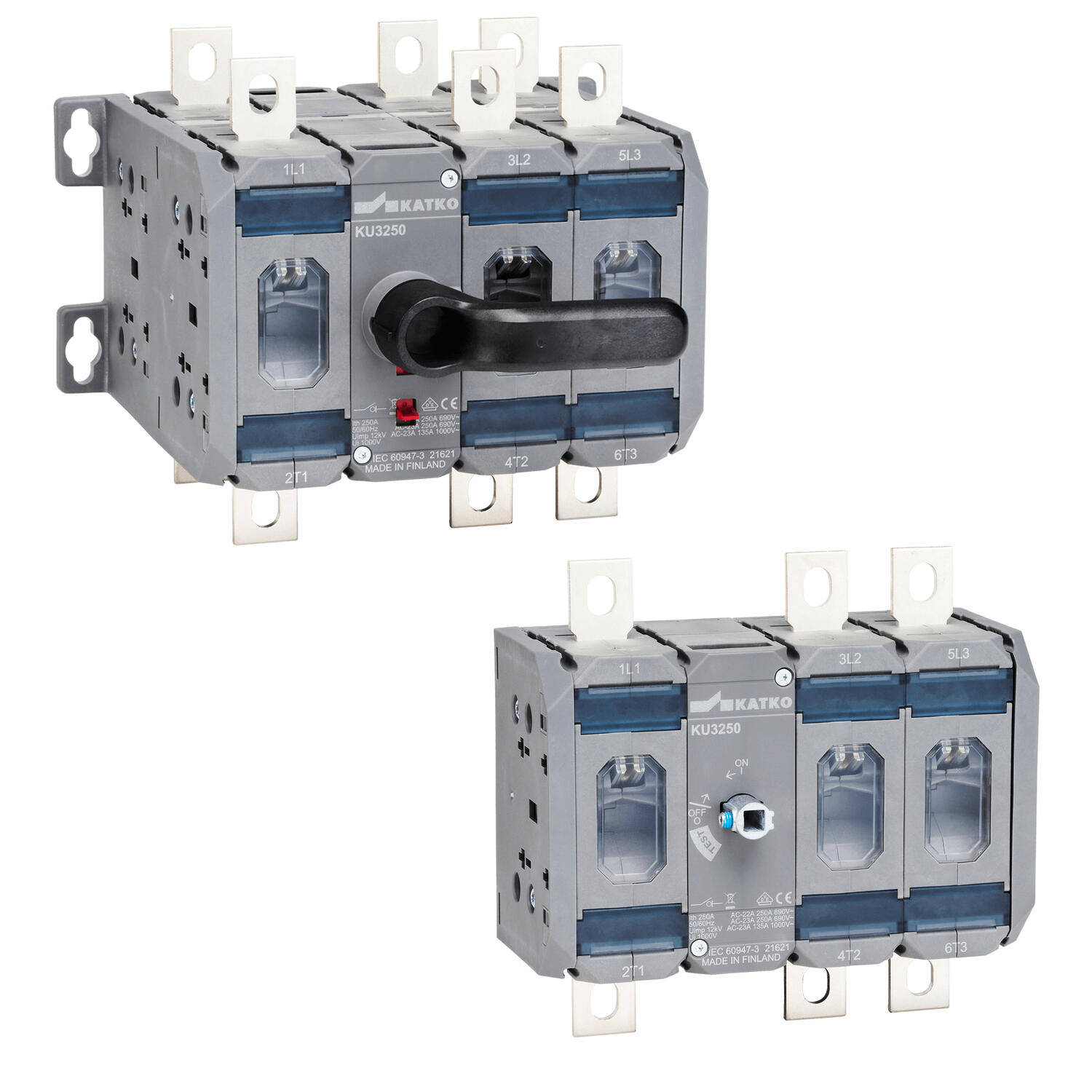

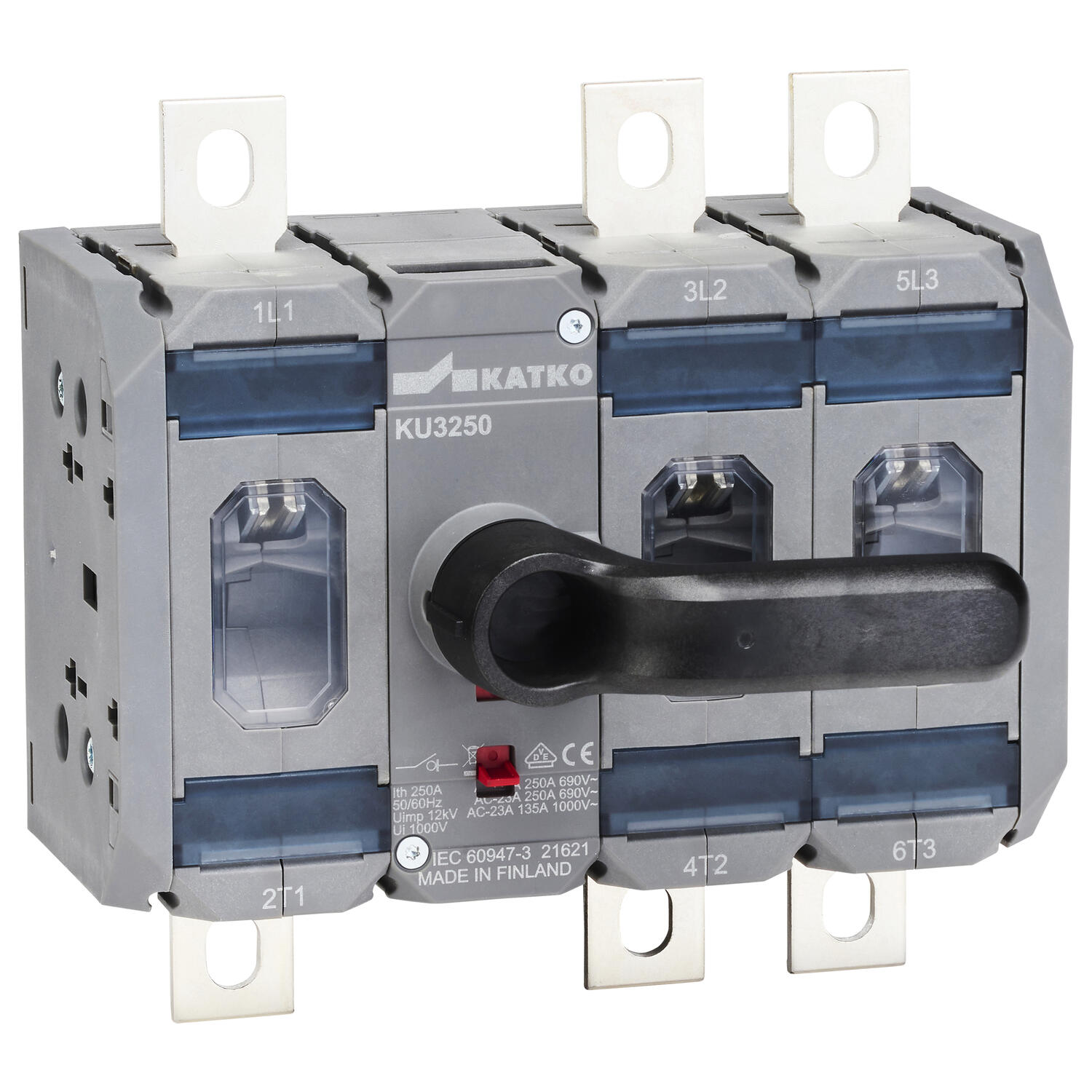

Katko 200-250A switch disconnectors are a reliable switch for demanding industrial applications. They are made of halogen free thermoplastics which are 100% recyclable.



Available with a direct handle, or seperate LKX100 handle and L200AD12 shaft.

Yellow/Red handles and shaft of different length available upon request.



Option for test position for testing auxiliary contacts while main contacts remain open. Note, only available on request.

Auxiliary contacts available (1.V160KU or 2.V160KU), up to 8 NC / 8 NO. Terminal covers (LS250H and LS250F) and phase barriers (VS250) available.

Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector.



Read more
  • Made of halogen-free thermoplastic with 100% recyclability
  • Auxilliary contacts available
  • Terminal covers and phase barriers available
  • Icw 690V (1s) 8kA

Selected variant

Available in several variants
Katko_logo_out_cmyk.tif

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General Data
Weight 1 kg
Rated thermal current, Ith 250 A
Nominal values with cable size 95
Number of poles 3
Rated insulation voltage Ui 1000 V
Terminals / Bolt size Cu M8
Type Screw-mounted

Rated operational current, Ie
Operational current - AC-21A - 500V 200 A
Operational current - AC-23A - 500V 200 A
Operational current - AC-22A - 690V 200 A
Operational current - AC-21A - 690V 200 A
Operational current - AC-21A - 400/415V 200 A
Operational current - AC-23A - 690V 200 A
Operational current - AC-22A - 500V 200 A
Operational current - AC-23A - 400/415V 200 A
Operational current - AC-22A - 400/415V 200 A

Rated operational power for 3-phase (1500 r.p.m.) squirrel cage induction motors (kW)
Operational power - AC-23A - 400/415V 110 kW

*Invisible Heading*
Operational power - AC-23A - 500V 132 kW
Operational power - AC-23A - 690V 160 kW

Rated fused short circuit current
Peak value 26 kA
Back-up fuse 250 A
Rated short circuit making capacity at 690V, lcm 14 kA
Rated short time withstand current at 690V (1 s), lcw 8 kA
R.M.S value, IK 100 kA
Rated impulse withstand voltage Uimp 12 kV

Rated breaking capacity, Icn
Breaking capacity - AC-23A - 400/415V 1600 A
Breaking capacity - AC-23A - 500V 1600 A
Breaking capacity - AC-23A - 690V 1600 A

Additional Details
Country of origin FI
Tariff code 85365080
Max terminal torque 15-22 Nm
Electrical endurance 2000 operations
Mechanical endurance 16000 operations

Downloads

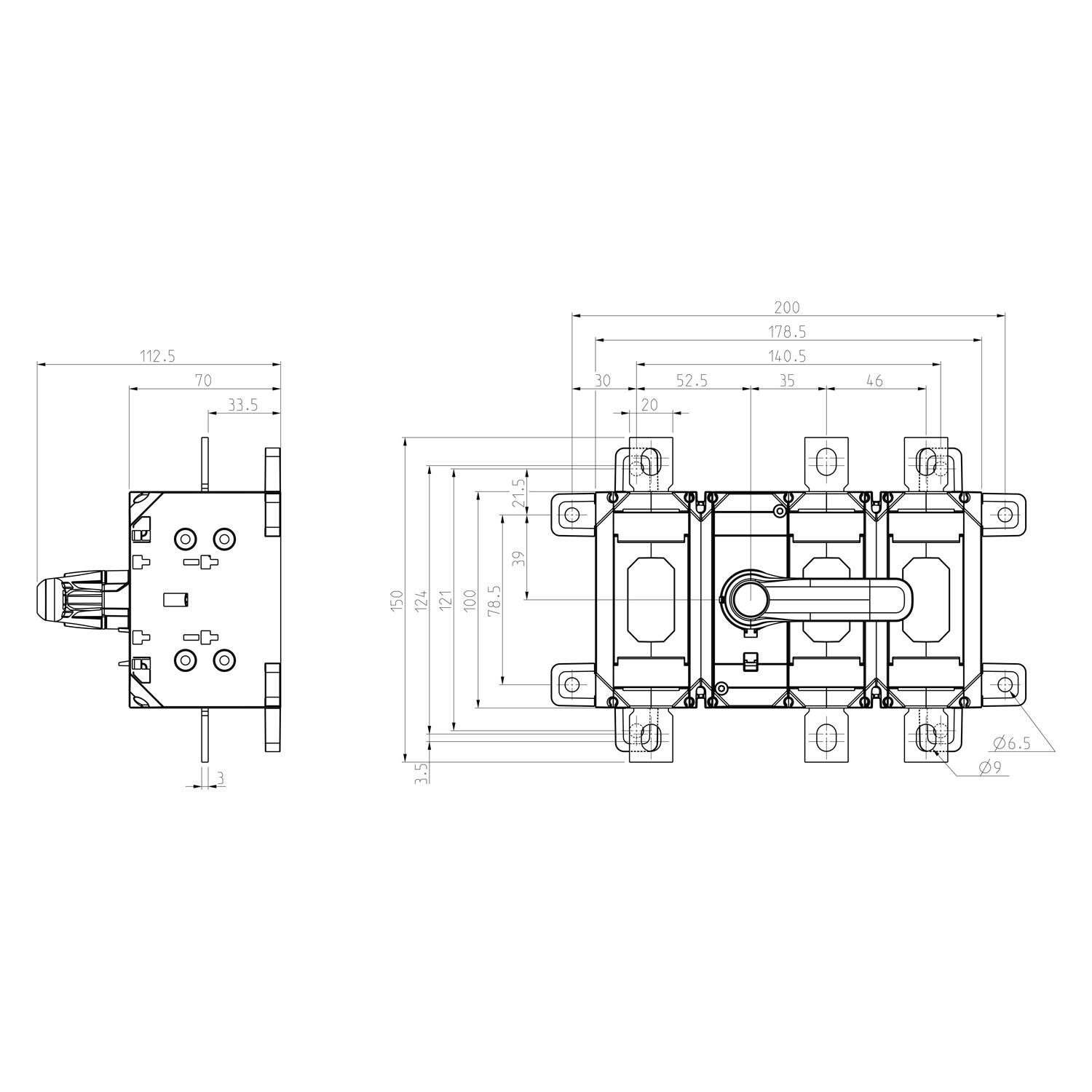

Measurements and connections

Product description

Katko 200-250A switch disconnectors are a reliable switch for demanding industrial applications. They are made of halogen free thermoplastics which are 100% recyclable.



Available with a direct handle, or seperate LKX100 handle and L200AD12 shaft.

Yellow/Red handles and shaft of different length available upon request.



Option for test position for testing auxiliary contacts while main contacts remain open. Note, only available on request.

Auxiliary contacts available (1.V160KU or 2.V160KU), up to 8 NC / 8 NO. Terminal covers (LS250H and LS250F) and phase barriers (VS250) available.

Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector.
