CONTA-CLIP

Plug-in connection system - ZST

ZRKS, ZSTK

The plug-in connection system ZST is a plug-in system that allows you to achieve a rated current up to 24 A with a rated voltage up to 500 V.


The terminals and the pluggable connectors have a touch-safe design and can be configured easily and combined according to the particular needs of your application.


The basic terminals and connectors can also be coded to make sure the correct plug is mated with the correct socket, when using multiple sets.



All plugs & base terminals have the option of additional snap-on locking latches and strain relief mechanism to ensure that the connected wire and plugs are firmly secured


The ZSTK 2.5 couplings are available as rail-mounted version (for TS15 and TS35) or as a free coupling.



Read more
  • Wire connection type: tension-spring connection
  • Versatile mounting on TS15, TS35 or as free coupling
  • Ratings 500 V, 24 A
  • Touch-safe construction

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General data
Rated impulse voltage 6 kV
Colour Beige
Rated wire cross section 2,5 mm²
Rated voltage IEC 500 V
Mounting TS 35
Contamination degree 3
Rated current IEC 24 A
Approvals UL, CSA, CSA US, cUL, KEMA KUR, EAC
Overvoltage category III

Dimensions
Height TS 35/7.5 39,5 mm
Length 54 mm
Width 5,1 mm
Height 38,5 mm

Connection data
Cross connect channels 2
Cross section stranded wire to 4 mm²
Cross section single wire from 0,5 mm²
Connections 2
Cross section stranded wire from 0,5 mm²
Rated wire cross section to (AWG) 12
Rated wire cross section from (AWG) 20
Cross section stranded with ferrule from 0,5 mm²
Cross section stranded with ferrule to 2,5 mm²
Stripping length 10 mm
Cross section single wire to 4 mm²
Number of test pick off options 1

*Invisible Heading*
Plug gauge acc. EN 60 947-1 A3

Materials
Flammability class UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
Insulation material Polyamide 6.6

Approvals
UL test standard UL 1059
Rated current CSAus 20 A
Rated voltage CSAus 300 V
Rated current UL 20 A
Rated current cUL 20 A
Rated voltage UL 300 V
CSA test standard C22.2 No 158
KEMA KEUR test standard EN 60947-7-1:2009
Rated voltage cUL 300 V
CSAus test standard UL 1059
Rated current CSA 20 A
Rated voltage CSA 300 V
cUL test standard C22.2 No 158
EAC test standard TR ZU 004/2011

Additional data
Pack size 100
Country of origin CZ
Tariff code 85369010
Weight 6,76 g

Downloads

Measurements and connections

Product description

The plug-in connection system ZST is a plug-in system that allows you to achieve a rated current up to 24 A with a rated voltage up to 500 V.


The terminals and the pluggable connectors have a touch-safe design and can be configured easily and combined according to the particular needs of your application.


The basic terminals and connectors can also be coded to make sure the correct plug is mated with the correct socket, when using multiple sets.



All plugs & base terminals have the option of additional snap-on locking latches and strain relief mechanism to ensure that the connected wire and plugs are firmly secured


The ZSTK 2.5 couplings are available as rail-mounted version (for TS15 and TS35) or as a free coupling.



Accessories

Related products

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Rated impulse voltage Colour Rated wire cross section Rated voltage IEC Mounting Contamination degree Rated current IEC Approvals Overvoltage category Additional information Height TS 15/5.5 Height TS 35/7.5 Length Width Height Cross connect channels Cross section stranded wire to Cross section single wire from Connections Cross section stranded wire from Rated wire cross section to (AWG) Rated wire cross section from (AWG) Cross section stranded with ferrule from Number of poles Cross section stranded with ferrule to Stripping length Cross section single wire to Number of levels Number of test pick off options Plug gauge acc. EN 60 947-1 Flammability class Operating temperature from Operating temperature to Insulation material UL test standard Rated current CSAus Rated voltage CSAus Rated current UL Rated current cUL Rated voltage UL CSA test standard KEMA KEUR test standard Rated voltage cUL CSAus test standard Rated current CSA Rated voltage CSA cUL test standard Pack size Country of origin Weight Price
ZRKS 2.5/1A/1S, Feed-through, 1 cable, 1 plug, Beige
Art:
3650.2 Copied
6 kV
Beige
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
54 mm
5,1 mm
38,5 mm
2
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
6,76 g

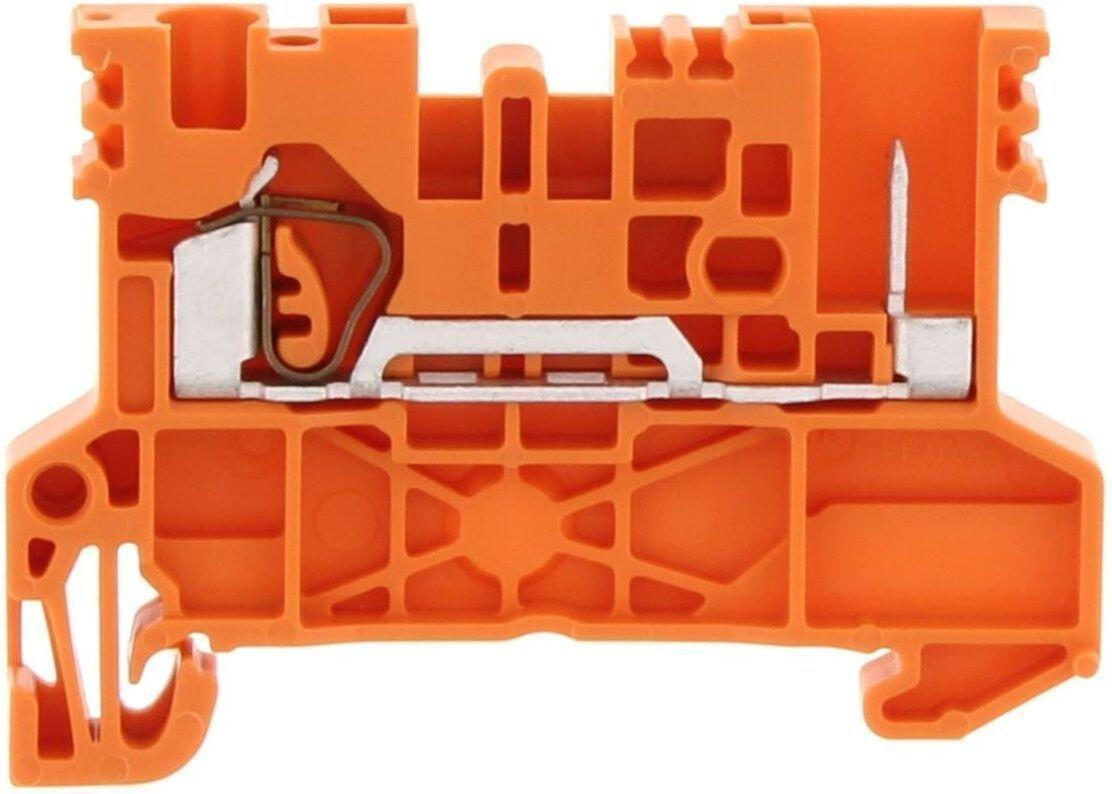

ZRKS 2.5/1A/1S, Feed-through, 1 cable, 1 plug, Orange
Art:
3650.3 Copied
6 kV
Orange
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
54 mm
5,1 mm
38,5 mm
2
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
6,76 g
ZRKS 2.5/1A/1S, Feed-through, 1 cable, 1 plug, Blue
Art:
3650.5 Copied
6 kV
Blue
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
54 mm
5,1 mm
38,5 mm
2
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
6,76 g
ZRKS 2.5/1A/2S, Feed-through, 1 cable, 2 plug, Beige
Art:
3651.2 Copied
6 kV
Beige
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
72,5 mm
5,1 mm
38,5 mm
2
4 mm²
0,5 mm²
3
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
8,5 g

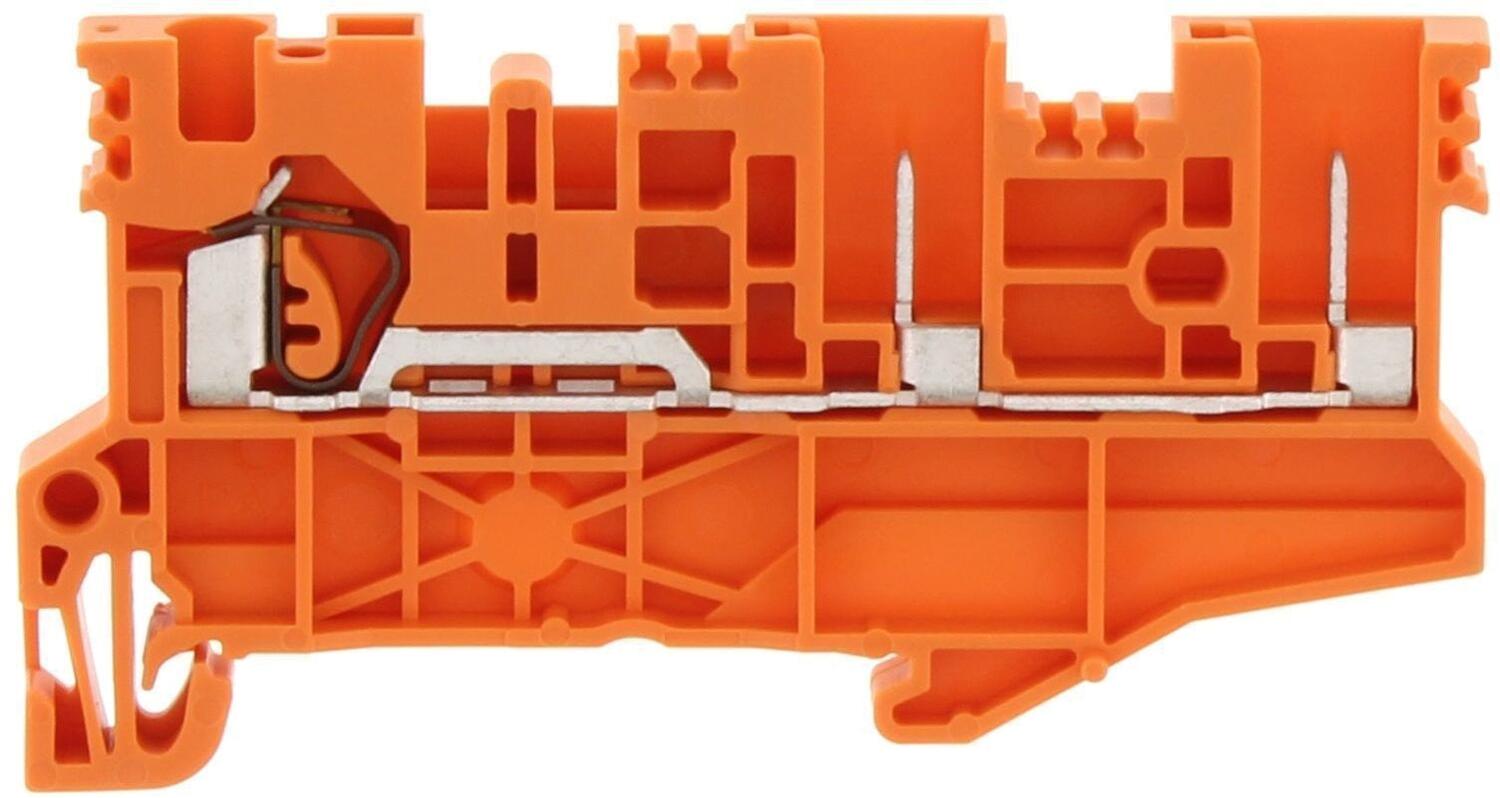

ZRKS 2.5/1A/2S, Feed-through, 1 cable, 2 plug, Orange
Art:
3651.3 Copied
6 kV
Orange
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
72,5 mm
5,1 mm
38,5 mm
2
4 mm²
0,5 mm²
3
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
8,5 g

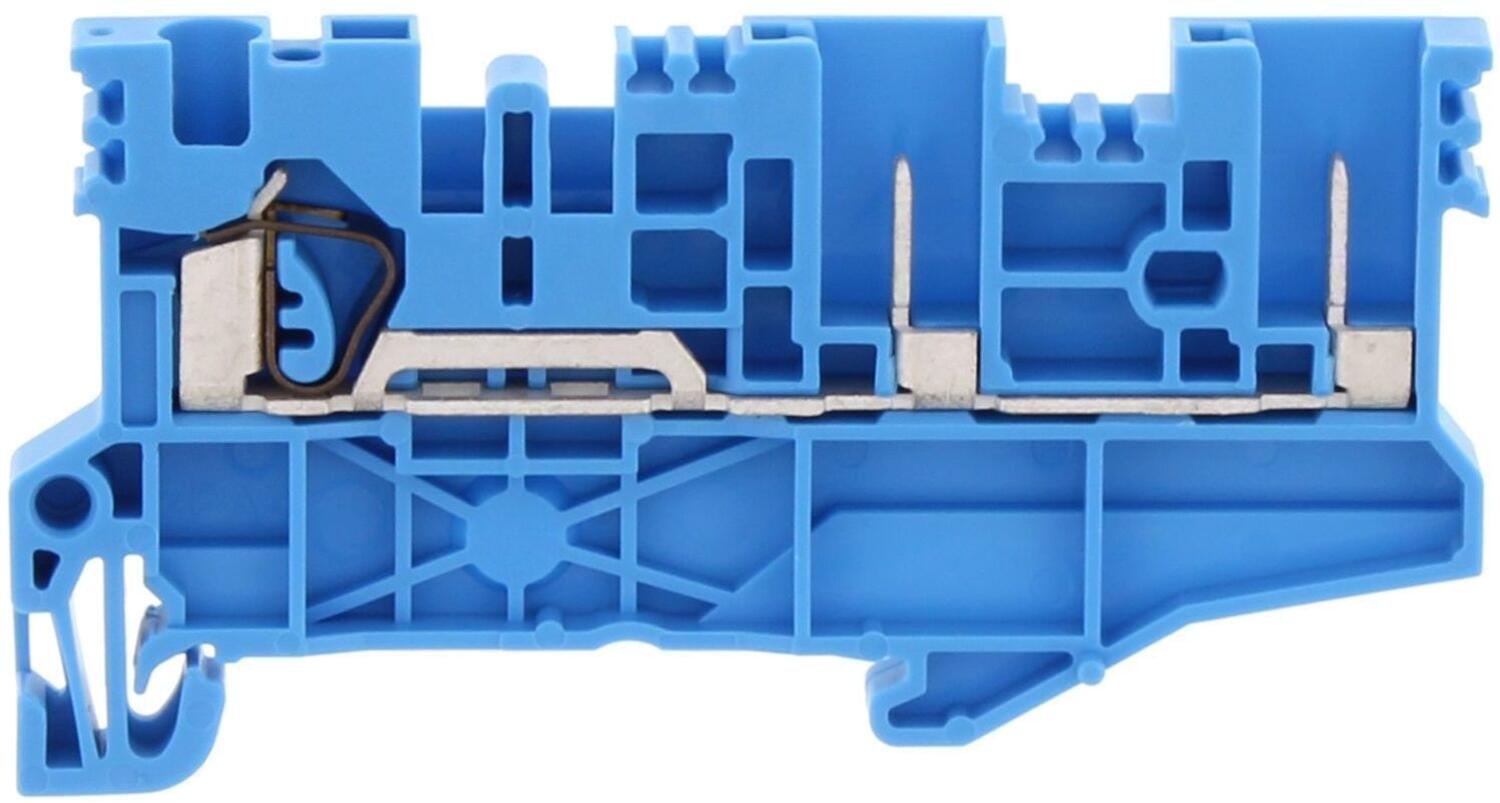

ZRKS 2.5/1A/2S, Feed-through, 1 cable, 2 plug, Blue
Art:
3651.5 Copied
6 kV
Blue
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
72,5 mm
5,1 mm
38,5 mm
2
4 mm²
0,5 mm²
3
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
8,5 g
ZRKS 2.5/2A/1S, Feed-through, 2 cable, 1 plug, Beige
Art:
3652.2 Copied
6 kV
Beige
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
64 mm
5,1 mm
38,5 mm
2
4 mm²
0,5 mm²
3
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
8,65 g

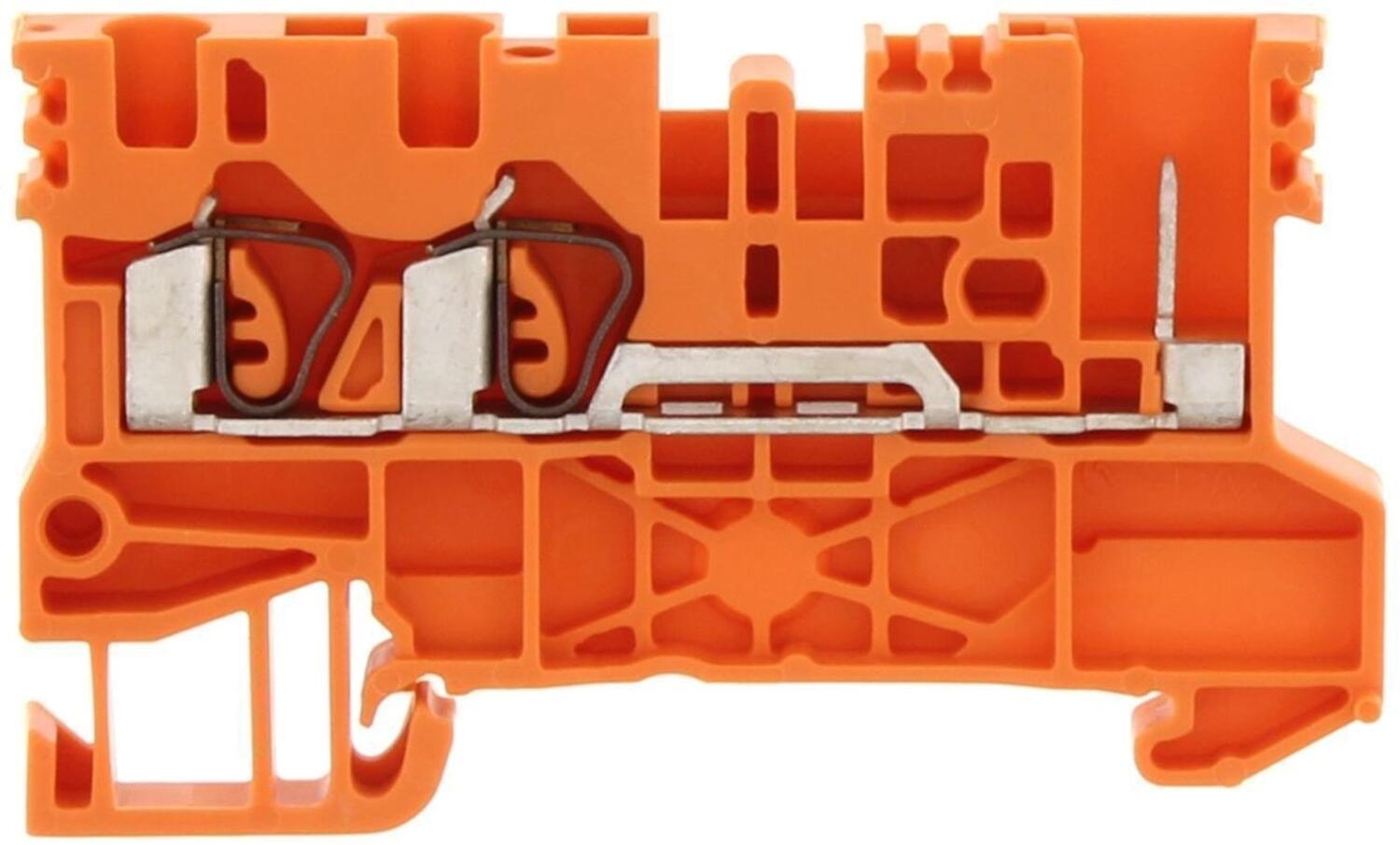

ZRKS 2.5/2A/1S, Feed-through, 2 cable, 1 plug, Orange
Art:
3652.3 Copied
6 kV
Orange
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
64 mm
5,1 mm
38,5 mm
2
4 mm²
0,5 mm²
3
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
8,65 g

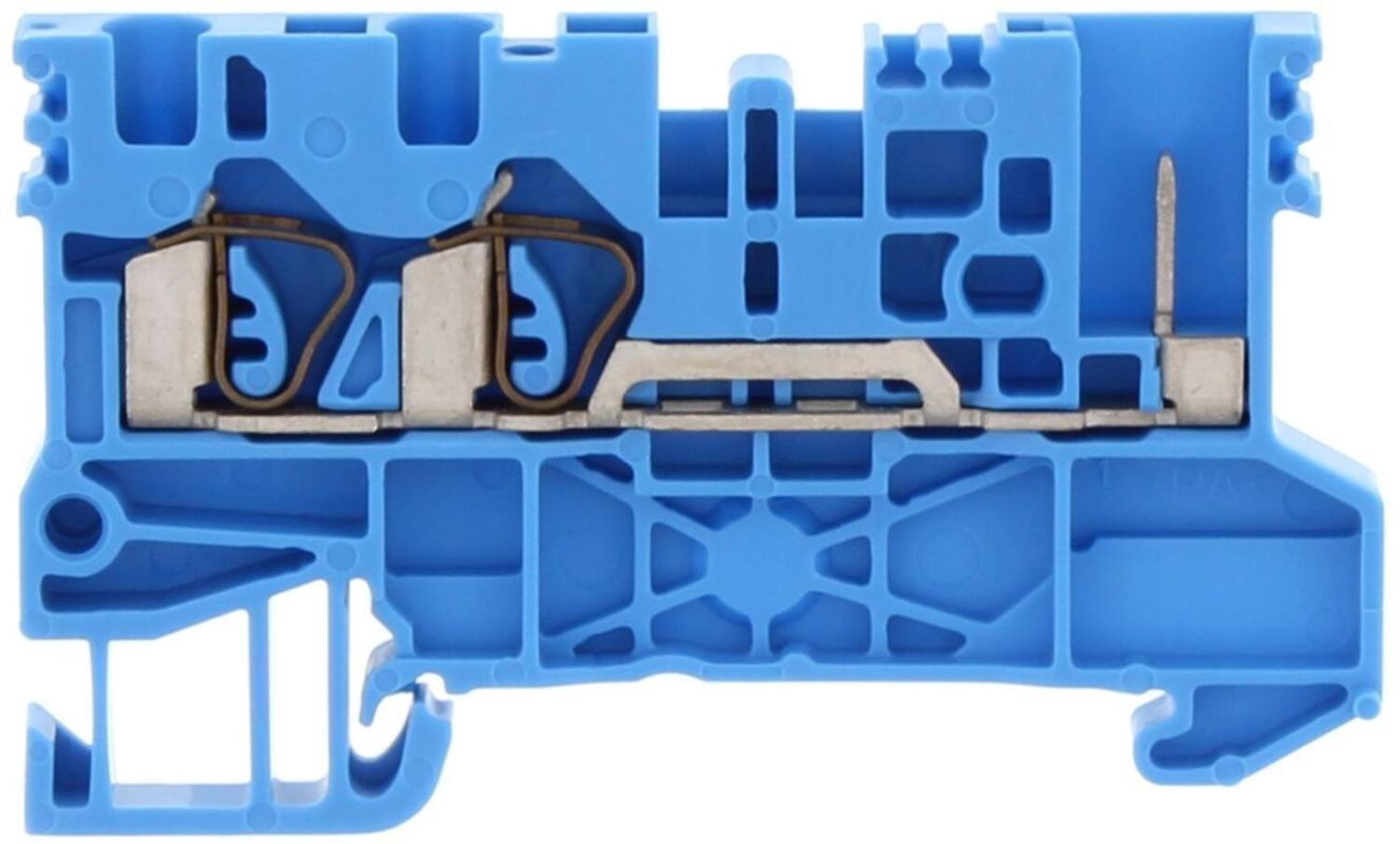

ZRKS 2.5/2A/1S, Feed-through, 2 cable, 1 plug, Blue
Art:
3652.5 Copied
6 kV
Blue
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
64 mm
5,1 mm
38,5 mm
2
4 mm²
0,5 mm²
3
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
8,65 g
ZRKS 2.5/2A/2S, Feed-through, 2 cable, 2 plug, Beige
Art:
3653.2 Copied
6 kV
Beige
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
82 mm
5,1 mm
38,5 mm
2
4 mm²
0,5 mm²
4
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
10,1 g

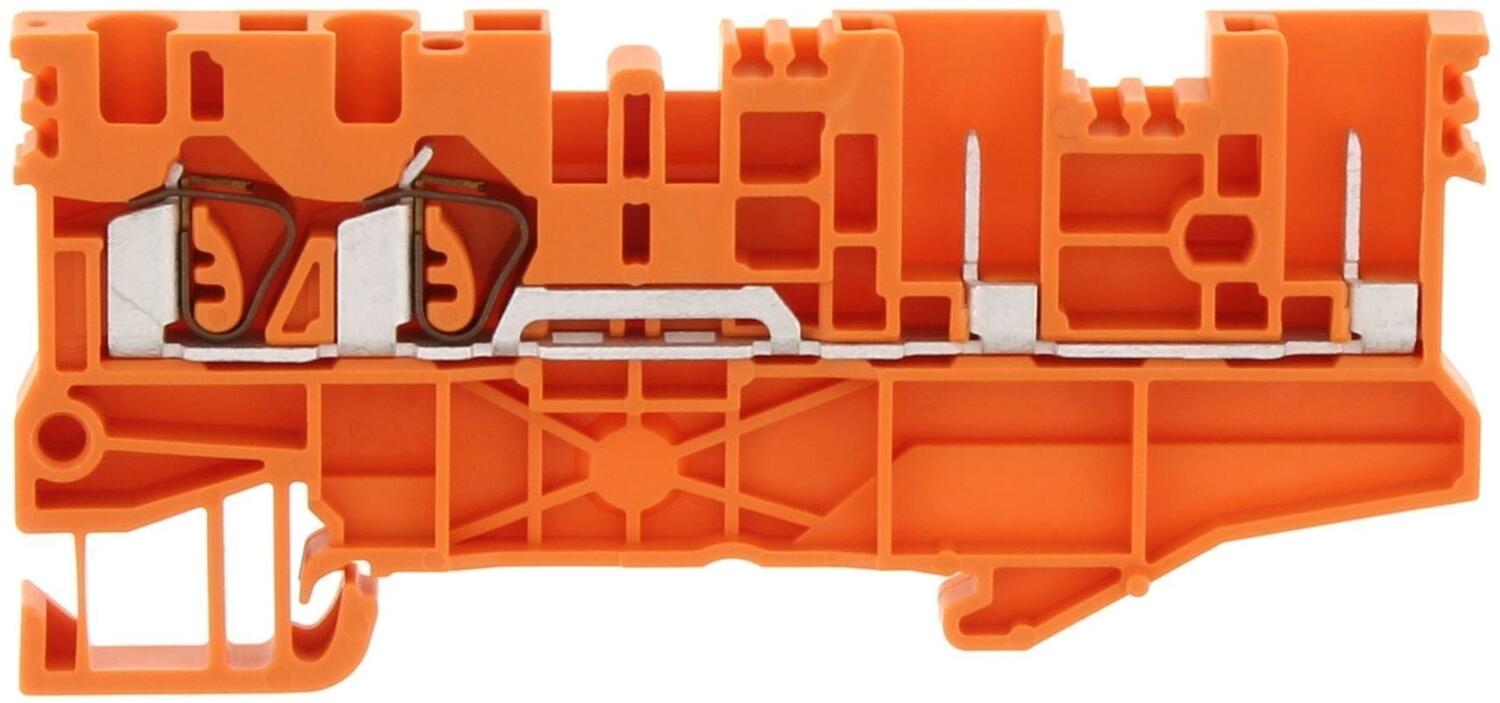

ZRKS 2.5/2A/2S, Feed-through, 2 cable, 2 plug, Orange
Art:
3653.3 Copied
6 kV
Orange
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
82 mm
5,1 mm
38,5 mm
2
4 mm²
0,5 mm²
4
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
10,1 g
ZRKS 2.5/2A/2S, Feed-through, 2 cable, 2 plug, Blue
Art:
3653.5 Copied
6 kV
Blue
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
82 mm
5,1 mm
38,5 mm
2
4 mm²
0,5 mm²
4
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
10,1 g

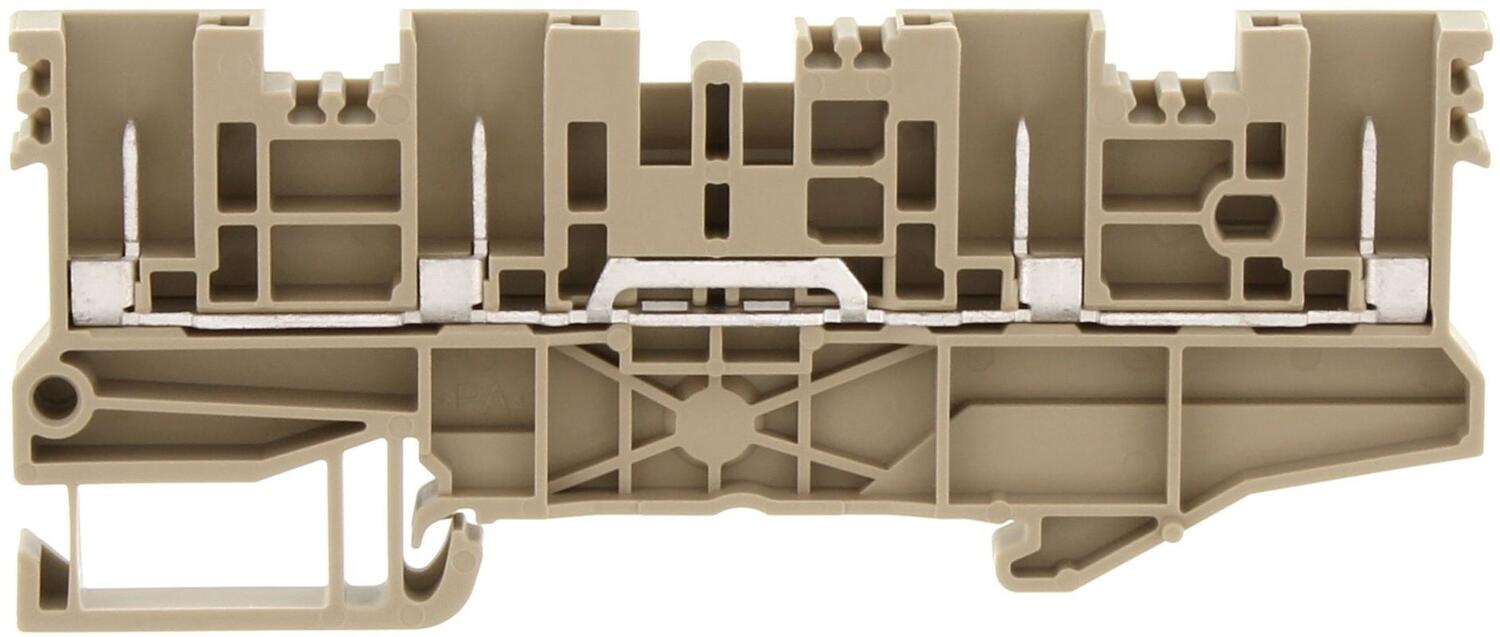

ZRKS 2.5/4S, Feed-through, 4 plug, Beige
Art:
3654.2 Copied
6 kV
Beige
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
90,5 mm
5,1 mm
38,5 mm
2
4
0
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
11,98 g
ZRKS 2.5/4S, Feed-through, 4 plug, Orange
Art:
3654.3 Copied
6 kV
Orange
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
90,5 mm
5,1 mm
38,5 mm
2
4
0
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
11,98 g
ZRKS 2.5/4S, Feed-through, 4 plug, Blue
Art:
3654.5 Copied
6 kV
Blue
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
90,5 mm
5,1 mm
38,5 mm
2
4
0
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
11,98 g

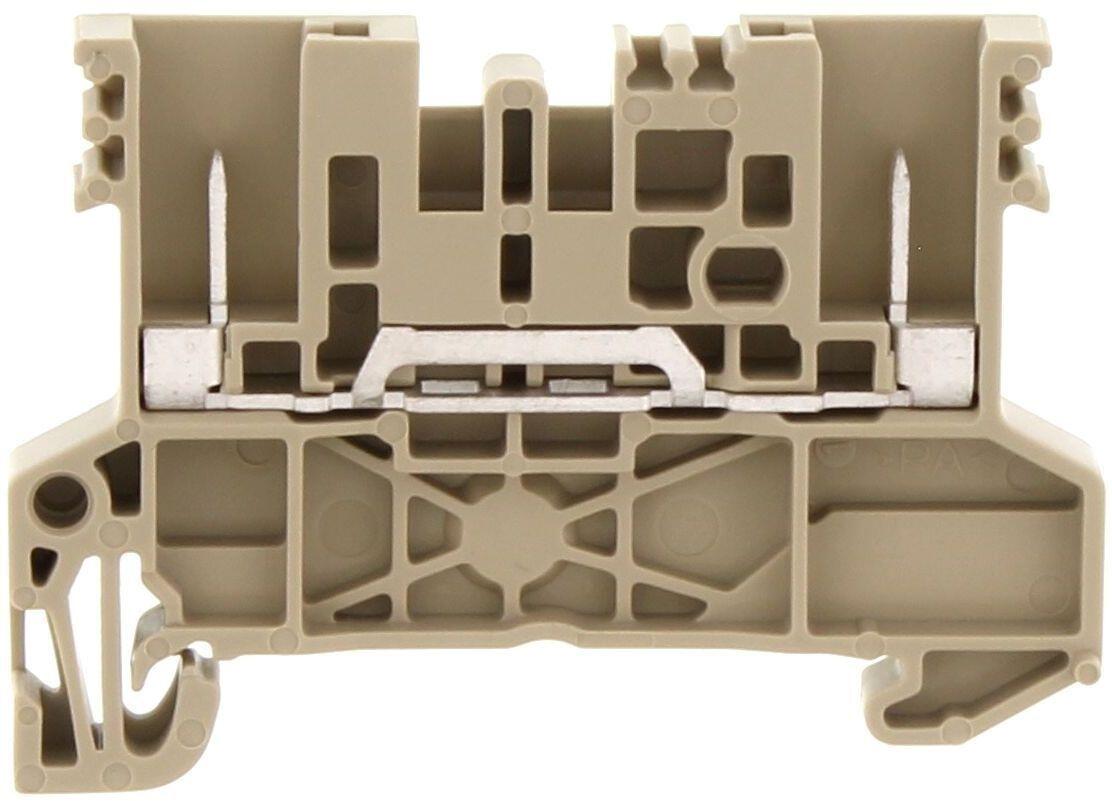

ZRKS 2.5/2S, Feed-through, 2 plug, Beige
Art:
3655.2 Copied
6 kV
Beige
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
54 mm
5,1 mm
38,5 mm
2
2
0
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
6,52 g

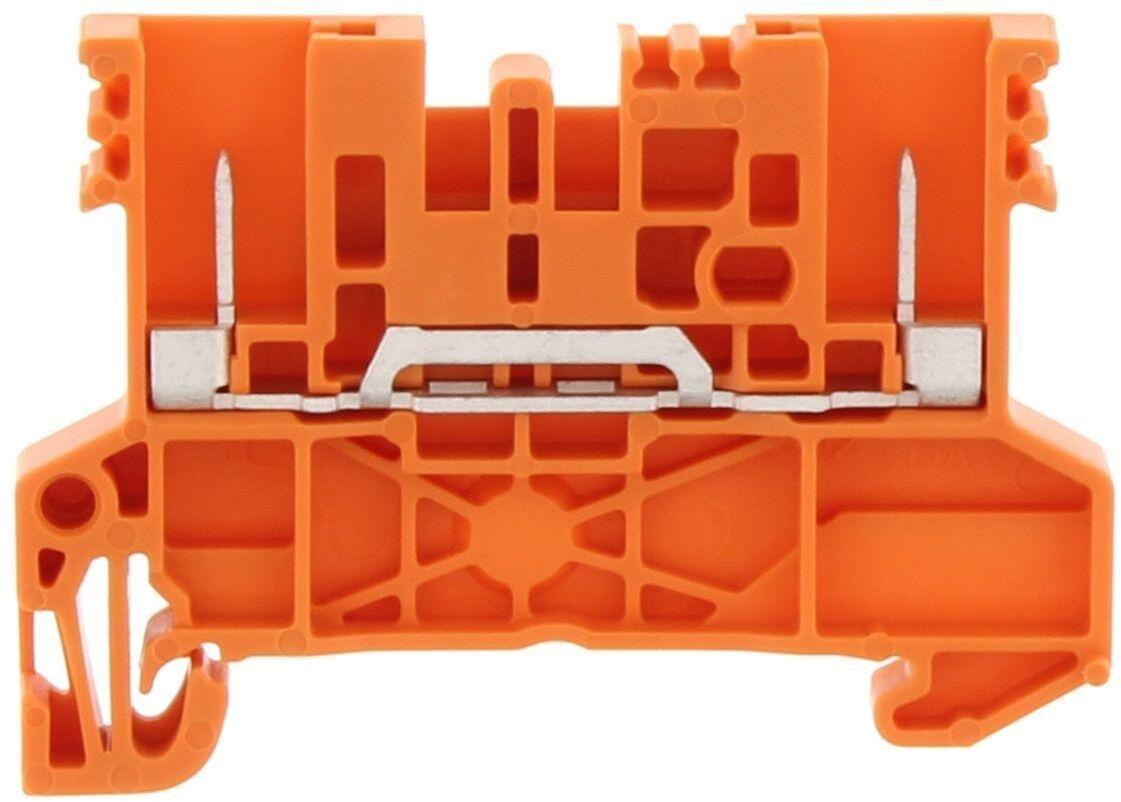

ZRKS 2.5/2S, Feed-through, 2 plug, Orange
Art:
3655.3 Copied
6 kV
Orange
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
54 mm
5,1 mm
38,5 mm
2
2
0
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
6,52 g

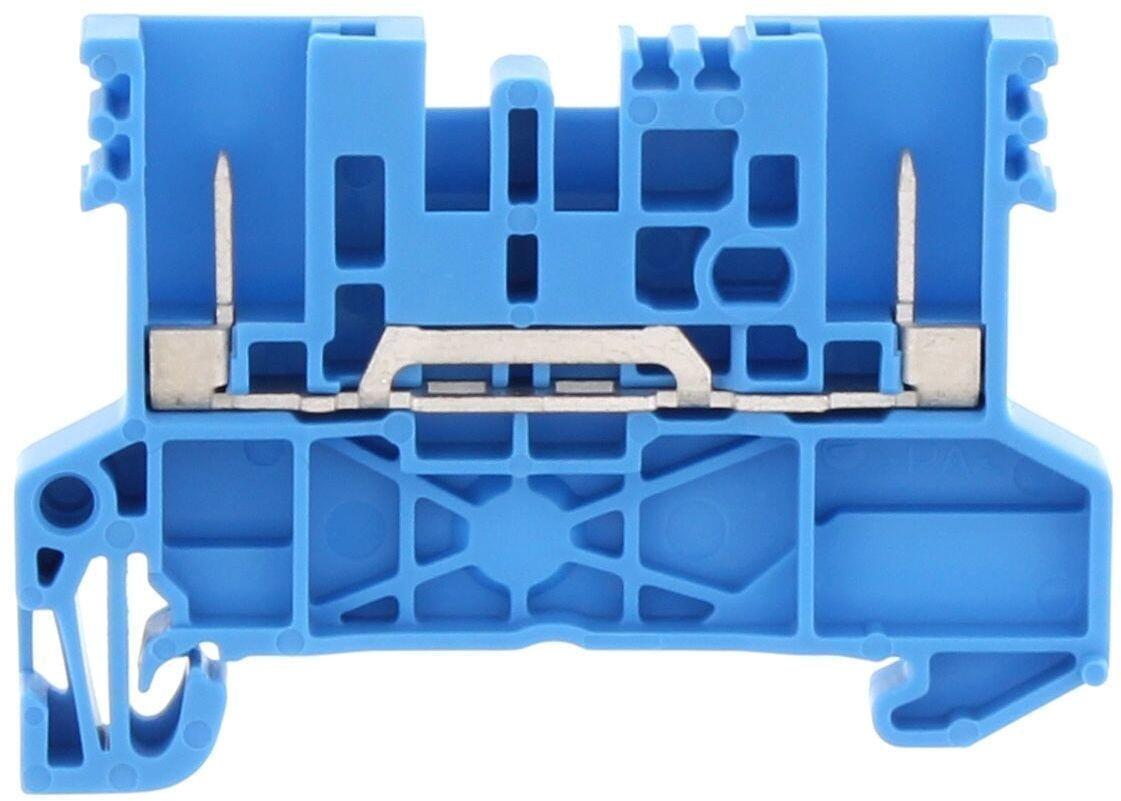

ZRKS 2.5/2S, Feed-through, 2 plug, Blue
Art:
3655.5 Copied
6 kV
Blue
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
54 mm
5,1 mm
38,5 mm
2
2
0
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
6,52 g

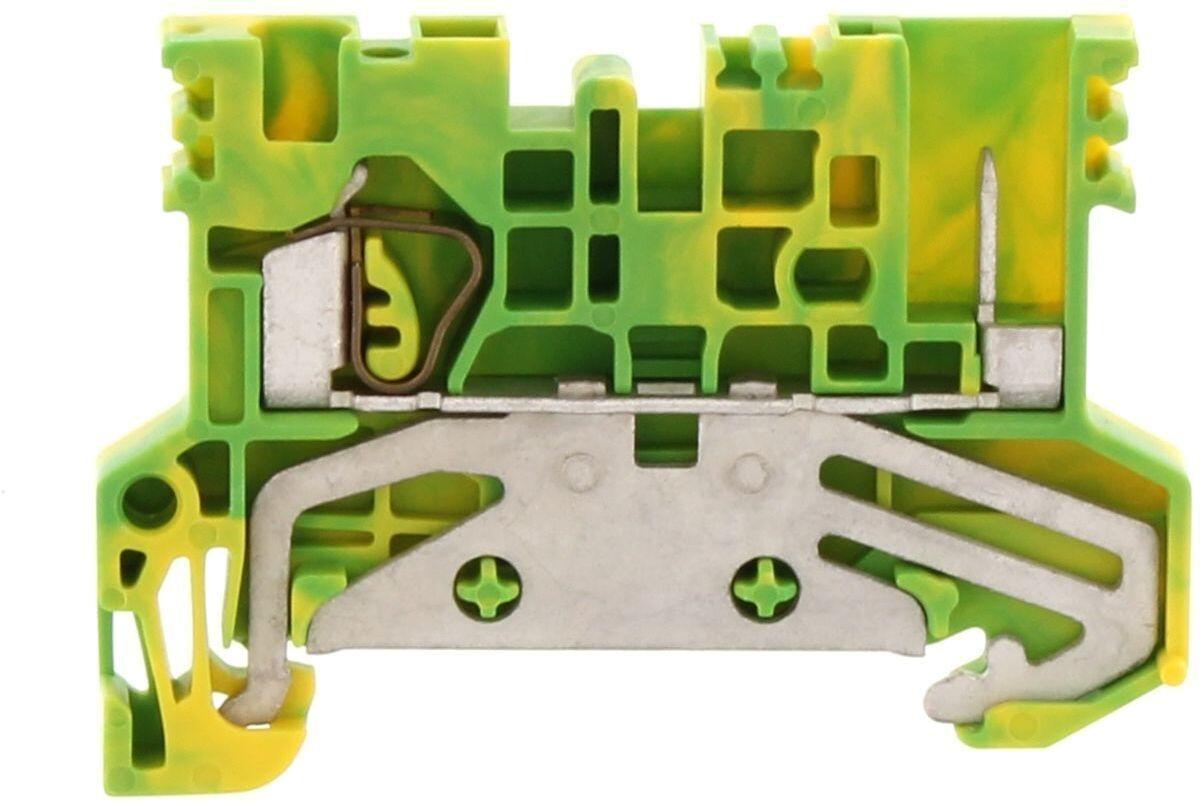

ZSLS 2.5/1A/1S, Feed-through, 1 cable, 1 plug, Green/yellow
Art:
3660.2 Copied
Green/yellow
2,5 mm²
TS 35
3
UL, CSA, CSA US, cUL, EAC
III
39,5 mm
54 mm
5,1 mm
38,5 mm
1
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
C22.2 No 158
EN 60947-7-2:2009
UL 1059
C22.2 No 158
100
DE
10 g
ZSLS 2.5/1A/2S, Feed-through, 1 cable, 2 plug, Green/Yellow
Art:
3661.2 Copied
Green/yellow
2,5 mm²
TS 35
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
72,5 mm
5,1 mm
38,5 mm
1
4 mm²
0,5 mm²
3
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
C22.2 No 158
EN 60947-7-2:2009
UL 1059
C22.2 No 158
100
DE
12 g
ZSLS 2.5/2A/1S , Feed-through, 2 cable, 1 plug, Gree/Yellow
Art:
3662.2 Copied
Green/yellow
2,5 mm²
TS 35
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
64 mm
5,1 mm
38,5 mm
1
4 mm²
0,5 mm²
3
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
C22.2 No 158
EN 60947-7-2:2009
UL 1059
C22.2 No 158
100
DE
12 g

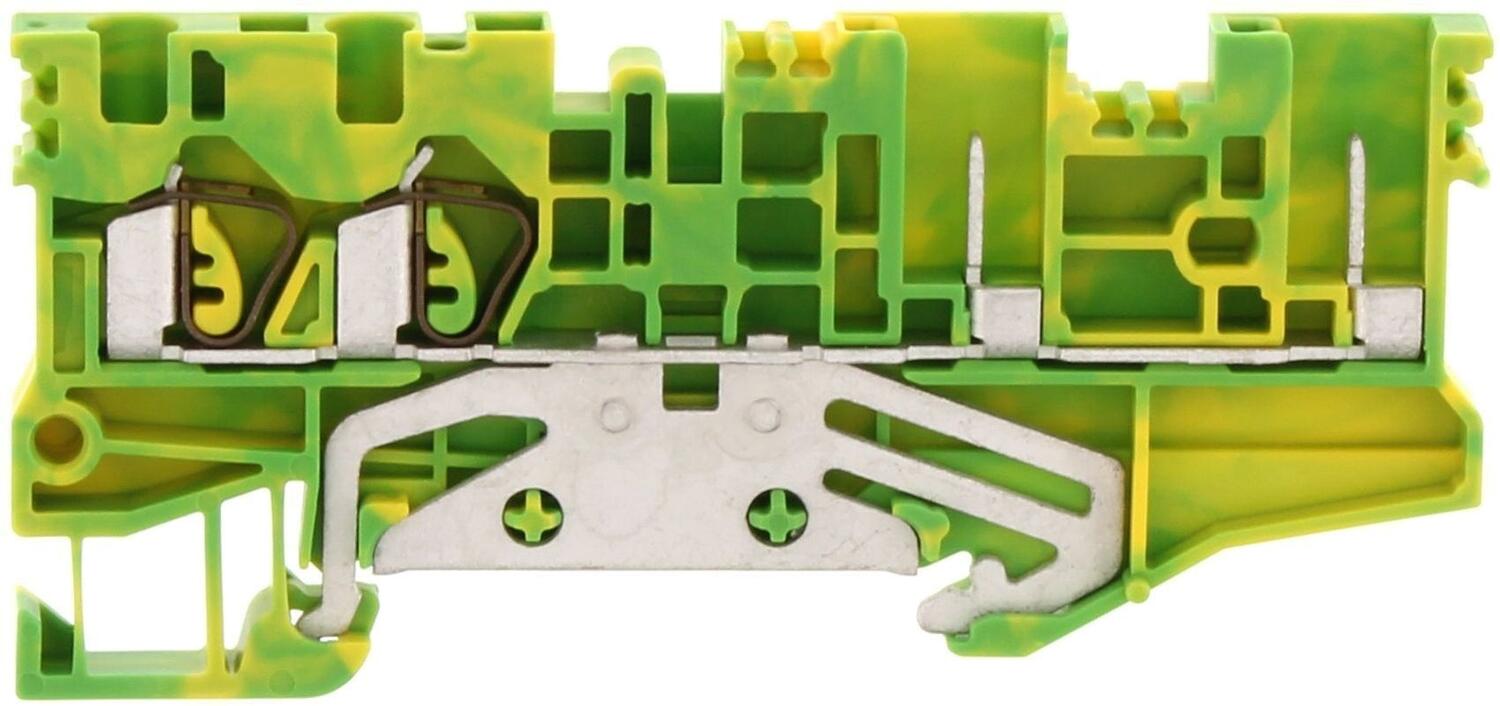

ZSLS 2.5/2A/2S, Feed-through, 2 cable, 2 plug, Green/Yellow
Art:
3663.2 Copied
Green/yellow
2,5 mm²
TS 35
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
82 mm
5,1 mm
38,5 mm
1
4 mm²
0,5 mm²
4
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
C22.2 No 158
EN 60947-7-2:2009
UL 1059
C22.2 No 158
100
DE
12 g

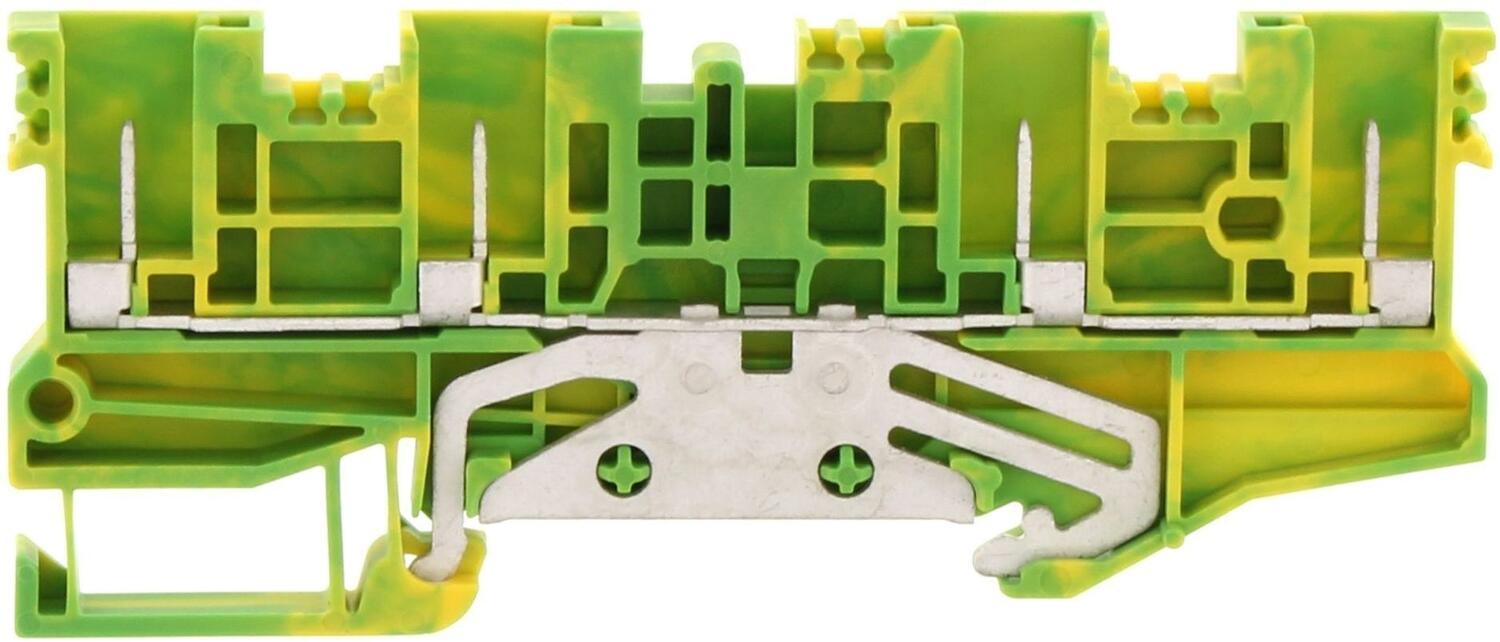

ZSLS 2.5/4S, Feed-through, 4 plug, Green/Yellow
Art:
3664.2 Copied
Green/yellow
TS 35
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
90,5 mm
5,1 mm
38,5 mm
1
4
1
0
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
C22.2 No 158
EN 60947-7-2:2009
UL 1059
C22.2 No 158
100
DE
13,96 g
ZSLS 2.5/2S, Feed-through, 2 plug, Greeen/Yellow
Art:
3665.2 Copied
Green/yellow
TS 35
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
39,5 mm
54 mm
5,1 mm
38,5 mm
1
2
1
0
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
C22.2 No 158
EN 60947-7-2:2009
UL 1059
C22.2 No 158
100
DE
10,97 g

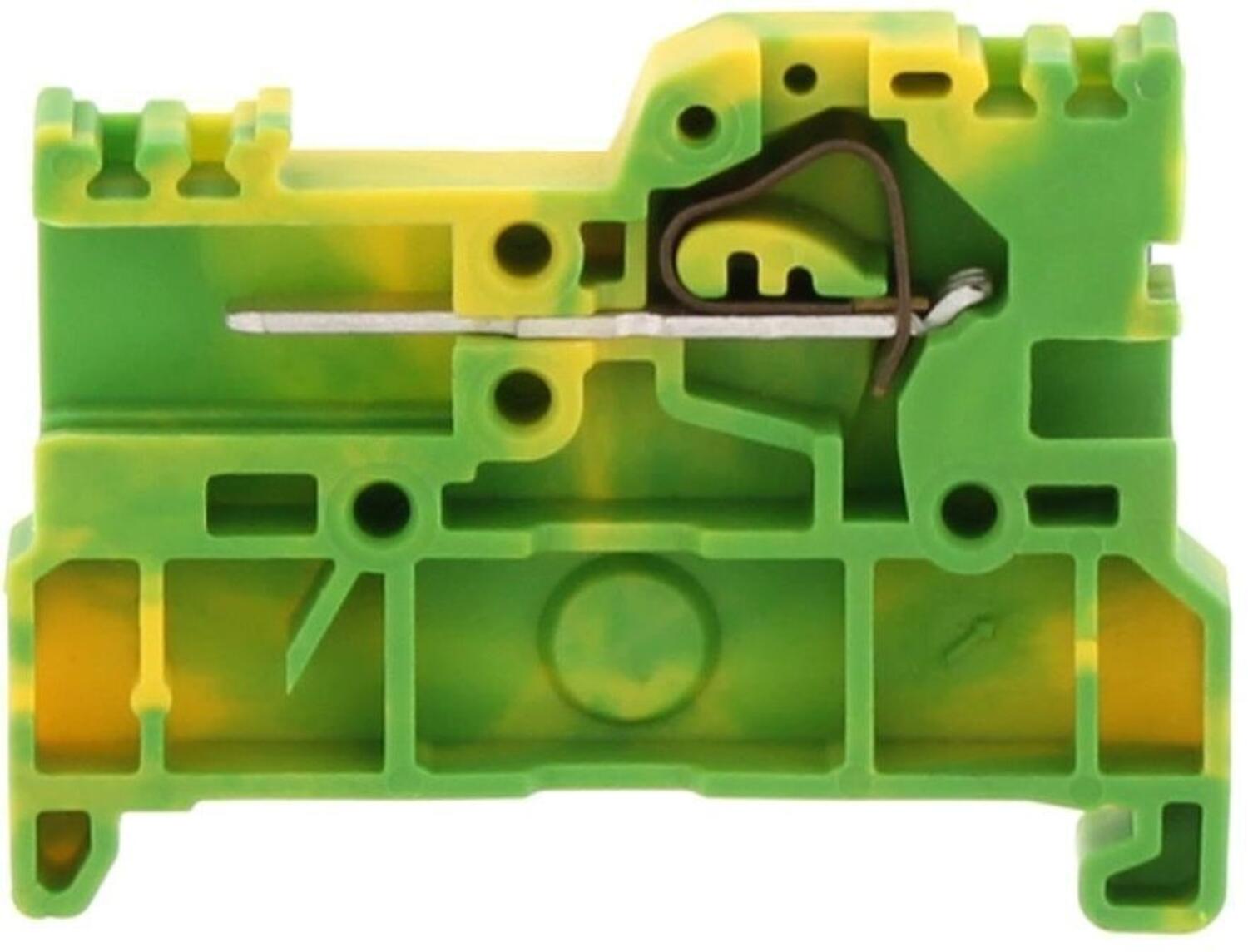

ZSTK 2.5/1A/1S-H/Z/B/35, Horizontal coupling plug with housing pegs, no foot, Green/Yellow
Art:
3667.0 Copied
6 kV
Green/yellow
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
35 mm
44 mm
5,1 mm
30 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,5 g

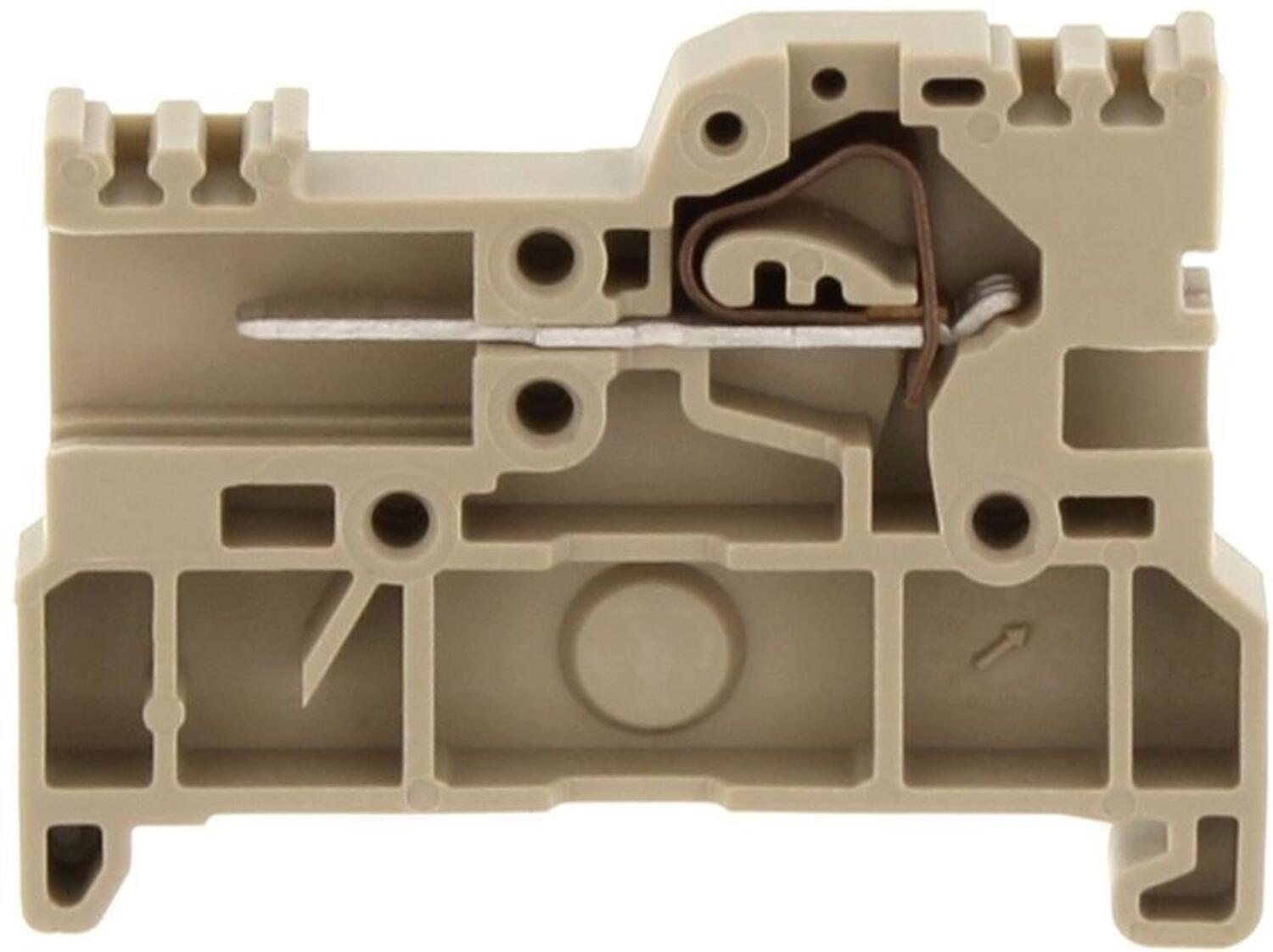

ZSTK 2.5/1A/1S-H/Z/B/35, Horizontal coupling plug with housing pegs, no foot, Beige
Art:
3667.2 Copied
6 kV
Beige
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
35 mm
44 mm
5,1 mm
30 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,5 g
ZSTK 2.5/1A/1S-H/Z/B/35, Horizontal coupling plug with housing pegs, no foot, Orange
Art:
3667.3 Copied
6 kV
Orange
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
35 mm
44 mm
5,1 mm
30 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,5 g

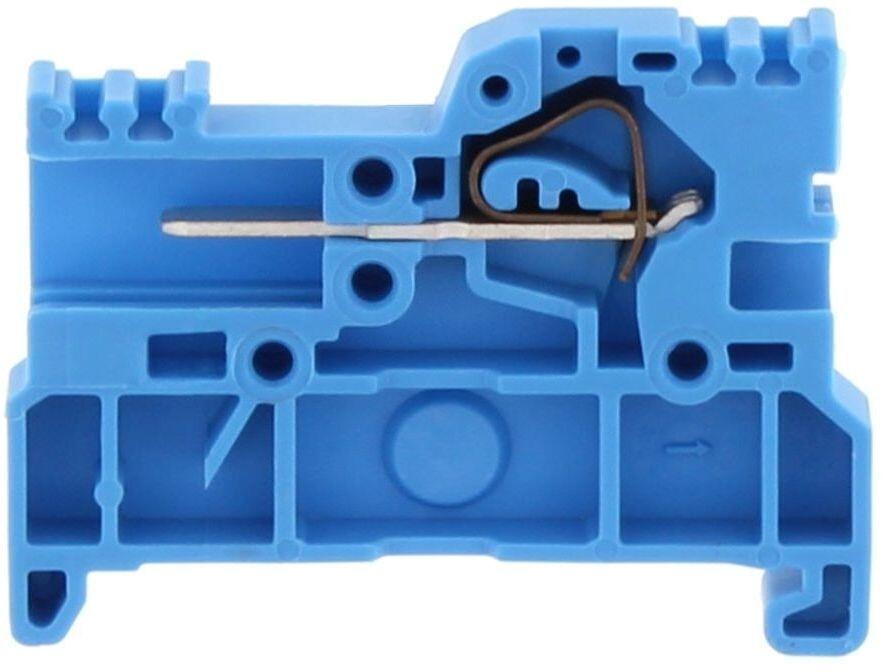

ZSTK 2.5/1A/1S-H/Z/B/35, Horizontal coupling plug with housing pegs, no foot, Blue
Art:
3667.5 Copied
6 kV
Blue
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
35 mm
44 mm
5,1 mm
30 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,5 g

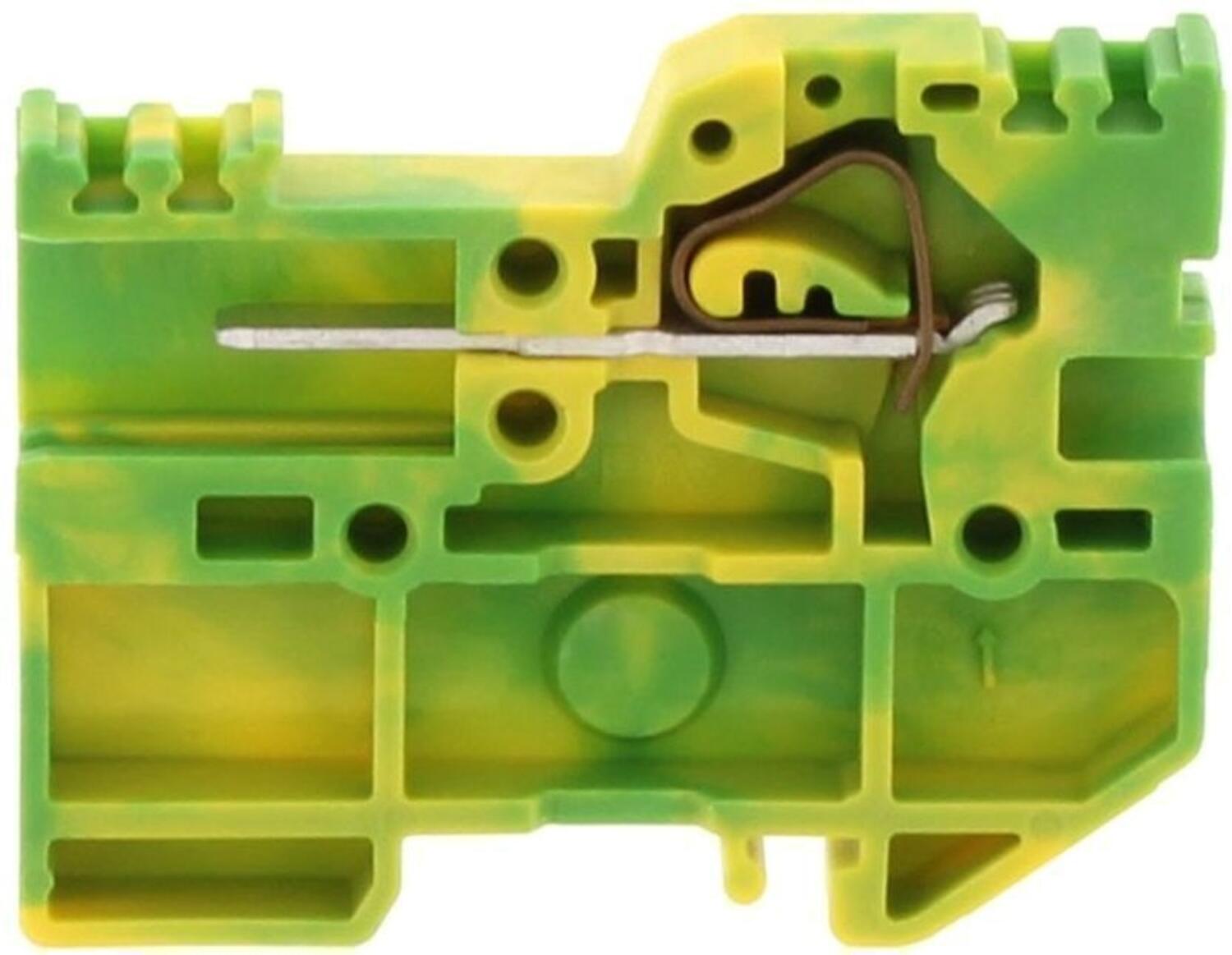

ZSTK 2.5/1A/1S-H/Z/B/15, Horizontal coupling plug with housing pegs, no foot, Green/Yellow, TS15
Art:
3668.0 Copied
6 kV
Green/yellow
2,5 mm²
500 V
TS 15
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
33 mm
40 mm
5,1 mm
32 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,25 g

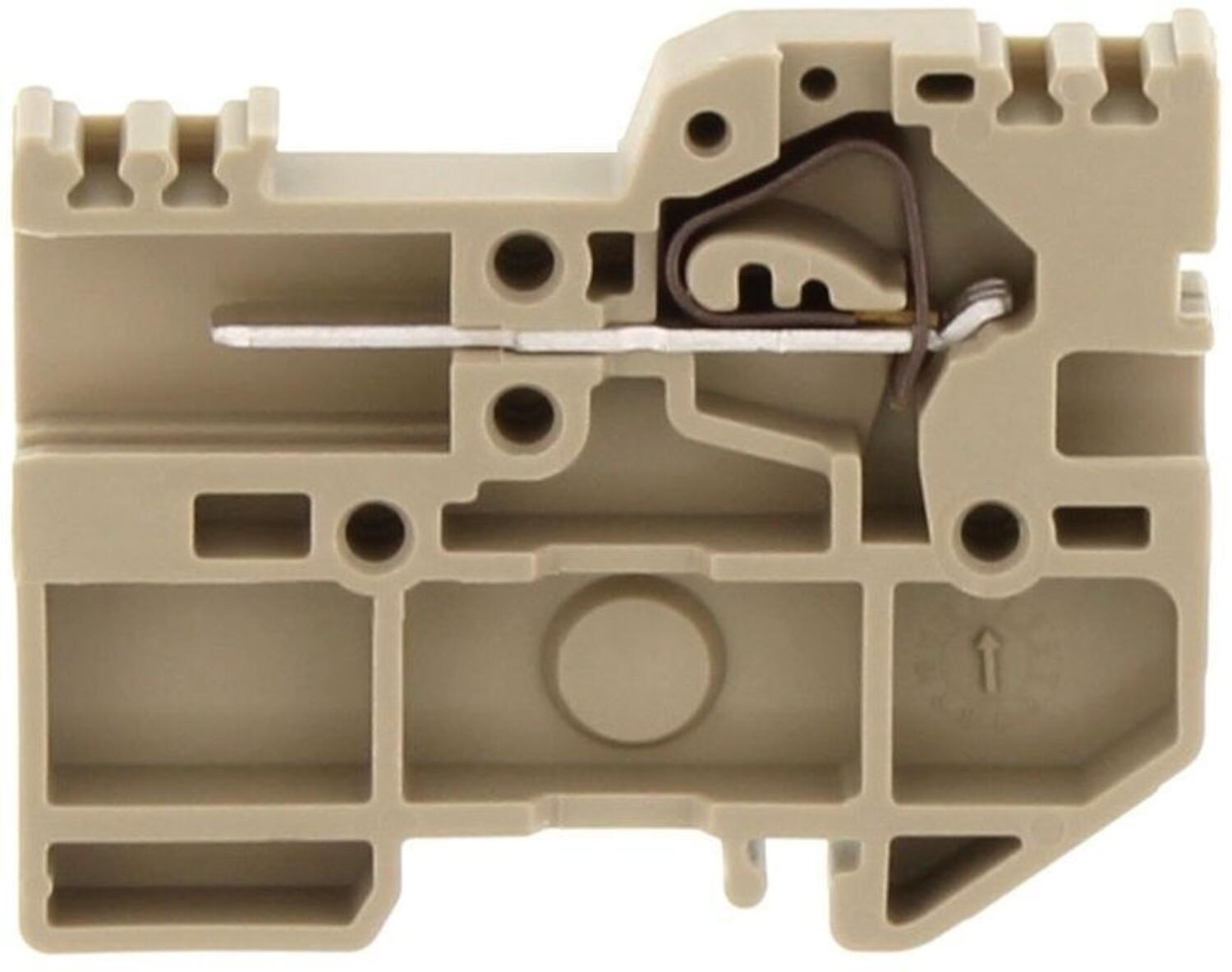

ZSTK 2.5/1A/1S-H/Z/B/15, Horizontal coupling plug with housing pegs, no foot, Beige, TS15
Art:
3668.2 Copied
6 kV
Beige
2,5 mm²
500 V
TS 15
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
33 mm
40 mm
5,1 mm
32 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,25 g

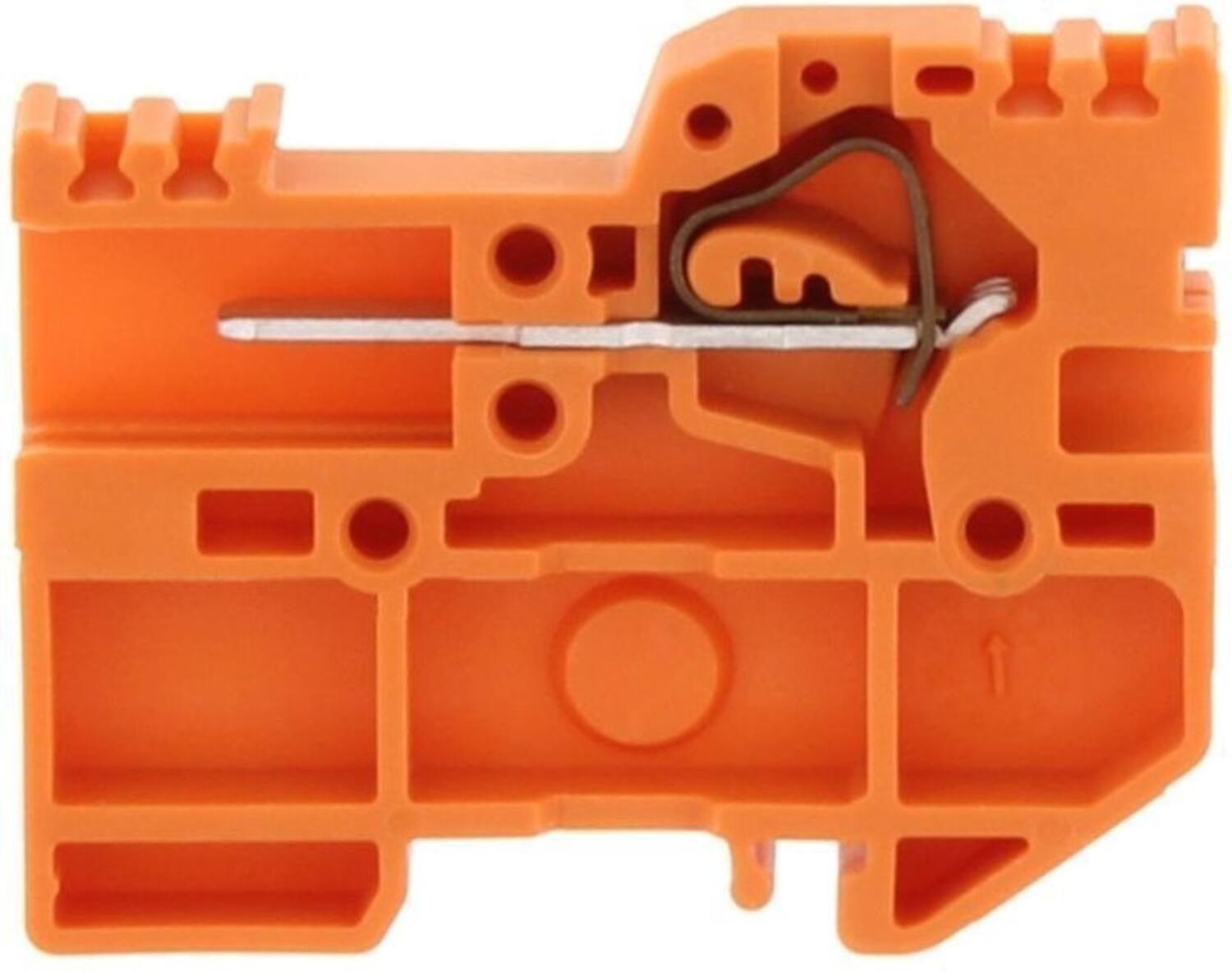

ZSTK 2.5/1A/1S-H/Z/B/15, Horizontal coupling plug with housing pegs, no foot, Orange, TS15
Art:
3668.3 Copied
6 kV
Orange
2,5 mm²
500 V
TS 15
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
33 mm
40 mm
5,1 mm
32 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,25 g

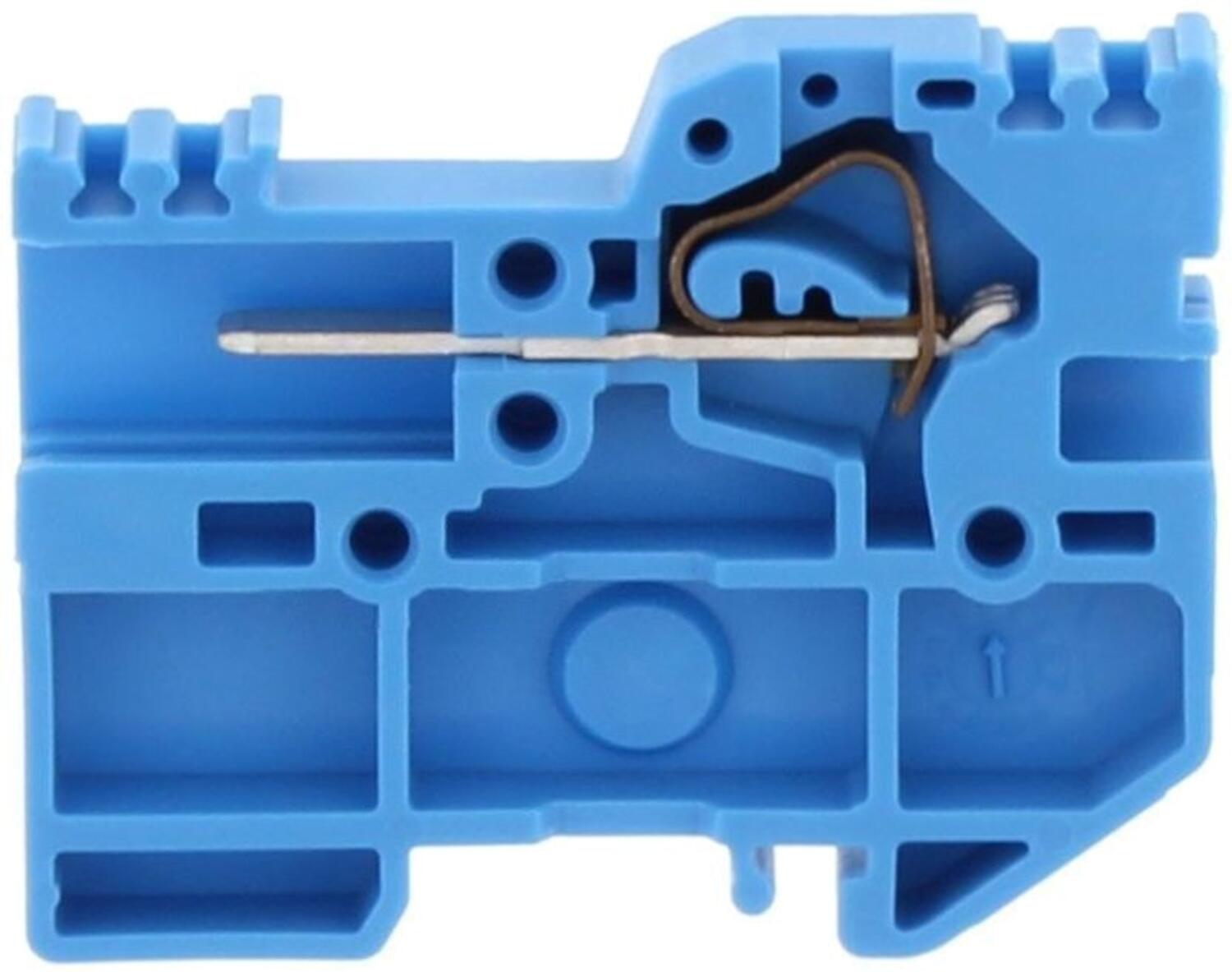

ZSTK 2.5/1A/1S-H/Z/B/15, Horizontal coupling plug with housing pegs, no foot, Blue, TS15
Art:
3668.5 Copied
6 kV
Blue
2,5 mm²
500 V
TS 15
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
33 mm
40 mm
5,1 mm
32 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,25 g

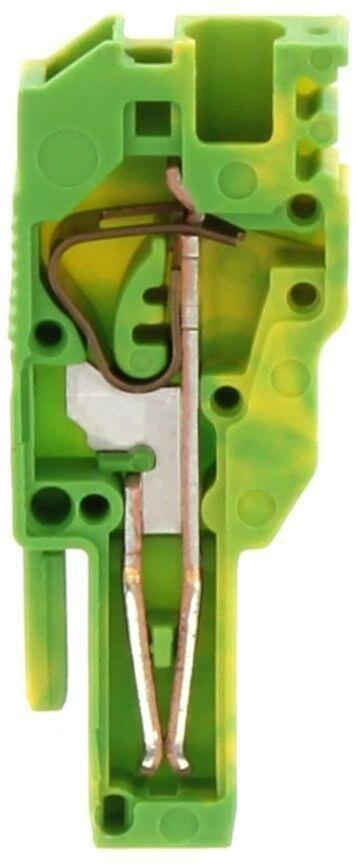

ZST 2.5/1A, Male plug, Green/Yellow
Art:
3670.0 Copied
6 kV
Green/yellow
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
42 mm
5,1 mm
16,5 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
3,124 g
ZST 2.5/1A, Male plug, Beige
Art:
3670.2 Copied
6 kV
Beige
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
42 mm
5,1 mm
16,5 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
3,124 g

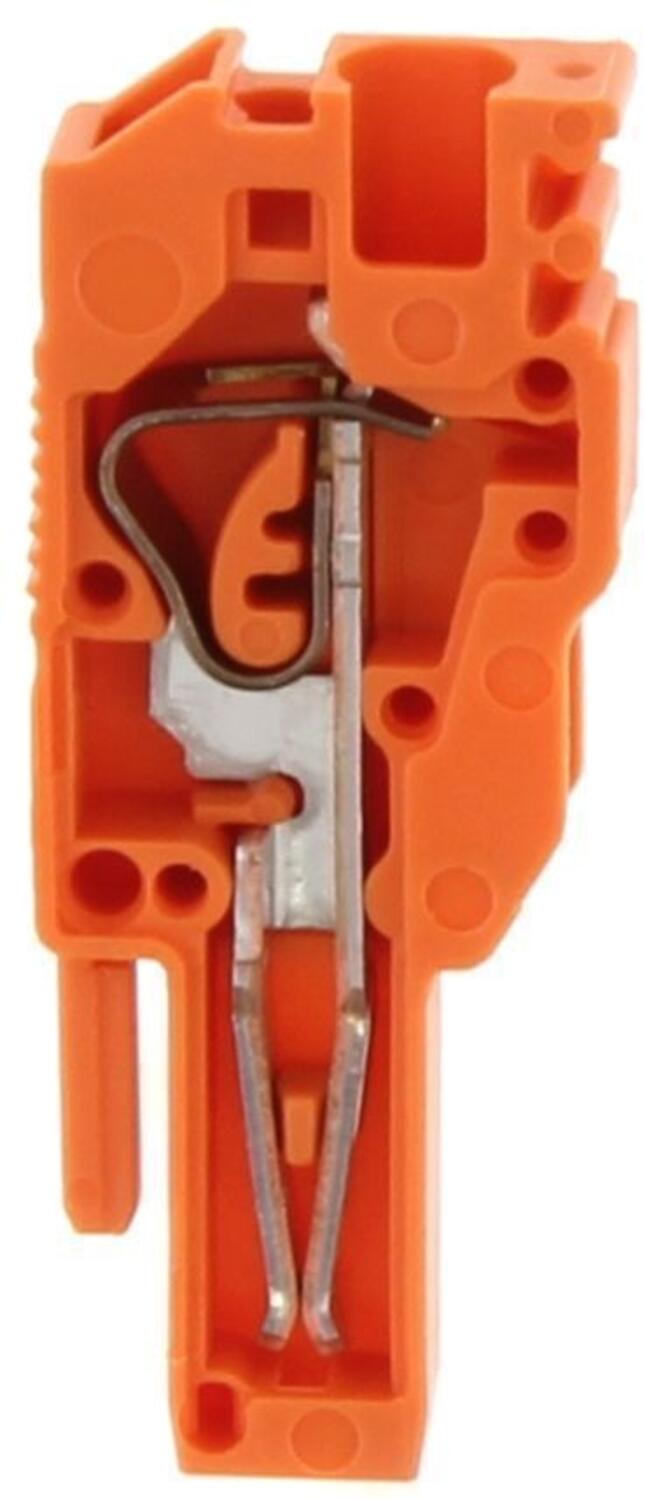

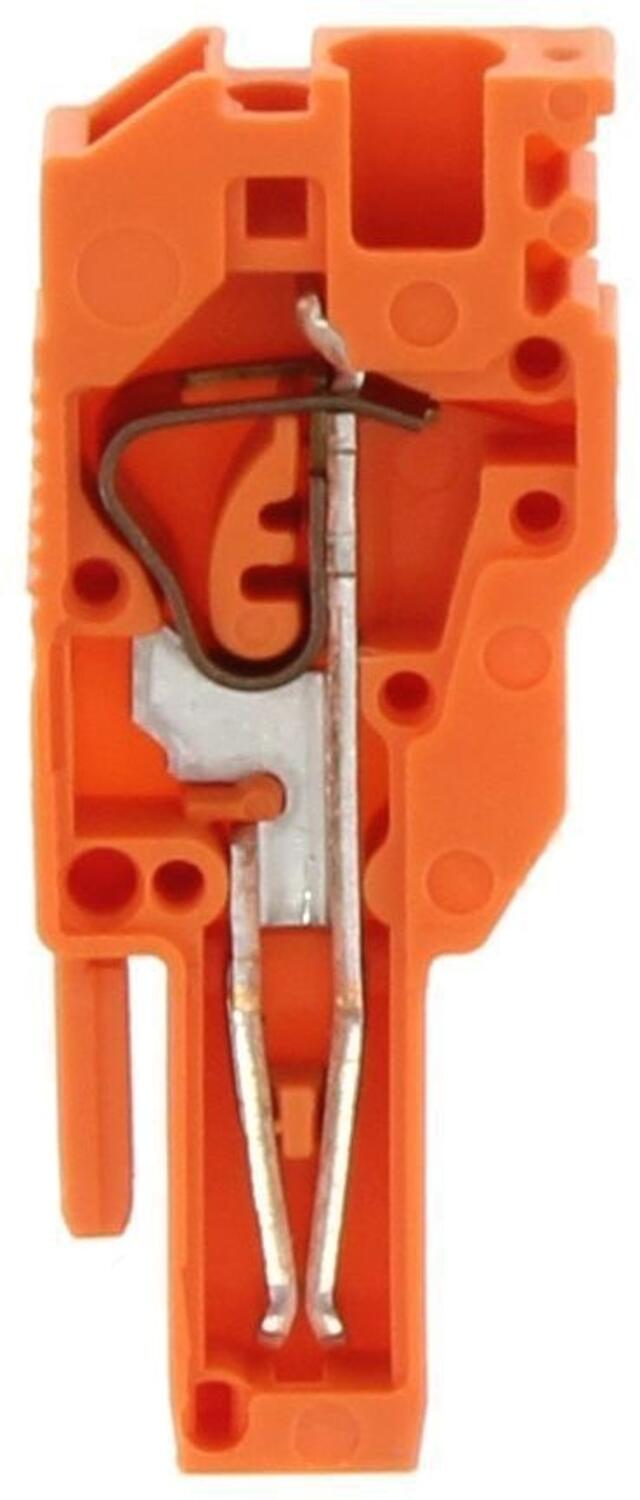

ZST 2.5/1A, Male plug, Orange
Art:
3670.3 Copied
6 kV
Orange
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
42 mm
5,1 mm
16,5 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
3,5 g

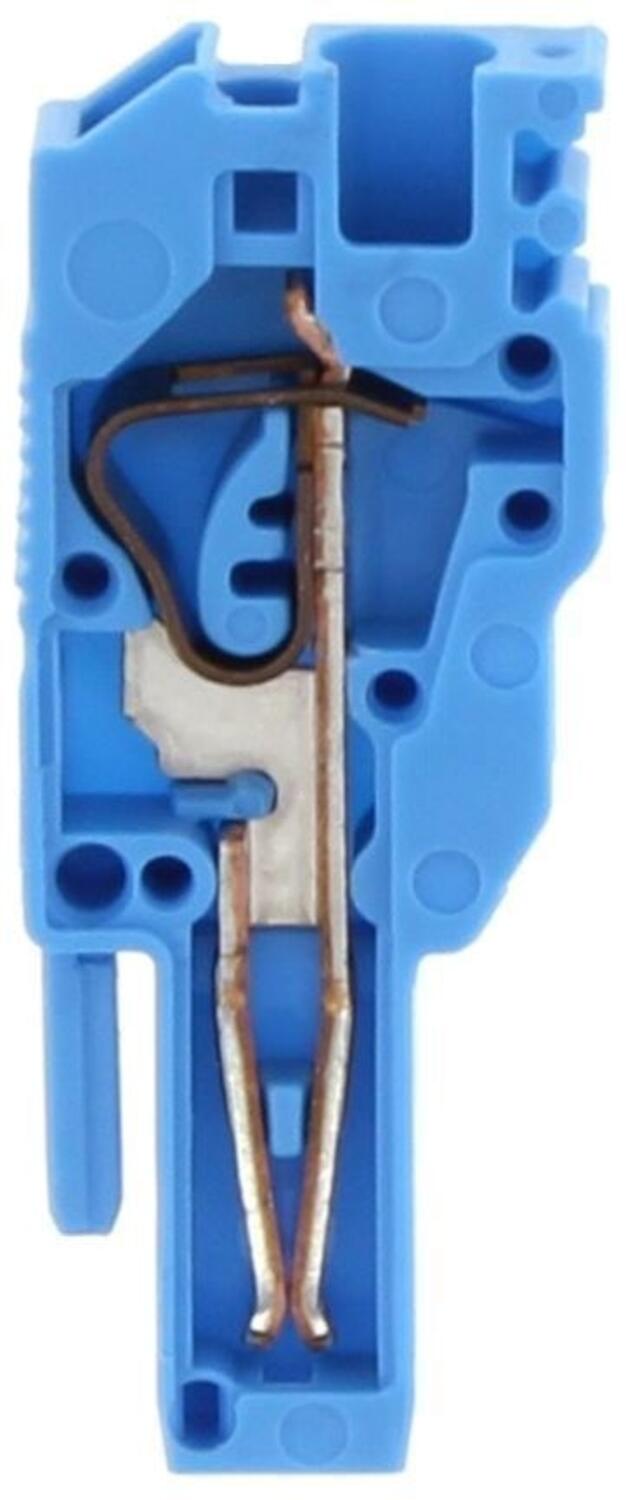

ZST 2.5/1A, Male plug, Blue
Art:
3670.5 Copied
6 kV
Blue
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
42 mm
5,1 mm
16,5 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
3,124 g
ZST 2.5/1A/Z, Male plug with housing pegs, Green/Yellow
Art:
3671.0 Copied
6 kV
Green/yellow
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
with housing pegs
42 mm
5,1 mm
16,5 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
3,174 g

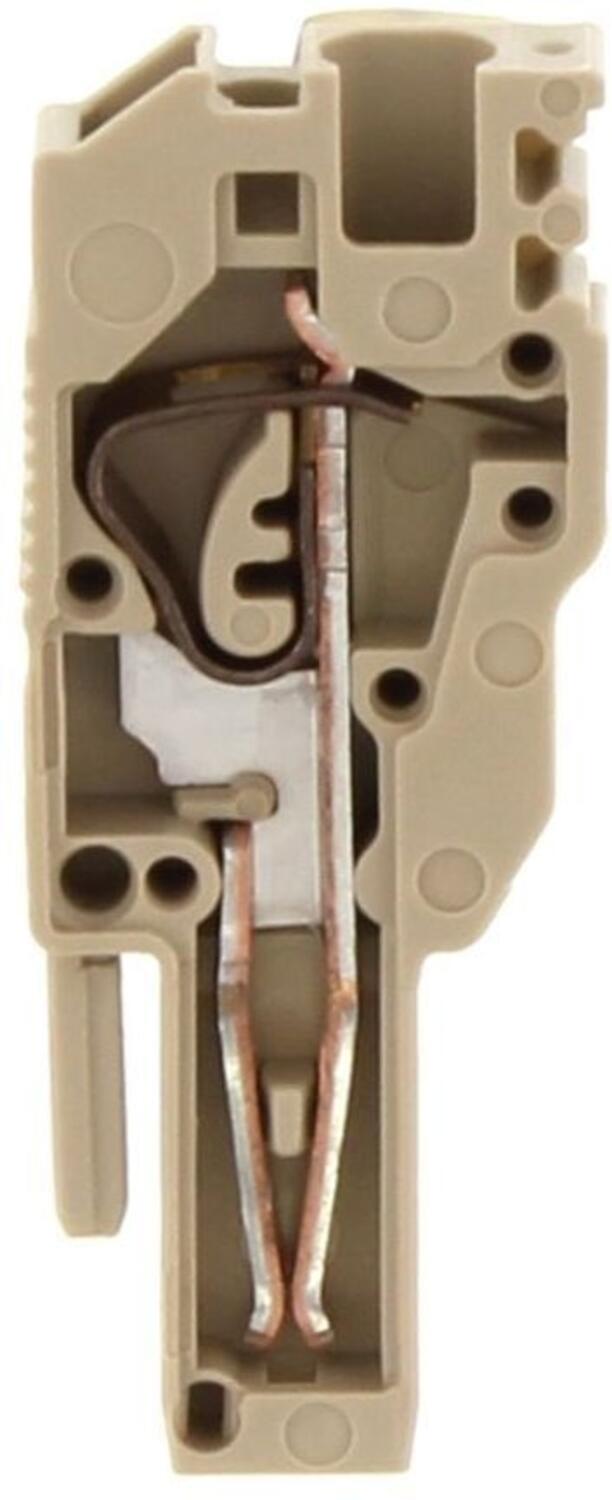

ZST 2.5/1A/Z, Male plug with housing pegs, Beige
Art:
3671.2 Copied
6 kV
Beige
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
with housing pegs
42 mm
5,1 mm
16,5 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
3,174 g
ZST 2.5/1A/Z, Male plug with housing pegs, Orange
Art:
3671.3 Copied
6 kV
Orange
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
with housing pegs
42 mm
5,1 mm
16,5 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4 g
ZST 2.5/1A/Z, Male plug with housing pegs, Blue
Art:
3671.5 Copied
6 kV
Blue
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
with housing pegs
42 mm
5,1 mm
16,5 mm
0
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
3,174 g
ZST 2.5/1A/Q, Male plug cross-connectable, Green/Yellow
Art:
3672.0 Copied
6 kV
Green/yellow
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
42 mm
5,1 mm
21 mm
1
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,3 g

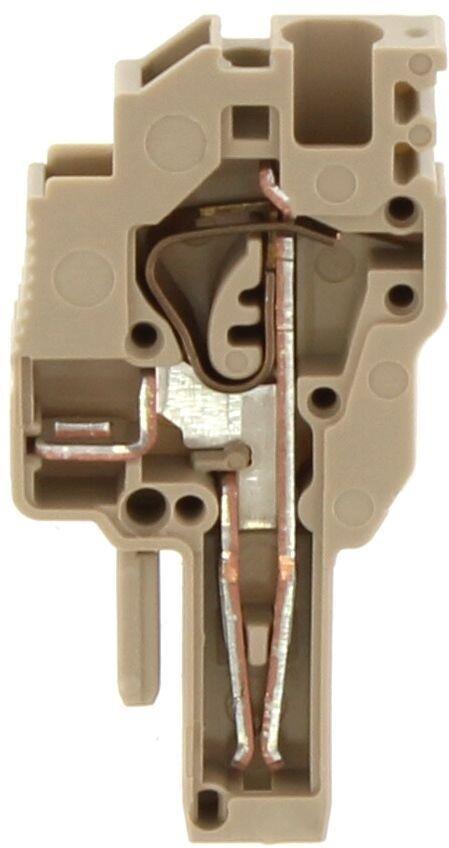

ZST 2.5/1A/Q, Male plug cross-connectable, Beige
Art:
3672.2 Copied
6 kV
Beige
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
42 mm
5,1 mm
21 mm
1
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,3 g
ZST 2.5/1A/Q, Male plug cross-connectable, Orange
Art:
3672.3 Copied
6 kV
Orange
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
42 mm
5,1 mm
21 mm
1
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,3 g
ZST 2.5/1A/Q, Male plug cross-connectable, Blue
Art:
3672.5 Copied
6 kV
Blue
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
42 mm
5,1 mm
21 mm
1
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,3 g
ZST 2.5/1A/Q/Z, Male plug cross-connectable with housing pegs, Green/Yellow
Art:
3673.0 Copied
6 kV
Green/yellow
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
with housing pegs
42 mm
5,1 mm
21 mm
1
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,5 g

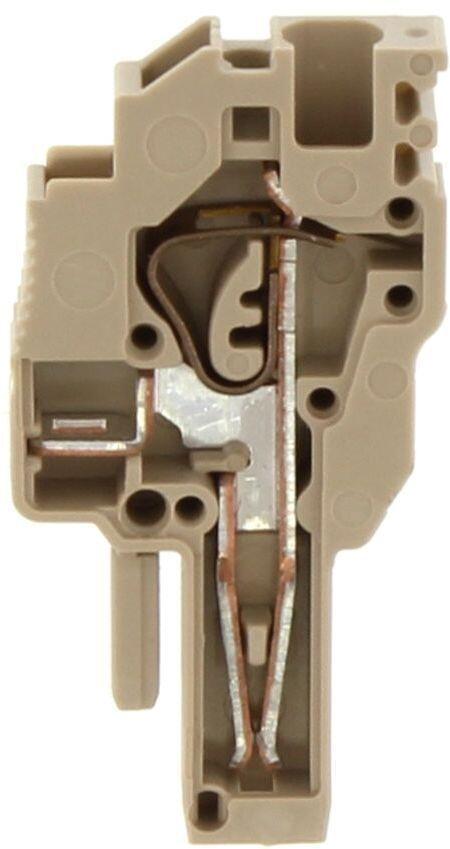

ZST 2.5/1A/Q/Z, Male plug cross-connectable with housing pegs, Beige
Art:
3673.2 Copied
6 kV
Beige
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
with housing pegs
42 mm
5,1 mm
21 mm
1
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,5 g

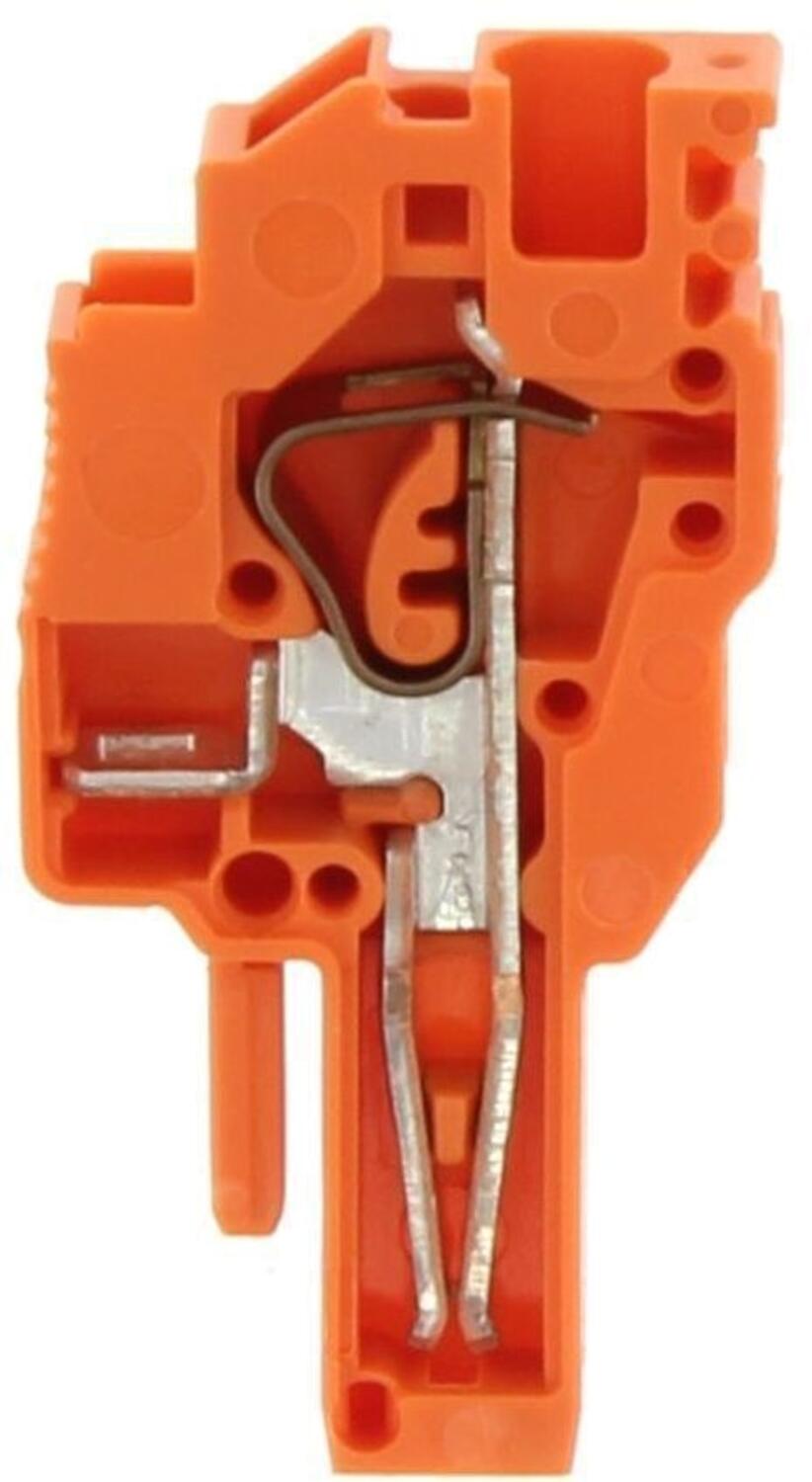

ZST 2.5/1A/Q/Z, Male plug cross-connectable with housing pegs, Orange
Art:
3673.3 Copied
6 kV
Orange
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
with housing pegs
42 mm
5,1 mm
21 mm
1
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,5 g

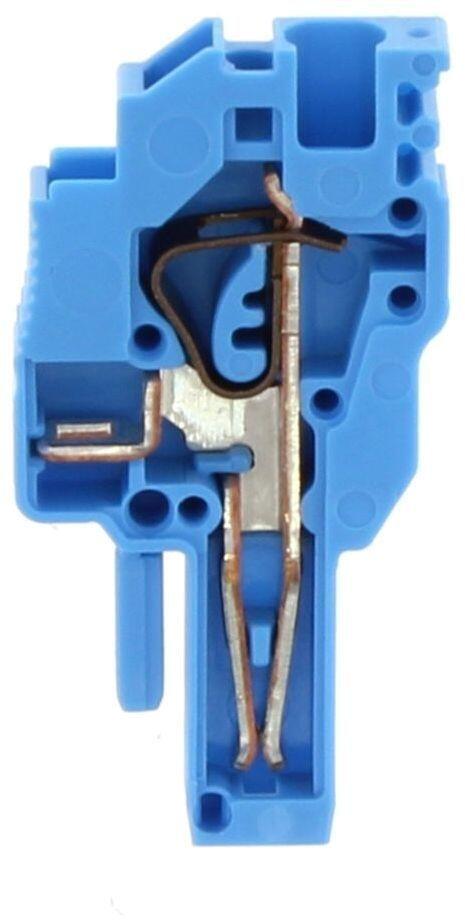

ZST 2.5/1A/Q/Z, Male plug cross-connectable with housing pegs, Blue
Art:
3673.5 Copied
6 kV
Blue
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
with housing pegs
42 mm
5,1 mm
21 mm
1
4 mm²
0,5 mm²
1
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,5 g
ZSTK 2.5/1A/1S-H/35, Horizontal coupling plug, Green/Yellow,
Art:
3674.0 Copied
6 kV
Green/yellow
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
35 mm
44 mm
5,1 mm
30 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,5 g

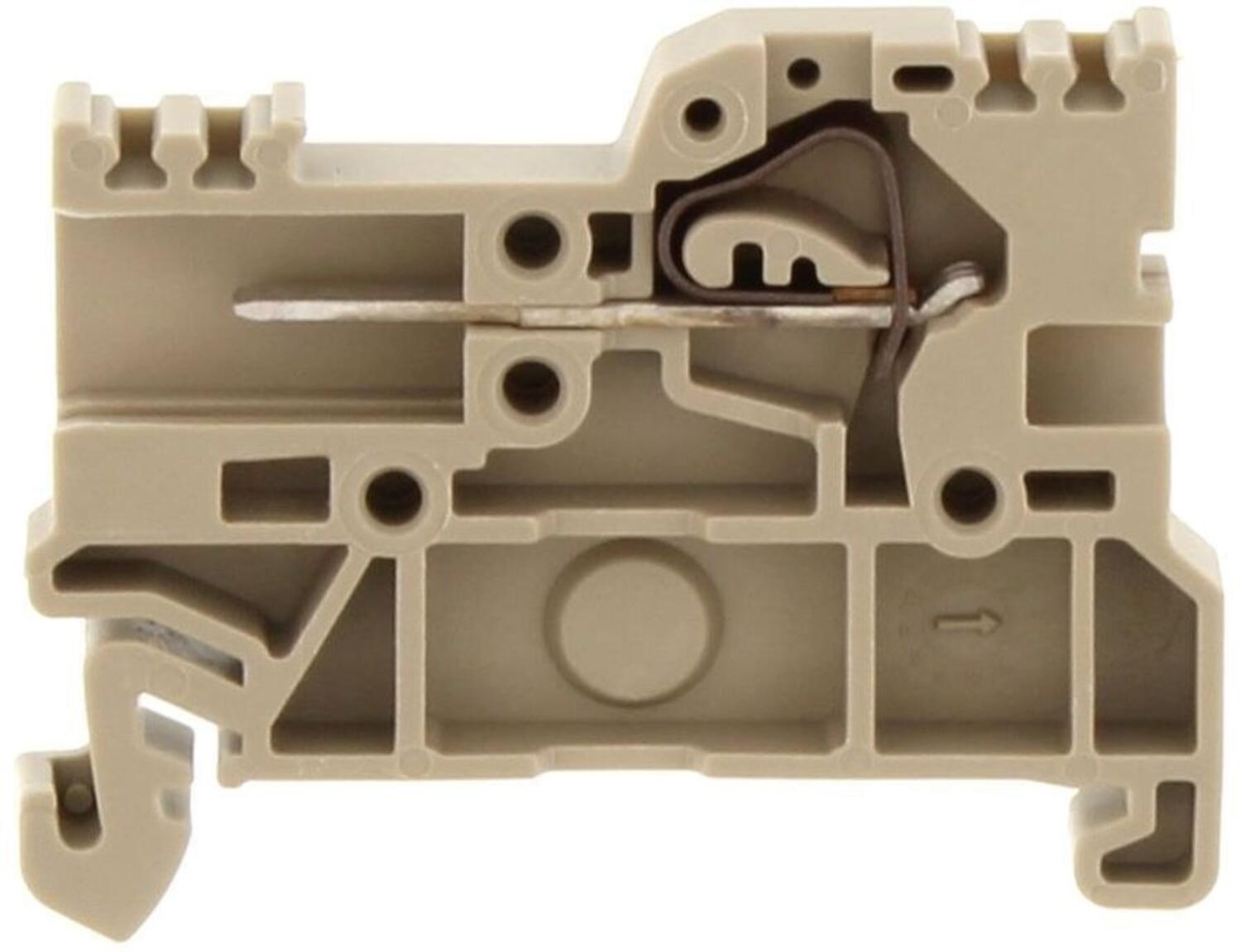

ZSTK 2.5/1A/1S-H/35, Horizontal coupling plug, Beige
Art:
3674.2 Copied
6 kV
Beige
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
35 mm
44 mm
5,1 mm
30 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,5 g
ZSTK 2.5/1A/1S-H/35, Horizontal coupling plug, Orange
Art:
3674.3 Copied
6 kV
Orange
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
35 mm
44 mm
5,1 mm
30 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,5 g
ZSTK 2.5/1A/1S-H/35, Horizontal coupling plug, Blue
Art:
3674.5 Copied
6 kV
Blue
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
35 mm
44 mm
5,1 mm
30 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,5 g
ZSTK 2.5/1A/1S-H/Z/35, Horizontal coupling plug with housing pegs, Green/Yellow
Art:
3675.0 Copied
6 kV
Green/yellow
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
35 mm
44 mm
5,1 mm
30 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,8 g
ZSTK 2.5/1A/1S-H/Z/35 , Horizontal coupling plug with housing pegs, Beige
Art:
3675.2 Copied
6 kV
Beige
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
35 mm
44 mm
5,1 mm
30 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,8 g
ZSTK 2.5/1A/1S-H/Z/35, Horizontal coupling plug with housing pegs, Orange
Art:
3675.3 Copied
6 kV
Orange
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
35 mm
44 mm
5,1 mm
30 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,8 g

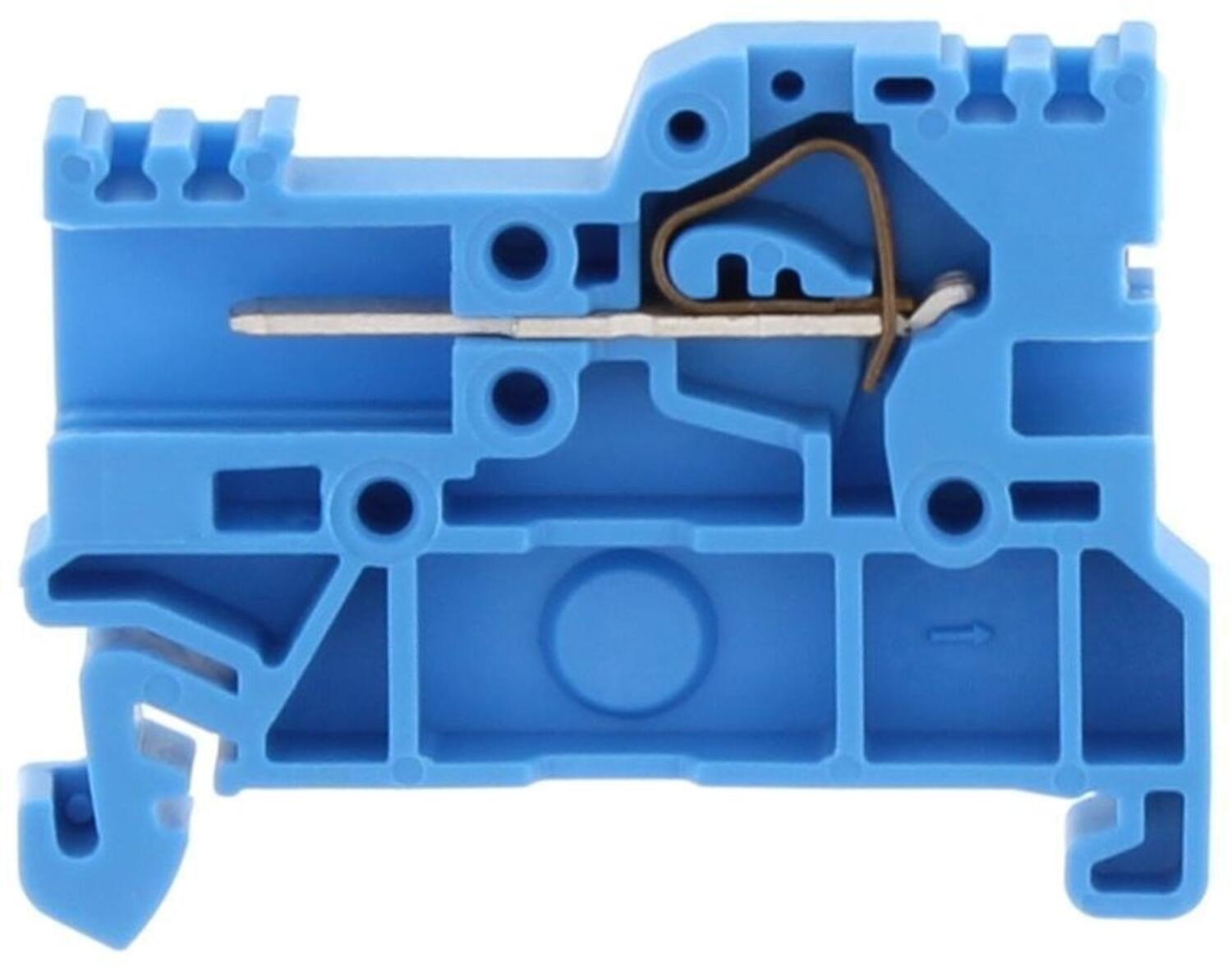

ZSTK 2.5/1A/1S-H/Z/35 , Horizontal coupling plug with housing pegs, Blue
Art:
3675.5 Copied
6 kV
Blue
2,5 mm²
500 V
TS 35
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
35 mm
44 mm
5,1 mm
30 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,8 g

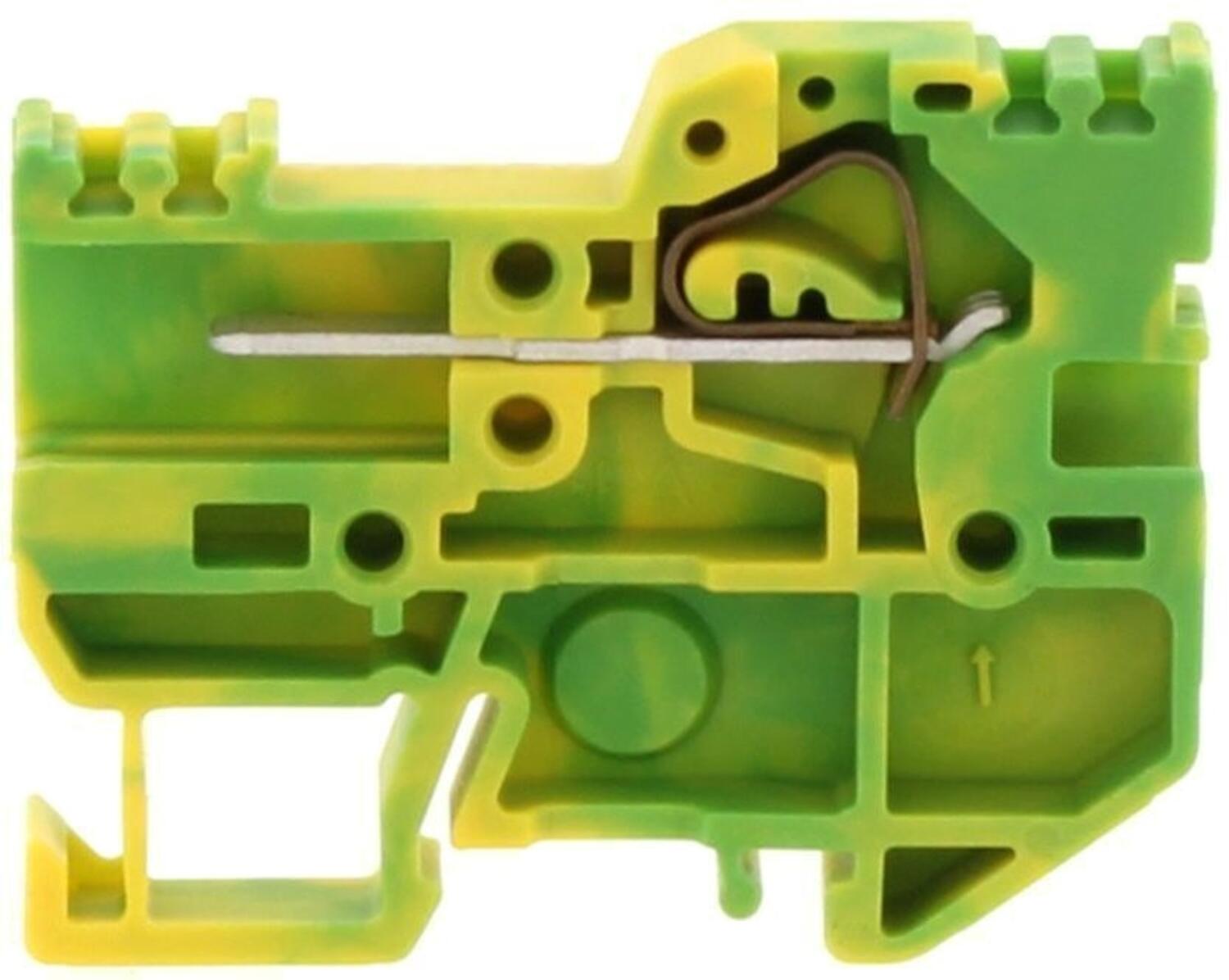

ZSTK 2.5/1A/1S-H/15, Horizontal coupling plug, Green/Yellow, TS15
Art:
3676.0 Copied
6 kV
Green/yellow
2,5 mm²
500 V
TS 15
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
33 mm
40 mm
5,1 mm
32 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,2 g

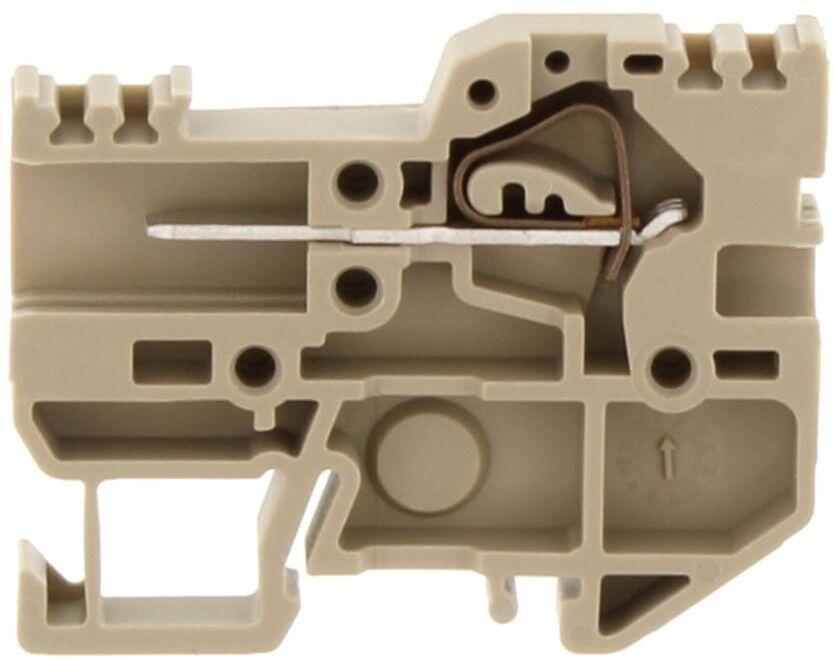

ZSTK 2.5/1A/1S-H/15, Horizontal coupling plug, Beige, TS15
Art:
3676.2 Copied
6 kV
Beige
2,5 mm²
500 V
TS 15
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
33 mm
40 mm
5,1 mm
32 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZZZZZZ
4,2 g
ZSTK 2.5/1A/1S-H/15, Horizontal coupling plug, Orange, TS15
Art:
3676.3 Copied
6 kV
Orange
2,5 mm²
500 V
TS 15
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
33 mm
40 mm
5,1 mm
32 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,2 g

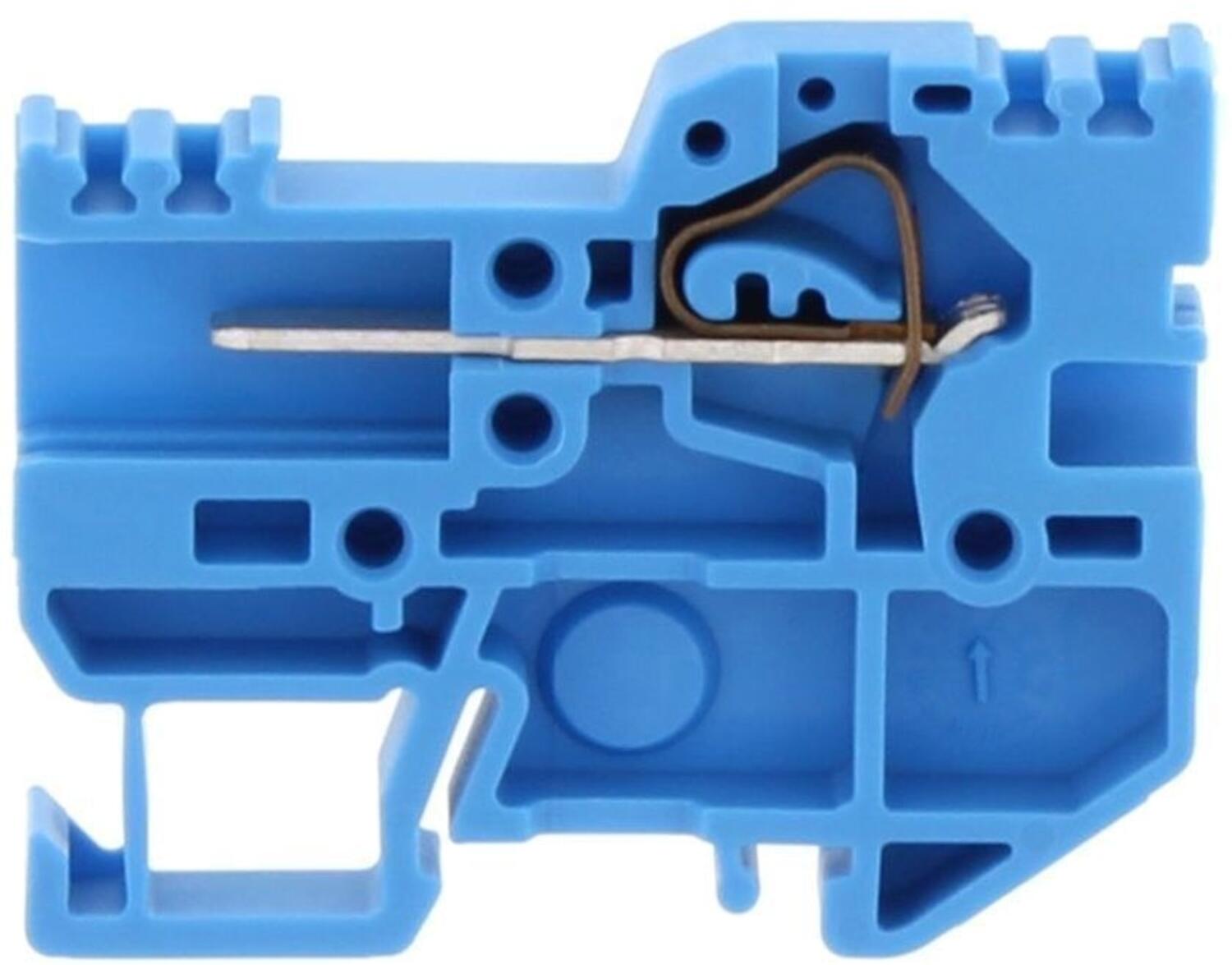

ZSTK 2.5/1A/1S-H/15, Horizontal coupling plug, Blue, TS15
Art:
3676.5 Copied
6 kV
Blue
2,5 mm²
500 V
TS 15
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
33 mm
40 mm
5,1 mm
32 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,2 g

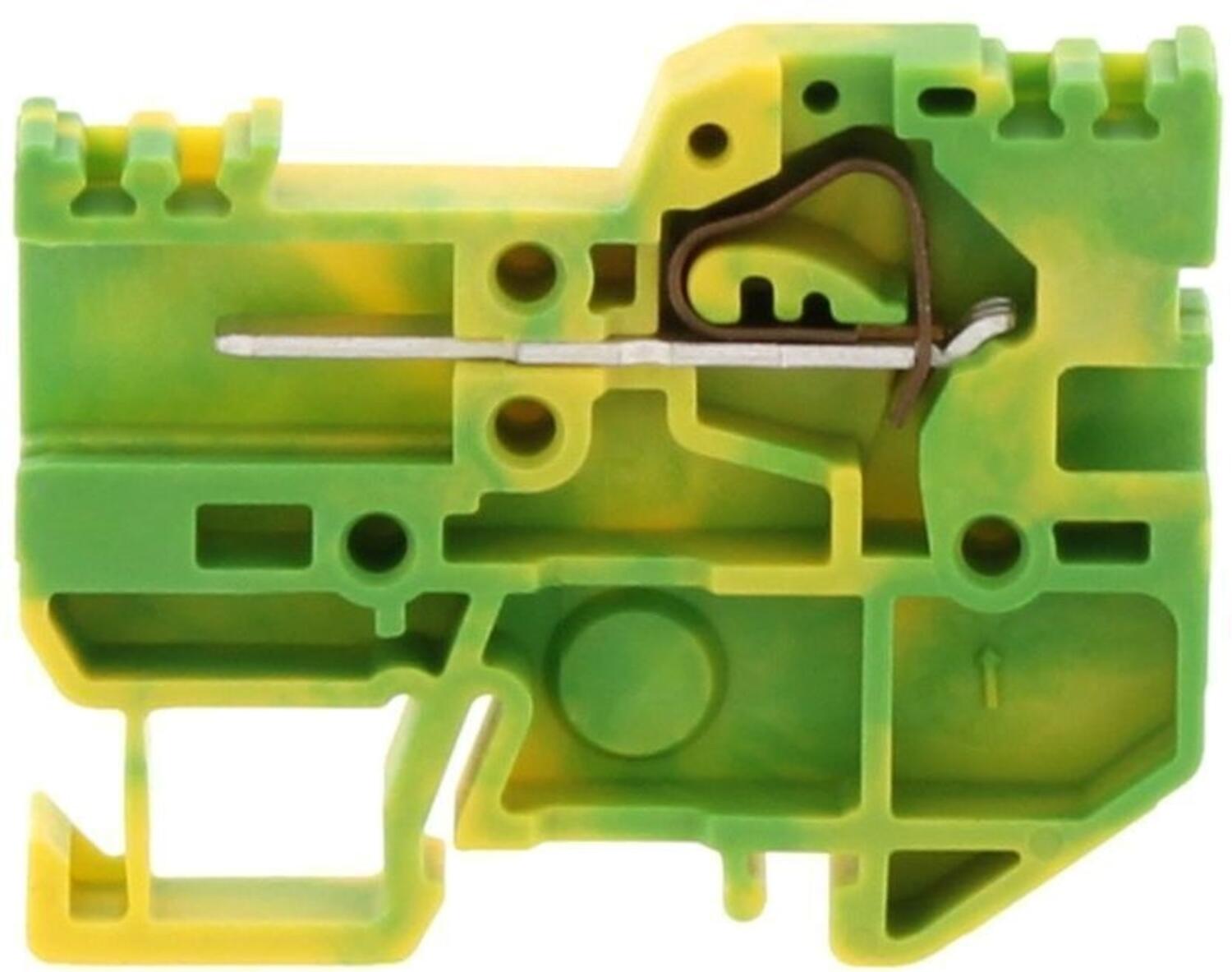

ZSTK 2.5/1A/1S-H/Z/15, Horizontal coupling plug with housing pegs Green/Yellow, TS15
Art:
3677.0 Copied
6 kV
Green/yellow
2,5 mm²
500 V
TS 15
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
33 mm
40 mm
5,1 mm
32 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,26 g
ZSTK 2.5/1A/1S-H/Z/15, Horizontal coupling plug with housing pegs, Beige, TS15
Art:
3677.2 Copied
6 kV
Beige
2,5 mm²
500 V
TS 15
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
33 mm
40 mm
5,1 mm
32 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,26 g
ZSTK 2.5/1A/1S-H/Z/15, Horizontal coupling plug with housing pegs, Orange, TS15
Art:
3677.3 Copied
6 kV
Orange
2,5 mm²
500 V
TS 15
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
33 mm
40 mm
5,1 mm
32 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,26 g

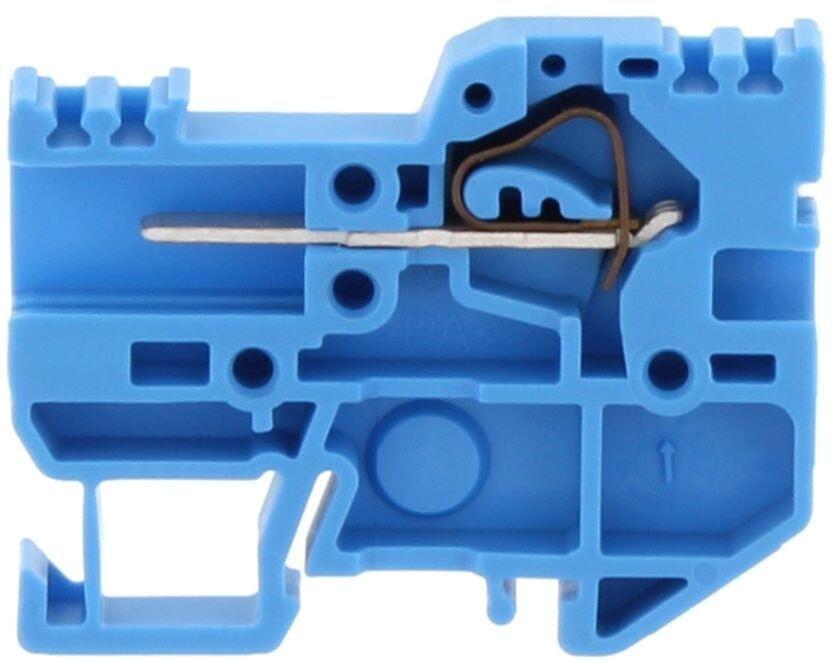

ZSTK 2.5/1A/1S-H/Z/15, Horizontal coupling plug with housing pegs, Blue, TS15
Art:
3677.5 Copied
6 kV
Blue
2,5 mm²
500 V
TS 15
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
33 mm
40 mm
5,1 mm
32 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
4,26 g

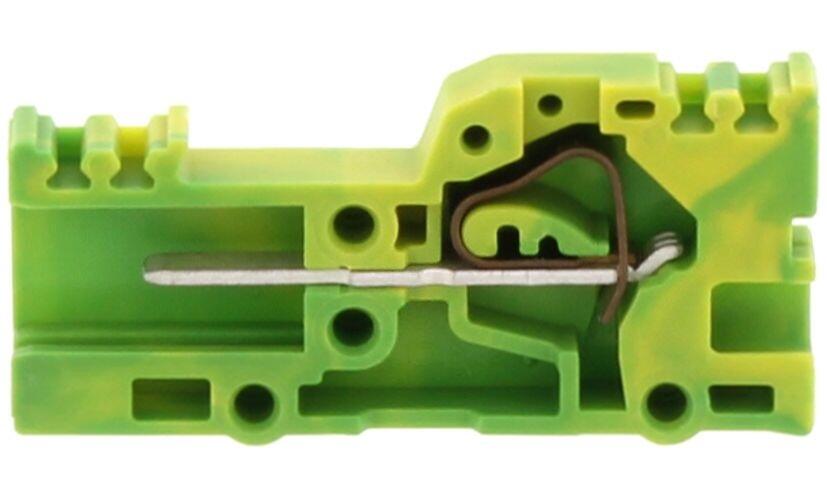

ZSTK 2.5/1A/1S-H/B, Horizontal Inline coupling plug, Green/Yellow
Art:
3678.0 Copied
6 kV
Green/yellow
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
40 mm
5,1 mm
19 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,26 g
ZSTK 2.5/1A/1S-H/B, Horizontal Inline coupling plug, Beige
Art:
3678.2 Copied
6 kV
Beige
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
40 mm
5,1 mm
19 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,26 g

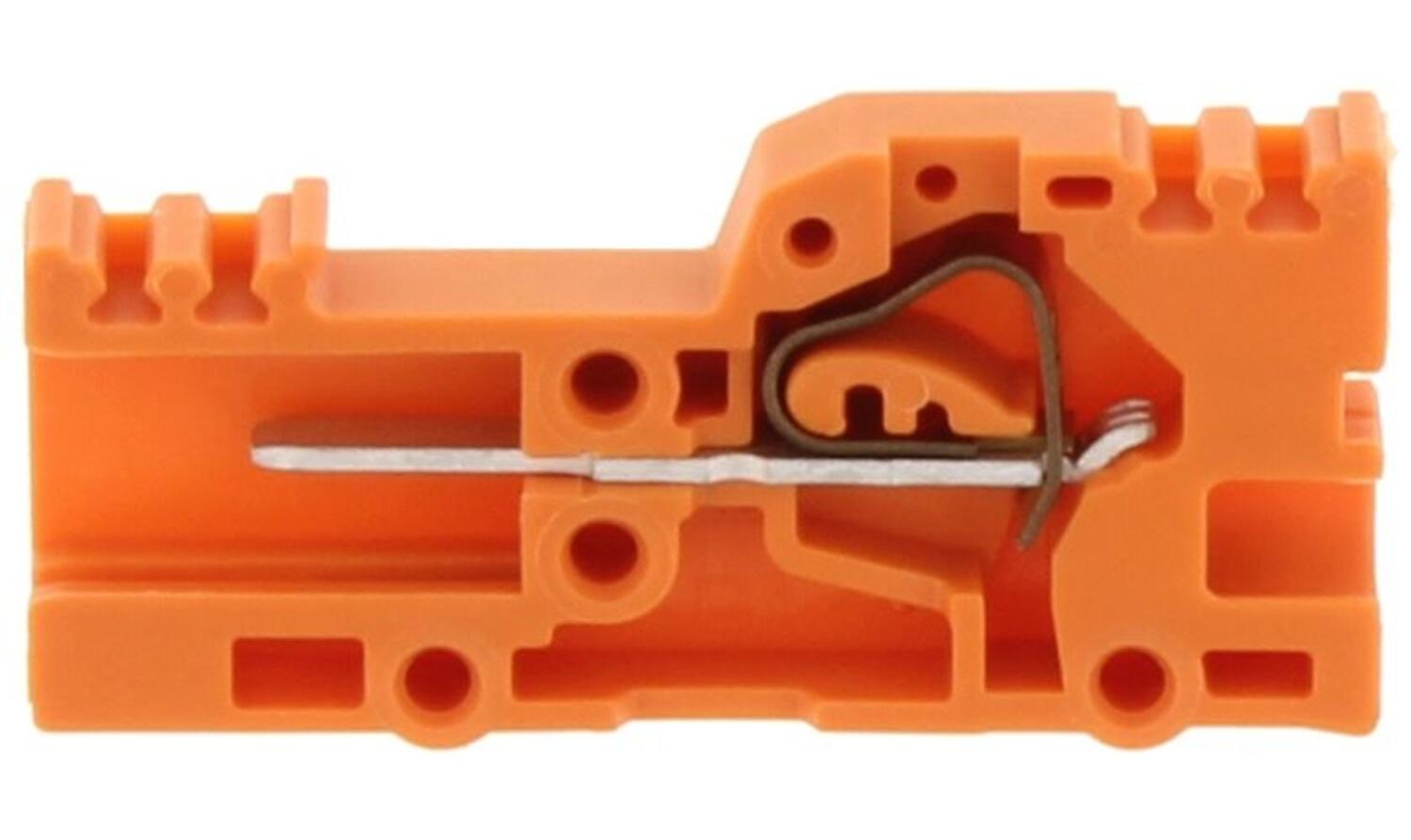

ZSTK 2.5/1A/1S-H/B, Horizontal Inline coupling plug, Orange
Art:
3678.3 Copied
6 kV
Orange
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
40 mm
5,1 mm
19 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,26 g
ZSTK 2.5/1A/1S-H/B, Horizontal Inline coupling plug, Blue
Art:
3678.5 Copied
6 kV
Blue
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
40 mm
5,1 mm
19 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
4,26 g
ZSTK 2.5/1A/1S-H/Z/B, Horizontal Inline coupling plug with housing pegs, Green/Yellow
Art:
3679.0 Copied
6 kV
Green/yellow
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
40 mm
5,1 mm
19 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
DE
3,15 g

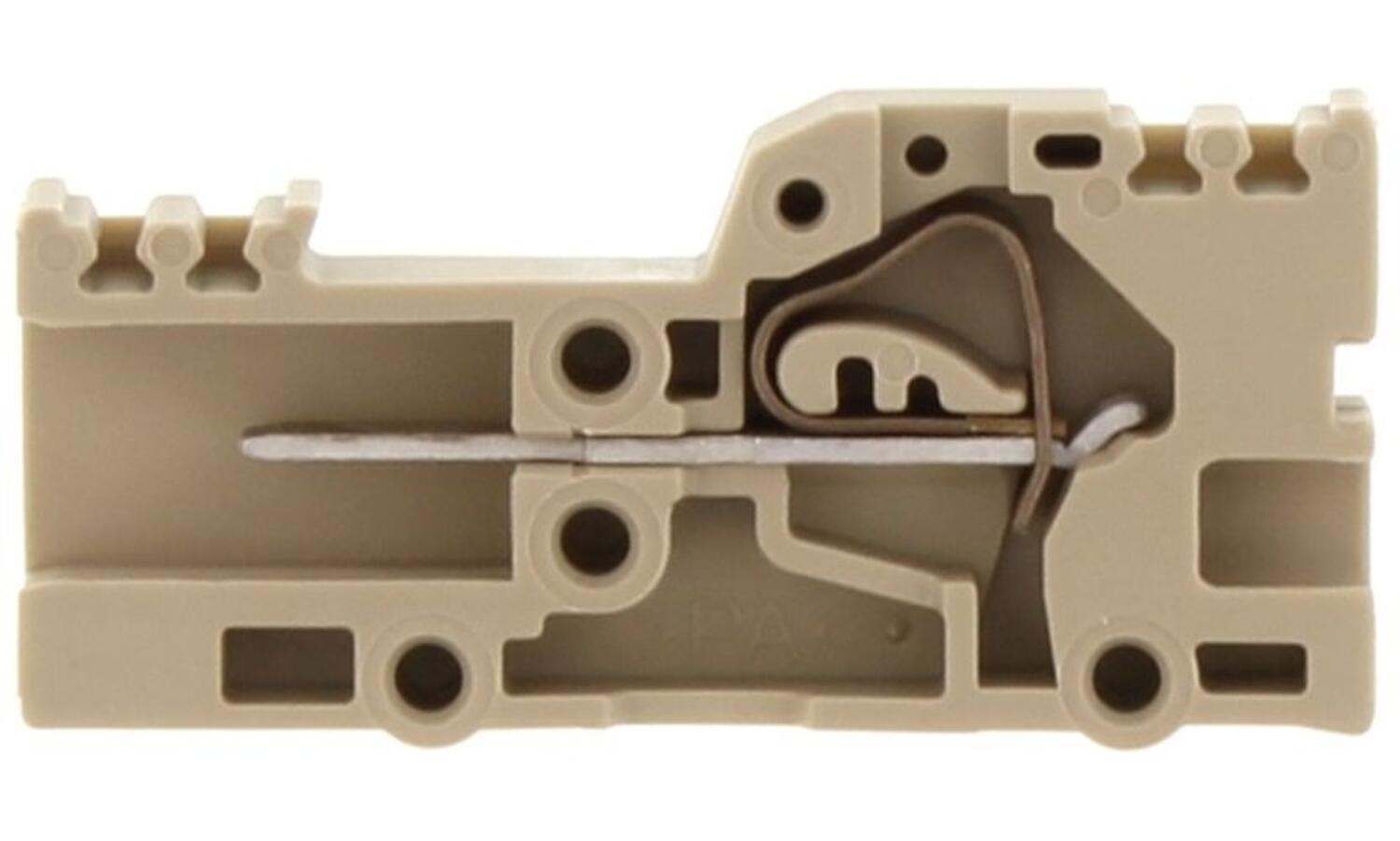

ZSTK 2.5/1A/1S-H/Z/B, Horizontal Inline coupling plug with housing pegs, Beige
Art:
3679.2 Copied
6 kV
Beige
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
40 mm
5,1 mm
19 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
3,15 g

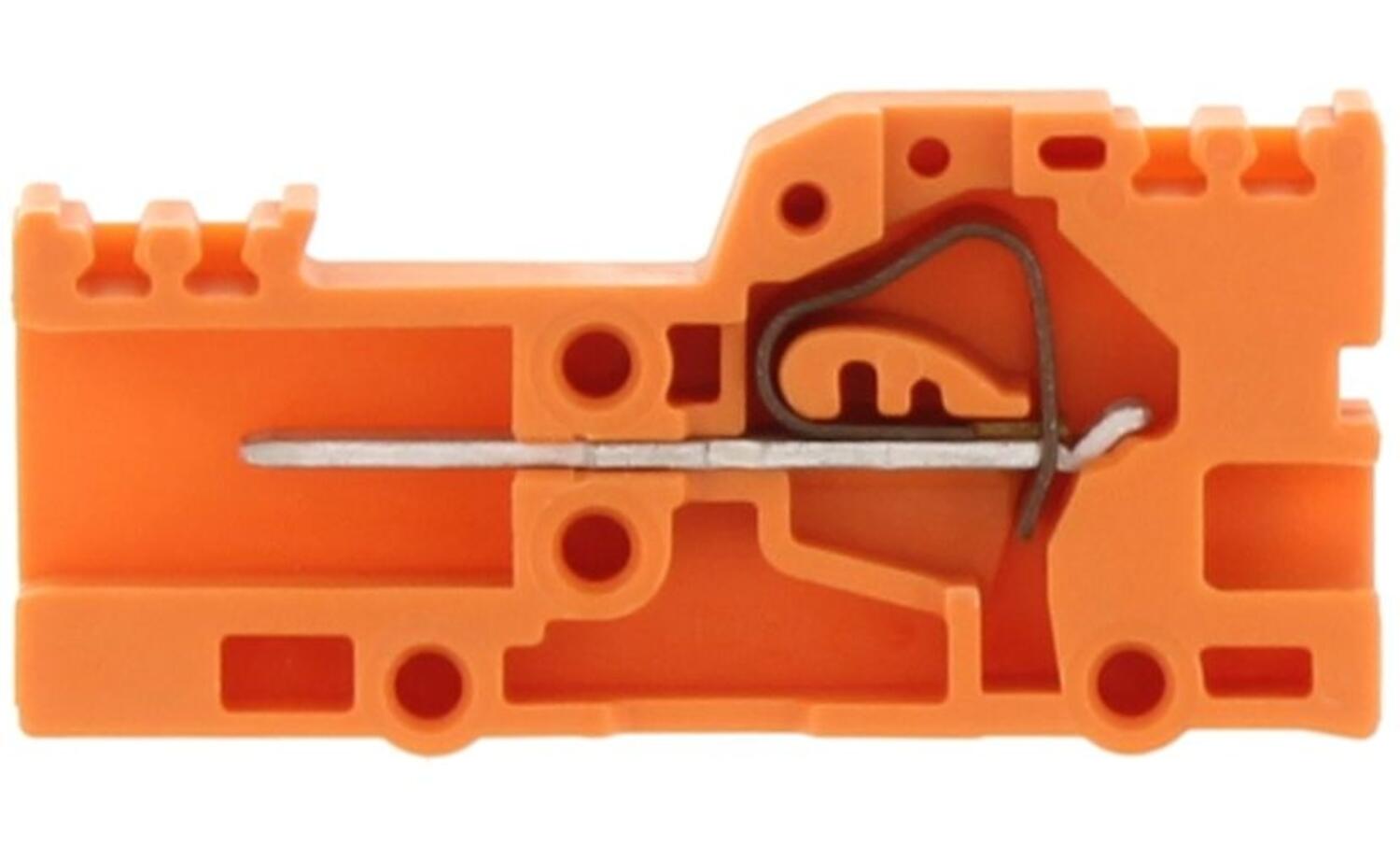

ZSTK 2.5/1A/1S-H/Z/B, Horizontal Inline coupling plug with housing pegs, Orange
Art:
3679.3 Copied
6 kV
Orange
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
40 mm
5,1 mm
19 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
3,15 g
ZSTK 2.5/1A/1S-H/Z/B, Horizontal Inline coupling plug with housing pegs, Blue
Art:
3679.5 Copied
6 kV
Blue
2,5 mm²
500 V
Push in
3
24 A
UL, CSA, CSA US, cUL, KEMA KUR, EAC
III
40 mm
5,1 mm
19 mm
0
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
1
2,5 mm²
10 mm
4 mm²
1
1
A3
UL94-V0
-40 °C
120 °C
Polyamide 6.6
UL 1059
20 A
300 V
20 A
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
300 V
UL 1059
20 A
300 V
C22.2 No 158
100
CZ
3,15 g
ZST-V OG
Art:
3687.3 Copied
Orange
EAC
50
DE
0,4 g
ZST-Z OG
Art:
3688.3 Copied
Orange
EAC
50
DE
0,33 g
ZST-C OG
Art:
3689.3 Copied
Orange
EAC
50
DE
0,6 g

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
