Double Deck terminals - FRKD/FSLD 2.5mm²

FRKD,FSLD,

  • Wiring without tools
  • Internally linked versions
  • Colour coded options
  • 2 and 3 connections
  • Electronic component versions

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

General data
Rated impulse voltage 6 kV
Colour Green
Rated wire cross section 2,5 mm²
Rated voltage IEC 500 V
Mounting TS 35
Contamination degree 3
Rated current IEC 24 A
Approvals CSA, CSA US, KEMA KUR, EAC
Overvoltage category III

Dimensions
Height TS 35/7.5 53 mm
Length 75,4 mm
Width 5,1 mm

Connection data
Cross connect channels 2
Cross section stranded wire to 4 mm²
Cross section single wire from 0,2 mm²
Connections 2 x 2
Cross section stranded wire from 0,2 mm²
Rated wire cross section to (AWG) 14
Rated wire cross section from (AWG) 26
Cross section stranded with ferrule from 0,2 mm²
Cross section stranded with ferrule to 2,5 mm²

*Invisible Heading*
Stripping length 12 mm
Cross section single wire to 4 mm²
Number of levels 2
Plug gauge acc. EN 60 947-1 A3

Materials
Flammability class UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
Insulation material Polyamide 6.6

Approvals
Rated current CSAus 20 A
Rated voltage CSAus 300 V
CSA test standard C22.2 No 158
KEMA KEUR test standard EN 60947-7-1:2009
CSAus test standard UL 1059
Rated current CSA 20 A
Rated voltage CSA 300 V
EAC test standard TR ZU 004/2011

Additional data
Pack size 100
Country of origin BG
Tariff code 85369010
Weight 14,57 g

Downloads

Measurements and connections

Accessories

Related products

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Rated impulse voltage Colour Rated voltage IEC Diode type Rated current IEC Approvals Additional information Height TS 35/7.5 Length Cross connect channels Connections Rated current CSAus Rated voltage CSAus CSA test standard KEMA KEUR test standard CSAus test standard Rated current CSA Rated voltage CSA Pack size Country of origin Weight Price
FRKD 2.5 Green, 2.5mm² Push-in double deck
Art:
3226.1 Copied
6 kV
Green
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,57 g
FRKD 2.5 Beige, 2.5mm² Push-in double deck
Art:
3226.2 Copied
6 kV
Beige
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,57 g
FRKD 2.5 Orange, 2.5mm² Push-in double deck
Art:
3226.3 Copied
6 kV
Orange
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,57 g
FRKD 2.5 Blue, 2.5mm² Push-in double deck
Art:
3226.5 Copied
6 kV
Blue
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,57 g

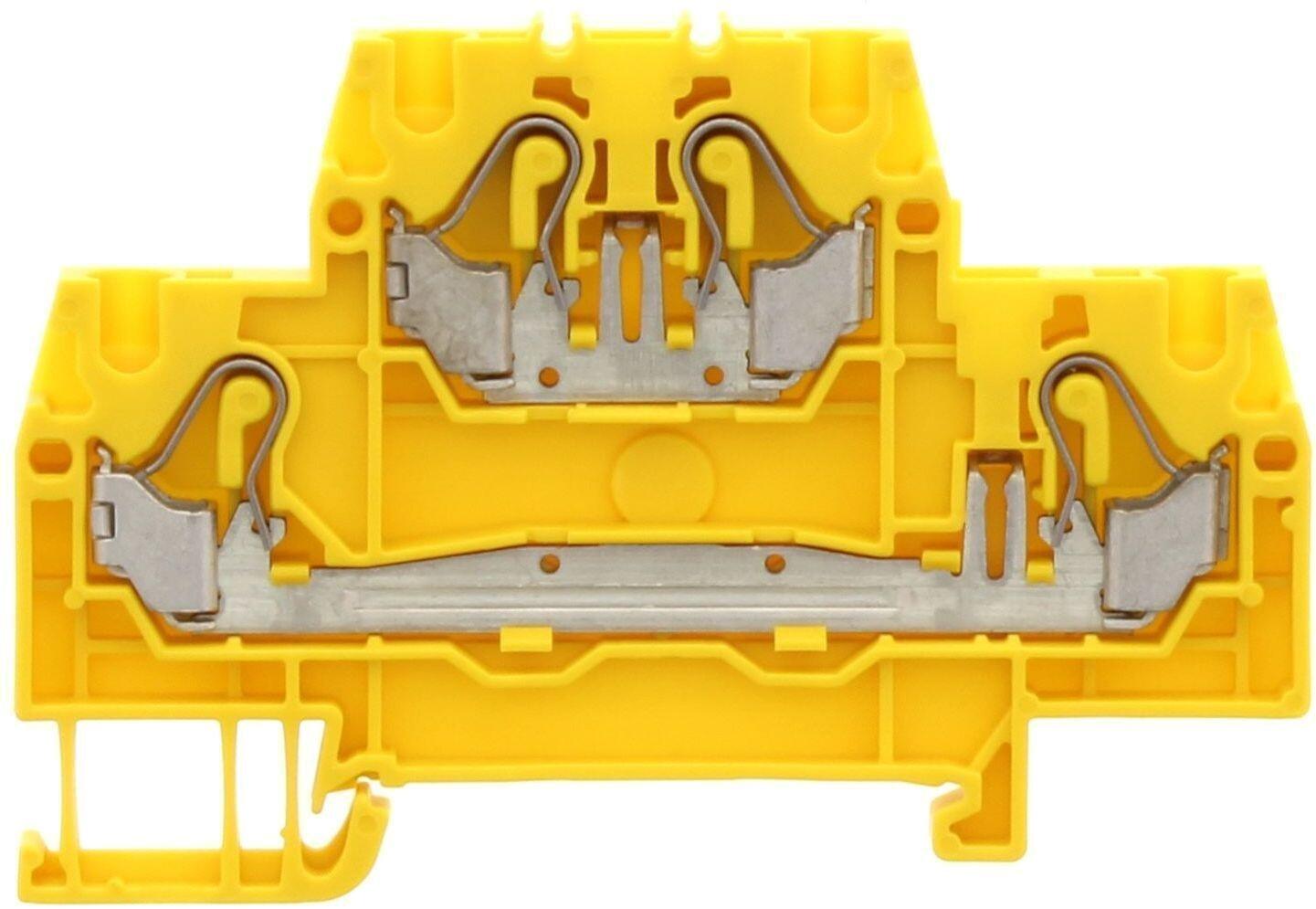

FRKD 2.5 Yellow, 2.5mm² Push-in double deck
Art:
3226.8 Copied
6 kV
Yellow
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,57 g
FRKD 2.5 Red, 2.5mm² Push-in double deck
Art:
3226.9 Copied
6 kV
Red
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,57 g

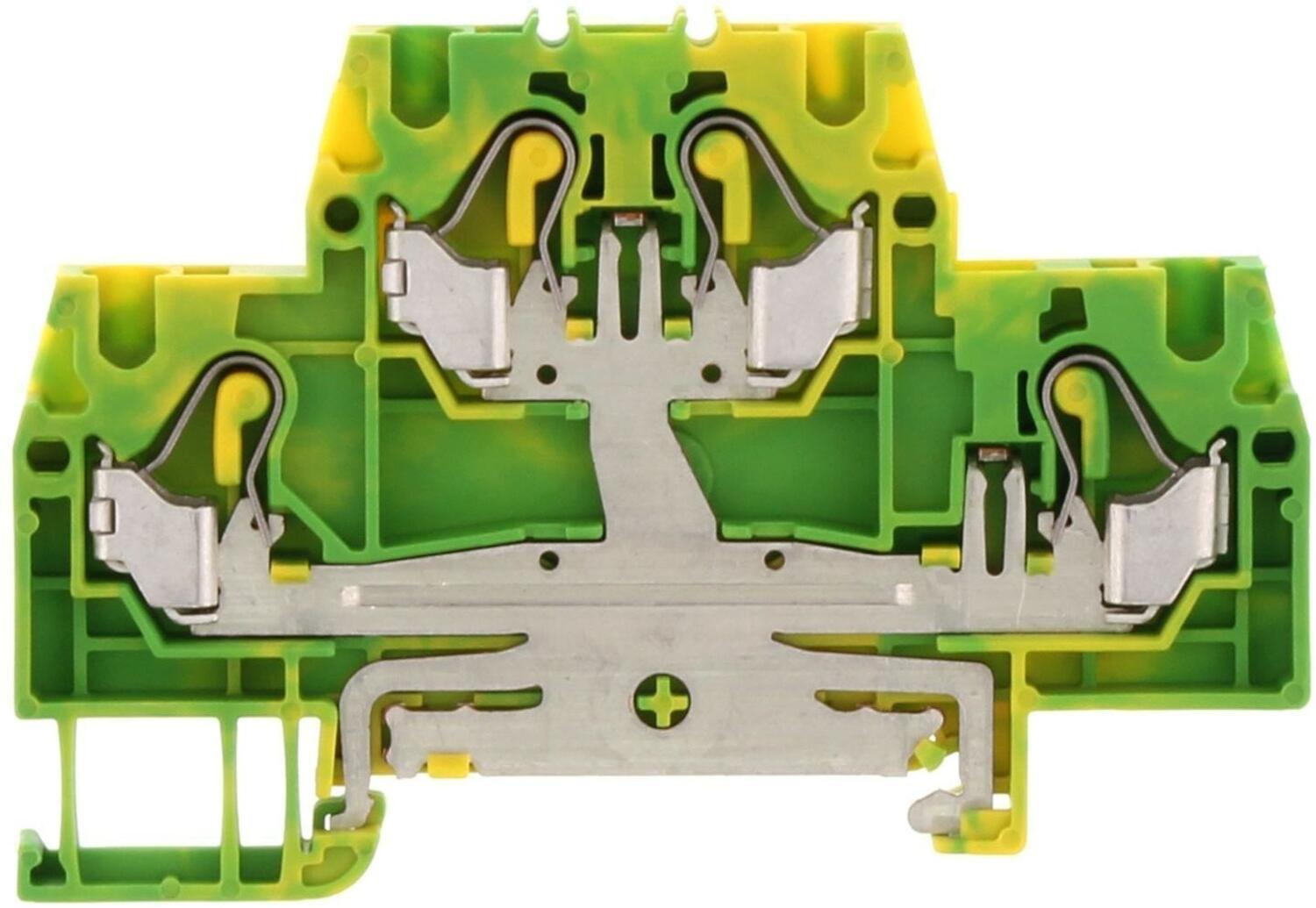

FSLD 2,5 GNYE
Art:
3236.2 Copied
Green/yellow
CSA, CSA US, KEMA KUR, EAC
53 mm
75,4 mm
2
4
C22.2 No 158
EN 60947-7-2:2009
UL 1059
100
DE
15,6 g
299558_877.tif
FRKD 2.5/SV Green, 2.5mm² Push-in linked double deck
Art:
3227.1 Copied
6 kV
Green
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
connected vertically
53 mm
75,4 mm
2
4
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,97 g

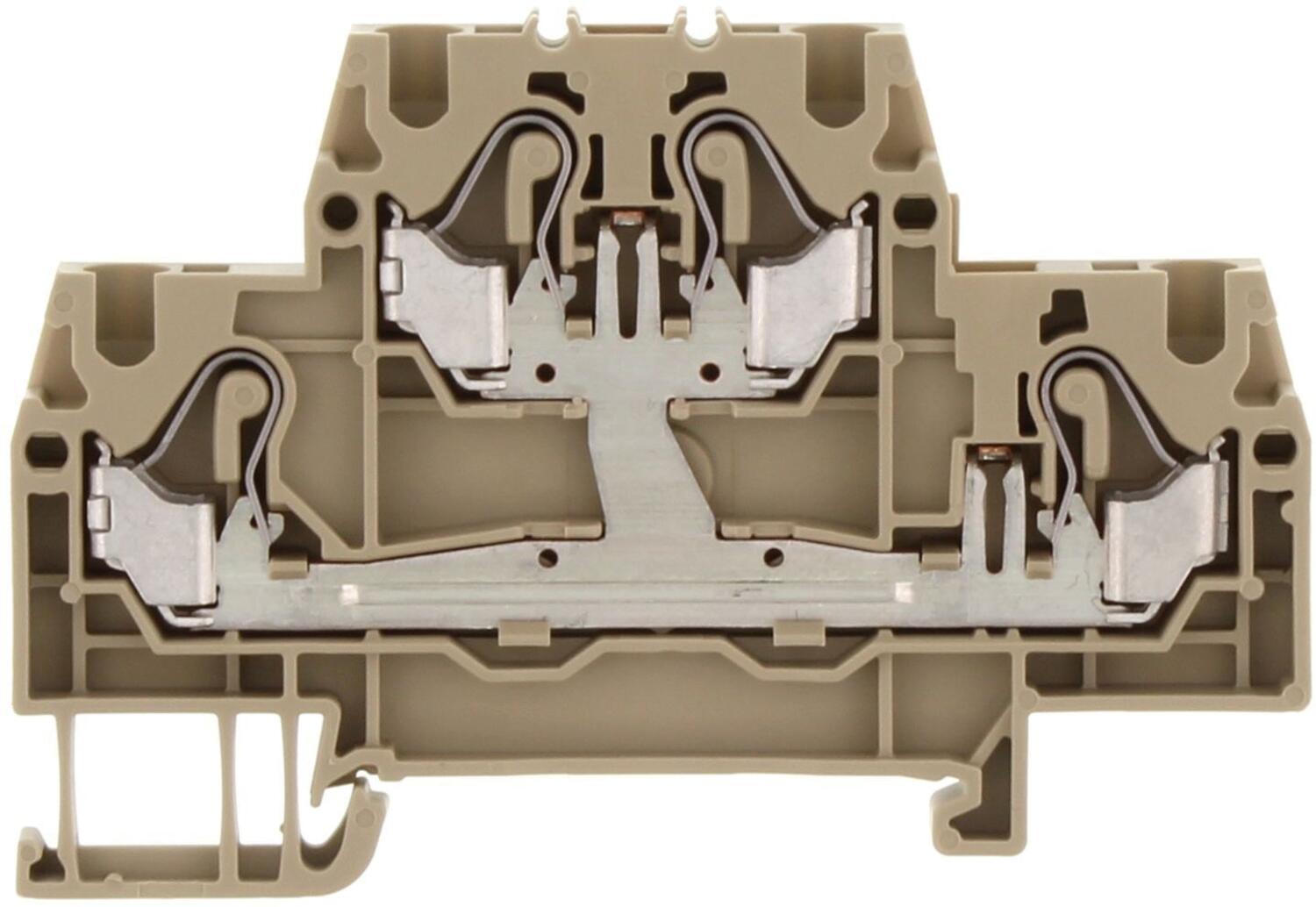

FRKD 2.5/SV Beige, 2.5mm² Push-in linked double deck
Art:
3227.2 Copied
6 kV
Beige
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
connected vertically
53 mm
75,4 mm
2
4
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,97 g
299558_877.tif
FRKD 2.5/SV Orange, 2.5mm² Push-in linked double deck
Art:
3227.3 Copied
6 kV
Orange
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
connected vertically
53 mm
75,4 mm
2
4
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,97 g

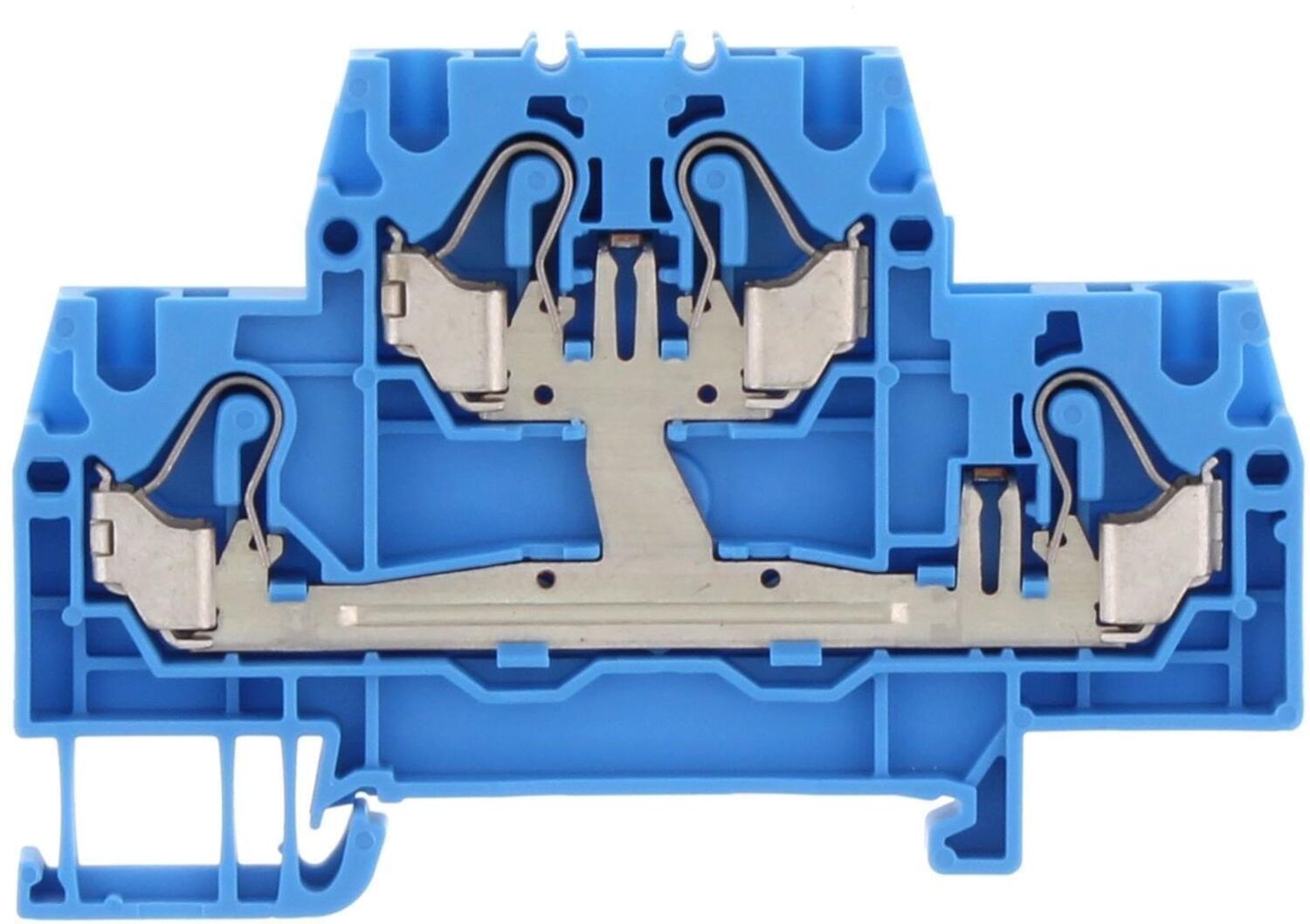

FRKD 2.5/SV Blue, 2.5mm² Push-in linked double deck
Art:
3227.5 Copied
6 kV
Blue
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
connected vertically
53 mm
75,4 mm
2
4
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,97 g
299558_877.tif
FRKD 2.5/SV Yellow, 2.5mm² Push-in linked double deck
Art:
3227.8 Copied
6 kV
Yellow
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
connected vertically
53 mm
75,4 mm
2
4
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,97 g

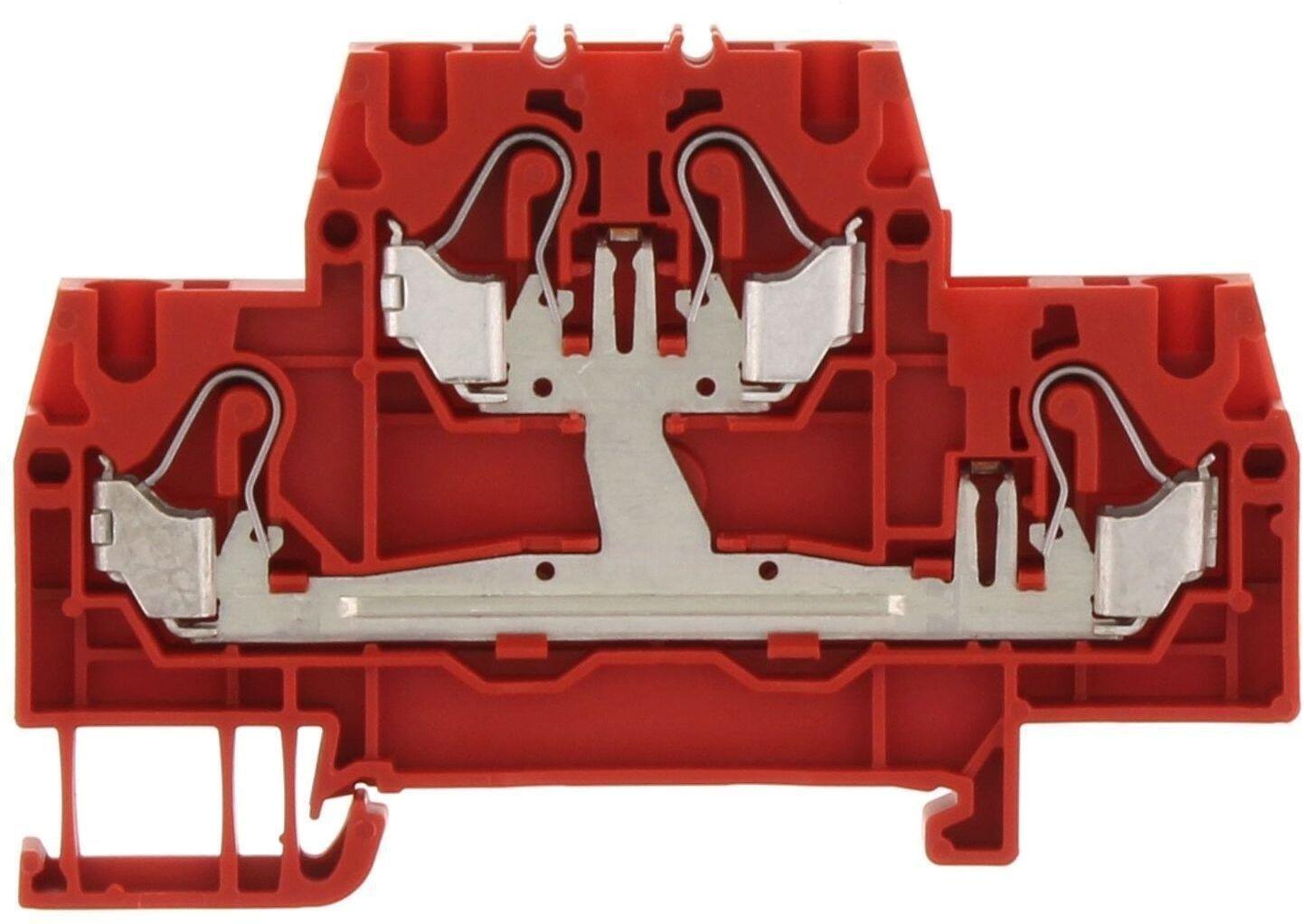

FRKD 2.5/SV Red, 2.5mm² Push-in linked double deck
Art:
3227.9 Copied
6 kV
Red
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
connected vertically
53 mm
75,4 mm
2
4
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,97 g
299558_877.tif
FRKD 2,5/Z BG
Art:
3228.2 Copied
6 kV
Beige
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
with housing pegs
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
50
BG
14,97 g
299558_877.tif
FRKD 2,5 SV/Z BG
Art:
3229.2 Copied
6 kV
Beige
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
connected vertically with housing pegs
53 mm
75,4 mm
2
4
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
50
BG
14,97 g

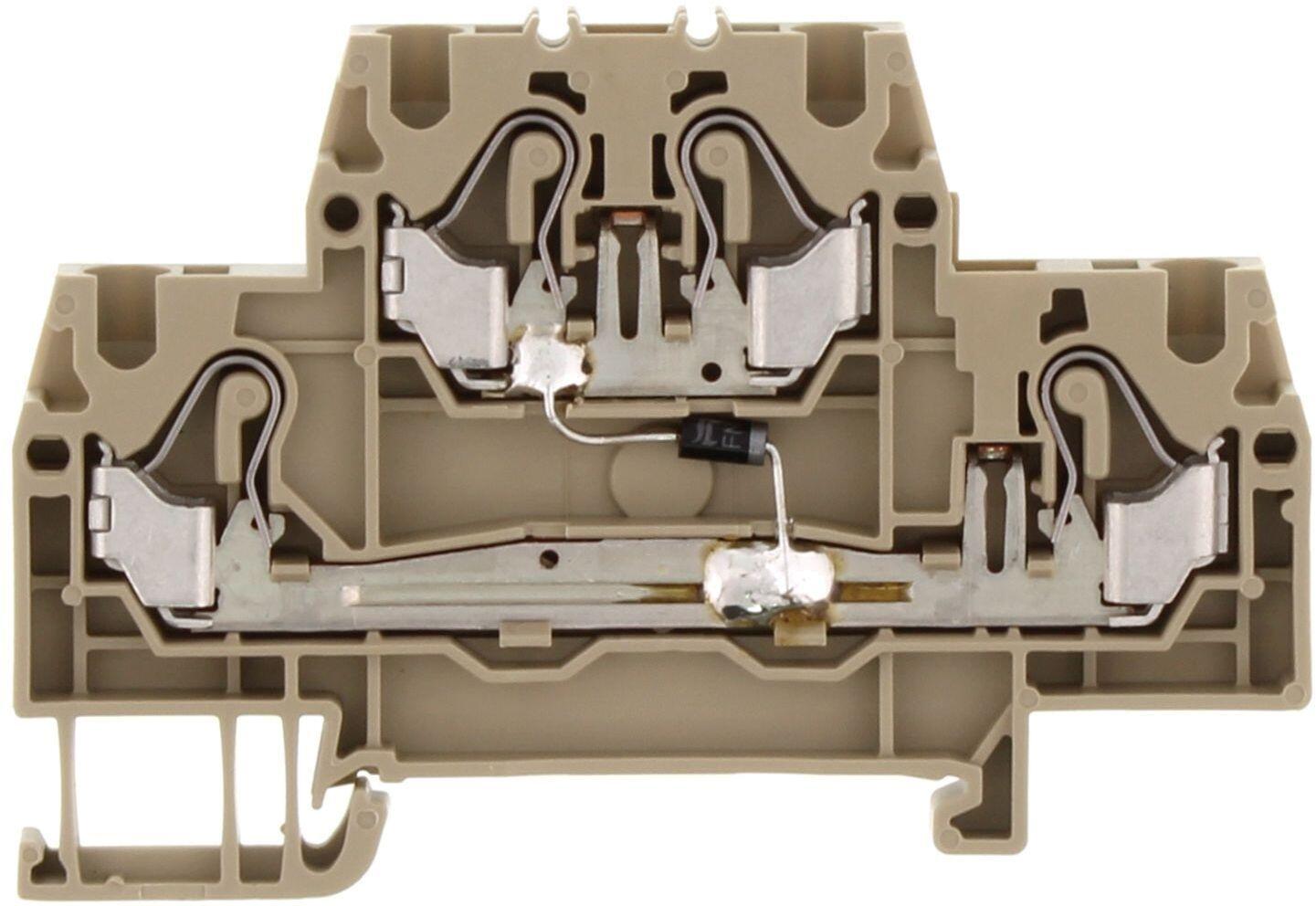

FRKD 2,5/D1 BG
Art:
3230.2 Copied
6 kV
Beige
500 V
1N4007 / 1000V / 1A
1 A
CSA, CSA US, KEMA KUR, EAC
with diodes
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,8 g
299558_877.tif
FRKD 2,5/D1 OG
Art:
3230.3 Copied
6 kV
Orange
500 V
1N4007 / 1000V / 1A
1 A
CSA, CSA US, KEMA KUR, EAC
with diodes
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
14,8 g
299558_877.tif
FRKD 2,5-BL BG
Art:
3231.2 Copied
6 kV
Beige
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
with housing pegs, block variant
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
50
BG
14,57 g
299558_877.tif
FRKD 2,5 SV-BL BG
Art:
3232.2 Copied
6 kV
Beige
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
connected vertically with housing pegs, block variant
53 mm
75,4 mm
2
4
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
50
BG
14,97 g
FRKD 2,5/N/DU
Art:
3233.2 Copied
6 kV
Beige
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
CZ
14,57 g

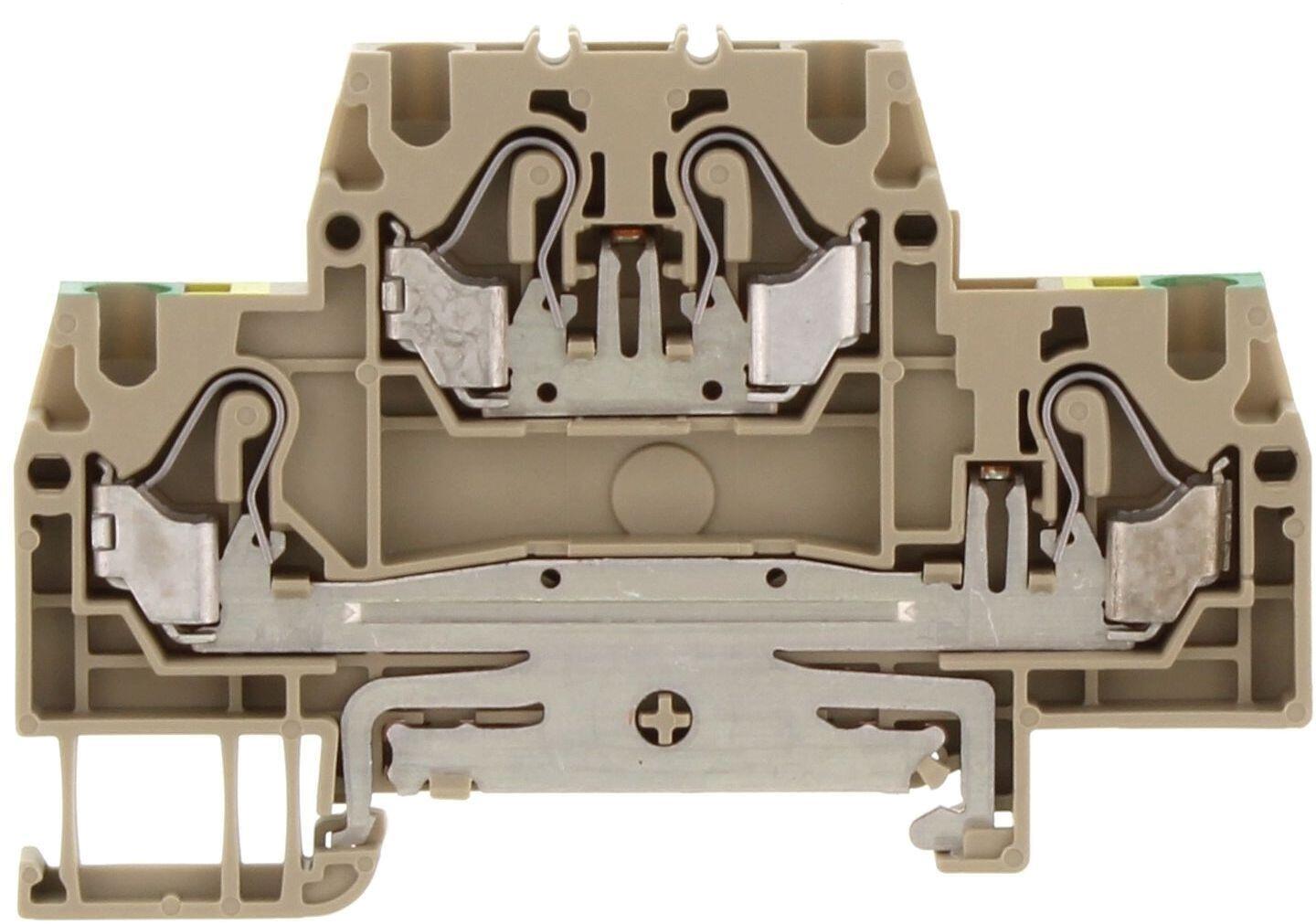

FRKD 2,5/DU/PE
Art:
3234.2 Copied
6 kV
Beige
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009, EN 60947-7-2:2009
UL 1059
20 A
300 V
100
CZ
16,17 g

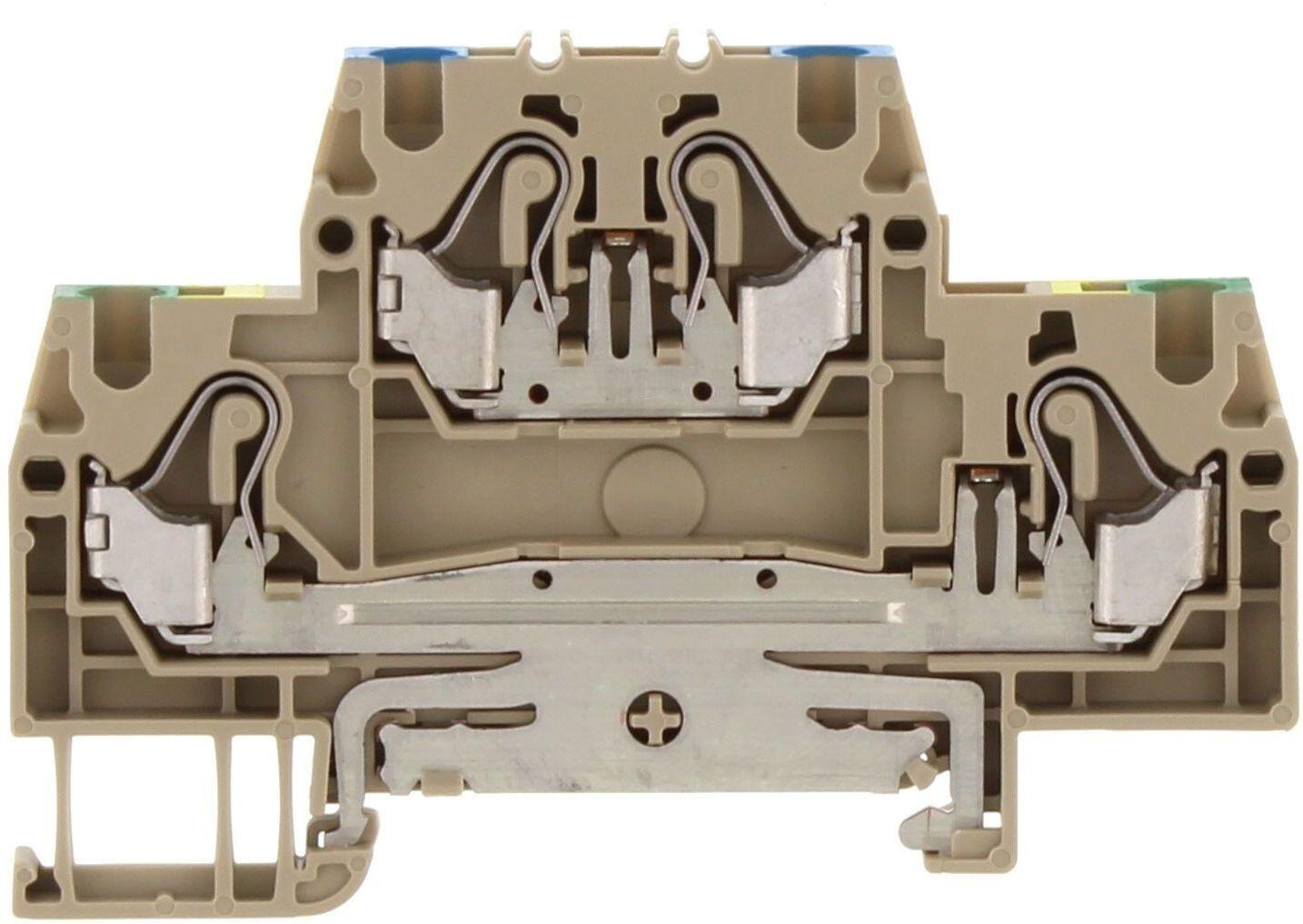

FRKD 2,5/N/PE
Art:
3235.2 Copied
6 kV
Beige
500 V
24 A
CSA, CSA US, KEMA KUR, EAC
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009, EN 60947-7-2:2009
UL 1059
20 A
300 V
100
CZ
16,57 g

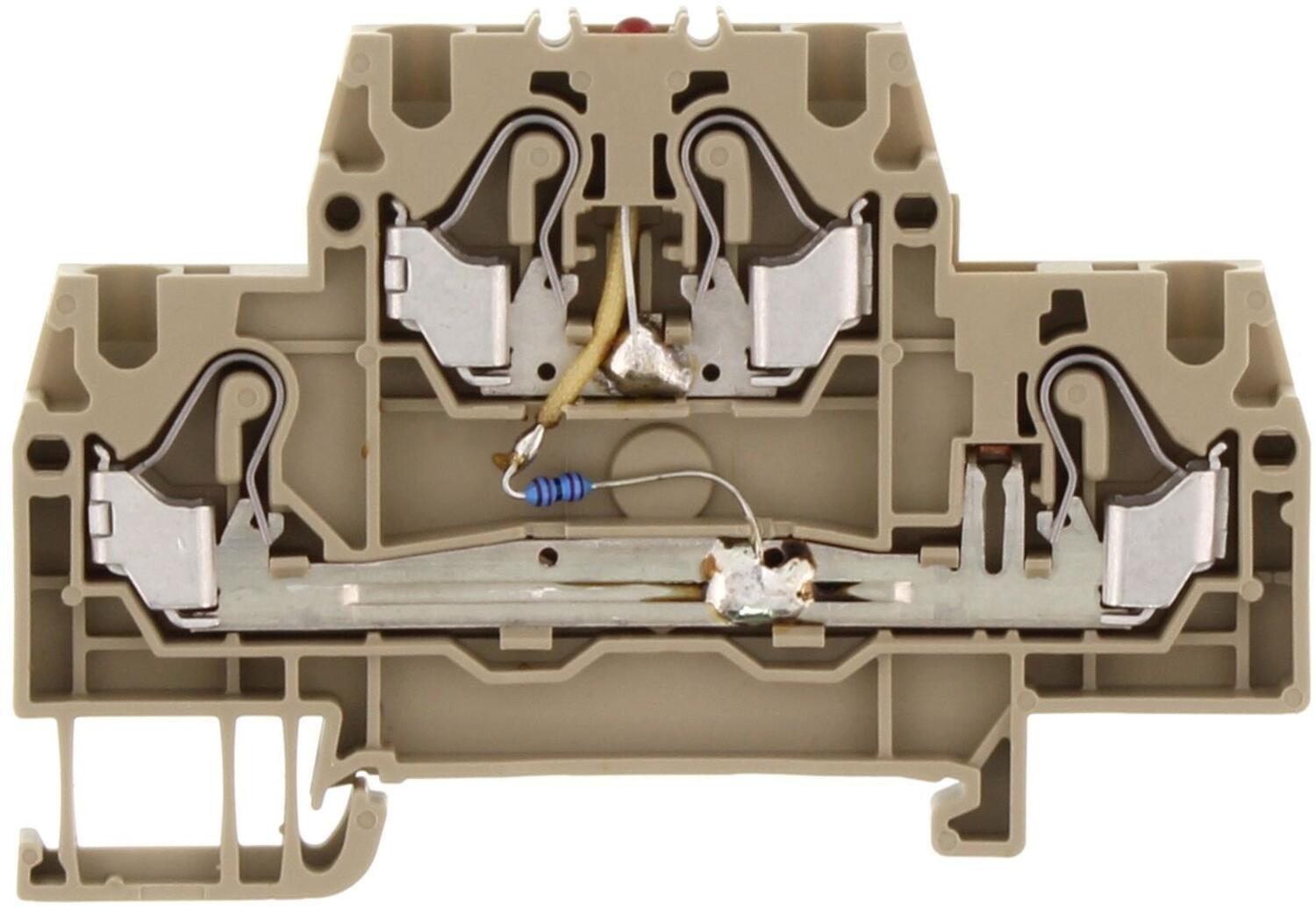

FRKD 2,5/LED1(RD) 24V DC BG
Art:
3237.2 Copied
6 kV
Beige
24 V
24 A
CSA, CSA US, KEMA KUR, EAC
with LED status display
53 mm
75,4 mm
1
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
15,17 g
299558_877.tif
FRKD 2,5/LED2(RD) 24V DC BG
Art:
3238.2 Copied
6 kV
Beige
24 V
24 A
CSA, CSA US, KEMA KUR, EAC
with LED status display
53 mm
75,4 mm
1
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
15,17 g
FRKD 2,5/3A BG
Art:
3206.2 Copied
6 kV
Beige
500 V
24 A
KEMA KUR, EAC
52,5 mm
97,5 mm
2
2 x 3
EN 60947-7-1:2009
50
BG
18,42 g
299558_877.tif
FRKD 2,5/3A/SV BG
Art:
3207.2 Copied
6 kV
Beige
500 V
24 A
KEMA KUR, EAC
connected vertically
52,5 mm
97,5 mm
2
6
EN 60947-7-1:2009
50
BG
18,58 g
299558_877.tif
FRKD 2,5/3A/DU/PE
Art:
3209.2 Copied
6 kV
Beige
500 V
24 A
KEMA KUR, EAC
52,5 mm
97,5 mm
2
2 x 3
EN 60947-7-1:2009, EN 60947-7-2:2009
50
BG
20 g
299558_877.tif
FRKD 2,5/3A/SV BU
Art:
3207.5 Copied
6 kV
Blue
500 V
24 A
KEMA KUR, EAC
connected vertically
52,5 mm
97,5 mm
2
6
EN 60947-7-1:2009
50
CZ
18,58 g
299558_877.tif
FRKD 2,5/3A/SV OG
Art:
3207.3 Copied
6 kV
Orange
500 V
24 A
KEMA KUR, EAC
connected vertically
52,5 mm
97,5 mm
2
6
EN 60947-7-1:2009
50
BG
18,58 g
FSLD 2,5/3A GNYE
Art:
3208.2 Copied
Green/yellow
KEMA KUR, EAC
52,5 mm
97,5 mm
2
6
EN 60947-7-2:2009
50
DE
19,12 g

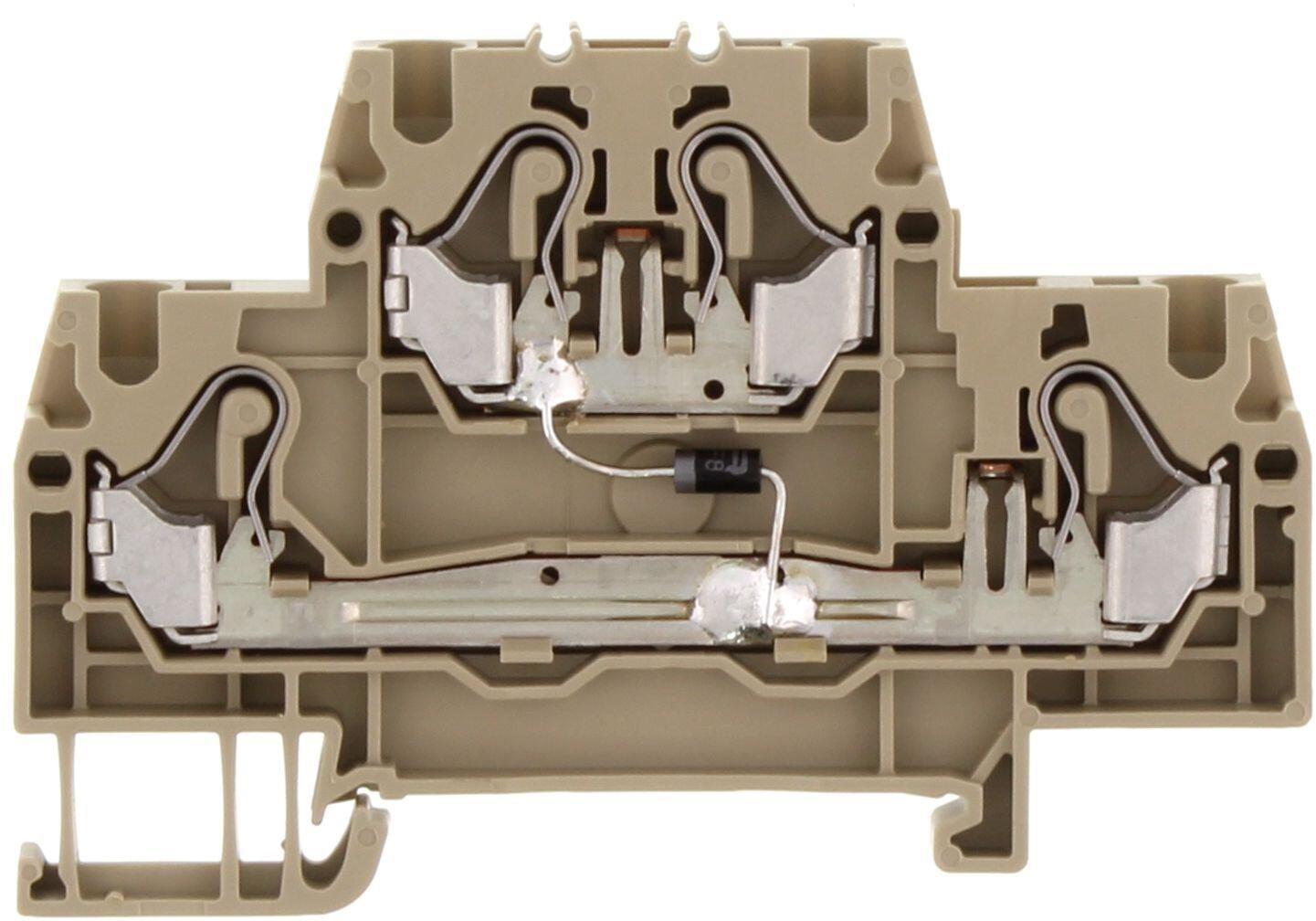

FRKD 2,5/D2 BG
Art:
3253.2 Copied
6 kV
Beige
500 V
1N4007 / 1000V / 1A
1 A
CSA, CSA US, KEMA KUR, EAC
with diodes
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
15,17 g
299558_877.tif
FRKD 2,5/D4 BG
Art:
3255.2 Copied
6 kV
Beige
500 V
1N4007 / 1000V / 1A
1 A
CSA, CSA US, KEMA KUR, EAC
with diodes
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
15,17 g
299558_877.tif
FRKD 2,5/D3 BG
Art:
3254.2 Copied
6 kV
Beige
500 V
1N4007 / 1000V / 1A
1 A
CSA, CSA US, KEMA KUR, EAC
with diodes
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
15,17 g

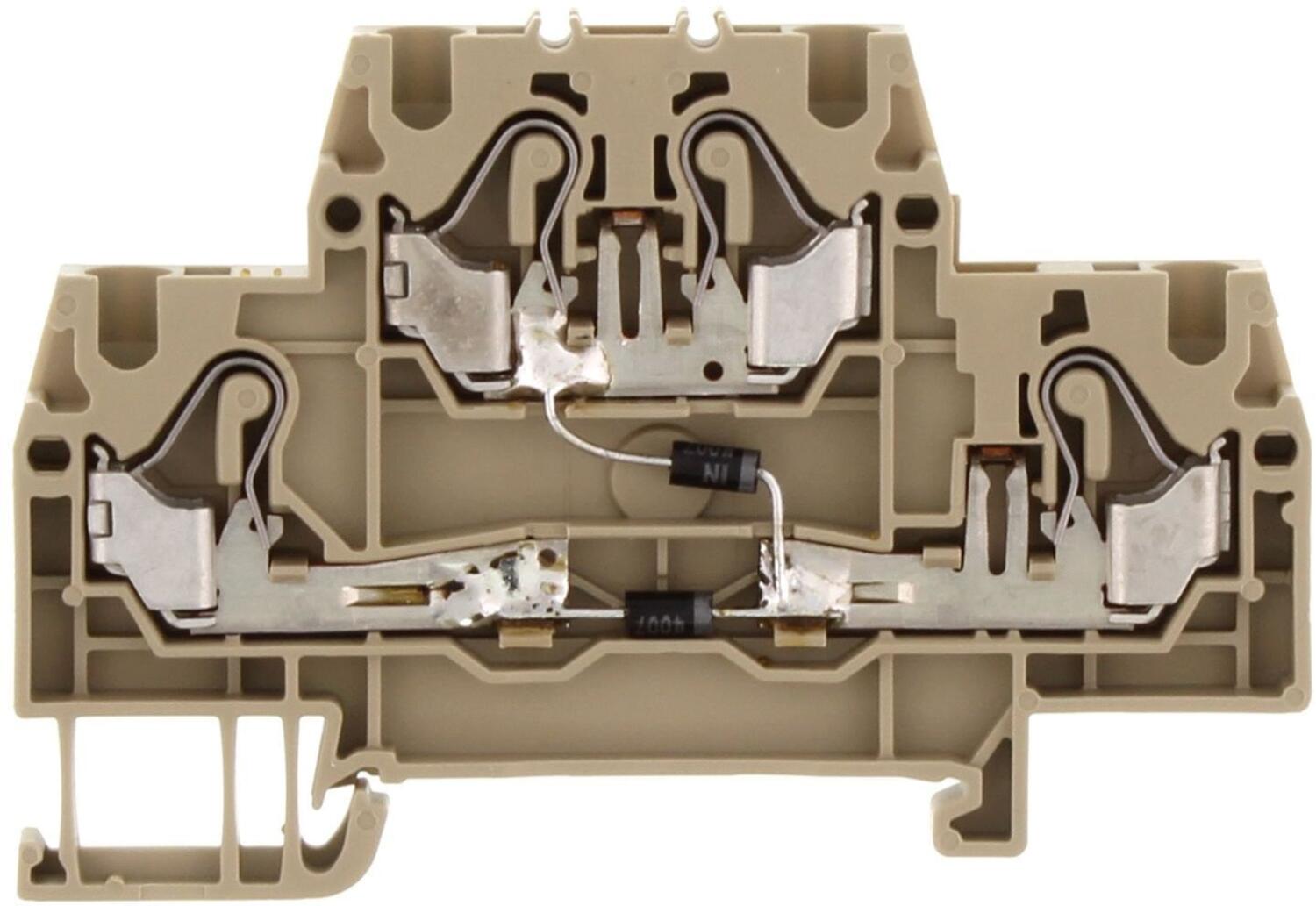

FRKD 2,5/D5 BG
Art:
3256.2 Copied
6 kV
Beige
500 V
1N4007 / 1000V / 1A
1 A
CSA, CSA US, KEMA KUR, EAC
with diodes
53 mm
75,4 mm
2
2 x 2
20 A
300 V
C22.2 No 158
EN 60947-7-1:2009
UL 1059
20 A
300 V
100
BG
15,17 g
299558_877.tif
FRKD 2,5/3A BU
Art:
3206.5 Copied
6 kV
Blue
500 V
24 A
KEMA KUR, EAC
52,5 mm
97,5 mm
2
2 x 3
EN 60947-7-1:2009
50
CZ
18,42 g
299558_877.tif
FRKD 2,5/3A OG
Art:
3206.3 Copied
6 kV
Orange
500 V
24 A
KEMA KUR, EAC
52,5 mm
97,5 mm
2
2 x 3
EN 60947-7-1:2009
50
CZ
18,42 g

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
