Feed through terminals - FRK 1.5-16mm²

FRK

The FRK series is the 1st generation of an innovative range of push-in connection terminals. It ranges from the smallest cross-section of 0.2 mm² to 16 mm² in feed-through and snap on Earths, disconnect, fuse and installation terminals. The push-in connection enables a safe and fast connection of rigid and flexible conductors with wire end ferrules.

The clever range of accessories significantly reduces assembly and storage costs. With the pluggable potential distribution systems FQI, potentials can be easily multiplied.

The compact FRKI range completes the offer with 6 -10mm compact terminals to complement the FRK offer.













Read more
  • Wiring without tools
  • Material polyamide 6.6
  • Temperature resistance -40 °C...+120 °C
  • Flammability class V0
  • See also FRKI for additional sizes

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General data
Rated impulse voltage 8 kV
Colour Green
Rated wire cross section 1,5 mm²
Rated voltage IEC 800 V
Mounting TS 35
Contamination degree 3
Rated current IEC 17,5 A
Approvals CSA, CSA US, KEMA KUR, EAC
Overvoltage category III

Dimensions
Height TS 35/7.5 43 mm
Length 48,5 mm
Width 4,1 mm

Connection data
Cross connect channels 2
Cross section stranded wire to 1,5 mm²
Cross section single wire from 0,2 mm²
Connections 2
Cross section stranded wire from 0,2 mm²
Rated wire cross section to (AWG) 16
Rated wire cross section from (AWG) 24
Cross section stranded with ferrule from 0,2 mm²
Cross section stranded with ferrule to 1,5 mm²

*Invisible Heading*
Stripping length 12 mm
Cross section single wire to 1,5 mm²
Number of levels 1
Plug gauge acc. EN 60 947-1 A1

Materials
Flammability class UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
Insulation material Polyamide 6.6

Approvals
Rated current CSAus 16 A
Rated voltage CSAus 600 V
CSA test standard C22.2 No 158
KEMA KEUR test standard EN 60947-7-1:2009
CSAus test standard UL 1059
Rated current CSA 16 A
Rated voltage CSA 600 V
EAC test standard TR ZU 004/2011

Additional data
Pack size 100
Country of origin BG
Tariff code 85369010
Weight 6,7 g

Downloads

Measurements and connections

Product description

The FRK series is the 1st generation of an innovative range of push-in connection terminals. It ranges from the smallest cross-section of 0.2 mm² to 16 mm² in feed-through and snap on Earths, disconnect, fuse and installation terminals. The push-in connection enables a safe and fast connection of rigid and flexible conductors with wire end ferrules.

The clever range of accessories significantly reduces assembly and storage costs. With the pluggable potential distribution systems FQI, potentials can be easily multiplied.

The compact FRKI range completes the offer with 6 -10mm compact terminals to complement the FRK offer.













Accessories

Related products

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Colour Rated wire cross section Rated voltage IEC Rated current IEC Approvals Height TS 35/7.5 Length Width Height Cross section stranded wire to Cross section single wire from Connections Cross section stranded wire from Rated wire cross section to (AWG) Rated wire cross section from (AWG) Cross section stranded with ferrule from Cross section stranded with ferrule to Stripping length Cross section single wire to Plug gauge acc. EN 60 947-1 UL test standard Rated current CSAus Rated voltage CSAus Rated current UL Rated current cUL Rated voltage UL CSA test standard Rated voltage cUL CSAus test standard Rated current CSA Rated voltage CSA cUL test standard Pack size Country of origin Weight Price

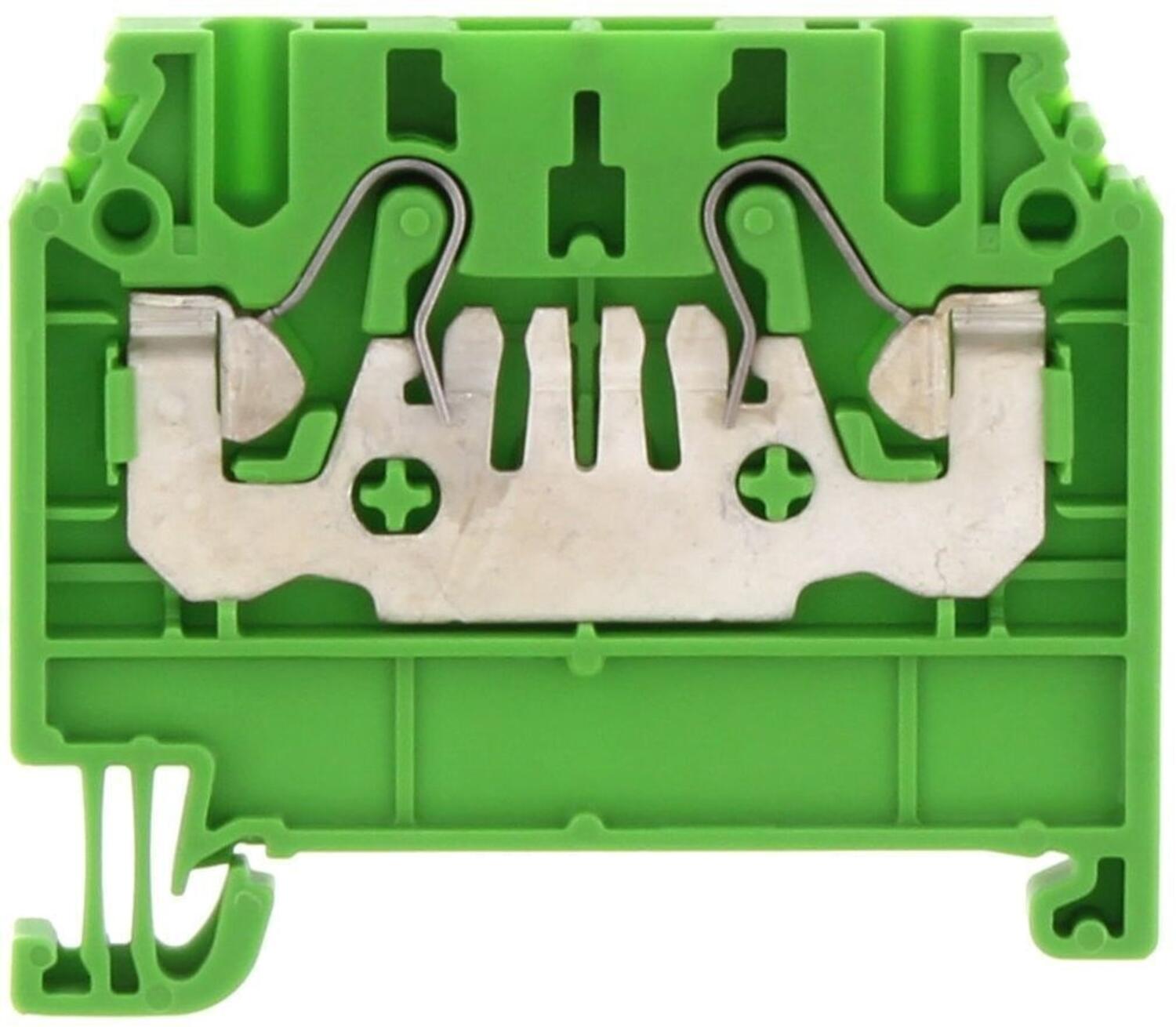

FRK 1.5/2A Green, 1.5mm² Push-in feed through
Art:
3200.1 Copied
Green
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
4,1 mm
1,5 mm²
0,2 mm²
2
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
6,7 g

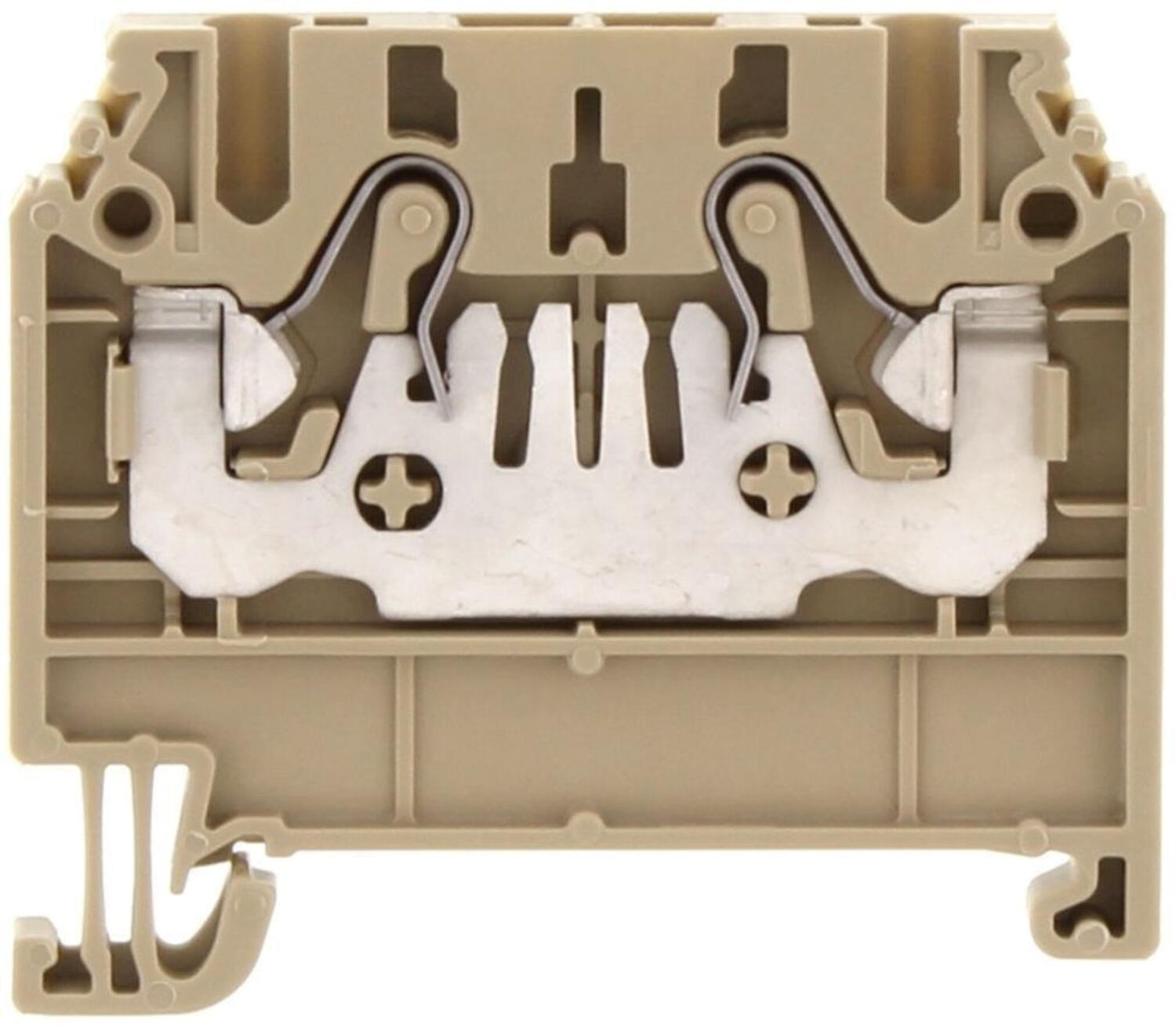

FRK 1.5/2A Beige, 1.5mm² Push-in feed through
Art:
3200.2 Copied
Beige
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
4,1 mm
1,5 mm²
0,2 mm²
2
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
6,7 g
FRK 1.5/2A Orange, 1.5mm² Push-in feed through
Art:
3200.3 Copied
Orange
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
4,1 mm
1,5 mm²
0,2 mm²
2
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
6,7 g
FRK 1.5/2A Blue, 1.5mm² Push-in feed through
Art:
3200.5 Copied
Blue
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
4,1 mm
1,5 mm²
0,2 mm²
2
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
6,7 g

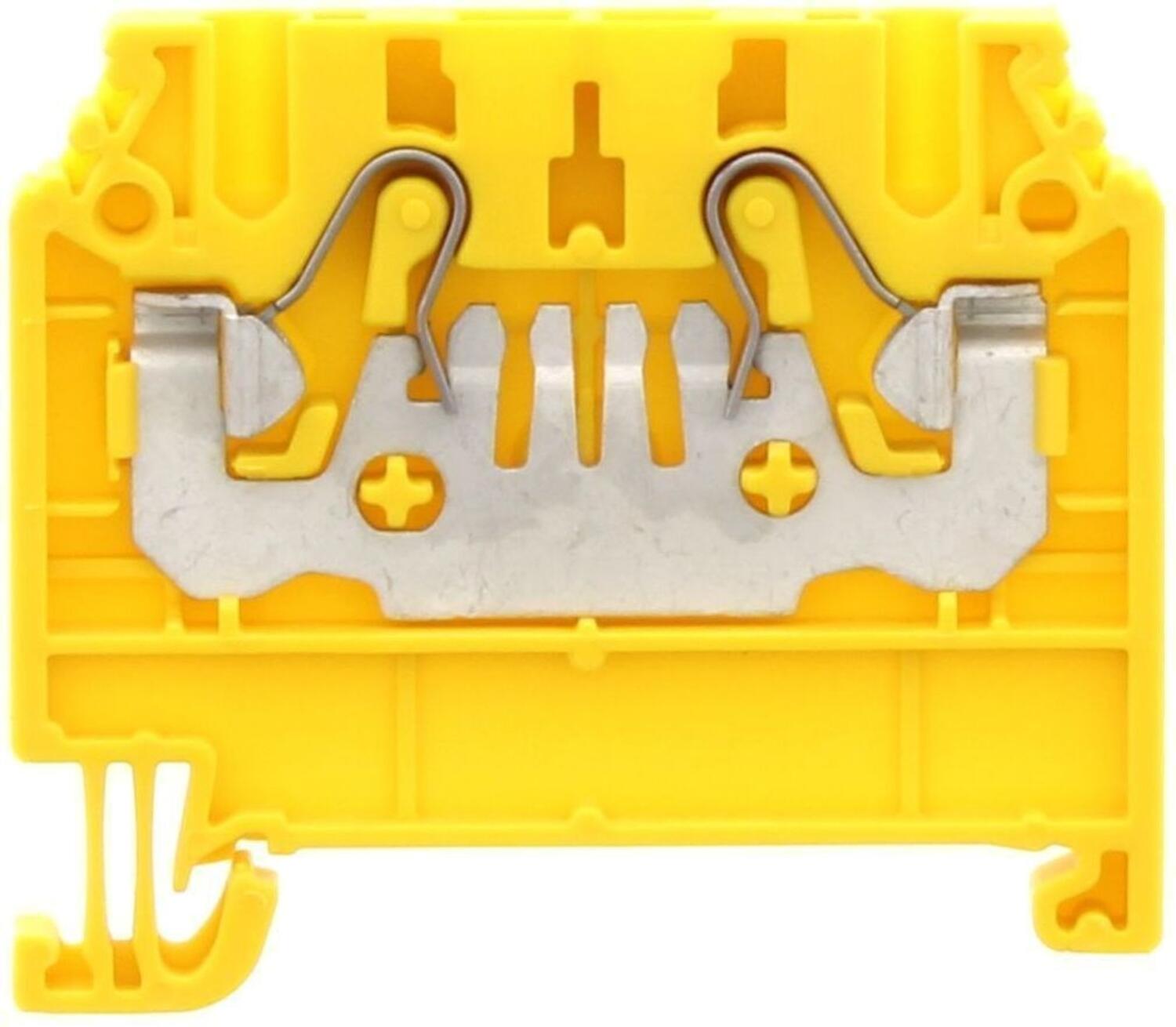

FRK 1.5/2A Yellow, 1.5mm² Push-in feed through
Art:
3200.8 Copied
Yellow
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
4,1 mm
1,5 mm²
0,2 mm²
2
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
6,7 g
FRK 1.5/2A Red, 1.5mm² Push-in feed through
Art:
3200.9 Copied
Red
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
4,1 mm
1,5 mm²
0,2 mm²
2
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
6,7 g
FRK 1.5/3A Green, 1.5mm² Push-in feed through, 1 in, 2 out
Art:
3201.1 Copied
Green
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
59,5 mm
4,1 mm
1,5 mm²
0,2 mm²
3
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
8,5 g

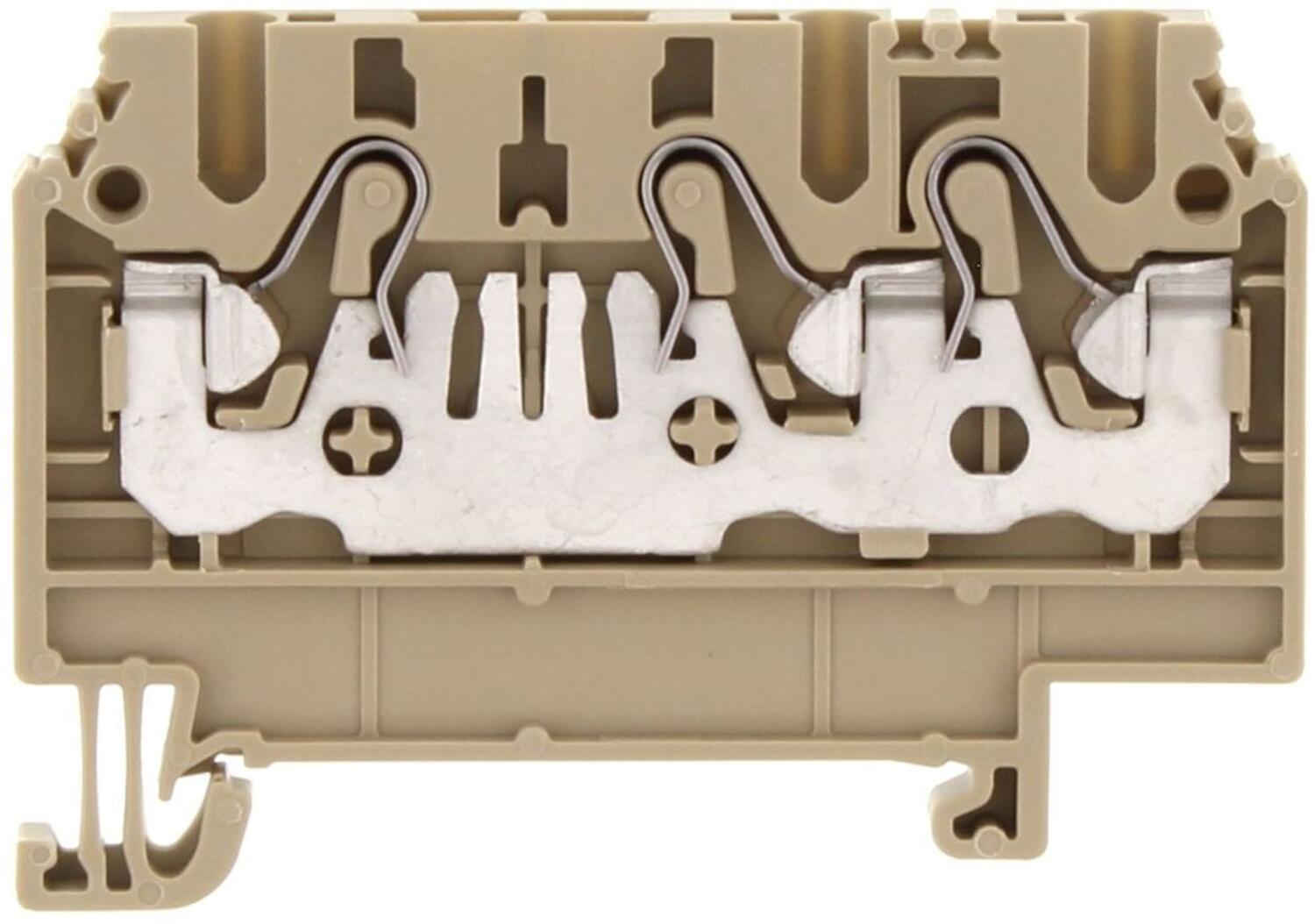

FRK 1.5/3A Beige, 1.5mm² Push-in feed through, 1 in, 2 out
Art:
3201.2 Copied
Beige
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
59,5 mm
4,1 mm
1,5 mm²
0,2 mm²
3
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
8,5 g

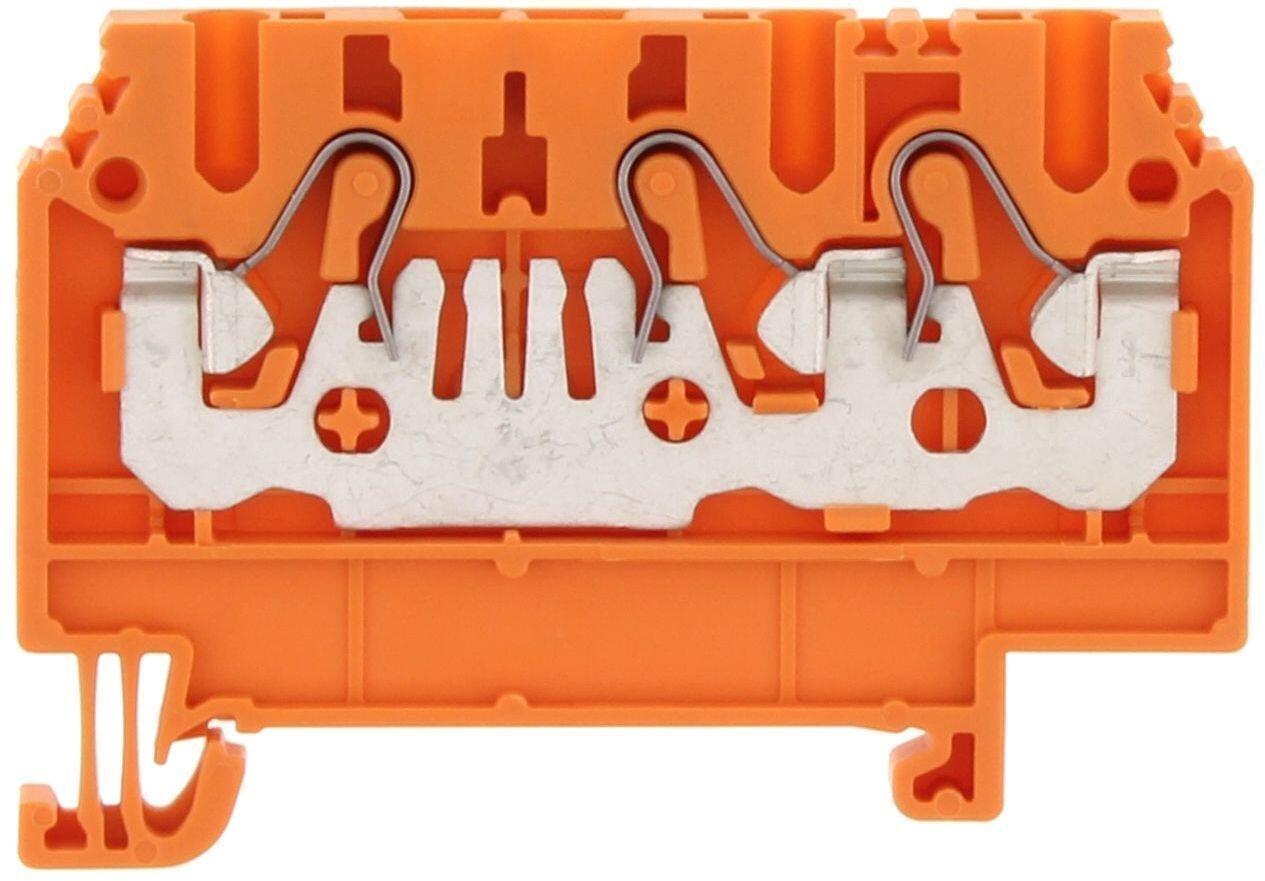

FRK 1.5/3A Orange, 1.5mm² Push-in feed through, 1 in, 2 out
Art:
3201.3 Copied
Orange
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
59,5 mm
4,1 mm
1,5 mm²
0,2 mm²
3
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
8,5 g

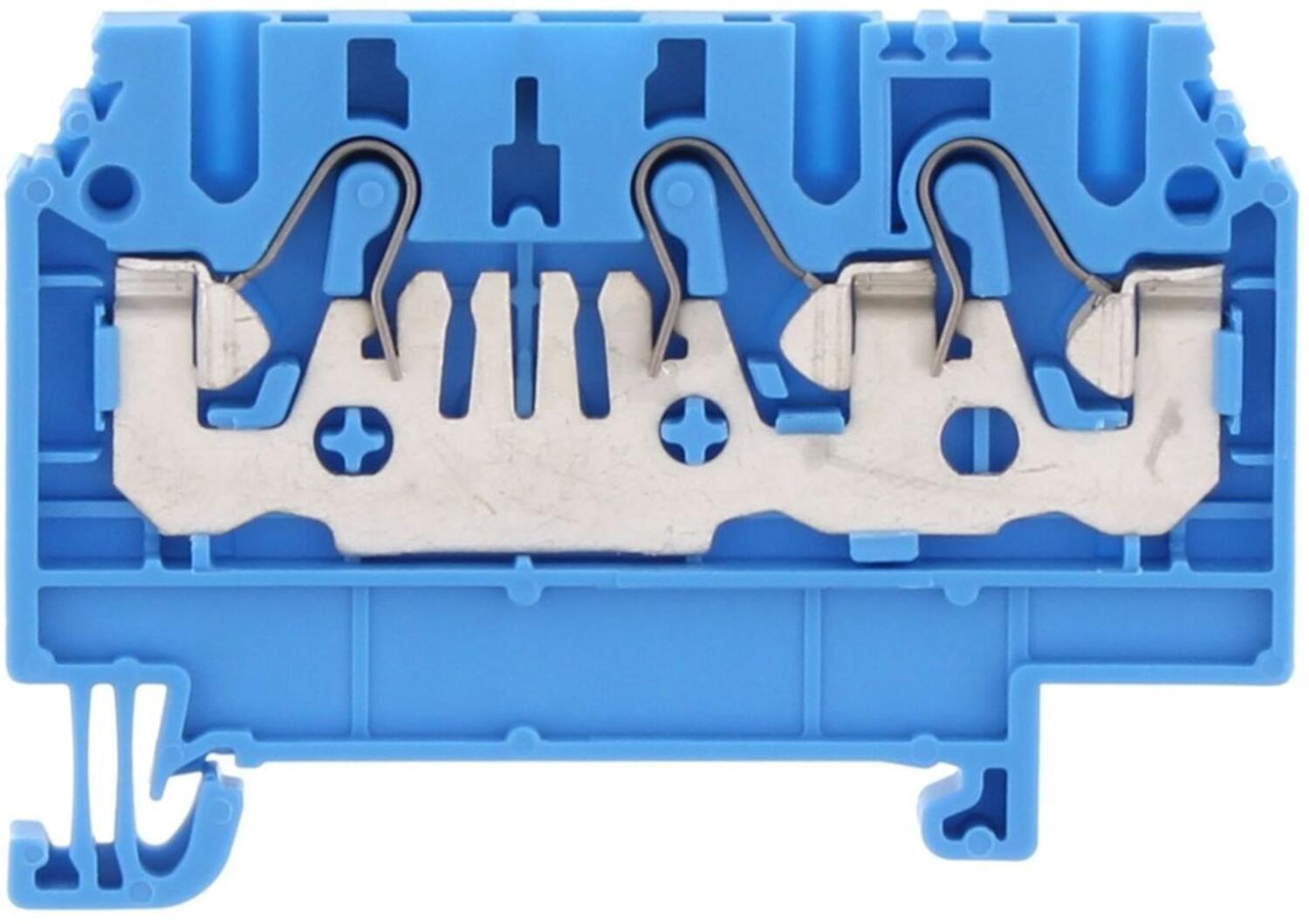

FRK 1.5/3A Blue, 1.5mm² Push-in feed through, 1 in, 2 out
Art:
3201.5 Copied
Blue
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
59,5 mm
4,1 mm
1,5 mm²
0,2 mm²
3
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
8,5 g
FRK 1.5/3A Yellow, 1.5mm² Push-in feed through, 1 in, 2 out
Art:
3201.8 Copied
Yellow
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
59,5 mm
4,1 mm
1,5 mm²
0,2 mm²
3
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
8,5 g

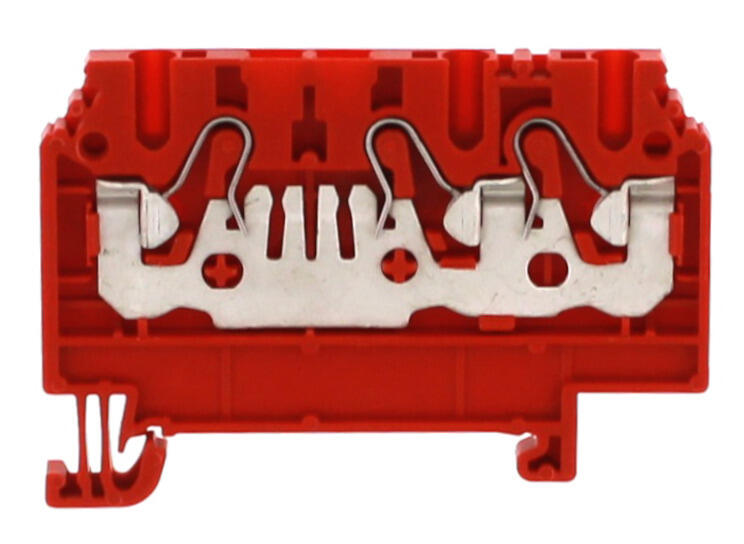

FRK 1.5/3A Red, 1.5mm² Push-in feed through, 1 in, 2 out
Art:
3201.9 Copied
Red
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
59,5 mm
4,1 mm
1,5 mm²
0,2 mm²
3
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
8,5 g

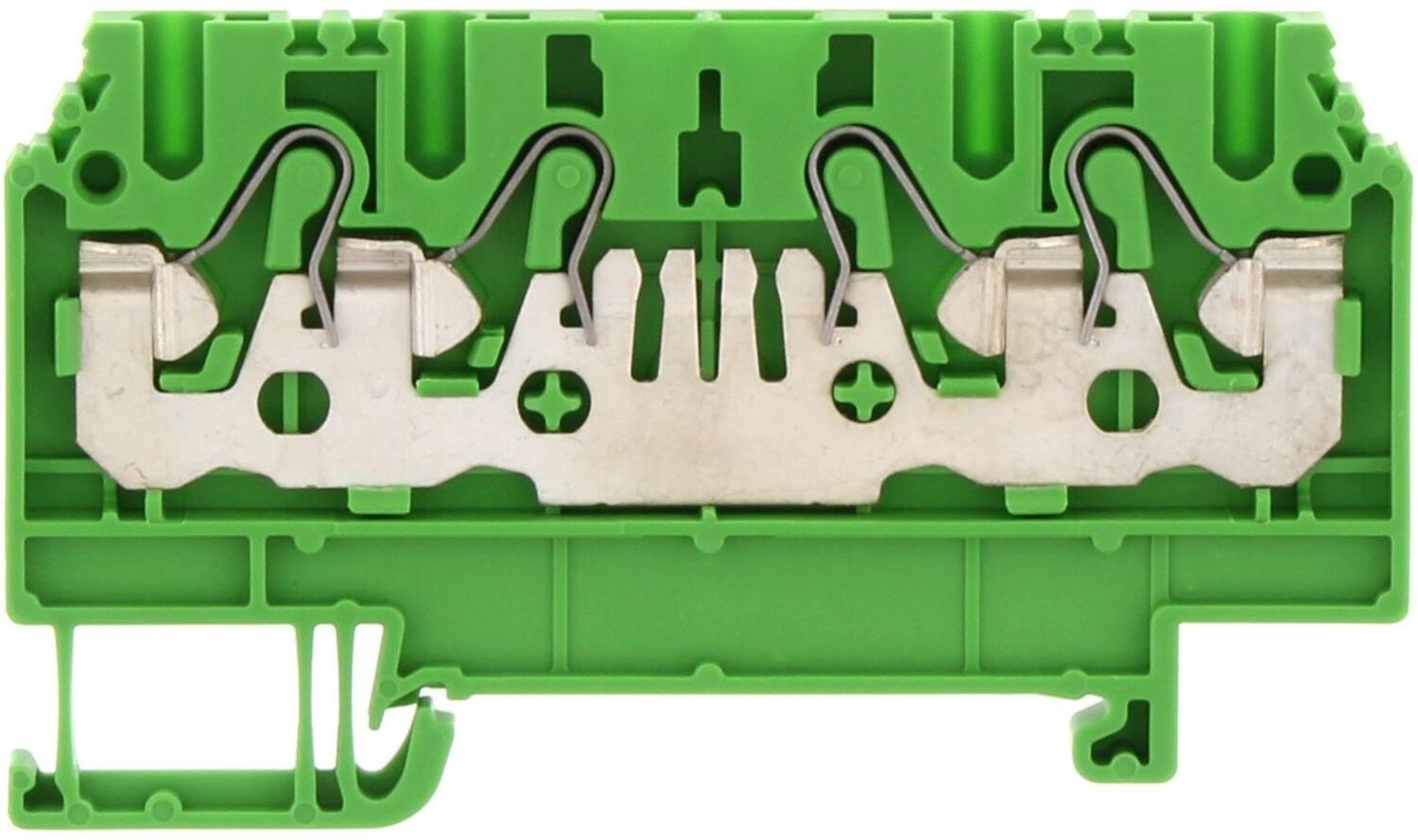

FRK 1.5/4A Green, 1.5mm² Push-in feed through, 2 in, 2 out
Art:
3202.1 Copied
Green
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
72,2 mm
4,1 mm
1,5 mm²
0,2 mm²
4
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
10,4 g

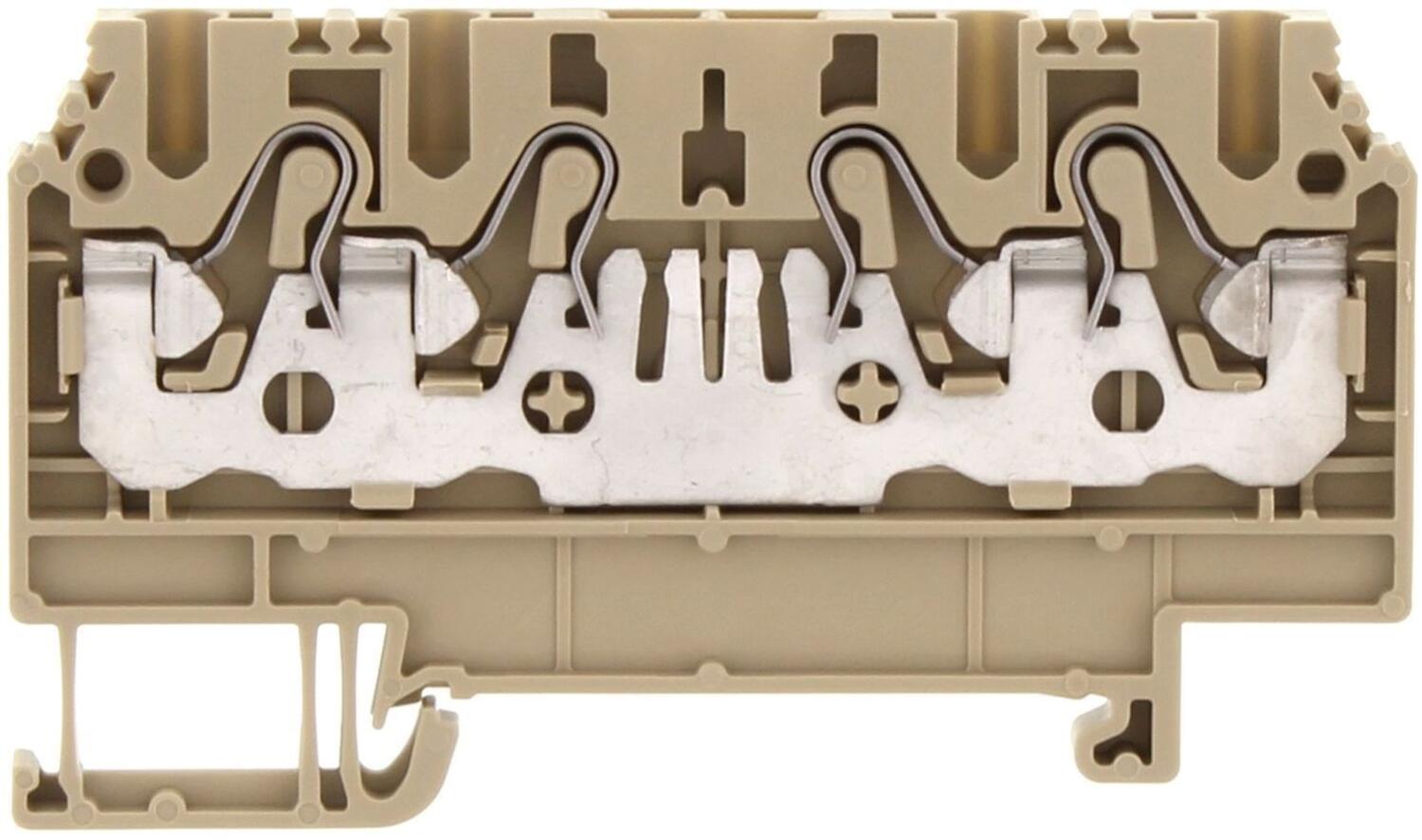

FRK 1.5/4A Beige, 1.5mm² Push-in feed through, 2 in, 2 out
Art:
3202.2 Copied
Beige
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
72,2 mm
4,1 mm
1,5 mm²
0,2 mm²
4
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
10,4 g

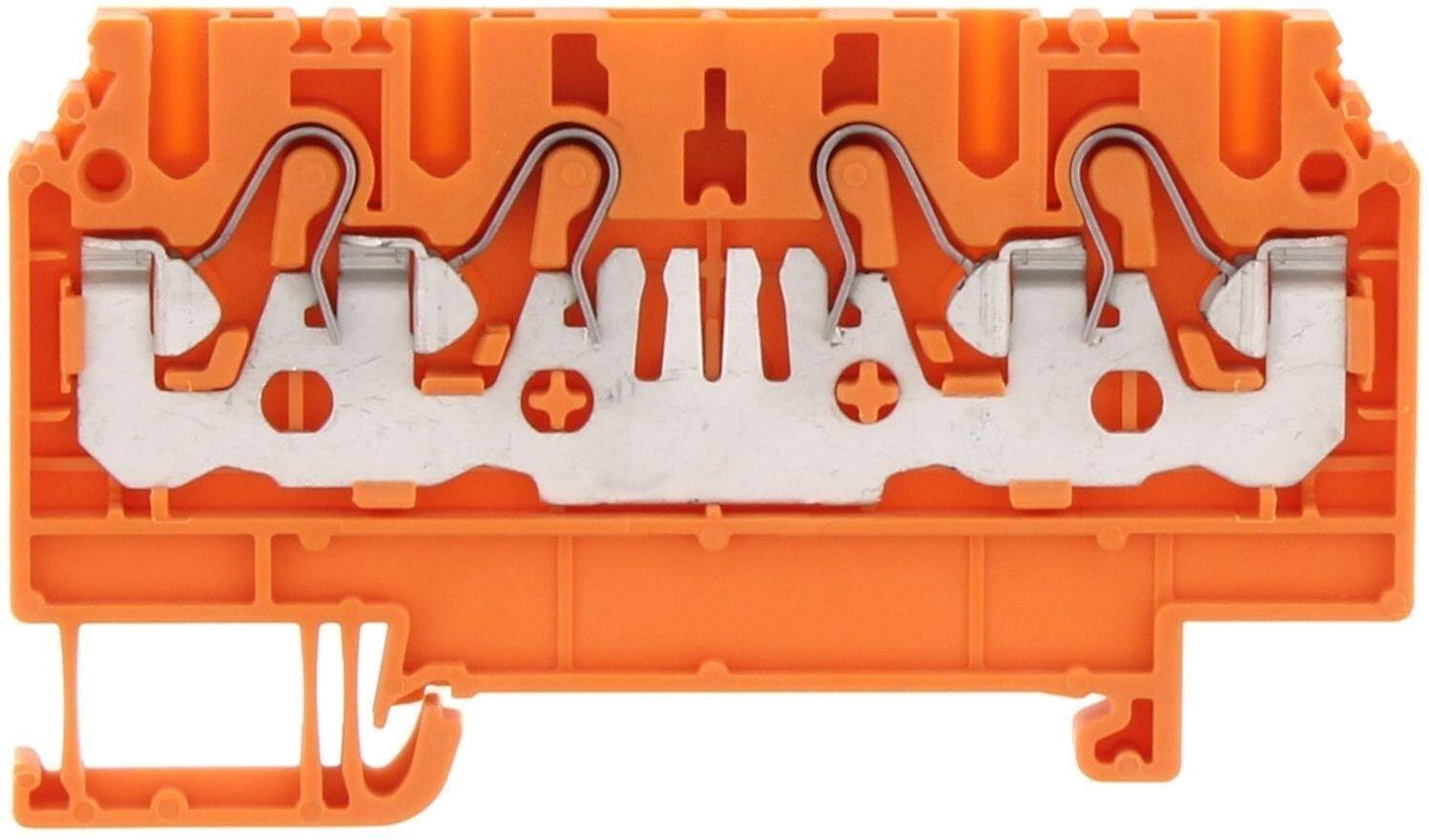

FRK 1.5/4A Orange, 1.5mm² Push-in feed through, 2 in, 2 out
Art:
3202.3 Copied
Orange
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
72,2 mm
4,1 mm
1,5 mm²
0,2 mm²
4
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
10,4 g
FRK 1.5/4A Blue, 1.5mm² Push-in feed through, 2 in, 2 out
Art:
3202.5 Copied
Blue
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
72,2 mm
4,1 mm
1,5 mm²
0,2 mm²
4
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
10,4 g
FRK 1.5/4A Yellow, 1.5mm² Push-in feed through, 2 in, 2 out
Art:
3202.8 Copied
Yellow
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
72,2 mm
4,1 mm
1,5 mm²
0,2 mm²
4
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
10,4 g
FRK 1.5/4A Red, 1.5mm² Push-in feed through, 2 in, 2 out
Art:
3202.9 Copied
Red
1,5 mm²
800 V
17,5 A
CSA, CSA US, KEMA KUR, EAC
43 mm
72,2 mm
4,1 mm
1,5 mm²
0,2 mm²
4
0,2 mm²
16
24
0,2 mm²
1,5 mm²
12 mm
1,5 mm²
A1
16 A
600 V
C22.2 No 158
UL 1059
16 A
600 V
100
BG
10,4 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 2.5/2A Brown, 2.5mm² Push-in feed through
Art:
3210.0 Copied
Brown
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
5,1 mm
4 mm²
0,2 mm²
2
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
8,5 g

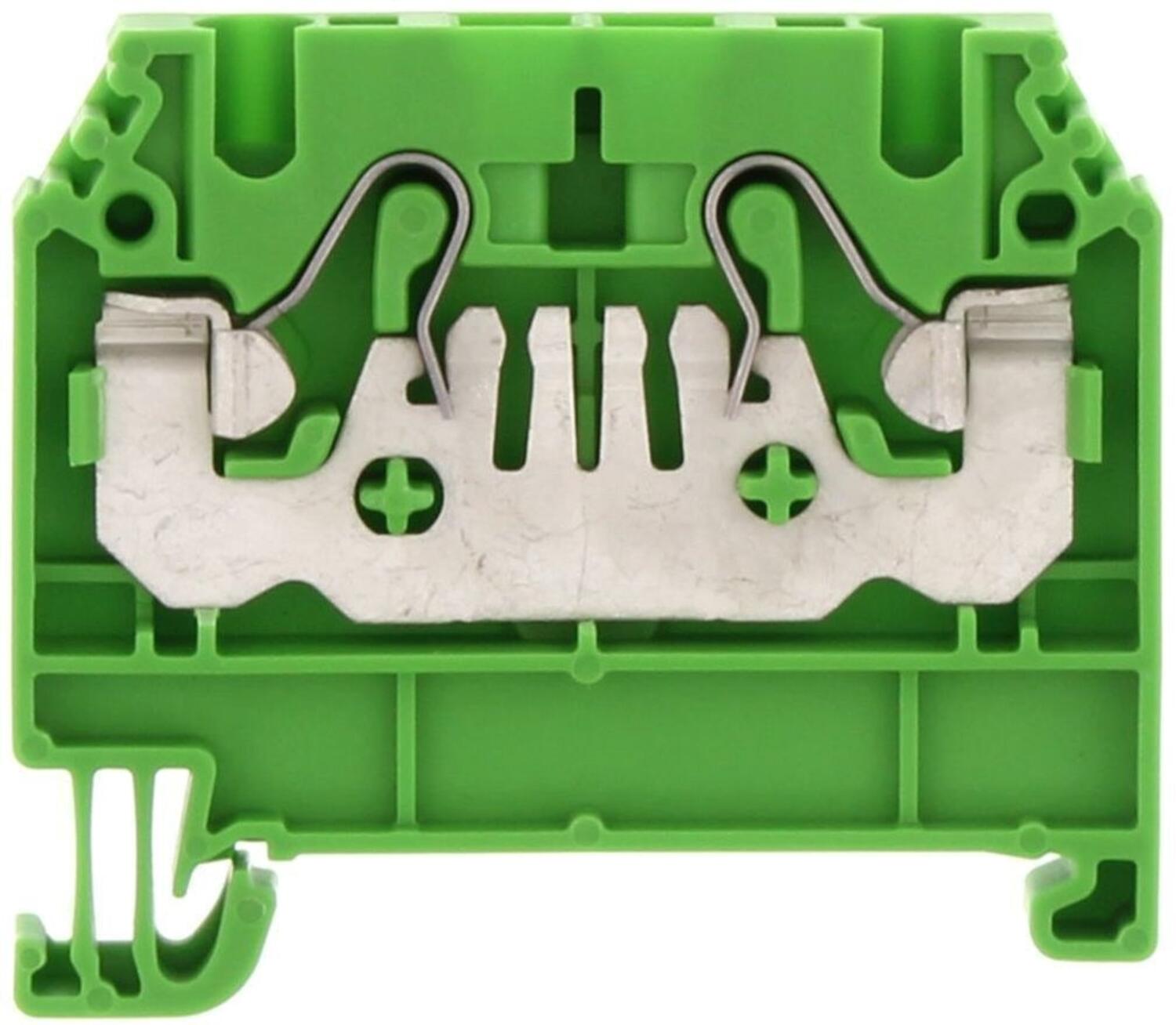

FRK 2.5/2A Green, 2.5mm² Push-in feed through
Art:
3210.1 Copied
Green
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
5,1 mm
4 mm²
0,2 mm²
2
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
8,5 g

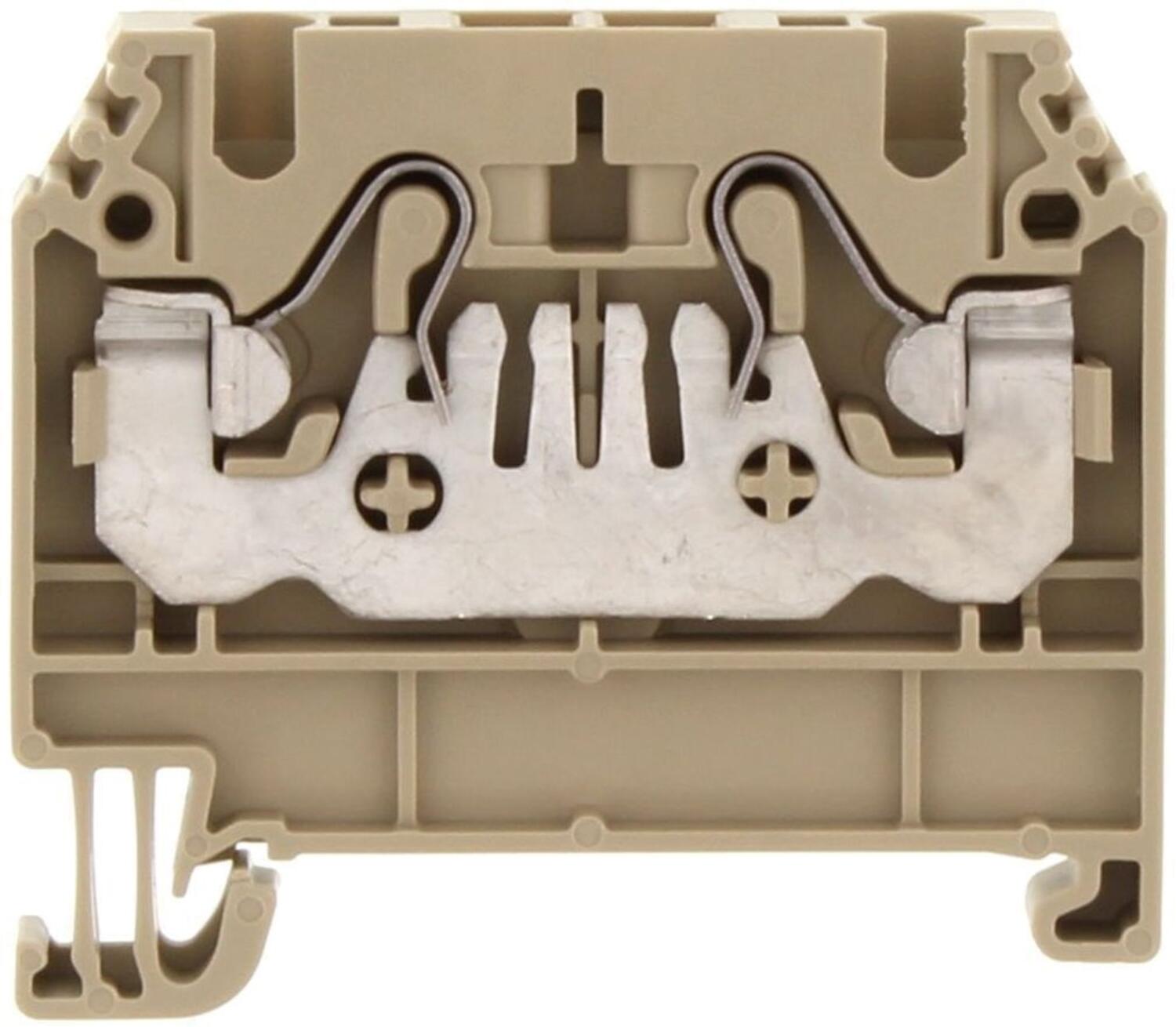

FRK 2.5/2A Beige, 2.5mm² Push-in feed through
Art:
3210.2 Copied
Beige
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
5,1 mm
4 mm²
0,2 mm²
2
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
8,5 g

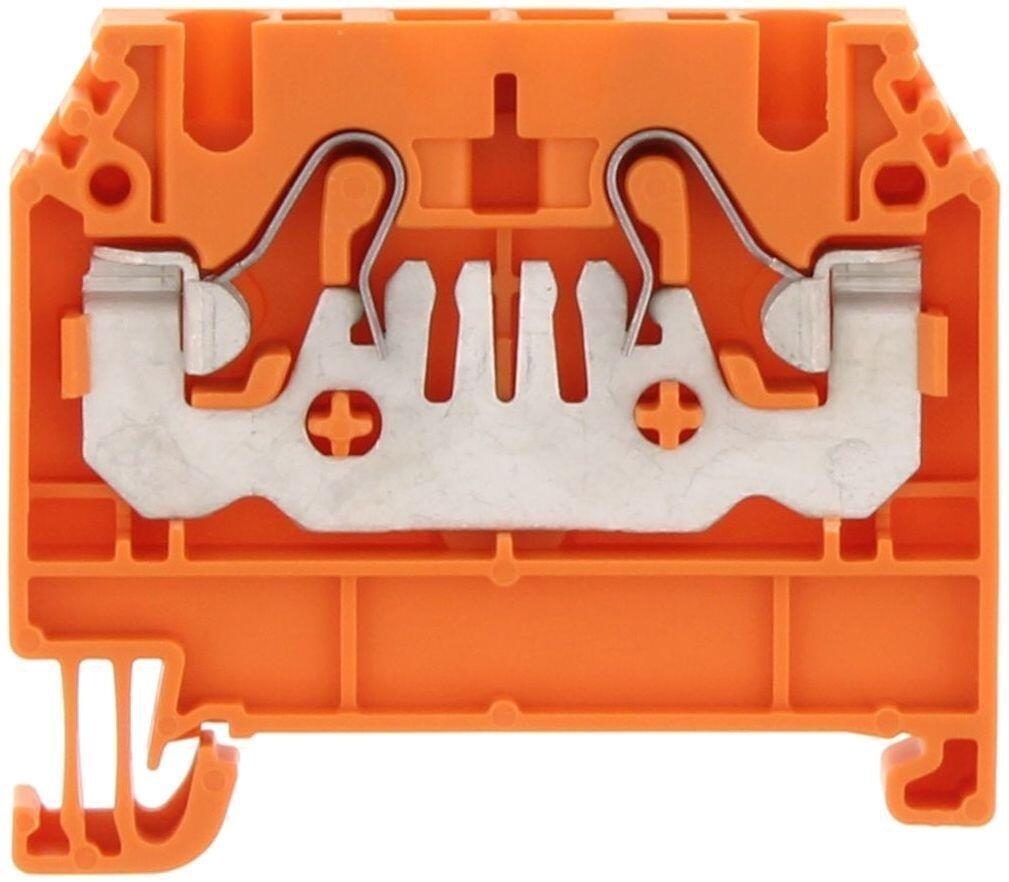

FRK 2.5/2A Orange, 2.5mm² Push-in feed through
Art:
3210.3 Copied
Orange
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
5,1 mm
4 mm²
0,2 mm²
2
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
8,5 g

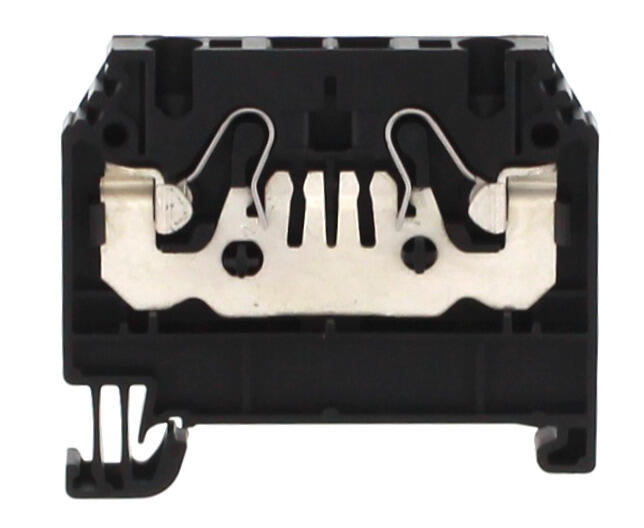

FRK 2.5/2A Black, 2.5mm² Push-in feed through
Art:
3210.4 Copied
Black
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
5,1 mm
4 mm²
0,2 mm²
2
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
8,5 g

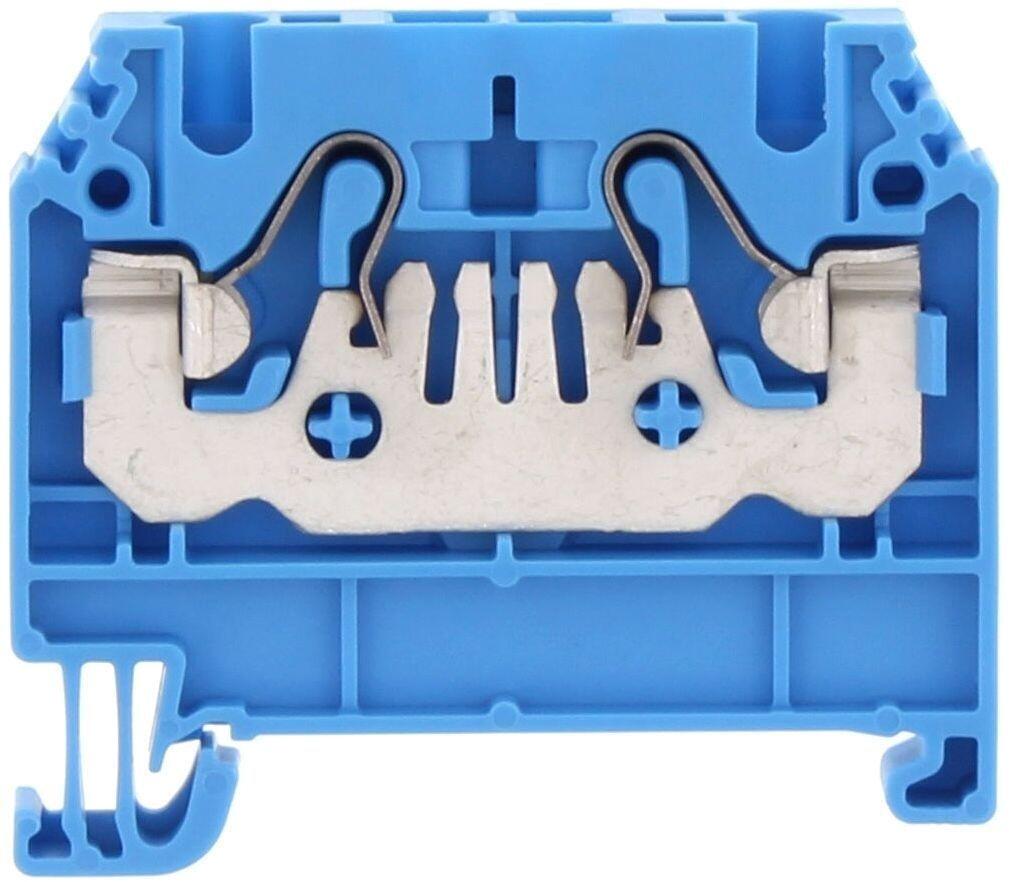

FRK 2.5/2A Blue, 2.5mm² Push-in feed through
Art:
3210.5 Copied
Blue
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
5,1 mm
4 mm²
0,2 mm²
2
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
8,5 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 2.5/2A White, 2.5mm² Push-in feed through
Art:
3210.7 Copied
White
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
5,1 mm
4 mm²
0,2 mm²
2
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
8,5 g

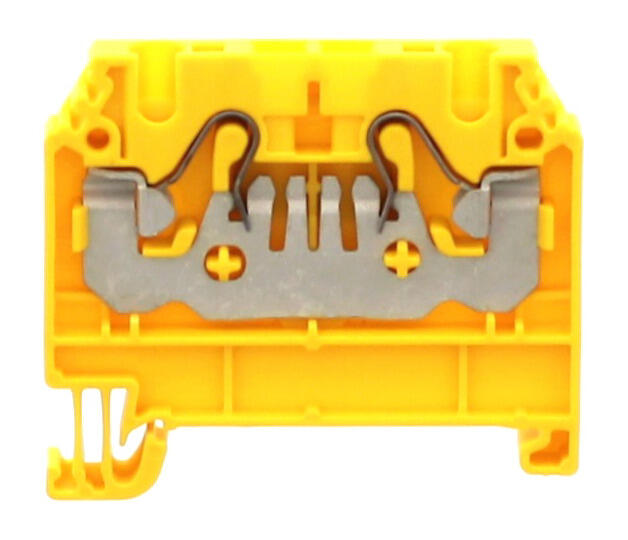

FRK 2.5/2A Yellow, 2.5mm² Push-in feed through
Art:
3210.8 Copied
Yellow
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
5,1 mm
4 mm²
0,2 mm²
2
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
8,5 g

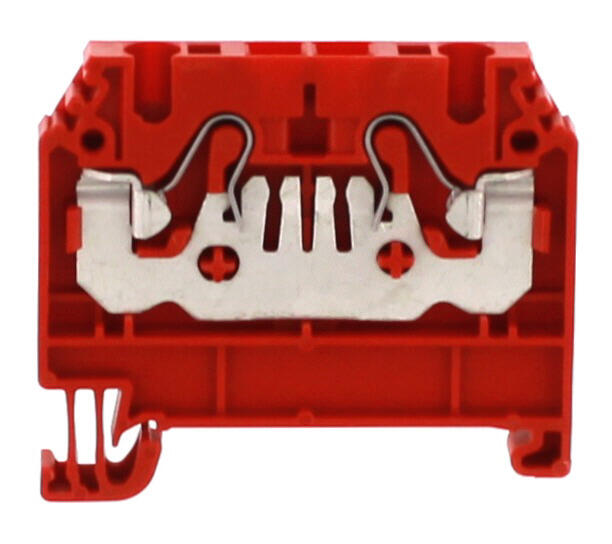

FRK 2.5/2A Red, 2.5mm² Push-in feed through
Art:
3210.9 Copied
Red
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
5,1 mm
4 mm²
0,2 mm²
2
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
8,5 g

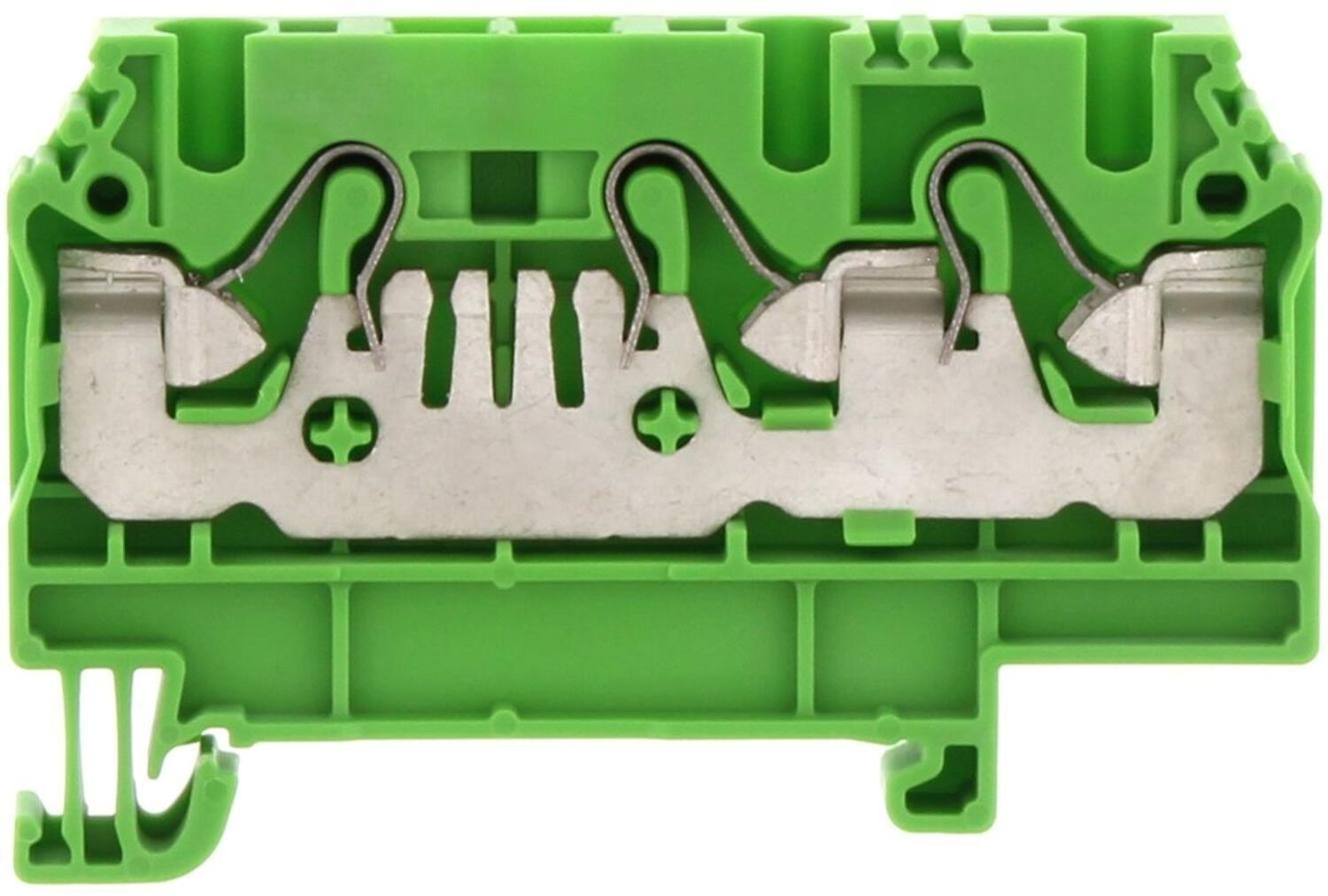

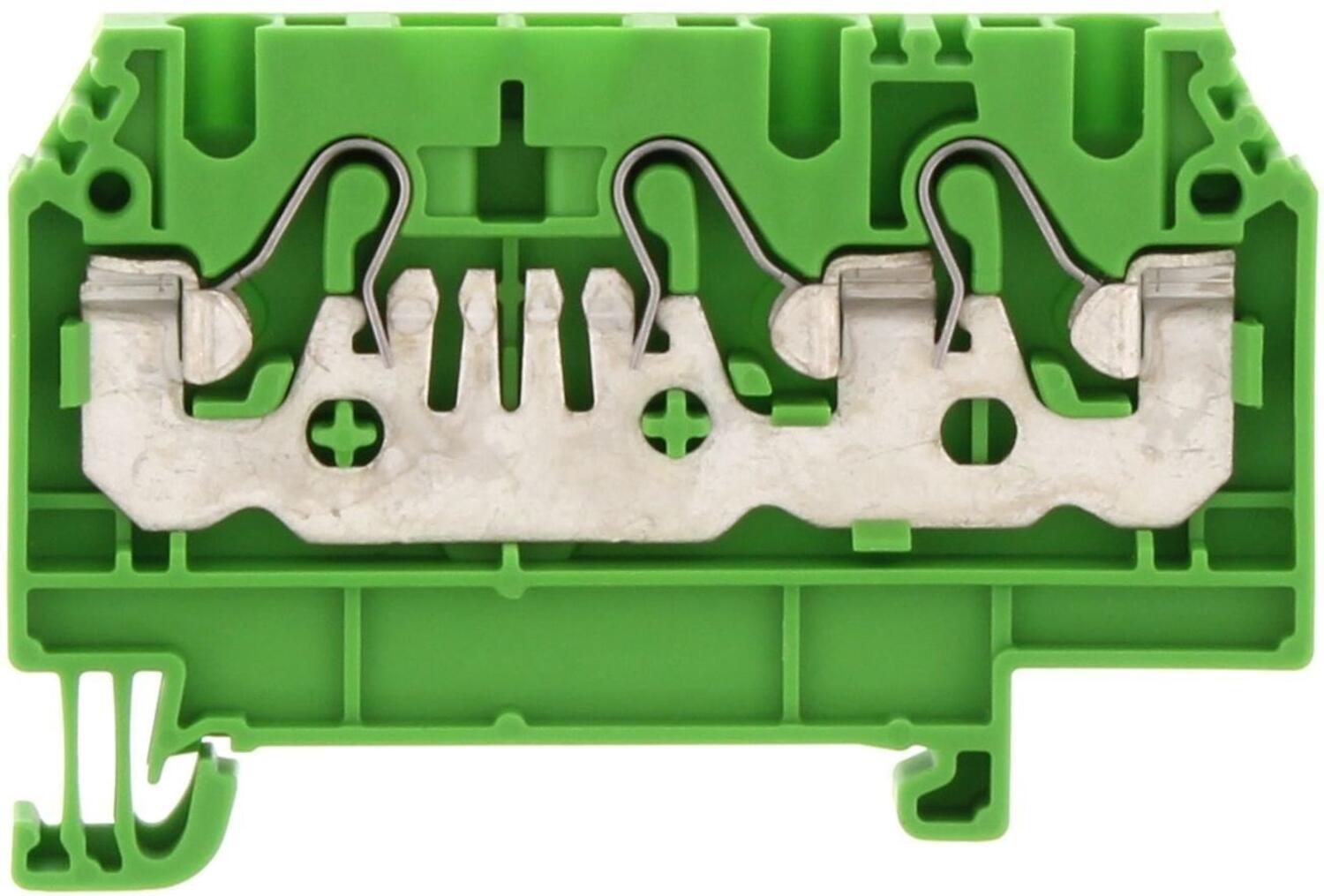

FRK 2.5/3A Green, 2.5mm² Push-in feed through, 1 in, 2 out
Art:
3211.1 Copied
Green
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
63,1 mm
5,1 mm
4 mm²
0,2 mm²
3
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
11,35 g

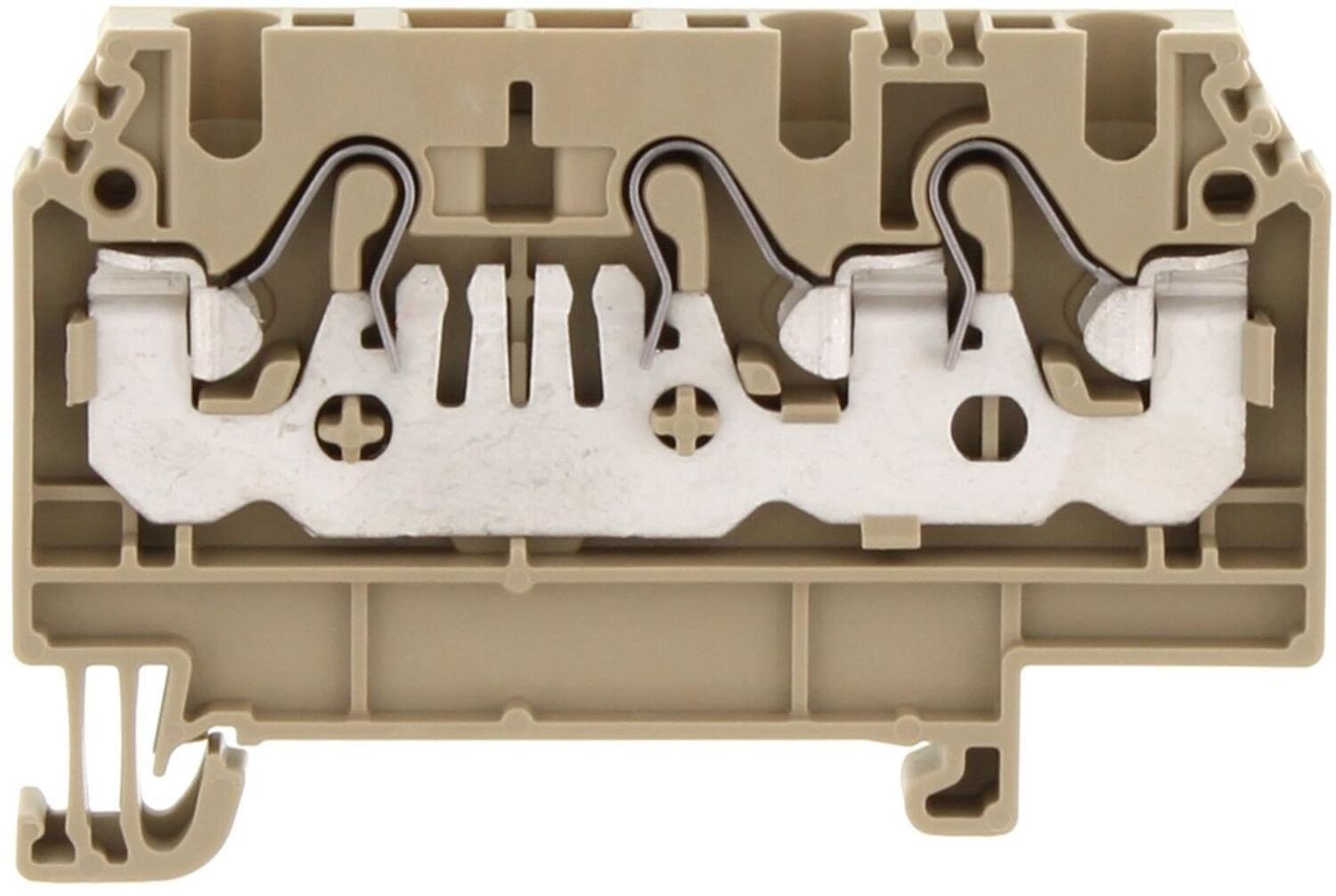

FRK 2.5/3A Beige, 2.5mm² Push-in feed through, 1 in, 2 out
Art:
3211.2 Copied
Beige
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
63,1 mm
5,1 mm
4 mm²
0,2 mm²
3
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
11,35 g

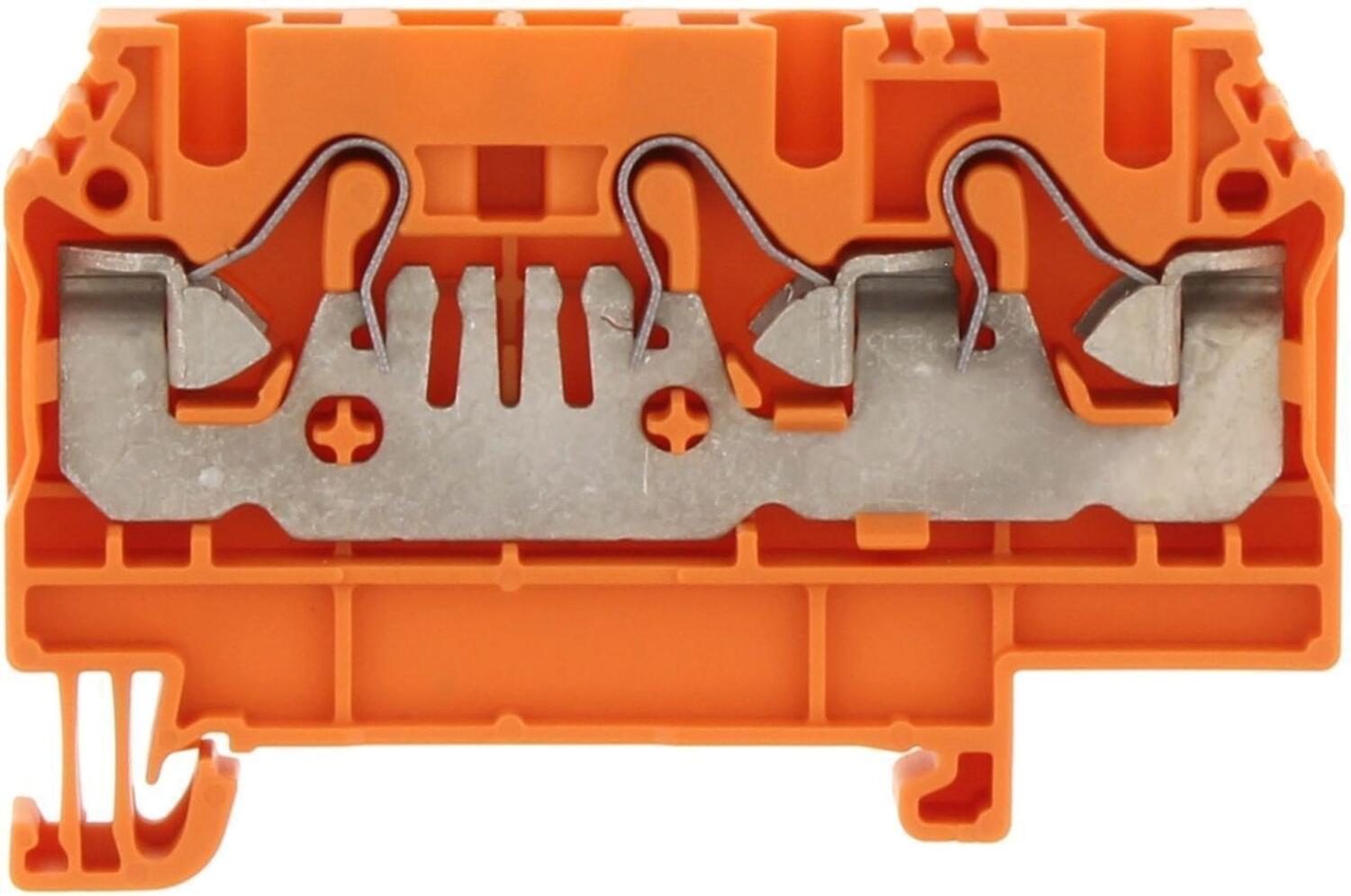

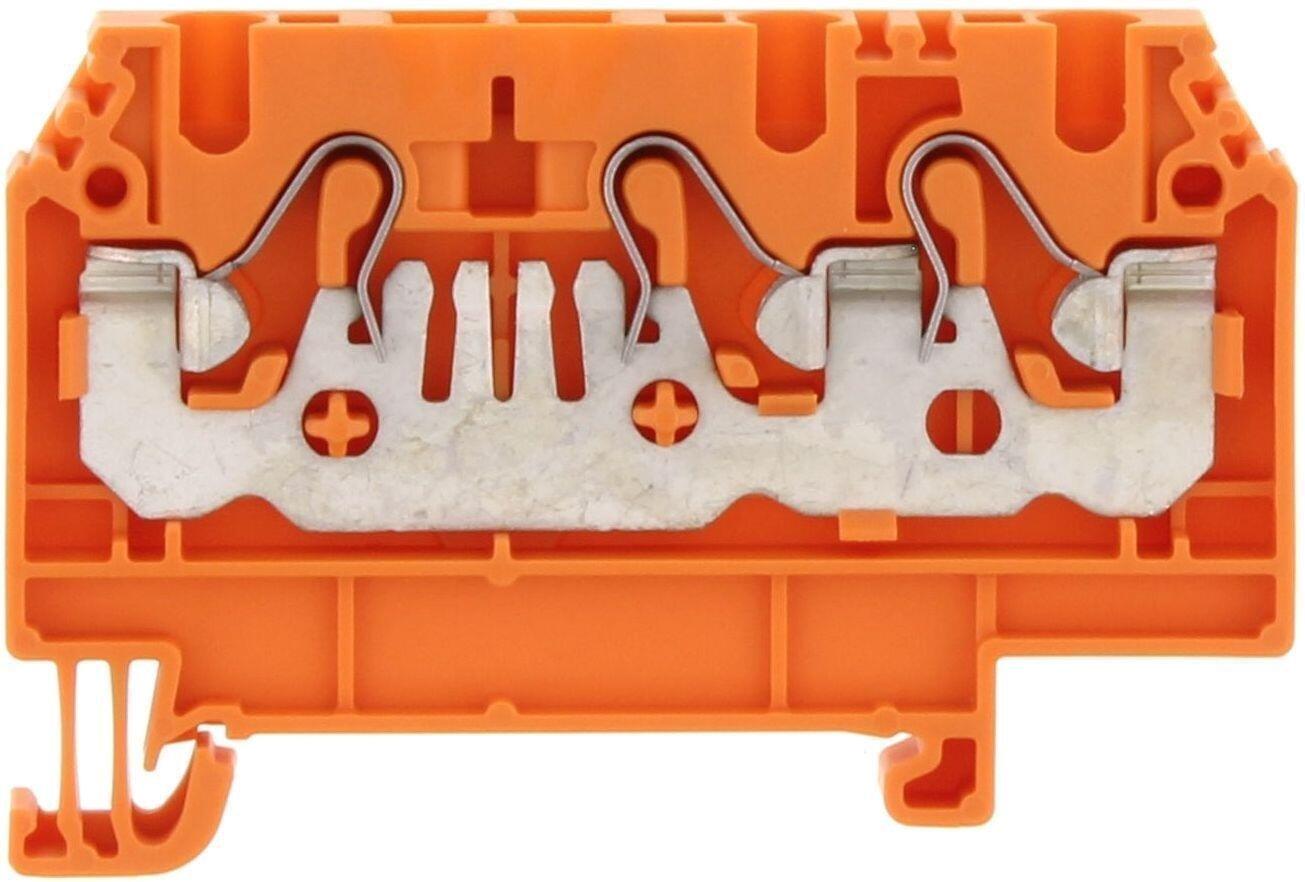

FRK 2.5/3A Orange, 2.5mm² Push-in feed through, 1 in, 2 out
Art:
3211.3 Copied
Orange
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
63,1 mm
5,1 mm
4 mm²
0,2 mm²
3
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
11,35 g
FRK 2.5/3A Blue, 2.5mm² Push-in feed through, 1 in, 2 out
Art:
3211.5 Copied
Blue
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
63,1 mm
5,1 mm
4 mm²
0,2 mm²
3
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
11,35 g

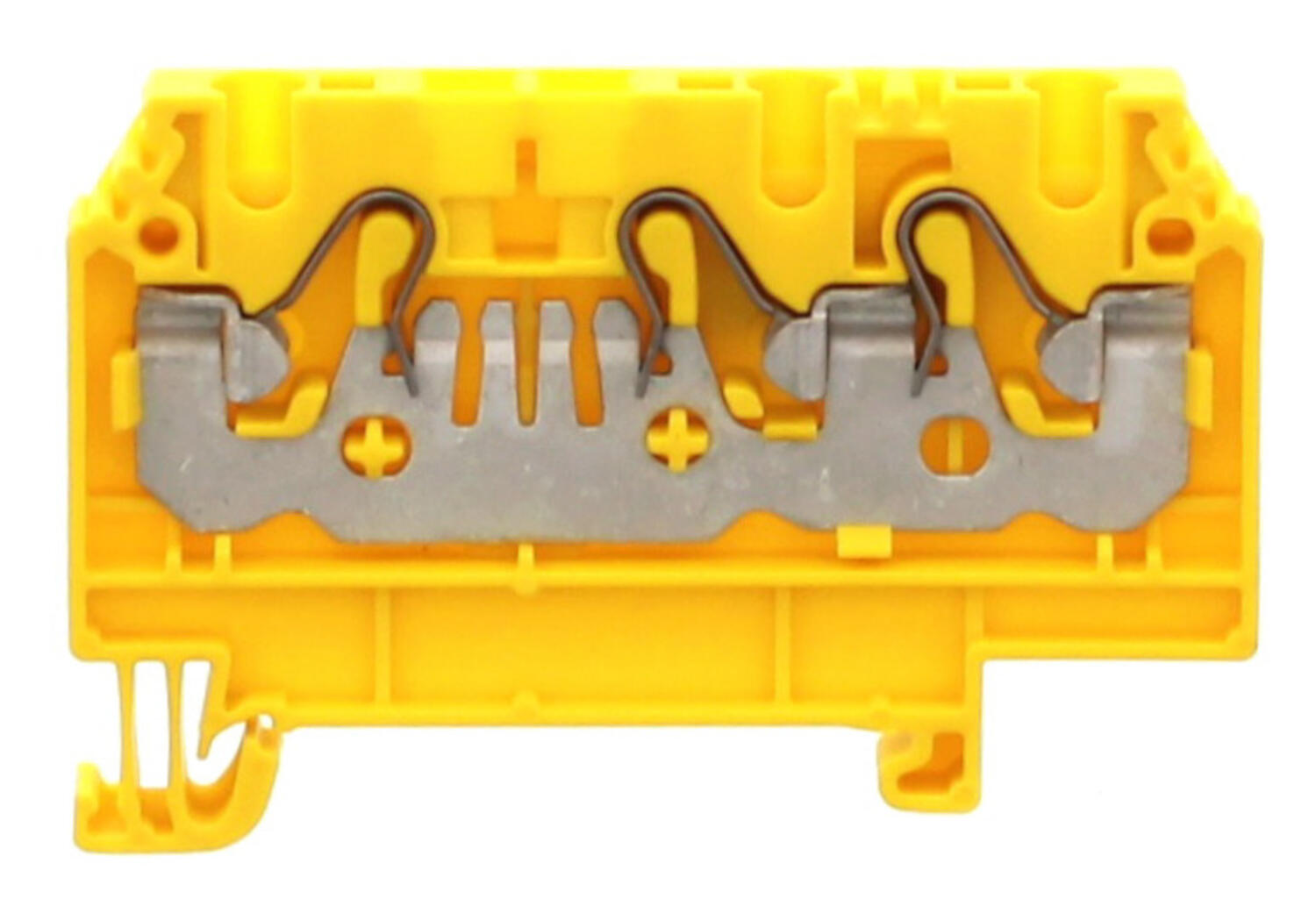

FRK 2.5/3A Yellow, 2.5mm² Push-in feed through, 1 in, 2 out
Art:
3211.8 Copied
Yellow
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
63,1 mm
5,1 mm
4 mm²
0,2 mm²
3
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
11,35 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 2.5/3A Red, 2.5mm² Push-in feed through, 1 in, 2 out
Art:
3211.9 Copied
Red
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
63,1 mm
5,1 mm
4 mm²
0,2 mm²
3
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
11,35 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 2.5/4A Green, 2.5mm² Push-in feed through, 2 in, 2 out
Art:
3212.1 Copied
Green
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
77,7 mm
5,1 mm
4 mm²
0,2 mm²
4
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
14,43 g

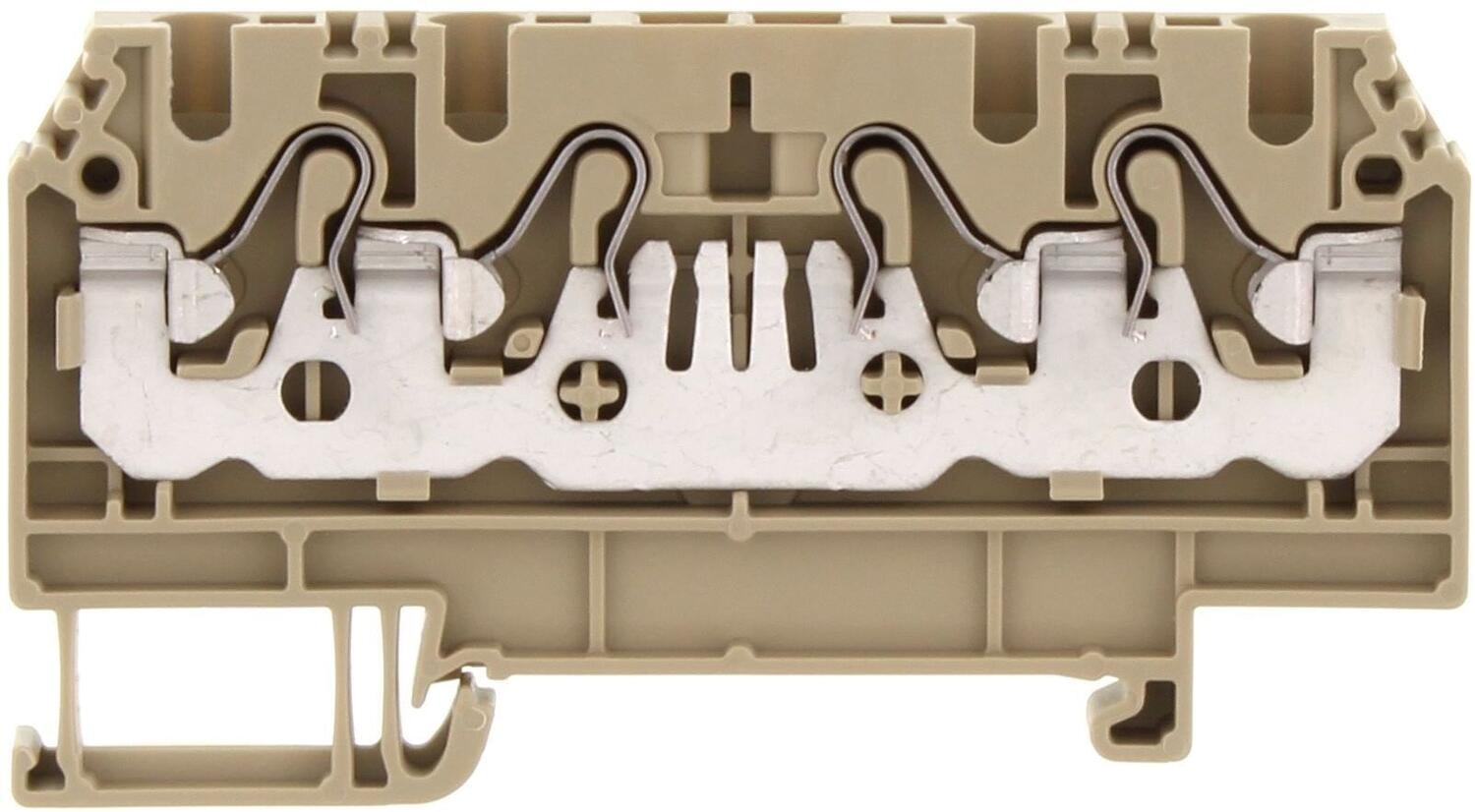

FRK 2.5/4A Beige, 2.5mm² Push-in feed through, 2 in, 2 out
Art:
3212.2 Copied
Beige
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
77,7 mm
5,1 mm
4 mm²
0,2 mm²
4
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
14,43 g

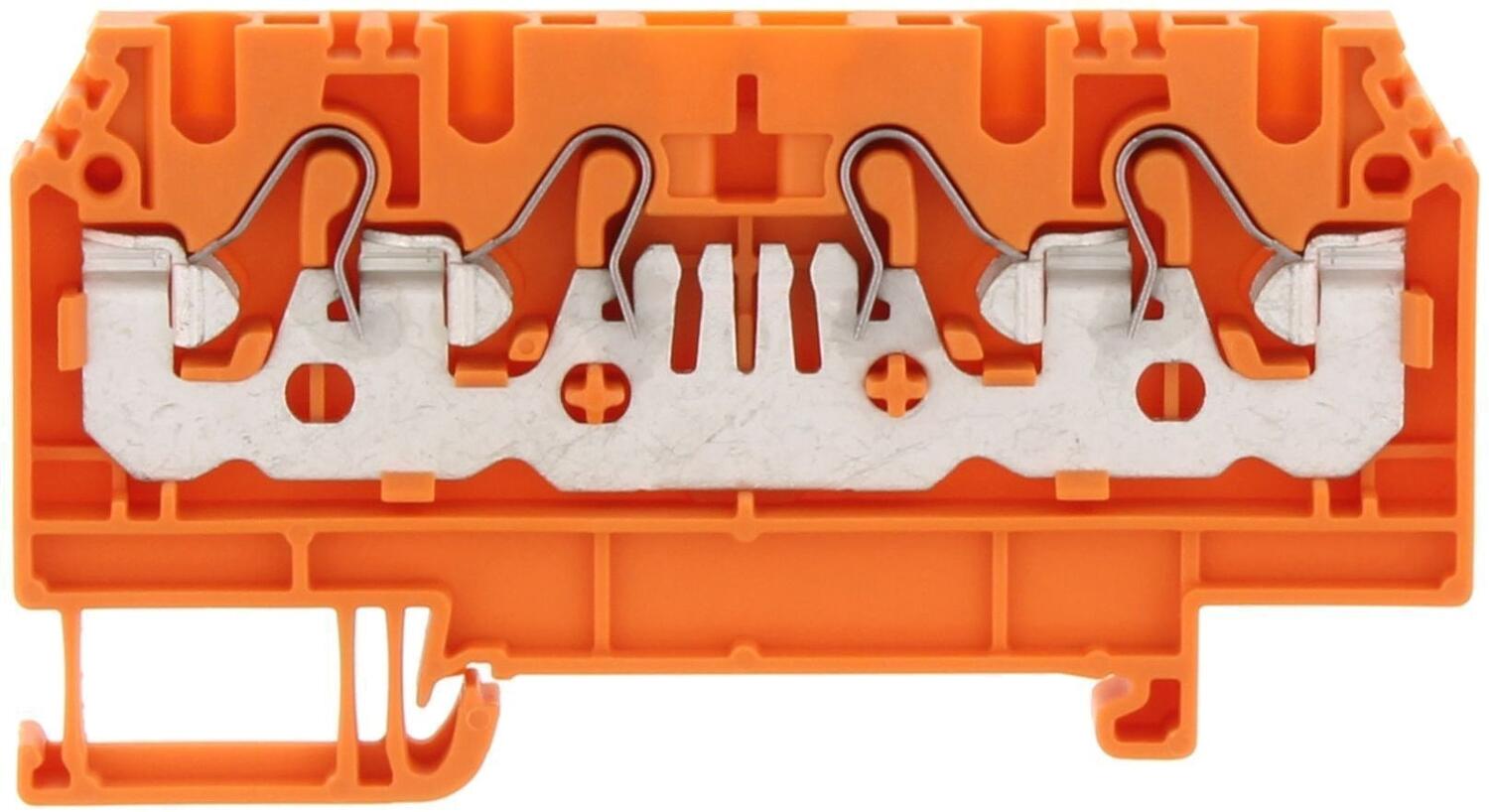

FRK 2.5/4A Orange, 2.5mm² Push-in feed through, 2 in, 2 out
Art:
3212.3 Copied
Orange
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
77,7 mm
5,1 mm
4 mm²
0,2 mm²
4
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
14,43 g

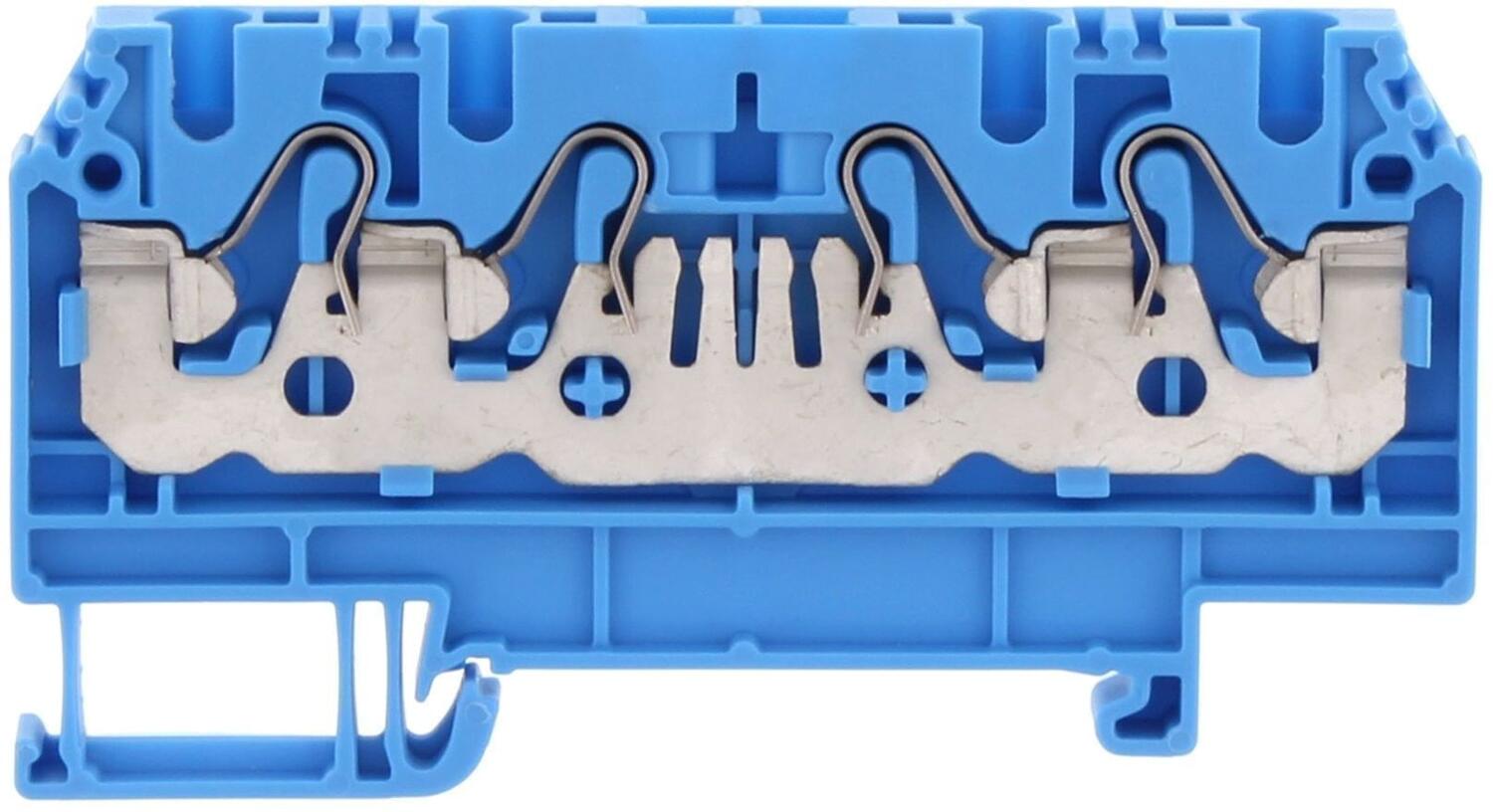

FRK 2.5/4A Blue, 2.5mm² Push-in feed through, 2 in, 2 out
Art:
3212.5 Copied
Blue
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
77,7 mm
5,1 mm
4 mm²
0,2 mm²
4
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
14,43 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 2.5/4A Yellow, 2.5mm² Push-in feed through, 2 in, 2 out
Art:
3212.8 Copied
Yellow
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
77,7 mm
5,1 mm
4 mm²
0,2 mm²
4
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
14,43 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 2.5/4A Red, 2.5mm² Push-in feed through, 2 in, 2 out
Art:
3212.9 Copied
Red
2,5 mm²
800 V
24 A
CSA, CSA US, KEMA KUR, EAC
43 mm
77,7 mm
5,1 mm
4 mm²
0,2 mm²
4
0,2 mm²
12
26
0,2 mm²
2,5 mm²
12 mm
4 mm²
A3
21 A
600 V
C22.2 No 158
UL 1059
21 A
600 V
100
BG
14,43 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 4/2A Green, 4mm² Push-in feed through
Art:
3220.1 Copied
Green
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
6,1 mm
6 mm²
0,2 mm²
2
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
10,74 g

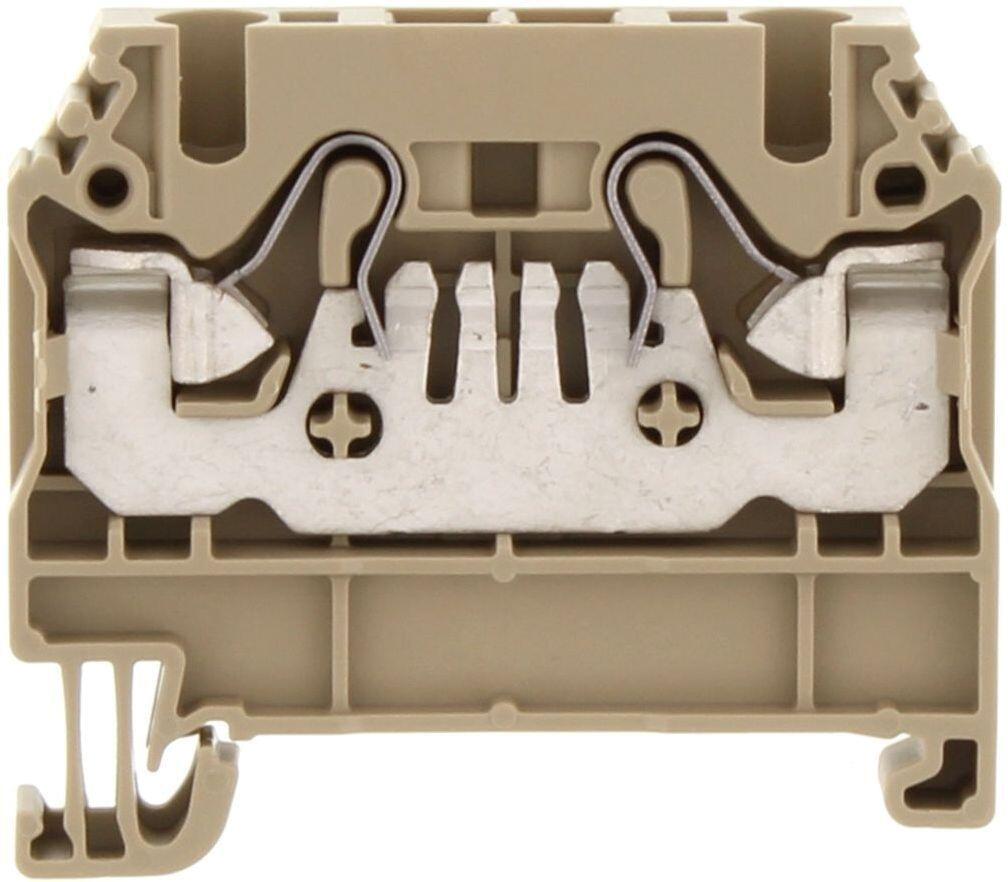

FRK 4/2A Beige, 4mm² Push-in feed through
Art:
3220.2 Copied
Beige
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
6,1 mm
6 mm²
0,2 mm²
2
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
10,74 g

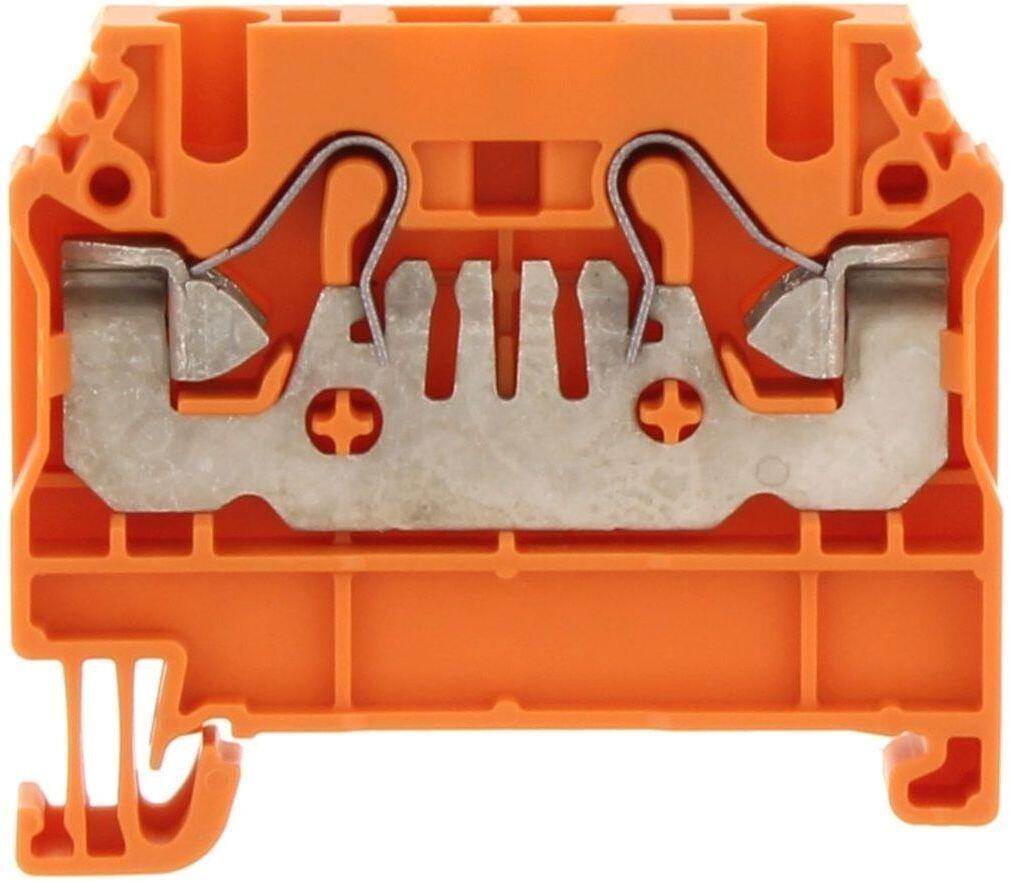

FRK 4/2A Orange, 4mm² Push-in feed through
Art:
3220.3 Copied
Orange
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
6,1 mm
6 mm²
0,2 mm²
2
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
10,74 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 4/2A Black, 4mm² Push-in feed through
Art:
3220.4 Copied
Black
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
6,1 mm
6 mm²
0,2 mm²
2
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
10,74 g

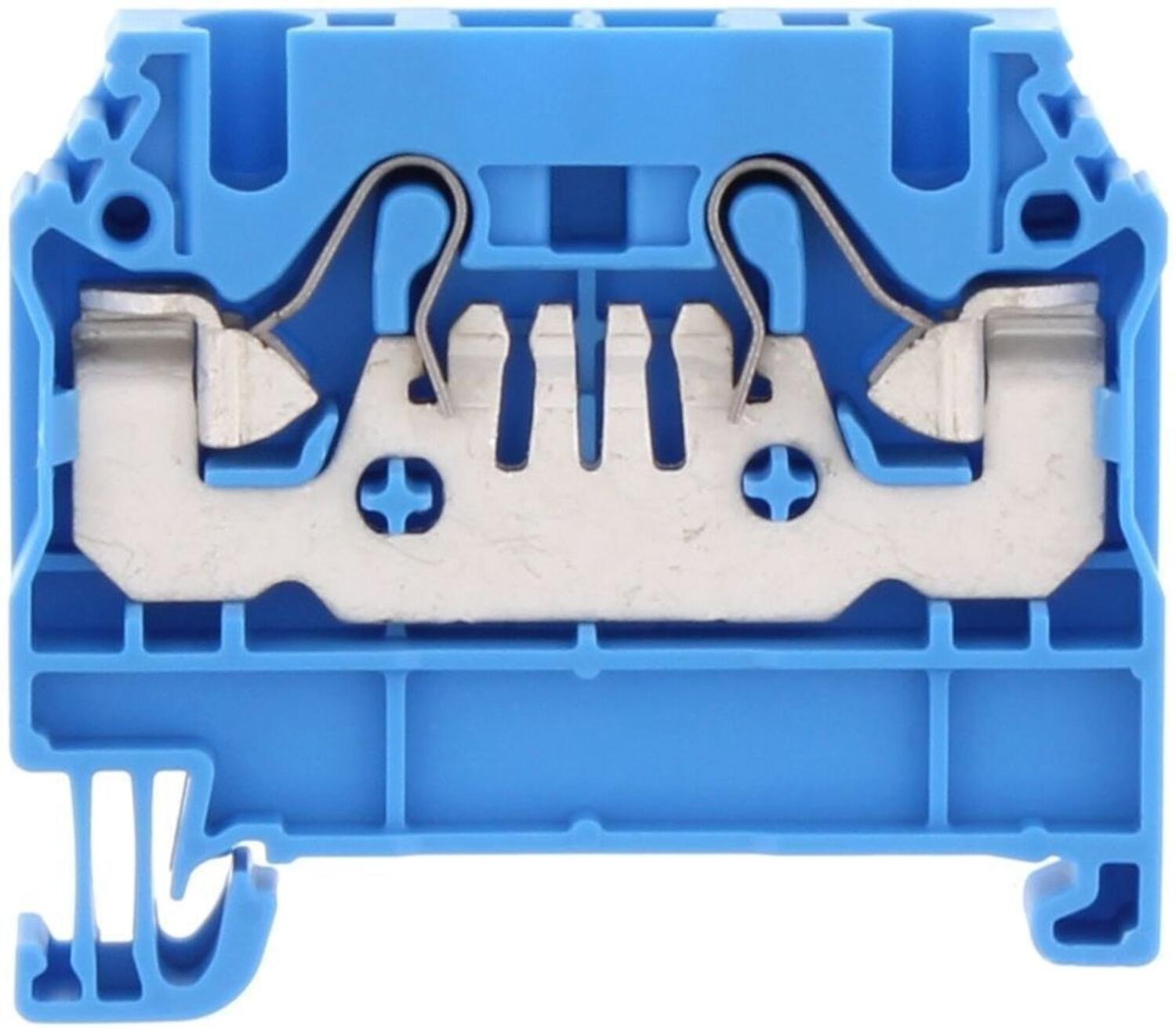

FRK 4/2A Blue, 4mm² Push-in feed through
Art:
3220.5 Copied
Blue
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
6,1 mm
6 mm²
0,2 mm²
2
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
10,74 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 4/2A Orange, 4mm² Push-in feed through
Art:
3220.7 Copied
White
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
6,1 mm
6 mm²
0,2 mm²
2
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
10,74 g

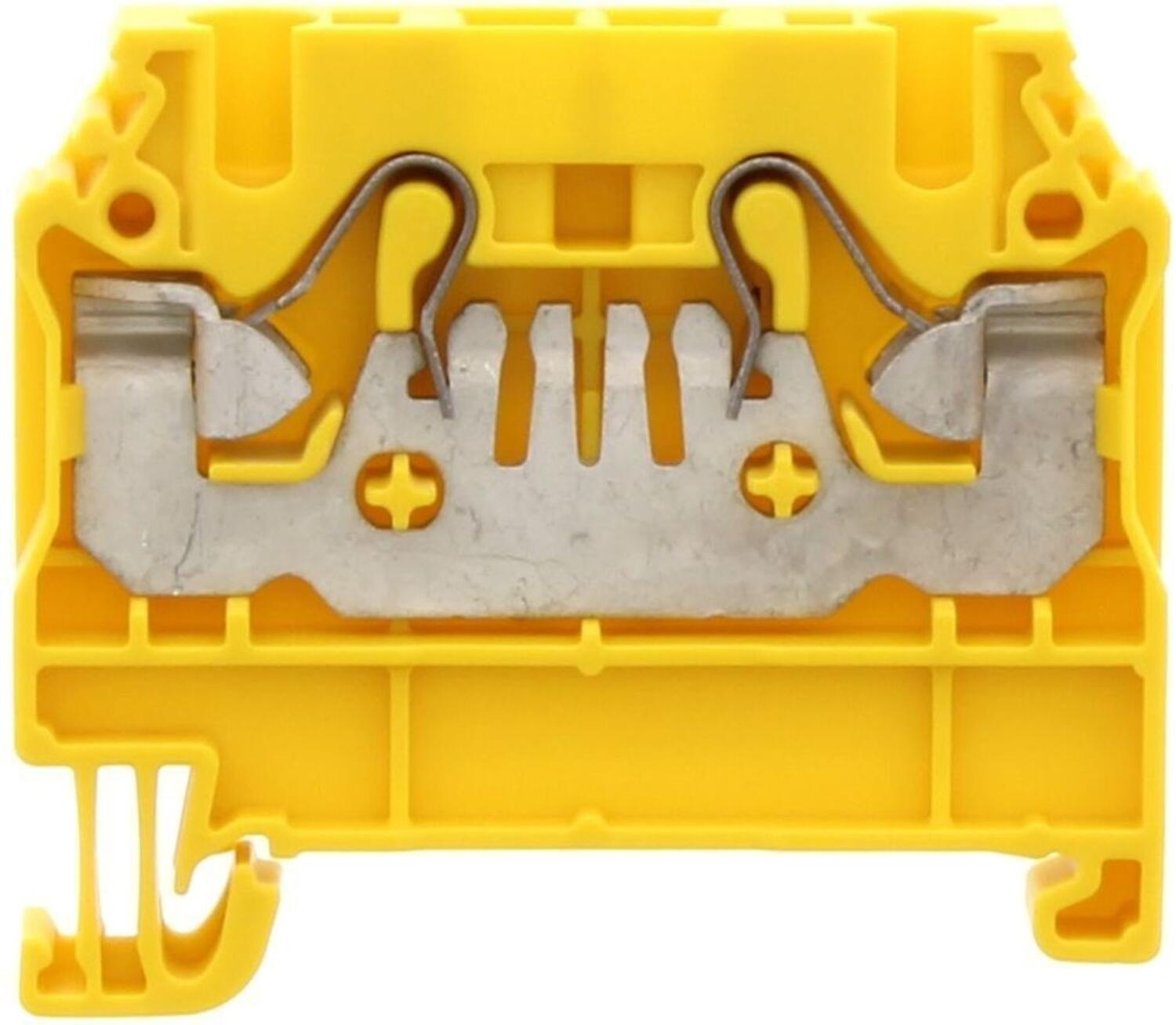

FRK 4/2A Yellow, 4mm² Push-in feed through
Art:
3220.8 Copied
Yellow
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
6,1 mm
6 mm²
0,2 mm²
2
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
10,74 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 4/2A Red, 4mm² Push-in feed through
Art:
3220.9 Copied
Red
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
48,5 mm
6,1 mm
6 mm²
0,2 mm²
2
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
10,74 g
FRK 4/3A Green, 4mm² Push-in feed through, 1 in, 2 out
Art:
3221.1 Copied
Green
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
64,3 mm
6,1 mm
6 mm²
0,2 mm²
3
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
14,17 g
FRK 4/3A Beige, 4mm² Push-in feed through, 1 in, 2 out
Art:
3221.2 Copied
Beige
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
64,3 mm
6,1 mm
6 mm²
0,2 mm²
3
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
14,17 g
FRK 4/3A Orange, 4mm² Push-in feed through, 1 in, 2 out
Art:
3221.3 Copied
Orange
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
64,3 mm
6,1 mm
6 mm²
0,2 mm²
3
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
14,17 g
FRK 4/3A Blue, 4mm² Push-in feed through, 1 in, 2 out
Art:
3221.5 Copied
Blue
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
64,3 mm
6,1 mm
6 mm²
0,2 mm²
3
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
14,17 g

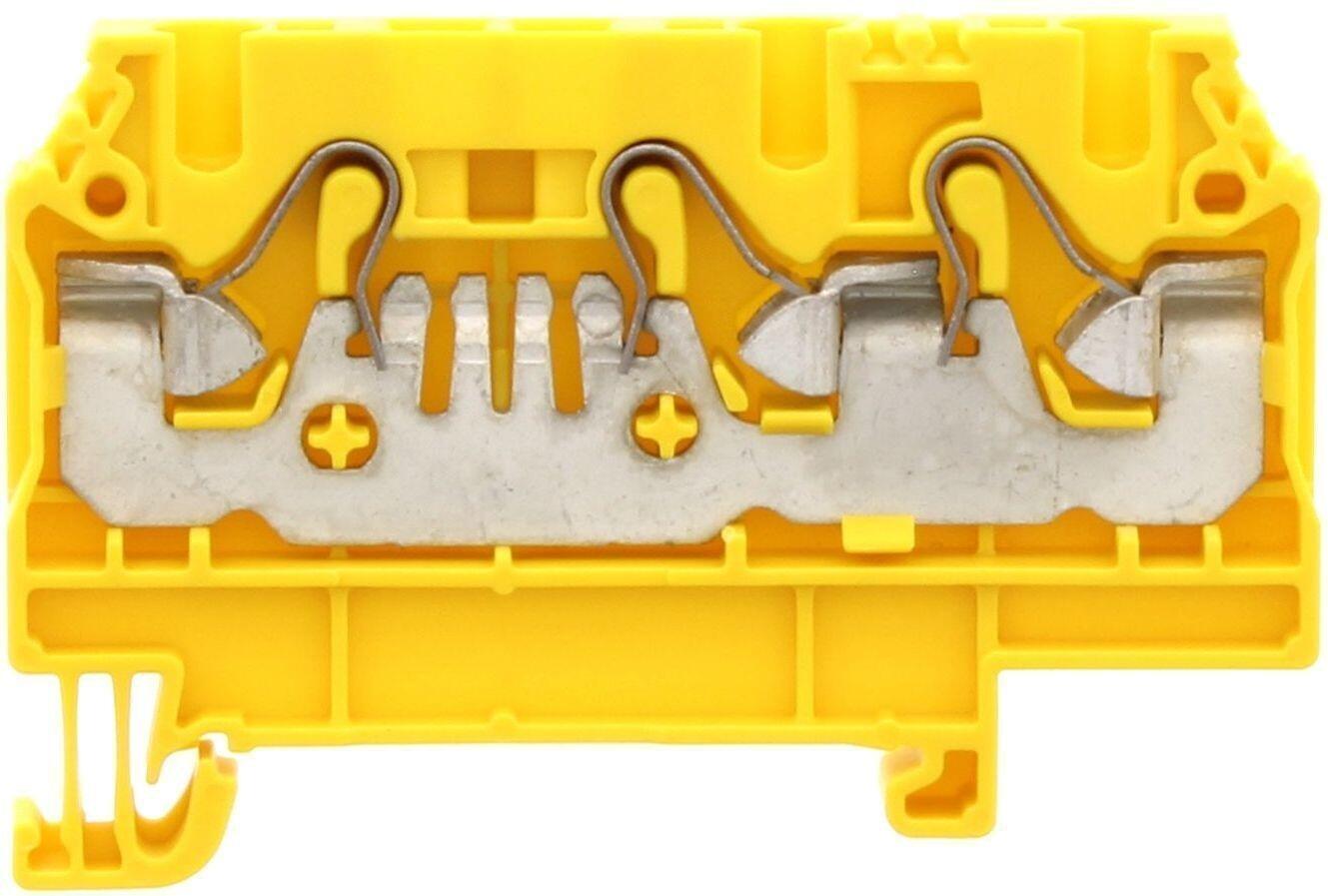

FRK 4/3A Yellow, 4mm² Push-in feed through, 1 in, 2 out
Art:
3221.8 Copied
Yellow
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
64,3 mm
6,1 mm
6 mm²
0,2 mm²
3
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
14,17 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 4/3A Red, 4mm² Push-in feed through, 1 in, 2 out
Art:
3221.9 Copied
Red
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
64,3 mm
6,1 mm
6 mm²
0,2 mm²
3
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
14,17 g

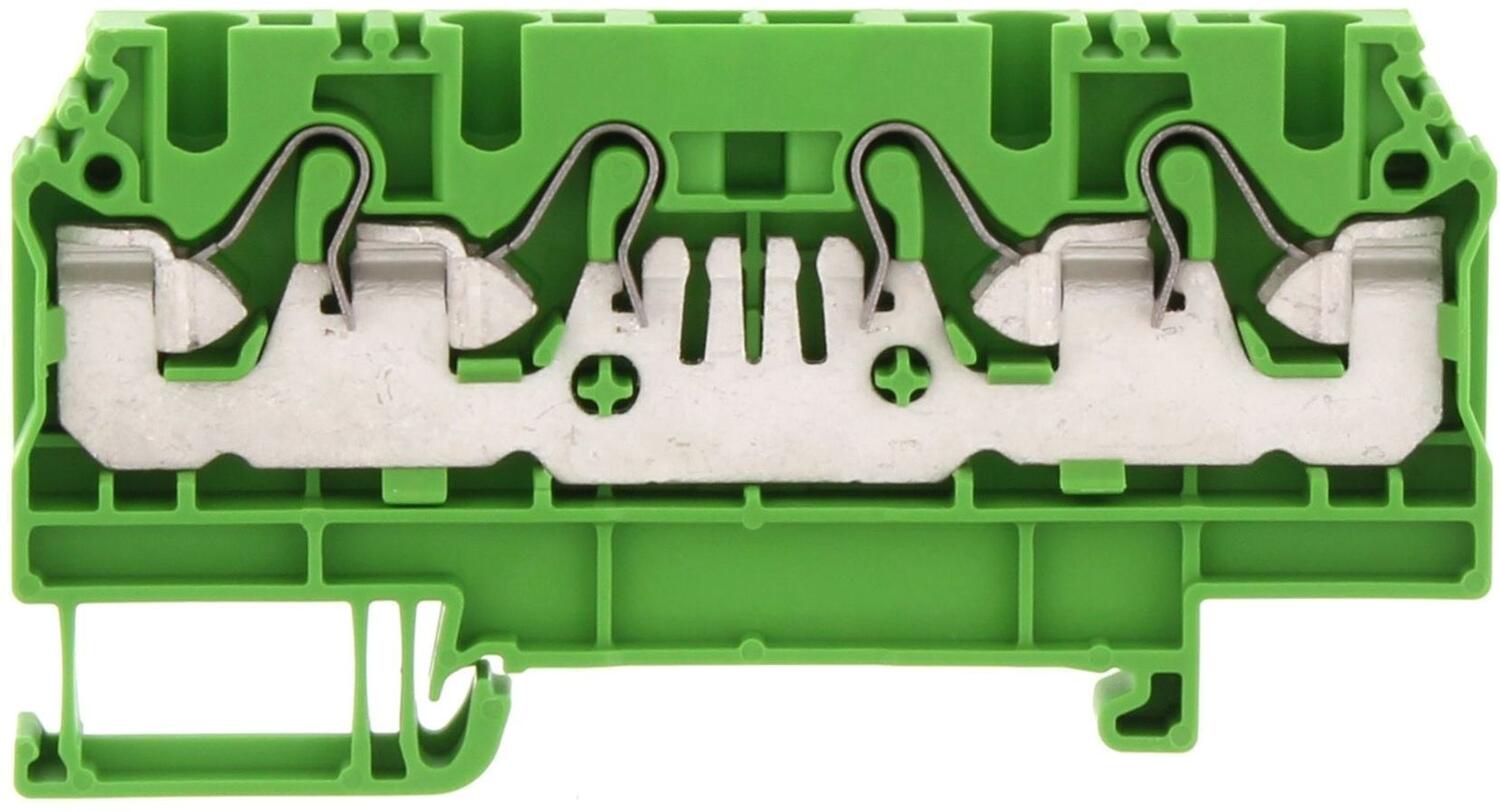

FRK 4/4A Green, 4mm² Push-in feed through, 2 in, 2 out
Art:
3222.1 Copied
Green
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
80 mm
6,1 mm
6 mm²
0,2 mm²
4
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
18,77 g

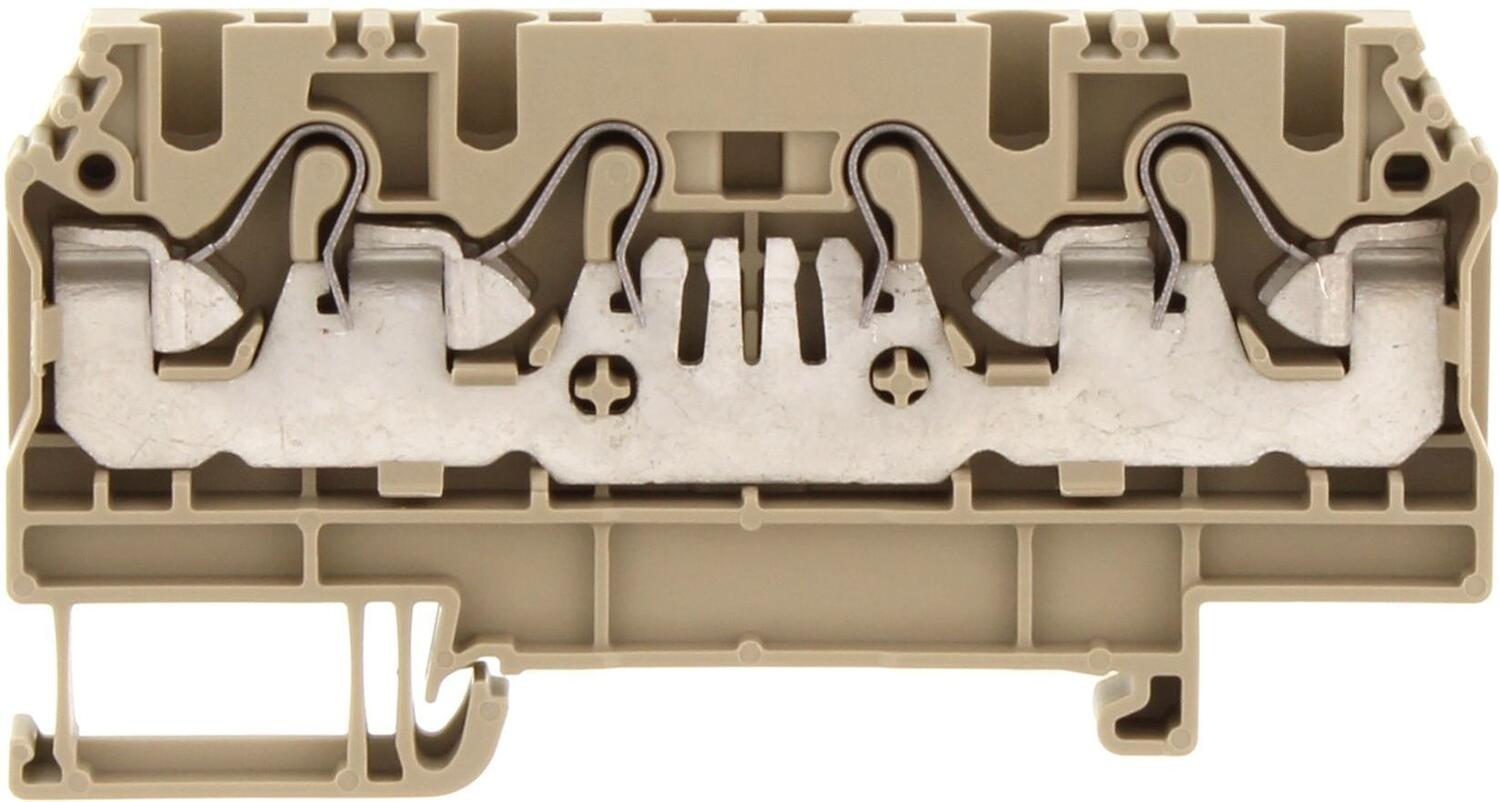

FRK 4/4A Beige, 4mm² Push-in feed through, 2 in, 2 out
Art:
3222.2 Copied
Beige
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
80 mm
6,1 mm
6 mm²
0,2 mm²
4
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
18,77 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 4/4A Orange, 4mm² Push-in feed through, 2 in, 2 out
Art:
3222.3 Copied
Orange
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
80 mm
6,1 mm
6 mm²
0,2 mm²
4
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
18,77 g

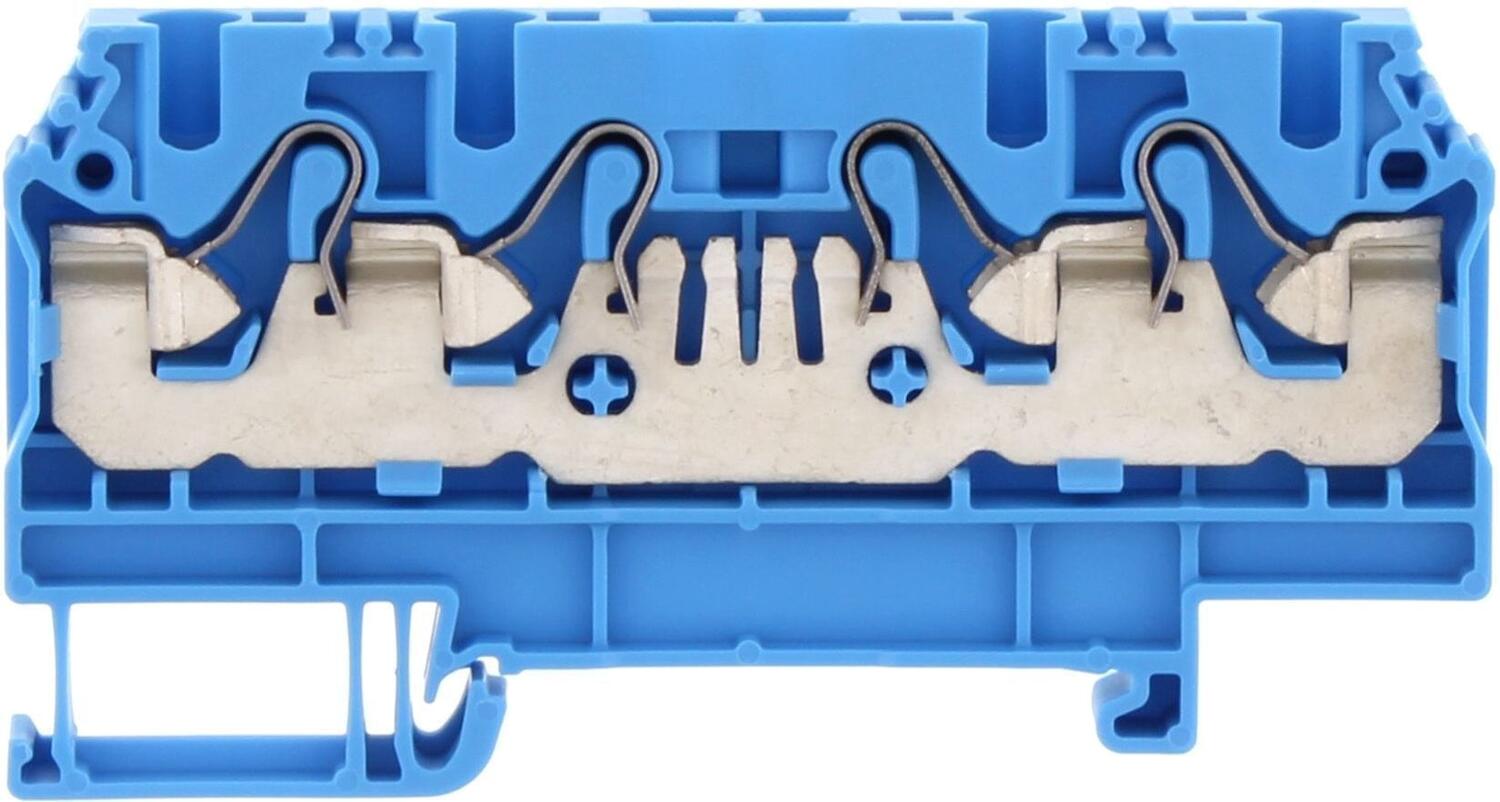

FRK 4/4A Blue, 4mm² Push-in feed through, 2 in, 2 out
Art:
3222.5 Copied
Blue
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
80 mm
6,1 mm
6 mm²
0,2 mm²
4
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
18,77 g

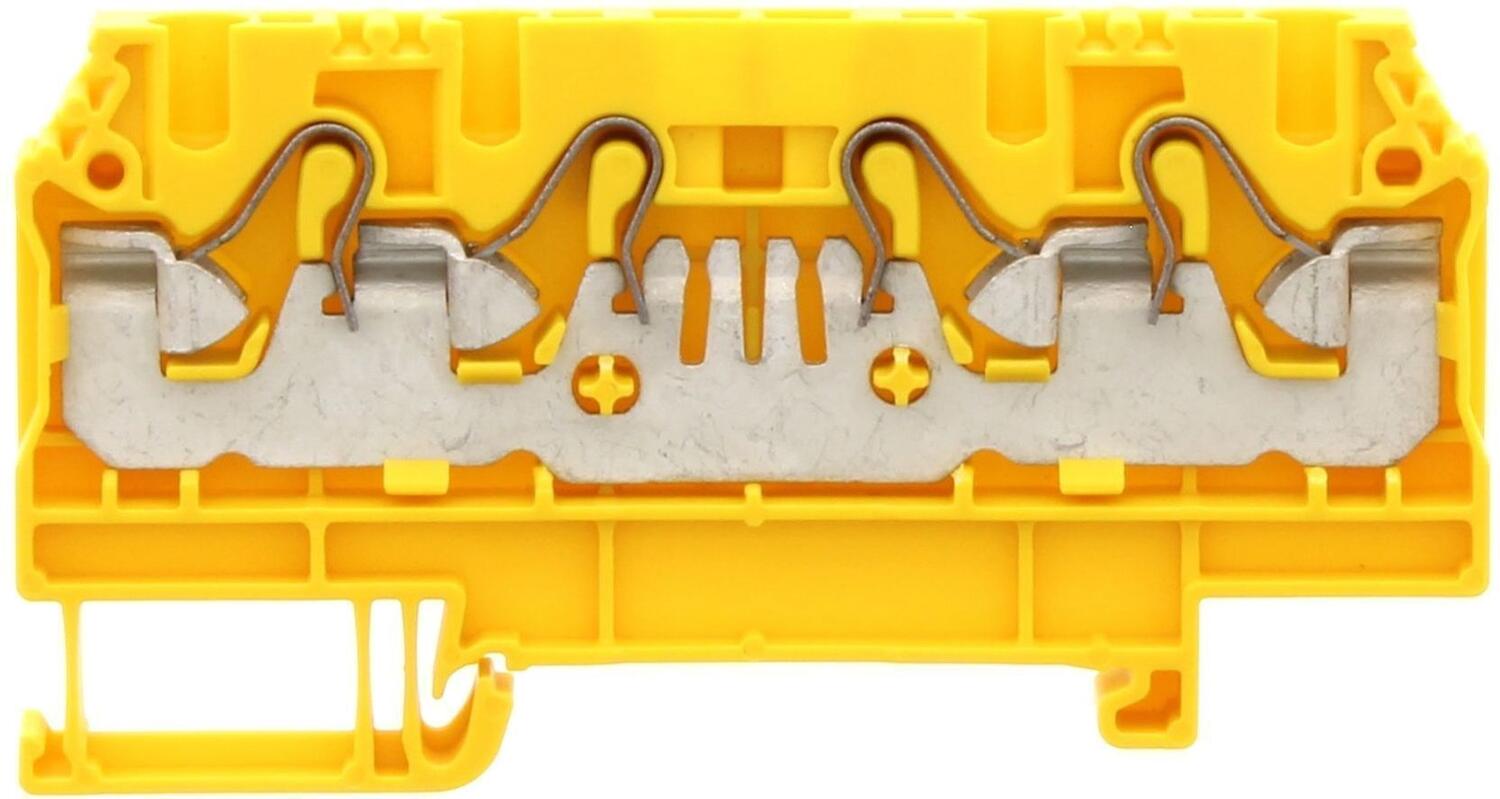

FRK 4/4A Yellow, 4mm² Push-in feed through, 2 in, 2 out
Art:
3222.8 Copied
Yellow
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
80 mm
6,1 mm
6 mm²
0,2 mm²
4
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
18,77 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 4/4A Red, 4mm² Push-in feed through, 2 in, 2 out
Art:
3222.9 Copied
Red
4 mm²
800 V
32 A
CSA, CSA US, KEMA KUR, EAC
43 mm
80 mm
6,1 mm
6 mm²
0,2 mm²
4
0,2 mm²
10
20
0,2 mm²
4 mm²
12 mm
6 mm²
A4
35 A
600 V
C22.2 No 158
UL 1059
35 A
600 V
100
BG
18,77 g

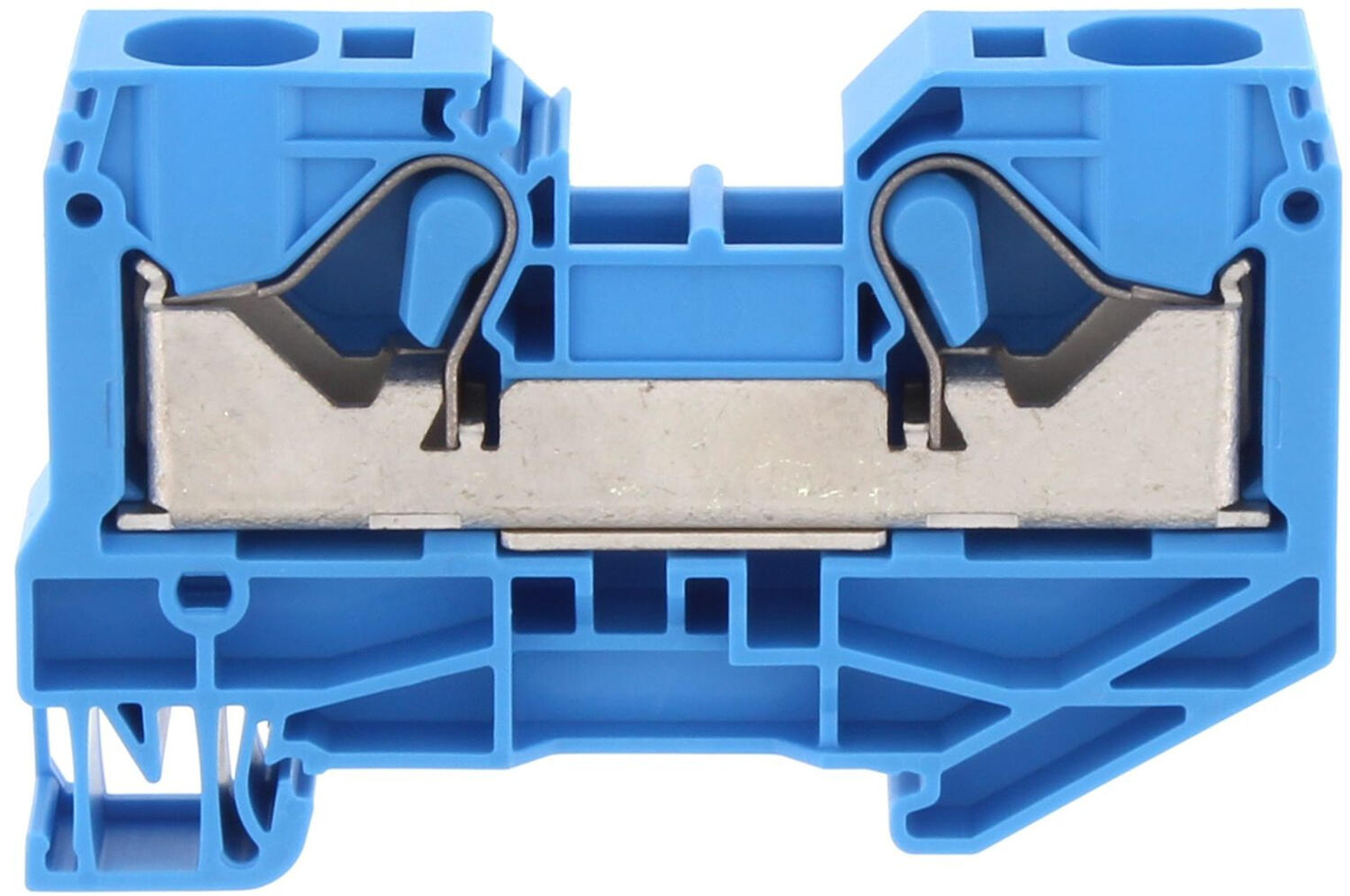

FRK 16/2A Blue, 16m² Push-in feed through
Art:
3294.5 Copied
Blue
16 mm²
1000 V
76 A
EAC
49 mm
72,4 mm
12,1 mm
48 mm
25 mm²
2,5 mm²
2
2,5 mm²
4
14
2,5 mm²
16 mm²
18 mm
25 mm²
A7
UL 1059
75 A
600 A
600 V
75 V
C22.2 No 158
50
CZ
35 g
Conta-clip pressure spring terminals in various sizes/colours mounted on DIN rail with markers and other accessories
FRK 16/2A Orange, 16m² Push-in feed through
Art:
3294.3 Copied
Orange
16 mm²
1000 V
76 A
EAC
49 mm
72,4 mm
12,1 mm
48 mm
25 mm²
2,5 mm²
2
2,5 mm²
4
14
2,5 mm²
16 mm²
18 mm
25 mm²
A7
UL 1059
75 A
600 A
600 V
75 V
C22.2 No 158
50
CZ
35 g

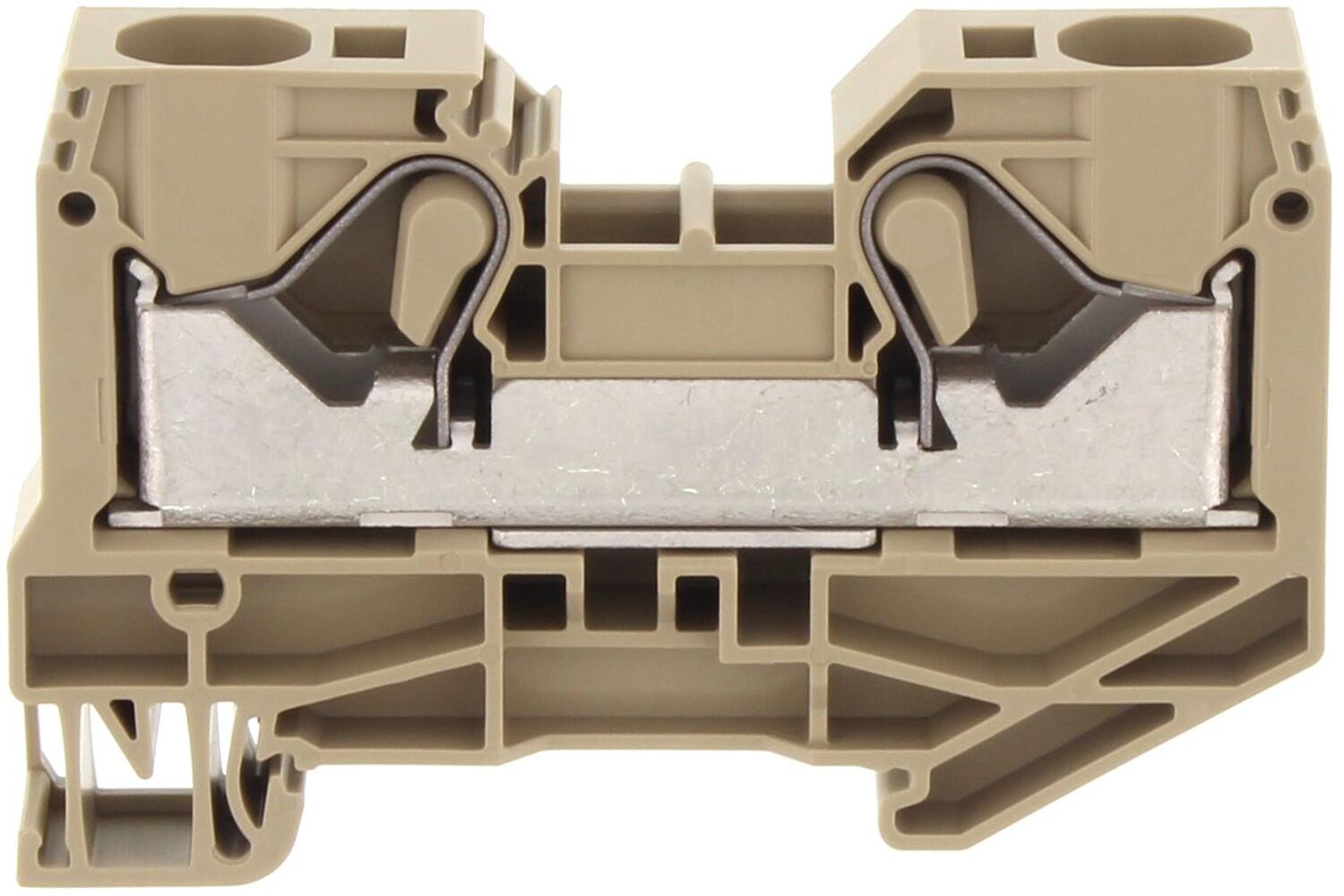

FRK 16/2A Beige, 16m² Push-in feed through
Art:
3294.2 Copied
Beige
16 mm²
1000 V
76 A
EAC
49 mm
72,4 mm
12,1 mm
48 mm
25 mm²
2,5 mm²
2
2,5 mm²
4
14
2,5 mm²
16 mm²
18 mm
25 mm²
A7
UL 1059
75 A
600 A
600 V
75 V
C22.2 No 158
50
CZ
35 g

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
