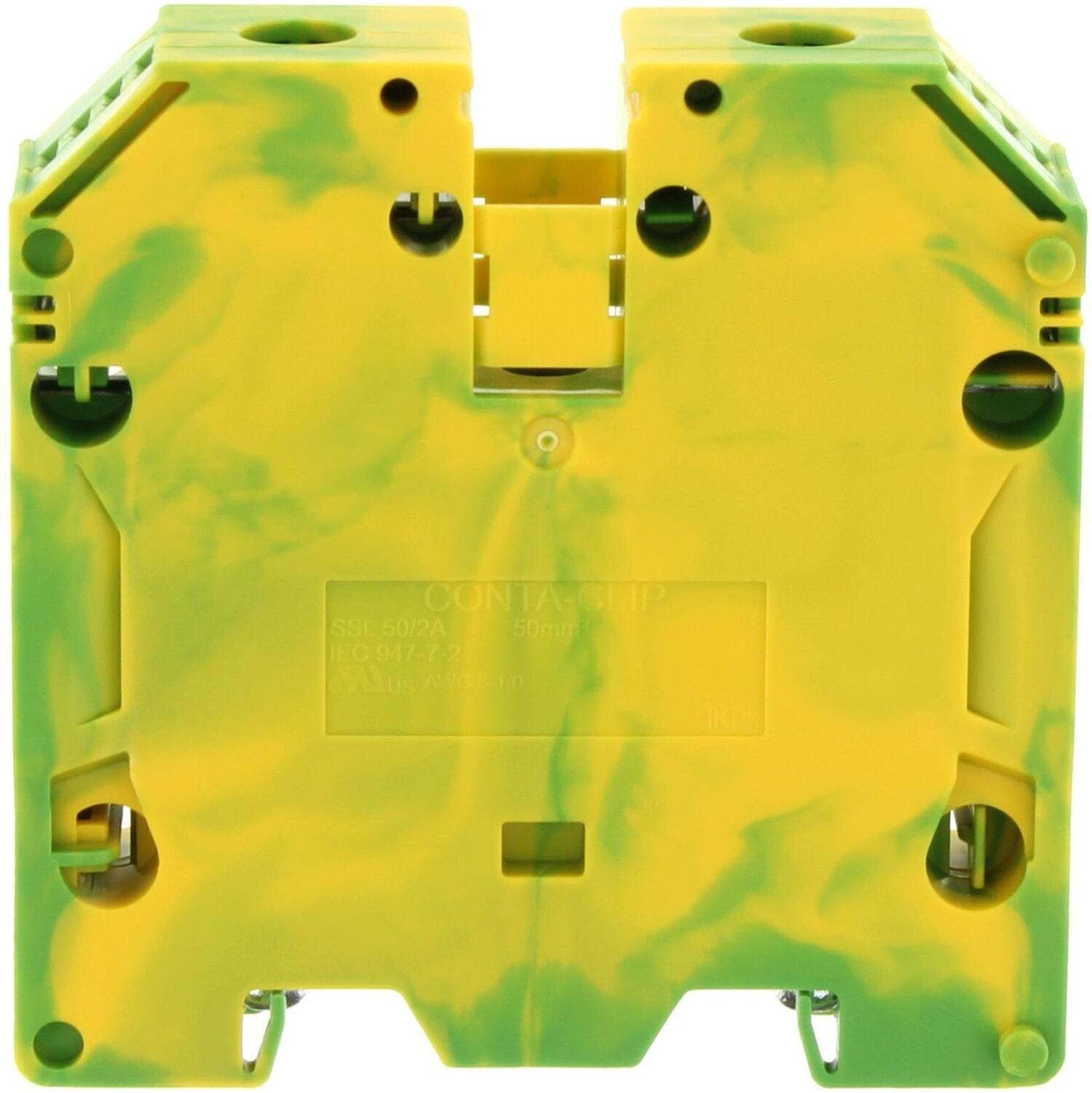

General data |
|
|---|---|
| Colour | Green/yellow |
| Rated wire cross section | 2,5 mm² |
| Explosion proof | Yes |
| Mounting | TS 35 |
| Contamination degree | 3 |
| Approvals | UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC |
| Overvoltage category | III |
Dimensions |
|
| Height TS 35/7.5 | 47 mm |
| Length | 48 mm |
| Width | 5 mm |
Connection data |
|
| Cross connect channels | 1 |
| Cross section stranded wire to | 4 mm² |
| Cross section single wire from | 0,2 mm² |
| Torque max | 0,8 Nm |
| Connections | 2 |
| Cross section stranded wire from | 0,2 mm² |
| Torque min | 0,4 Nm |
| Rated wire cross section to (AWG) | 12 |
| Rated wire cross section from (AWG) | 30 |
| Cross section stranded with ferrule from | 0,2 mm² |
| Screw size | M 2,5 |
| Screw type | Slotted |
| Cross section stranded with ferrule to | 2,5 mm² |
*Invisible Heading* |
|
|---|---|
| Stripping length | 10 mm |
| Cross section single wire to | 4 mm² |
| Number of levels | 1 |
| Number of test pick off options | 1 |
| Plug gauge acc. EN 60 947-1 | A3 |
Materials |
|
| Flammability class | UL94-V0 |
| Operating temperature from | -40 °C |
| Operating temperature to | 120 °C |
| Insulation material | Polyamide 6.6 |
Approvals |
|
| UL test standard | UL 1059 |
| GL test standard | IEC 60947-7-2:2009 |
| CSA test standard | C22.2 No 158 |
| KEMA KEUR test standard | EN 60947-7-2:2009 |
| CSAus test standard | UL 1059 |
| cUL test standard | C22.2 No 158 |
| EAC test standard | TR ZU 004/2011 |
Additional data |
|
| Pack size | 100 |
| Country of origin | DE |
| Tariff code | 85369010 |
| Weight | 11,51 g |
| Type of terminal | Screw Terminals, DIN Rail terminals |
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Rated wire cross section | Explosion proof | Approvals | Additional information | Height TS 35/7.5 | Length | Width | Cross section stranded wire to | Cross section single wire from | Torque max | Cross section stranded wire from | Torque min | Rated wire cross section to (AWG) | Rated wire cross section from (AWG) | Cross section stranded with ferrule from | Screw size | Screw type | Cross section stranded with ferrule to | Stripping length | Cross section single wire to | Plug gauge acc. EN 60 947-1 | GL test standard | cUL test standard | Pack size | Country of origin | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

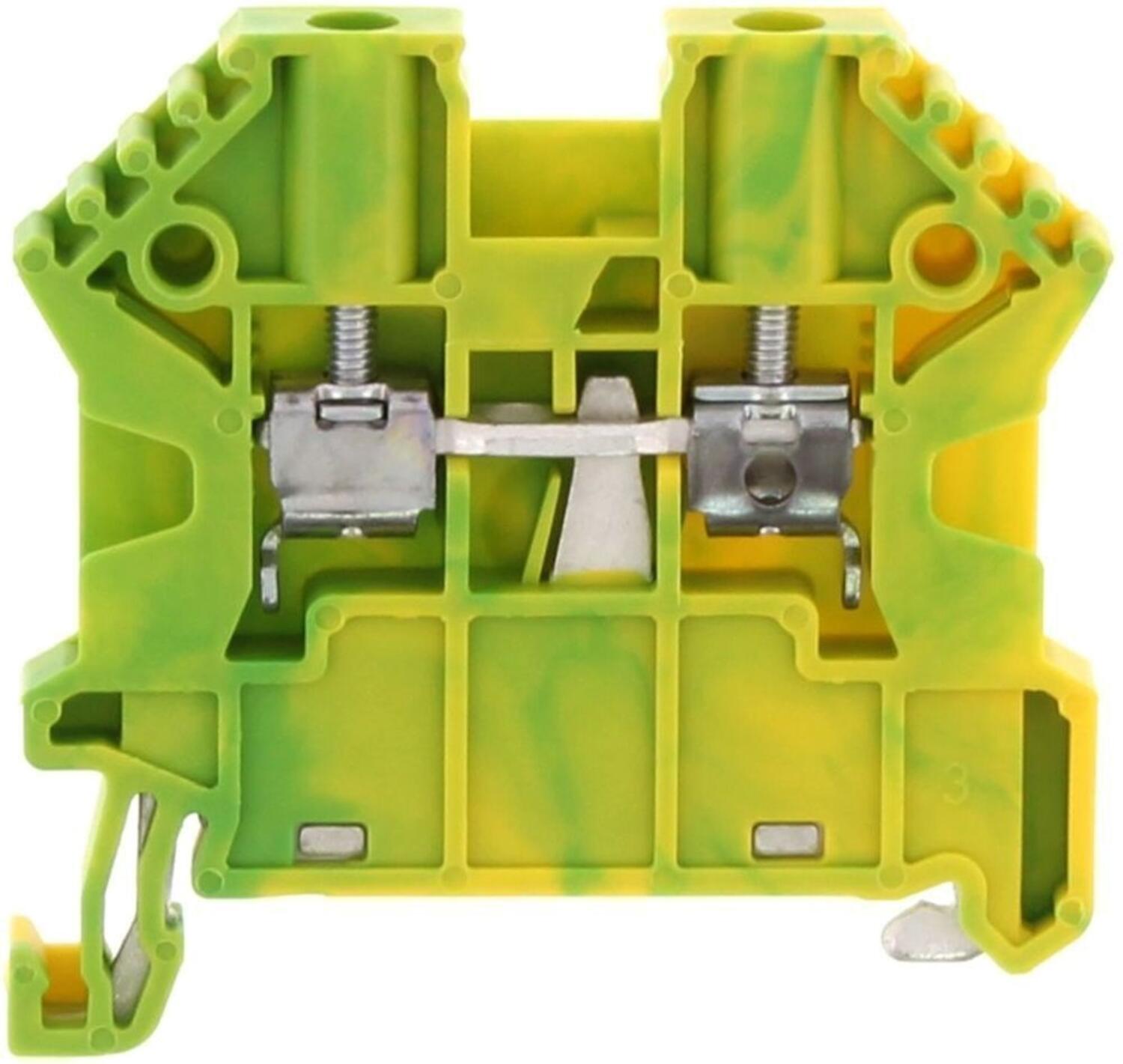

SSL 2.5/2A, 2.5mm² Snap on earth terminal
Art:
17103.2
Copied
|
2,5 mm²
|
Yes
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
|
47 mm
|
48 mm
|
5 mm
|
4 mm²
|
0,2 mm²
|
0,8 Nm
|
0,2 mm²
|
0,4 Nm
|
12
|
30
|
0,2 mm²
|
M 2,5
|
Slotted
|
2,5 mm²
|
10 mm
|
4 mm²
|
A3
|
IEC 60947-7-2:2009
|
C22.2 No 158
|
100
|
DE
|
11,51 g
|
| ||

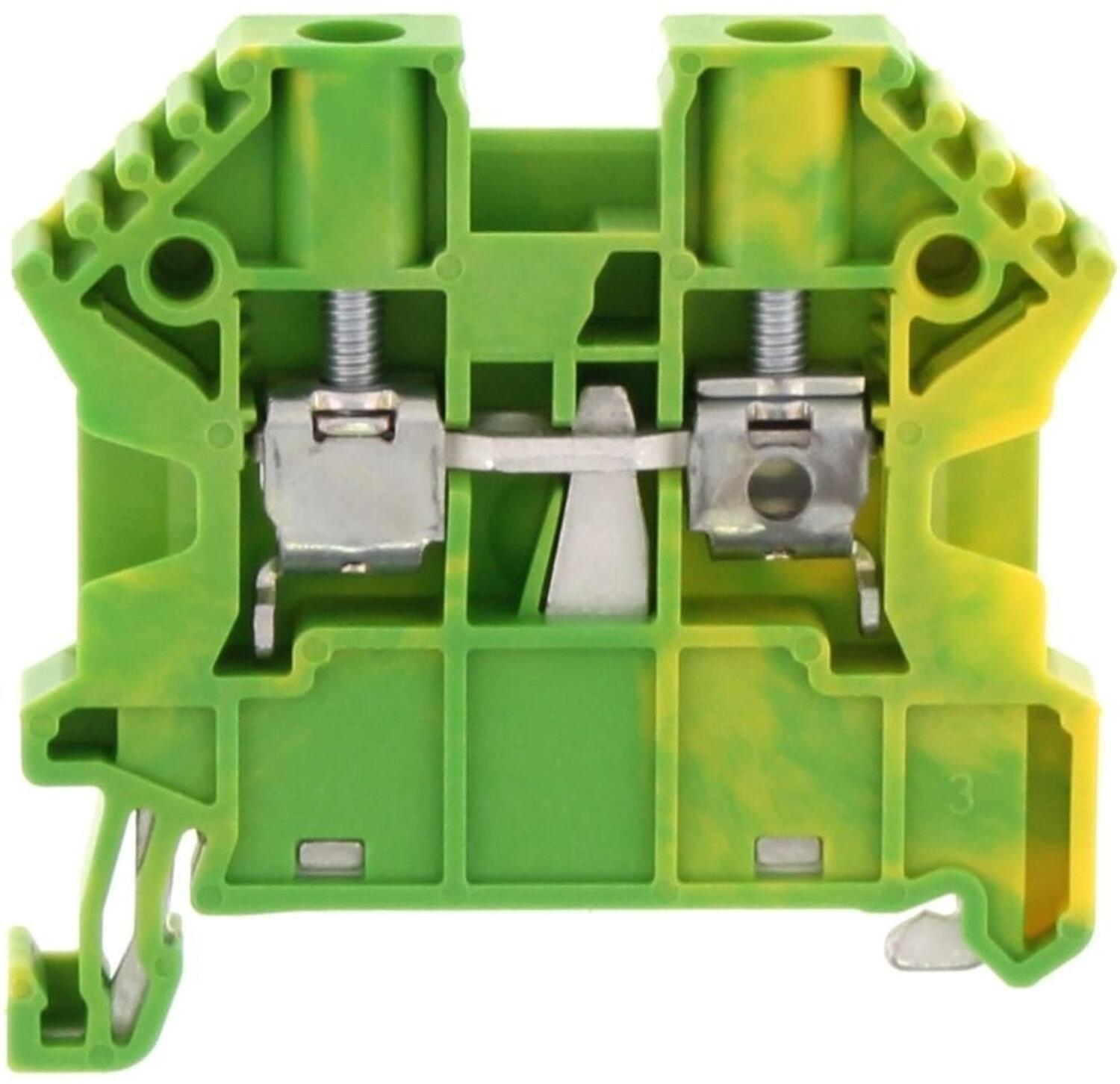

SSL 4/2A, 4mm² Snap on earth terminal
Art:
17107.2
Copied
|
4 mm²
|
Yes
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
|
47 mm
|
48 mm
|
6 mm
|
6 mm²
|
0,2 mm²
|
1 Nm
|
0,2 mm²
|
0,5 Nm
|
10
|
26
|
0,2 mm²
|
M 3
|
Slotted
|
4 mm²
|
10 mm
|
6 mm²
|
A4
|
IEC 60947-7-2:2009
|
C22.2 No 158
|
100
|
DE
|
13,57 g
|
| ||
SSL 6/2A, 6mm² Snap on earth terminal
Art:
17111.2
Copied
|
6 mm²
|
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
|
47 mm
|
48 mm
|
8 mm
|
10 mm²
|
0,2 mm²
|
1,6 Nm
|
0,2 mm²
|
0,8 Nm
|
8
|
22
|
0,2 mm²
|
M 3,5
|
Slotted
|
6 mm²
|
10 mm
|
10 mm²
|
A5
|
IEC 60947-7-2:2009
|
C22.2 No 158
|
100
|
CZ
|
20,8 g
|
| ||
SSL6/2A, Snap on 6mm Ex certified earth terminal
Art:
87806.2
Copied
|
10 mm²
|
Yes
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
|
47 mm
|
48 mm
|
10 mm
|
16 mm²
|
0,2 mm²
|
2,4 Nm
|
0,2 mm²
|
1,2 Nm
|
6
|
18
|
0,2 mm²
|
M 4
|
Slotted
|
10 mm²
|
10 mm
|
16 mm²
|
B7
|
IEC 60947-7-2:2009
|
C22.2 No 158
|
100
|
CZ
|
28,11 g
|
| ||
|

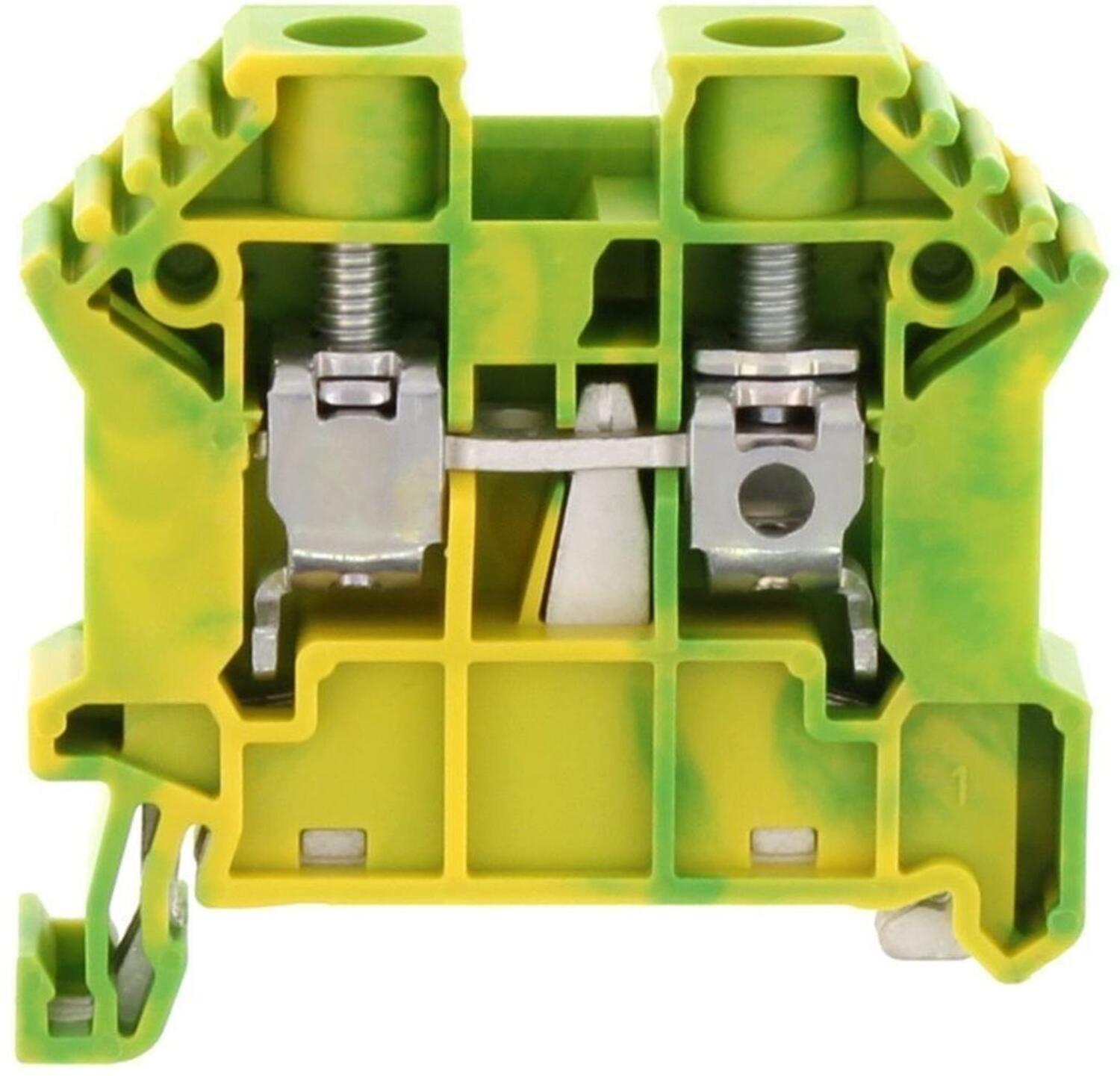

SSL 10/2A, 10mm² Snap on earth terminal
Art:
17115.2
Copied
|
10 mm²
|
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
|
47 mm
|
48 mm
|
10 mm
|
16 mm²
|
0,2 mm²
|
2,4 Nm
|
0,2 mm²
|
1,2 Nm
|
6
|
18
|
0,2 mm²
|
M 4
|
Slotted
|
10 mm²
|
10 mm
|
16 mm²
|
B7
|
IEC 60947-7-2:2009
|
C22.2 No 158
|
100
|
CZ
|
28,11 g
|
| ||
|
SSL10/2A, Snap on 10mm Ex certified earth terminal
Art:
87808.2
Copied
|
6 mm²
|
Yes
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
|
47 mm
|
48 mm
|
8 mm
|
10 mm²
|
0,2 mm²
|
1,6 Nm
|
0,2 mm²
|
0,8 Nm
|
8
|
22
|
0,2 mm²
|
M 3,5
|
Slotted
|
6 mm²
|
10 mm
|
10 mm²
|
A5
|
IEC 60947-7-2:2009
|
C22.2 No 158
|
100
|
CZ
|
20,8 g
|
| ||

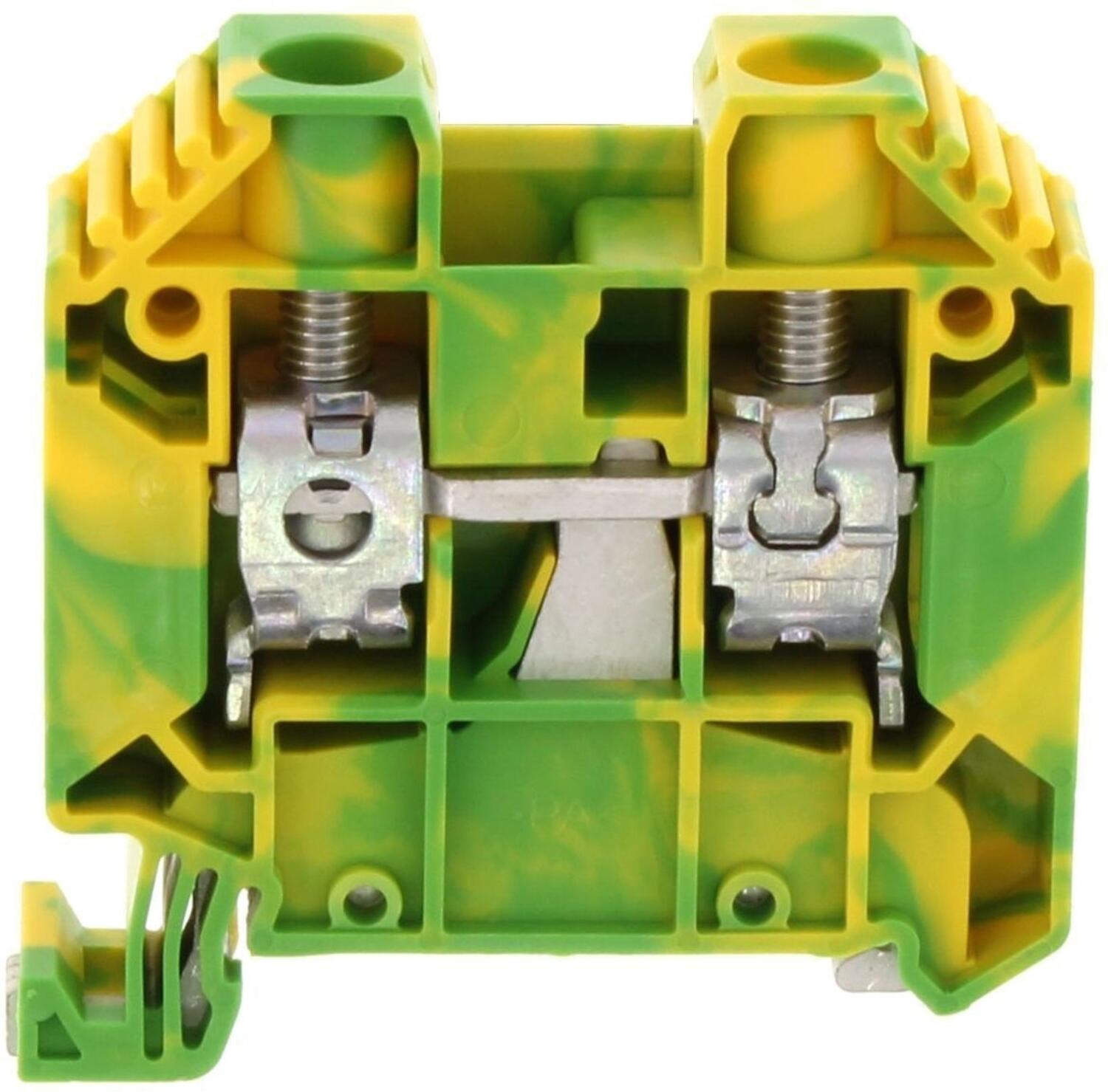

SSL 16/2A, Snap on 16mm earth terminal
Art:
17130.2
Copied
|
16 mm²
|
|
UL, CSA, CSA US, KEMA KUR, EAC
|
|
55 mm
|
53 mm
|
12,1 mm
|
25 mm²
|
1,5 mm²
|
3 Nm
|
1,5 mm²
|
2,5 Nm
|
4
|
16
|
1 mm²
|
M 5
|
Slotted
|
16 mm²
|
14 mm
|
25 mm²
|
A7
|
|
|
50
|
CZ
|
41,65 g
|
| ||
|
SSL 16/2A/IS, Snap on 16mm earth terminal, Allen Key screw
Art:
17131.2
Copied
|
16 mm²
|
|
UL, CSA, CSA US, KEMA KUR, EAC
|
with allen screws
|
47 mm
|
48 mm
|
10 mm
|
25 mm²
|
1,5 mm²
|
4 Nm
|
1,5 mm²
|
2 Nm
|
4
|
16
|
1 mm²
|
M 4
|
Hexagon/Allen key
|
16 mm²
|
10 mm
|
25 mm²
|
A7
|
|
|
50
|
DE
|
41,75 g
|
| ||

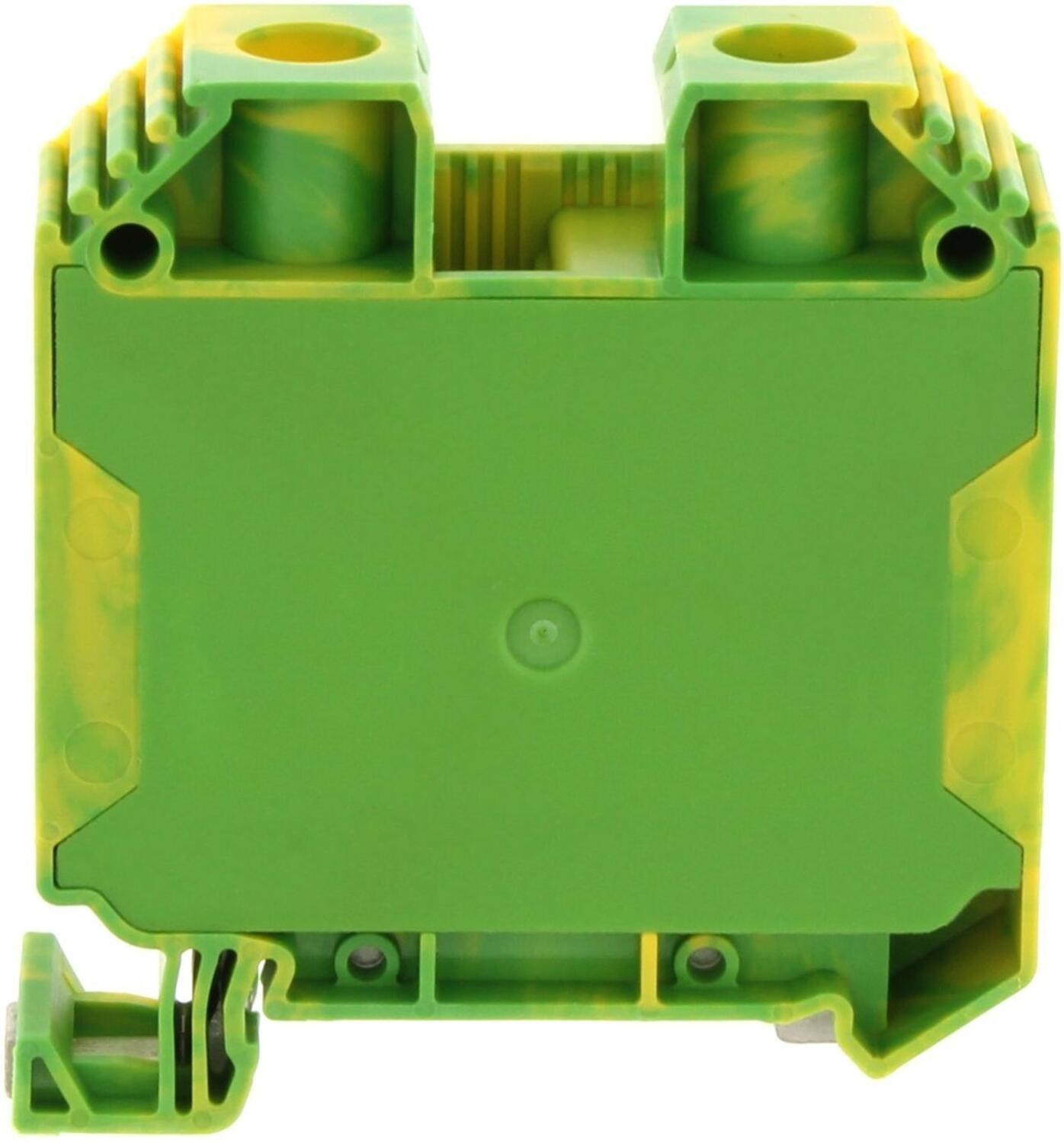

SSL 35/2A, Snap on 35mm earth terminal
Art:
17145.2
Copied
|
35 mm²
|
|
UL, CSA, CSA US, KEMA KUR, EAC
|
|
55 mm
|
53 mm
|
12,1 mm
|
50 mm²
|
1,5 mm²
|
3 Nm
|
1,5 mm²
|
2,5 Nm
|
1/0
|
16
|
1,5 mm²
|
M 5
|
Slotted
|
35 mm²
|
14 mm
|
50 mm²
|
B9
|
|
|
20
|
CZ
|
86,6 g
|
| ||
|
SSL 35/2A/IS, Snap on 35mm earth terminal, Allen Key screw
Art:
17147.2
Copied
|
35 mm²
|
|
UL, CSA, CSA US, KEMA KUR, EAC
|
with allen screws
|
65,5 mm
|
59 mm
|
16,1 mm
|
50 mm²
|
1,5 mm²
|
3,7 Nm
|
1,5 mm²
|
3,2 Nm
|
1/0
|
16
|
1,5 mm²
|
M 6
|
Hexagon/Allen key
|
35 mm²
|
18 mm
|
50 mm²
|
B9
|
|
|
20
|
DE
|
86,7 g
|
|
Select a variant in the list
