CONTA-CLIP

Fuse terminals - ZTRK 2.5mm², OT/ZS

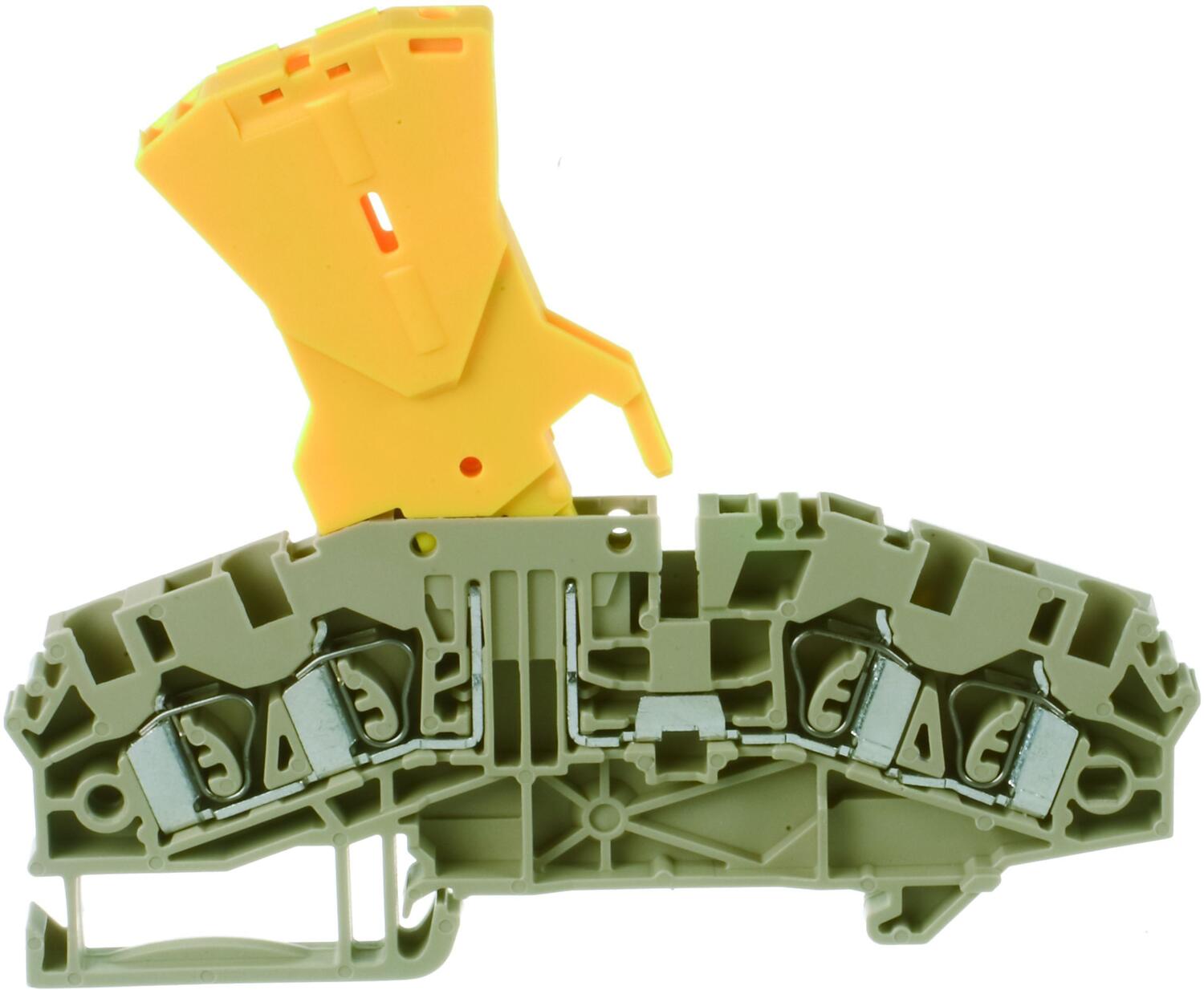

ZTRK/OT, ZTRK/ZS

  • Material polyamide 6.6
  • Temperature resistance -40°C...+120°C
  • Fire-resistance class V0
  • Current limited by an automotive fuse 10 A

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

General data
Rated impulse voltage 6 kV
Colour Beige
Rated wire cross section 2,5 mm²
Rated voltage IEC 400 V
Mounting TS 35
Contamination degree 3
Rated current IEC 18 A
Approvals CSA, CSA US, KEMA KUR
Overvoltage category III
Additional information without function element

Dimensions
Height TS 35/7.5 39,2 mm
Length 68 mm
Width 5,1 mm

Connection data

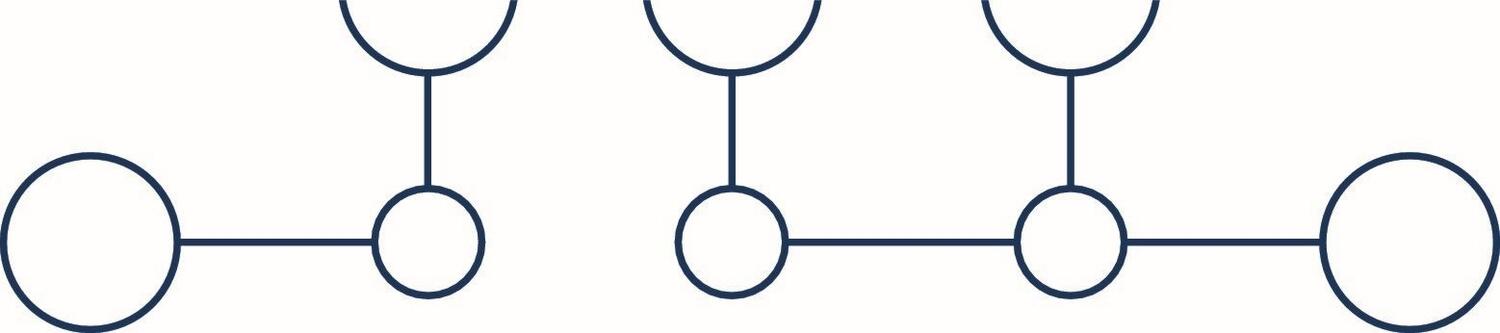

Cross connect channels 1
Cross section stranded wire to 4 mm²
Cross section single wire from 0,5 mm²
Connections 2
Cross section stranded wire from 0,5 mm²
Rated wire cross section to (AWG) 12
Rated wire cross section from (AWG) 20

*Invisible Heading*
Cross section stranded with ferrule from 0,5 mm²
Cross section stranded with ferrule to 2,5 mm²
Stripping length 10 mm
Cross section single wire to 4 mm²
Number of levels 1
Number of test pick off options 2
Plug gauge acc. EN 60 947-1 A3

Materials
Flammability class UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
Insulation material Polyamide 6.6

Approvals
CSA test standard C22.2 No 158
KEMA KEUR test standard EN 60947-7-1:2009, EN 60947-7-3:2009
CSAus test standard UL 1059

Additional data
Pack size 100
Country of origin CZ
Tariff code 85369010
Weight 8,82 g

Downloads

Measurements and connections

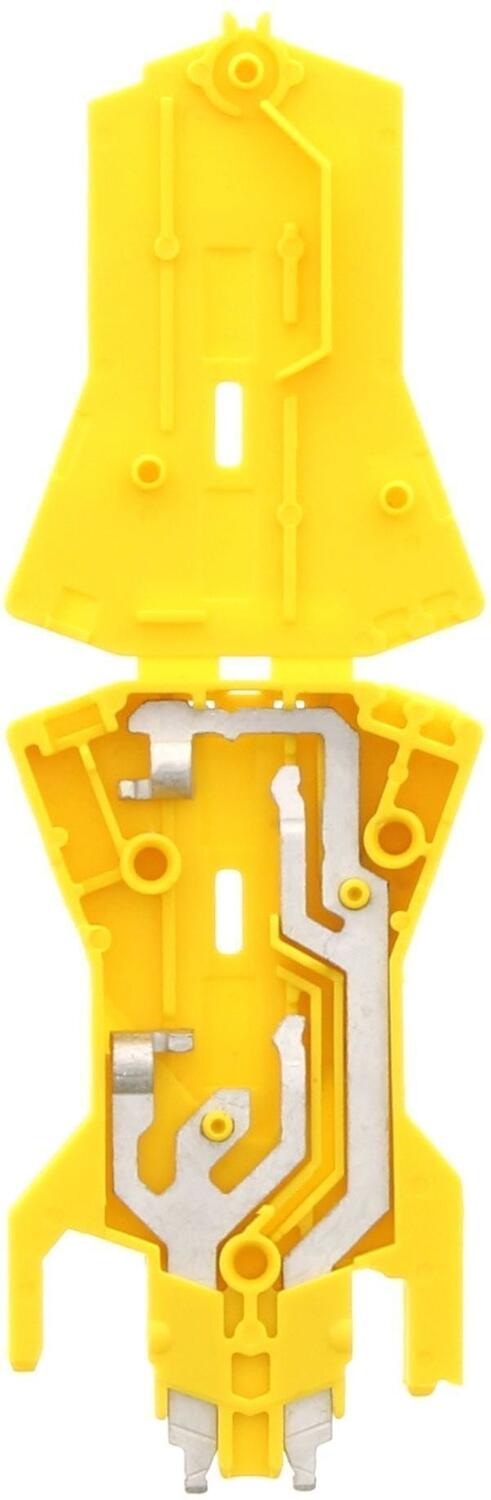

Accessories

Related products

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Rated impulse voltage Colour Rated wire cross section Rated voltage IEC Mounting Fuse size Fuse max Rated current IEC Approvals Additional information Height TS 35/7.5 Length Width Cross connect channels Cross section stranded wire to Cross section single wire from Connections Cross section stranded wire from Rated wire cross section to (AWG) Rated wire cross section from (AWG) Cross section stranded with ferrule from Cross section stranded with ferrule to Stripping length Cross section single wire to Number of levels Number of test pick off options Plug gauge acc. EN 60 947-1 Rated current CSAus Rated voltage CSAus KEMA KEUR test standard Rated current CSA Rated voltage CSA Pack size Country of origin Weight Price
ZTRK 2,5/2A/OT BG
Art:
3609.2 Copied
6 kV
Beige
2,5 mm²
400 V
TS 35
18 A
CSA, CSA US, KEMA KUR
without function element
39,2 mm
68 mm
5,1 mm
1
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
EN 60947-7-1:2009, EN 60947-7-3:2009
100
CZ
8,82 g

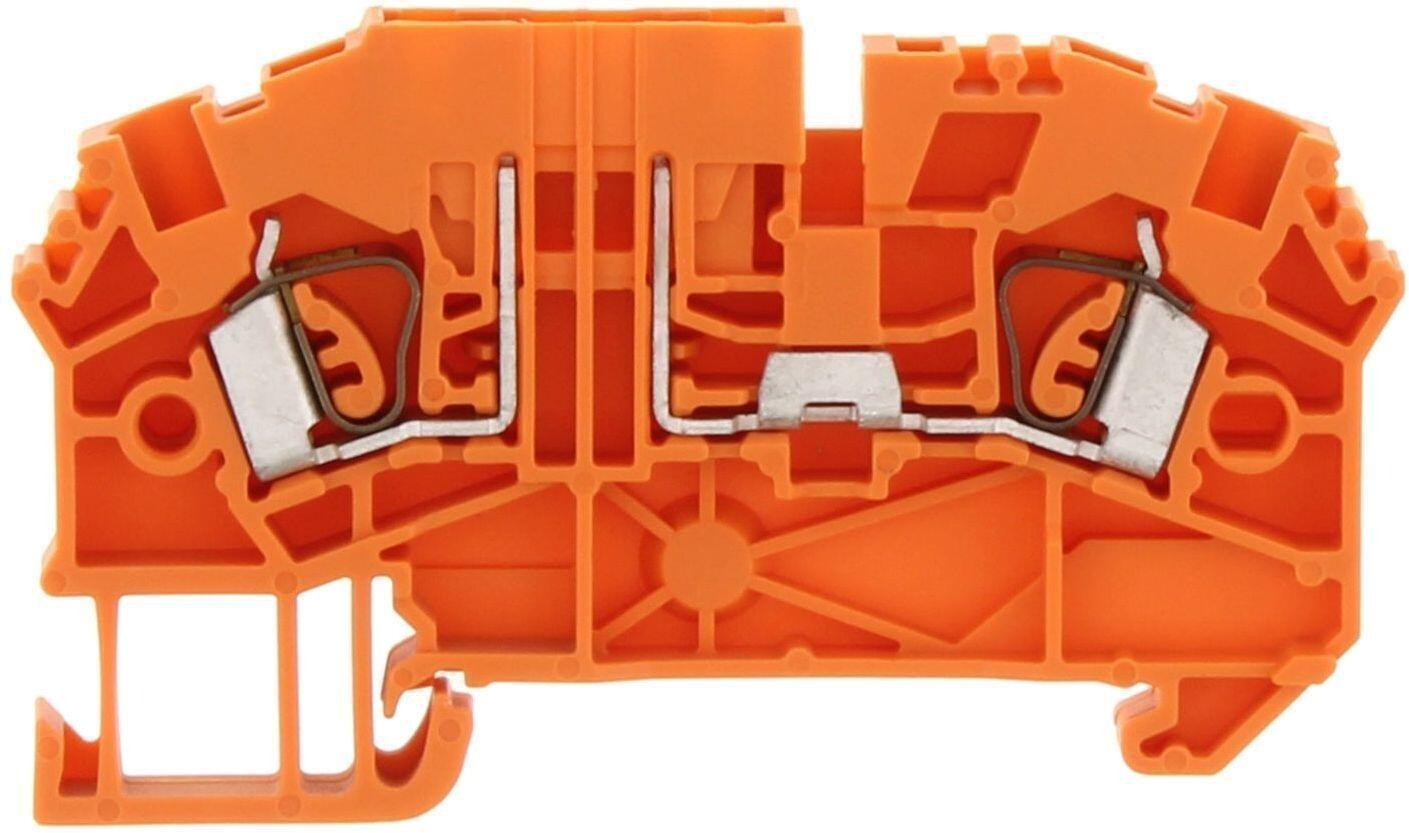

ZTRK 2,5/2A/OT OG
Art:
3609.3 Copied
6 kV
Orange
2,5 mm²
400 V
TS 35
18 A
CSA, CSA US, KEMA KUR
without function element
39,2 mm
68 mm
5,1 mm
1
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
EN 60947-7-1:2009, EN 60947-7-3:2009
100
CZ
8,82 g

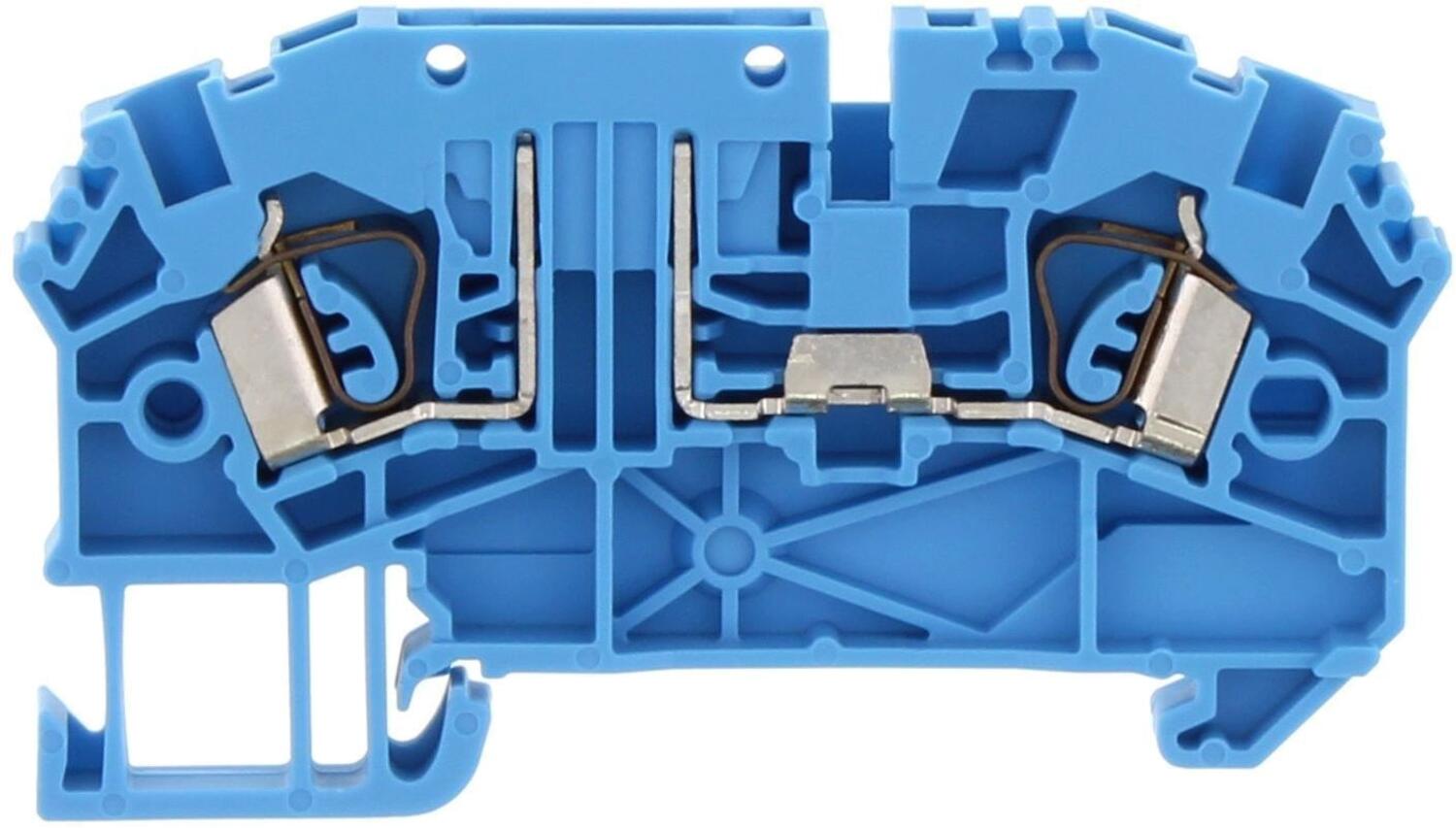

ZTRK 2,5/2A/OT BU
Art:
3609.5 Copied
6 kV
Blue
2,5 mm²
400 V
TS 35
18 A
CSA, CSA US, KEMA KUR
without function element
39,2 mm
68 mm
5,1 mm
1
4 mm²
0,5 mm²
2
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
EN 60947-7-1:2009, EN 60947-7-3:2009
100
CZ
8,82 g

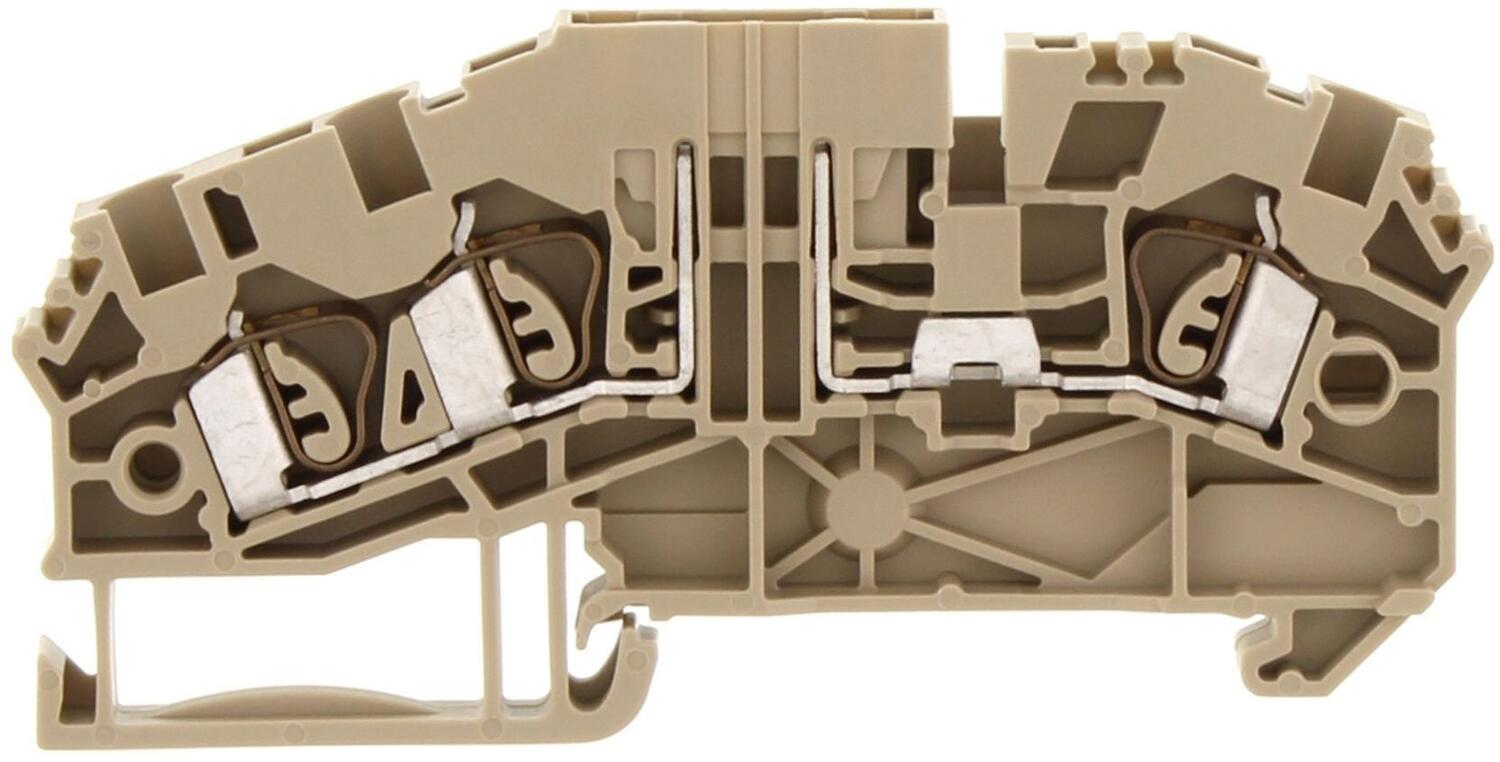

ZTRK 2,5/3A/OT BG
Art:
3610.2 Copied
6 kV
Beige
2,5 mm²
400 V
TS 35
18 A
CSA, CSA US, KEMA KUR
without function element
39,2 mm
80,2 mm
5,1 mm
1
4 mm²
0,5 mm²
3
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
EN 60947-7-1:2009, EN 60947-7-3:2009
100
CZ
10,99 g

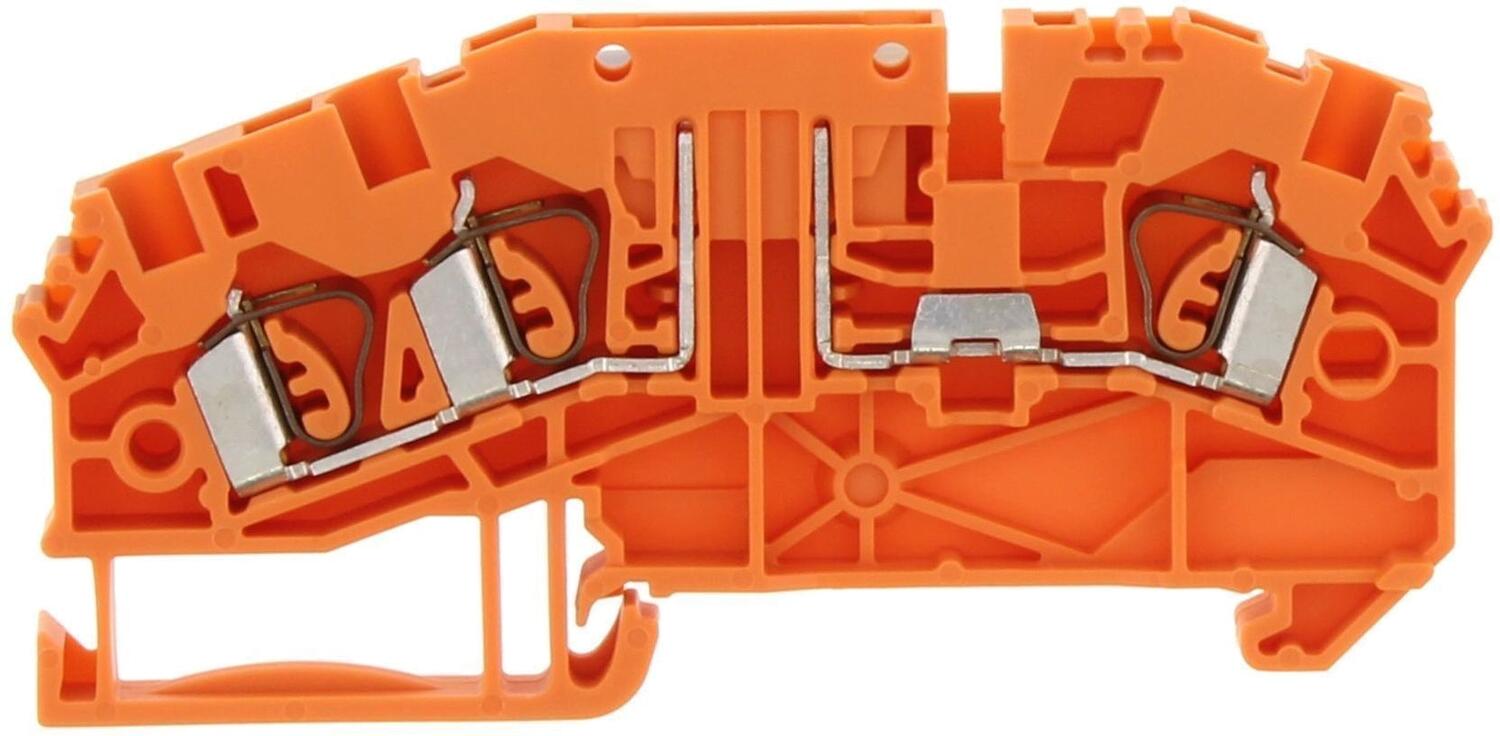

ZTRK 2,5/3A/OT OG
Art:
3610.3 Copied
6 kV
Orange
2,5 mm²
400 V
TS 35
18 A
CSA, CSA US, KEMA KUR
without function element
39,2 mm
80,2 mm
5,1 mm
1
4 mm²
0,5 mm²
3
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
EN 60947-7-1:2009, EN 60947-7-3:2009
100
CZ
10,99 g

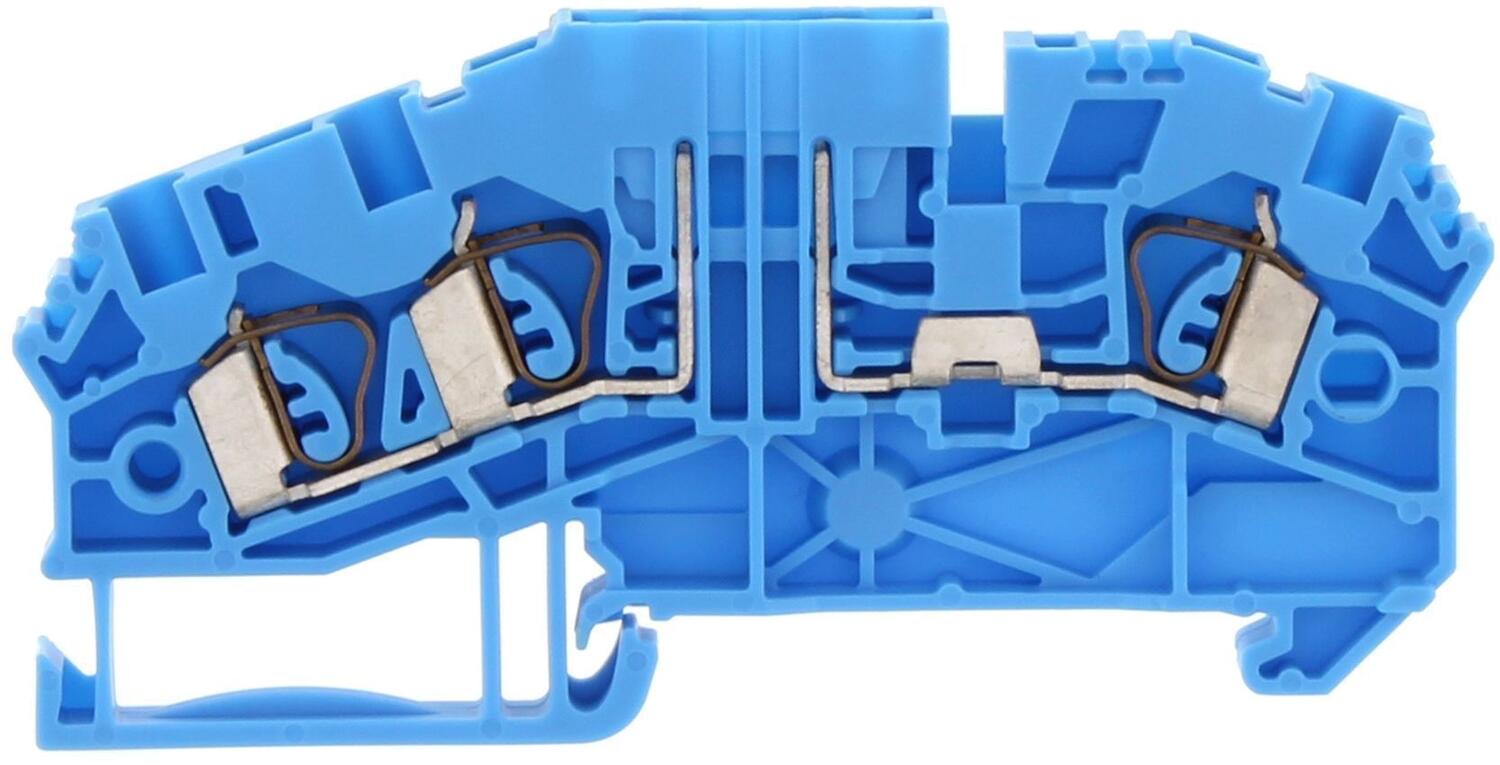

ZTRK 2,5/3A/OT BU
Art:
3610.5 Copied
6 kV
Blue
2,5 mm²
400 V
TS 35
18 A
CSA, CSA US, KEMA KUR
without function element
39,2 mm
80,2 mm
5,1 mm
1
4 mm²
0,5 mm²
3
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
EN 60947-7-1:2009, EN 60947-7-3:2009
100
CZ
10,99 g
ZTRK 2,5/4A/OT BG
Art:
3611.2 Copied
6 kV
Beige
2,5 mm²
400 V
TS 35
18 A
CSA, CSA US, KEMA KUR
without function element
39,2 mm
92,4 mm
5,1 mm
1
4 mm²
0,5 mm²
4
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
EN 60947-7-1:2009, EN 60947-7-3:2009
100
CZ
12,66 g

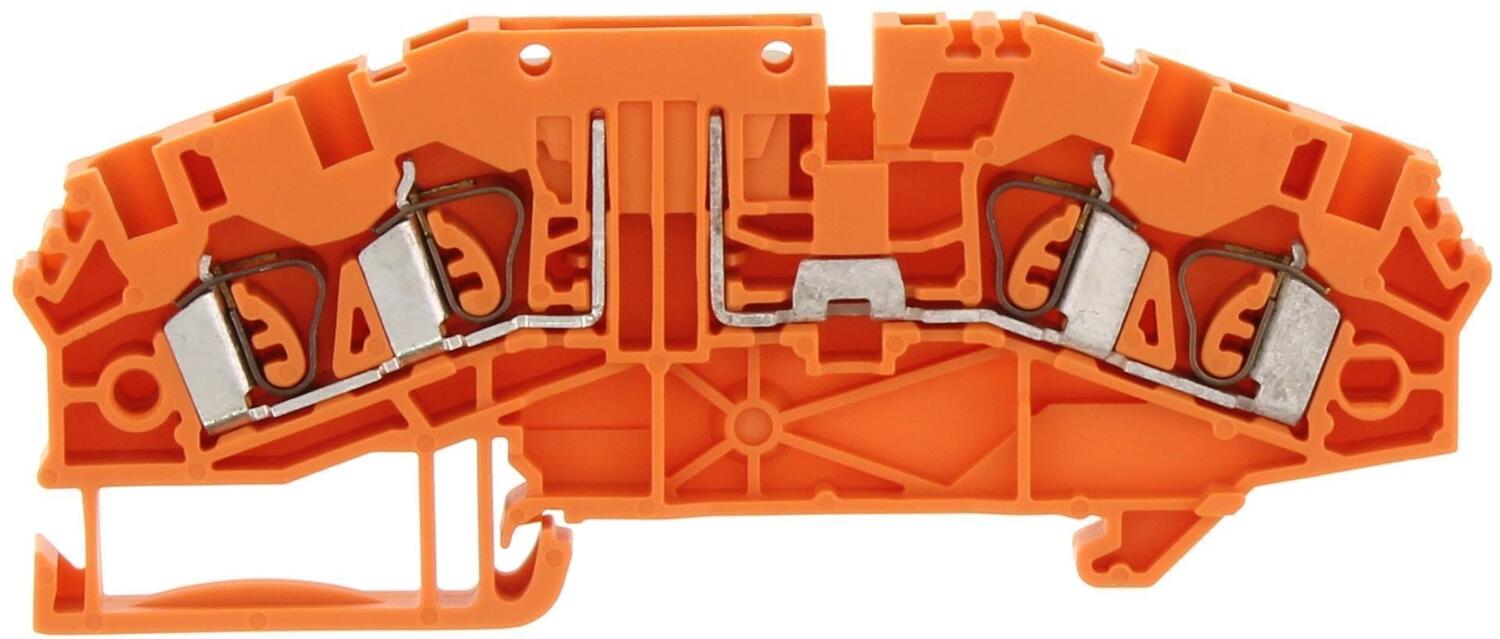

ZTRK 2,5/4A/OT OG
Art:
3611.3 Copied
6 kV
Orange
2,5 mm²
400 V
TS 35
18 A
CSA, CSA US, KEMA KUR
without function element
39,2 mm
92,4 mm
5,1 mm
1
4 mm²
0,5 mm²
4
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
EN 60947-7-1:2009, EN 60947-7-3:2009
100
CZ
12,66 g
299571_877.tif
ZTRK 2,5/4A/OT BU
Art:
3611.5 Copied
6 kV
Blue
2,5 mm²
400 V
TS 35
18 A
CSA, CSA US, KEMA KUR
without function element
39,2 mm
92,4 mm
5,1 mm
1
4 mm²
0,5 mm²
4
0,5 mm²
12
20
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
EN 60947-7-1:2009, EN 60947-7-3:2009
100
CZ
12,66 g

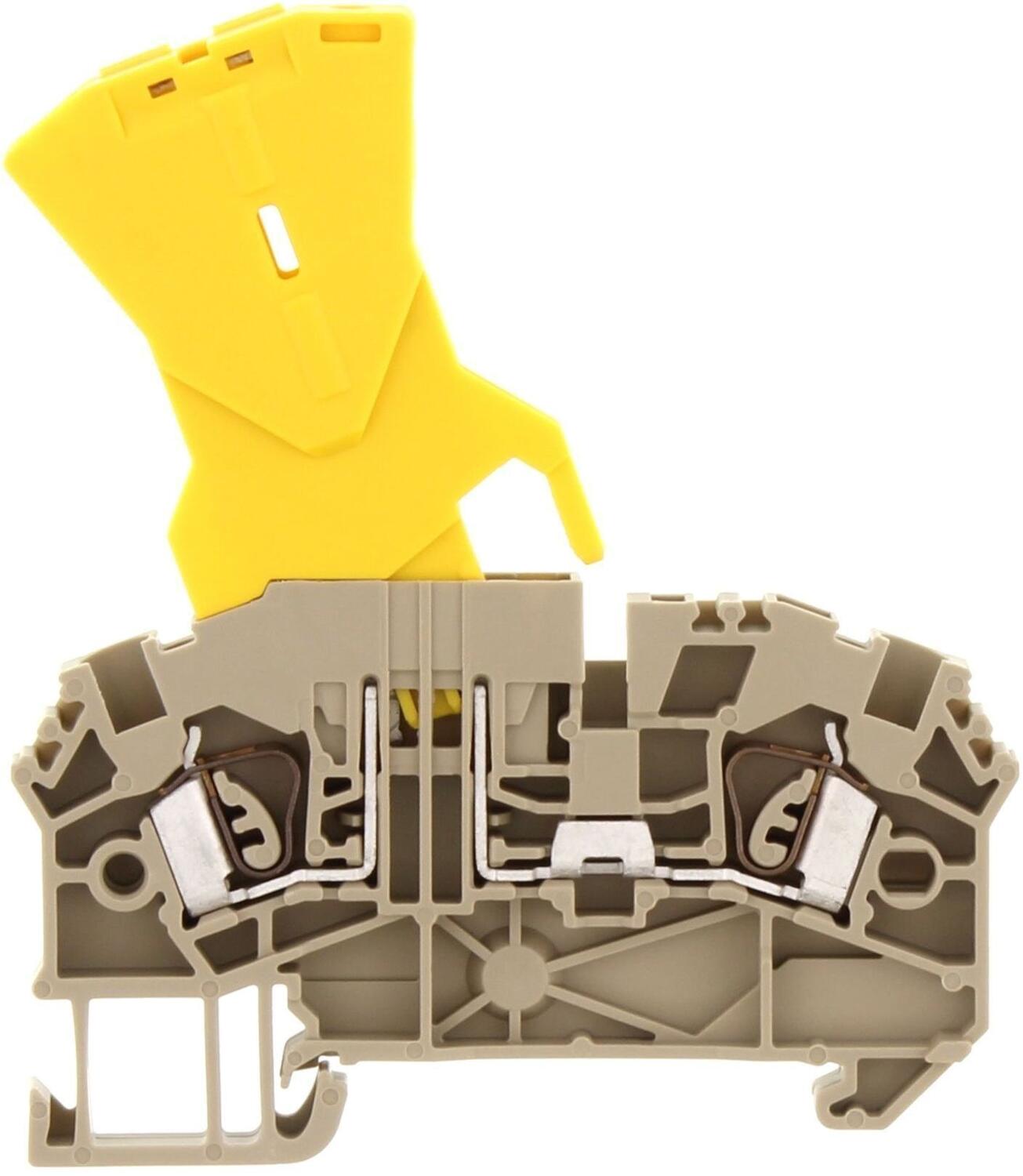

ZTRK 2,5/2A/ZS BG
Art:
3616.2 Copied
6 kV
Beige
2,5 mm²
TS 35
5 x 20 mm
18 A
CSA, CSA US, KEMA KUR
with fuse plug
78,7 mm
68 mm
5,1 mm
1
4 mm²
0,5 mm²
2
0,5 mm²
20
12
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
10 A
300 V
EN 60947-7-1:2009, EN 60947-7-3:2009
10 A
300 V
100
DE
16 g
299571_877.tif
ZTRK 2,5/2A/ZS BU
Art:
3616.5 Copied
6 kV
Blue
2,5 mm²
TS 35
5 x 20 mm
18 A
CSA, CSA US, KEMA KUR
with fuse plug
78,7 mm
68 mm
5,1 mm
1
4 mm²
0,5 mm²
2
0,5 mm²
20
12
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
10 A
300 V
EN 60947-7-1:2009, EN 60947-7-3:2009
10 A
300 V
100
DE
16 g

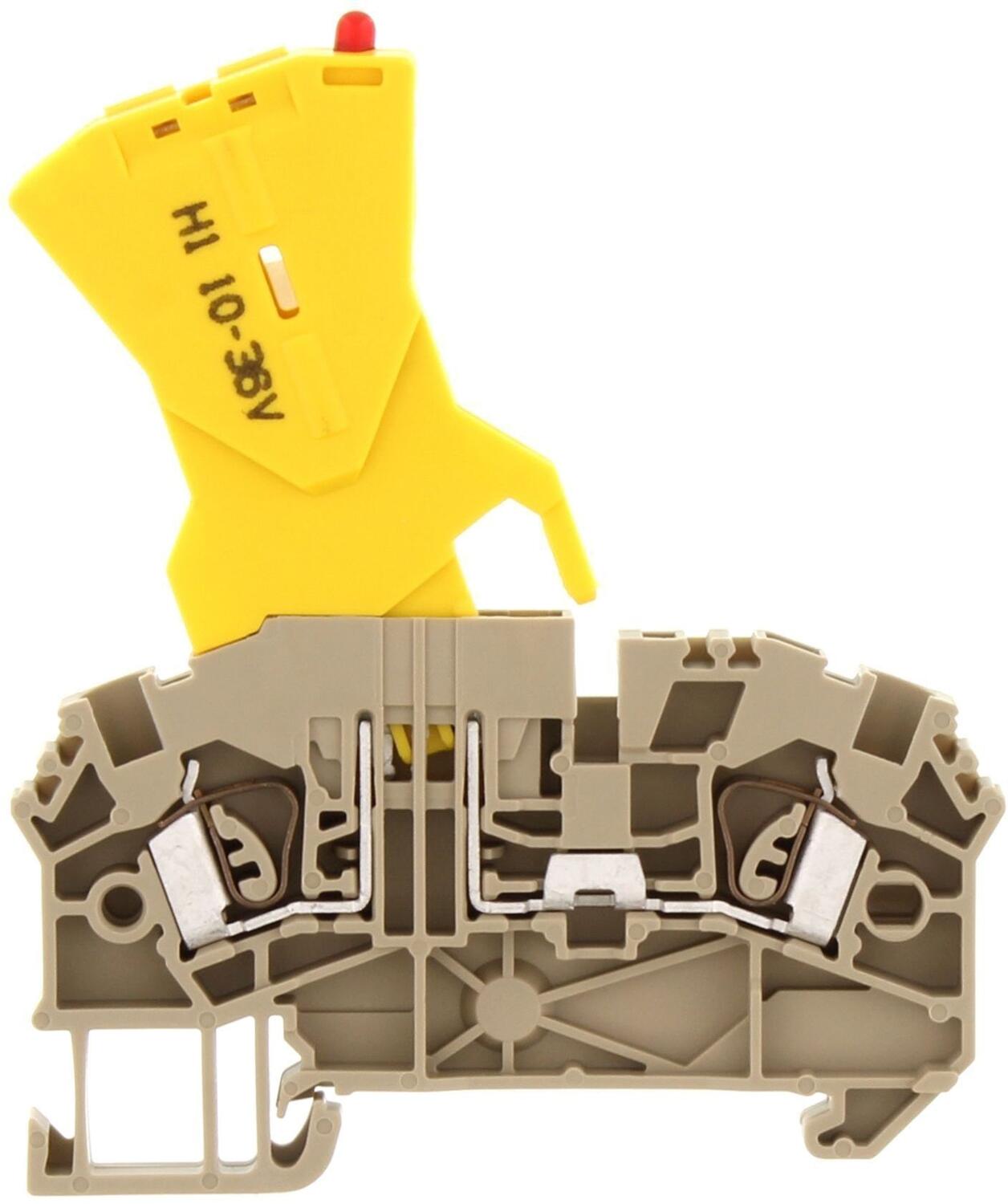

ZTRK 2,5/2A/ZS 36 BG
Art:
3617.2 Copied
6 kV
Beige
2,5 mm²
TS 35
5 x 20 mm
18 A
CSA, CSA US, KEMA KUR
with fuse plug + status display 10-36V
78,7 mm
68 mm
5,1 mm
1
4 mm²
0,5 mm²
2
0,5 mm²
20
12
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
10 A
300 V
EN 60947-7-1:2009, EN 60947-7-3:2009
10 A
300 V
100
DE
16 g
299571_877.tif
ZTRK 2,5/2A/ZS 70 BG
Art:
3618.2 Copied
6 kV
Beige
2,5 mm²
TS 35
5 x 20 mm
18 A
CSA, CSA US, KEMA KUR
with fuse plug + status display 35-70V
78,7 mm
68 mm
5,1 mm
1
4 mm²
0,5 mm²
2
0,5 mm²
20
12
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
10 A
300 V
EN 60947-7-1:2009, EN 60947-7-3:2009
10 A
300 V
100
DE
16 g
299571_877.tif
ZTRK 2,5/2A/ZS 150 BG
Art:
3619.2 Copied
6 kV
Beige
2,5 mm²
TS 35
5 x 20 mm
18 A
CSA, CSA US, KEMA KUR
with fuse plug + status display 60-150V
78,7 mm
68 mm
5,1 mm
1
4 mm²
0,5 mm²
2
0,5 mm²
20
12
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
10 A
300 V
EN 60947-7-1:2009, EN 60947-7-3:2009
10 A
300 V
100
DE
16 g

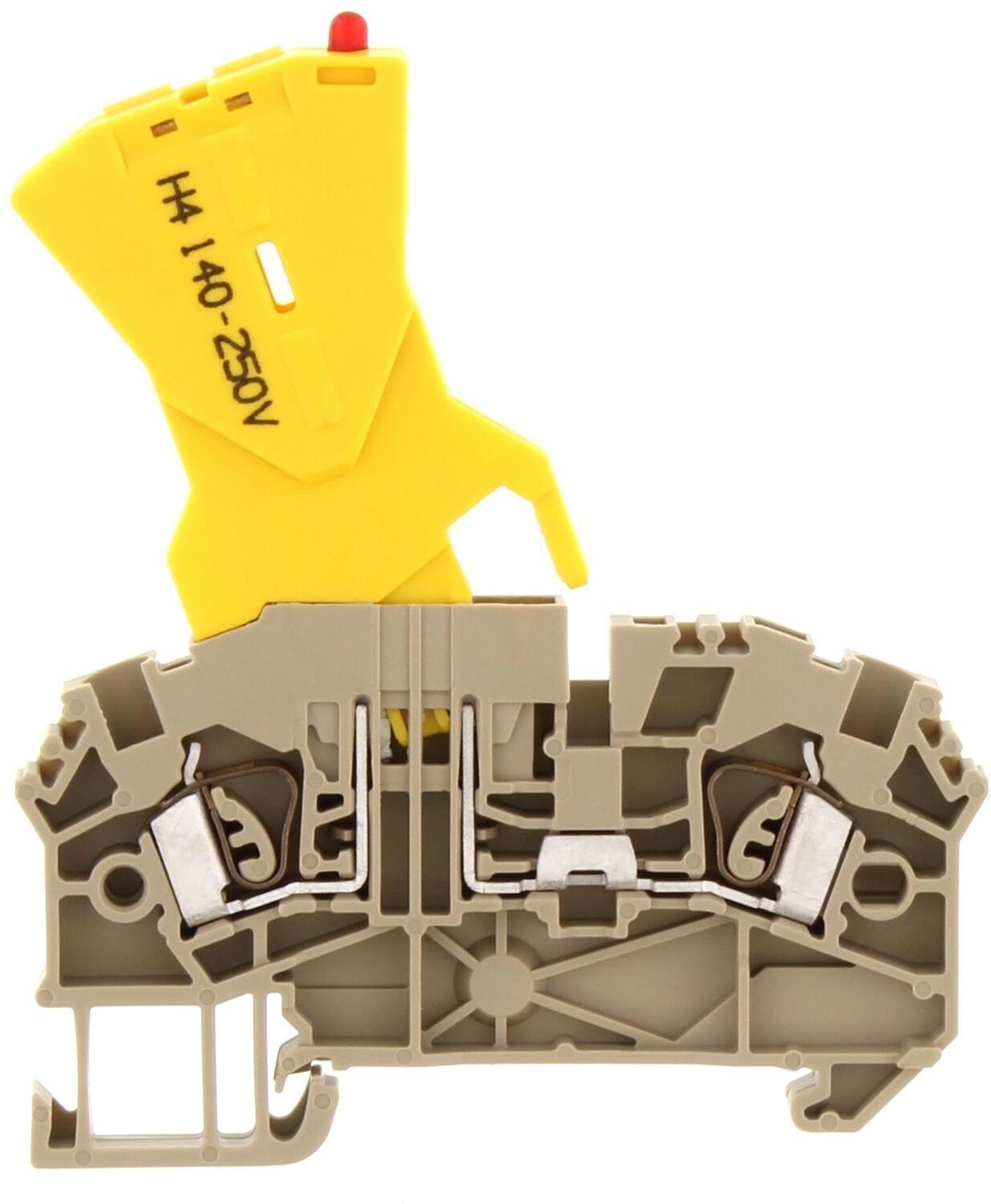

ZTRK 2,5/2A/ZS 250 BG
Art:
3620.2 Copied
6 kV
Beige
2,5 mm²
TS 35
5 x 20 mm
18 A
CSA, CSA US, KEMA KUR
with fuse plug + status display 140-250V
78,7 mm
68 mm
5,1 mm
1
4 mm²
0,5 mm²
2
0,5 mm²
20
12
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
10 A
300 V
EN 60947-7-1:2009, EN 60947-7-3:2009
10 A
300 V
100
DE
16 g

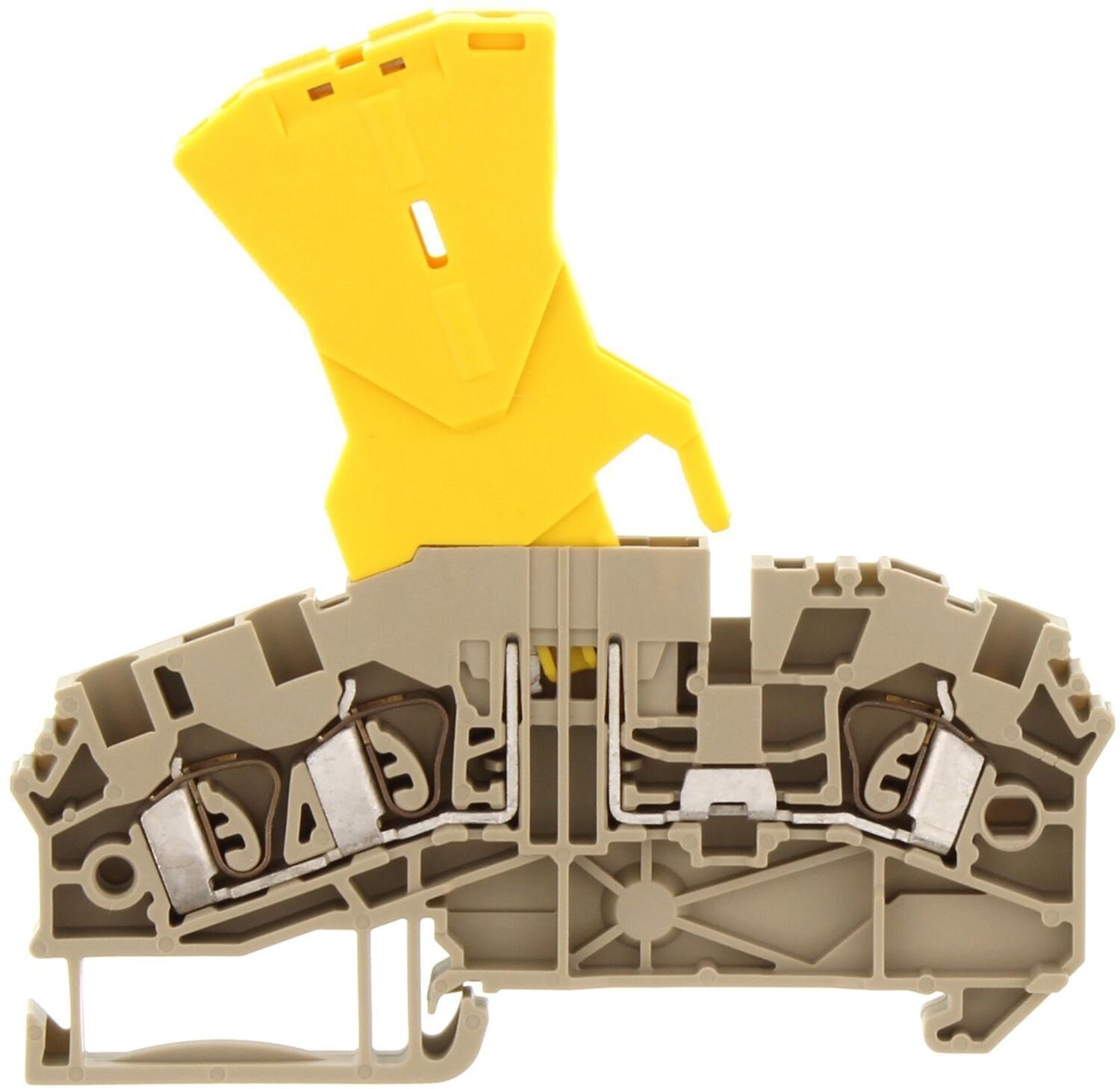

ZTRK 2,5/3A/ZS BG
Art:
3621.2 Copied
6 kV
Beige
2,5 mm²
TS 35
5 x 20 mm
18 A
CSA, CSA US, KEMA KUR
with fuse plug
78,7 mm
80,2 mm
5,1 mm
1
4 mm²
0,5 mm²
3
0,5 mm²
20
12
0,5 mm²
2,5 mm²
10 mm
4 mm²
1
2
A3
10 A
300 V
EN 60947-7-1:2009, EN 60947-7-3:2009
10 A
300 V
100
DE
19 g

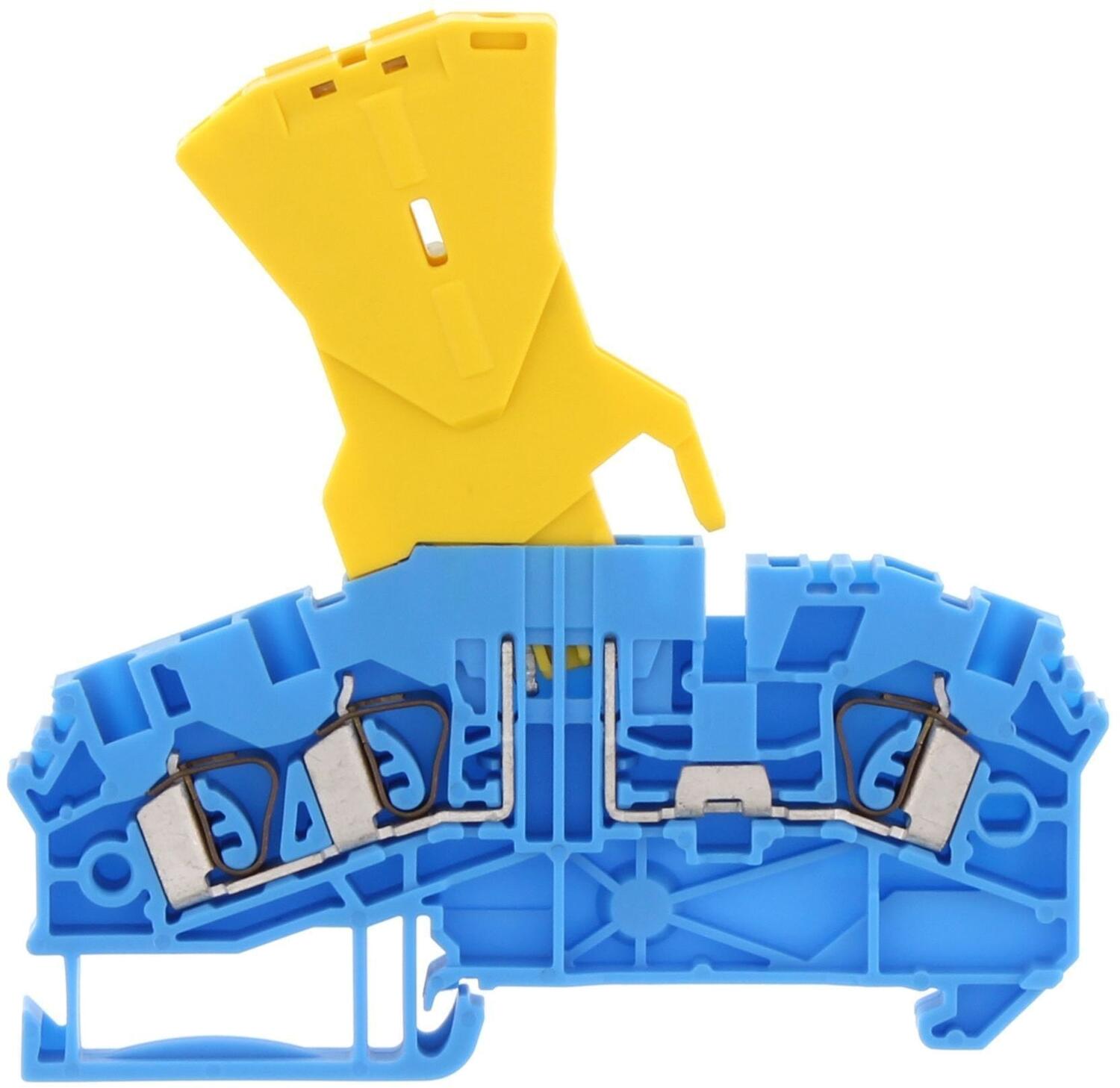

ZTRK 2,5/3A/ZS BU
