CONTA-CLIP

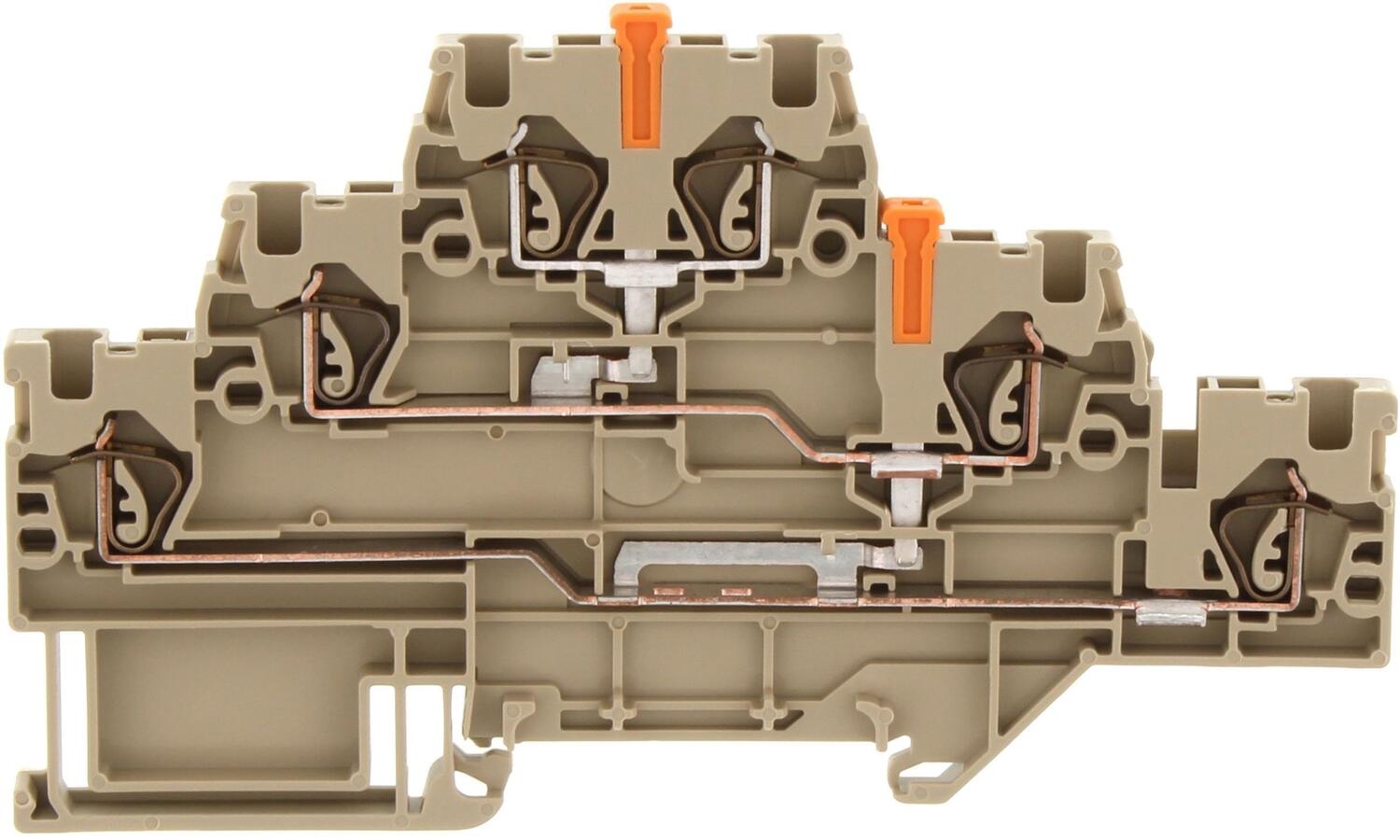

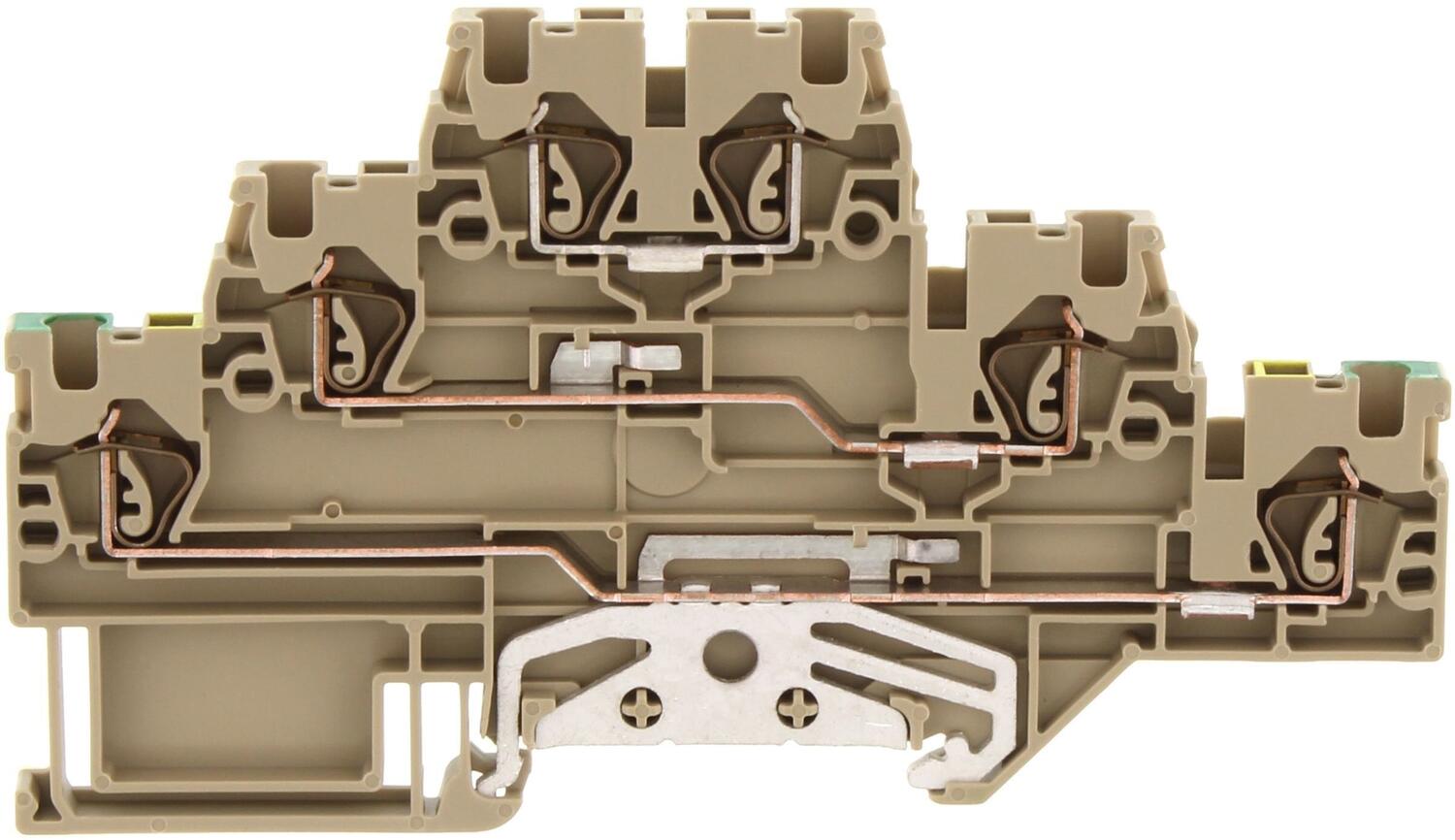

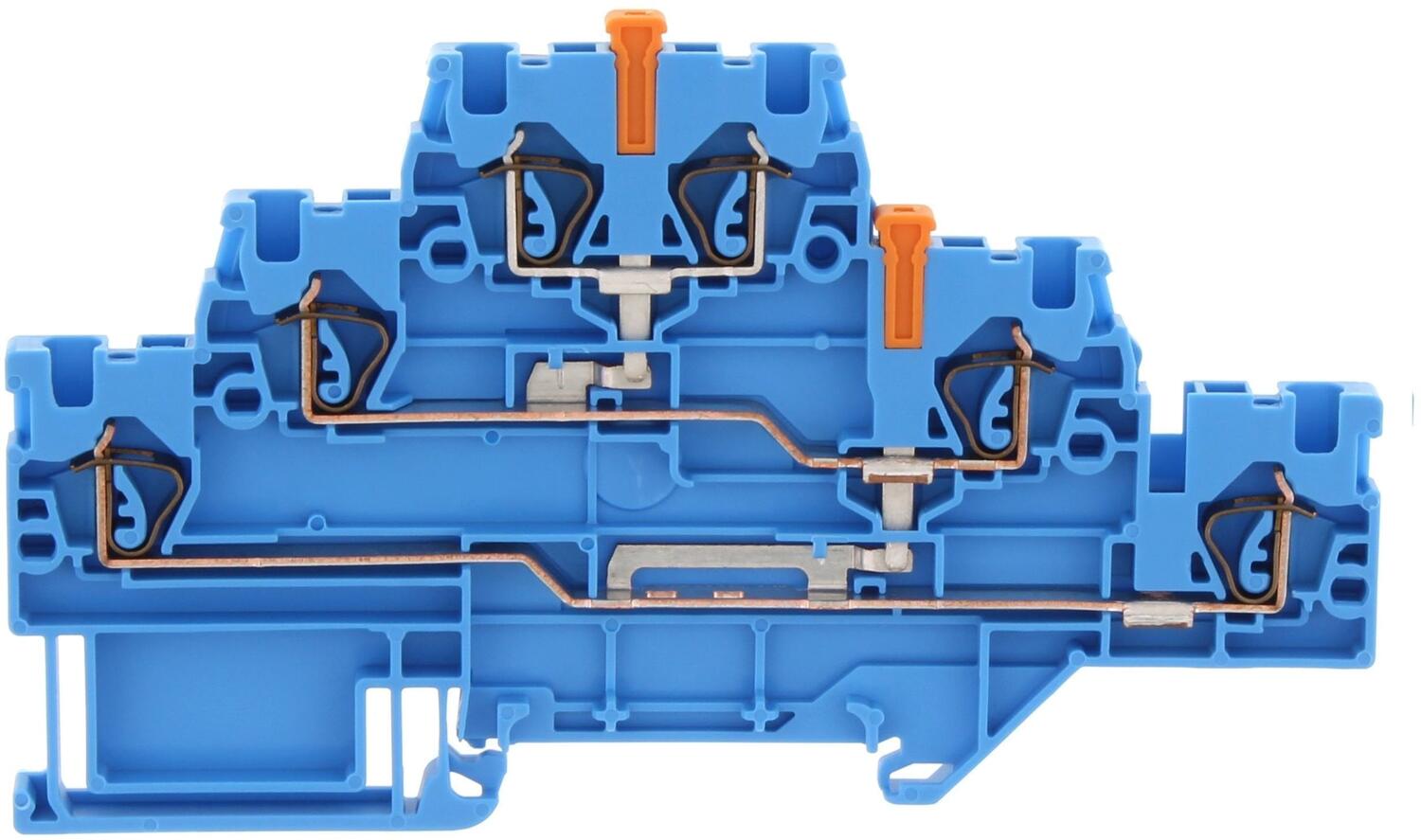

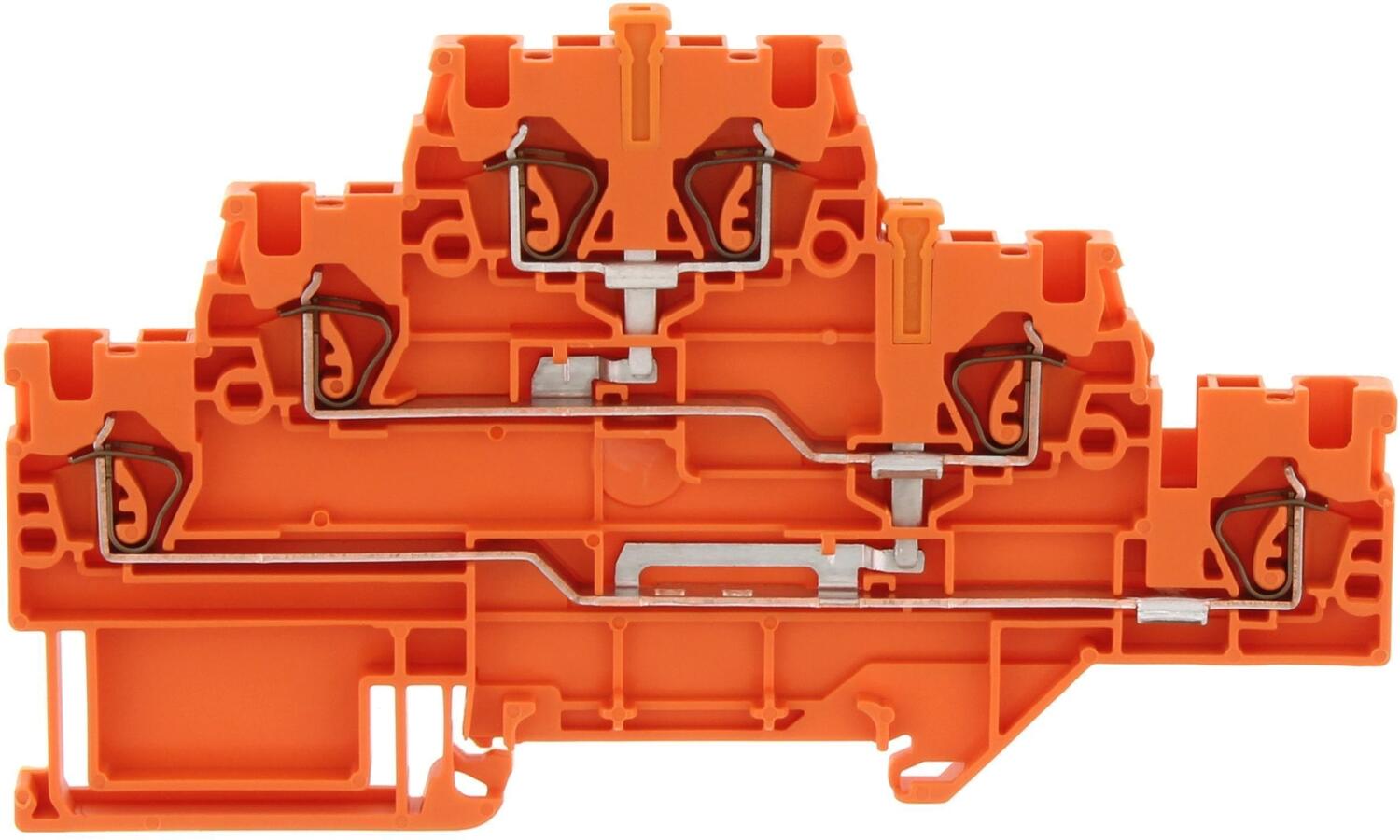

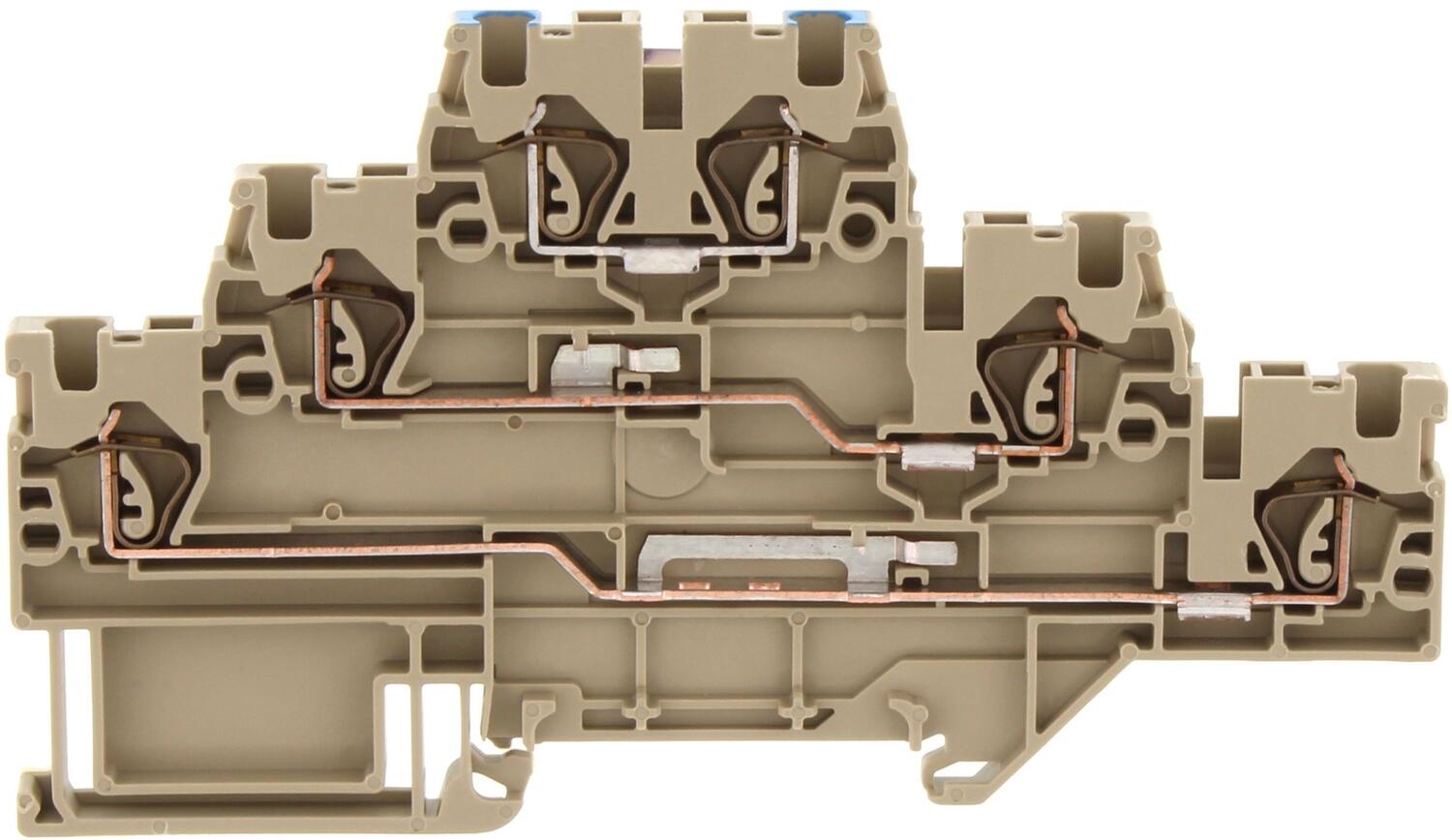

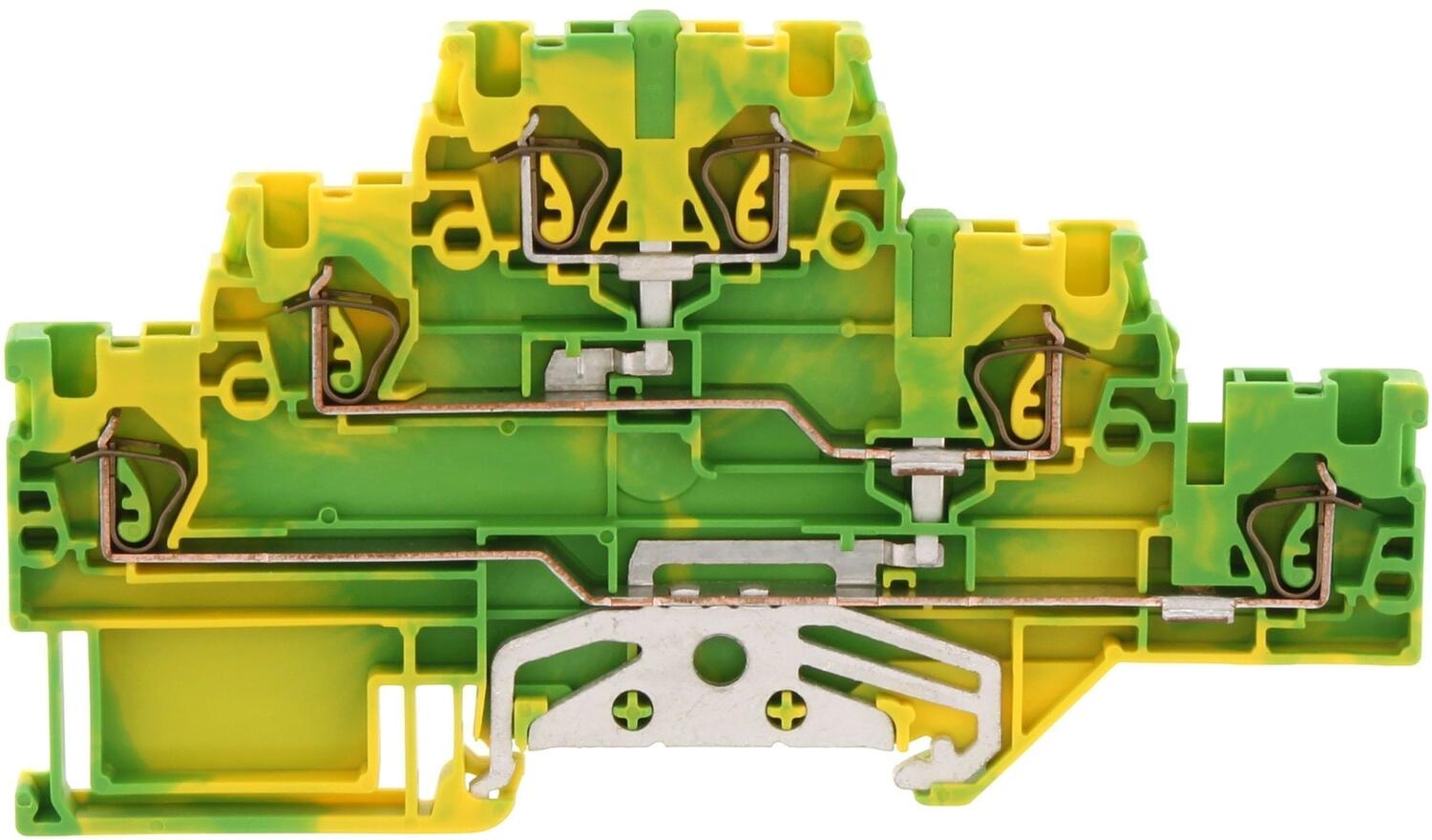

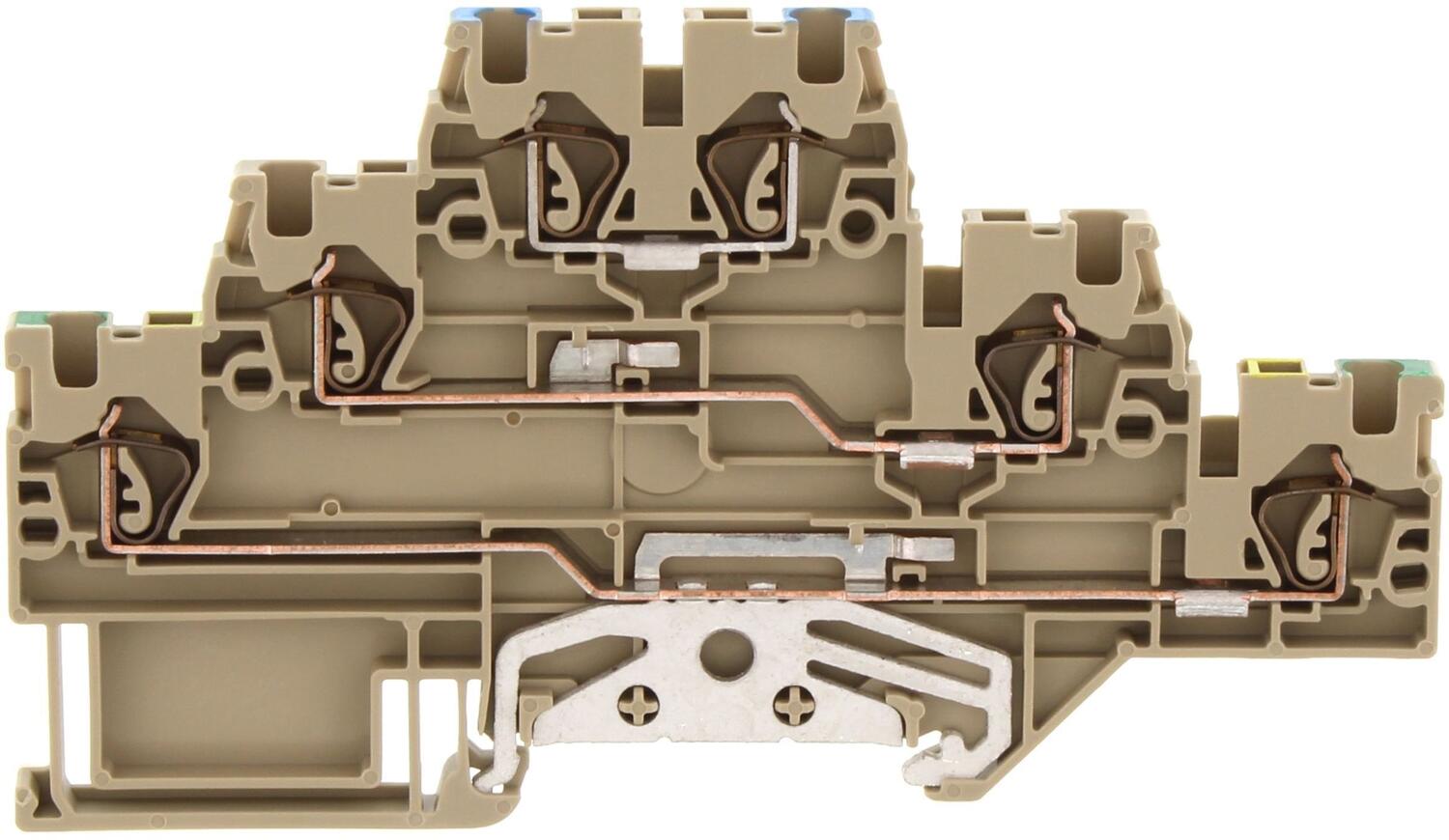

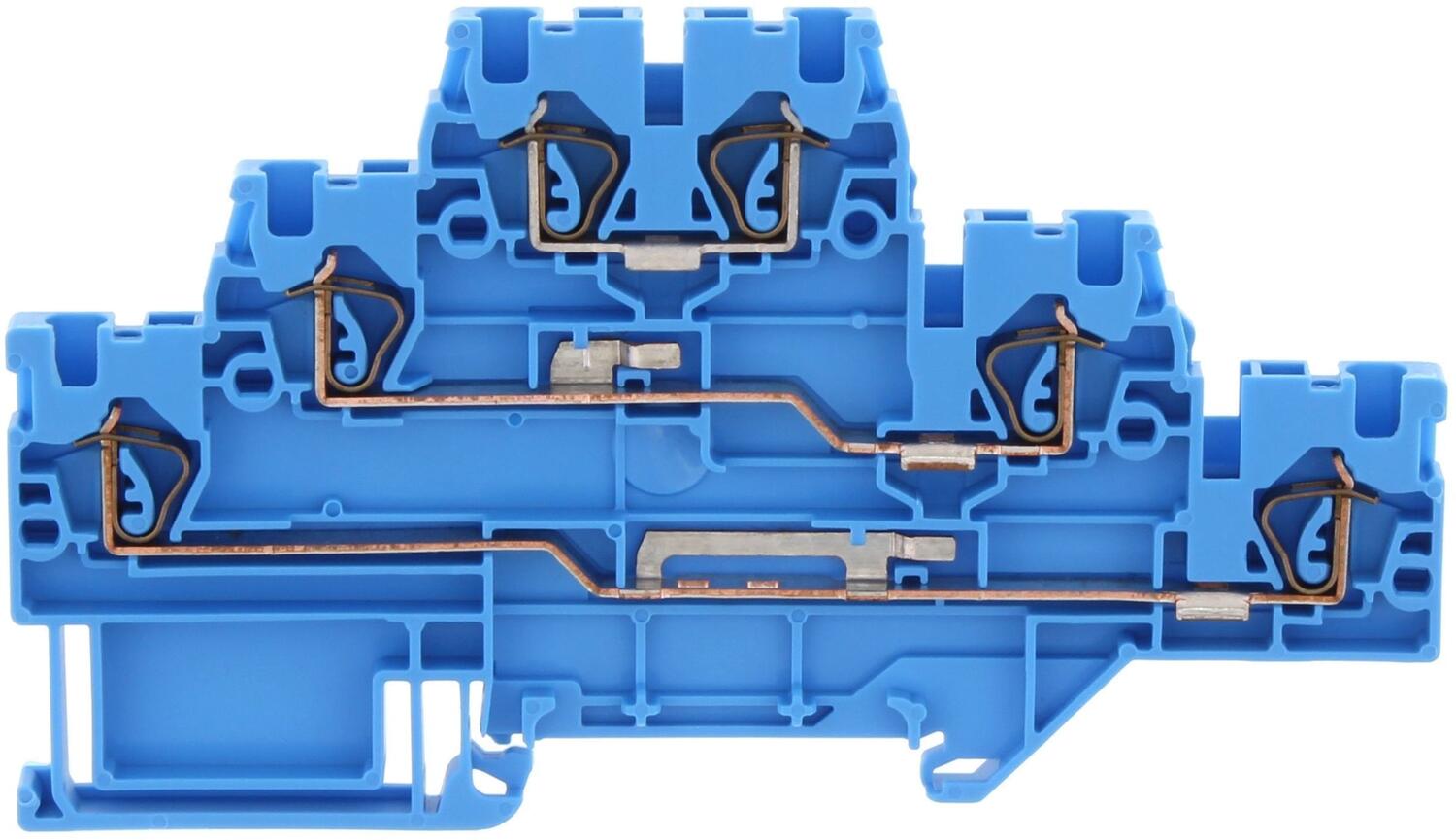

Triple deck terminals - ZIKD 2.5mm²

ZIKD

  • Material polyamide 6.6
  • Temperature resistance -40 °C...+120 °C
  • Flammability class V0

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

General data
Rated impulse voltage 6 kV
Colour Green
Rated wire cross section 2,5 mm²
Rated voltage IEC 500 V
Mounting TS 35
Contamination degree 3
Rated current IEC 24 A
Approvals UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Overvoltage category III

Dimensions
Height TS 35/7.5 68 mm
Length 116,2 mm
Width 5,1 mm

Connection data

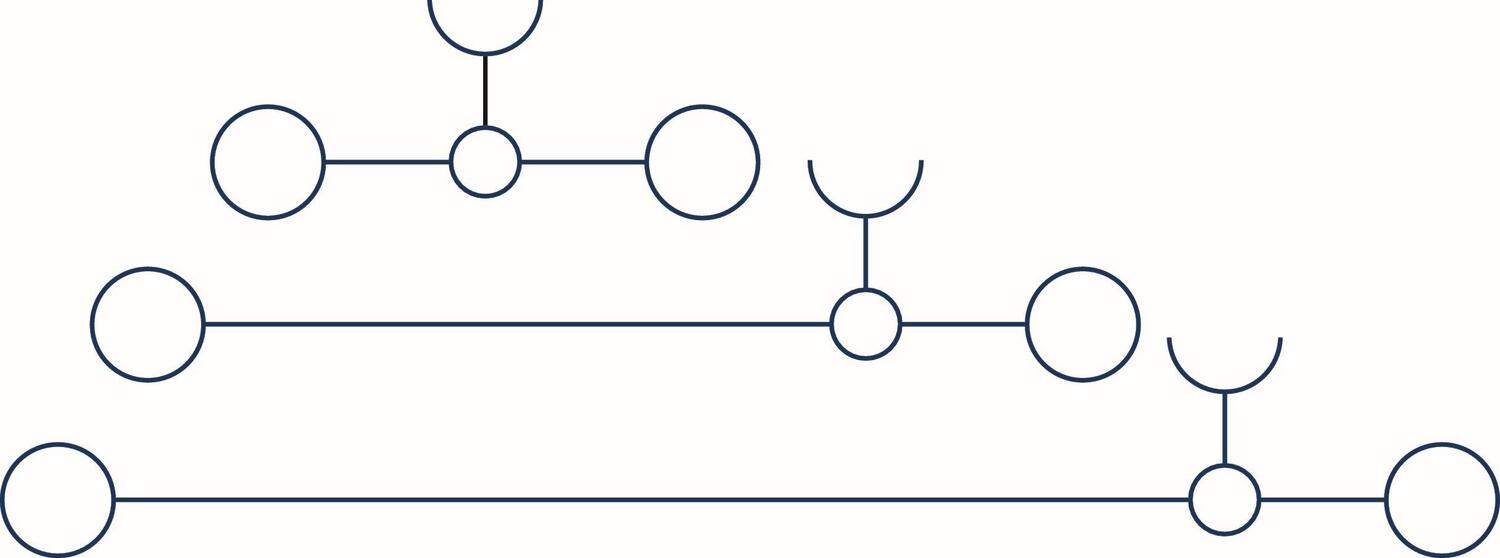

Cross connect channels 3
Cross section stranded wire to 4 mm²
Cross section single wire from 0,5 mm²
Connections 3 x 2
Cross section stranded wire from 0,5 mm²
Rated wire cross section to (AWG) 12
Rated wire cross section from (AWG) 20
Cross section stranded with ferrule from 0,5 mm²
Cross section stranded with ferrule to 2,5 mm²
Stripping length 10 mm
Cross section single wire to 4 mm²
Number of levels 3
Number of test pick off options 6

*Invisible Heading*
Plug gauge acc. EN 60 947-1 A3

Materials
Flammability class UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
Insulation material Polyamide 6.6

Approvals
UL test standard UL 1059
Rated current CSAus 15 A
GL test standard IEC 60947-7-1:2009
Rated voltage CSAus 300 V
Rated current UL 15 A
Rated current cUL 15 A
Rated voltage UL 300 V
CSA test standard C22.2 No 158
KEMA KEUR test standard EN 60947-7-1:2009
Rated voltage cUL 300 V
CSAus test standard UL 1059
Rated current CSA 15 A
Rated voltage CSA 300 V
cUL test standard C22.2 No 158
EAC test standard TR ZU 004/2011

Additional data
Pack size 50
Country of origin CZ
Tariff code 85369010
Weight 17,37 g
