CONTA-CLIP

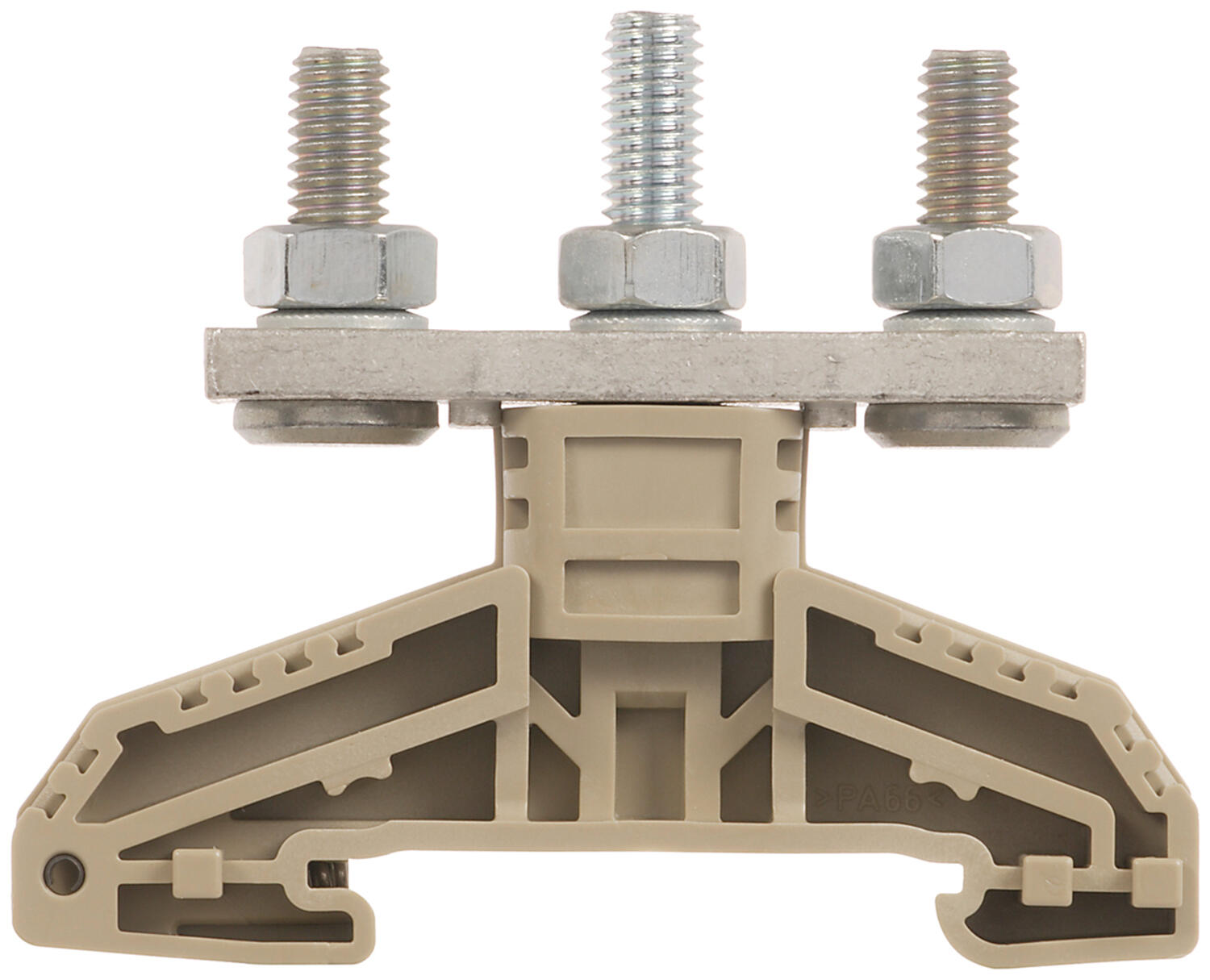

The HSK range of stud terminals offers secure connections for all high power cables in a compact housing.
Depending on the conductor cross-section, stud terminals can be used with threaded studs from M5 to M12.
This range can accept cable sizes from 0.2 mm² to 120 mm² with rated current ranges from 76 A to 269 A at 1000 V.

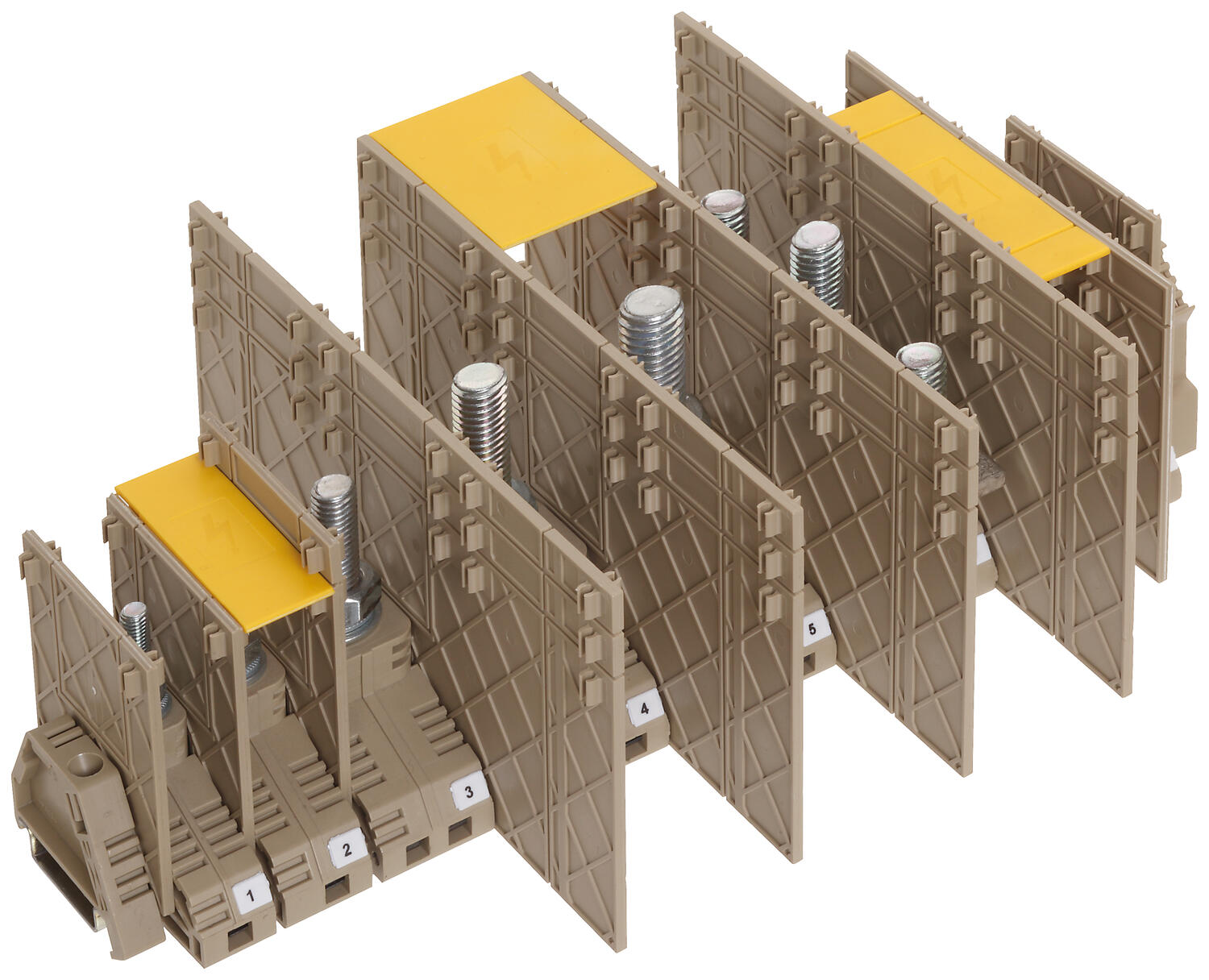

Designed for mounting onto TS 35 DIN rails, the stud terminals have a range of accessories such as TW partition plates, AD yellow covers and cross connection plates to suit most applications.
These products are easy to use and no cutting tools are required when assembling on the rail.
General data |
|
|---|---|
| Rated impulse voltage | 8 kV |
| Colour | Beige |
| Rated wire cross section | 16 mm² |
| Rated voltage IEC | 1000 V |
| Mounting | TS 35 |
| Contamination degree | 3 |
| Rated current IEC | 76 A |
| Approvals | UL, CSA, CSA US, cUL, KEMA KUR, EAC |
| Overvoltage category | III |
Dimensions |
|
| Contact clamping area | ≤ 16 mm² |
| Length with TW/ADH | 67 mm |
| Height with TW/ADH | 58 mm |
| Height TS 35/7.5 | 55,5 mm |
| Length | 67 mm |
| Width | 13 mm |
Connection data |
|
| Cross connect channels | 1 |
| DIN 46234 / 2 cable lugs per side, min. | 0,1 mm² |
| Torque max | 4 Nm |
| Stud size | M 5 |
| Connections | 1 |
| DIN 46235: 2 cable lugs per side, min. | 6 mm² |
| Torque min | 2 Nm |
| Rated wire cross section to (AWG) | 1/0 |
| Rated wire cross section from (AWG) | 10 |
| DIN 46235: 1 cable lug per side, min. | 6 mm² |
*Invisible Heading* |
|
|---|---|
| DIN 46234 / 2 cable lugs per side, max. | 16 mm² |
| DIN 46234 / 1 cable lug per side, min. | 0,1 mm² |
| DIN 46235: 2 cable lugs per side, max. | 10 mm² |
| DIN 46235: 1 cable lug per side, max. | 10 mm² |
| Number of levels | 1 |
| DIN 46234 / 1 cable lug per side, max. | 16 mm² |
Materials |
|
| Flammability class | UL94-V0 |
| Operating temperature from | -40 °C |
| Operating temperature to | 120 °C |
| Insulation material | Polyamide 6.6 |
Approvals |
|
| UL test standard | UL 1059 |
| Rated current CSAus | 60 A |
| Rated voltage CSAus | 1000 V |
| CSA test standard | C22.2 No 158 |
| KEMA KEUR test standard | EN 60947-7-1:2009 |
| CSAus test standard | UL 1059 |
| Rated current CSA | 60 A |
| Rated voltage CSA | 1000 V |
| cUL test standard | C22.2 No 158 |
| EAC test standard | TR ZU 004/2011 |
Additional data |
|
| Pack size | 10 |
| Country of origin | DE |
| Tariff code | 85369010 |
| Weight | 22,12 g |
The HSK range of stud terminals offers secure connections for all high power cables in a compact housing.
Depending on the conductor cross-section, stud terminals can be used with threaded studs from M5 to M12.
This range can accept cable sizes from 0.2 mm² to 120 mm² with rated current ranges from 76 A to 269 A at 1000 V.
Designed for mounting onto TS 35 DIN rails, the stud terminals have a range of accessories such as TW partition plates, AD yellow covers and cross connection plates to suit most applications.
These products are easy to use and no cutting tools are required when assembling on the rail.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Rated wire cross section | Rated current IEC | Contact clamping area | Length with TW/ADH | Height with TW/ADH | Height TS 35/7.5 | Width | DIN 46234 / 2 cable lugs per side, min. | Torque max | Stud size | Connections | DIN 46235: 2 cable lugs per side, min. | Torque min | Rated wire cross section to (AWG) | Rated wire cross section from (AWG) | DIN 46235: 1 cable lug per side, min. | DIN 46234 / 2 cable lugs per side, max. | DIN 46234 / 1 cable lug per side, min. | DIN 46235: 2 cable lugs per side, max. | DIN 46235: 1 cable lug per side, max. | DIN 46234 / 1 cable lug per side, max. | Rated current CSAus | Rated current CSA | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

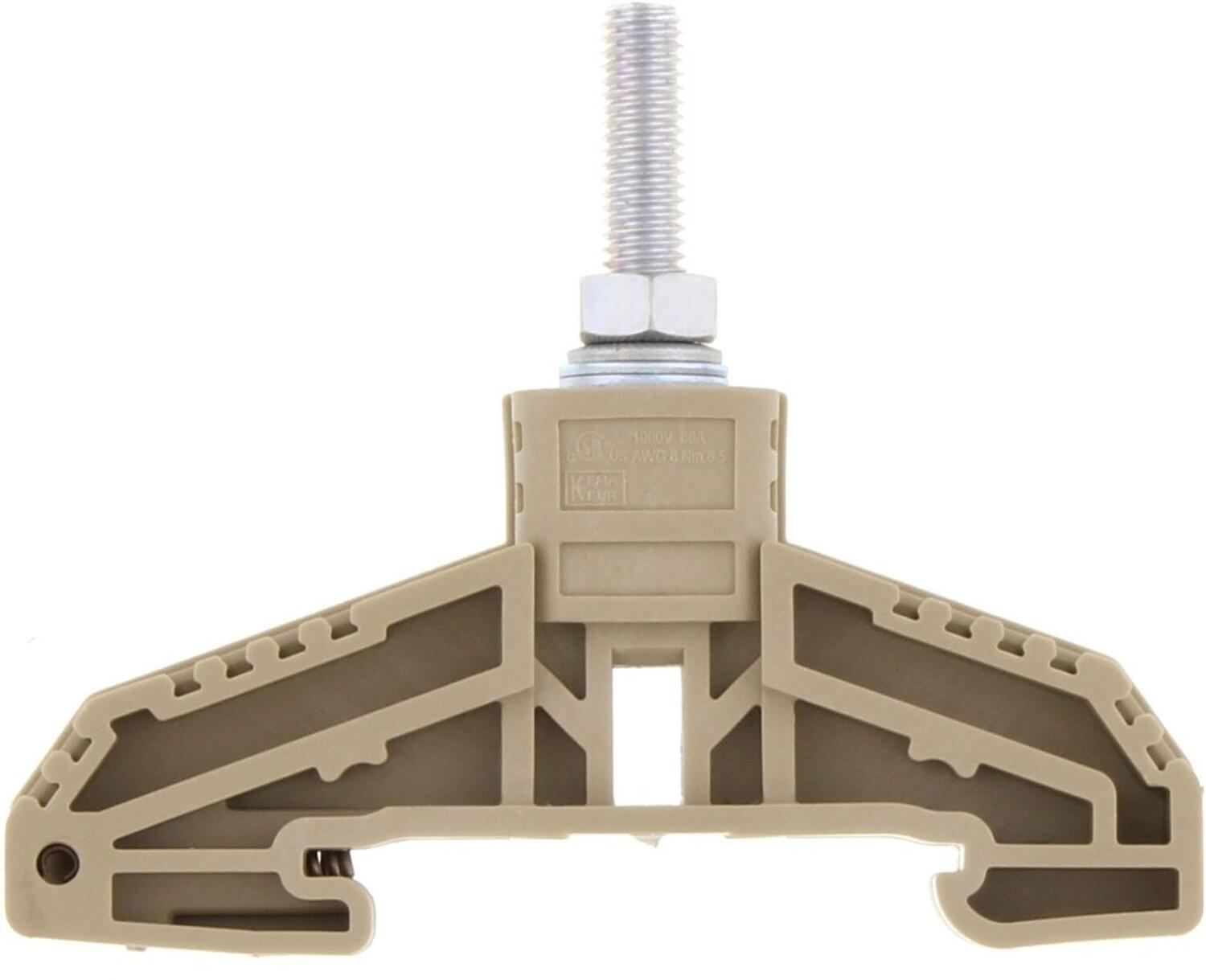

HSK 16/M5 B, 16mm² Single M5 stud terminal
Art:
17000.2
Copied
|
16 mm²
|
76 A
|
≤ 16 mm²
|
67 mm
|
58 mm
|
55,5 mm
|
13 mm
|
0,1 mm²
|
4 Nm
|
M 5
|
1
|
6 mm²
|
2 Nm
|
1/0
|
10
|
6 mm²
|
16 mm²
|
0,1 mm²
|
10 mm²
|
10 mm²
|
16 mm²
|
60 A
|
60 A
|
22,12 g
|
| ||

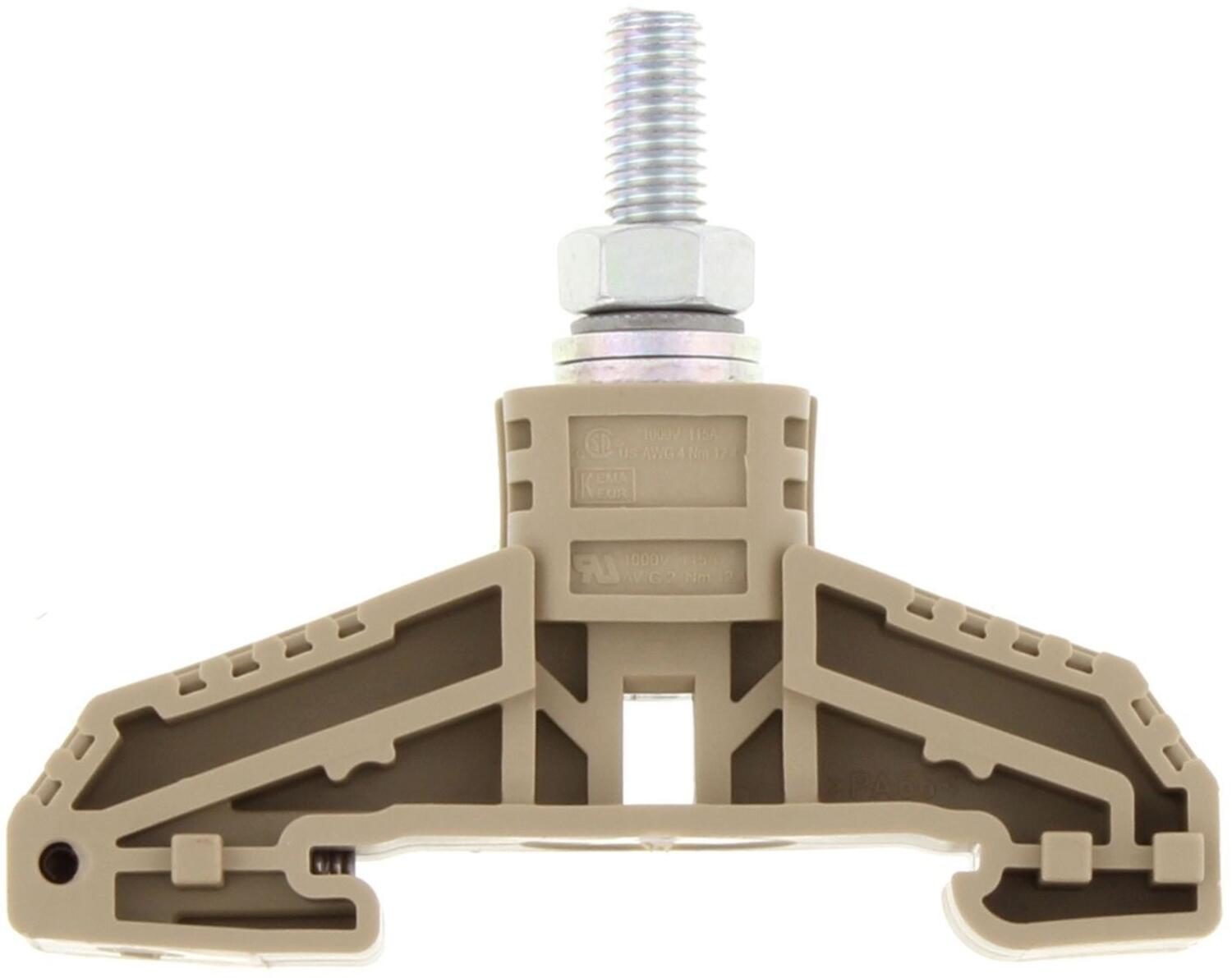

HSK 35/M6 B, 35mm² Single M6 stud terminal
Art:
17001.2
Copied
|
35 mm²
|
125 A
|
≤ 35 mm²
|
67 mm
|
58 mm
|
55,5 mm
|
16 mm
|
2,5 mm²
|
6 Nm
|
M 6
|
1
|
6 mm²
|
3 Nm
|
2
|
14
|
6 mm²
|
35 mm²
|
2,5 mm²
|
35 mm²
|
35 mm²
|
35 mm²
|
115 A
|
115 A
|
31,23 g
|
| ||

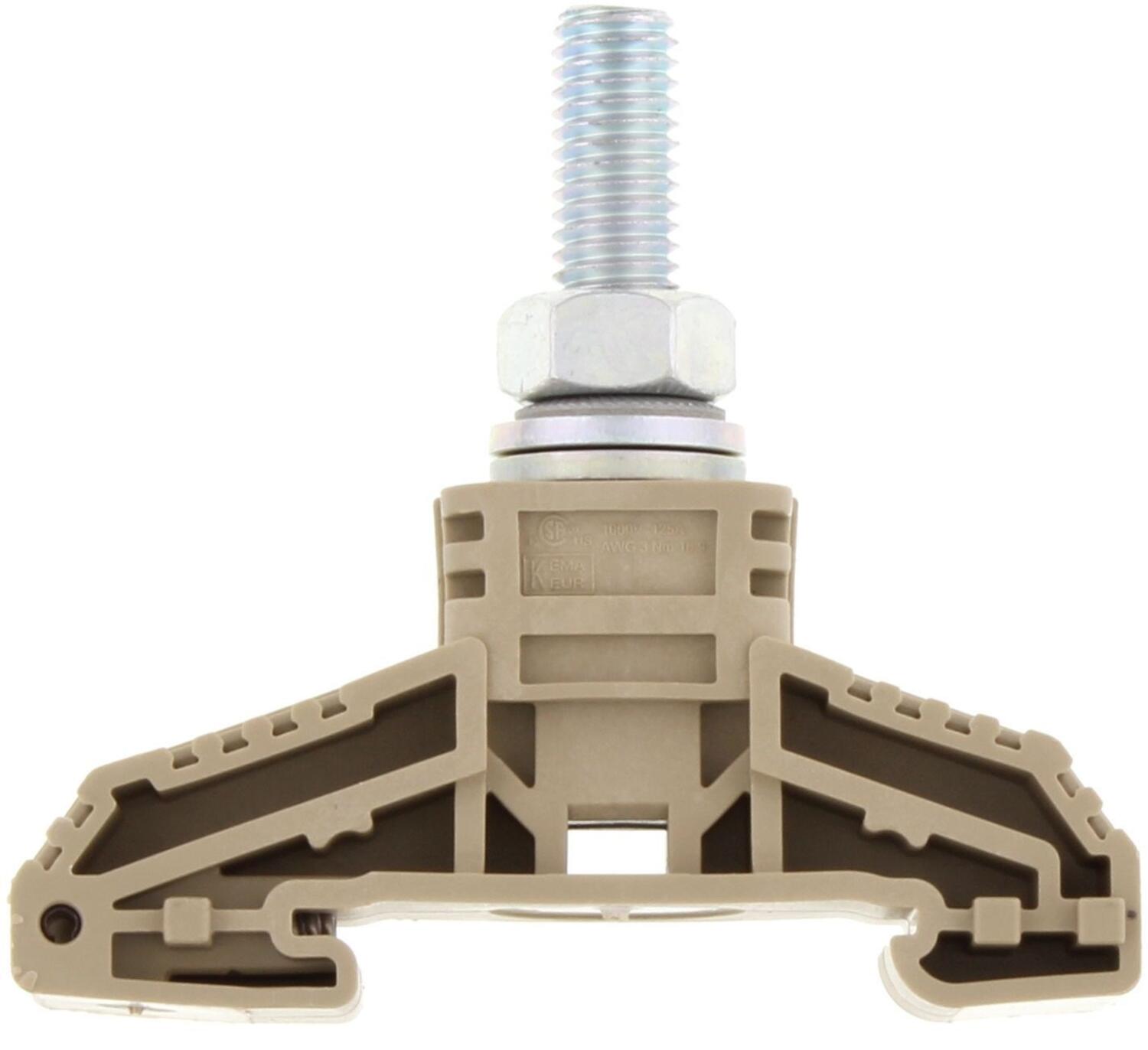

HSK 50/M8 B, 50mm² Single M8 stud terminal
Art:
17002.2
Copied
|
50 mm²
|
150 A
|
≤ 50 mm²
|
67 mm
|
66 mm
|
63,5 mm
|
21 mm
|
2,5 mm²
|
12 Nm
|
M 8
|
1
|
6 mm²
|
6 Nm
|
1/0
|
14
|
6 mm²
|
50 mm²
|
2,5 mm²
|
35 mm²
|
35 mm²
|
50 mm²
|
125 A
|
125 A
|
50,64 g
|
| ||

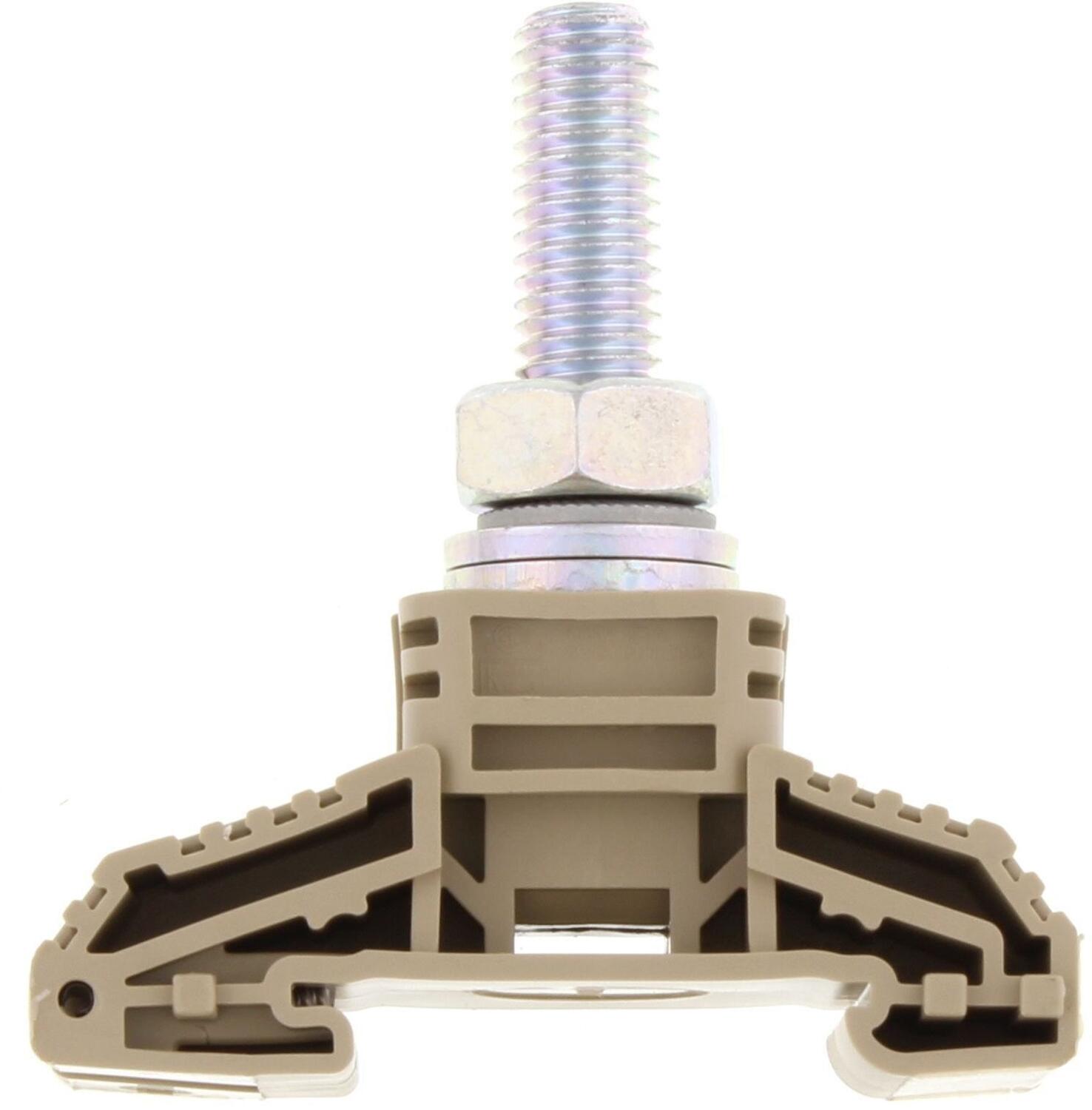

HSK 120/M10 B, 120mm² Single M10 stud terminal
Art:
17003.2
Copied
|
120 mm²
|
269 A
|
≤ 120 mm²
|
67 mm
|
76 mm
|
73,5 mm
|
32 mm
|
6 mm²
|
20 Nm
|
M 10
|
1
|
10 mm²
|
10 Nm
|
250 Kcmil
|
10
|
10 mm²
|
120 mm²
|
6 mm²
|
95 mm²
|
95 mm²
|
120 mm²
|
220 A
|
220 A
|
90,95 g
|
| ||

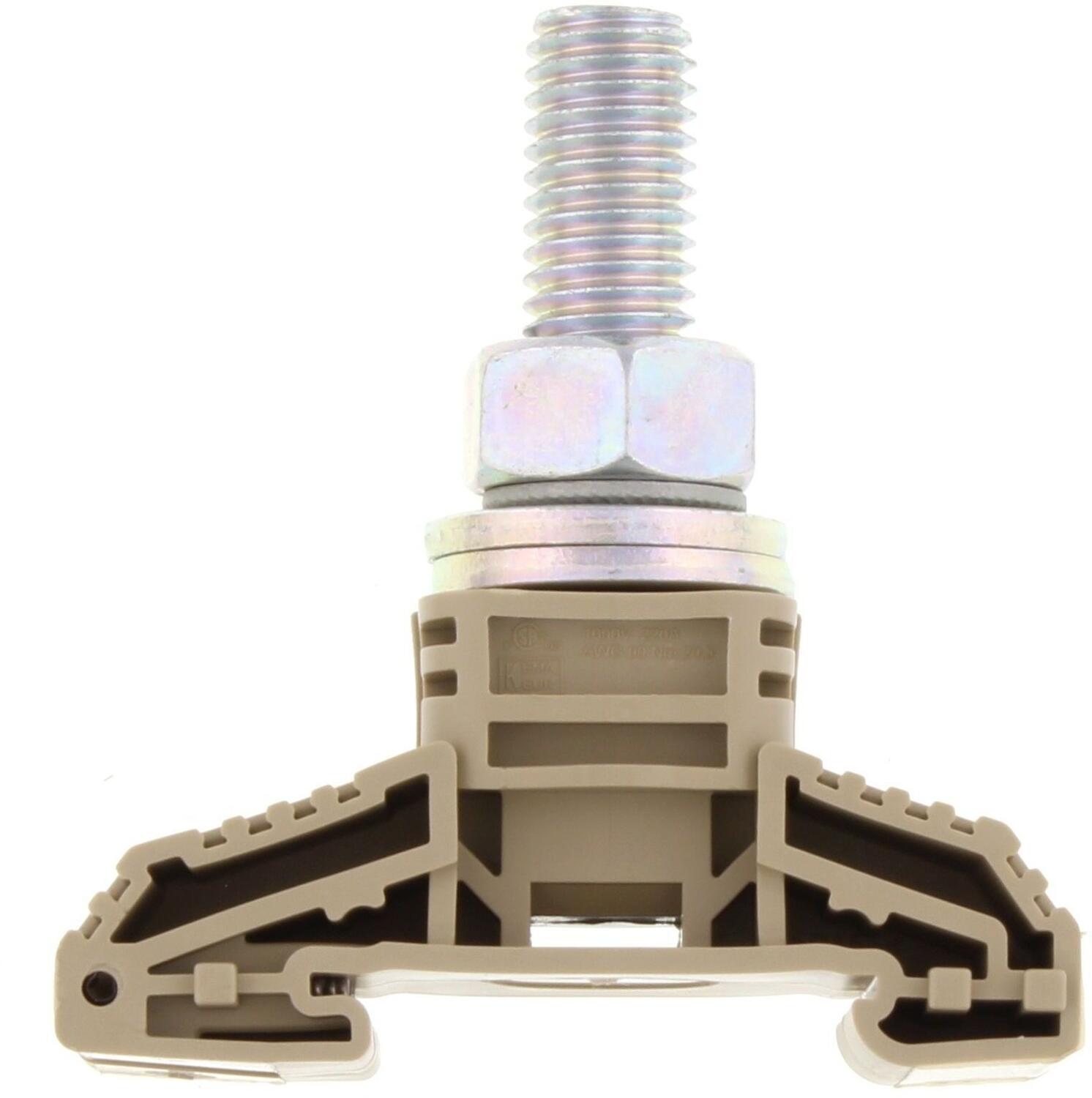

HSK 120/M12 B, 120mm² Single M12 stud terminal
Art:
17004.2
Copied
|
120 mm²
|
269 A
|
≤ 120 mm²
|
67 mm
|
76 mm
|
73,5 mm
|
32 mm
|
6 mm²
|
31 Nm
|
M 10
|
1
|
10 mm²
|
14 Nm
|
250 Kcmil
|
10
|
10 mm²
|
120 mm²
|
6 mm²
|
95 mm²
|
95 mm²
|
120 mm²
|
220 A
|
220 A
|
114,39 g
|
| ||

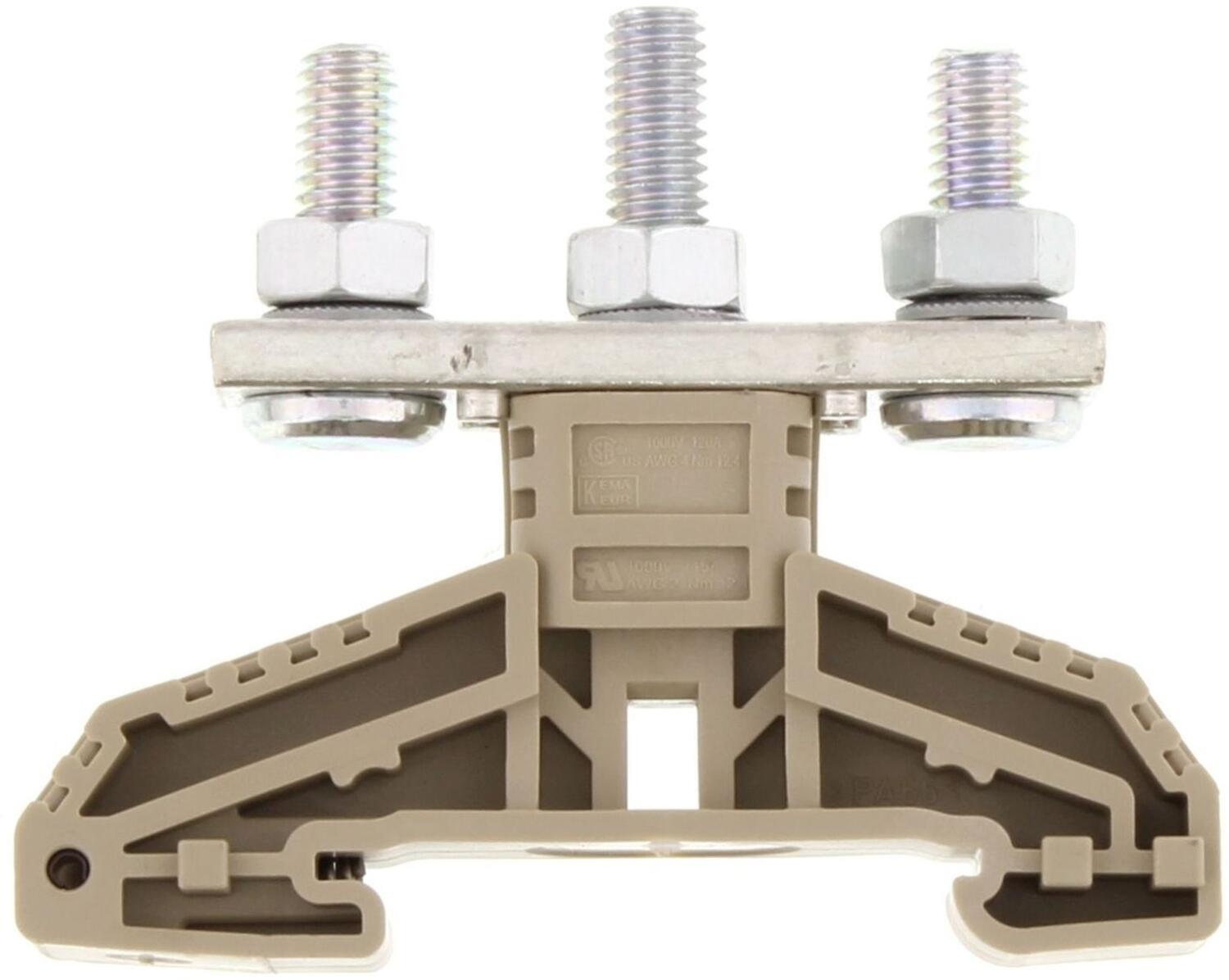

HSK 35/M6 B/B, 35mm² Dual M6 stud terminal
Art:
17005.2
Copied
|
35 mm²
|
125 A
|
≤ 35 mm²
|
67 mm
|
61,5 mm
|
55,5 mm
|
16 mm
|
2,5 mm²
|
6 Nm
|
M 6
|
2
|
6 mm²
|
3 Nm
|
2
|
14
|
6 mm²
|
35 mm²
|
2,5 mm²
|
35 mm²
|
35 mm²
|
35 mm²
|
120 A
|
120 A
|
68,29 g
|
| ||

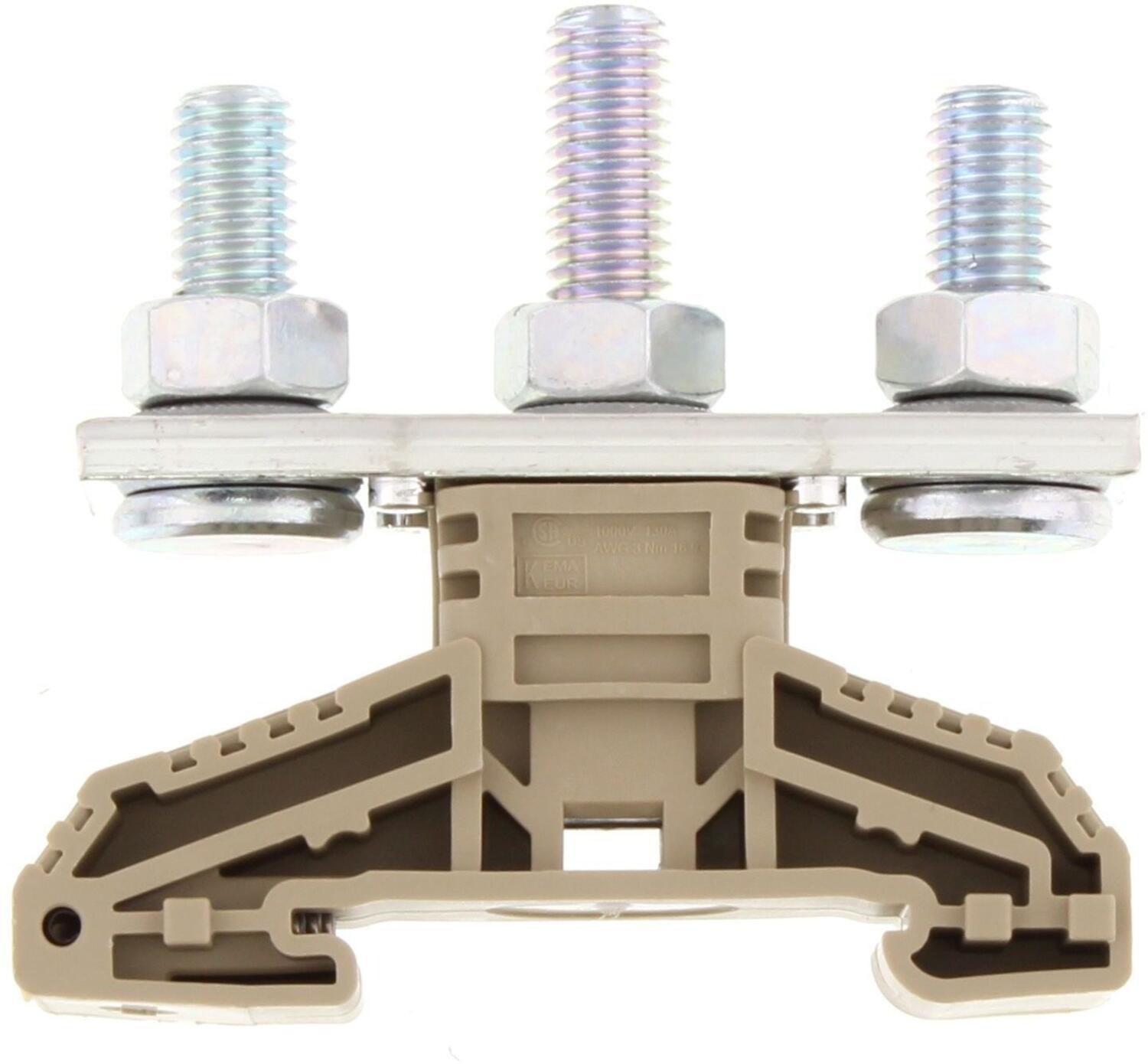

HSK 50/M8 B/B, 50mm² Dual M8 stud terminal
Art:
17006.2
Copied
|
50 mm²
|
150 A
|
≤ 50 mm²
|
120 mm
|
71,5 mm
|
63,5 mm
|
21 mm
|
2,5 mm²
|
12 Nm
|
M 8
|
2
|
6 mm²
|
6 Nm
|
1/0
|
14
|
6 mm²
|
50 mm²
|
2,5 mm²
|
35 mm²
|
35 mm²
|
50 mm²
|
130 A
|
130 A
|
121,98 g
|
| ||

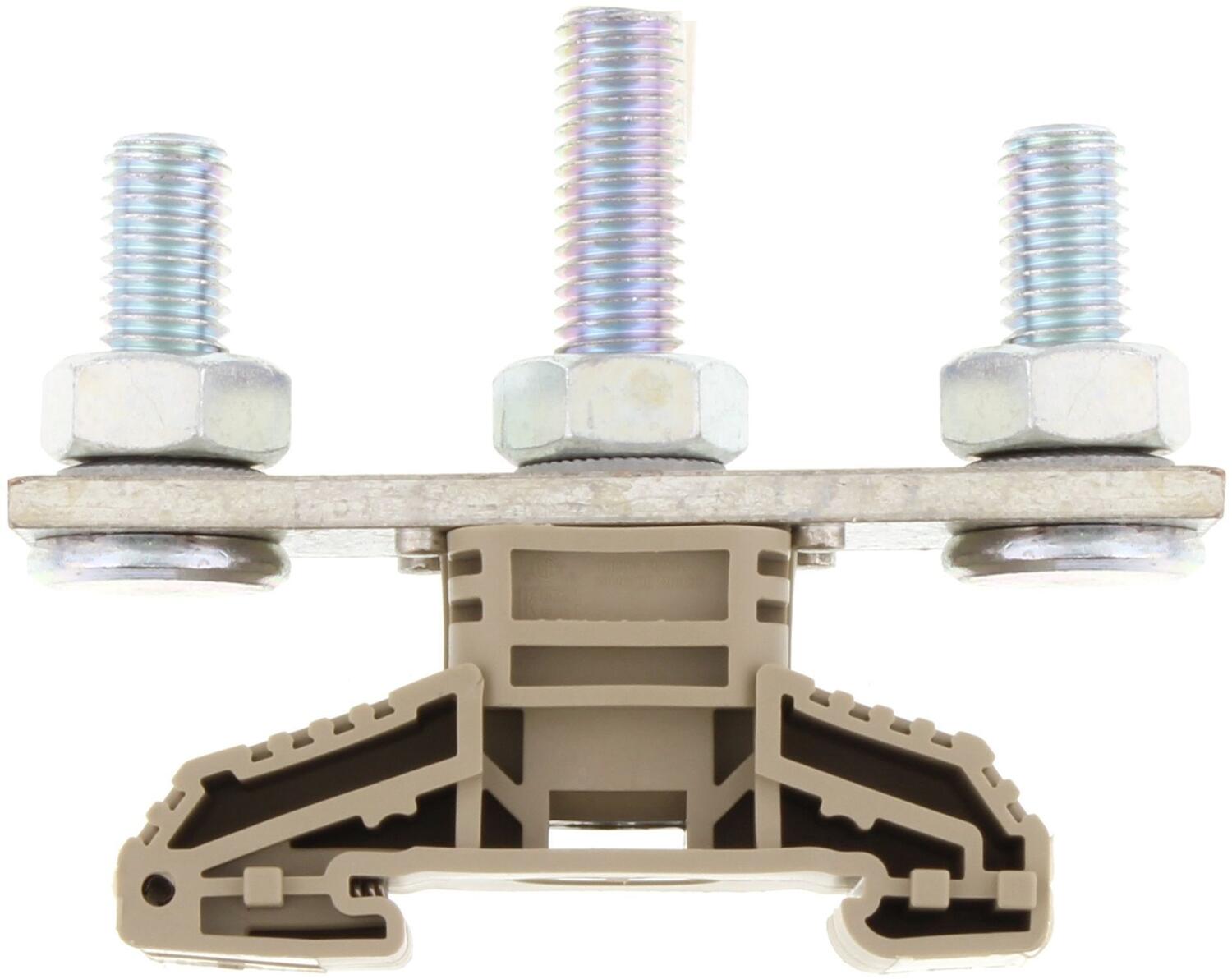

HSK 120/M10 B/B, 120mm² Dual M10 stud terminal
