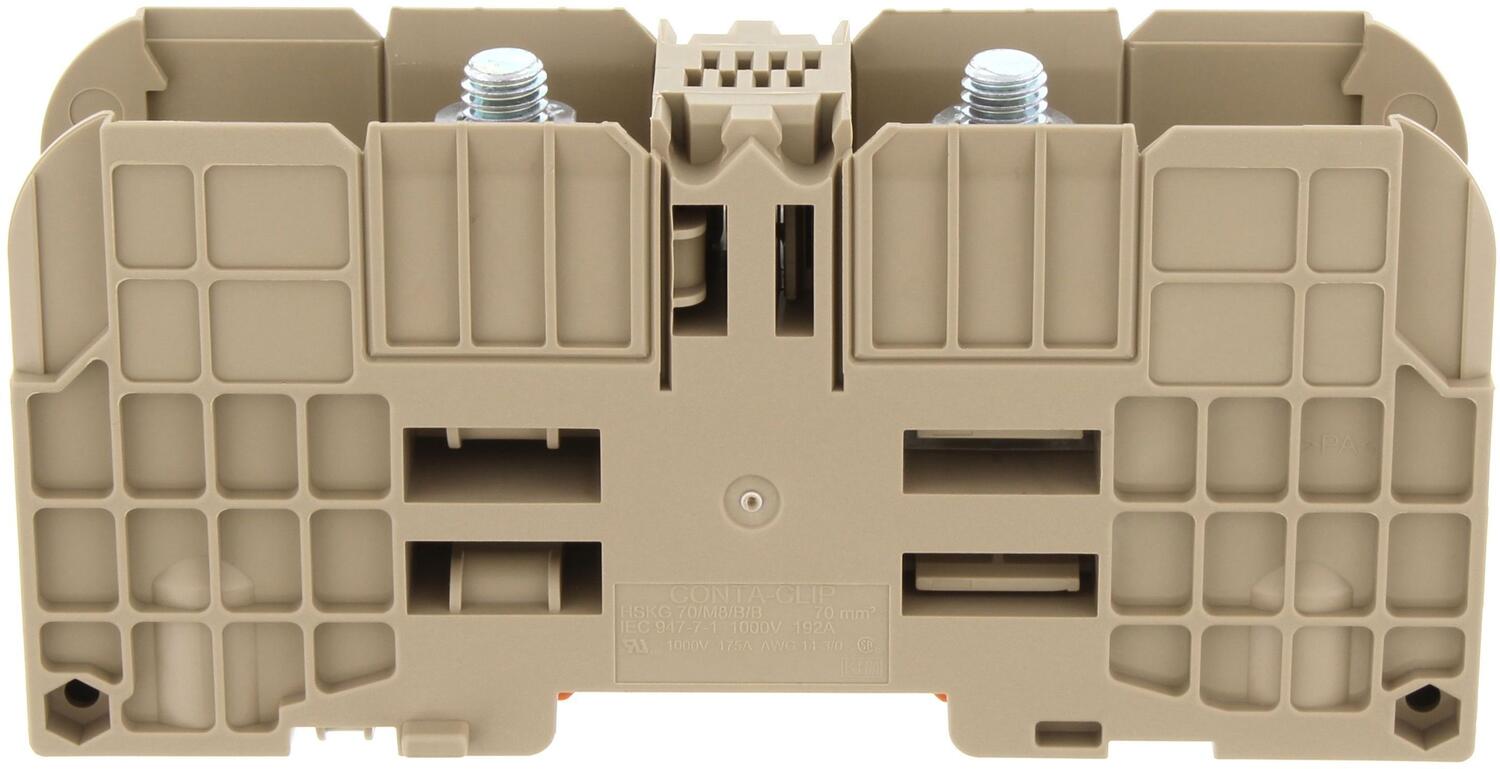

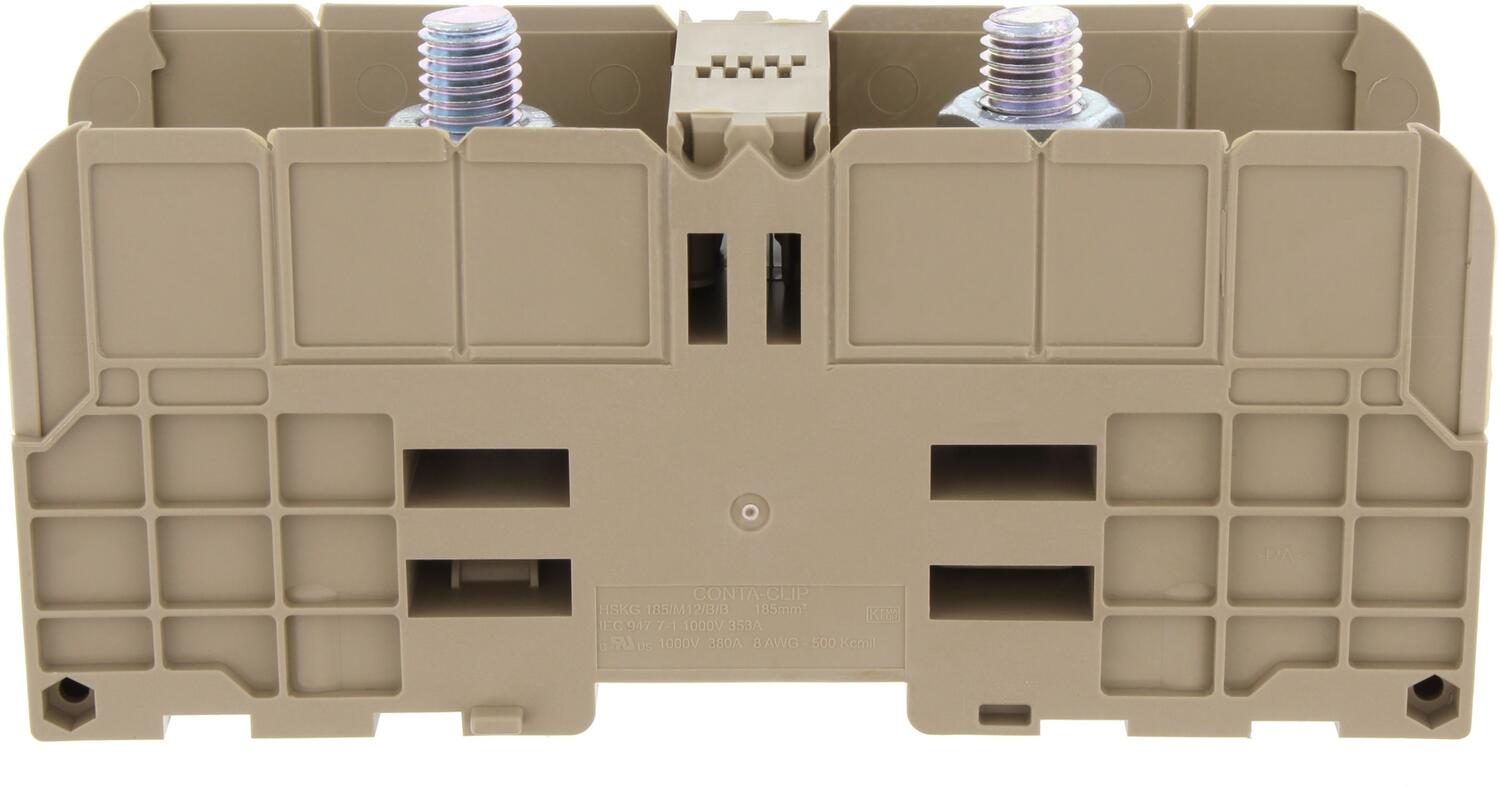

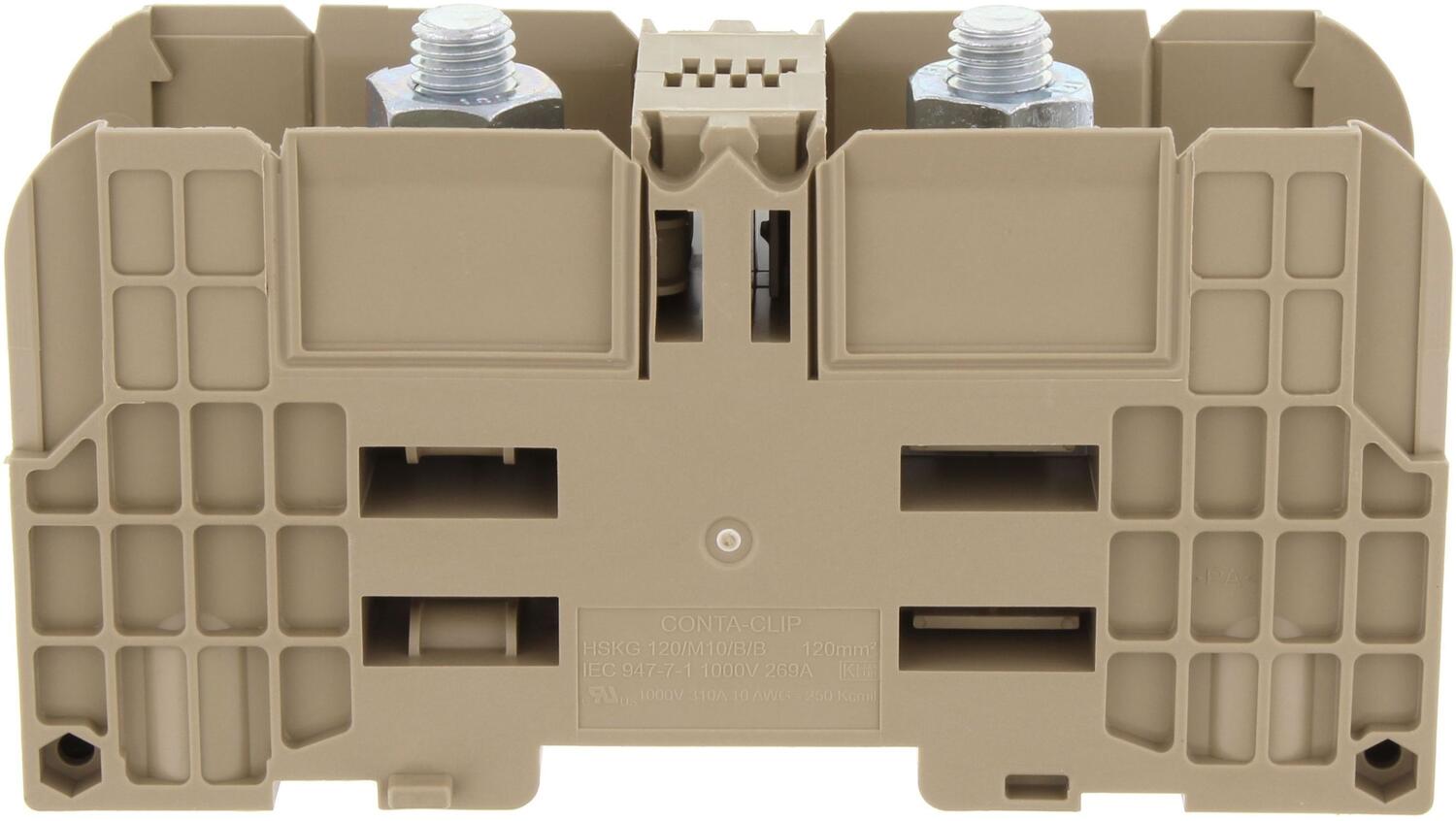

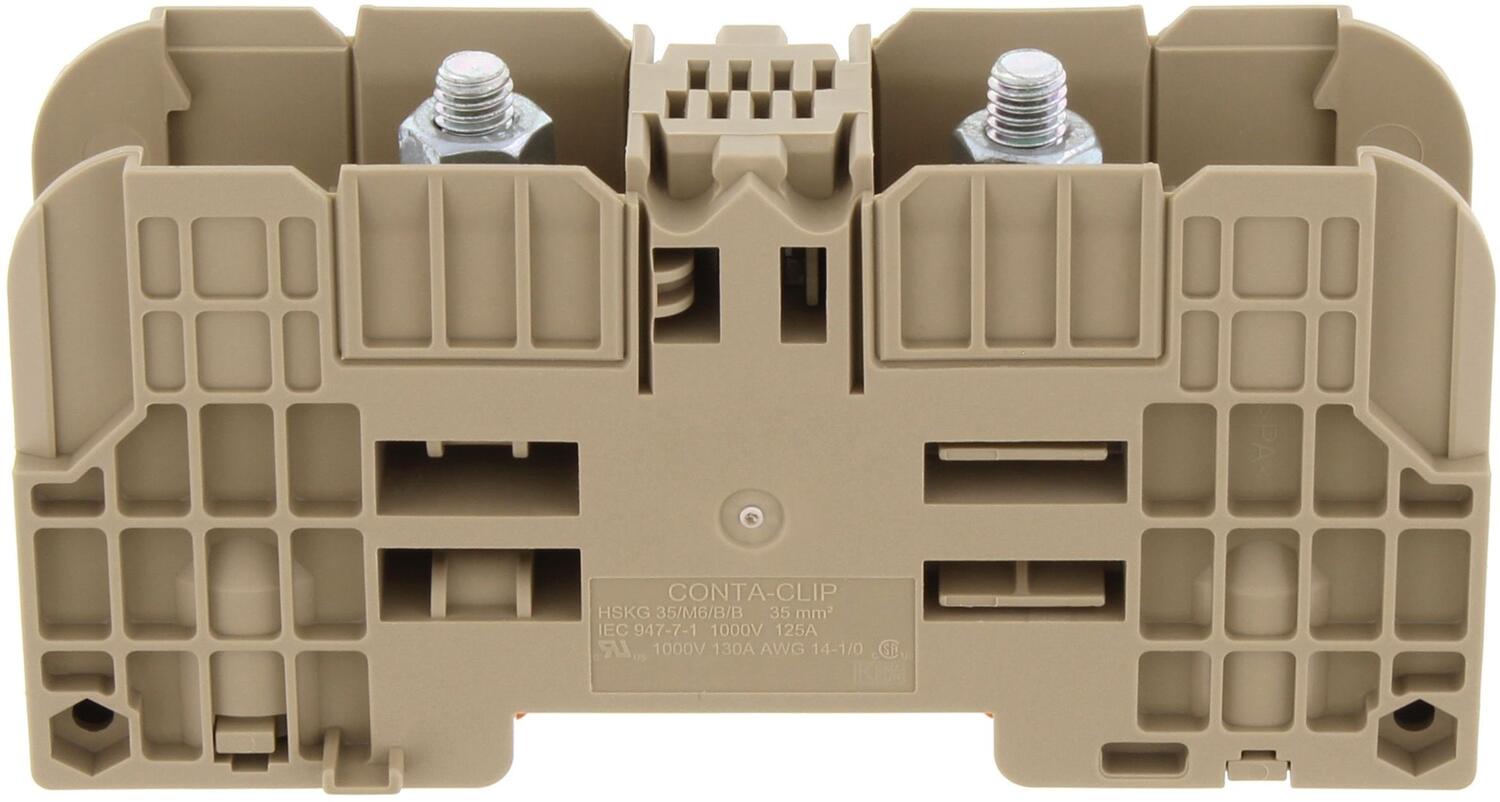

High-power stud terminals - HSKG 35-300mm²

HSKG

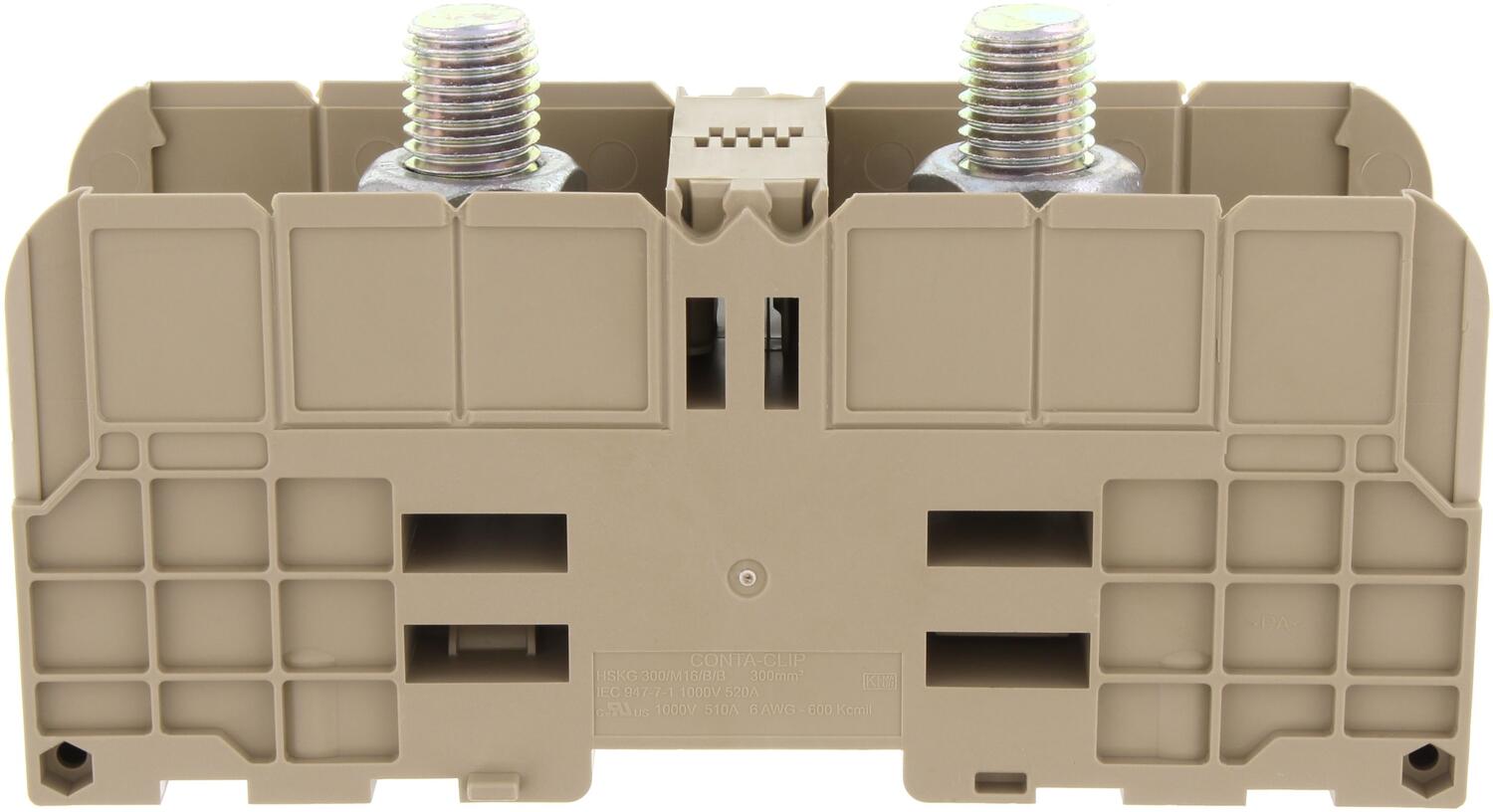

The newest generation of stud terminals from CONTA-CLIP offers secure connections for all high power conductors.



The HSKG stud terminals are available with stud sizes of with M6, M8, M10, M12 and rated current is from 125 A to 520A at a rated voltage of 1000 V.

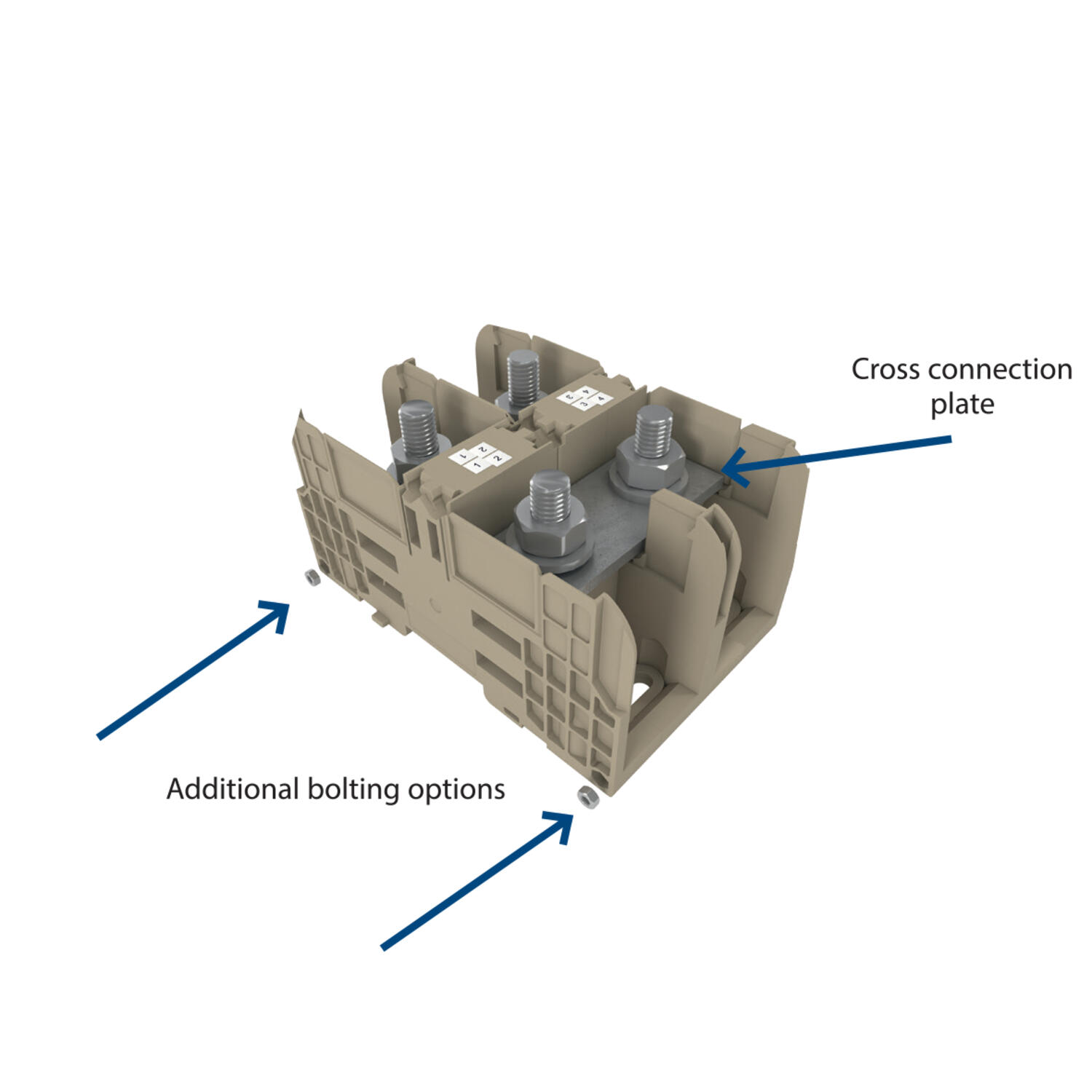

For higher currents the termnials can be easily and safely cross connected by snapping out a section of the built in partition plate.



The wire connection range is from 2.5 mm² to 300 mm². and crimped lugs are used to fit the cables to the busbar using the hexagonal nut with built in washer.



When used together with the ADH hinged covers, the HSKG stud terminals provide outstanding finger and touch protection. The ADH cover is easy to mount; it simply snaps into the side walls of the stud terminals as it is closed.

In this quick and reliable way, touch-safe protection of the terminal points is always guaranteed.



Added features include -

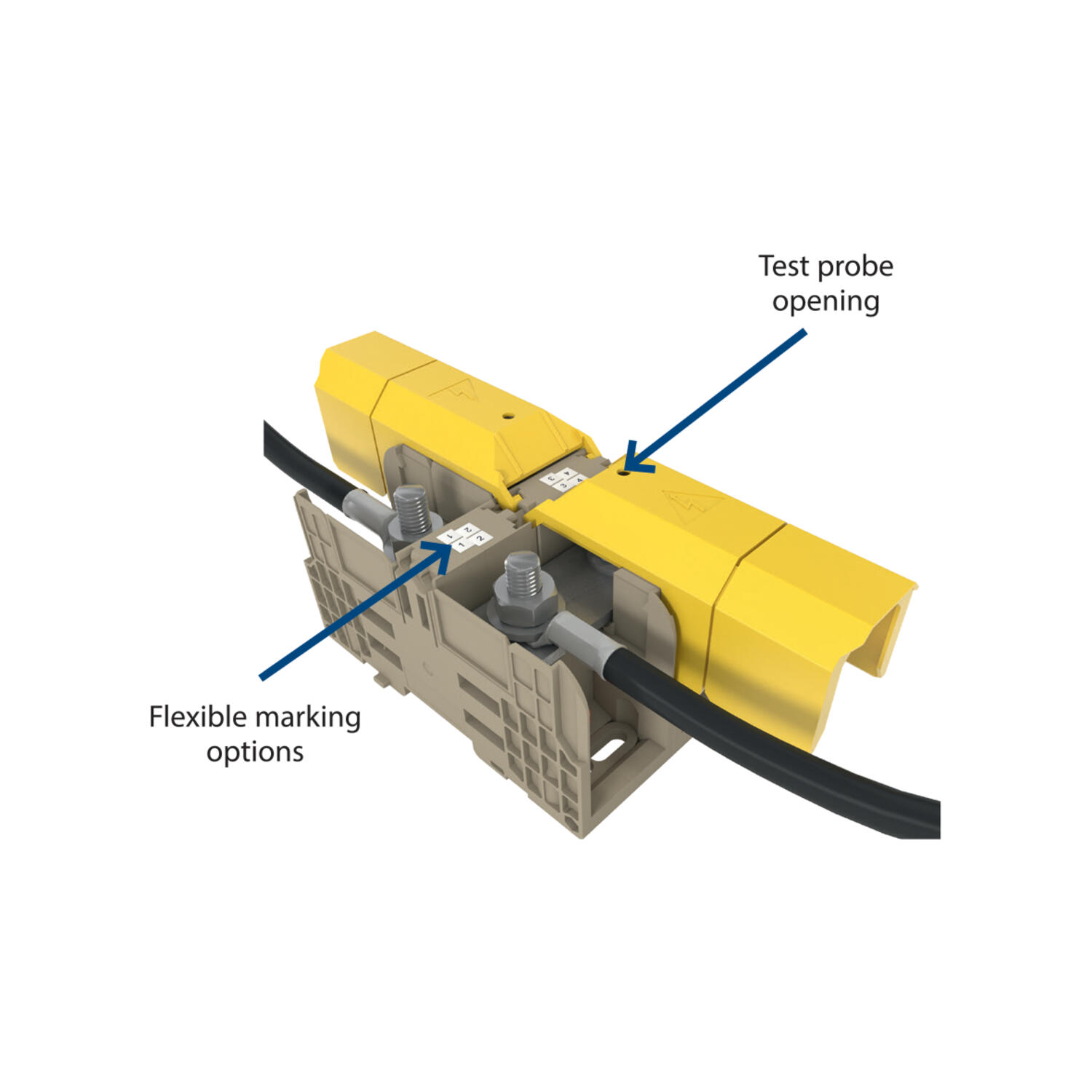

  • Measuring Point located on the ADH covers to allow probes to be inserted without exposing the conductor.

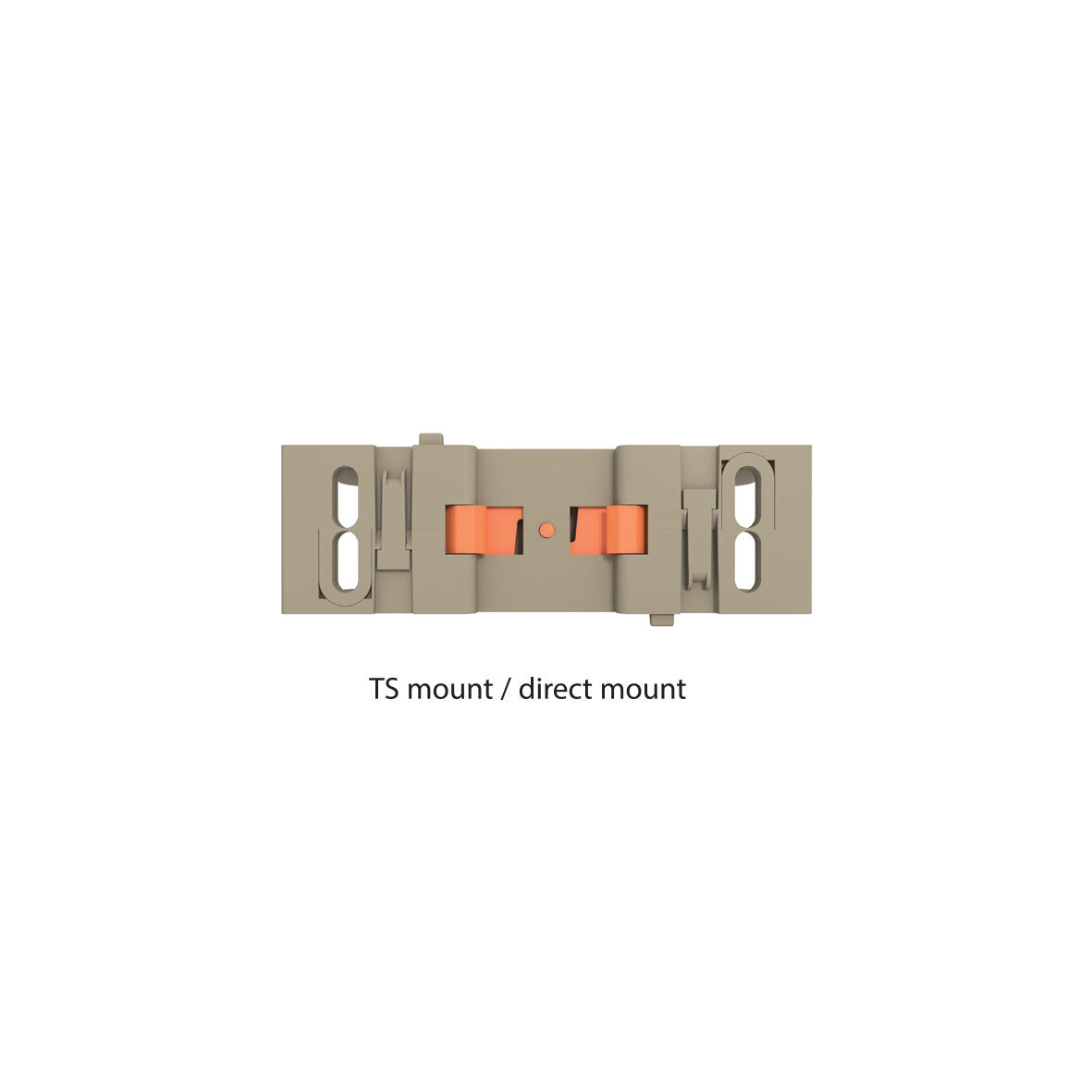

  • Direct or DIN Rail Mount
  • Interlocking housings for improved stability
  • Cross connectable







Read more
  • Dual stud connection
  • Direct & TS35 mount
  • IP20 with Gull Wing Covers fitted
  • Material polyamide 6.6
  • Fire-resistance class V0

Selected variant

Available in several variants

Selected variant

Technical data

General data

Rated impulse voltage 8 kV
Colour Beige
Rated wire cross section 35 mm²
Rated voltage IEC 1000 V
Mounting TS 35
Contamination degree 3
Rated current IEC 125 A
Approvals UL, CSA, CSA US, cUL, KEMA KUR
Overvoltage category III

Dimensions

Contact clamping area ≤ 50 mm²
Length with TW/ADH 131 mm
Height with TW/ADH 60 mm
Height TS 35/7.5 51 mm
Length 107 mm
Width 27 mm

Connection data

Torque max 6 Nm
Stud size M 6
Connections 2
Torque min 3 Nm
Rated wire cross section to (AWG) 1/0
Rated wire cross section from (AWG) 14
DIN 46235: 1 cable lug per side, min. 6 mm²
DIN 46234 / 1 cable lug per side, min. 2,5 mm²
DIN 46235: 1 cable lug per side, max. 25 mm²

*Invisible Heading*

Number of levels 1
DIN 46234 / 1 cable lug per side, max. 50 mm²

Materials

Flammability class UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
Insulation material Polyamide 6.6

Approvals

UL test standard UL 1059
Rated current CSAus 130 A
Rated voltage CSAus 1000 V
Rated current cUL 130 A
Rated voltage UL 1000 V
CSA test standard C22.2 No 158
KEMA KEUR test standard EN 60947-7-1:2028
Rated voltage cUL 1000 V
CSAus test standard UL 1059
Rated current CSA 130 A
Rated voltage CSA 1000 V
cUL test standard C22.2 No 158

Additional data

Pack size 10
Country of origin DE
Tariff code 85369010
Weight 88,6 g

Product description

The newest generation of stud terminals from CONTA-CLIP offers secure connections for all high power conductors.



The HSKG stud terminals are available with stud sizes of with M6, M8, M10, M12 and rated current is from 125 A to 520A at a rated voltage of 1000 V.

For higher currents the termnials can be easily and safely cross connected by snapping out a section of the built in partition plate.



The wire connection range is from 2.5 mm² to 300 mm². and crimped lugs are used to fit the cables to the busbar using the hexagonal nut with built in washer.

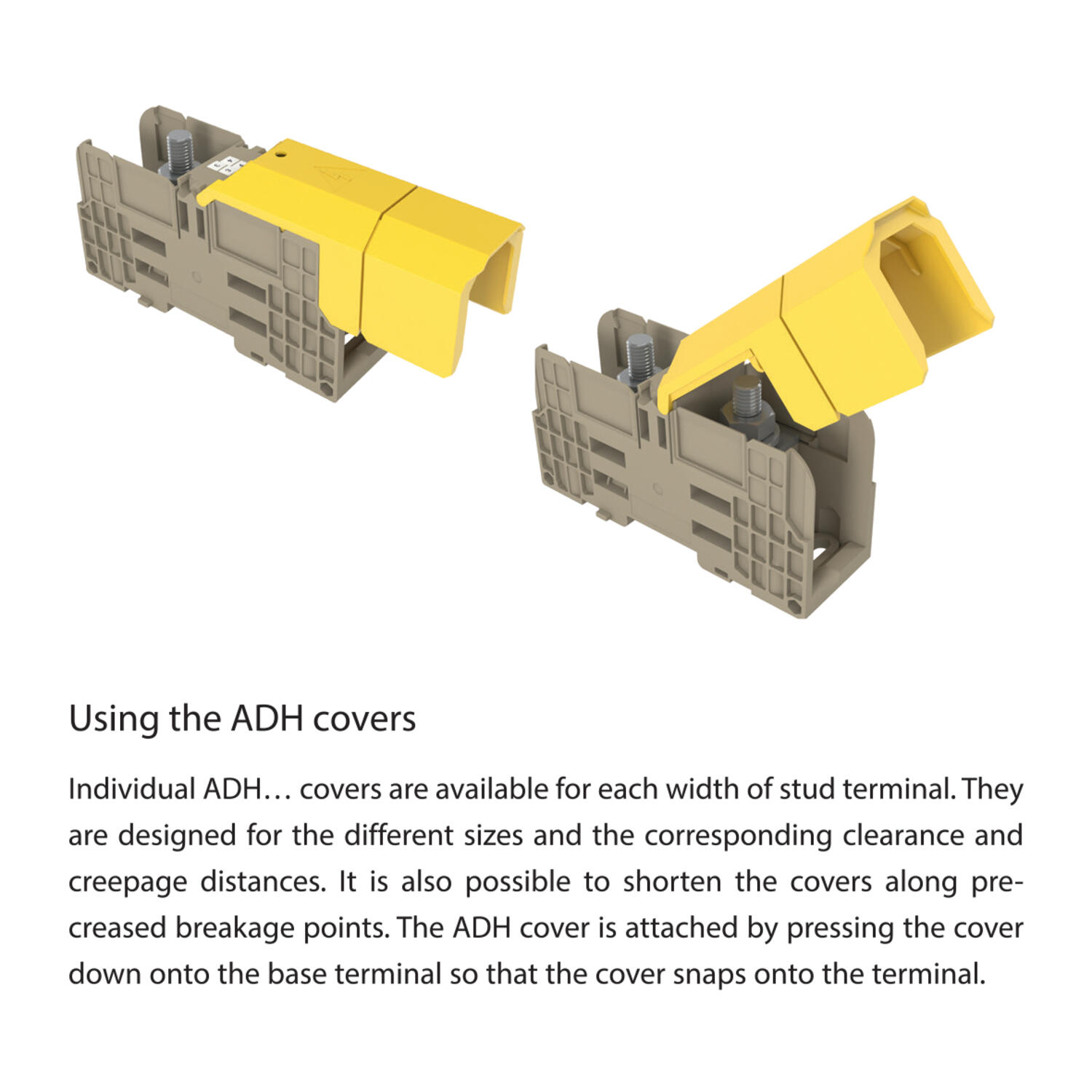

When used together with the ADH hinged covers, the HSKG stud terminals provide outstanding finger and touch protection. The ADH cover is easy to mount; it simply snaps into the side walls of the stud terminals as it is closed.

In this quick and reliable way, touch-safe protection of the terminal points is always guaranteed.



Added features include -



  • Measuring Point located on the ADH covers to allow probes to be inserted without exposing the conductor.
  • Direct or DIN Rail Mount
  • Interlocking housings for improved stability
  • Cross connectable
