General data |
|
|---|---|
| Colour | Blue |
| Approvals | EAC |
| Additional information | for HSKG 120 |
Dimensions |
|
| Length | 110,2 mm |
| Width | 41,9 mm |
| Height | 44,8 mm |
Materials |
|
| Flammability class | UL94-V0 |
| Operating temperature from | -40 °C |
*Invisible Heading* |
|
|---|---|
| Material | Polyamide 6.6 |
| Operating temperature to | 120 °C |
Approvals |
|
| EAC test standard | TR ZU 004/2011 |
Additional data |
|
| Pack size | 10 Â |
| Country of origin | DE |
| Tariff code | 85389099 |
| Weight | 23,1 g |
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Voltage max | Colour | Rated wire cross section | Mounting | Contamination degree | Rated current IEC | Approvals | Additional information | Length | Width | Pitch | Distance to hole centres | Hole diameter | Height | Number of poles | Flammability class | Operating temperature from | Material | Operating temperature to | EAC test standard | Pack size | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

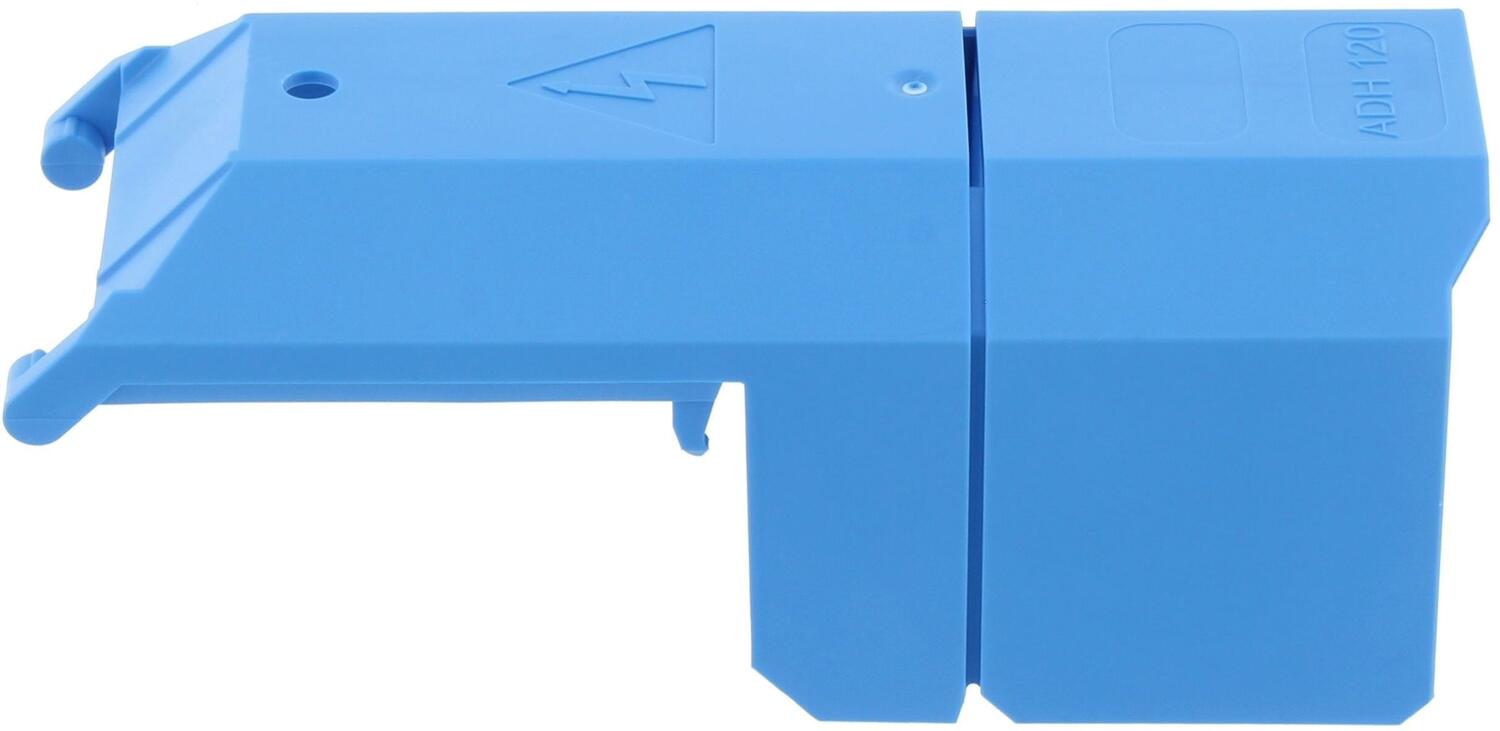

ADH120-Blue, Gullwing cover with flash for HSKG 120, single
Art:
17025.5
Copied
|
|
Blue
|
|
|
|
|
EAC
|
for HSKG 120
|
110,2 mm
|
41,9 mm
|
|
|
|
44,8 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
TR ZU 004/2011
|
10
|
23,1 g
|
| ||

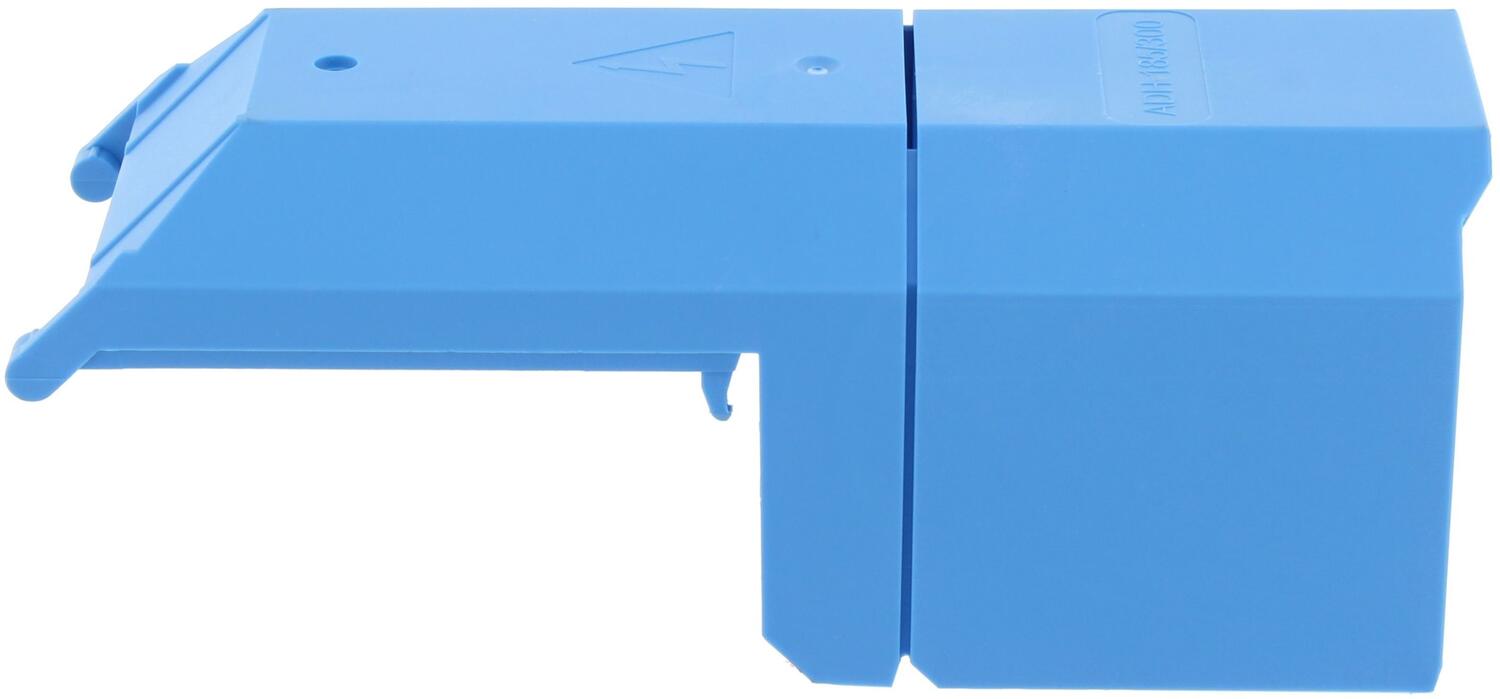

ADH185/300-Blue, Gullwing cover with flash for HSKG 185 & HSKG 300, single
Art:
17123.5
Copied
|
|
Blue
|
|
|
|
|
|
for HSKG 180/300
|
139,5 mm
|
52,9 mm
|
|
|
|
54 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
10
|
38,5 g
|
| ||
ADH120-Yellow, Gullwing cover with flash for HSKG 120, single
Art:
17025.8
Copied
|
|
Yellow
|
|
|
|
|
EAC
|
for HSKG 120
|
110,2 mm
|
41,9 mm
|
|
|
|
44,8 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
TR ZU 004/2011
|
10
|
23,1 g
|
| ||
|

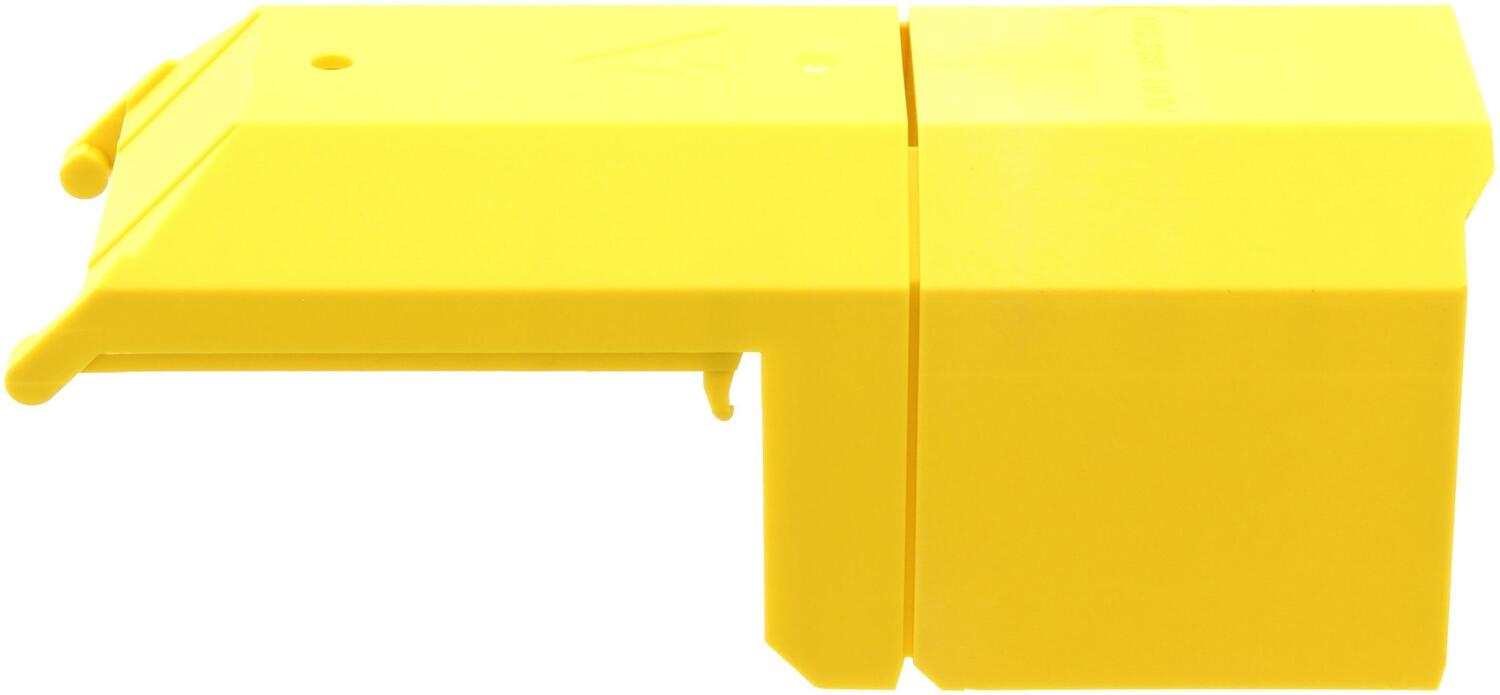

ADH185/300-Yellow, Gullwing cover with flash for HSKG 185 & HSKG 300, single
Art:
17123.8
Copied
|
|
Yellow
|
|
|
|
|
|
for HSKG 180/300
|
139,5 mm
|
52,9 mm
|
|
|
|
54 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
10
|
38,5 g
|
| ||
ADH 35 Blue, Gullwing cover with flash for HSKG 35, single
Art:
17275.5
Copied
|
|
Blue
|
|
|
|
|
|
for HSKG 35
|
63,2 mm
|
26,7 mm
|
|
|
|
31,8 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
10
|
6,3 g
|
| ||
|

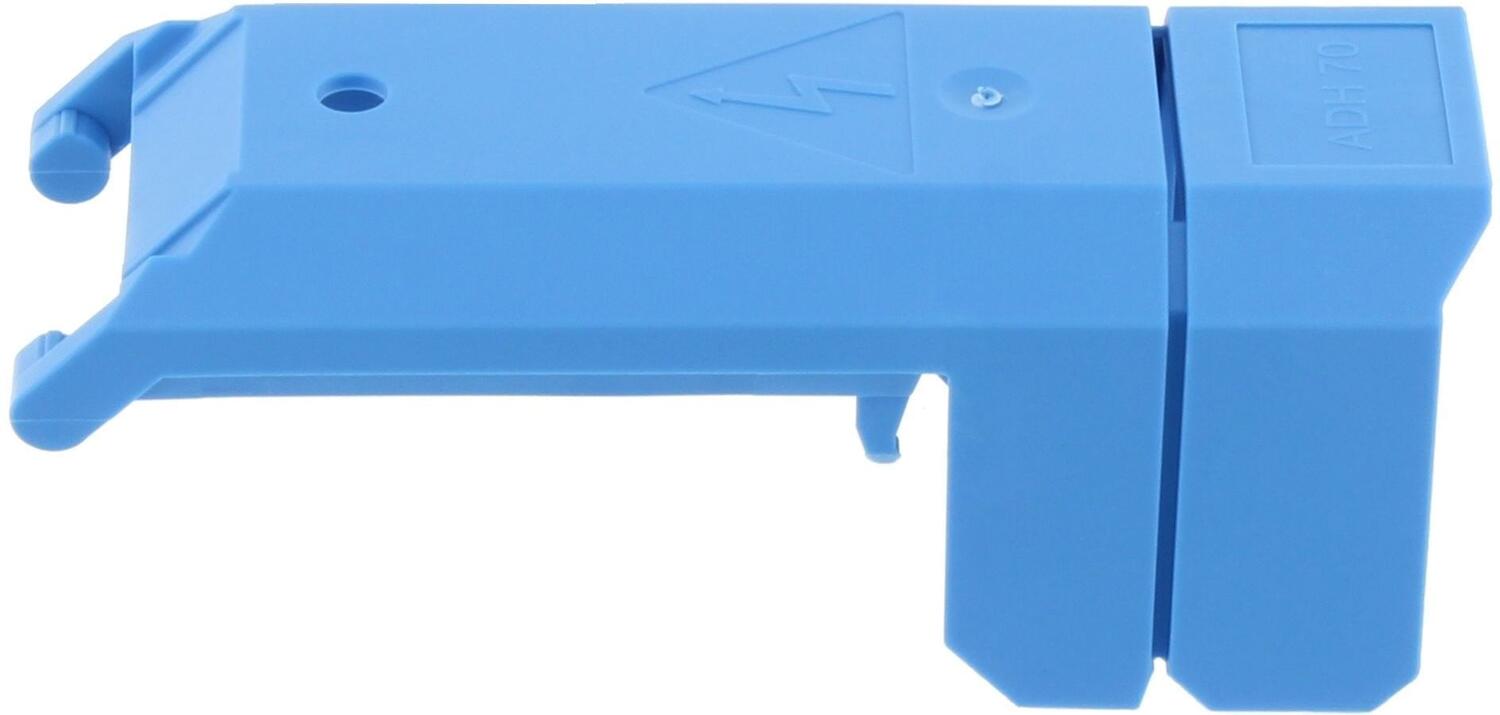

ADH 70 Blue, Gullwing cover with flash for HSKG 70, single
Art:
17268.5
Copied
|
|
Blue
|
|
|
|
|
|
for HSKG 70
|
86,8 mm
|
31,9 mm
|
|
|
|
33,7 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
10
|
10,4 g
|
| ||

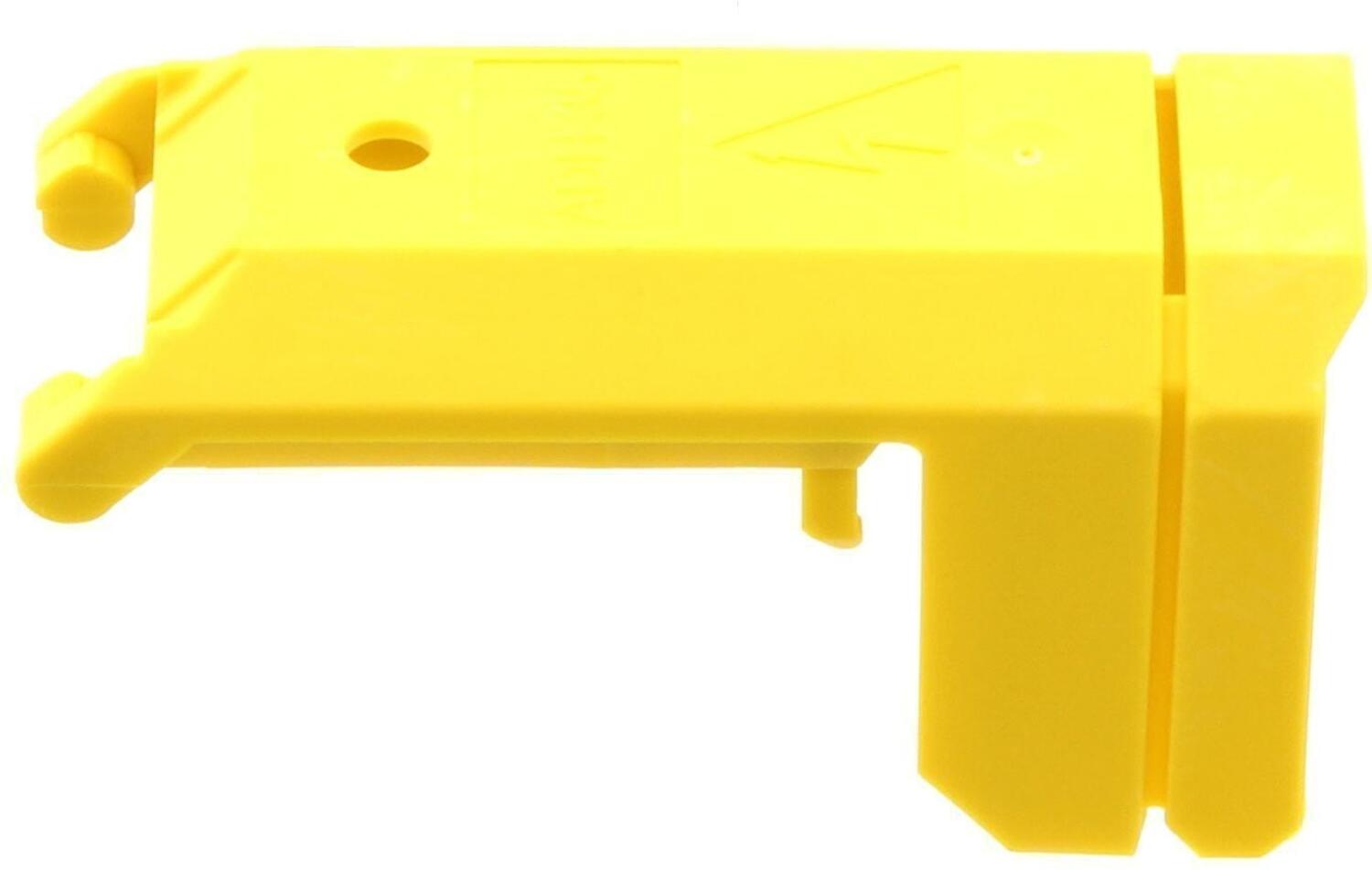

ADH 35 Yellow, Gullwing cover with flash for HSKG 35, single
Art:
17275.8
Copied
|
|
Yellow
|
|
|
|
|
|
for HSKG 35
|
63,2 mm
|
26,7 mm
|
|
|
|
31,8 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
10
|
6,3 g
|
| ||

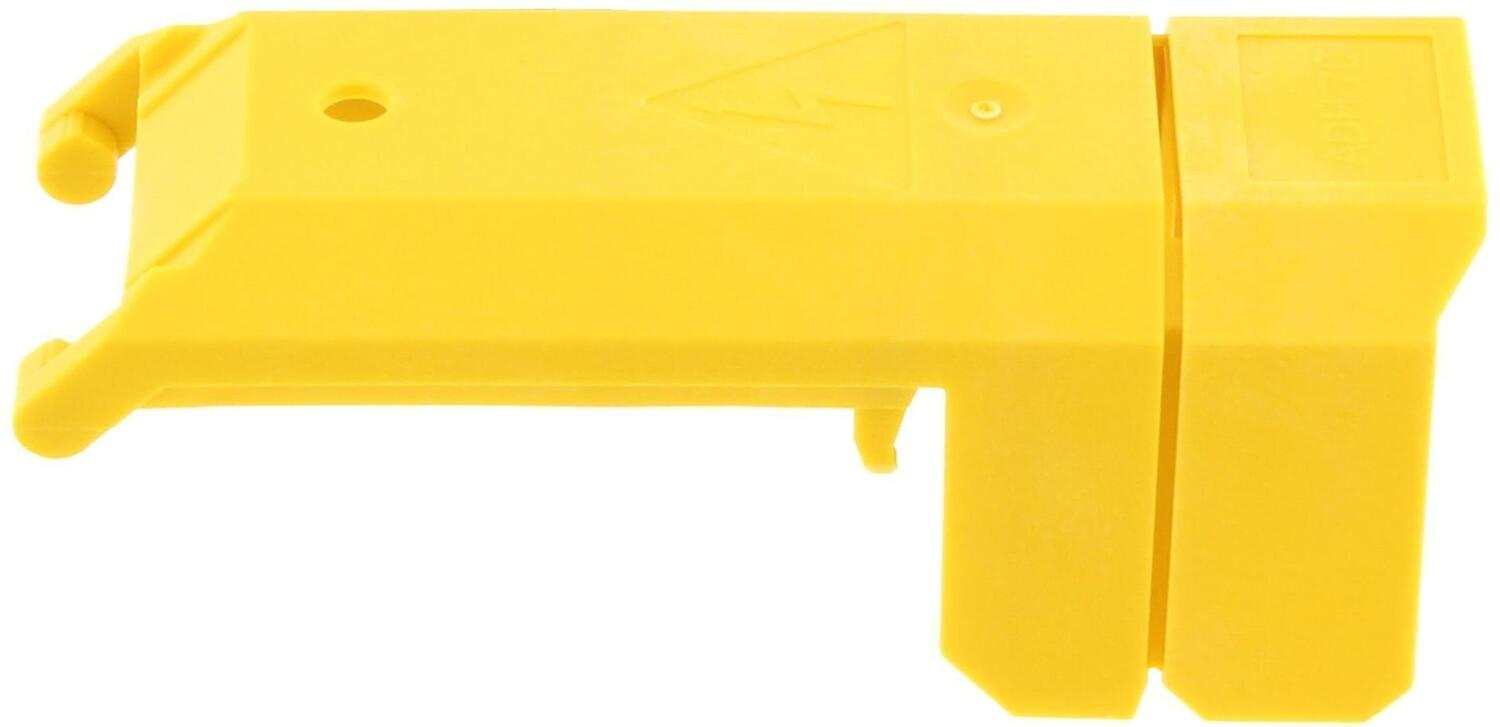

ADH 70 Yellow, Gullwing cover with flash for HSKG 70, single
Art:
17268.8
Copied
|
|
Yellow
|
|
|
|
|
|
for HSKG 70
|
86,8 mm
|
31,9 mm
|
|
|
|
33,7 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
10
|
10,4 g
|
| ||
ADH35-BEIGE COVER HSKG M6
Art:
17275.2
Copied
|
|
Beige
|
|
|
|
|
|
for HSKG 35
|
63,2 mm
|
26,7 mm
|
|
|
|
31,8 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
10
|
6,3 g
|
| ||

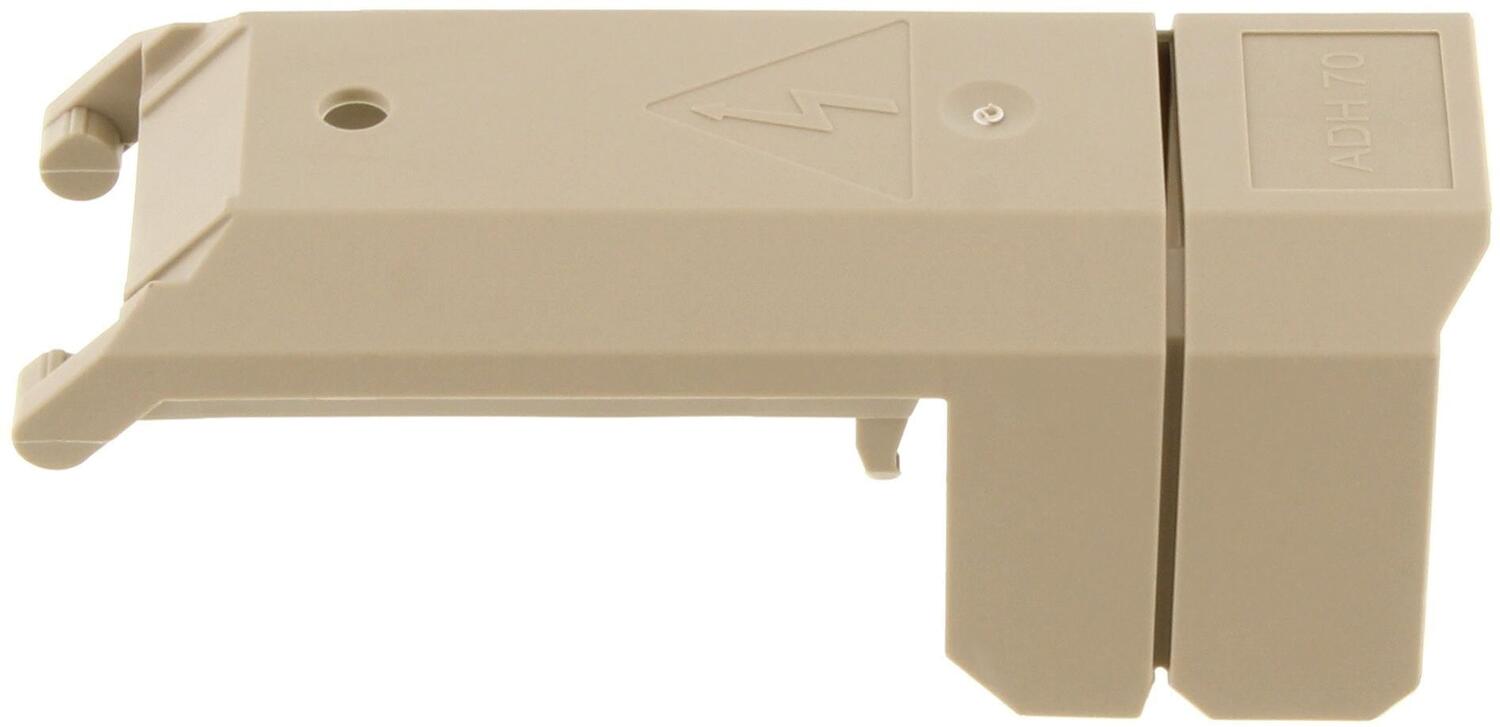

ADH 70 Beige, Gullwing cover with flash for HSKG 70, single
Art:
17268.2
Copied
|
|
Beige
|
|
|
|
|
|
for HSKG 70
|
86,8 mm
|
31,9 mm
|
|
|
|
33,7 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
10
|
10,4 g
|
| ||

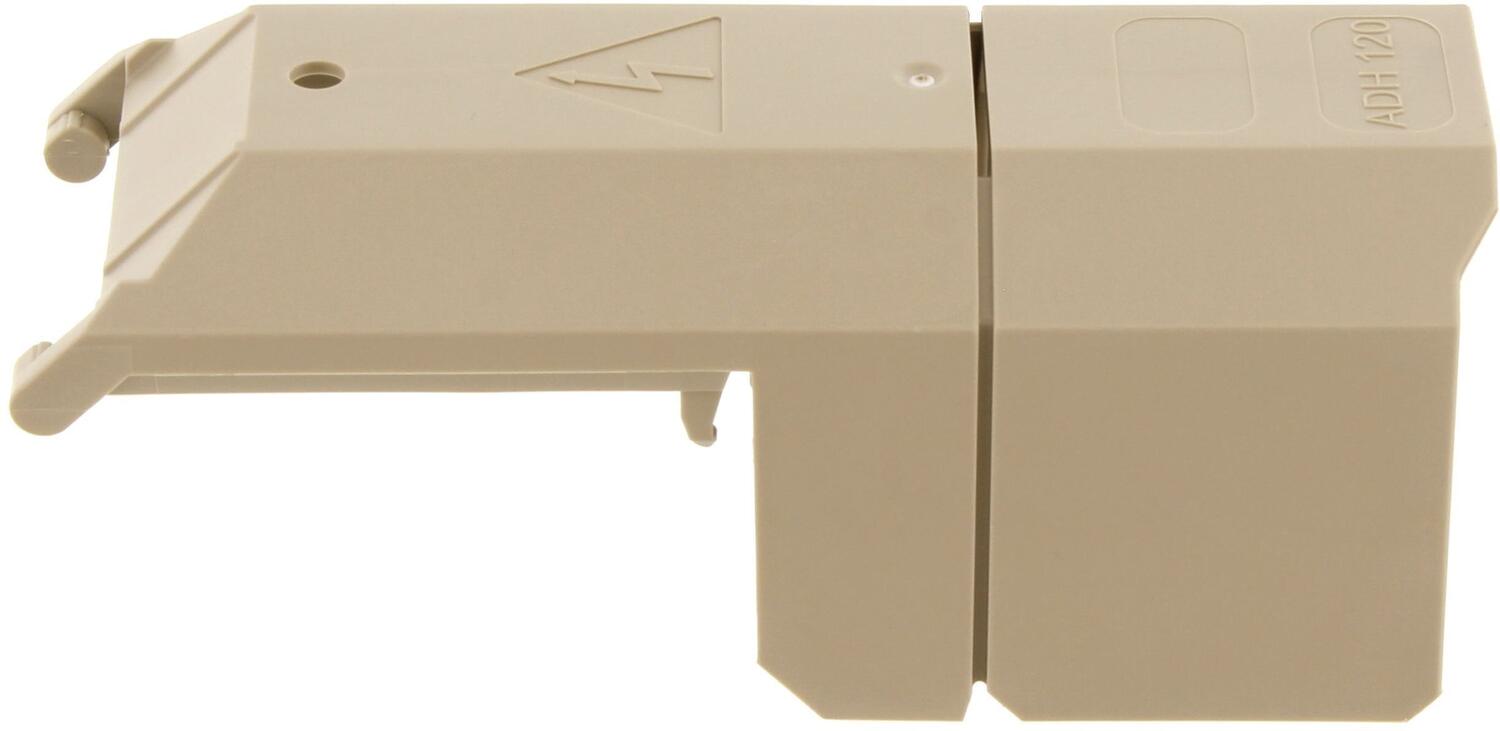

ADH 120 Beige, Gullwing cover with flash for HSKG 120, single
Art:
17025.2
Copied
|
|
Beige
|
|
|
|
|
EAC
|
for HSKG 120
|
110,2 mm
|
41,9 mm
|
|
|
|
44,8 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
TR ZU 004/2011
|
10
|
23,1 g
|
| ||

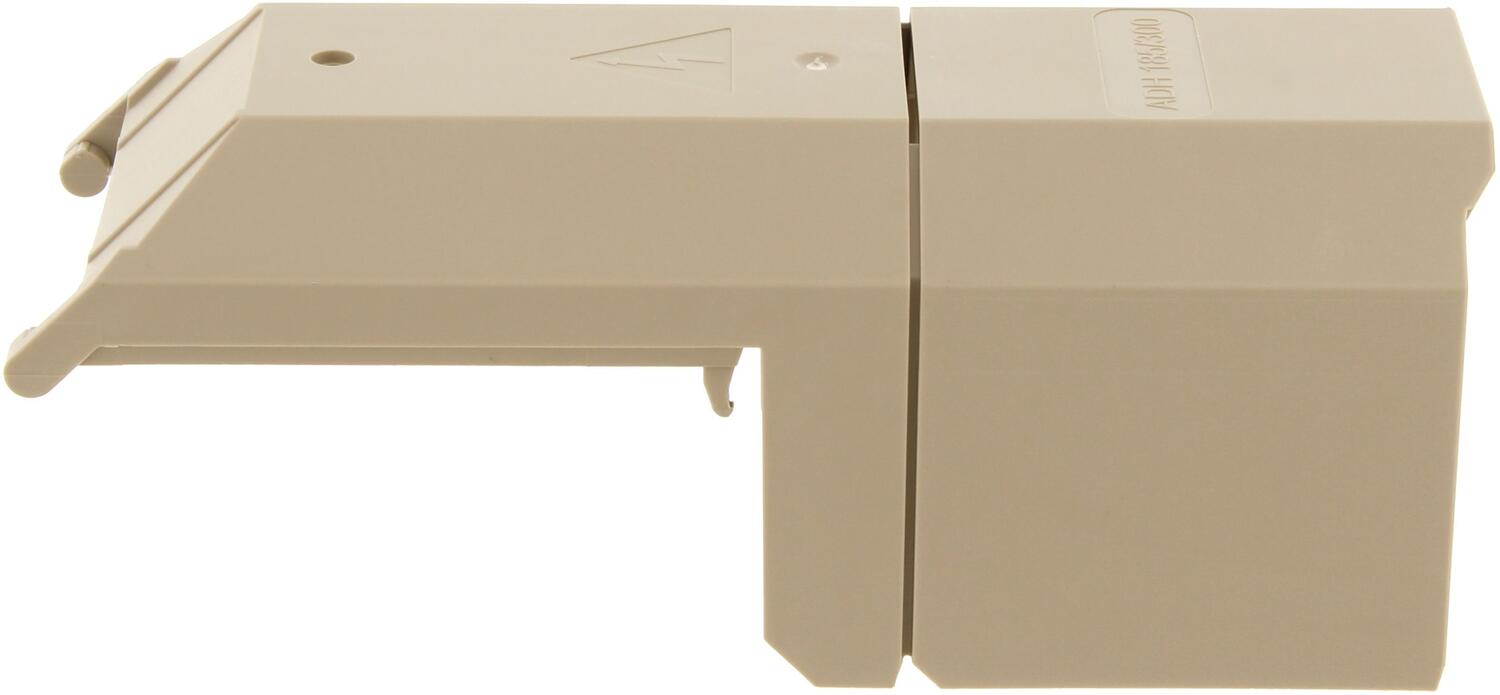

ADH 185/300 Beige, Gullwing cover with flash for HSKG 185/300, single
Art:
17123.2
Copied
|
|
Beige
|
|
|
|
|
|
for HSKG 180/300
|
139,5 mm
|
52,9 mm
|
|
|
|
54 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
10
|
38,5 g
|
| ||

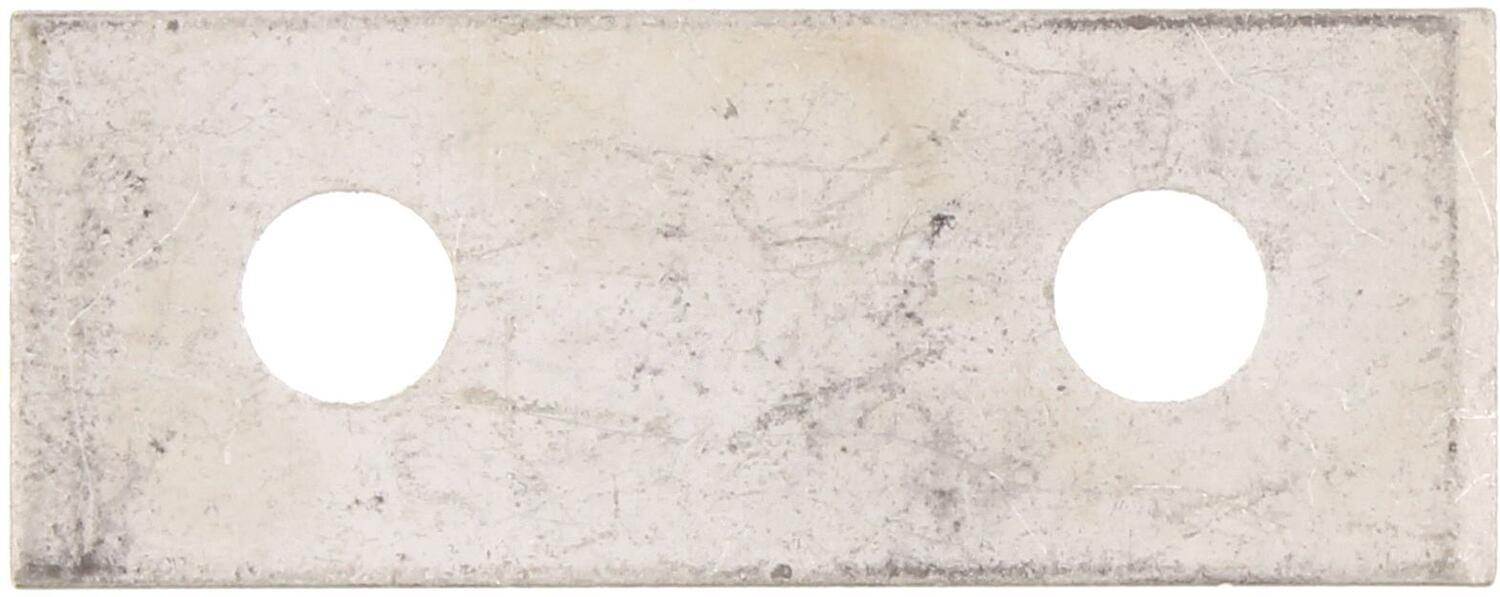

QS 2/120/10, 2 way cross connector for HSKG 120/M10
Art:
17241.0
Copied
|
1000 V
|
|
120 mm²
|
Screw in
|
3
|
269 A
|
|
for HSKG 120/M10
|
30 mm
|
77 mm
|
42 mm
|
42 mm
|
11 mm
|
4 mm
|
2
|
|
|
Copper
|
|
|
10
|
75,3 g
|
| ||

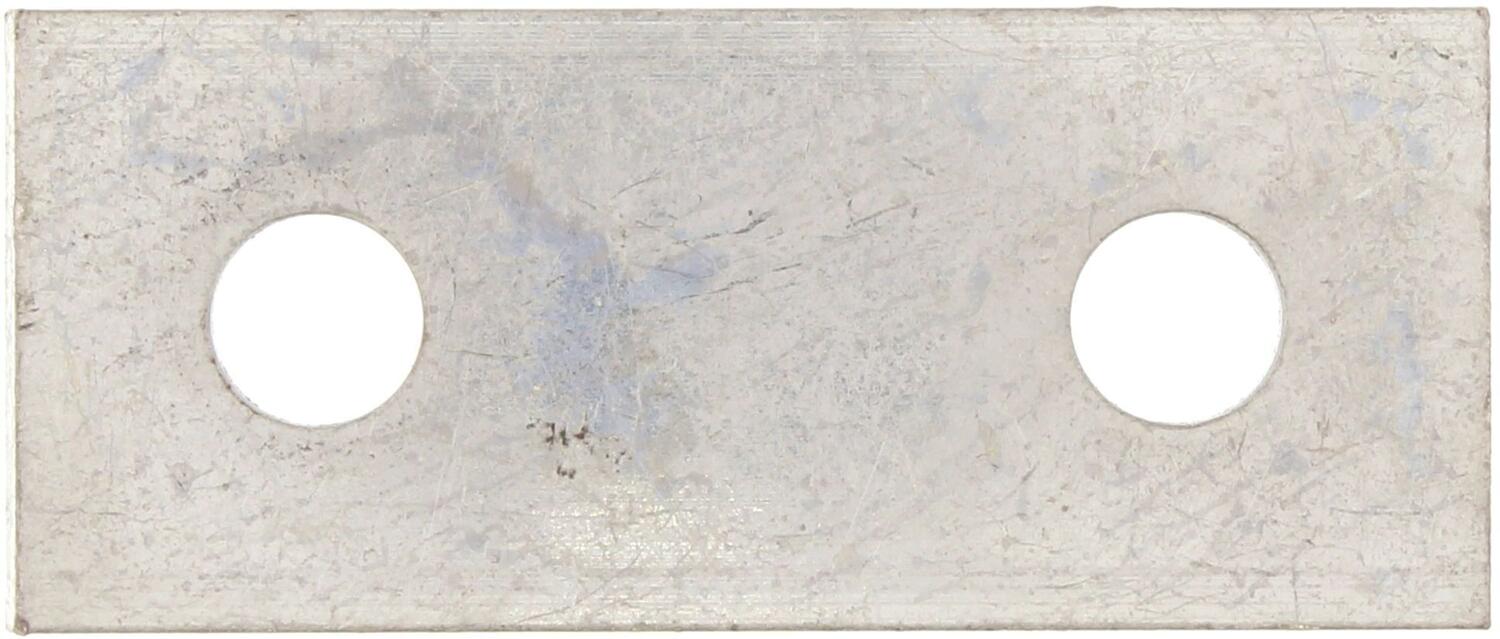

QS 2/185/12, 2 way cross connector for HSKG 185/M12
Art:
17243.0
Copied
|
1000 V
|
|
185 mm²
|
Screw in
|
3
|
353 A
|
|
for HSKG 185/M12
|
40 mm
|
95 mm
|
55 mm
|
55 mm
|
13,5 mm
|
4 mm
|
2
|
|
|
Copper
|
|
|
10
|
124,4 g
|
| ||

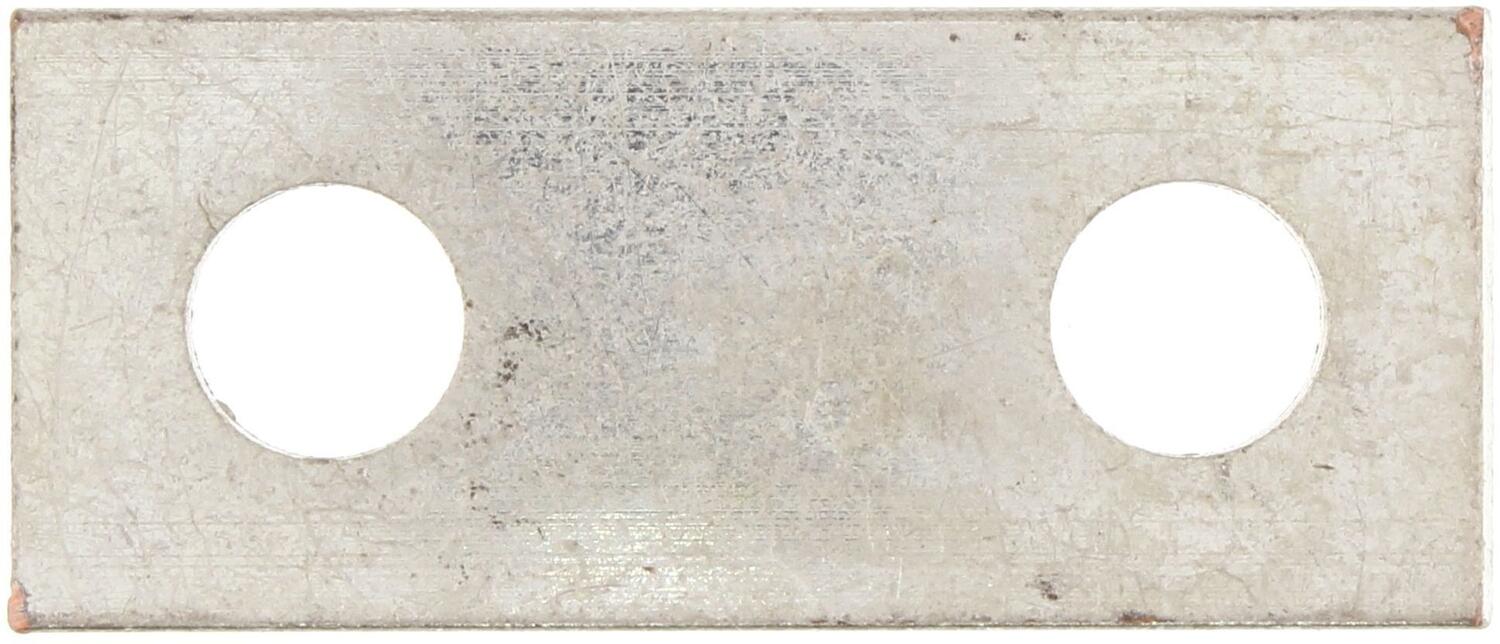

QS 2/300/16, 2 way cross connector for HSKG 300/M16
Art:
17245.0
Copied
|
1000 V
|
|
300 mm²
|
Screw in
|
3
|
520 A
|
|
for HSKG 300/M16
|
40 mm
|
95 mm
|
55 mm
|
55 mm
|
17,5 mm
|
5 mm
|
2
|
|
|
Copper
|
|
|
10
|
149,4 g
|
| ||

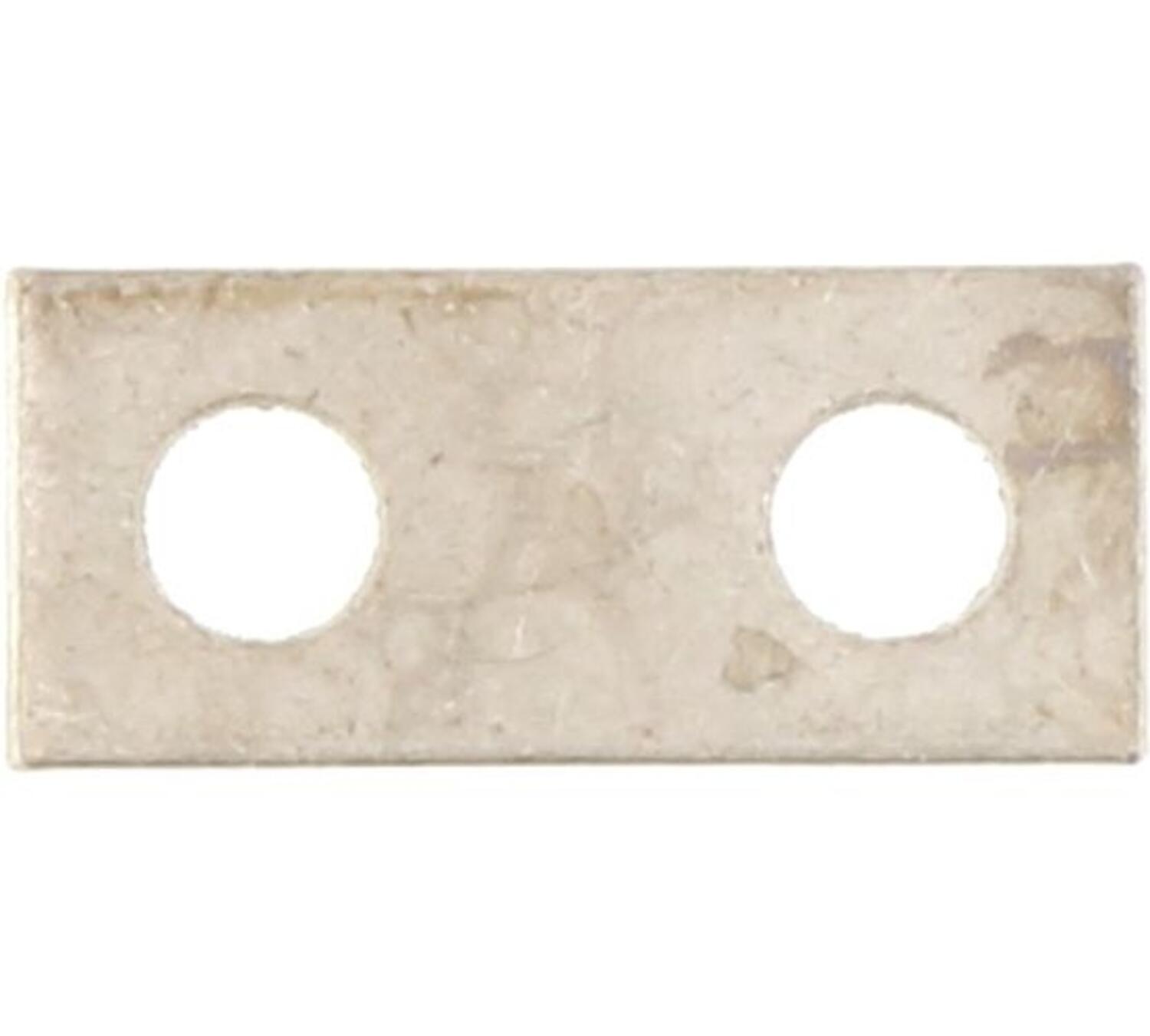

QS 2/16, 2 way cross connector for HSK 16/M5
Art:
17008.0
Copied
|
1000 V
|
|
16 mm²
|
Screw in
|
3
|
76 A
|
|
for HSK 16/M5 B
|
12 mm
|
27 mm
|
15 mm
|
15 mm
|
5,6 mm
|
4 mm
|
2
|
|
|
Copper
|
|
|
10
|
9,8 g
|
| ||
QS 2/35, 2 way cross connector for HSK 35/M6
Art:
17010.0
Copied
|
1000 V
|
|
35 mm²
|
Screw in
|
3
|
125 A
|
|
for HSK 35/M6 B | HSK 35/M6 B/B
|
15 mm
|
32 mm
|
18 mm
|
18 mm
|
6,6 mm
|
4 mm
|
2
|
|
|
Copper
|
|
|
10
|
15,2 g
|
| ||

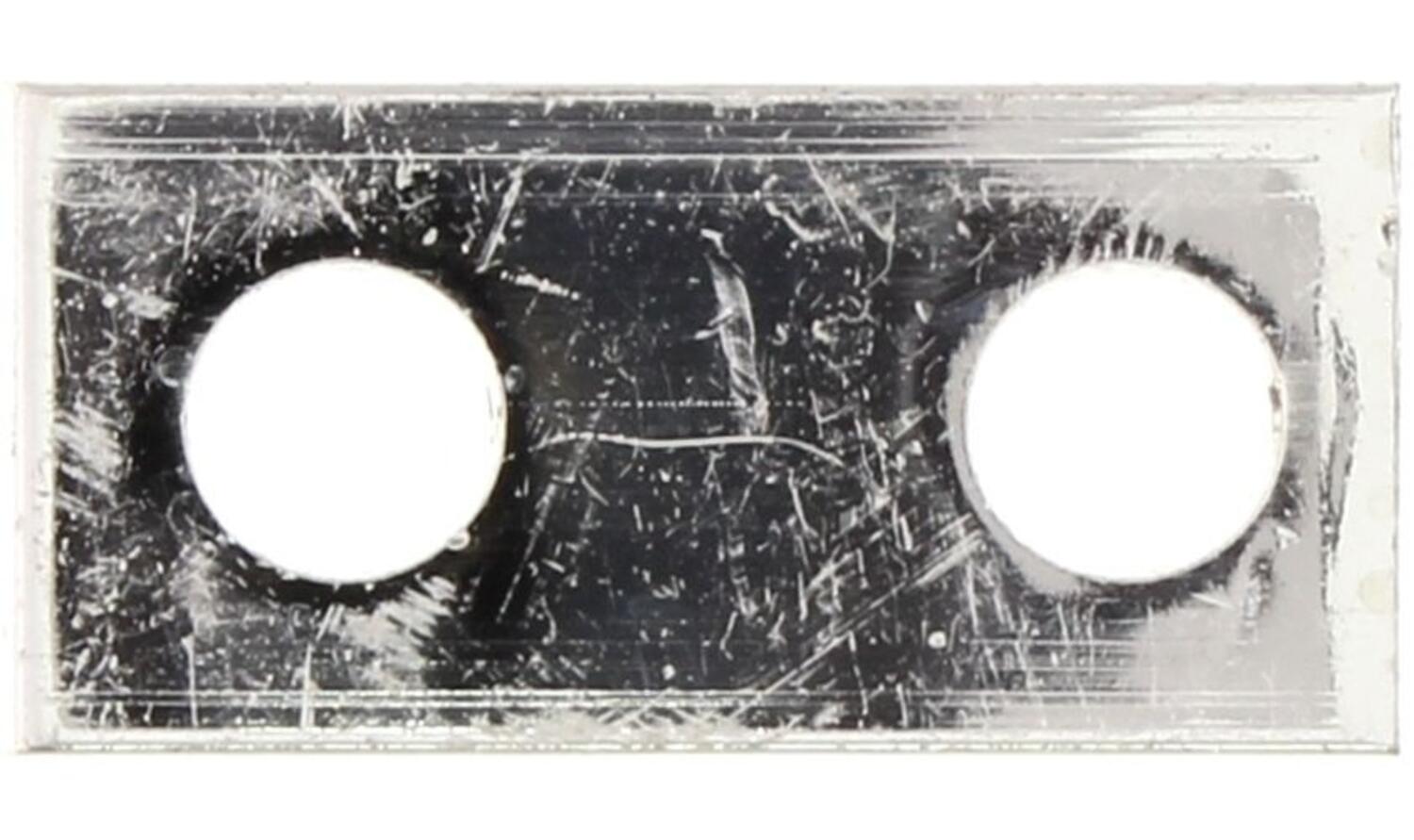

QS 2/50, 2 way cross connector for HSK 50/M8
Art:
17012.0
Copied
|
1000 V
|
|
50 mm²
|
Screw in
|
3
|
150 A
|
|
for HSK 50/M8 B | HSK 50/M8 B/B
|
20 mm
|
41 mm
|
23 mm
|
23 mm
|
8,6 mm
|
4 mm
|
2
|
|
|
Copper
|
|
|
10
|
25,2 g
|
| ||

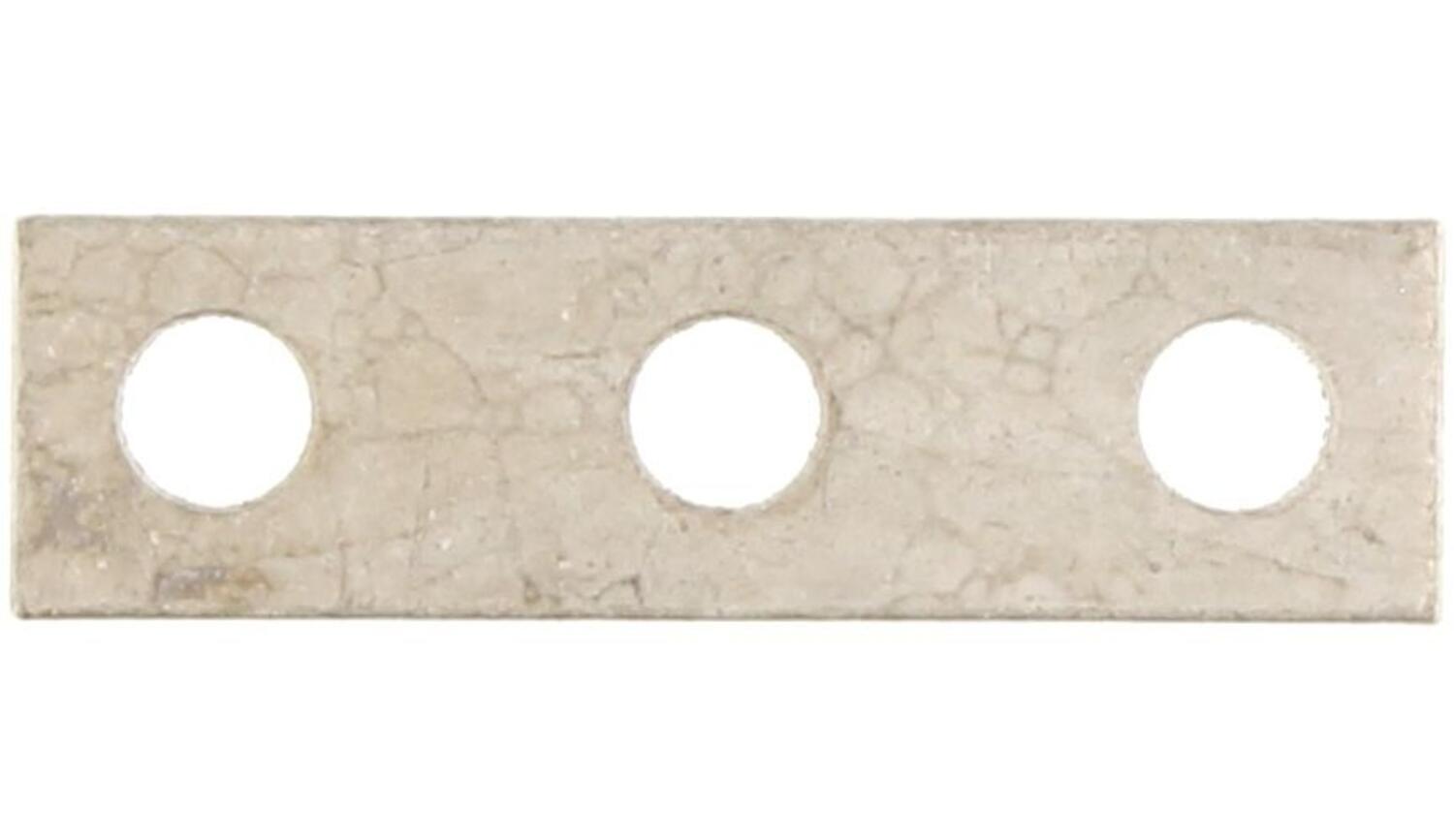

QS 3/16, 3 way cross connector for HSK 16/M5
Art:
17009.0
Copied
|
1000 V
|
|
16 mm²
|
Screw in
|
3
|
76 A
|
|
for HSK 16/M5 B
|
12 mm
|
42 mm
|
15 mm
|
15 mm
|
5,6 mm
|
4 mm
|
3
|
|
|
Copper
|
|
|
10
|
15,8 g
|
| ||

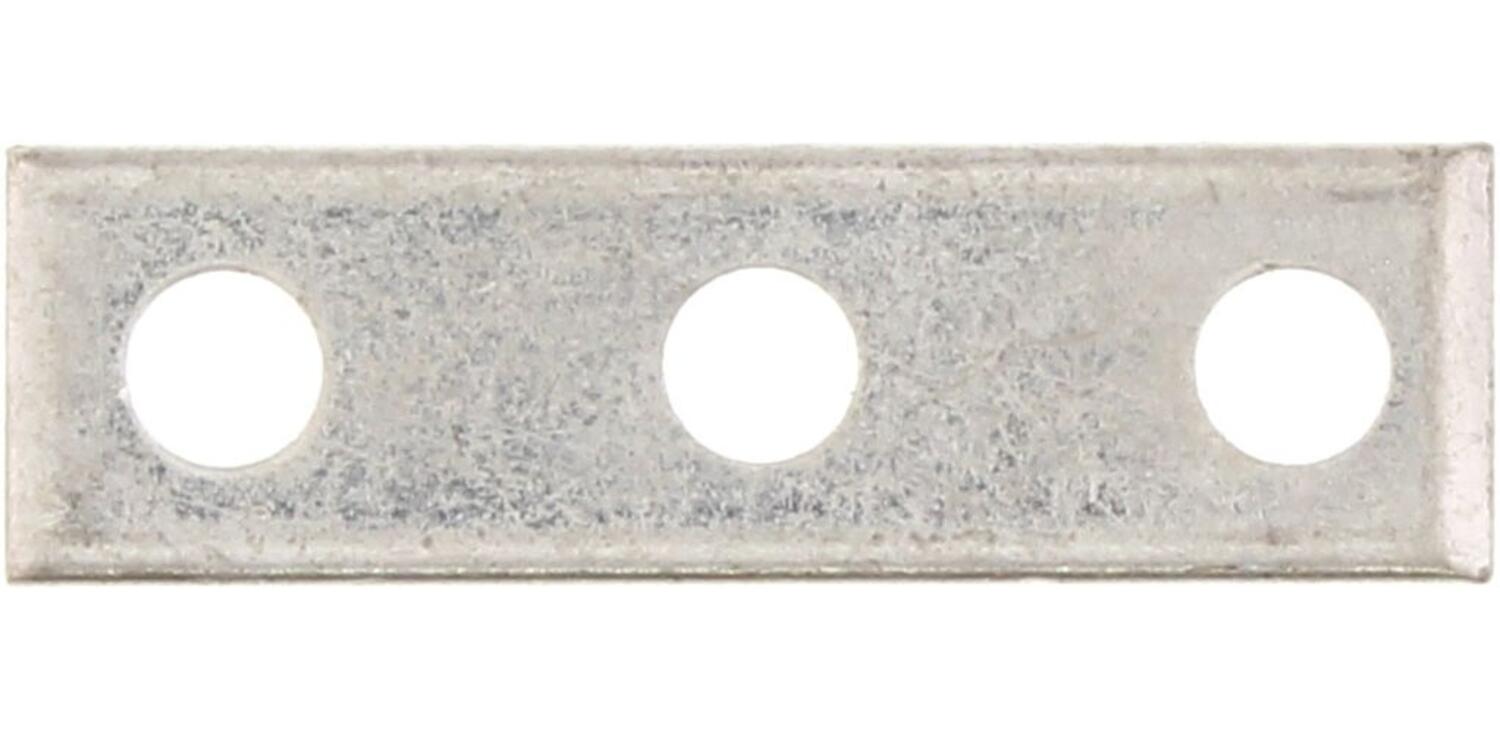

QS 3/35, 3 way cross connector for HSK 35/M6
Art:
17011.0
Copied
|
1000 V
|
|
35 mm²
|
Screw in
|
3
|
125 A
|
|
for HSK 35/M6 B | HSK 35/M6 B/B
|
15 mm
|
50 mm
|
18 mm
|
18 mm
|
6,6 mm
|
4 mm
|
3
|
|
|
Copper
|
|
|
10
|
23,2 g
|
| ||

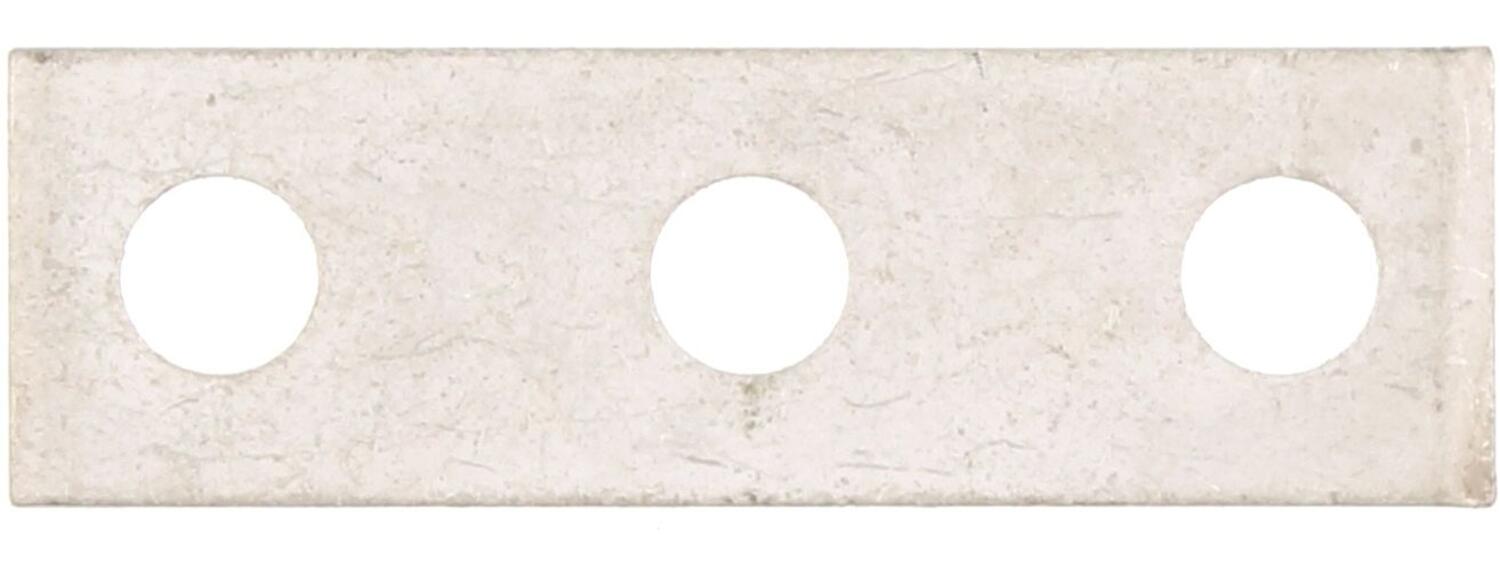

QS 3/50, 3 way cross connector for HSK 50/M8
Art:
17013.0
Copied
|
1000 V
|
|
50 mm²
|
Screw in
|
3
|
150 A
|
|
for HSK 50/M8 B | HSK 50/M8 B/B
|
20 mm
|
64 mm
|
23 mm
|
23 mm
|
8,6 mm
|
4 mm
|
3
|
|
|
Copper
|
|
|
10
|
40,2 g
|
| ||
|

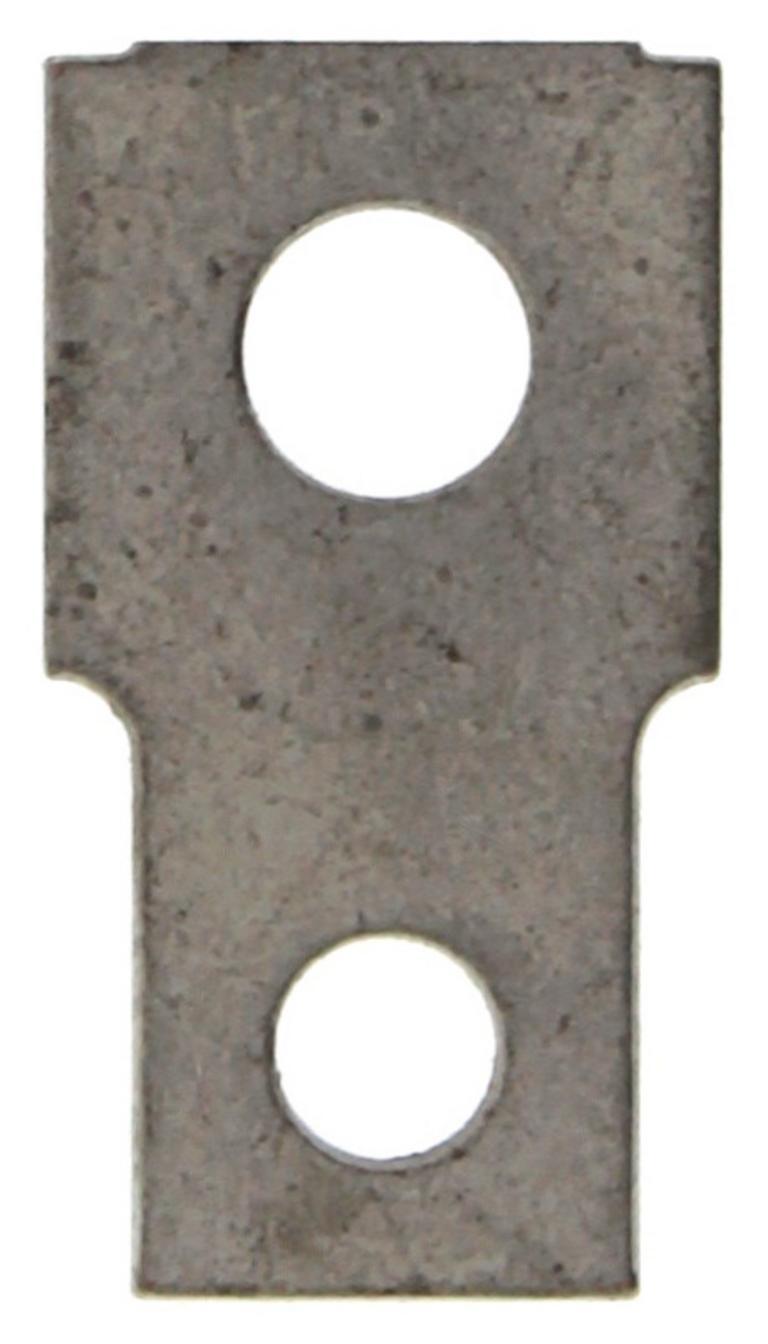

QS 2, 2 way cross connector M6 to M8 for HSK 35
Art:
17028.2
Copied
|
1000 V
|
|
35 mm²
|
Screw in
|
3
|
150 A
|
|
for HSK 35 and HSK 50
|
20 mm
|
37 mm
|
20,5 mm
|
20,5 mm
|
|
4 mm
|
2
|
|
|
Copper
|
|
|
1
|
19,9 g
|
| ||
|

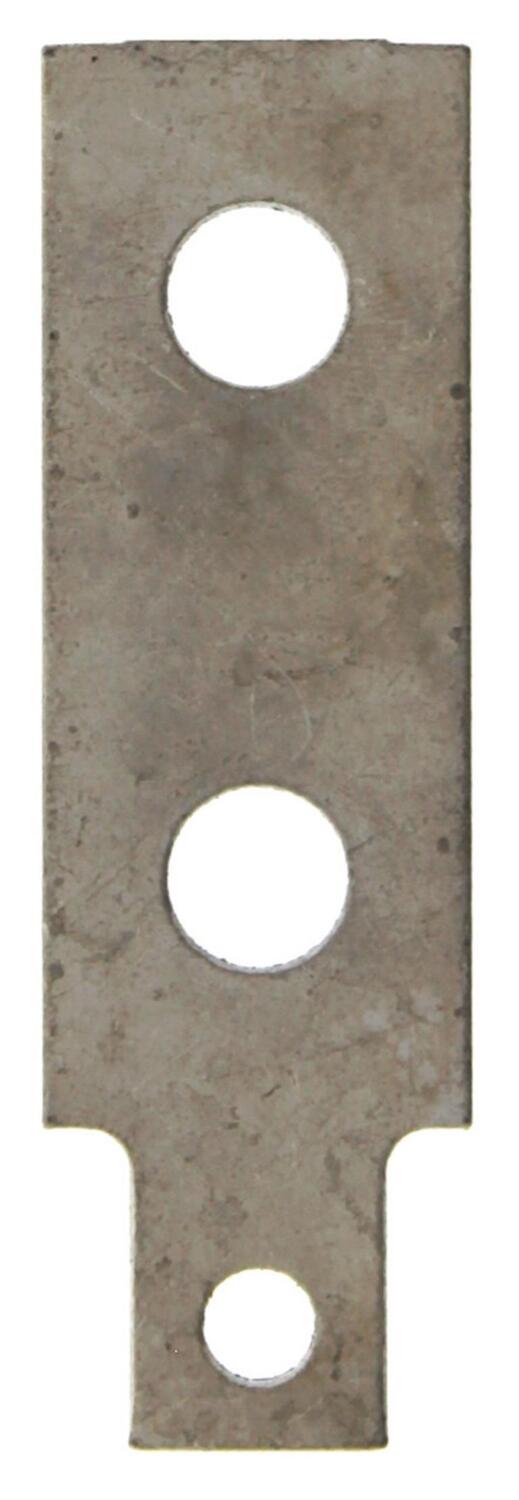

QS 3, 3 way cross connector M6 to M10/12 for HSK 35
Art:
17029.2
Copied
|
1000 V
|
|
35 mm²
|
Screw in
|
3
|
269 A
|
|
for HSK 35 and 2xHSK 120
|
25 mm
|
82 mm
|
|
|
|
4 mm
|
3
|
|
|
Copper
|
|
|
1
|
59,41 g
|
| ||

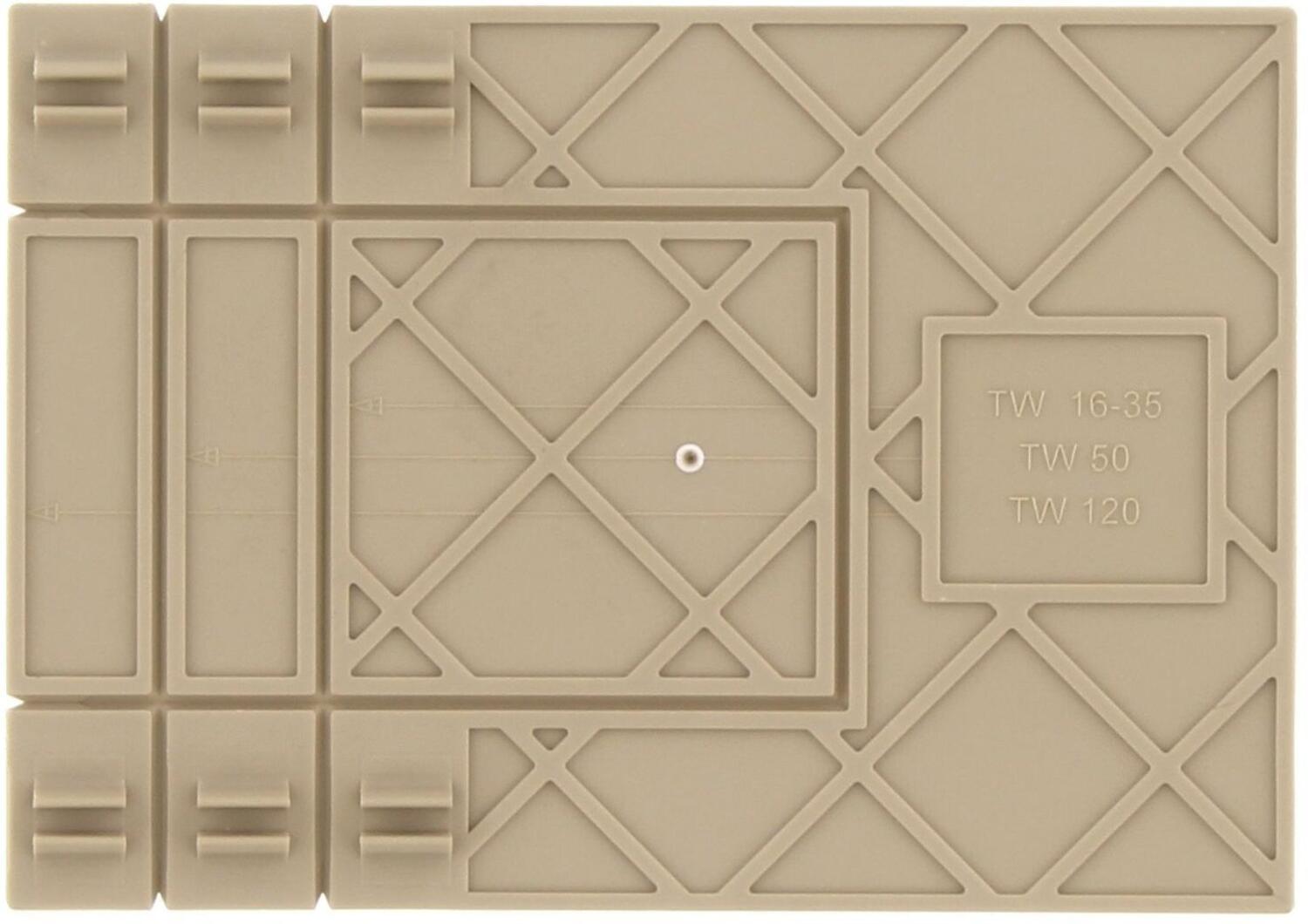

TW 16-120, Partition plate for HSK16…120 single studs
Art:
17018.2
Copied
|
|
Beige
|
|
|
|
|
|
for HSK 16-120 B
|
50 mm
|
2 mm
|
|
|
|
80 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
20
|
5,99 g
|
| ||

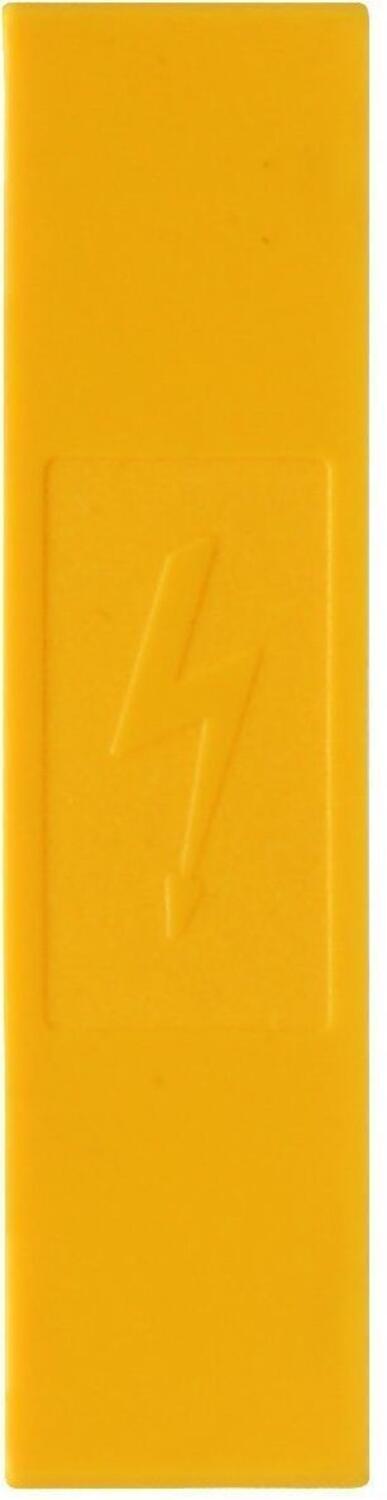

AD16, Yellow cover for HSK 16
Art:
17019.8
Copied
|
|
Yellow
|
|
|
|
|
|
for HSK 16 B
|
52 mm
|
13 mm
|
|
|
|
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
20
|
1,38 g
|
| ||

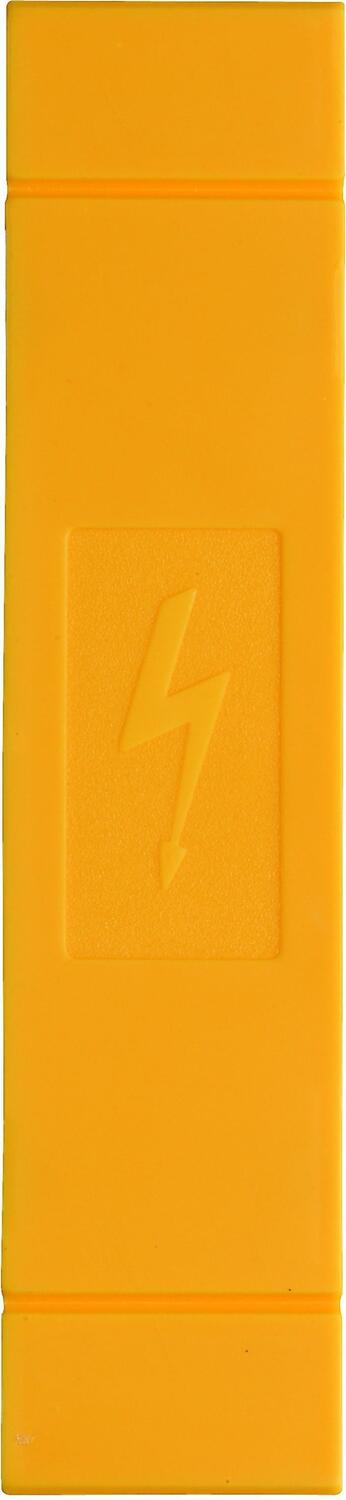

AD35, Yellow cover for HSK 35
Art:
17020.8
Copied
|
|
Yellow
|
|
|
|
|
|
for HSK 35
|
70 mm
|
16 mm
|
|
|
|
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
20
|
2,18 g
|
| ||

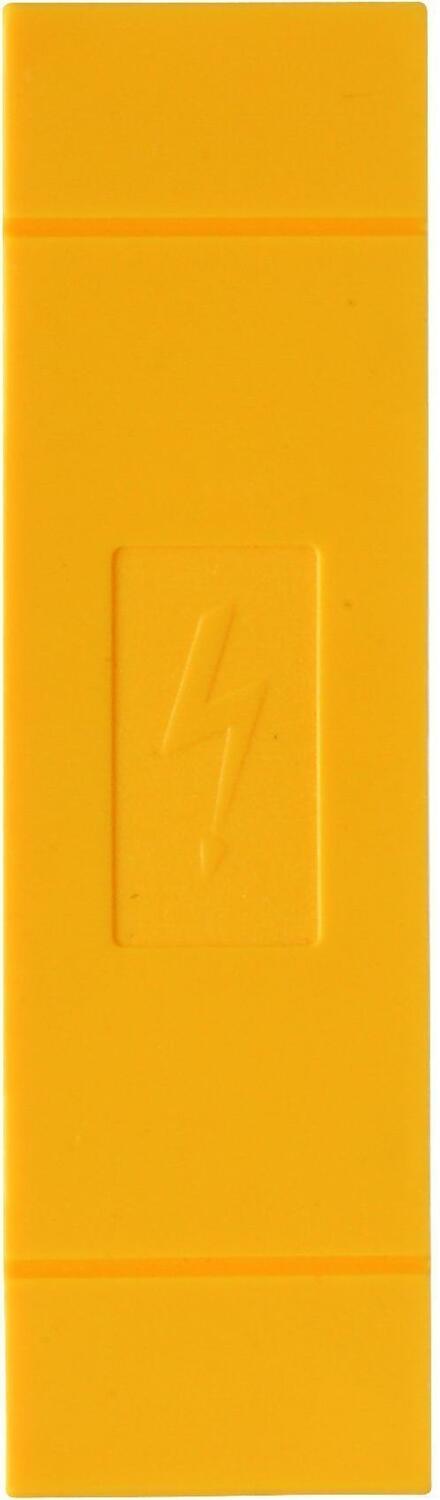

AD50, Yellow cover for HSK 50
Art:
17021.8
Copied
|
|
Yellow
|
|
|
|
|
|
for HSK 50
|
75 mm
|
21 mm
|
|
|
|
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
20
|
2,96 g
|
| ||

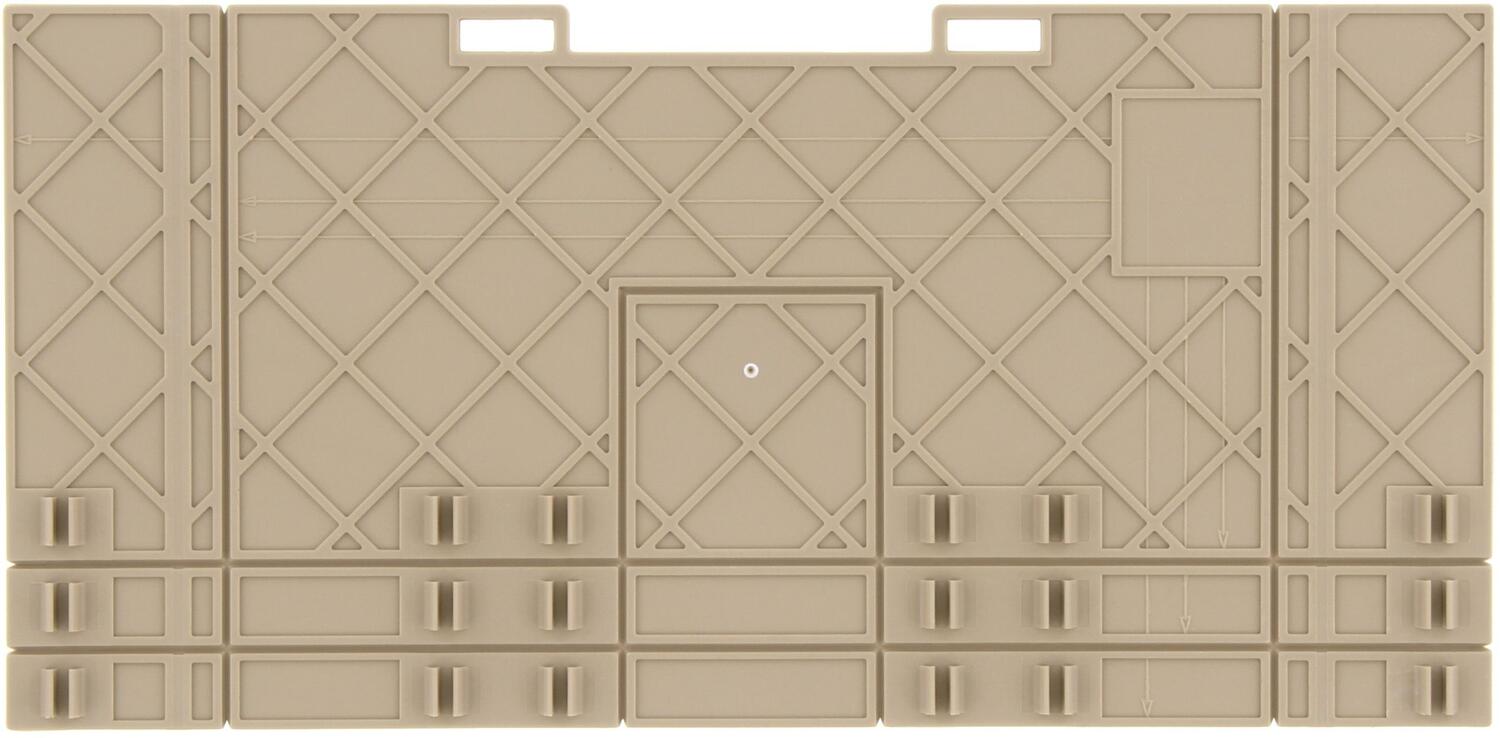

TW 35-120/B/B, Partition plate for HSK 35-120 dual studs
Art:
17022.2
Copied
|
|
Beige
|
|
|
|
|
|
for HSK 35-120 B/B
|
156 mm
|
2 mm
|
|
|
|
76 mm
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
20
|
21,79 g
|
| ||

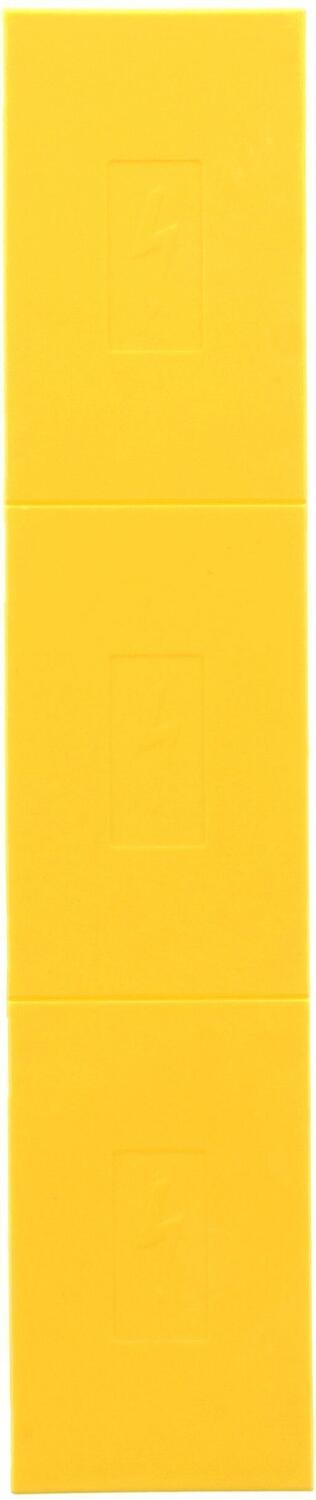

AD120, Yellow cover for HSK 120
Art:
17026.8
Copied
|
|
Yellow
|
|
|
|
|
|
for HSK 120
|
156 mm
|
32 mm
|
|
|
|
|
|
UL94-V0
|
-40 °C
|
Polyamide 6.6
|
120 °C
|
|
20
|
8,7 g
|
| ||

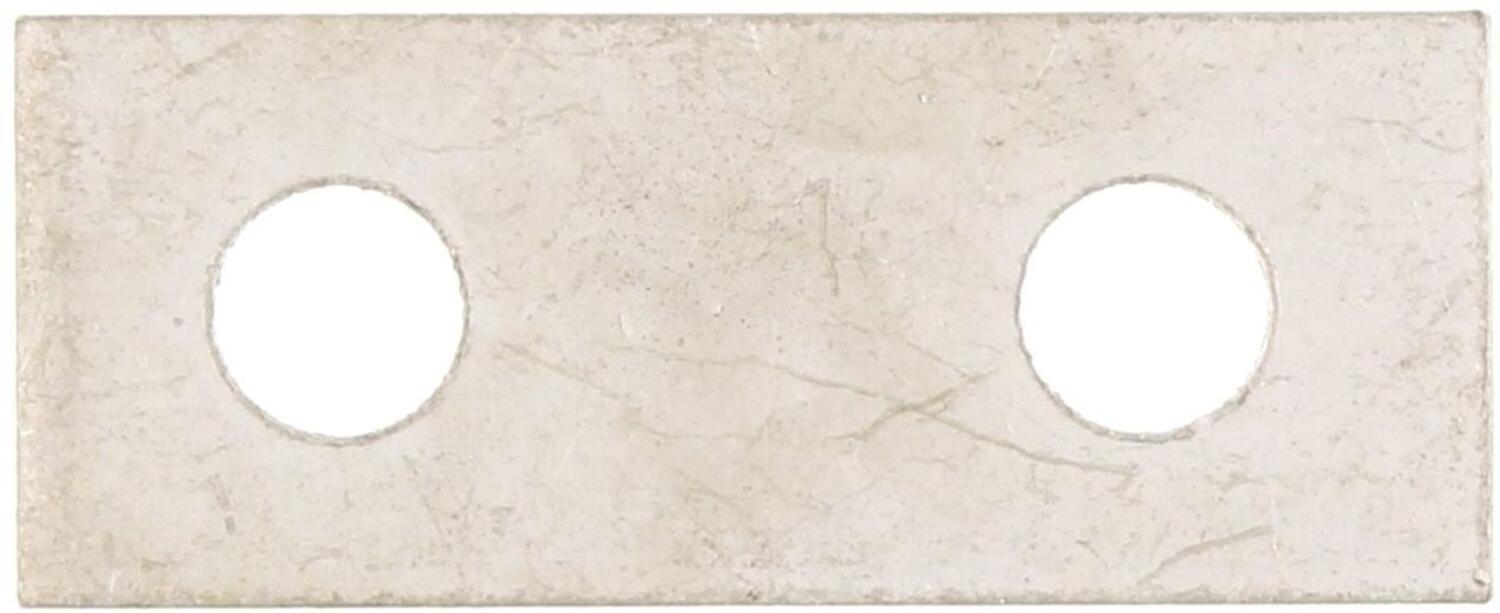

QS 2/120/10, 2 way cross connector for HSK 120/M10
Art:
17014.0
Copied
|
1000 V
|
|
120 mm²
|
Screw in
|
3
|
269 A
|
|
for HSK 120/M10 B | HSK 120/M10 B/B
|
25 mm
|
62 mm
|
34 mm
|
34 mm
|
10,6 mm
|
4 mm
|
2
|
|
|
Copper
|
|
|
10
|
49,4 g
|
| ||

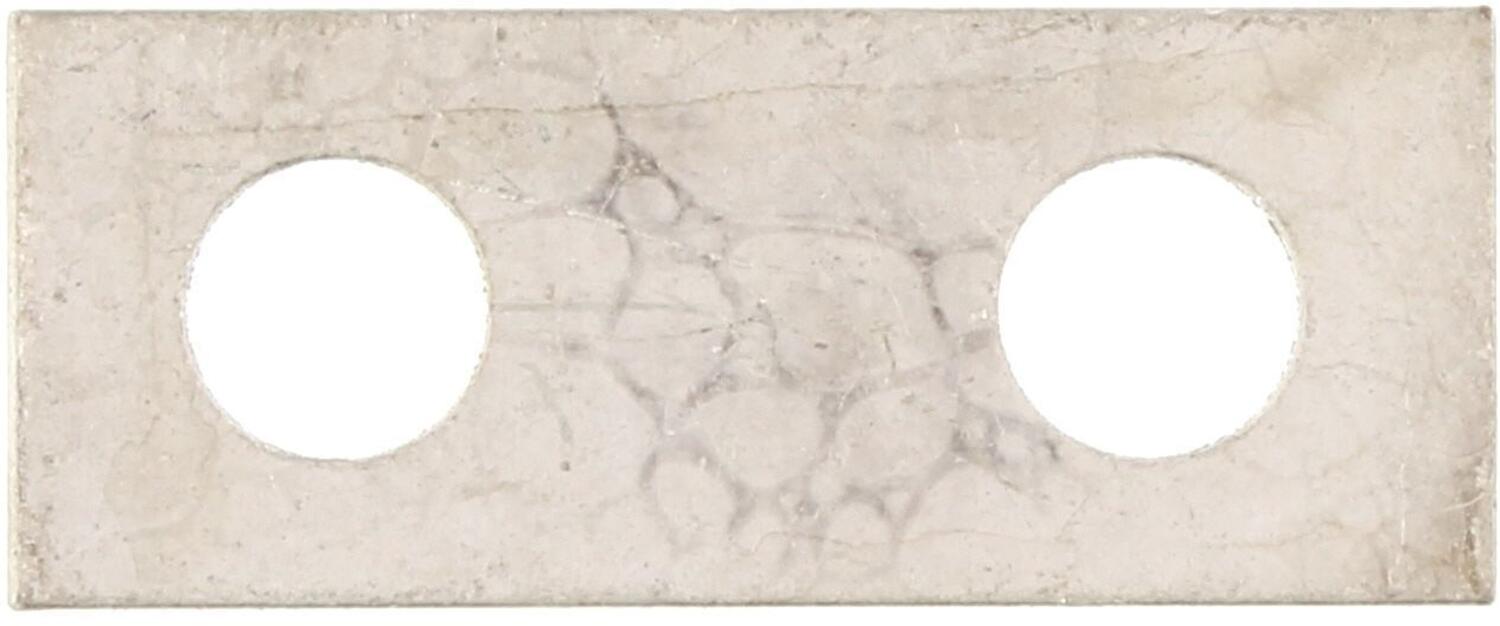

QS 2/120/12, 2 way cross connector for HSK 120/M12
Art:
17016.0
Copied
|
1000 V
|
|
120 mm²
|
Screw in
|
3
|
269 A
|
|
for HSK 120/M12 B
|
25 mm
|
62 mm
|
34 mm
|
34 mm
|
12,6 mm
|
4 mm
|
2
|
|
|
Copper
|
|
|
10
|
46,6 g
|
| ||

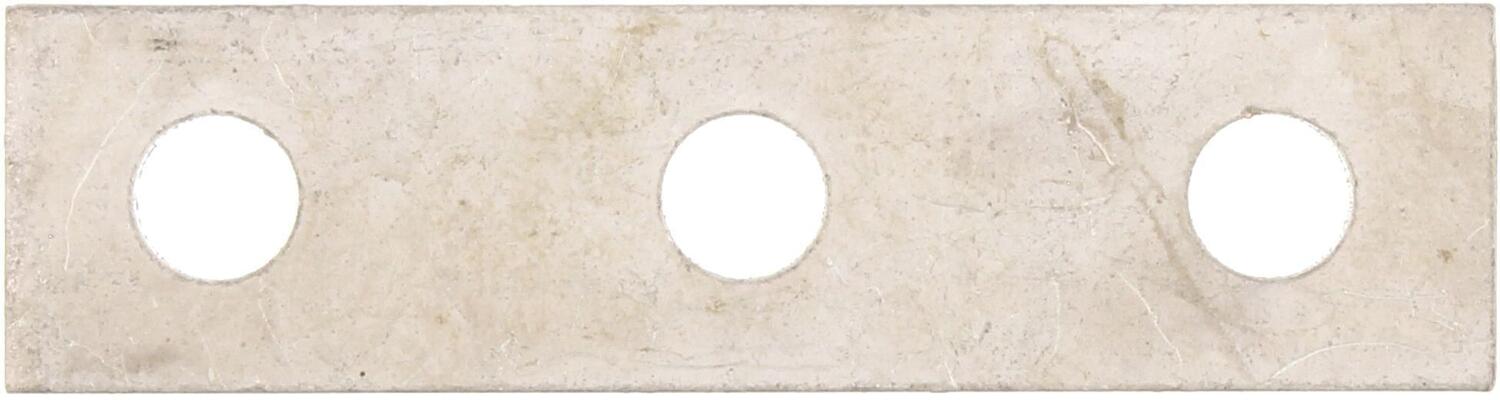

QS 3/120/10, 3 way cross connector for HSK 120/M10
Art:
17015.0
Copied
|
1000 V
|
|
120 mm²
|
Screw in
|
3
|
269 A
|
|
for HSK 120/M10 B | HSK 120/M10 B/B
|
25 mm
|
96 mm
|
34 mm
|
34 mm
|
10,6 mm
|
4 mm
|
3
|
|
|
Copper
|
|
|
10
|
76,6 g
|
| ||

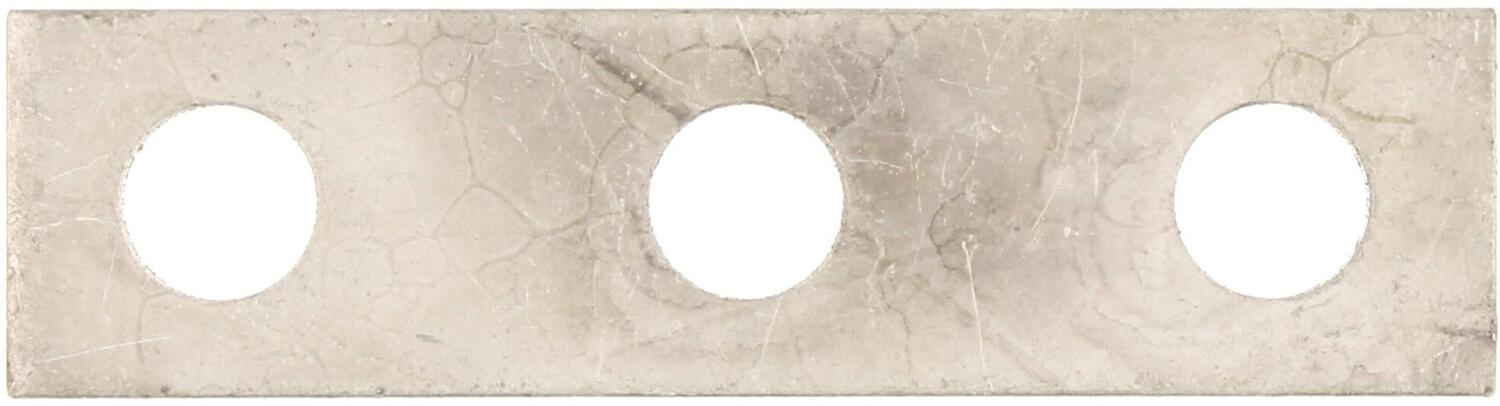

QS 3/120/12, 3 way cross connector for HSK 120/M12
Art:
17017.0
Copied
|
1000 V
|
|
120 mm²
|
Screw in
|
3
|
269 A
|
|
for HSK 120/M12 B
|
25 mm
|
96 mm
|
34 mm
|
34 mm
|
12,6 mm
|
4 mm
|
3
|
|
|
Copper
|
|
|
10
|
72,6 g
|
| ||

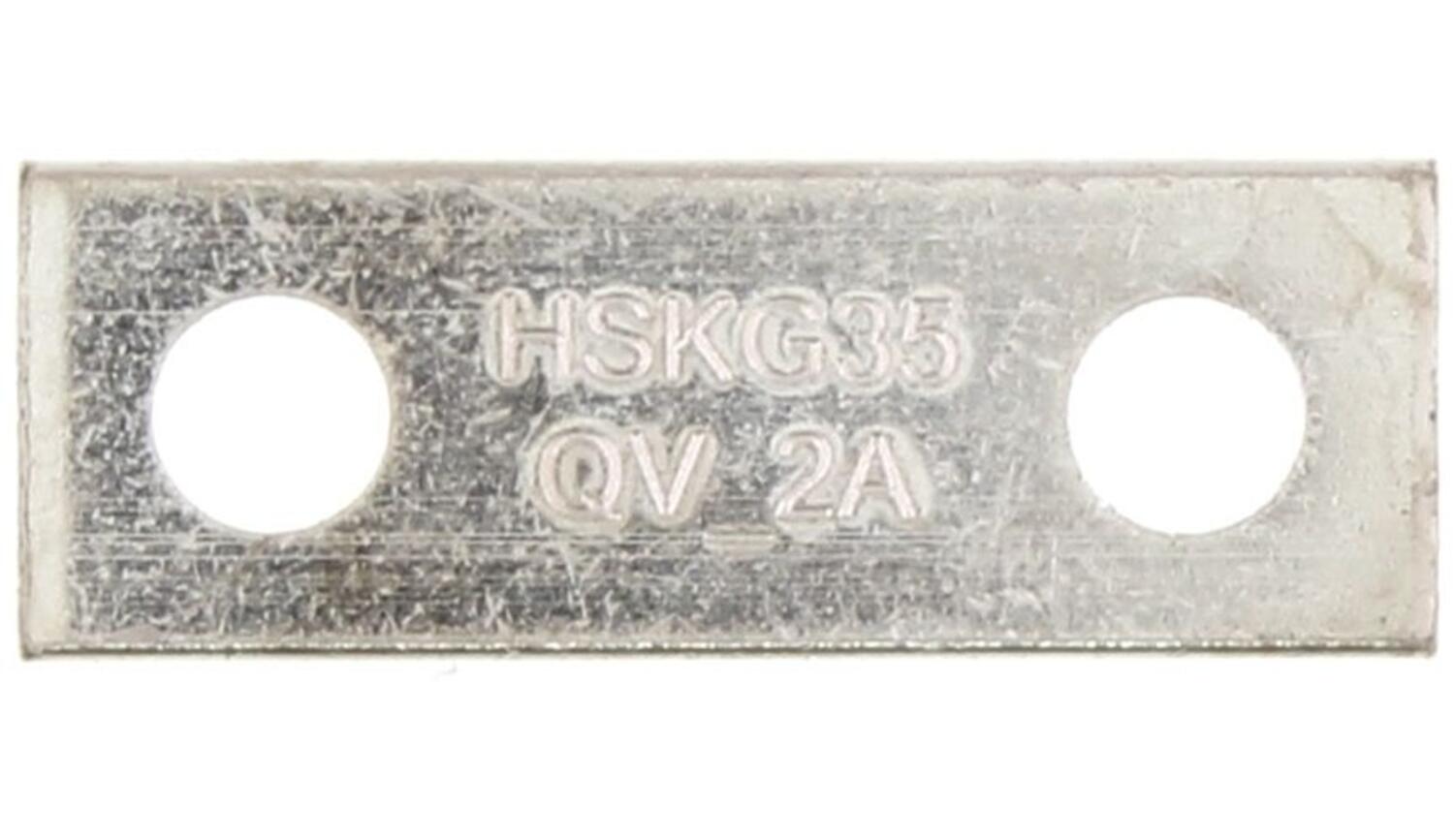

QS 2/35/6, 2 way cross connector for HSKG 35/M6
Art:
17276.0
Copied
|
|
|
|
Screw in
|
|
|
|
for HSKG 35/M6
|
15 mm
|
42 mm
|
27 mm
|
27 mm
|
7 mm
|
3 mm
|
2
|
|
|
Copper
|
|
|
10
|
14,6 g
|
| ||

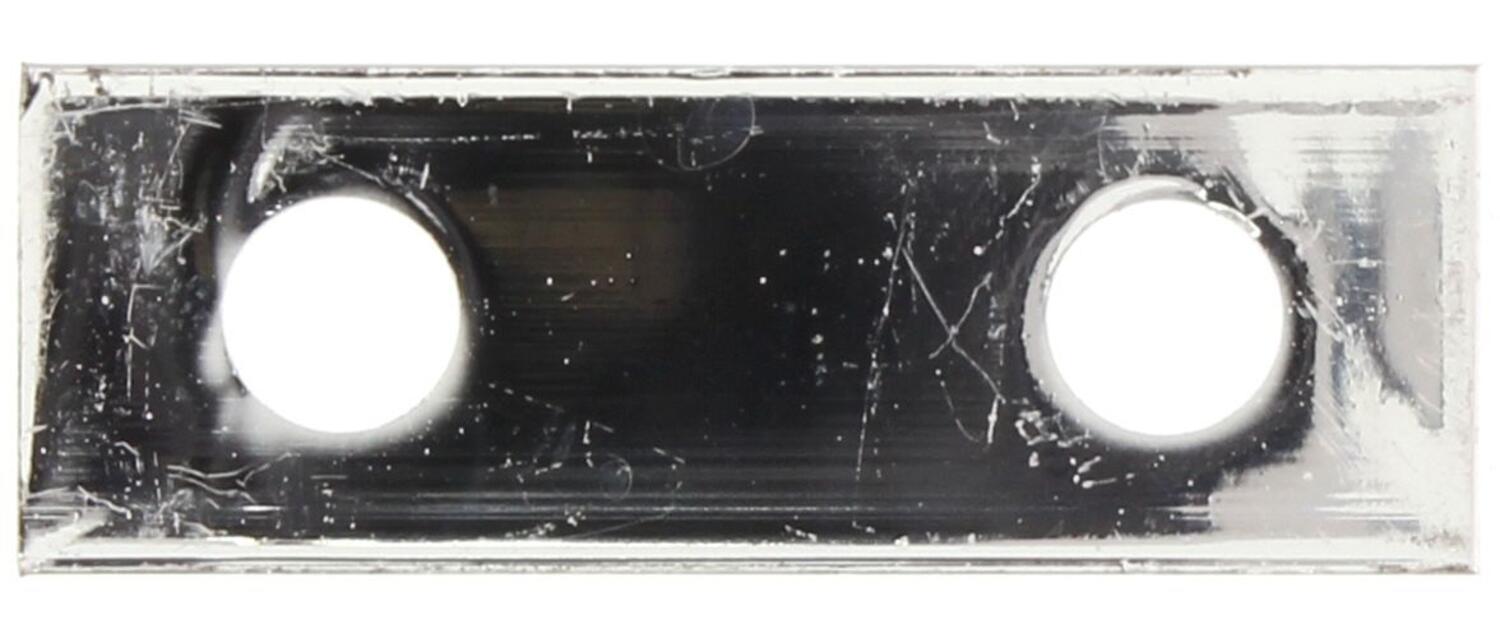

QS 2/70/8, 2 way cross connector for HSKG 70/M8
Art:
17269.0
Copied
|
1000 V
|
|
70 mm²
|
Screw in
|
3
|
192 A
|
|
for HSKG 70/M8
|
20 mm
|
57 mm
|
32 mm
|
32 mm
|
9 mm
|
3 mm
|
2
|
|
|
Copper
|
|
|
10
|
27,3 g
|
| ||

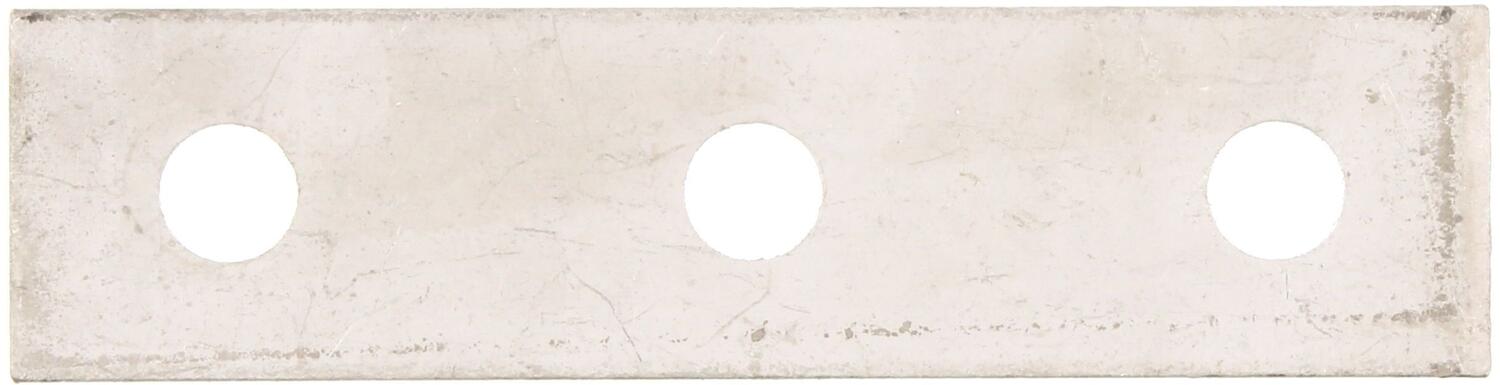

QS 3/120/10, 3 way cross connector for HSKG 120/M10
Art:
17242.0
Copied
|
1000 V
|
|
120 mm²
|
Screw in
|
3
|
269 A
|
|
for HSKG 120/M10
|
30 mm
|
119 mm
|
42 mm
|
42 mm
|
11 mm
|
4 mm
|
3
|
|
|
Copper
|
|
|
10
|
116,3 g
|
| ||

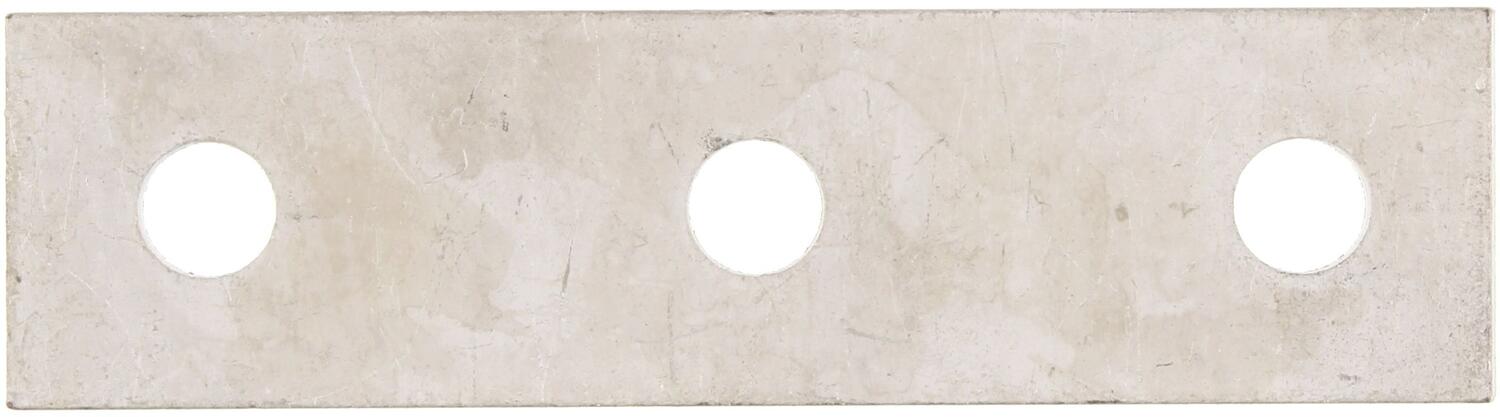

QS 3/185/12, 3 way cross connector for HSKG 185/M12
Art:
17244.0
Copied
|
1000 V
|
|
185 mm²
|
Screw in
|
3
|
353 A
|
|
for HSKG 185/M12
|
40 mm
|
150 mm
|
55 mm
|
55 mm
|
13,5 mm
|
4 mm
|
3
|
|
|
Copper
|
|
|
10
|
197,4 g
|
| ||

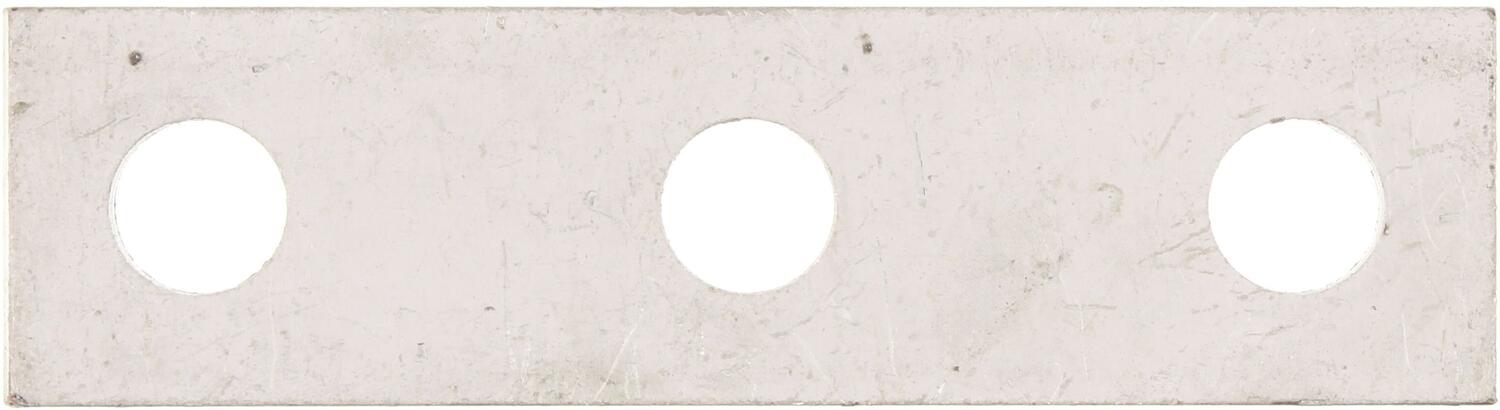

QS 3/300/16, 2 way cross connector for HSKG 300/M16
Art:
17246.0
Copied
|
1000 V
|
|
300 mm²
|
Screw in
|
3
|
520 A
|
|
for HSKG 300/M16
|
40 mm
|
150 mm
|
55 mm
|
55 mm
|
17,5 mm
|
5 mm
|
3
|
|
|
Copper
|
|
|
10
|
237,4 g
|
| ||

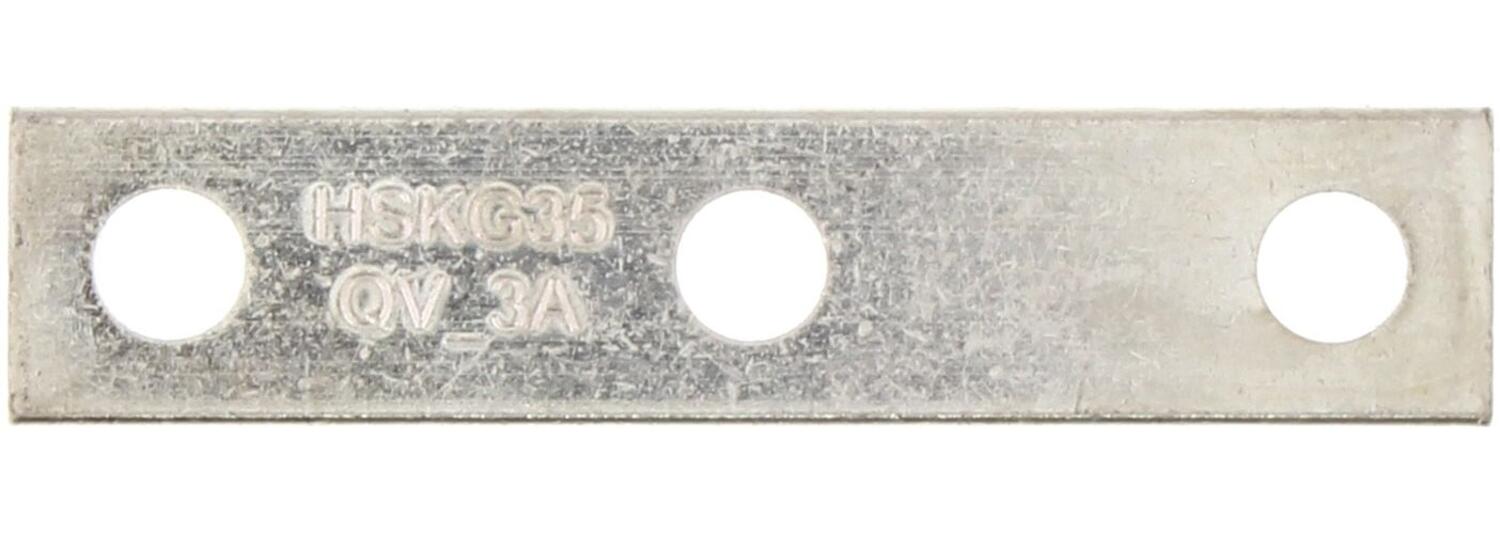

QS 3/35/6, 3 way cross connector for HSKG 35/M6
Art:
17277.0
Copied
|
|
|
|
Screw in
|
|
|
|
for HSKG 35/M6
|
15 mm
|
69 mm
|
27 mm
|
27 mm
|
7 mm
|
3 mm
|
3
|
|
|
Copper
|
|
|
10
|
24,2 g
|
| ||

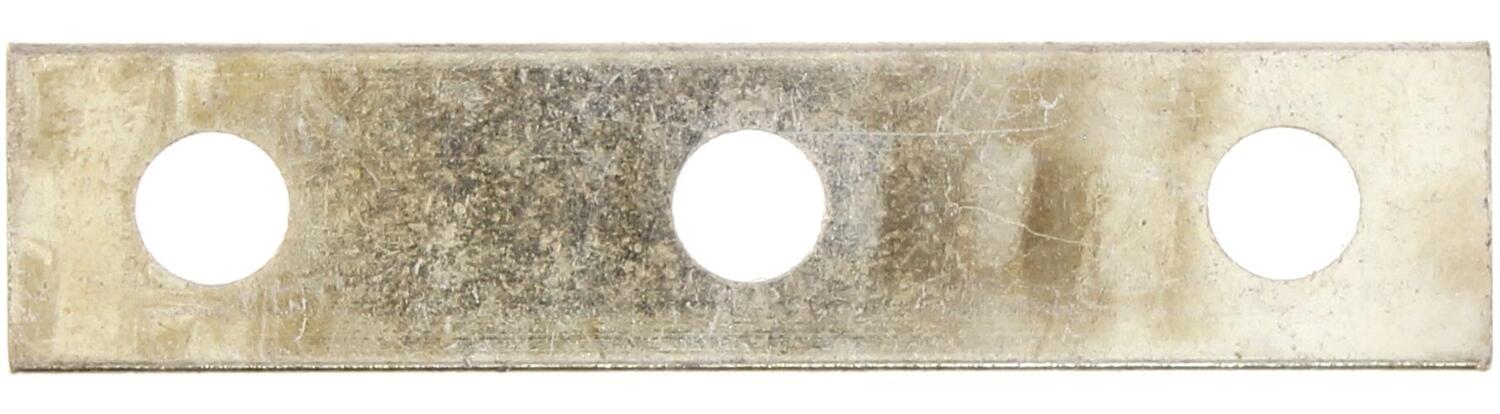

QS 3/70/8, 3 way cross connector for HSKG 70/M8
Art:
17270.0
Copied
|
1000 V
|
|
70 mm²
|
Screw in
|
3
|
192 A
|
|
for HSKG 70/M8
|
20 mm
|
89 mm
|
32 mm
|
32 mm
|
9 mm
|
3 mm
|
3
|
|
|
Copper
|
|
|
10
|
42,7 g
|
|
