CONTA-CLIP
Test-disconnect terminals are mostly used in the sectors of electricity generation and supply.They are tailored to the variety of switching
demands for current-converter secondary circuits that predominate in these sectors. Current transformers must always have a secondary
circuit when electricity meters and measuring instruments are being replaced, or when making comparative measurements.
CONTA-CLIP test-disconnect terminals are available in the following three basic versions, each with or without a pre-assembled socket plug.
All versions provide touch-safe protection according to DGUV-3.
A captive, screw-on sliding partition is used to separate the current and voltage paths.
The switch position is always easy to detect since the disconnect screw has a yellow insulating sleeve.
Â
In all versions, the STB 14/4 socket plugs can be used for a test pick-off for measuring values using the PS 4 test plug or the conventional (4 mm) insulated test plugs.
Â
The VH 19 connecting sleeves and the BS 25 screws or STB 14/4 socket plugs are required for fastening the QVS cross-switches above the terminal block. The cross-switches  are available from 2 to 4 poles.
The QSB internal cross-switches are positioned within the terminal block and make contact over the sliding contact on the LT- or QT-terminals. The cross-switches are available from 2 to 4 poles.
The BS 25 mounting screws are used together with the VH 19 connecting sleeves to establish contact with the QVS cross-switches.
Â
General data |
|
|---|---|
| Rated impulse voltage | 4 kV |
| Colour | Beige |
| Rated wire cross section | 10 mm² |
| Rated voltage IEC | 400 V |
| Mounting | TS 35 and TS 32 |
| Contamination degree | 3 |
| Rated current IEC | 10 A |
| Approvals | CSA, CSA US |
| Overvoltage category | III |
Dimensions |
|
| Height TS 35/7.5 | 47 mm |
| Length | 72 mm |
| Width | 8 mm |
| Height TS 32 | 51,5 mm |
Connection data |
|
| Cross connect channels | 2 Â |
| Cross section stranded wire to | 10 mm² |
| Cross section single wire from | 0,2 mm² |
| Torque max | 2 Nm |
| Connections | 2 |
| Cross section stranded wire from | 0,2 mm² |
| Torque min | 1,2 Nm |
| Rated wire cross section to (AWG) | 22 |
| Rated wire cross section from (AWG) | 8 |
| Cross section stranded with ferrule from | 0,2 mm² |
*Invisible Heading* |
|
|---|---|
| Screw size | M 4 |
| Screw type | Slotted |
| Cross section stranded with ferrule to | 10 mm² |
| Stripping length | 12 mm |
| Cross section single wire to | 10 mm² |
| Number of levels | 1 Â |
| Plug gauge acc. EN 60 947-1 | A5 |
Materials |
|
| Flammability class | UL94-V2 |
| Operating temperature from | -40 °C |
| Operating temperature to | 105 °C |
| Insulation material | Polyamide 6.6 |
Approvals |
|
| Rated current CSAus | 45 A |
| Rated voltage CSAus | 600 V |
| CSA test standard | C22.2 No 158 |
| CSAus test standard | UL 1059 |
| Rated current CSA | 45 A |
| Rated voltage CSA | 600 V |
Additional data |
|
| Pack size | 50 Â |
| Country of origin | DE |
| Tariff code | 85369010 |
| Weight | 24,66 g |
Test-disconnect terminals are mostly used in the sectors of electricity generation and supply.They are tailored to the variety of switching
demands for current-converter secondary circuits that predominate in these sectors. Current transformers must always have a secondary
circuit when electricity meters and measuring instruments are being replaced, or when making comparative measurements.
CONTA-CLIP test-disconnect terminals are available in the following three basic versions, each with or without a pre-assembled socket plug.
All versions provide touch-safe protection according to DGUV-3.
A captive, screw-on sliding partition is used to separate the current and voltage paths.
The switch position is always easy to detect since the disconnect screw has a yellow insulating sleeve.
Â
In all versions, the STB 14/4 socket plugs can be used for a test pick-off for measuring values using the PS 4 test plug or the conventional (4 mm) insulated test plugs.
Â
The VH 19 connecting sleeves and the BS 25 screws or STB 14/4 socket plugs are required for fastening the QVS cross-switches above the terminal block. The cross-switches  are available from 2 to 4 poles.
The QSB internal cross-switches are positioned within the terminal block and make contact over the sliding contact on the LT- or QT-terminals. The cross-switches are available from 2 to 4 poles.
The BS 25 mounting screws are used together with the VH 19 connecting sleeves to establish contact with the QVS cross-switches.
Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Approvals | Additional information | Height TS 35/7.5 | Width | Height TS 32 | Cross connect channels | Number of test pick off options | Rated current CSAus | Rated voltage CSAus | CSA test standard | CSAus test standard | Rated current CSA | Rated voltage CSA | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

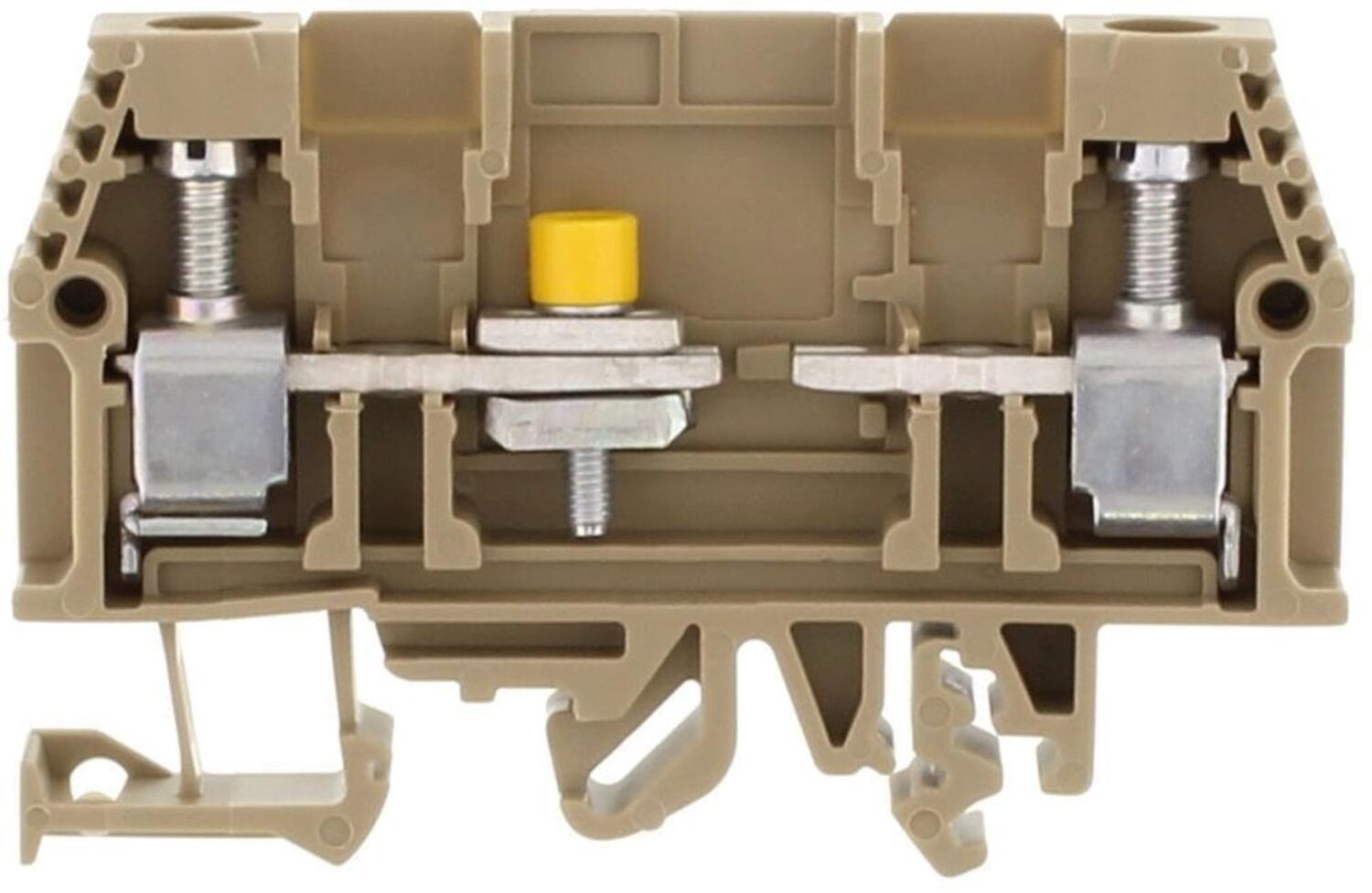

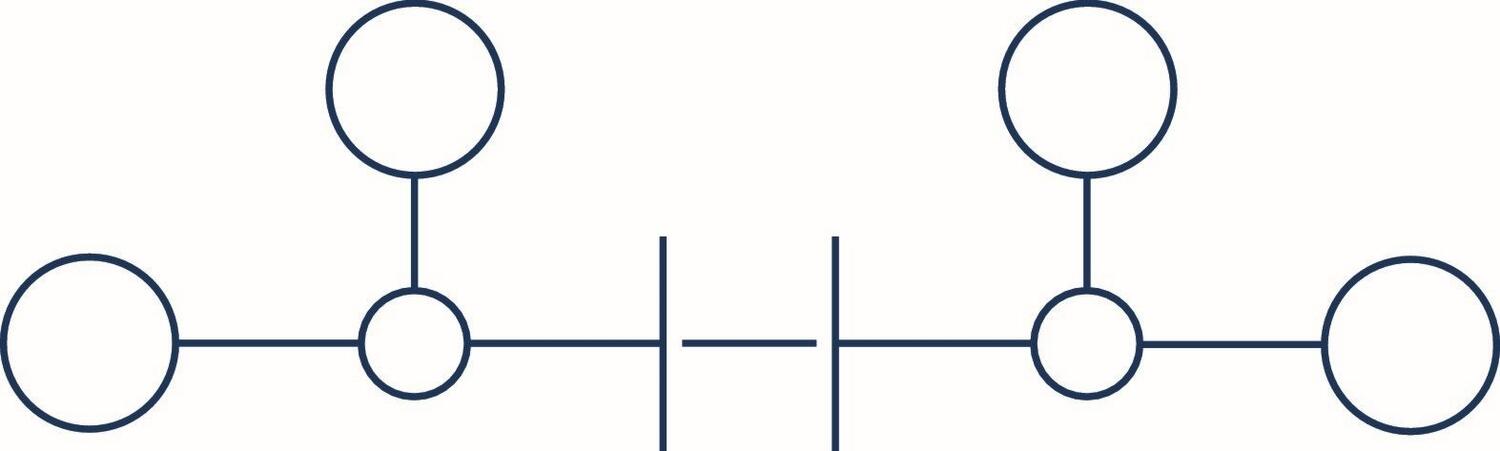

PTK 10/LT , Test-disconnect terminal
Art:
1130.2
Copied
|
CSA, CSA US
|
|
47 mm
|
8 mm
|
51,5 mm
|
2
|
|
45 A
|
600 V
|
C22.2 No 158
|
UL 1059
|
45 A
|
600 V
|
24,66 g
|
| ||
PTK 10/LT/STB, Test-disconnect terminal with sockets
Art:
1131.2
Copied
|
CSA, CSA US
|
with sockets
|
47 mm
|
8 mm
|
51,5 mm
|
|
2
|
45 A
|
600 V
|
C22.2 No 158
|
UL 1059
|
45 A
|
600 V
|
28,9 g
|
| ||

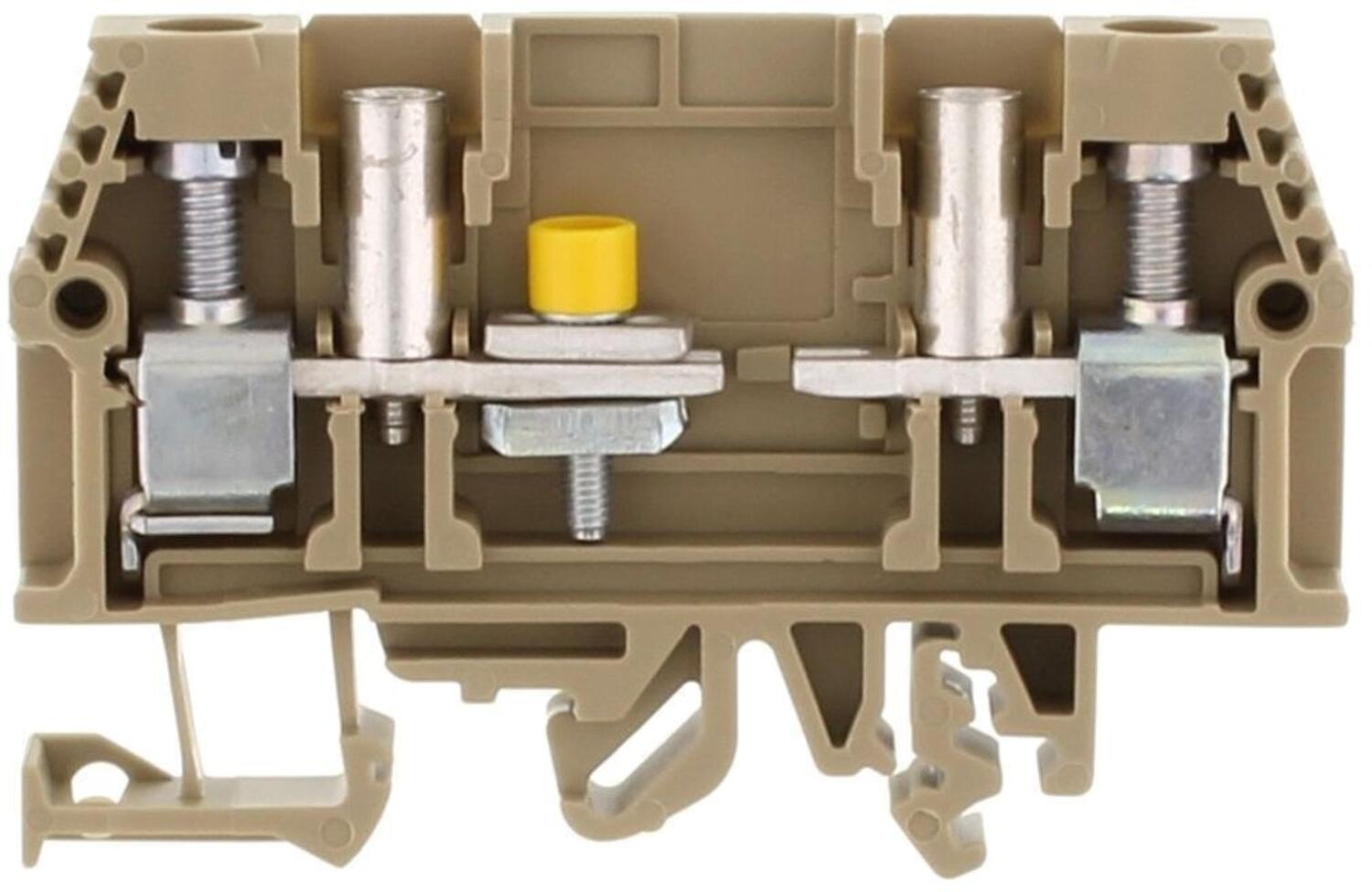

PTK 10/QT, Test-disconnect terminal, separated perpendicularly
Art:
1132.2
Copied
|
CSA, CSA US
|
|
47 mm
|
8 mm
|
51,5 mm
|
2
|
|
45 A
|
600 V
|
C22.2 No 158
|
UL 1059
|
45 A
|
600 V
|
25,14 g
|
| ||

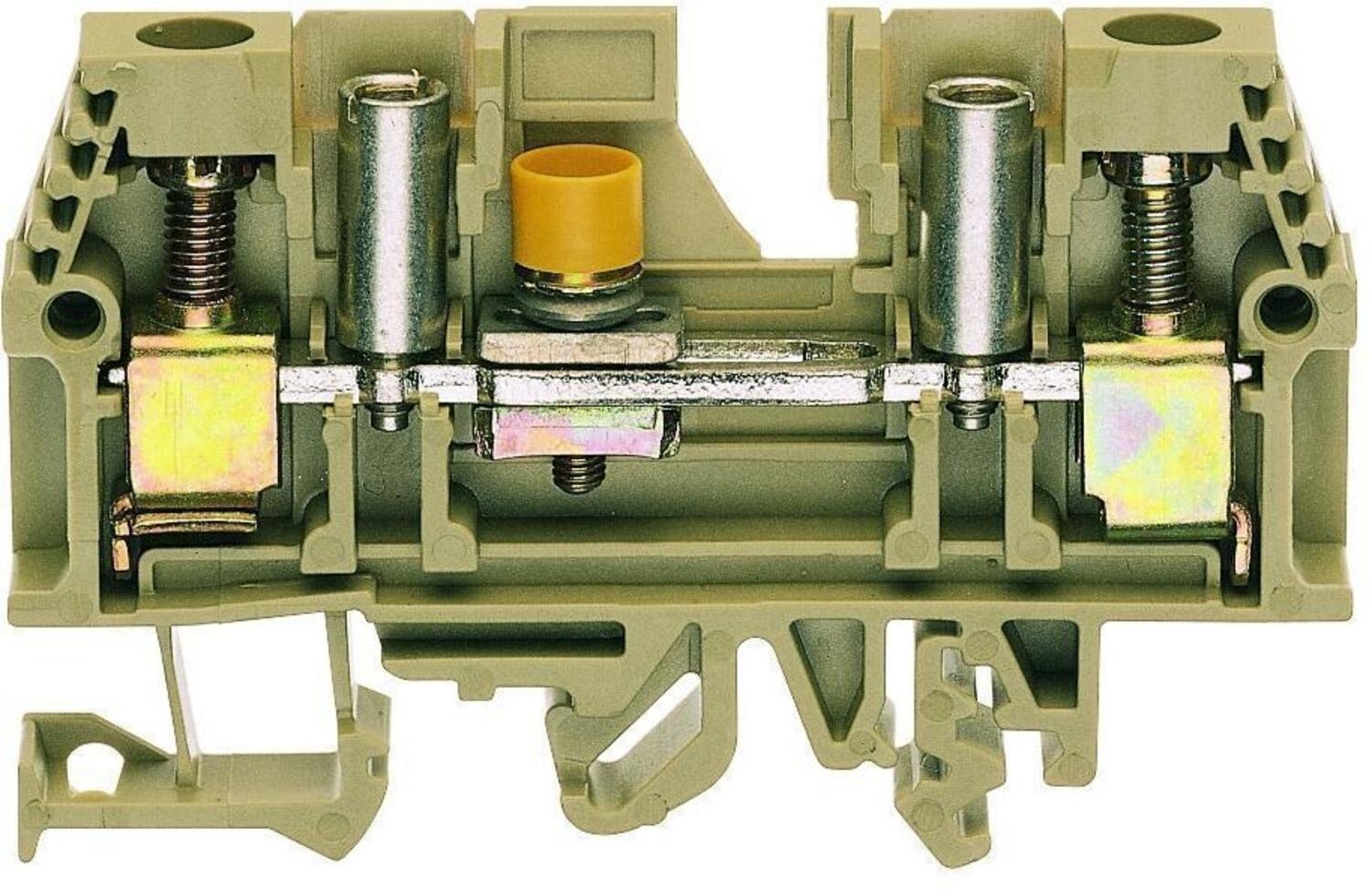

PTK 10/QT, Test-disconnect terminal with sockets, separated perpendicularly
Art:
1133.2
Copied
|
CSA, CSA US
|
with sockets
|
47 mm
|
8 mm
|
51,5 mm
|
|
2
|
45 A
|
600 V
|
C22.2 No 158
|
UL 1059
|
45 A
|
600 V
|
29,74 g
|
| ||

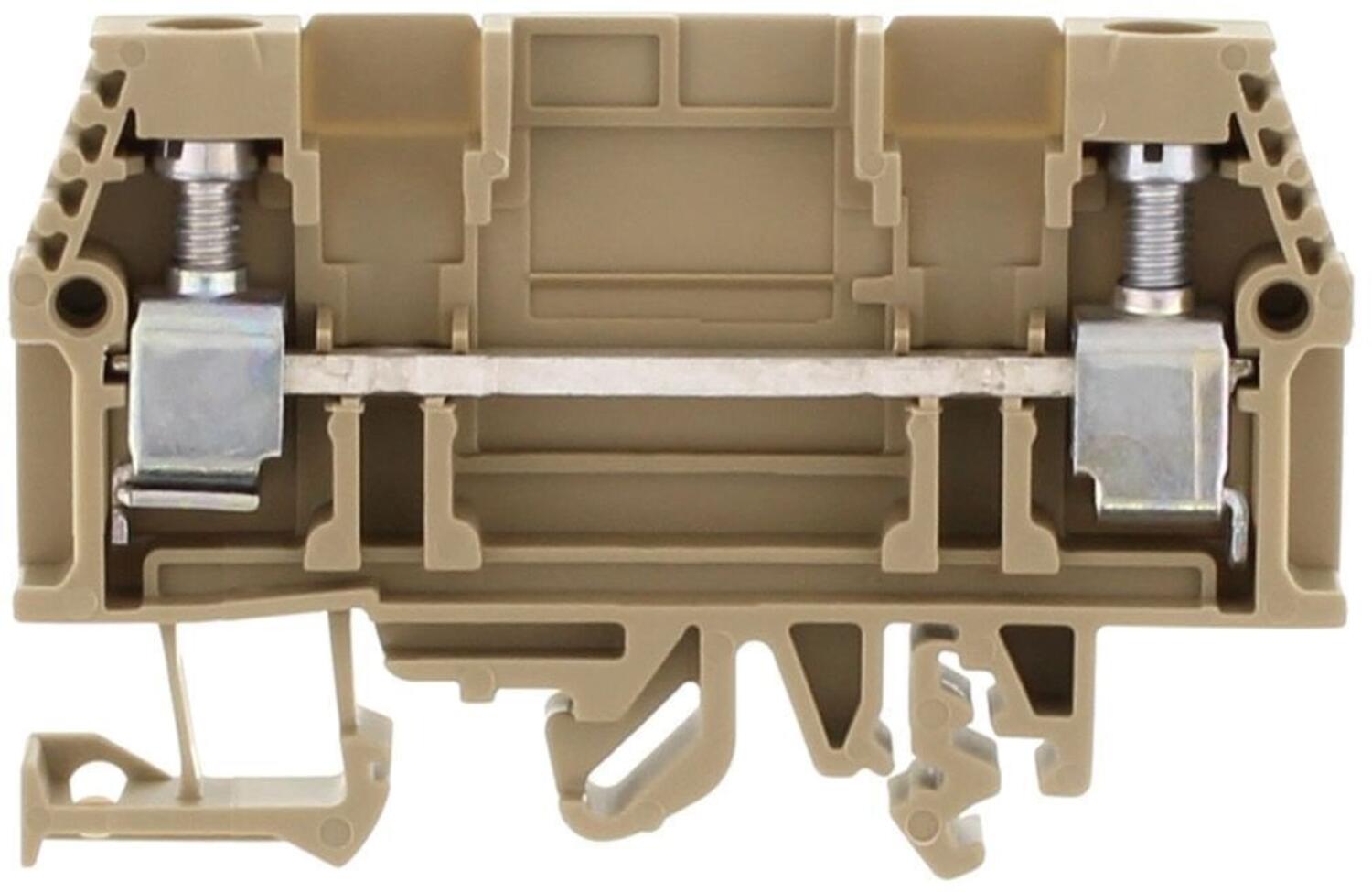

PTK 10/DU, Test-disconnect feed through terminal
Art:
1134.2
Copied
|
CSA, CSA US
|
|
47 mm
|
8 mm
|
51,5 mm
|
2
|
|
45 A
|
600 V
|
C22.2 No 158
|
UL 1059
|
45 A
|
600 V
|
22,56 g
|
| ||

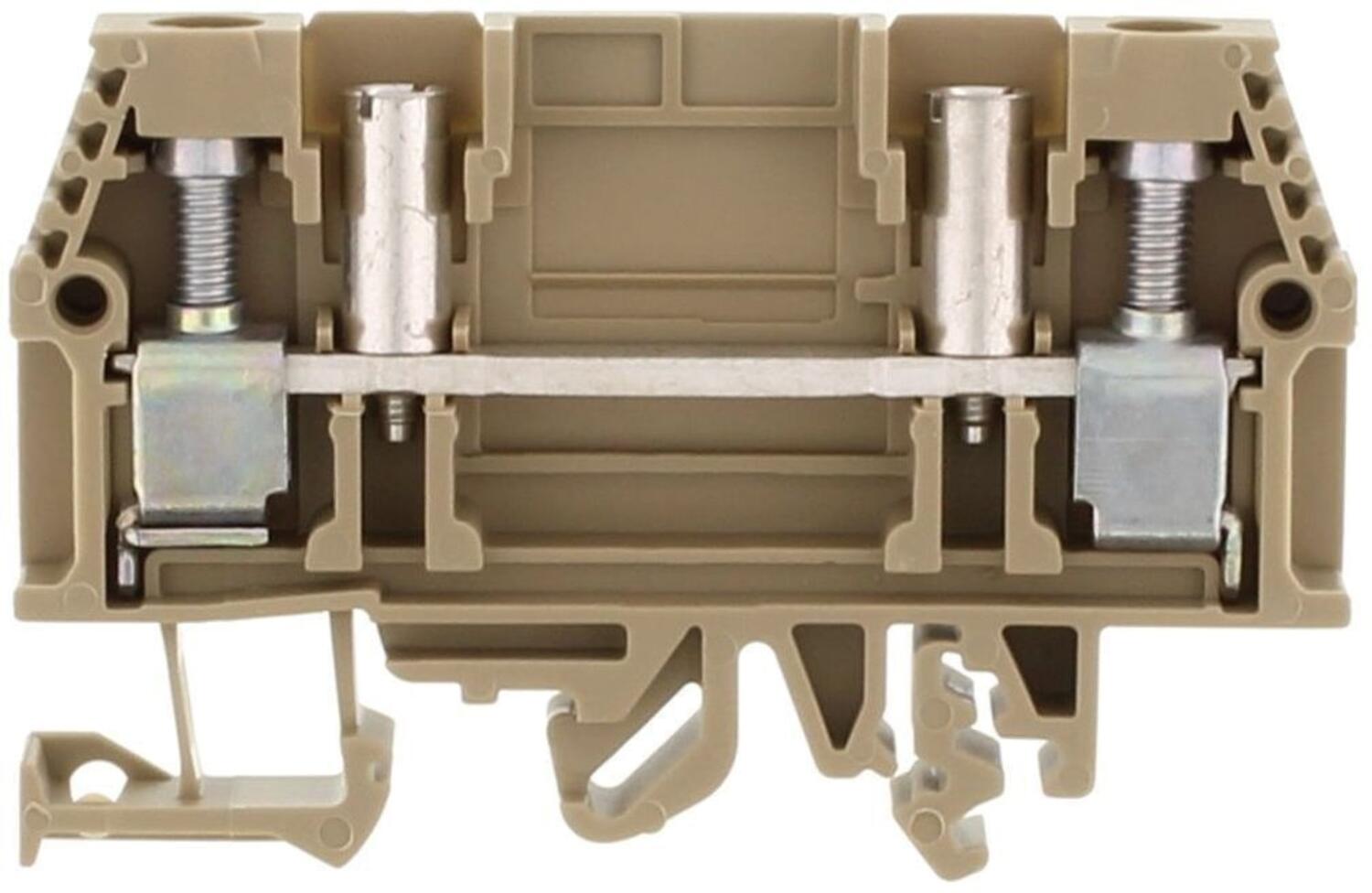

PTK 10/DU/STB,Test-disconnect feed through terminal with sockets
Art:
1135.2
Copied
|
CSA, CSA US
|
with sockets
|
47 mm
|
8 mm
|
51,5 mm
|
|
2
|
45 A
|
600 V
|
C22.2 No 158
|
UL 1059
|
45 A
|
600 V
|
22,56 g
|
| ||

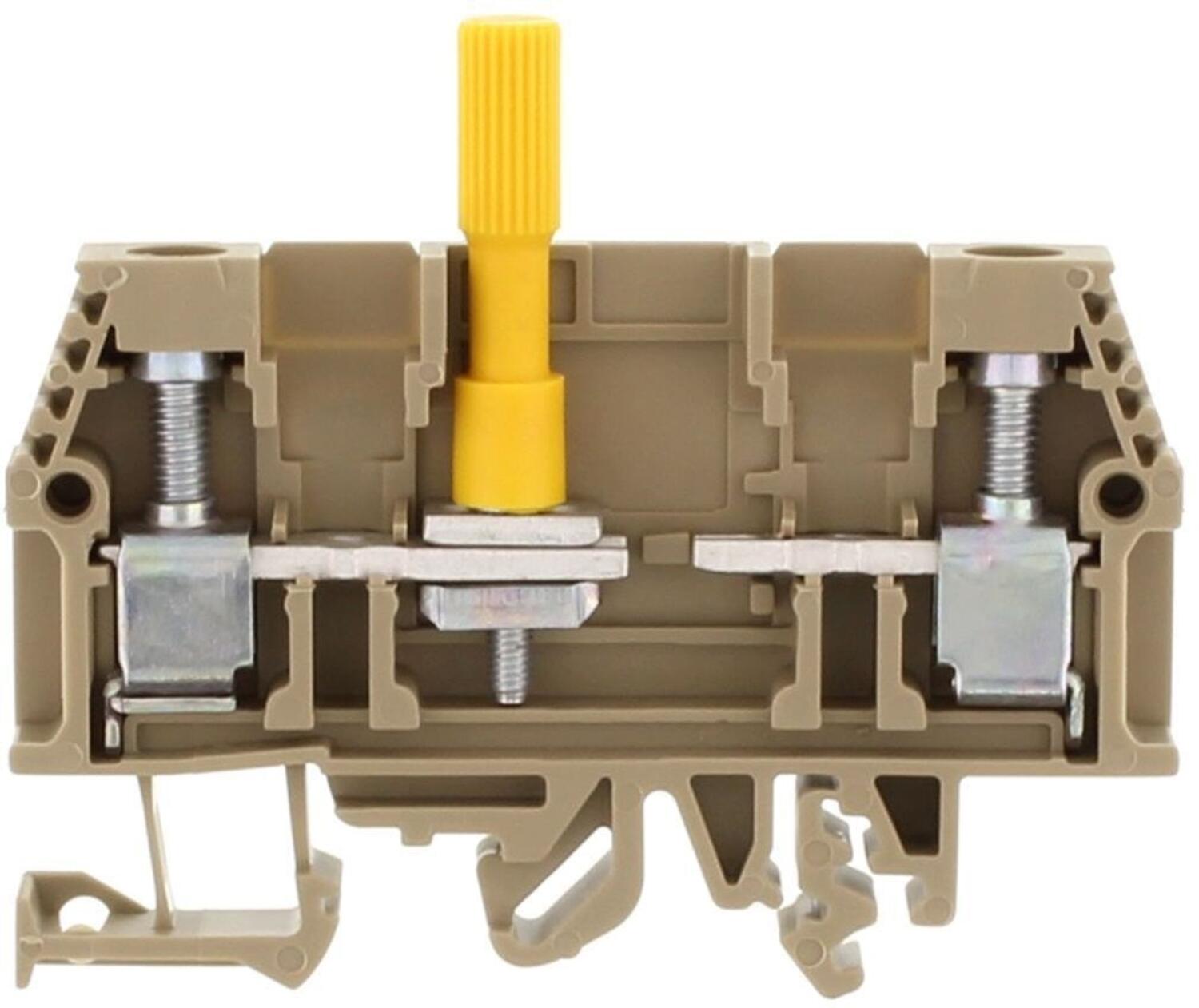

PTK 10/LT/HB, Test-disconnect terminal, Finger screw operated
Art:
17366.2
Copied
|
|
hand lever
|
63 mm
|
8 mm
|
67,5 mm
|
2
|
|
|
|
|
|
|
|
31,66 g
|
| ||

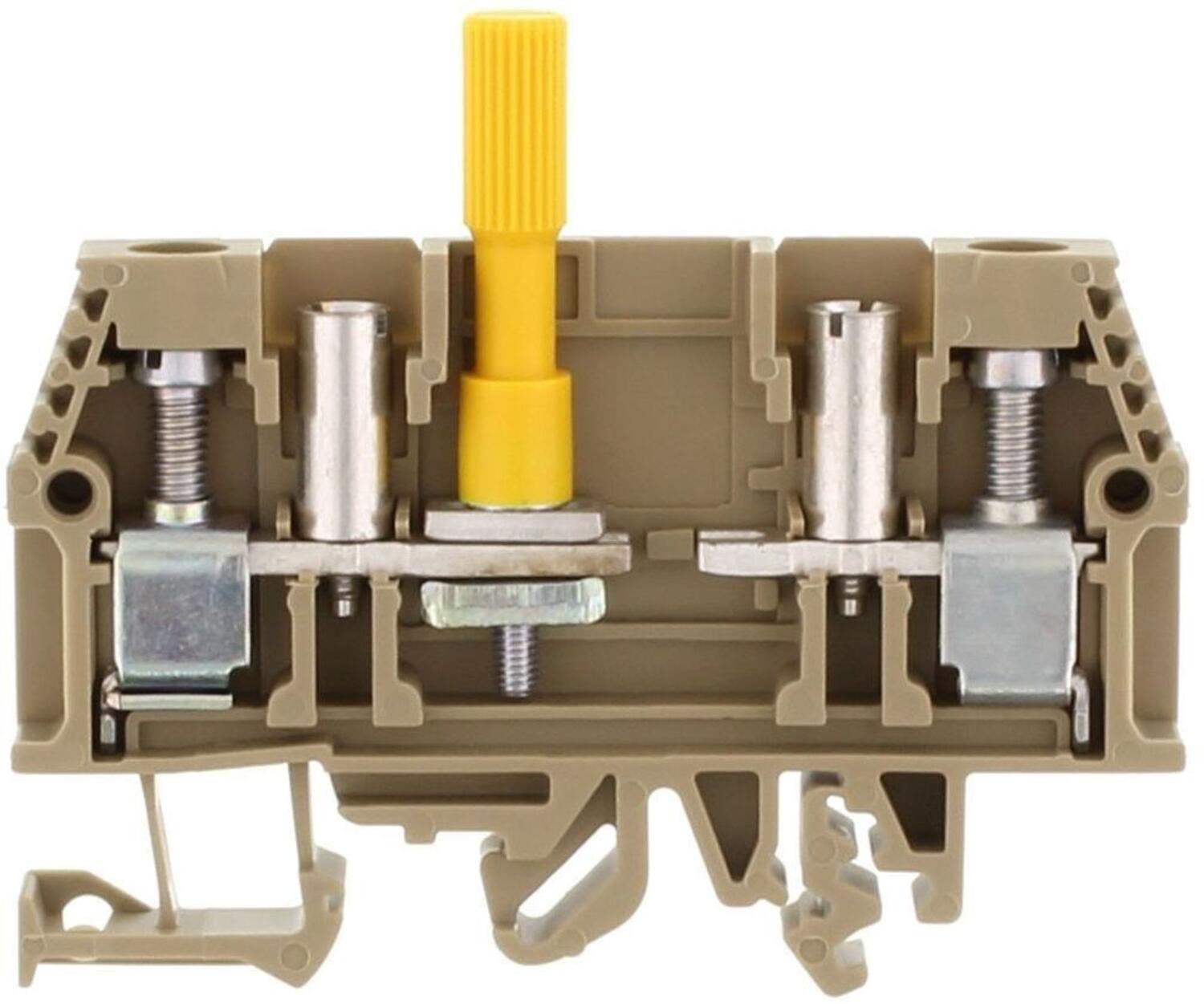

PTK 10/LT/STB/HB, Test-disconnect terminal with sockets, Finger screw operated
Art:
17367.2
Copied
|
|
hand lever
|
63 mm
|
8 mm
|
67,5 mm
|
|
2
|
|
|
|
|
|
|
35,86 g
|
| ||

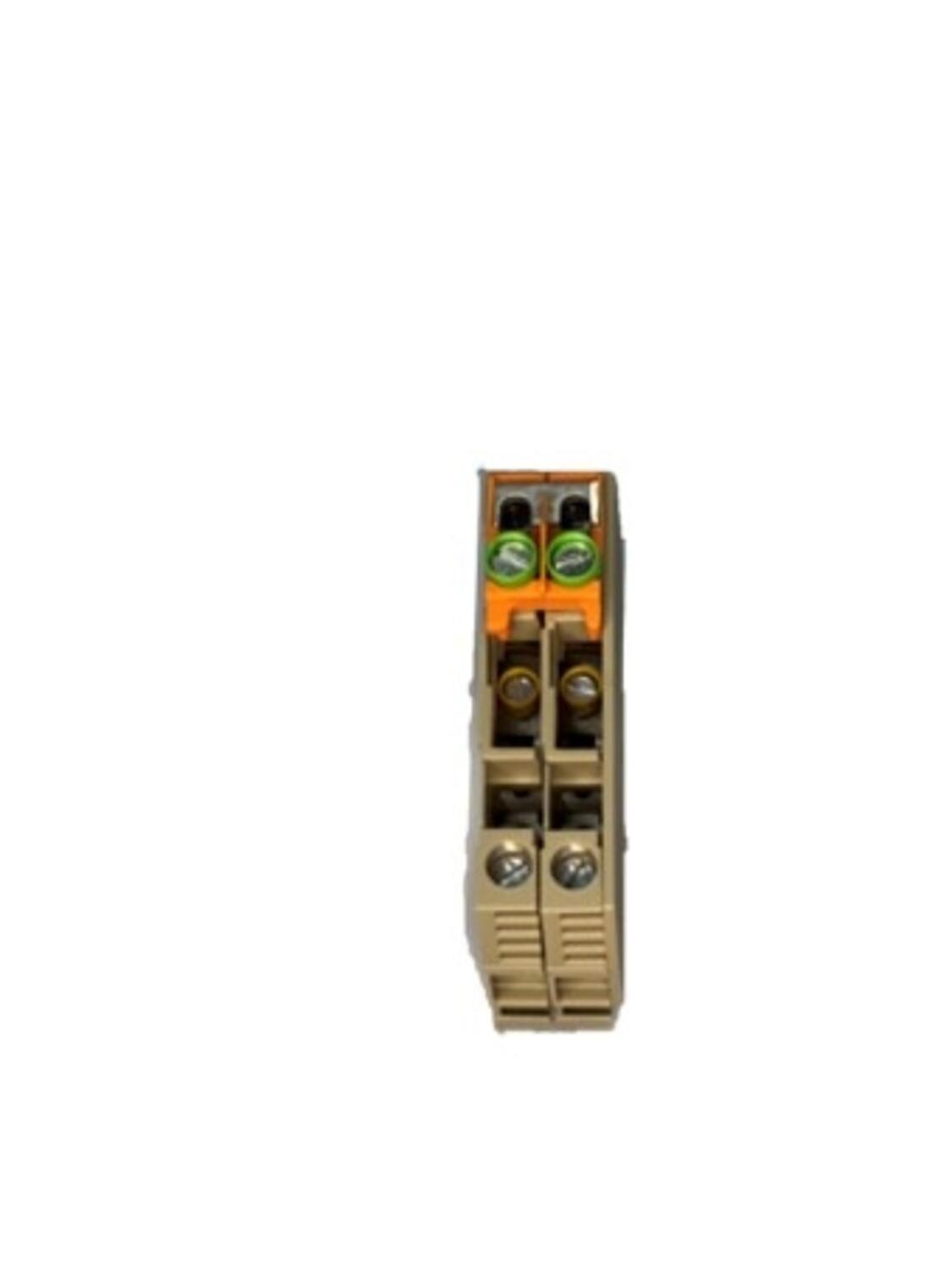

Eco CT- LINK Assembly Single Phase without test probe connections
Art:
87780.0
Copied
|
CSA, CSA US
|
|
47 mm
|
18 mm
|
51,5 mm
|
2
|
|
45 A
|
600 V
|
C22.2 No 158
|
UL 1059
|
45 A
|
600 V
|
60 g
|
| ||

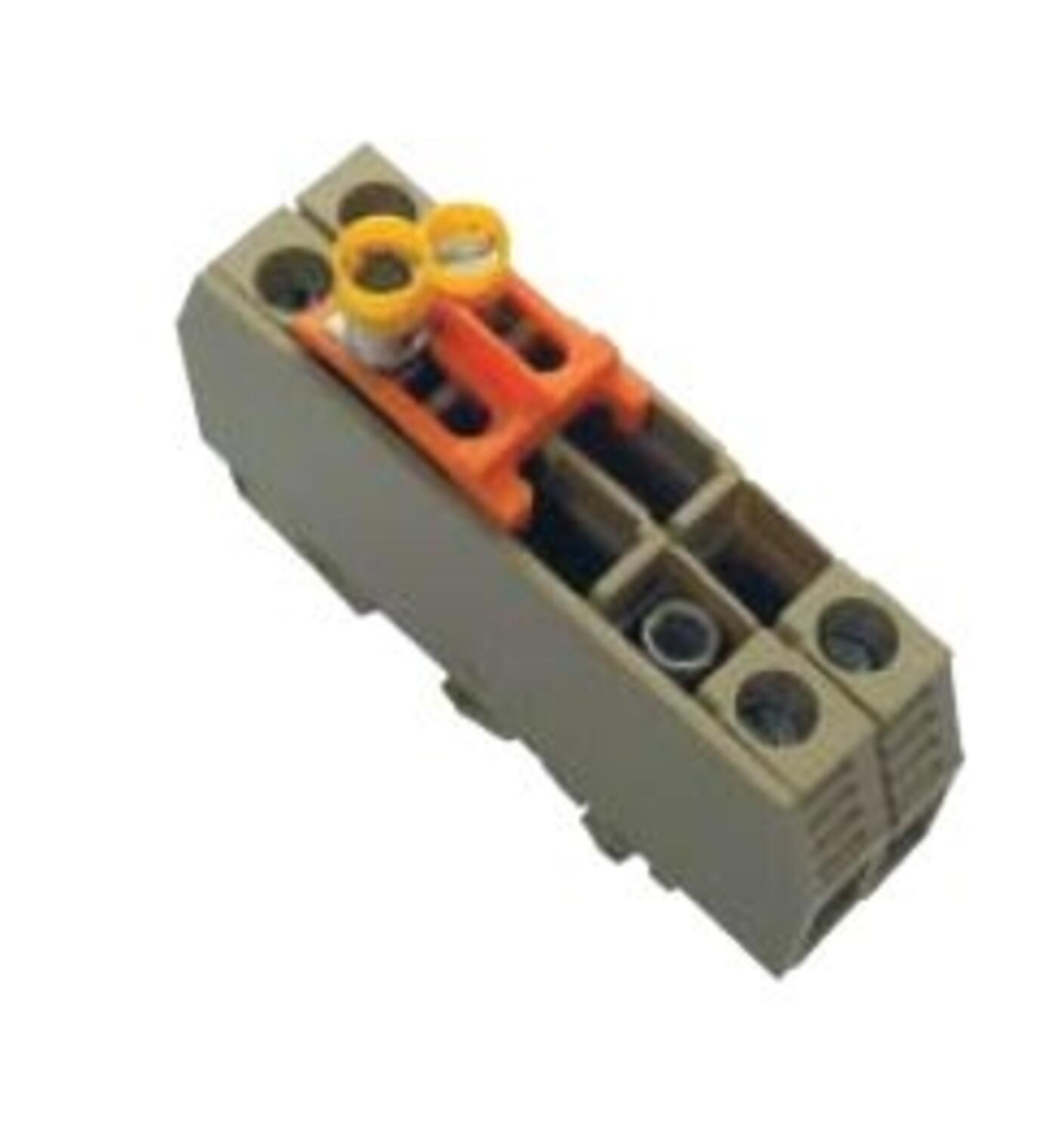

CT- LINK Assembly Single Phase with test probe sockets
Art:
820100000008
Copied
|
CSA, CSA US
|
with sockets
|
47 mm
|
18 mm
|
51,5 mm
|
2
|
2
|
45 A
|
600 V
|
C22.2 No 158
|
UL 1059
|
45 A
|
600 V
|
64 g
|
| ||

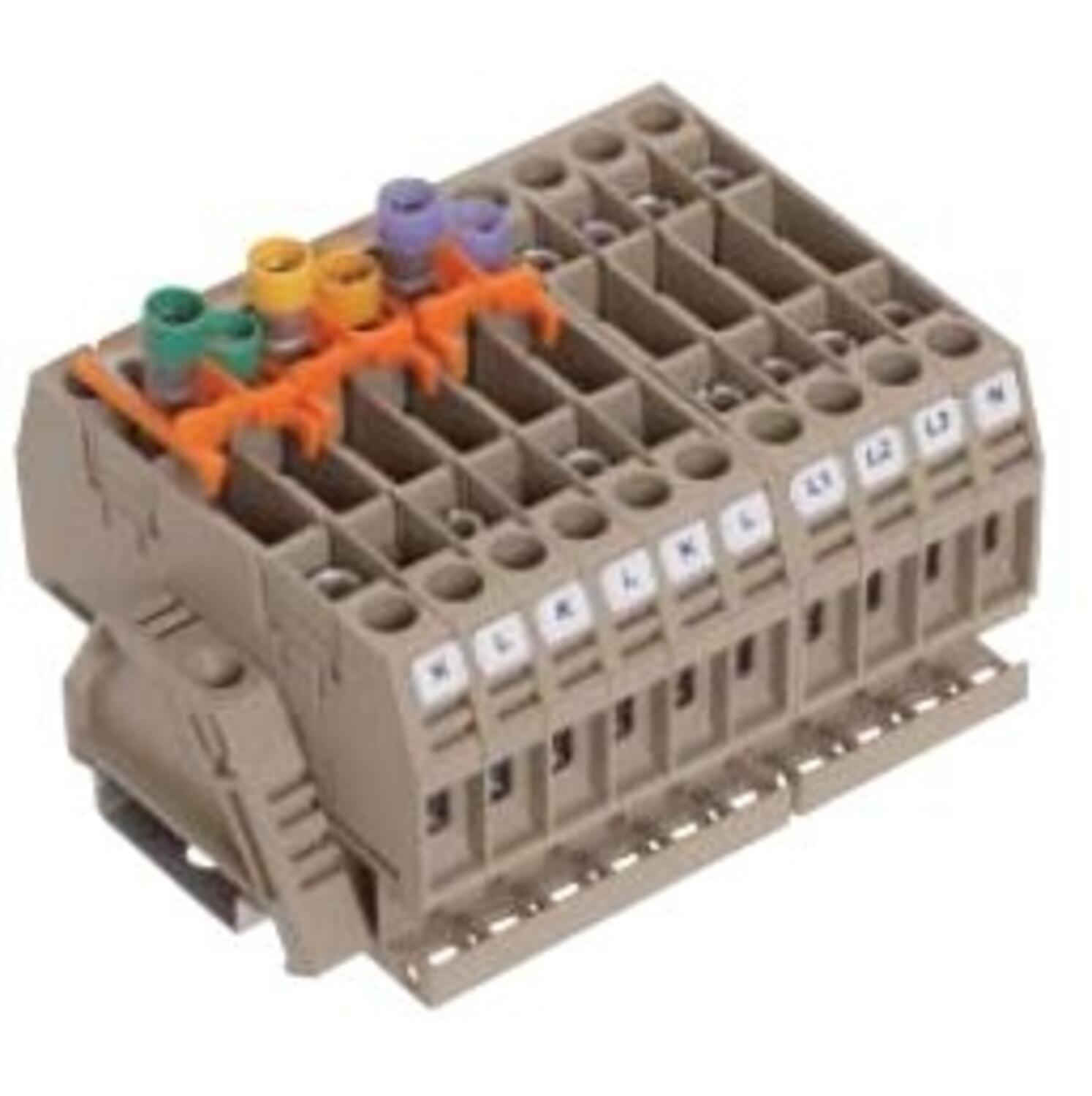

CT - LINK 2 Assembly 3-Phase with voltage feed trough terminals and test probe sockets
Art:
820100000009
Copied
|
CSA, CSA US
|
with sockets
|
47 mm
|
84 mm
|
51,5 mm
|
2
|
14
|
45 A
|
600 V
|
C22.2 No 158
|
UL 1059
|
45 A
|
600 V
|
283 g
|
| ||

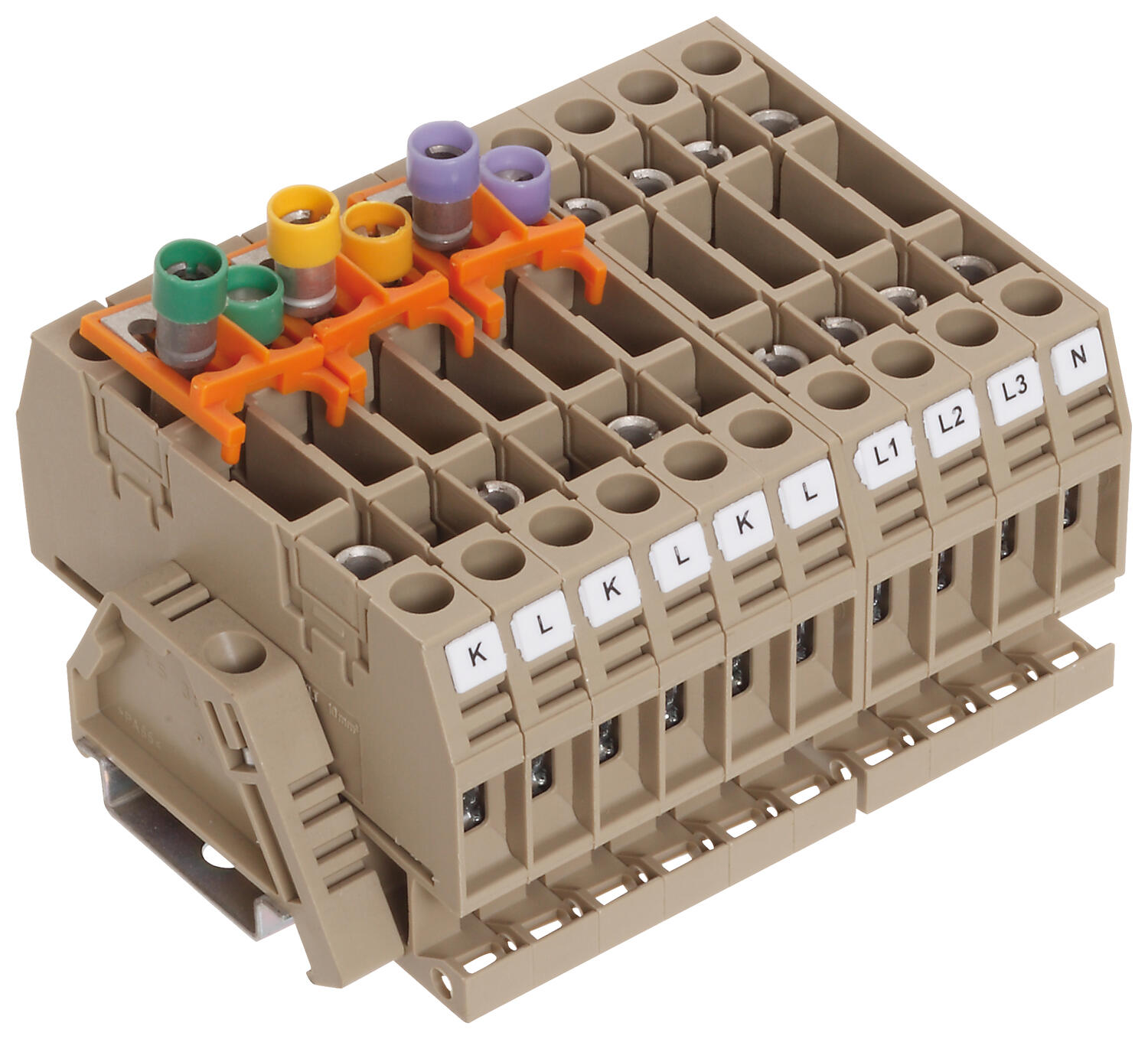

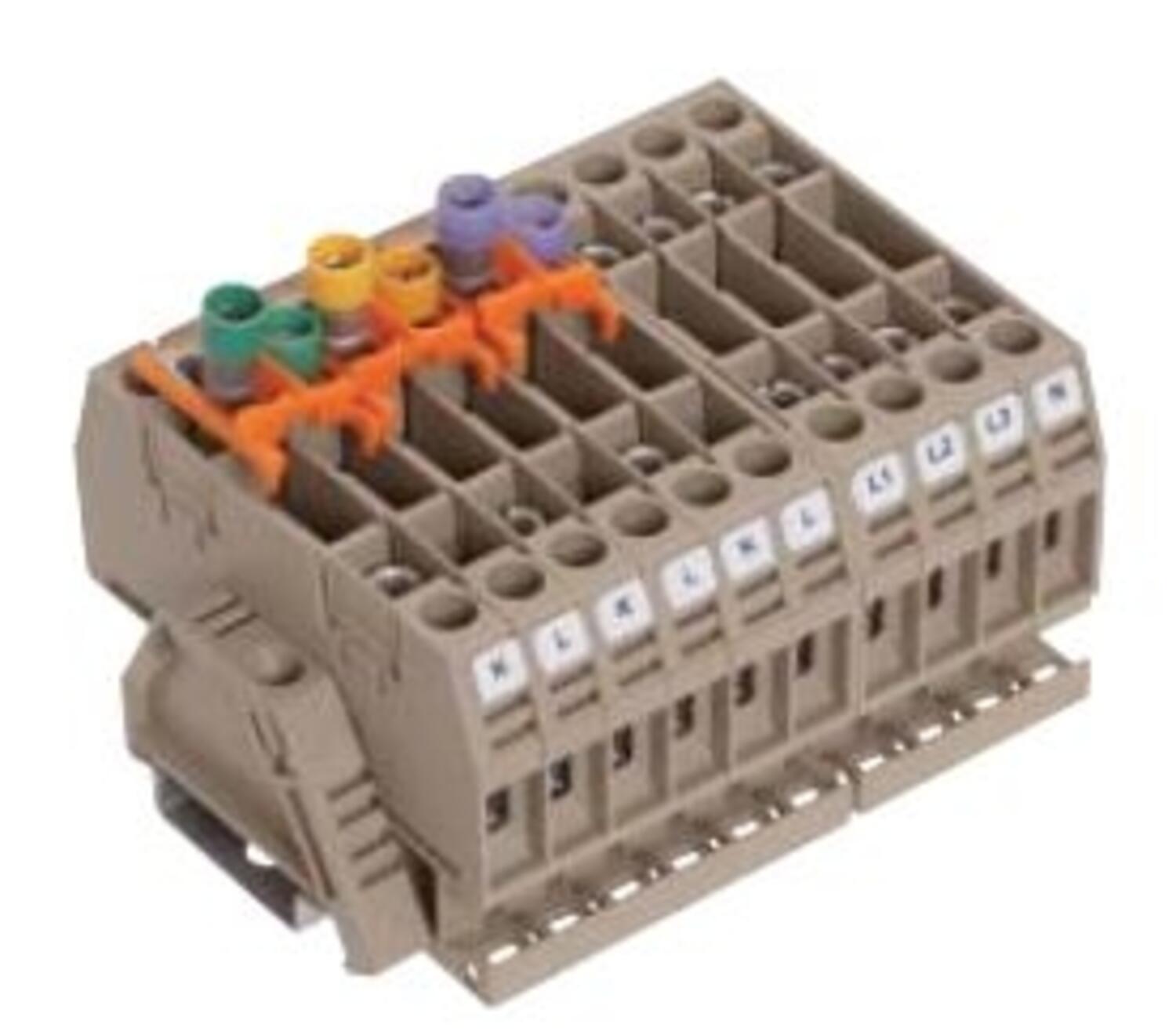

CT-LINK 3 Assembly 3-Phase with Voltage Disconnects and test probe sockets
Art:
820100000010
Copied
|
CSA, CSA US
|
with sockets
|
47 mm
|
84 mm
|
51,5 mm
|
2
|
14
|
45 A
|
600 V
|
C22.2 No 158
|
UL 1059
|
45 A
|
600 V
|
287 g
|
|
Select a variant in the list
