CONTA-CLIP

Test disconnect terminals SPTK 6

Test-disconnect terminals are mainly used for power network, electricity generation and supply applications.

They are perfect for the wide variety of switching demands in the current-transformer secondary circuits that are common in these types of applications.



Current transformers must always have a closed secondary circuit, for use when electricity meters and measuring instruments are being replaced, or when making comparative measurements.



All versions provide touch-safe protection in compliance with DGUV-3.



A captive, screw-on sliding partition is used to separate the current and voltage paths.



The switch position is always easy to detect since the disconnect screw has a yellow insulating sleeve.



In all versions, the STBI 19/4 socket plugs can be used for a test pick-off for measuring values using the PS 4 test plug or the conventional (4 mm) insulated test plugs.



Cross-switches QVSI

The VH 19 connecting sleeves and the BS 25 screws or STB 19/4 L socket plugs are required for fastening the QVSI cross-switches above the terminal block. The cross-switches  are available from 2 to 10 poles.

Cross-switches QSBI

The QSBI internal cross-switches are positioned within the terminal block and make contact over the sliding contact on the LT- or QT-terminals. The cross-switches are available from 2 to 4 poles.

Mounting screw BS 25

The BS 25 mounting screws are used together with the VH 19 connecting sleeves to establish contact with the QVSI cross-switches.

Switch lock PTK-SP

The PTK-SP switch lock is mounted over the slider on the SPTK terminals. It keeps the partition screws from being accidentally touched by a screwdriver.

Insulated socket plugs STBI 19/4 L

The STBI 19/4 L socket plugs can be screwed into the inside cross-connection channels. They are used together with the VH 19 connecting sleeves to establish contact with the QVSI cross-switches. They are also used to hold the PS 4 test plugs  or conventional (4 mm) insulated test plugs.

Short-circuit plug KS-SQI

The KS-SQI short-circuit plugs are used to make pluggable cross-connections between the SPTK terminals in the outer cross-connection channels. The plugs can also be put in the  built-in park position of the SPTK terminals when not in use.  The short-circuit plugs are available from 2 to 5 poles.

Cross-connector SQI 6

The SQI cross-connector is used to make a pluggable  cross-connection between the SPTK terminals in the outer  cross-connection channels. The cross-connectors can also  be put in the built-in park position of the SPTK terminals  when not in use. The cross-connectors are available from  2 to 30 poles.



Read more
  • Up to four channels: used for potential distribution or test purposes
  • Lengthwise partition operated with screw to ensure deliberate switching operations
  • Touch safe BGV A3 compliant
  • Polyamide 6.6 UL 94-V0

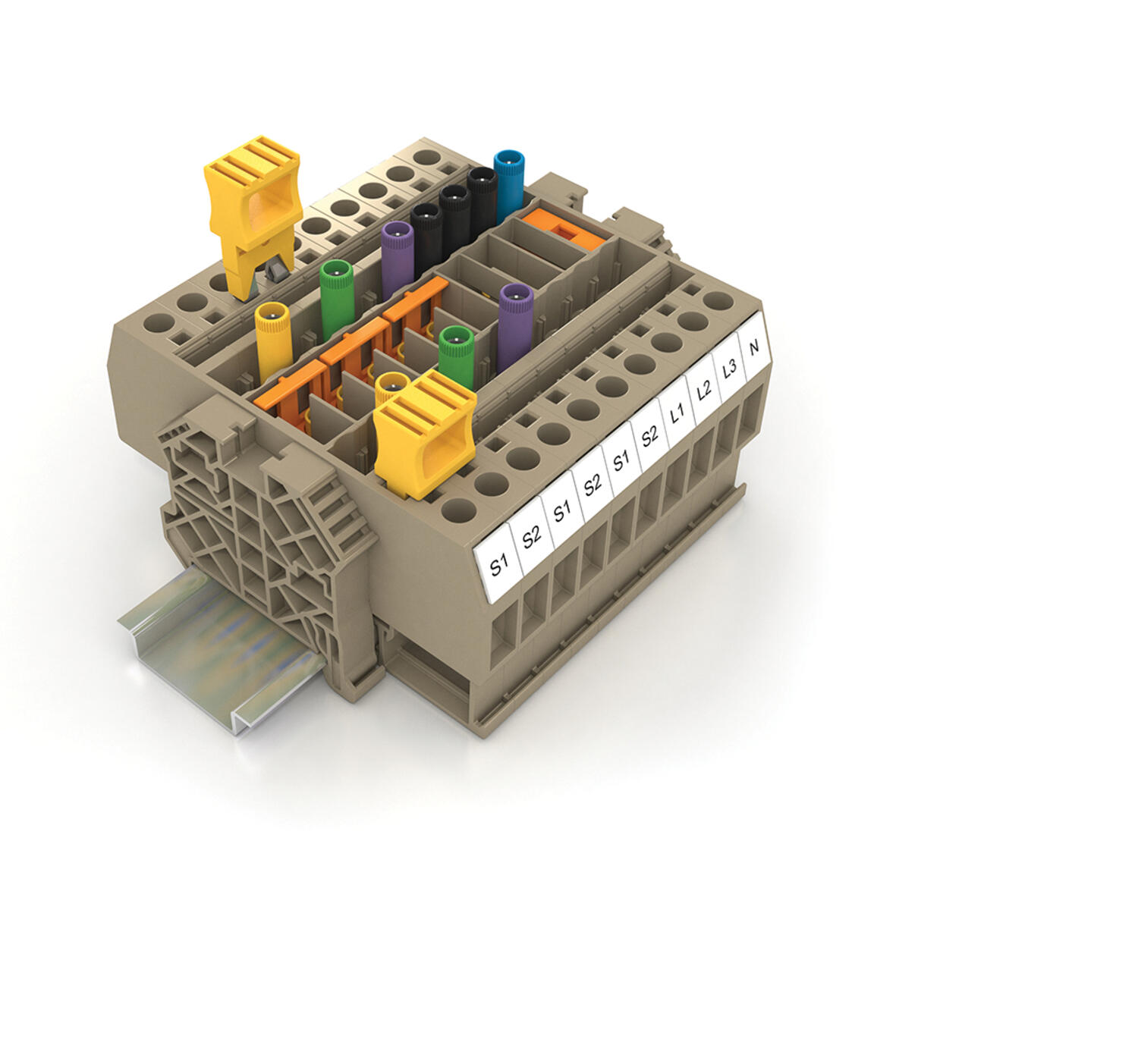

SPTK.tif

CONTACLIP Test disconnect terminals SPTK

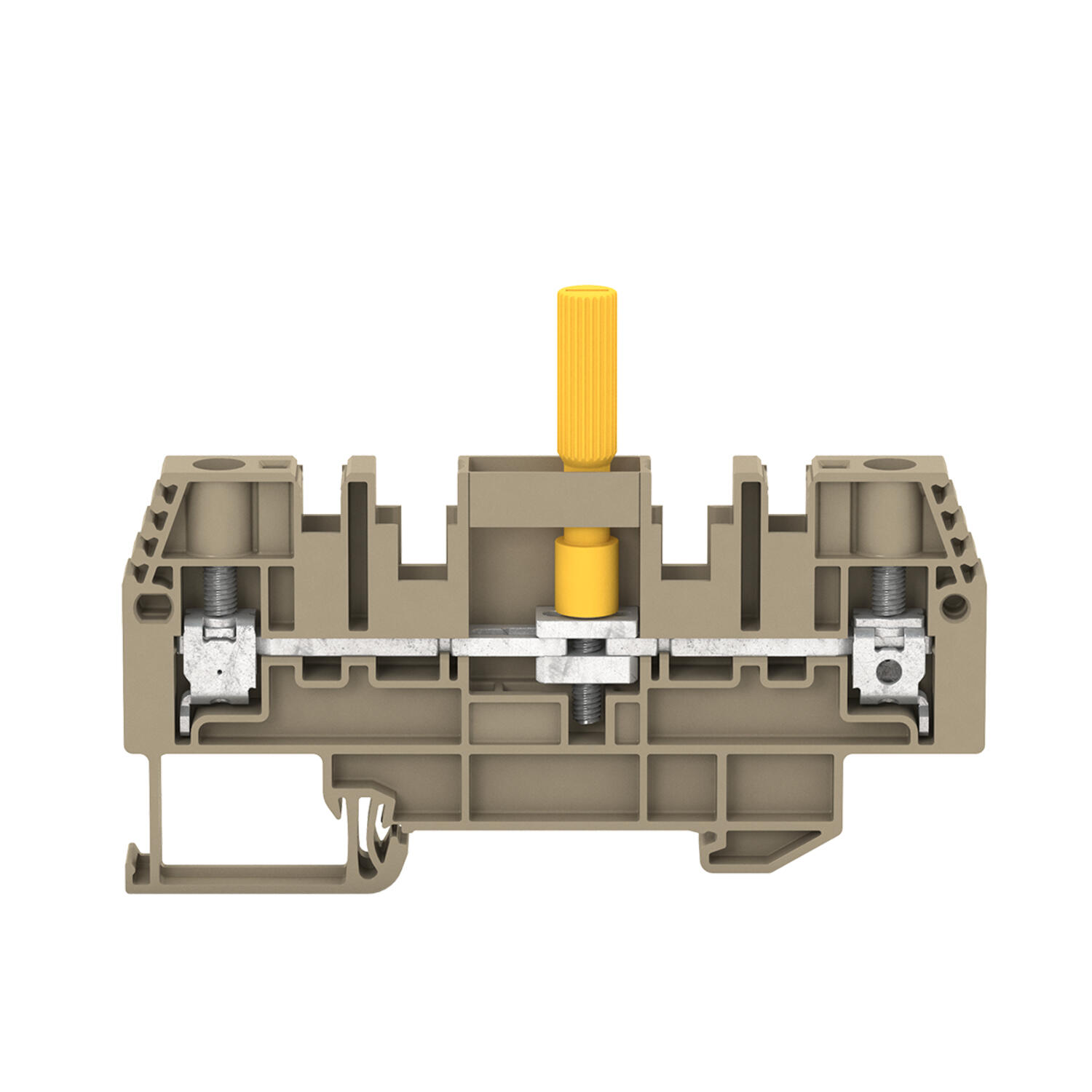

17523_2_SPTK6_LT_HB.tif



Selected variant

Available in several variants

Selected variant

Technical data

General data

Rated impulse voltage 8 kV
Colour Beige
Rated wire cross section 6 mm²
Rated voltage IEC 800 V
Mounting TS 35
Contamination degree 3
Rated current IEC 41 A
Approvals UL, cUL, KEMA KUR
Overvoltage category III

Dimensions

Height TS 35/7.5 47 mm
Length 93 mm
Width 8,1 mm

Connection data

Cross connect channels 4
Cross section stranded wire to 10 mm²
Cross section single wire from 0,2 mm²
Torque max 2,4 Nm
Connections 2
Cross section stranded wire from 0,2 mm²
Torque min 1,2 Nm
Rated wire cross section to (AWG) 8
Rated wire cross section from (AWG) 22
Cross section stranded with ferrule from 0,2 mm²
Screw size M 3,5

*Invisible Heading*

Screw type Slotted
Cross section stranded with ferrule to 6 mm²
Stripping length 10 mm
Cross section single wire to 10 mm²
Number of levels 1
Plug gauge acc. EN 60 947-1 A5

Materials

Flammability class UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
Insulation material Polyamide 6.6

Approvals

UL test standard UL 1059
Rated current UL 33 A
Rated current cUL 33 A
Rated voltage UL 300 V
KEMA KEUR test standard EN 60947-7-1:2009
Rated voltage cUL 300 V
cUL test standard C22.2 No 158

Additional data

Pack size 50
Country of origin CZ
Tariff code 85369010
Weight 26,084 g

Product description

Test-disconnect terminals are mainly used for power network, electricity generation and supply applications.

They are perfect for the wide variety of switching demands in the current-transformer secondary circuits that are common in these types of applications.



Current transformers must always have a closed secondary circuit, for use when electricity meters and measuring instruments are being replaced, or when making comparative measurements.



All versions provide touch-safe protection in compliance with DGUV-3.



A captive, screw-on sliding partition is used to separate the current and voltage paths.



The switch position is always easy to detect since the disconnect screw has a yellow insulating sleeve.



In all versions, the STBI 19/4 socket plugs can be used for a test pick-off for measuring values using the PS 4 test plug or the conventional (4 mm) insulated test plugs.



Cross-switches QVSI

The VH 19 connecting sleeves and the BS 25 screws or STB 19/4 L socket plugs are required for fastening the QVSI cross-switches above the terminal block. The cross-switches  are available from 2 to 10 poles.

Cross-switches QSBI

The QSBI internal cross-switches are positioned within the terminal block and make contact over the sliding contact on the LT- or QT-terminals. The cross-switches are available from 2 to 4 poles.

Mounting screw BS 25

The BS 25 mounting screws are used together with the VH 19 connecting sleeves to establish contact with the QVSI cross-switches.

Switch lock PTK-SP

The PTK-SP switch lock is mounted over the slider on the SPTK terminals. It keeps the partition screws from being accidentally touched by a screwdriver.

Insulated socket plugs STBI 19/4 L

The STBI 19/4 L socket plugs can be screwed into the inside cross-connection channels. They are used together with the VH 19 connecting sleeves to establish contact with the QVSI cross-switches. They are also used to hold the PS 4 test plugs  or conventional (4 mm) insulated test plugs.

Short-circuit plug KS-SQI

The KS-SQI short-circuit plugs are used to make pluggable cross-connections between the SPTK terminals in the outer cross-connection channels. The plugs can also be put in the  built-in park position of the SPTK terminals when not in use.  The short-circuit plugs are available from 2 to 5 poles.

Cross-connector SQI 6

The SQI cross-connector is used to make a pluggable  cross-connection between the SPTK terminals in the outer  cross-connection channels. The cross-connectors can also  be put in the built-in park position of the SPTK terminals  when not in use. The cross-connectors are available from  2 to 30 poles.



Accessories

Related products

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

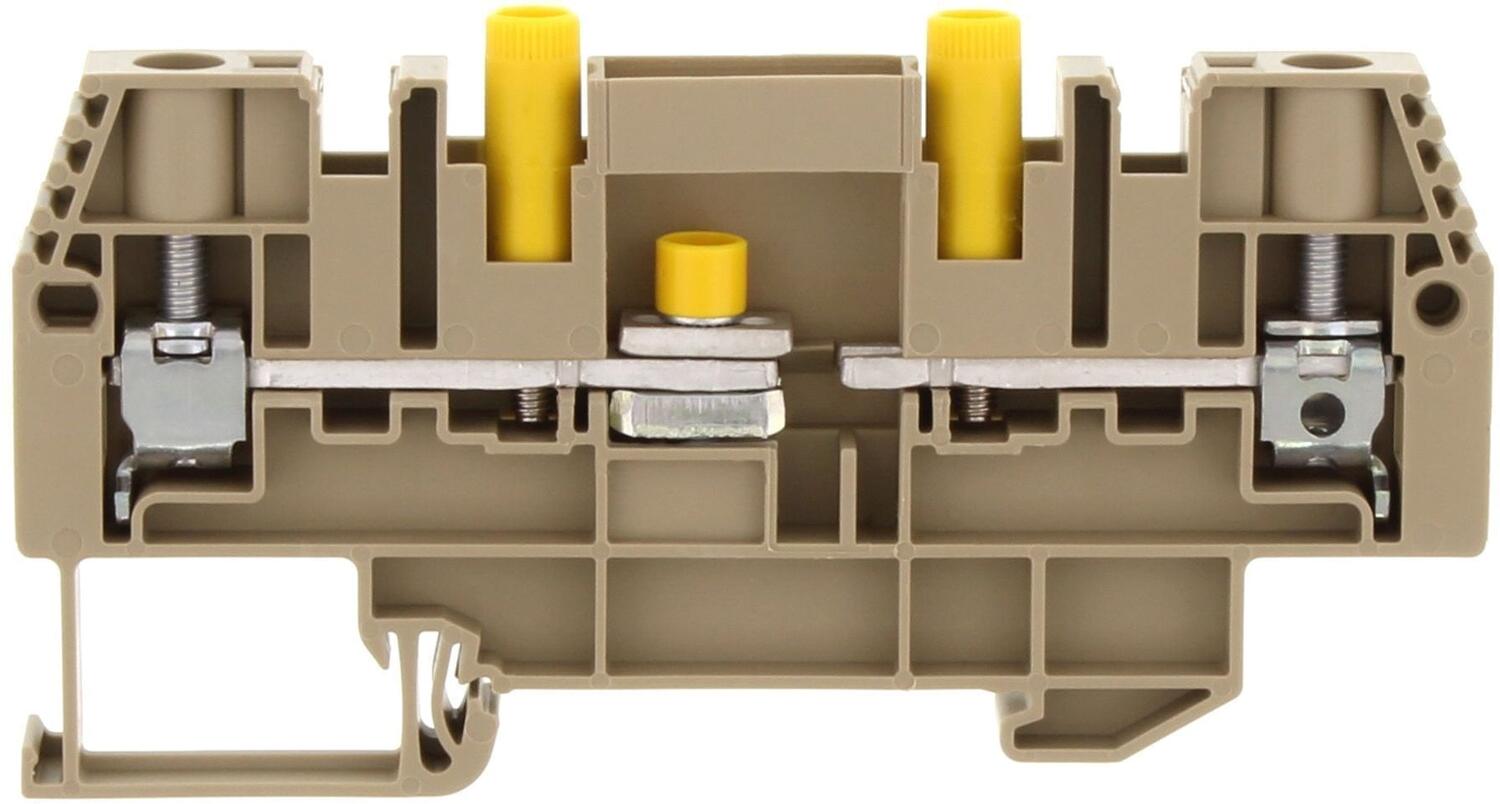

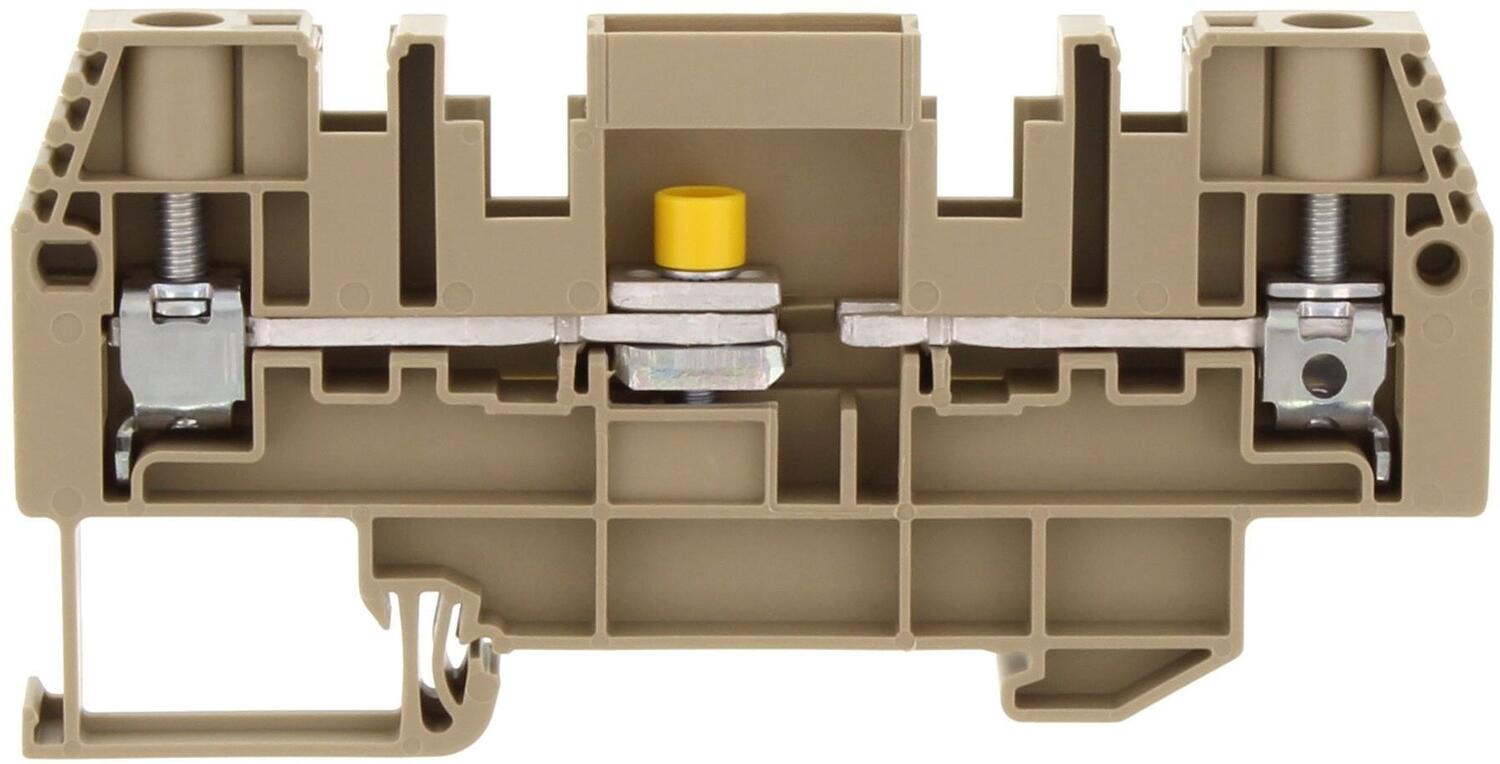

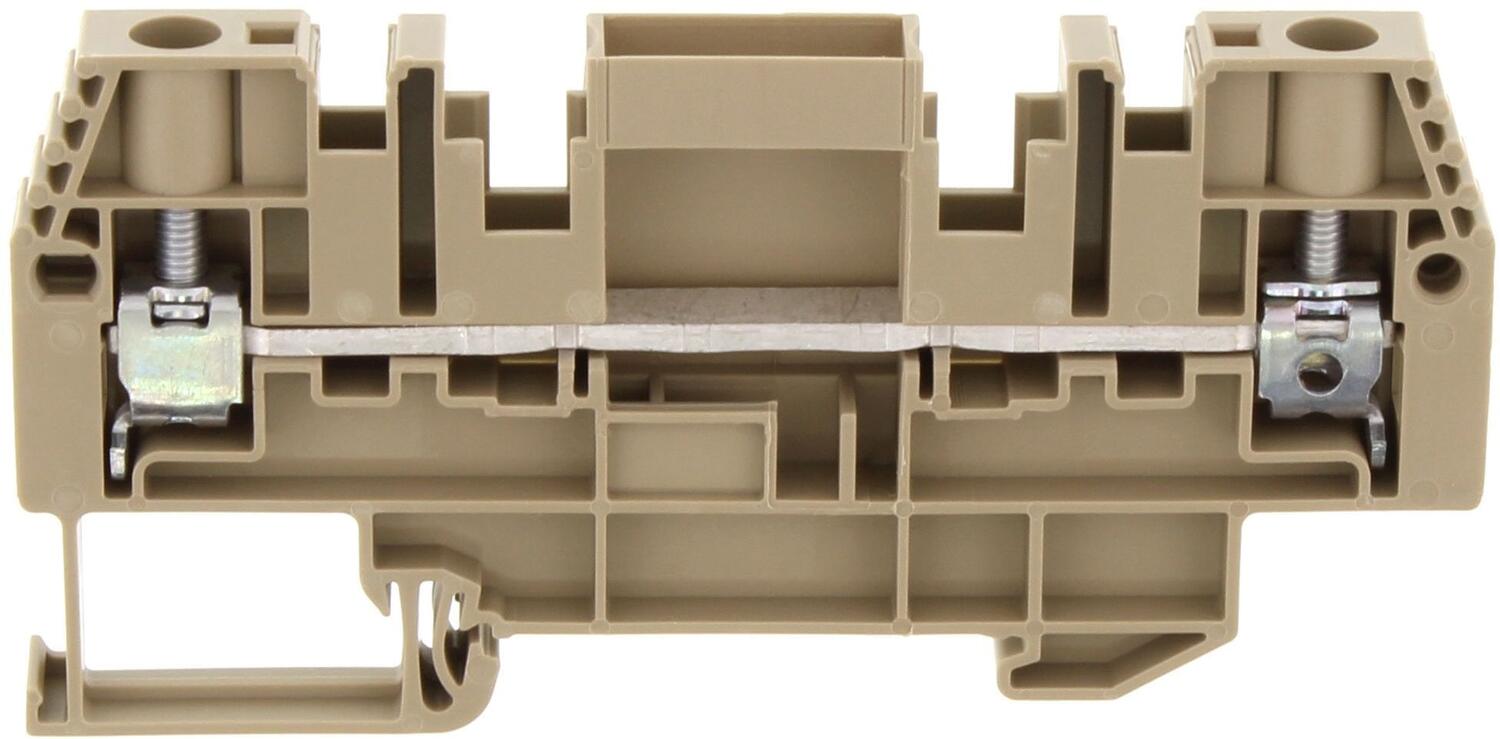

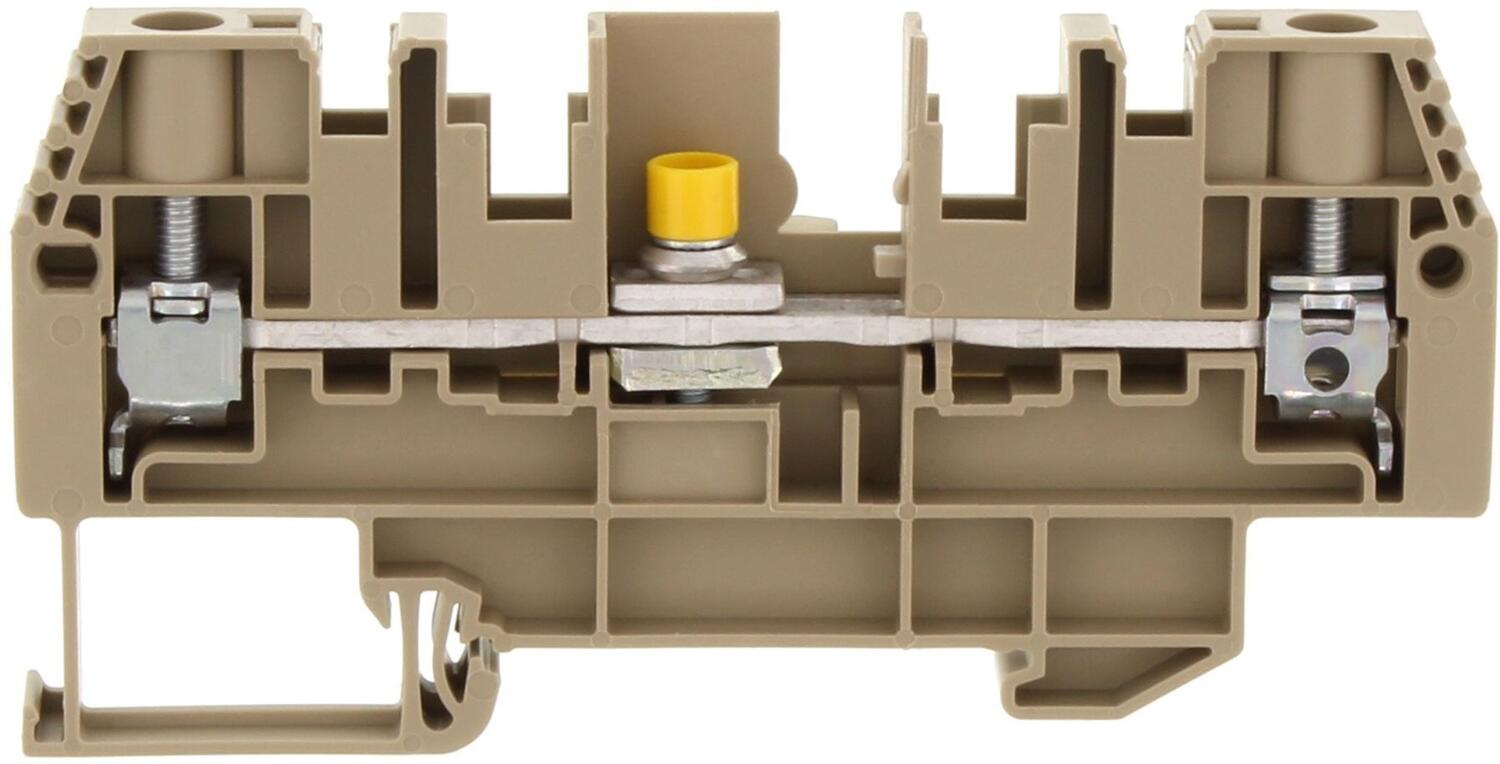

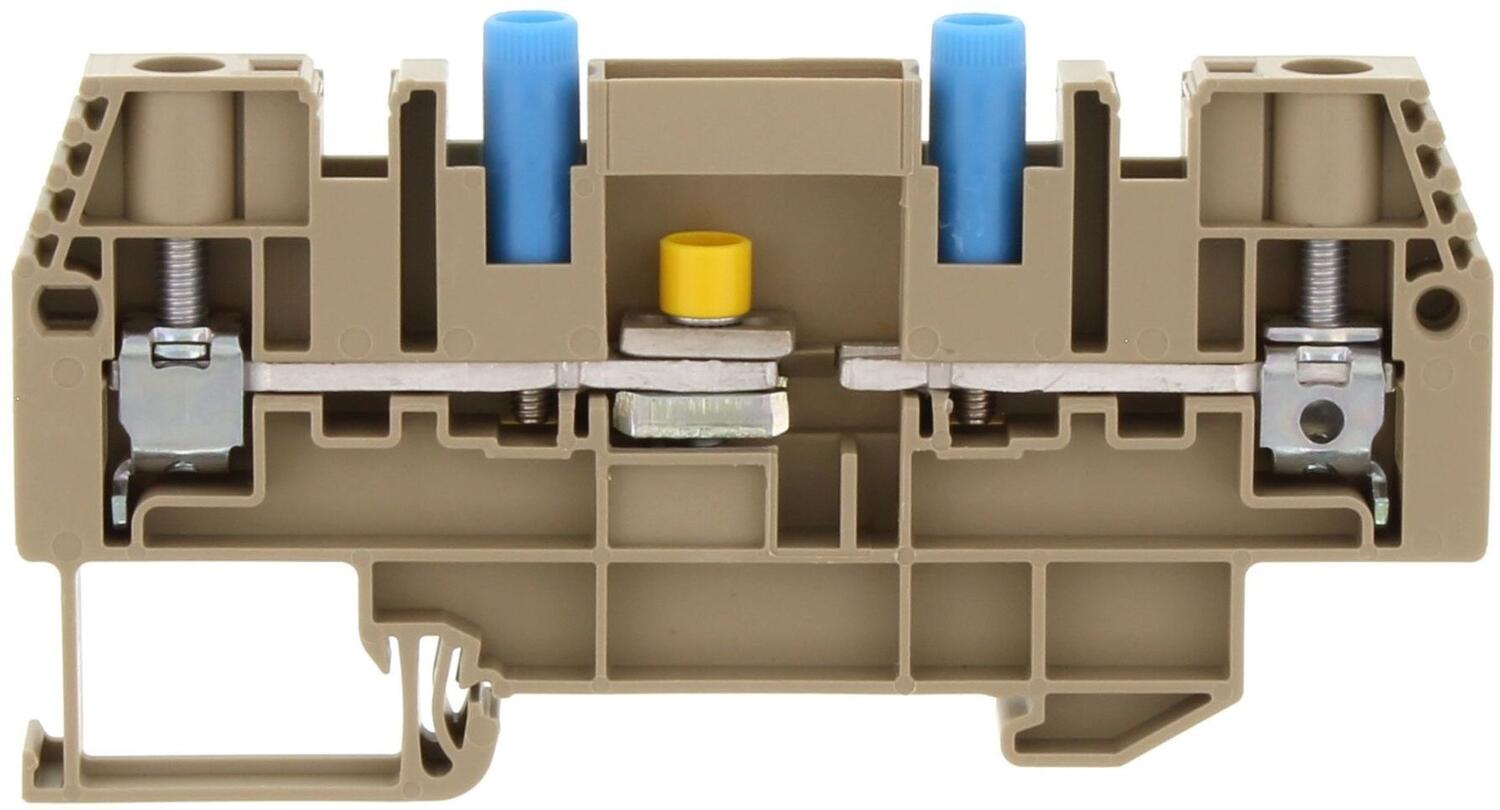

Parts Rated impulse voltage Rated voltage IEC Additional information Height TS 35/7.5 Rated voltage UL Rated voltage cUL Country of origin Weight Price
8 kV
800 V
47 mm
300 V
300 V
CZ
26,084 g
4 kV
400 V
47 mm
300 V
300 V
CZ
27,28 g
4 kV
400 V
47 mm
150 V
150 V
CZ
28,19 g
4 kV
400 V
63 mm
300 V
300 V
CZ
28,43 g
4 kV
400 V
with sockets
63 mm
300 V
300 V
DE
29,65 g
4 kV
400 V
with sockets
63 mm
300 V
300 V
DE
29,65 g
