CROUZET CONTROL
SyrLine, the new specialised range from Crouzet. Aimed to satisfy the most unique requirements of any application by innovations in design, engineering and develipment.
The new family of 11 pin plug-in analog timers - multifunction or monofunction, with a wide time range, and with all the classic timing functions.
Function |
|
|---|---|
| Repeatability | 0,5 % |
| Response time off | 120 ms |

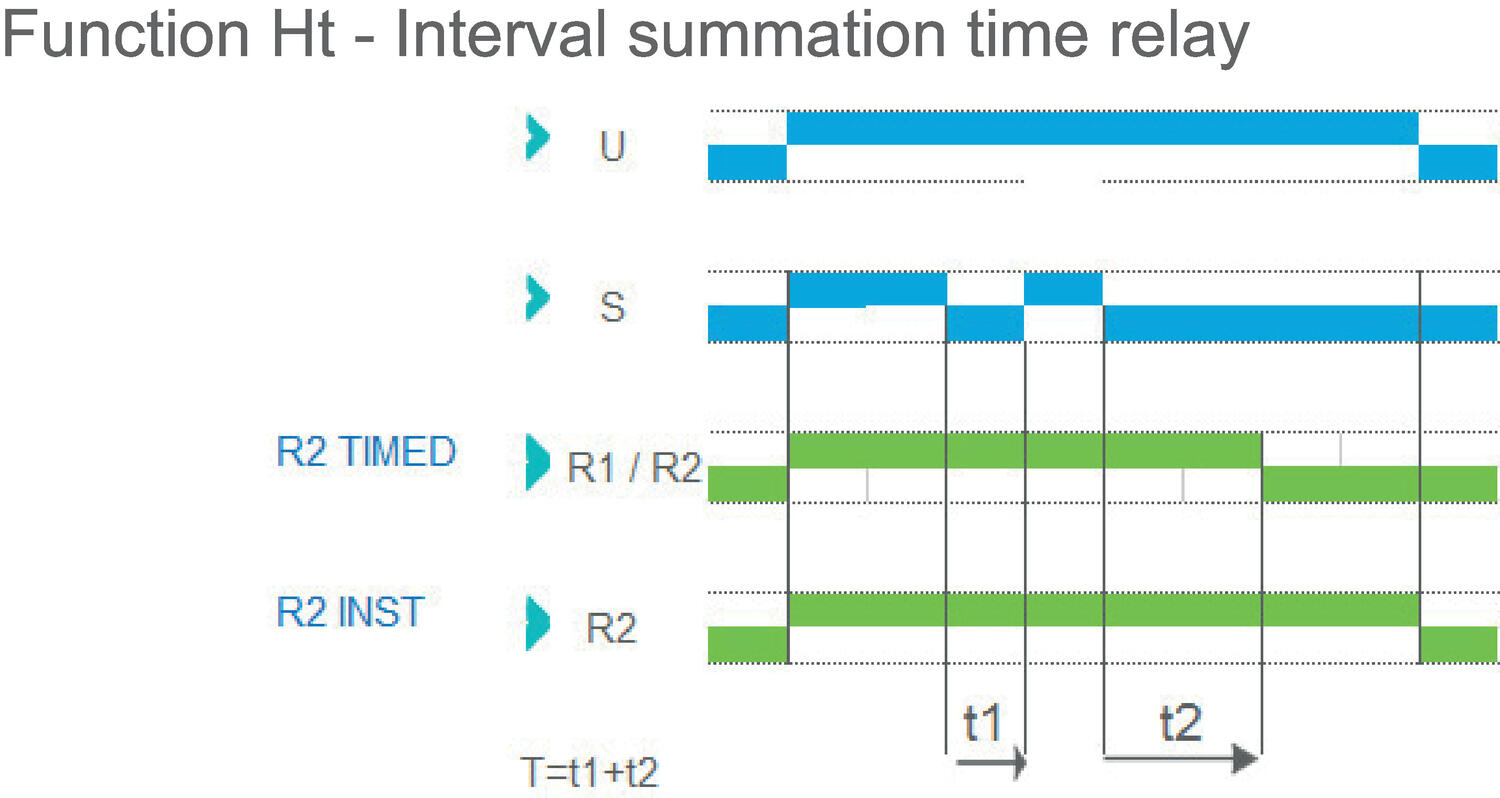

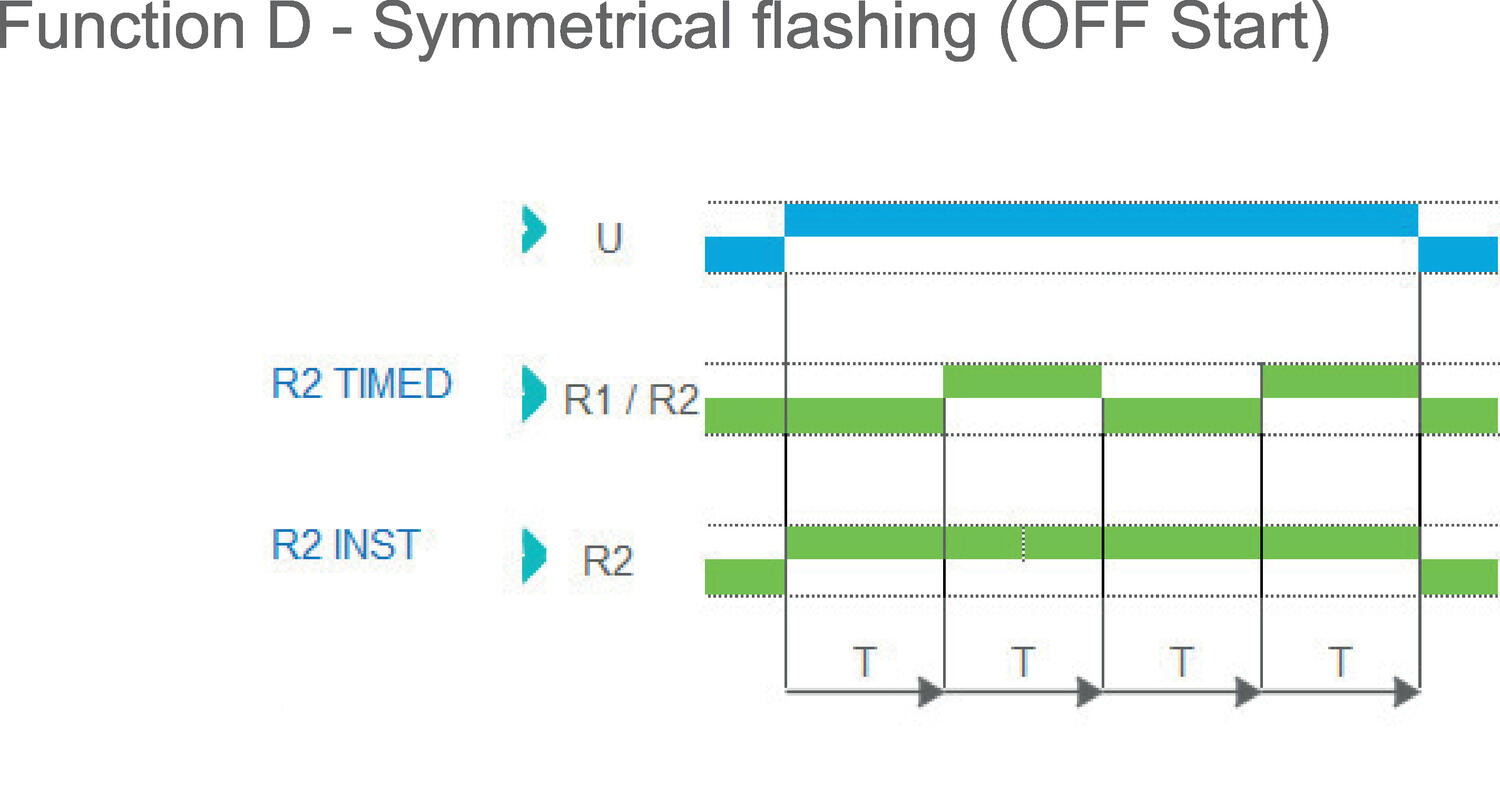

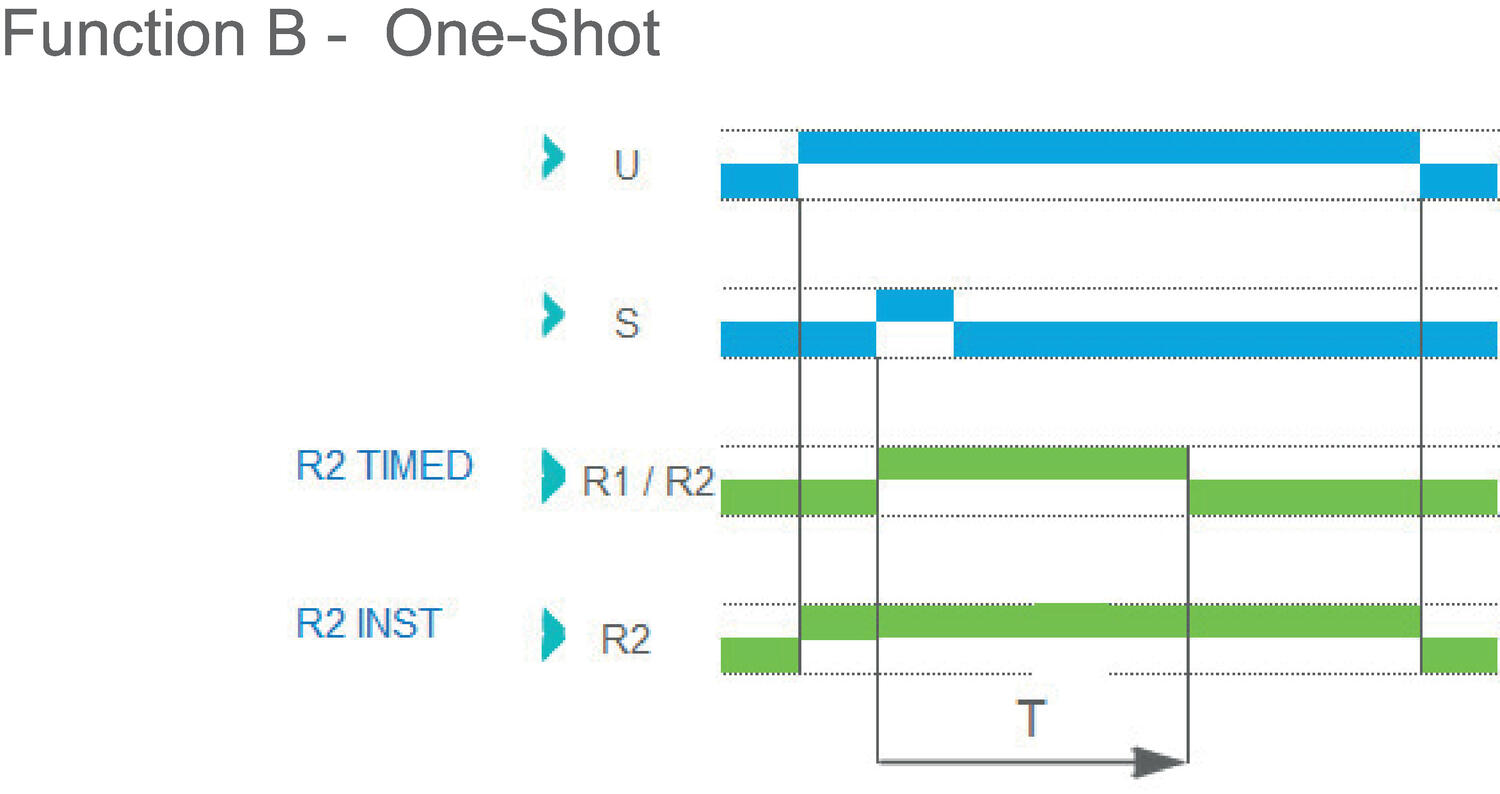

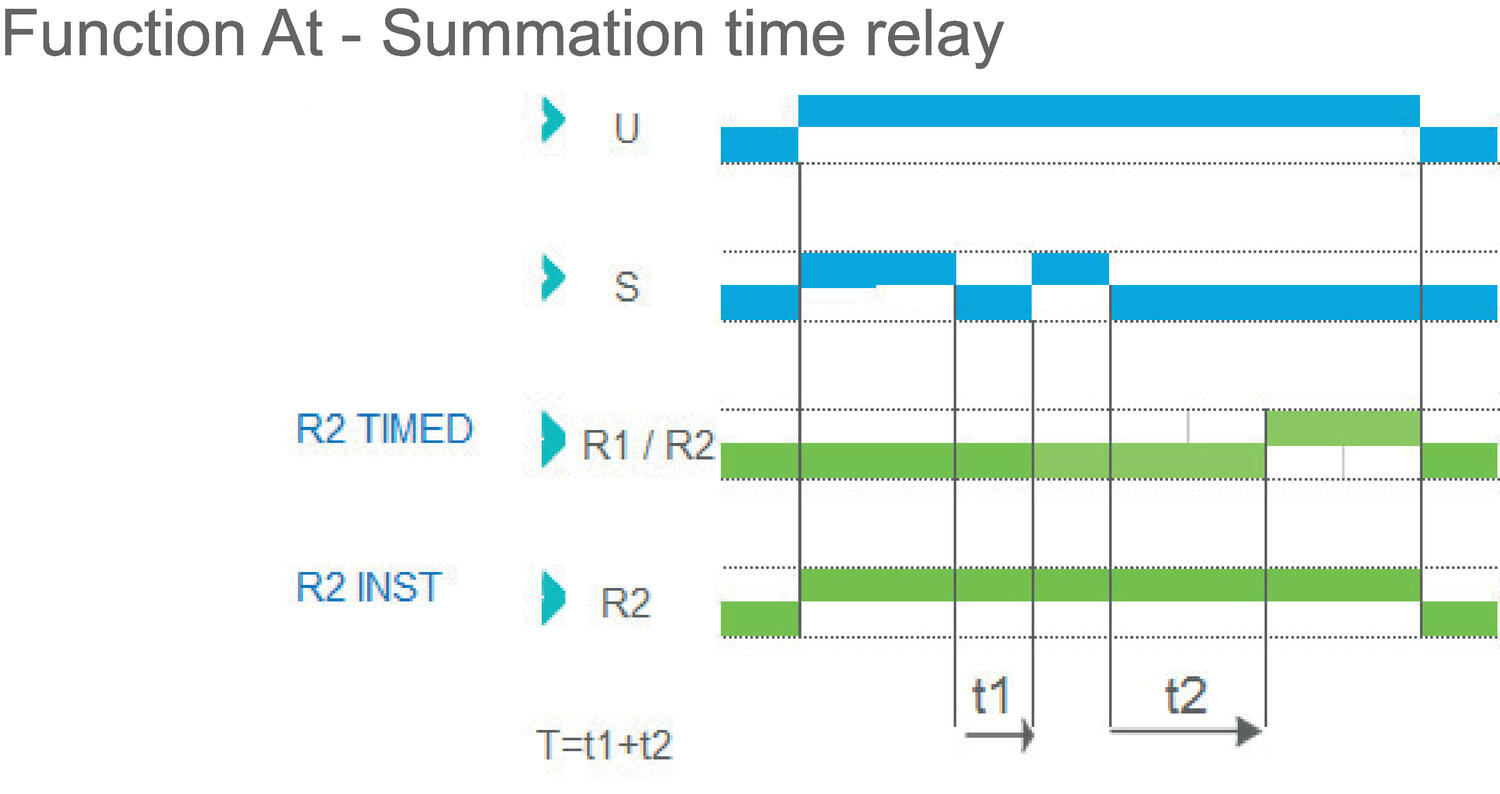

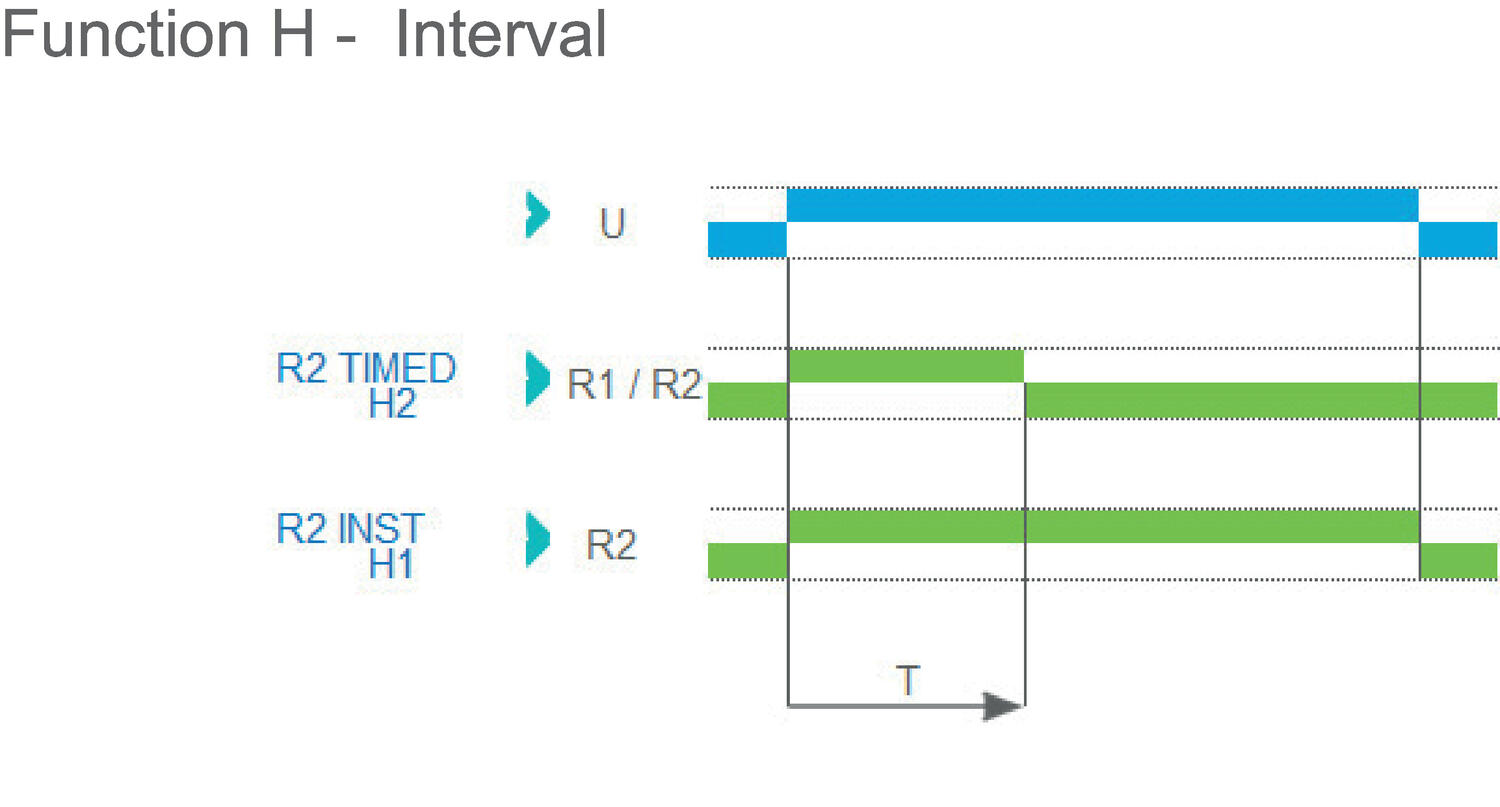

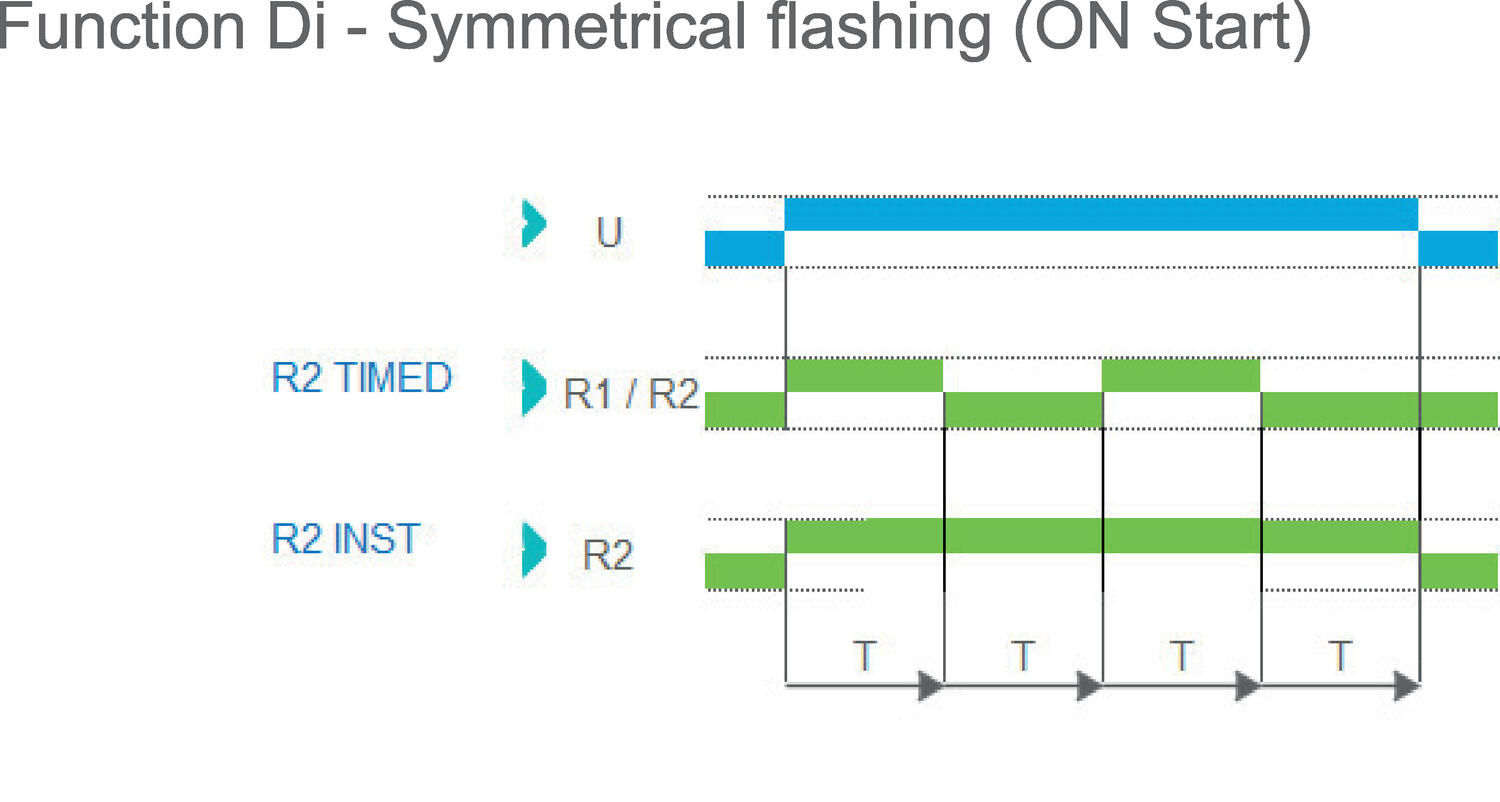

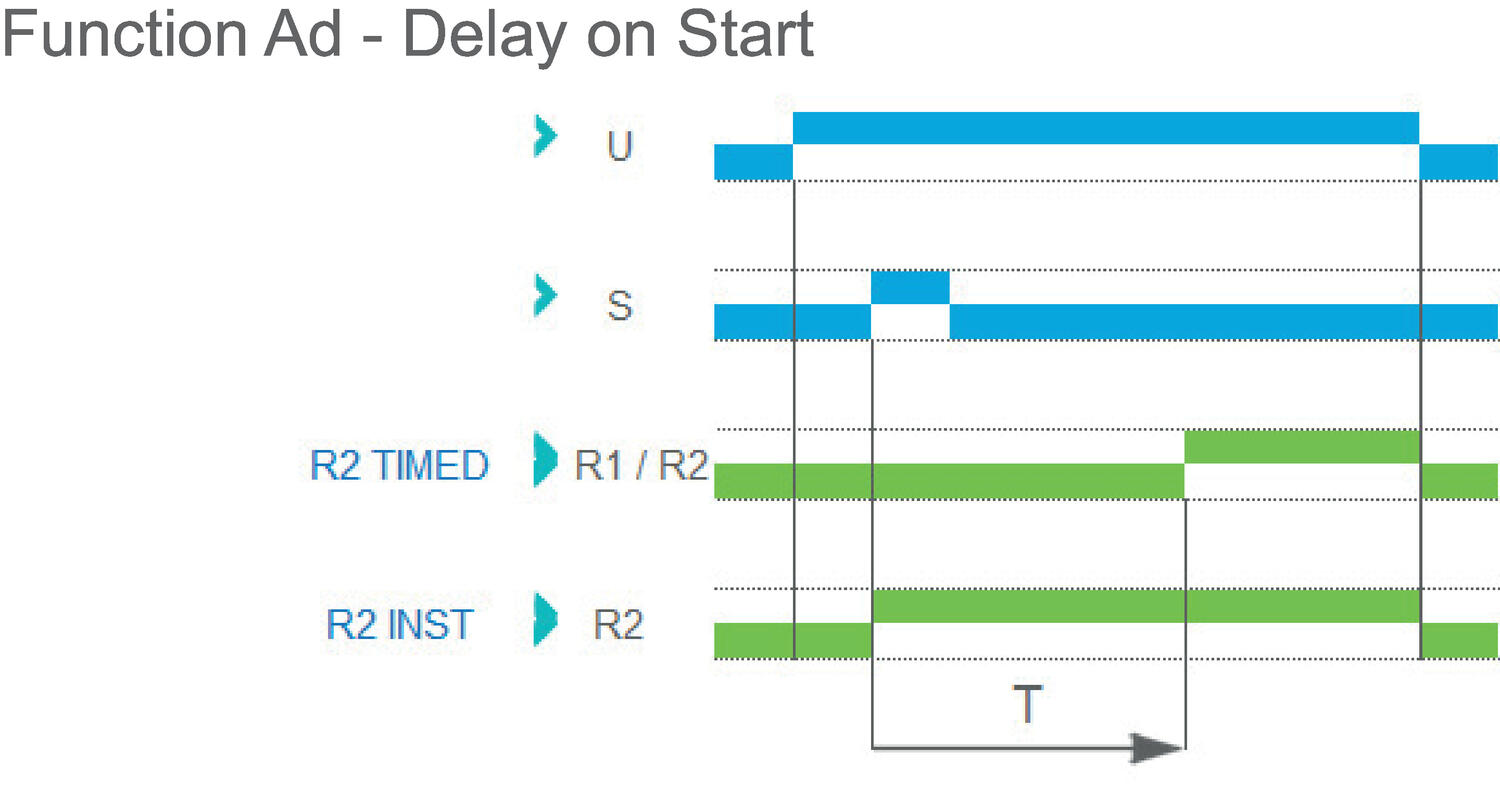

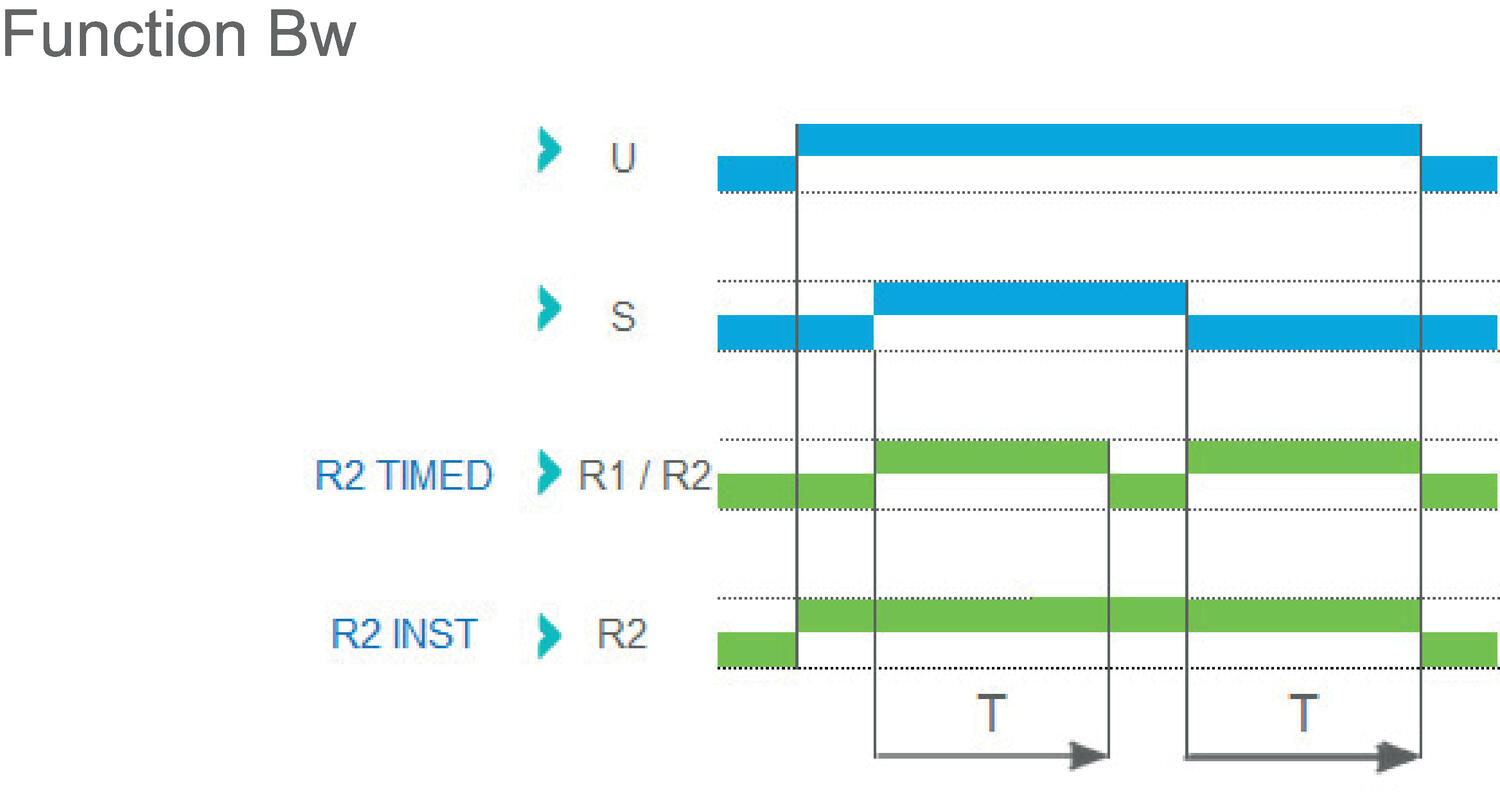

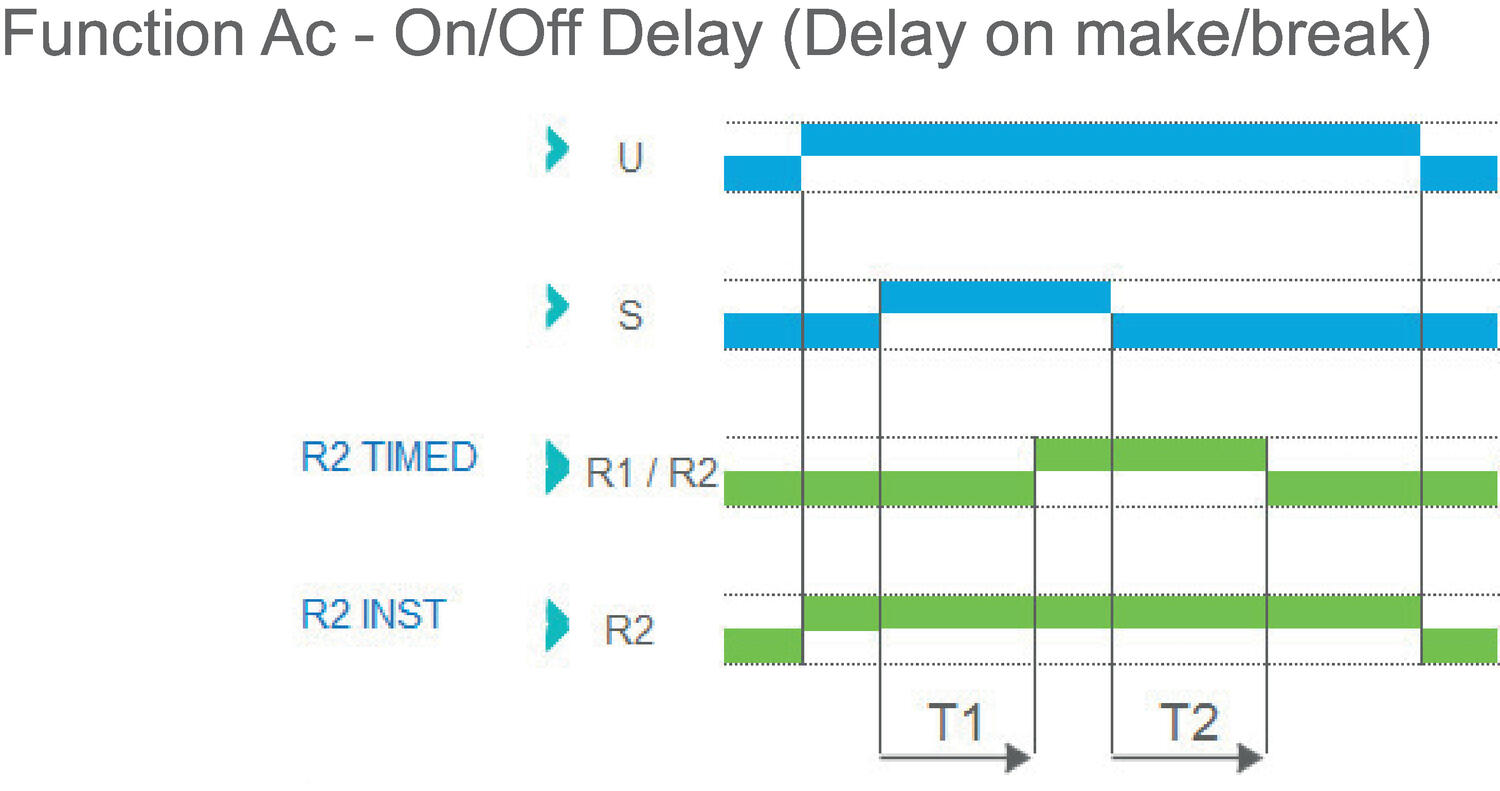

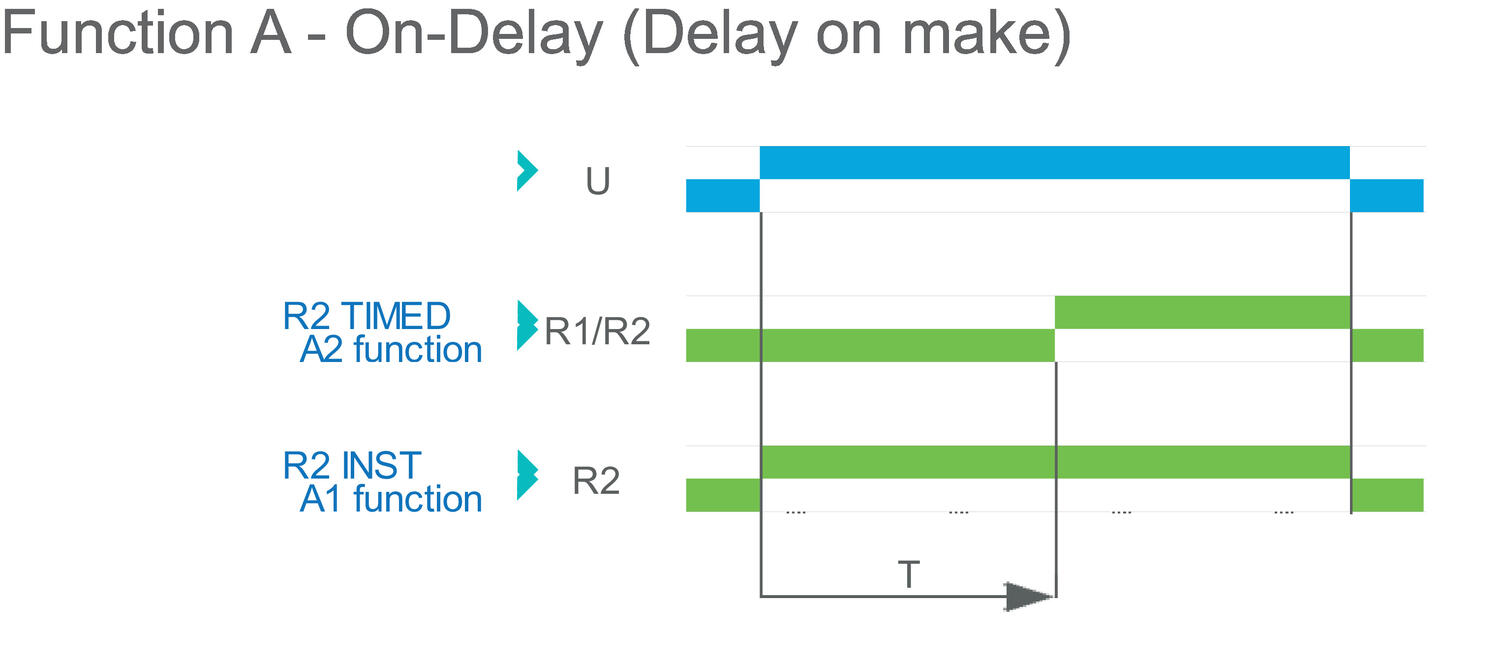

| Function | A, Ac, Ad, At, B, Bw, C, D, Di, H, Ht |
| Close delay | 40 ms |
| Time range | 0,5-10s, 0,05-1min, 0,5-10min, 0,05-1h, 0,5-10h, 0,05-1d, 0,5-10d |
| Output | Relay 2 pole C/O |
| Multi-function | Yes |
Electrical data |
|
| Breaking capacity | 2500 VA / 300W |
| Electrical lifetime | 105 cycles min at 10A 250V (resistive load) |
| Switching current max | 10 A |
| Power consumption | 1,5 W |
| Mechanical life expectancy | 10x106 cycles |
*Invisible Heading* |
|
|---|---|
| Supply voltage | 12-240V AC/DC |
Other technical data |
|

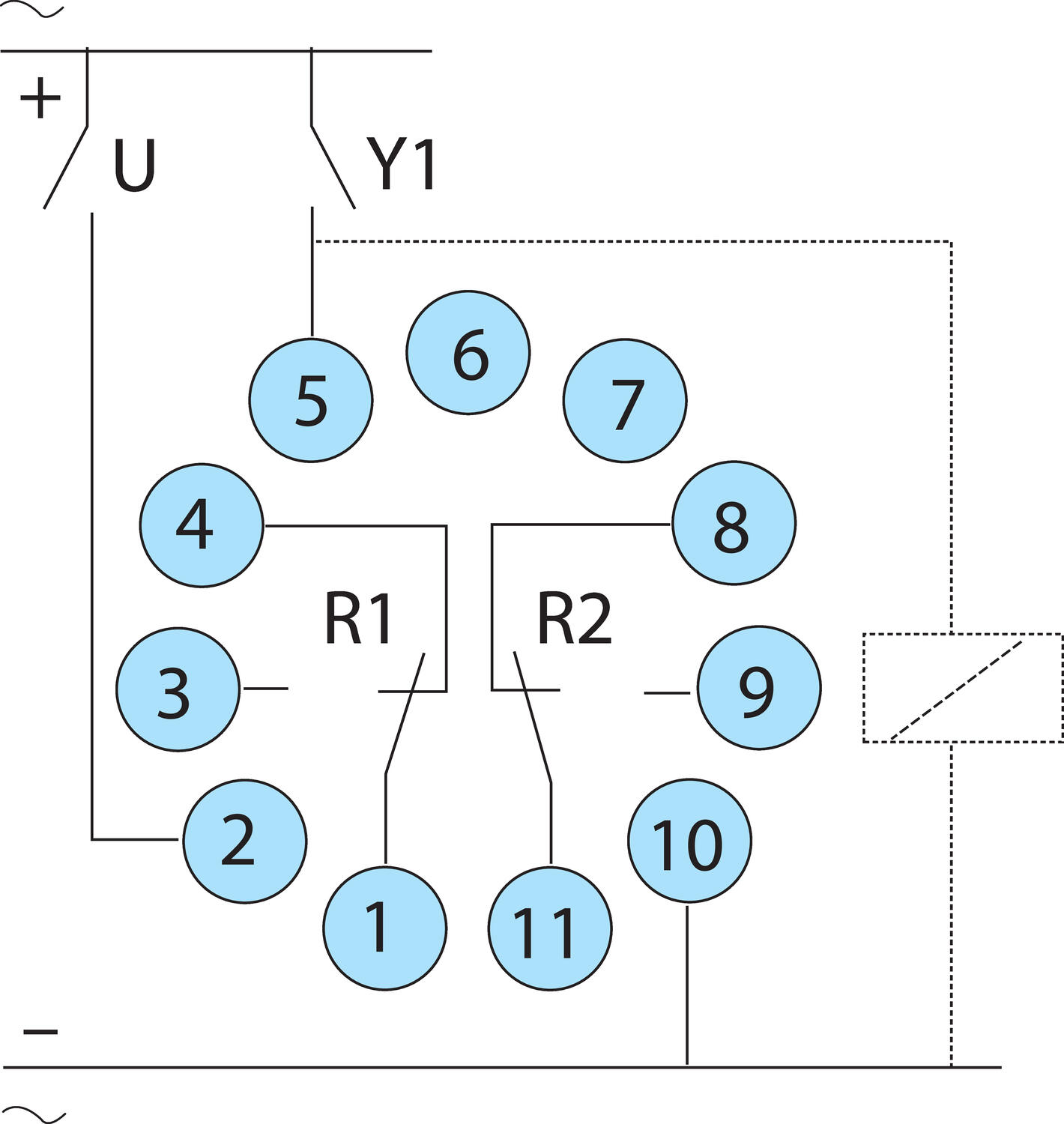

| Mounting | 11-pin socket |
| IP class | IP40 |
| Depth | 95,6 mm |
| Storage temperature min | -40 °C |
| Temperature operational max | 60 °C |
| Width | 35 mm |
| Storage temperature max | 70 °C |
| Temperature operational min | -20 °C |
| Approvals | CE, cULus, REACH, RoHS |
| Height | 53 mm |
SyrLine, the new specialised range from Crouzet. Aimed to satisfy the most unique requirements of any application by innovations in design, engineering and develipment.
The new family of 11 pin plug-in analog timers - multifunction or monofunction, with a wide time range, and with all the classic timing functions.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Function | Multi-function | Price | ||
|---|---|---|---|---|---|
SyrLine Multifunc 10A 12-240Vac/dc 11pin
Art:
PU2R10MV1
Copied
|
A, Ac, Ad, At, B, Bw, C, D, Di, H, Ht
|
Yes
|
| ||
SyrLine ON-Delay 10A 12-240Vac/dc 11pin
Art:
PA2R10MV1
Copied
|
A, At
|
No
|
| ||

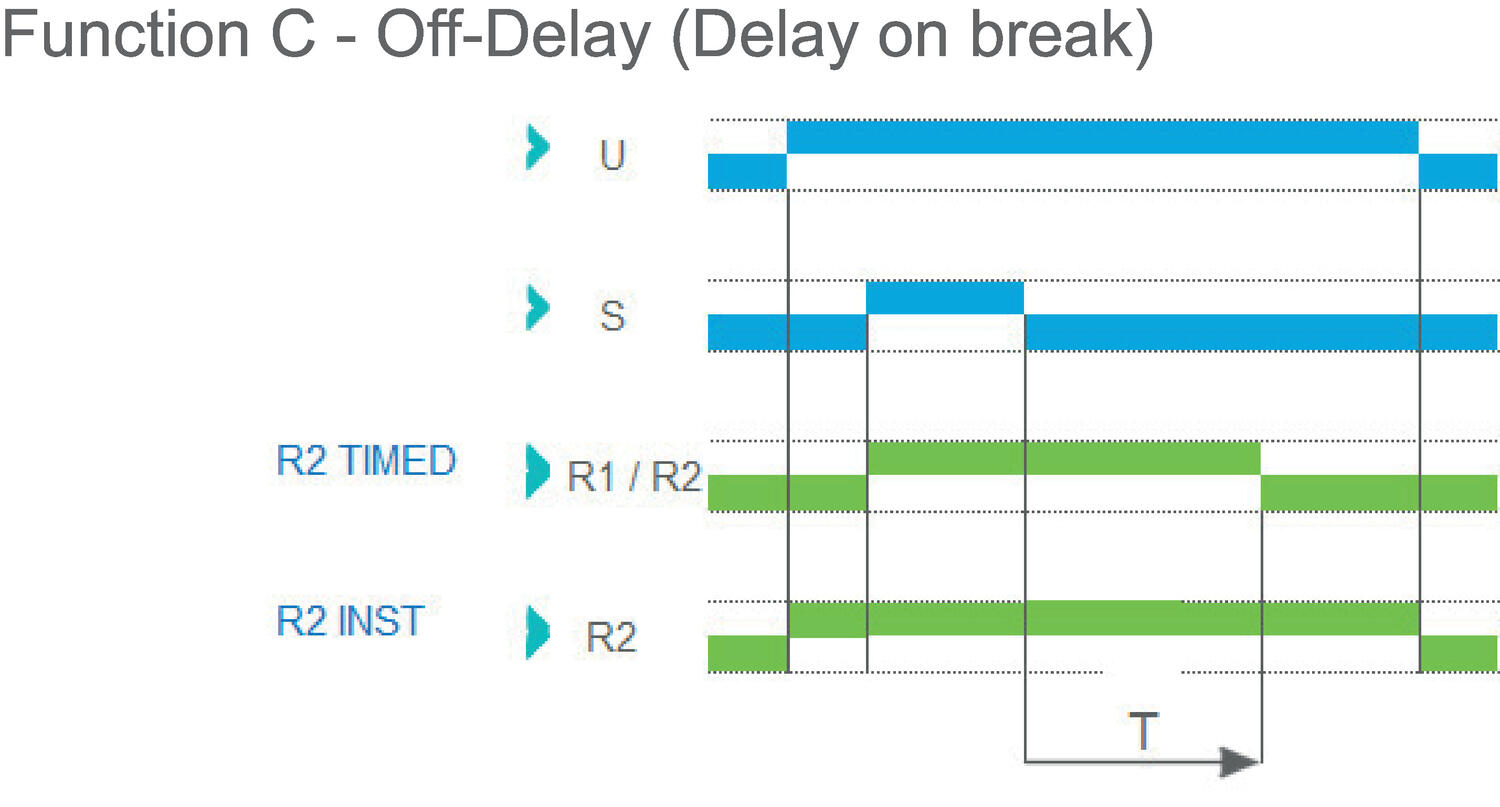

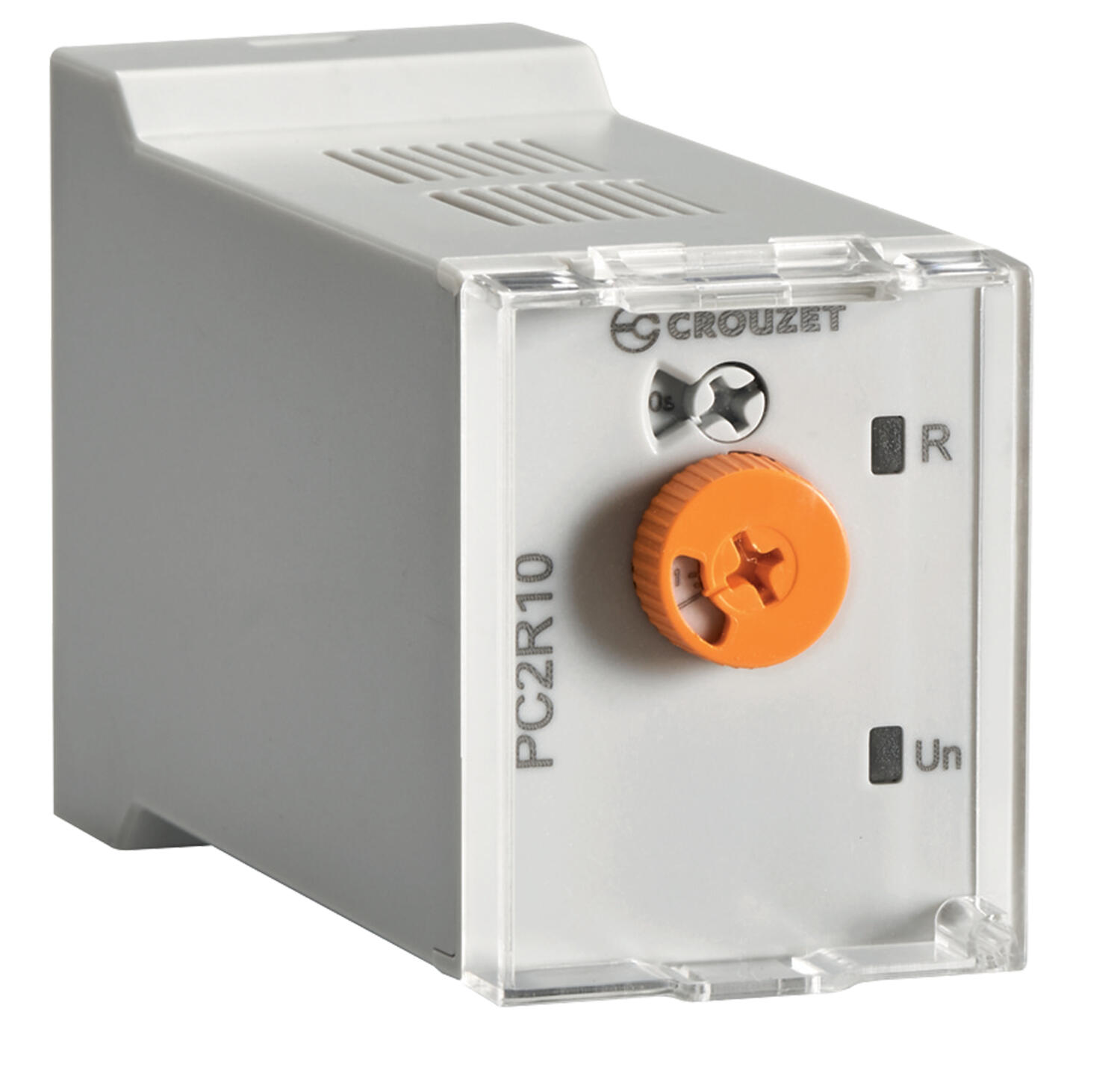

SyrLine OFF-Delay 10A 12-240Vac/dc 11pin
Art:
PC2R10MV1
Copied
|
C
|
No
|
| ||

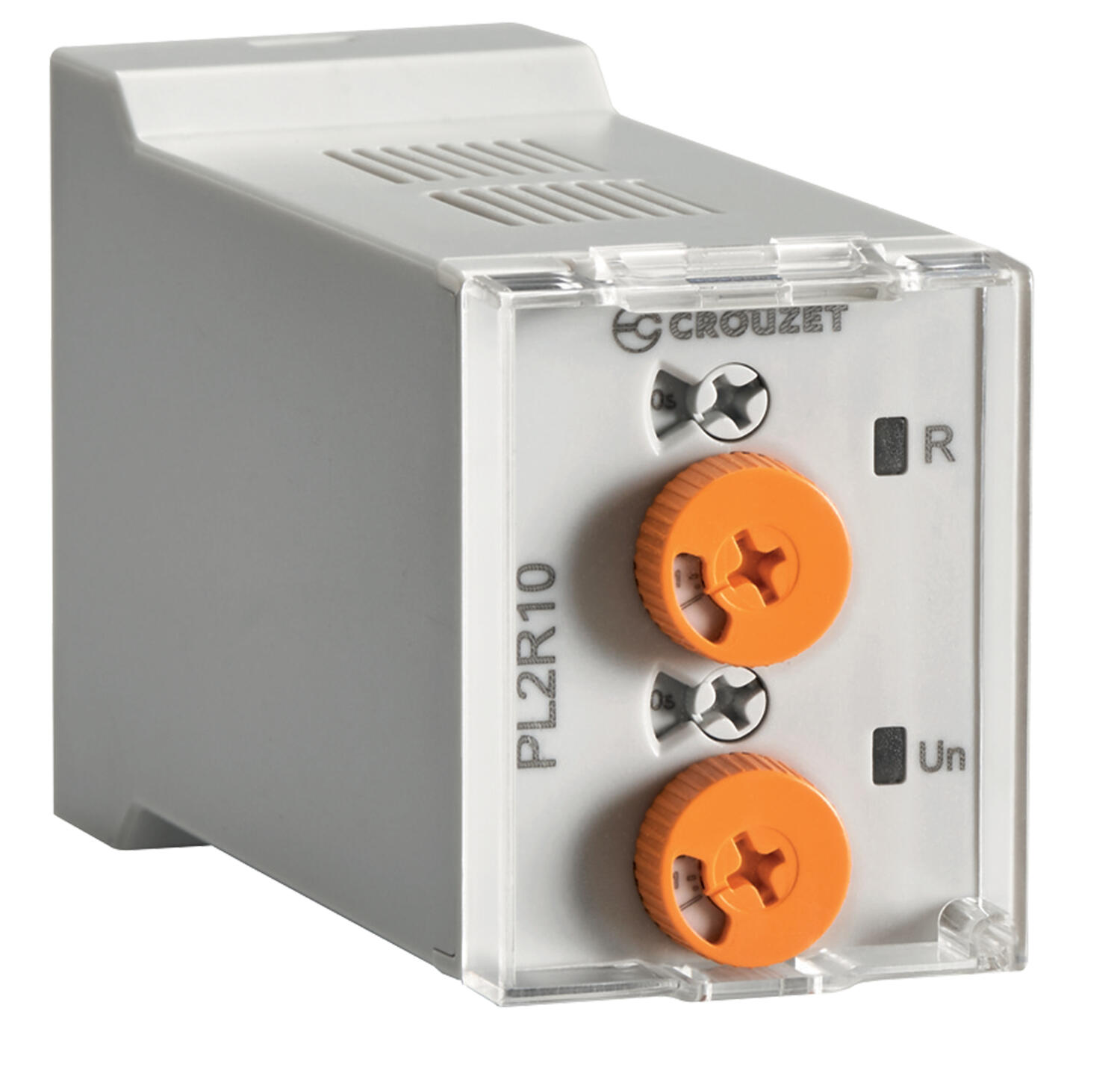

SyrLine Recycle 10A 12-240Vac/dc 11pin
Art:
PL2R10MV1
Copied
|
L, Li
|
No
|
|
Select a variant in the list
