Honsberg - HD1K Series Flow Switch

Piston

Model HD1K is a flow switch for liquids and gases. It has a built-in scale that shows where in the working range switching point is set. The switch can also deal with media with high viscosity, which makes it highly suitable for hydraulic applications.

Special versions

• Viscosity compensating version HD1KV
• Version for higher pressure 400 or 500 bar
• Integrated flow meter
• Integrated temperature gauge
• Connector M12x1, 4 pole
• Ex/ATEX version

Switching Range 0,1..80 l/min H₂O

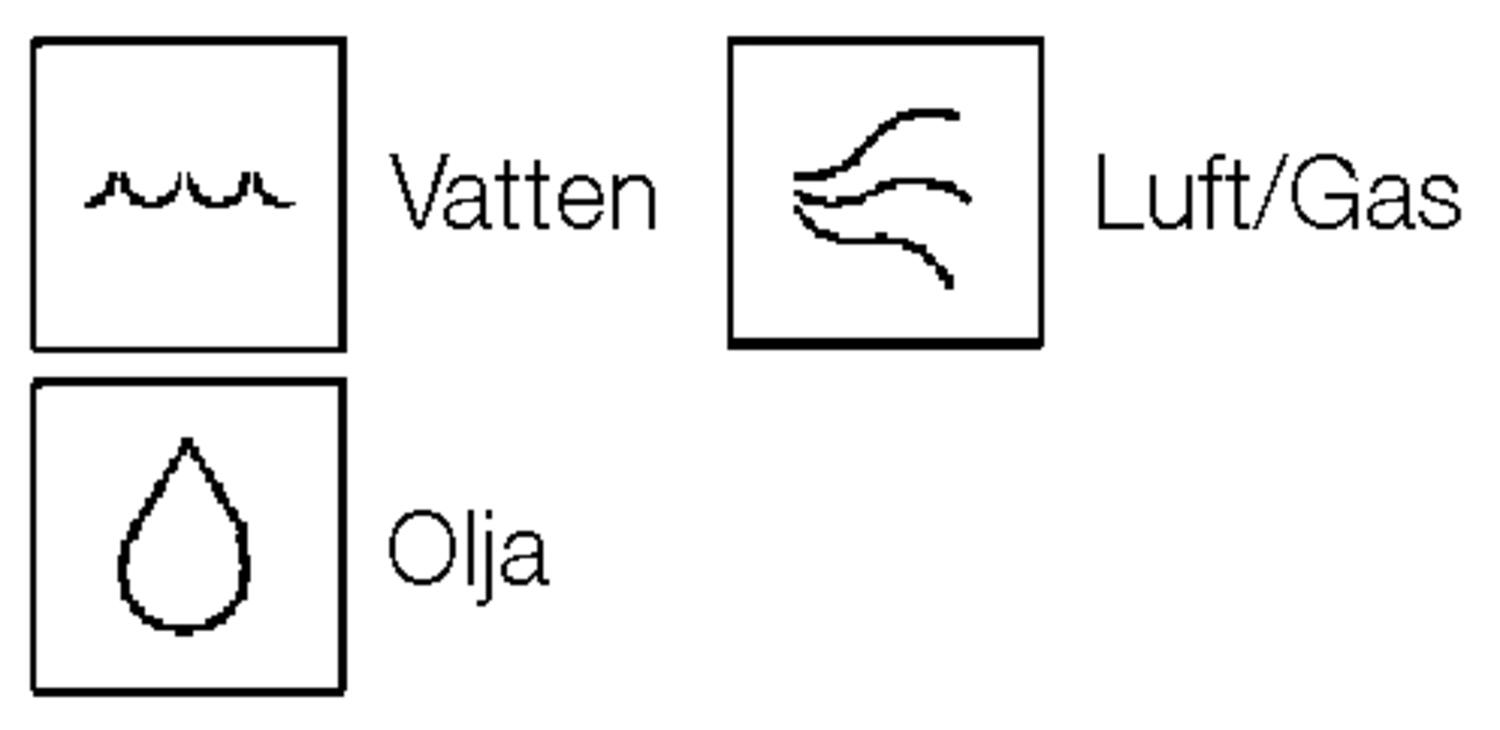

Water, Oil (gases and aggressive media available on request)
G¼" up to G1"
Brass or Stainless Steel Wetted Parts
Max Pressure 200 bar

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Accuracy	± 5%
Connection type	Internal thread ¼ "
Contact rating max	50 VA
Electrical connection	Plug connector DIN 43650-A
Flow max	10 l/min
Flow range max	5 l/min
Flow range min	0,5 l/min
Function	Flask, reed contact, alternating
Hysteresis	Depending on the breaking value, however, at least 0.7 l / min
IP class	IP65
Material flask	Nickel-plated brass

Material of body	Nickel-plated brass
Material of seals	NBR
Material spring	Stainless steel 301
Pressure drop	Approximately 0.5 bar at maximum flow
Pressure range max	200 bar
Temperature of media to	120 °C
Type of flow component	Flow Switches
Weight	1,4 kg
Viscosity max	150 cSt
Voltage ac/dc max	175 V

Downloads

HD1K_new datasheet.pdf

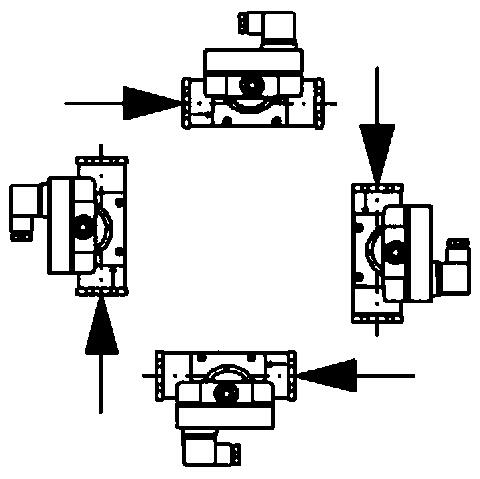

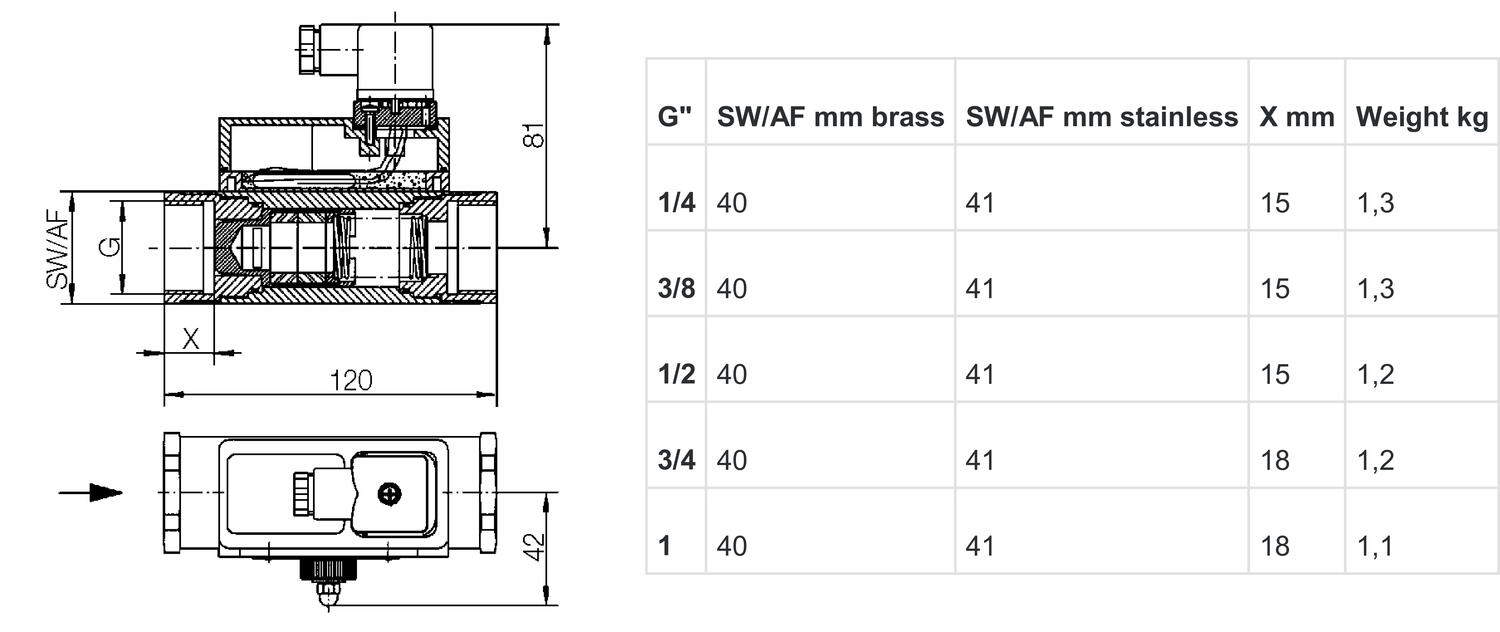

Measurements and connections

Technical illustrations

Product description

Special versions

• Viscosity compensating version HD1KV
• Version for higher pressure 400 or 500 bar
• Integrated flow meter
• Integrated temperature gauge
• Connector M12x1, 4 pole
• Ex/ATEX version

Accessories

Related products

Blog

7 advantages of using HYGHSPIN twin screw pumps

This blog post demonstrates 7 strong reasons production plants choose the HYGHSPIN twin screw pump by Jung Process Systems

Blog

Select the pressure switch for you a step by step guide

When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...

Product news Blog

Function test without opening the enclosure Emerson 327c

When it comes to solenoid valves, reliability and ease of maintenance are essential. That’s why our new Emerson, high flow solenoid valve is designed with unique features that streamline testing, commissioning, and ongoing operation.

IATECH, the industrial automation technology exhibition OEM automatic

Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Product news Company news

Our Valve Actuation Service

Did you know that OEM Automatic has been successfully providing valve actuation solutions?

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic

Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

Parts	Connection type	Flow max	Flow range max	Flow range min	Material flask	Material of body	Material of seals	Weight
Flow switch 1/4" 0,5-5 l/min Art: HD1K-008GM005 Copied	Internal thread ¼ "	10 l/min	5 l/min	0,5 l/min	Nickel-plated brass	Nickel-plated brass	NBR	1,4 kg
Flow switch 3/8", 1-10 l/min Art: HD1K-010GM010 Copied	Internal thread 3/8 "	20 l/min	10 l/min	1 l/min	Nickel-plated brass	Nickel-plated brass	NBR	1,4 kg
Flow switch 1/2", 3-30 l/min Art: HD1K-015GM030 Copied	Internal thread ½ "	40 l/min	30 l/min	3 l/min	Nickel-plated brass	Nickel-plated brass	NBR	1,3 kg
Flow switch 3/4", 4-40 l/min Art: HD1K-020GM040 Copied	Internal thread ¾ "	60 l/min	40 l/min	4 l/min	Nickel-plated brass	Nickel-plated brass	NBR	1,3 kg
Flow SW.6-60L/MIN,G1 Art: HD1K-025GM060 Copied	Internal thread 1 "	80 l/min	60 l/min	6 l/min	Nickel-plated brass	Nickel-plated brass	NBR	1,2 kg
Flow switch 1/4" s.s. 0,5-5 l/min Art: HD1K-008GK005 Copied	Internal thread ¼ "	10 l/min	5 l/min	0,5 l/min	Stainless steel 316L	Stainless steel 316Ti	Viton	1,4 kg
Flow switch 3/8" s.s. 1-10 l/min Art: HD1K-010GK010 Copied	Internal thread 3/8 "	20 l/min	10 l/min	1 l/min	Stainless steel 316L	Stainless steel 316Ti	Viton	1,3 kg
Flow switch 1/2" s.s. 3-30 l/min Art: HD1K-015GK030 Copied	Internal thread ½ "	40 l/min	30 l/min	3 l/min	Stainless steel 316L	Stainless steel 316Ti	Viton	1,3 kg
Flow switch 3/4" s.s. 4-40 l/min Art: HD1K-020GK040 Copied	Internal thread ¾ "	60 l/min	40 l/min	4 l/min	Stainless steel 316L	Stainless steel 316Ti	Viton	1,2 kg
Flow switch 1" s.s. 6-60 l/min Art: HD1K-025GK060 Copied	Internal thread 1 "	80 l/min	60 l/min	6 l/min	Stainless steel 316L	Stainless steel 316Ti	Viton	1,1 kg

Selected variant

Select a variant in the list
