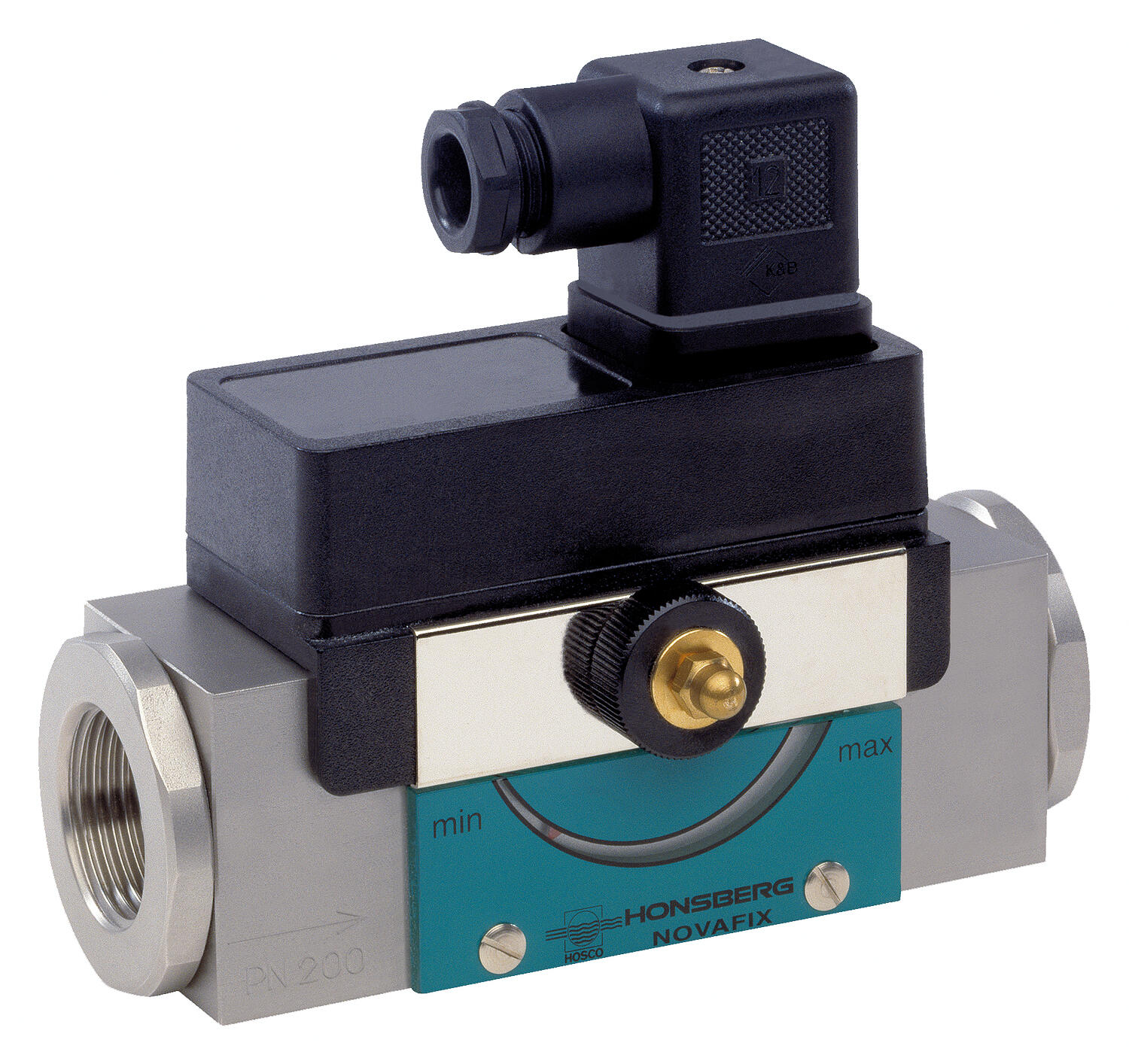

Honsberg - HD2K Series Flow Switch

Piston

Model HD2K is a flow switch for oil and other viscous media. It has a scale that shows where in the working range you have set the switching point. The switch can also deal with highly viscous media, which makes it highly suitable for hydraulic applications.

Special versions

• Ex/ATEX version
• Version for higher pressure PN 500 bar
• Integrated flow meter
• Integrated temperature gauge

Switching Range 0,5..60 l/min
Oil
G¼" up to G1"
Brass or Stainless Steel Wetted Parts
Max Pressure 200 bar

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Accuracy	± 5% of the final value
Connection type	Internal thread ¼ "
Contact rating max	50 VA
Electrical connection	Plug connector DIN43650-A
Flow max	12 l/min
Flow range max	8 l/min
Flow range min	0,5 l/min
Function	Flask, reed contact, alternating
Hysteresis	Depending on the breakpoint, however, at least 0.5 l / min
IP class	IP65
Material flask	Brass
Material of body	Nickel-plated brass

Material of seals	NBR
Material spring	Stainless steel 301
Pressure drop	1.1-3.5 bar, depending on viscosity
Pressure range max	200 bar
Temperature of media to	120 °C
Type of flow component	Flow Switches
Weight	1,4 kg
Viscosity max	330 cSt
Viscosity min	30 cSt
Voltage ac/dc max	175 V

Downloads

HD2K_new_datasheet.pdf

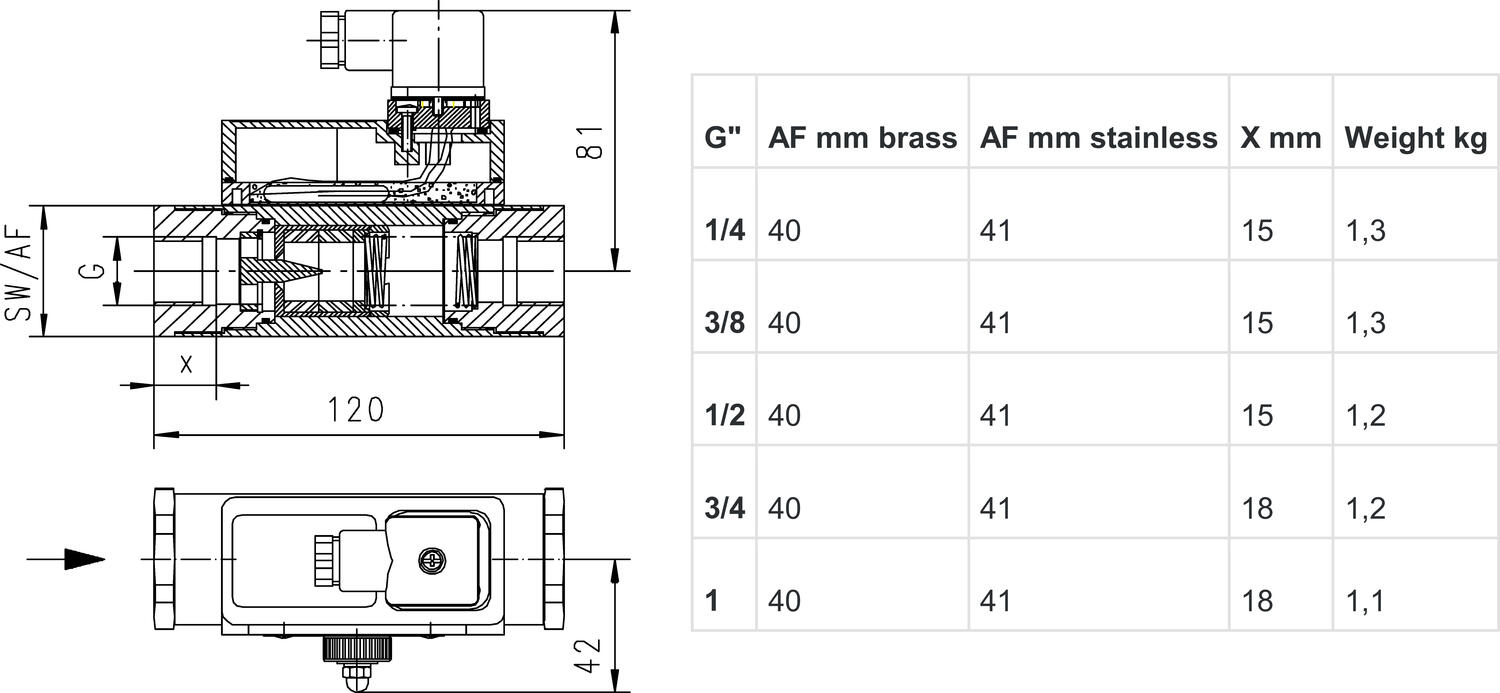

Measurements and connections

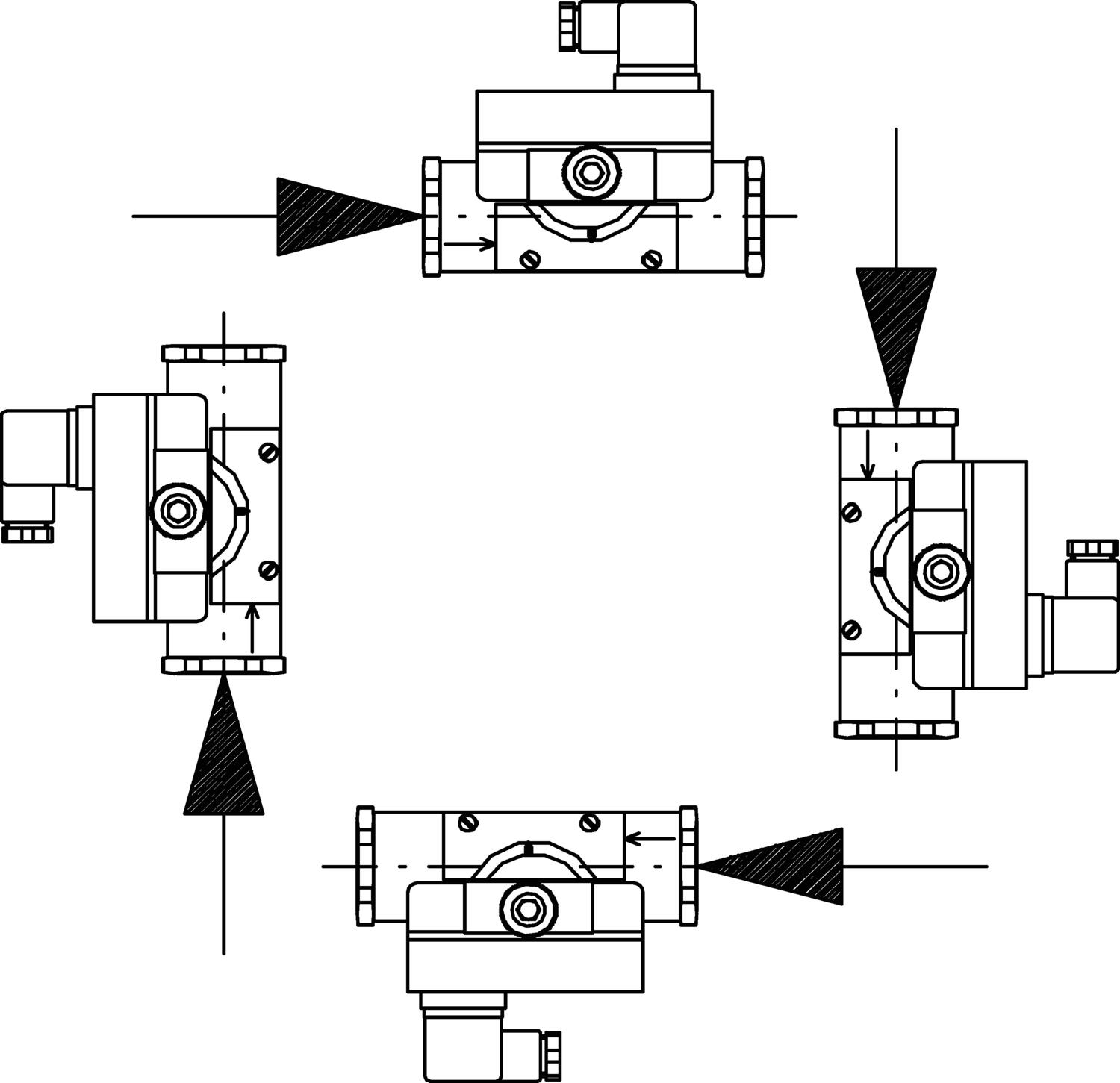

Technical illustrations

Product description

Special versions

• Ex/ATEX version
• Version for higher pressure PN 500 bar
• Integrated flow meter
• Integrated temperature gauge

Accessories

Related products
