SENSECA

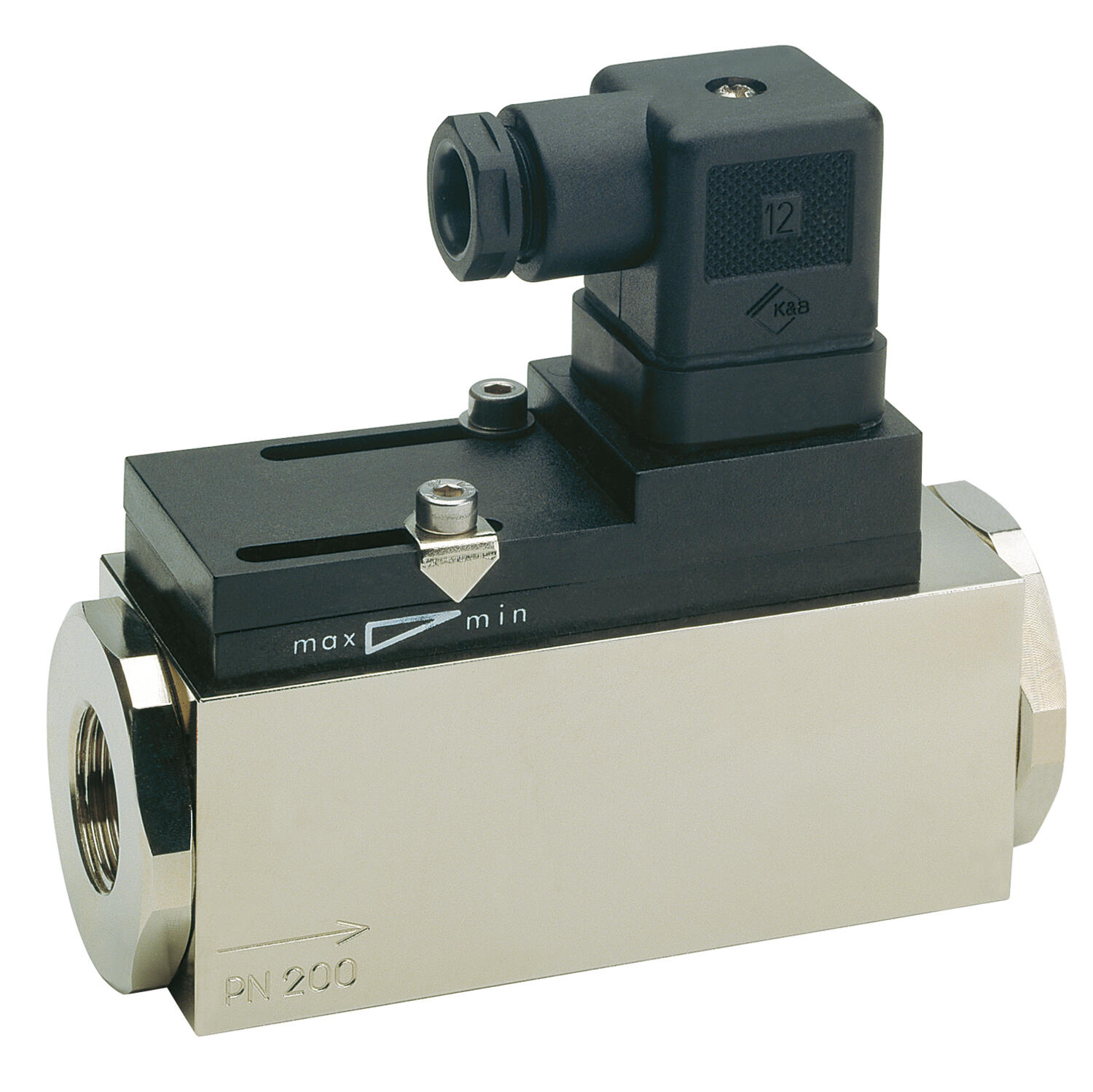

Model MR1K is a flow switch for liquids and air/gases. It is in a robust and compact version. The switch can be ordered in a large variety of special versions including integrated flow meter, selectable switching range and high pressure version.
Â
| Accuracy | ± 5% of the final value |
|---|---|
| Connection type | Internal thread ¼ " |
| Contact rating max | 50 VA |
| Electrical connection | Plug connector DIN 43650-A |
| Flow max | 10 l/min |
| Flow range max | 4 l/min |
| Flow range min | 0,4 l/min |
| Function | Flask, reed contact, alternating |
| Hysteresis | Depending on the breaking value, however, at least 0.5 l / min |
| IP class | IP65 |
| Material flask | Brass |
| Material of body | Nickel-plated brass |
| Material of seals | NBR |
| Material spring | Stainless steel 301 |
|---|---|
| Media | Water (oil, air and aggressive liquids on request) |
| Pressure drop | 0.6 bar at maximum flow |
| Pressure range max | 200 bar |
| Temperature of media from | -20 °C |
| Temperature of media to | 120 °C |
| Type of flow component | Flow Switches |
| Weight | 1,3 kg |
| Viscosity max | 30 cSt |
| Viscosity min | 1 cSt |
| Voltage ac max | 120 V |
Model MR1K is a flow switch for liquids and air/gases. It is in a robust and compact version. The switch can be ordered in a large variety of special versions including integrated flow meter, selectable switching range and high pressure version.
Â
.jpeg?as=1&iar=0&hash=C35BE4FB444DCD3D5B98C5DBA7502AEA)
This blog post demonstrates 7 strong reasons production plants choose the HYGHSPIN twin screw pump by Jung Process Systems
When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...
.jpeg?as=1&iar=0&hash=A3BFC175C33A8E0858884EF1A7B44582)
When it comes to solenoid valves, reliability and ease of maintenance are essential. That’s why our new Emerson, high flow solenoid valve is designed with unique features that streamline testing, commissioning, and ongoing operation.Â
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
Did you know that OEM Automatic has been successfully providing valve actuation solutions?
We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Connection type | Flow max | Flow range max | Flow range min | Material flask | Material of body | Material of seals | Pressure drop | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Art:
MR1K-008GM004
Copied
|
Internal thread ¼ "
|
10 l/min
|
4 l/min
|
0,4 l/min
|
Brass
|
Nickel-plated brass
|
NBR
|
0.6 bar at maximum flow
|
1,3 kg
|
| ||
|
Art:
MR1K-010GM010
Copied
|
Internal thread 3/8 "
|
20 l/min
|
10 l/min
|
1 l/min
|
Brass
|
Nickel-plated brass
|
NBR
|
0.6 bar at maximum flow
|
1,3 kg
|
| ||
|
Art:
MR1K-015GM020
Copied
|
Internal thread ½ "
|
30 l/min
|
20 l/min
|
2 l/min
|
Brass
|
Nickel-plated brass
|
NBR
|
0.4 bar at maximum flow
|
1,3 kg
|
| ||
|
Art:
MR1K-020GM040
Copied
|
Internal thread ¾ "
|
60 l/min
|
40 l/min
|
4 l/min
|
Brass
|
Nickel-plated brass
|
NBR
|
0.8 bar at maximum flow
|
1,2 kg
|
| ||
|
Art:
MR1K-025GM060
Copied
|
Internal thread 1 "
|
80 l/min
|
60 l/min
|
6 l/min
|
Brass
|
Nickel-plated brass
|
NBR
|
1.4 bar at maximum flow
|
1,1 kg
|
| ||
|
Art:
MR1K-008GK004
Copied
|
Internal thread ¼ "
|
10 l/min
|
4 l/min
|
0,4 l/min
|
Stainless steel 316L
|
Stainless steel 316Ti
|
Viton
|
0.6 bar at maximum flow
|
1,2 kg
|
| ||
|
Art:
MR1K-010GK010
Copied
|
Internal thread 3/8 "
|
20 l/min
|
10 l/min
|
1 l/min
|
Stainless steel 316L
|
Stainless steel 316Ti
|
Viton
|
0.6 bar at maximum flow
|
1,2 kg
|
| ||
|
Art:
MR1K-015GK020
Copied
|
Internal thread ½ "
|
30 l/min
|
20 l/min
|
2 l/min
|
Stainless steel 316L
|
Stainless steel 316Ti
|
Viton
|
0.4 bar at maximum flow
|
1,2 kg
|
| ||
|
Art:
MR1K-020GK040
Copied
|
Internal thread ¾ "
|
60 l/min
|
40 l/min
|
4 l/min
|
Stainless steel 316L
|
Stainless steel 316Ti
|
Viton
|
0.8 bar at maximum flow
|
1,1 kg
|
| ||
|
Art:
MR1K-025GK060
Copied
|
Internal thread 1 "
|
80 l/min
|
60 l/min
|
6 l/min
|
Stainless steel 316L
|
Stainless steel 316Ti
|
Viton
|
1.4 bar at maximum flow
|
1,1 kg
|
|
Select a variant in the list
