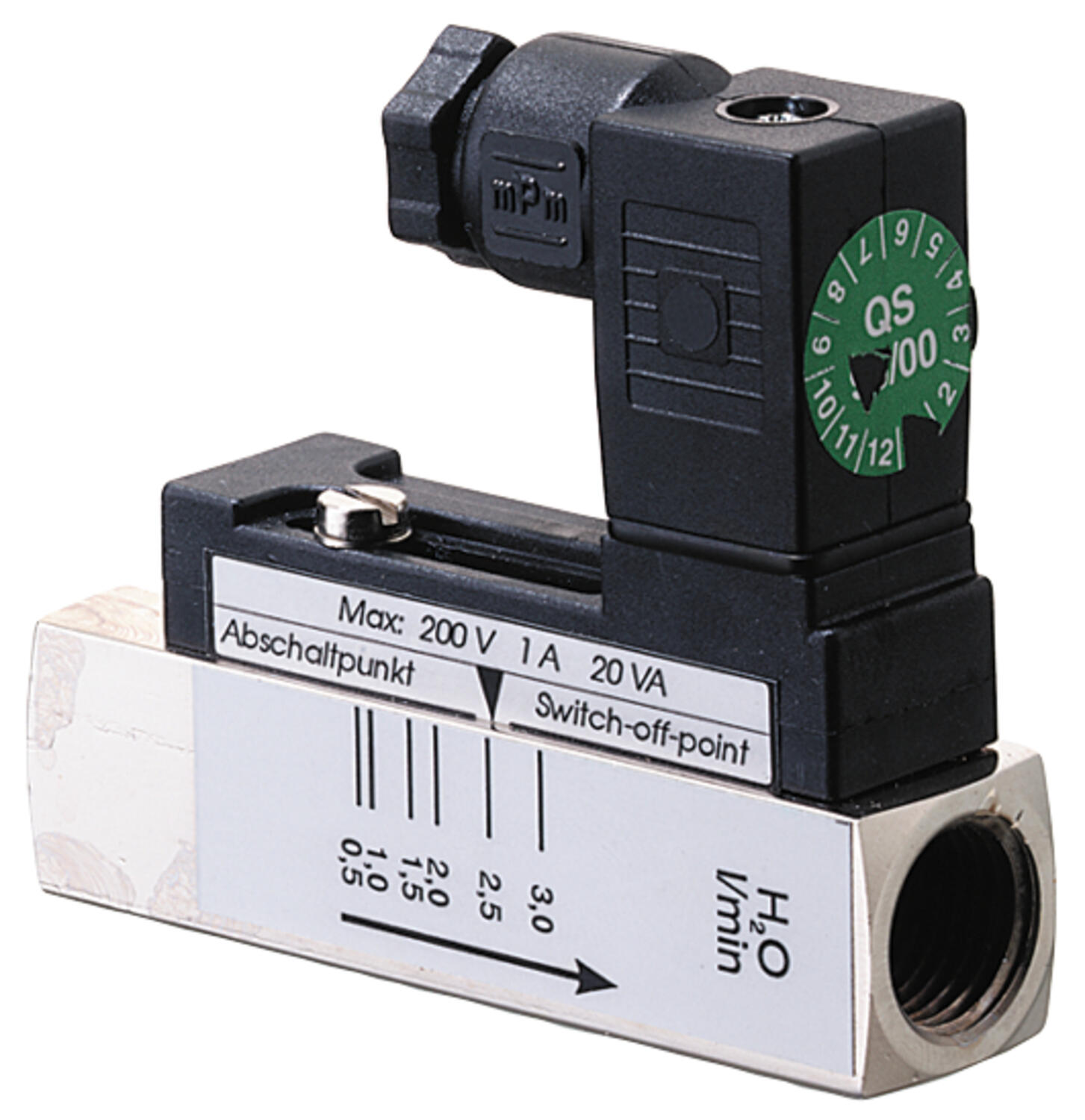

Honsberg - RVM Series Flow Switch

Piston

Mechanical flow switch, for fluid media, with magnetic triggering of a reed switch. Robust construction in brass or stainless steel.

Read more
  • Swittching Range 0,04..3 l/m Hâ‚‚O
  • Water (gas and aggressive media available on request)
  • G¼"
  • Brass or Stainless Steel Wetted Parts
  • Max Pressure 300 bar

Selected variant

Available in several variants

Selected variant

Technical data

Accuracy ± 10%
Connection type 1/4 "
Contact rating max 20 VA
Electrical connection Plug connector DIN 43650-C
Flow max 0,17 l/min
Flow range max 0,13 l/min
Flow range min 0,04 l/min
Function Flask, reed contact, ending
Hysteresis min 1 ml / min, depending on breaking value
IP class IP65
Material flask Brass
Material of body Nickel-plated brass
Material of seals NBR
Material spring Stainless steel 316Ti
Pressure drop 0.02-0.2 bar at maximum flow
Pressure range max 300 bar
Temperature of media to 100 °C
Type of flow component Flow Switches
Weight 0,14 kg
Viscosity 1 cSt
Voltage ac max 200 V

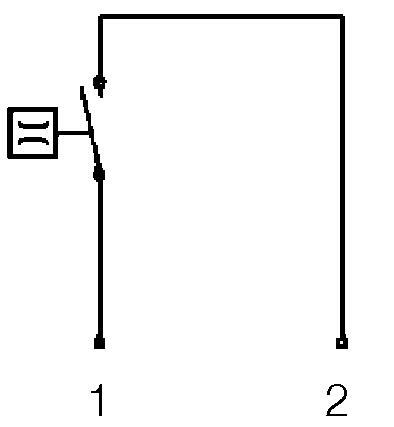

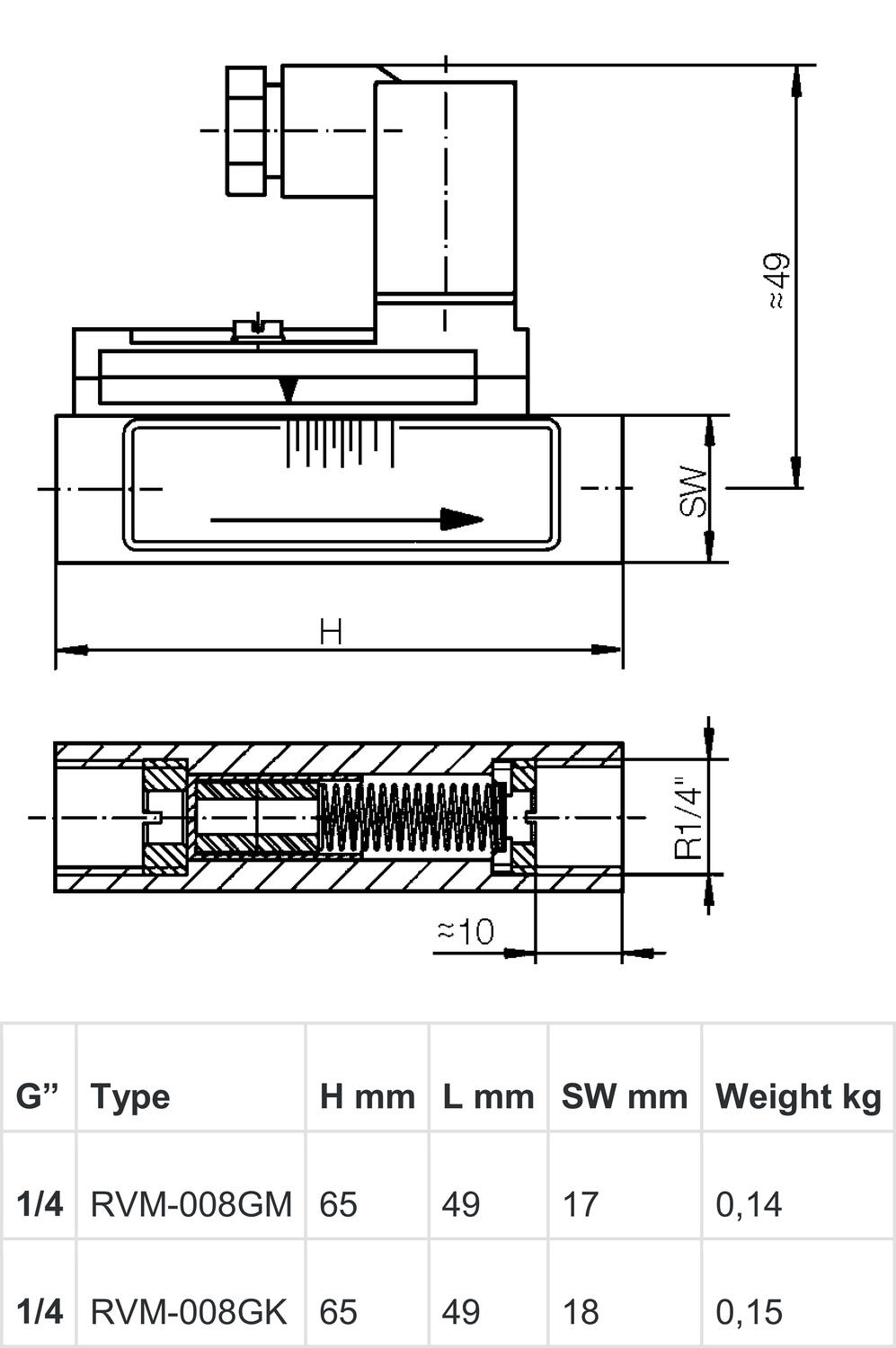

Measurements and connections

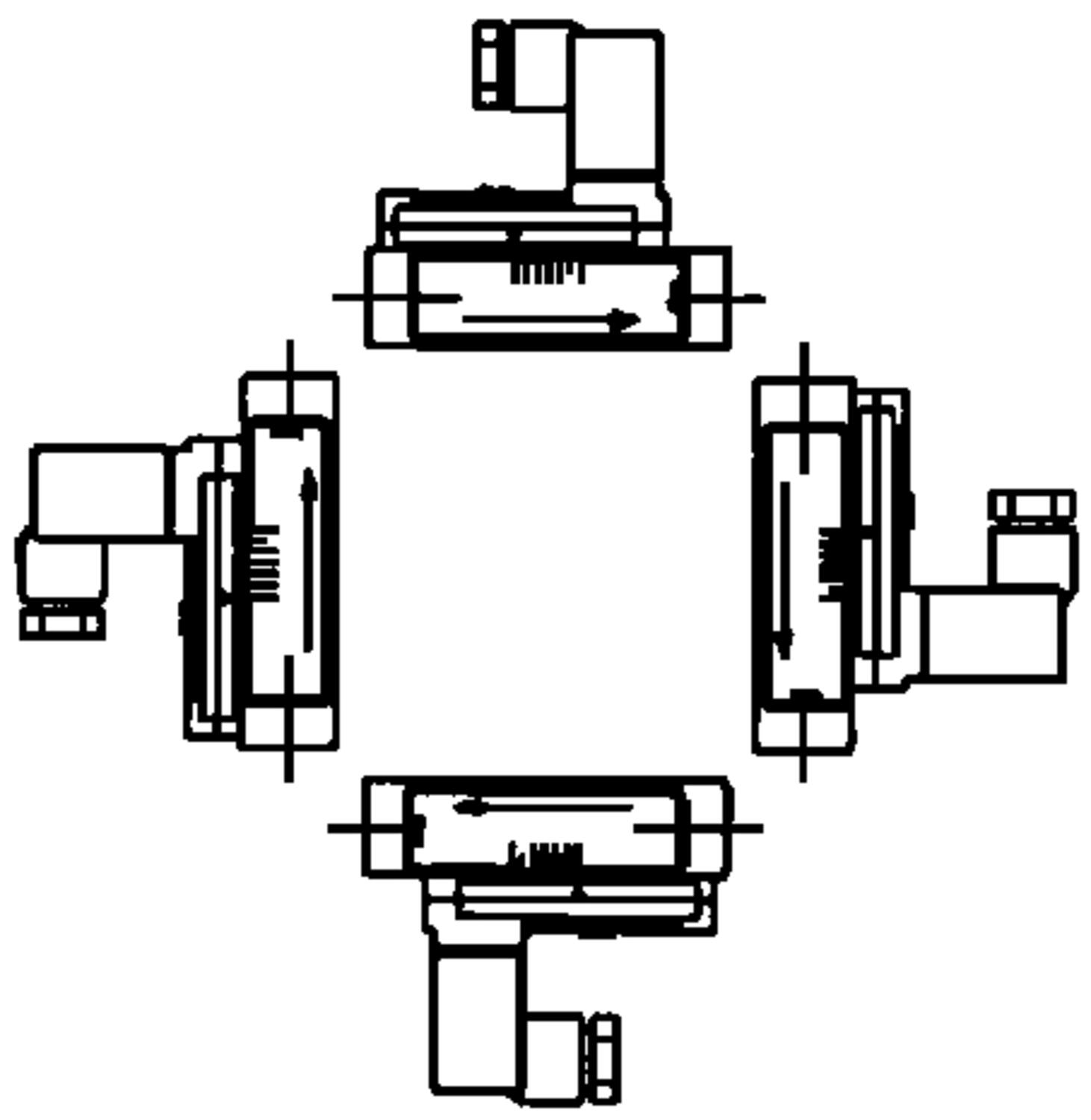

Technical illustrations

Product description

Mechanical flow switch, for fluid media, with magnetic triggering of a reed switch. Robust construction in brass or stainless steel.

Accessories

Related products

Related

Parts Flow max Flow range max Flow range min Material flask Material of body Material of seals Price
0,17 l/min
0,13 l/min
0,04 l/min
Brass
Nickel-plated brass
NBR
0,72 l/min
0,6 l/min
0,1 l/min
Brass
Nickel-plated brass
NBR
3,6 l/min
3 l/min
0,5 l/min
Brass
Nickel-plated brass
NBR
0,17 l/min
0,13 l/min
0,04 l/min
Stainless steel 316Ti
Stainless steel 316Ti
Viton
0,72 l/min
0,6 l/min
0,1 l/min
Stainless steel 316Ti
Stainless steel 316Ti
Viton
3,6 l/min
3 l/min
0,5 l/min
Stainless steel 316Ti
Stainless steel 316Ti
Viton
