ANDERSON NEGELE
Anderson Negele - Pressure gauge, ASME BPE
EM
We market high quality pressure gauge and design from our supplier Anderson-Negele, which meets the highest standards of process engineering, and is the perfect solution for applications for food, pharmaceuticals, breweries, cosmetics and pharmaceptic processes.
The products of Anderson-Negele are manufactured according to the concept "Hygienic by Design", which is reflected in the special process adapters: CLEANadapt and PHARMadapt as well as the unique design of the instruments.
Pressure gauge EM -...
The EM pressure gauge / manometer replaces the MAN-90P series. A special feature is the recessed membrane, which is resistant to mechanical damage - e.g. during transport or recalibration - protects.
· Designed and tested according to ASME B40.100, CSA B51-03 and CRN number CSA0F9754.5C
- Hygienic pressure gauge for the pharmaceutical industry for pipes and containers
- Autoclavable Version with CPM or Tri-Clamp 1.5 "Process Connection
- Zero and span adjustment
- Product contact surfaces electropolished, Ra <= 0.2 μm
- Temperature up to 149 ° C
Selected variant
Technical data
| Approvals | FDA, ASME BPE |
|---|---|
| Area of apllication | Pharma |
| Diameter | 90 mm |
| IP class | IP66, NEMA Type 4X |
| Material display | Polycarbonate |
| Material of sensor housing | Stainless steel AISI 304 |
| Material of wetted parts | Stainless steel 316L |
| Surface finish | 0,2 µm Ra |
|---|---|
| Temperature ambient from | 4 °C |
| Temperature ambient to | 49 °C |
| Temperature of media from | -29 °C |
| Temperature of media to | 149 °C |
Downloads
Product description
We market high quality pressure gauge and design from our supplier Anderson-Negele, which meets the highest standards of process engineering, and is the perfect solution for applications for food, pharmaceuticals, breweries, cosmetics and pharmaceptic processes.
The products of Anderson-Negele are manufactured according to the concept "Hygienic by Design", which is reflected in the special process adapters: CLEANadapt and PHARMadapt as well as the unique design of the instruments.
Pressure gauge EM -...
The EM pressure gauge / manometer replaces the MAN-90P series. A special feature is the recessed membrane, which is resistant to mechanical damage - e.g. during transport or recalibration - protects.
· Designed and tested according to ASME B40.100, CSA B51-03 and CRN number CSA0F9754.5C

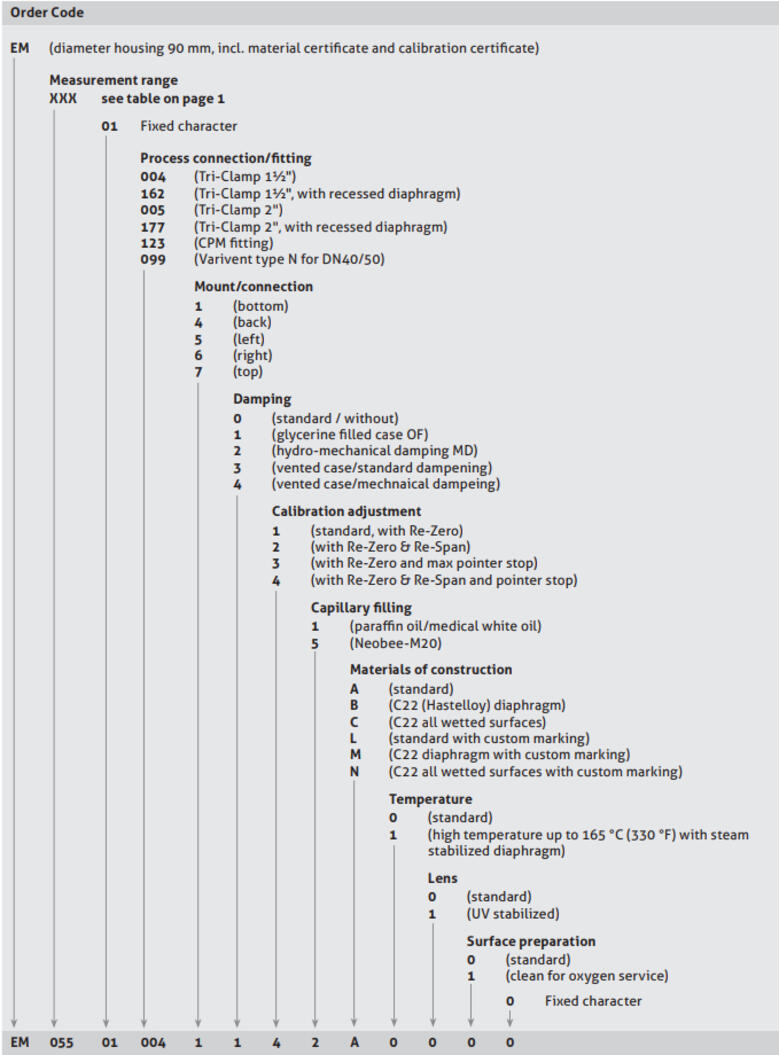

Ordering information
Please refer to the image below for ordering information.
