TECNOPLASTIC

Tecnoplastic - Float Switch - MOUSE 10000 B

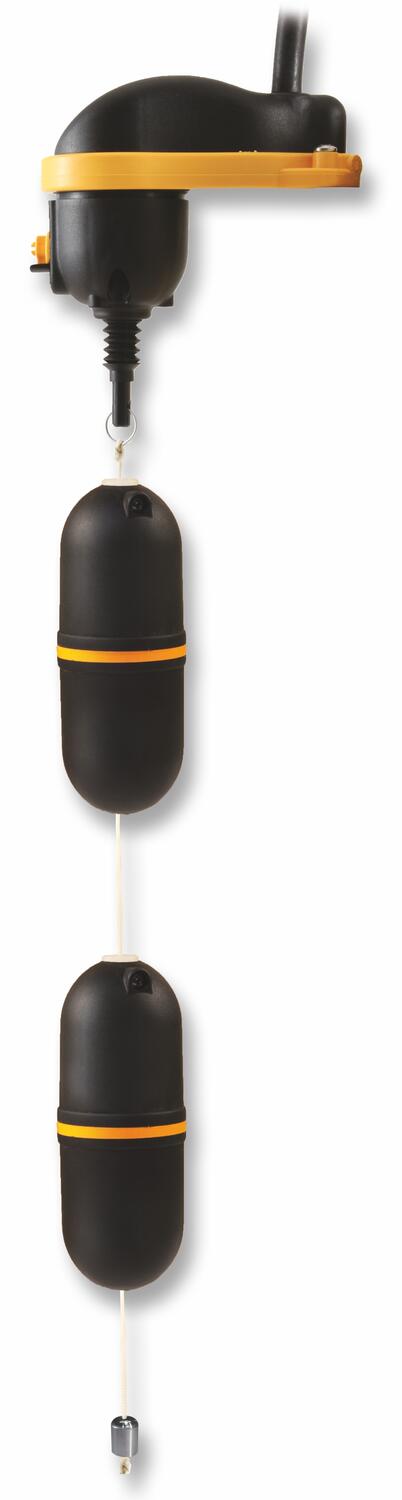

The Mouse 10000 B from Tecnoplastic  is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area.  The user can adjust the floats up and down the stem to their preferred minimum or maximum.

Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.



Read more
  • Maximum depth of 10m
  • Single or double function
  • Up to 50°C
  • Ideal for narrow spaces

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Approvals CE, TÜV
Cable length 0,52 m
Cable type H05 RNF
Depth max 10 m
Function N/O & N/C
Insulation class I-II
IP class IP68
Material of float Polypropylene
Material of seals EPDM
Material of stem Polyester
Operating temperature to 50 °C
Rated current 8 A
Supply voltage 250 V

Measurements and connections

Technical illustrations

Product description

The Mouse 10000 B from Tecnoplastic  is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area.  The user can adjust the floats up and down the stem to their preferred minimum or maximum.

Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.



Accessories

Parts Cable length Cable type Price
MOUSE 10000 B, H05 RNF 3X1, 0.52M, 2 Func
Art:
MFB53X100NG01 Copied
0,52 m
H05 RNF
MOUSE 10000 B, H05 RNF 3X1, 2M, 2 Func
Art:
MFB53X102NG01 Copied
2 m
H05 RNF
MOUSE 10000 B, H05 RNF 3X1, 5M, 2 Func
Art:
MFB53X105NG01 Copied
5 m
H05 RNF
MOUSE 10000 B, H05 RNF 3X1, 10M, 2 Func
Art:
MFB53X110NG01 Copied
10 m
H05 RNF
MOUSE 10000 B, H07 RNF 3G1, 0.52M, 1 Func
Art:
MFBH3G100NG01 Copied
0,52 m
H07 RNF
MOUSE 10000 B, H07 RNF 3G1, 2M, 1 Func
Art:
MFBH3G102NG01 Copied
2 m
H07 RNF
MOUSE 10000 B, H07 RNF 3G1, 5M, 1 Func
Art:
MFBH3G105NG01 Copied
5 m
H07 RNF
MOUSE 10000 B, H07 RNF 3G1, 10M, 1 Func
Art:
MFBH3G110NG01 Copied
10 m
H07 RNF
