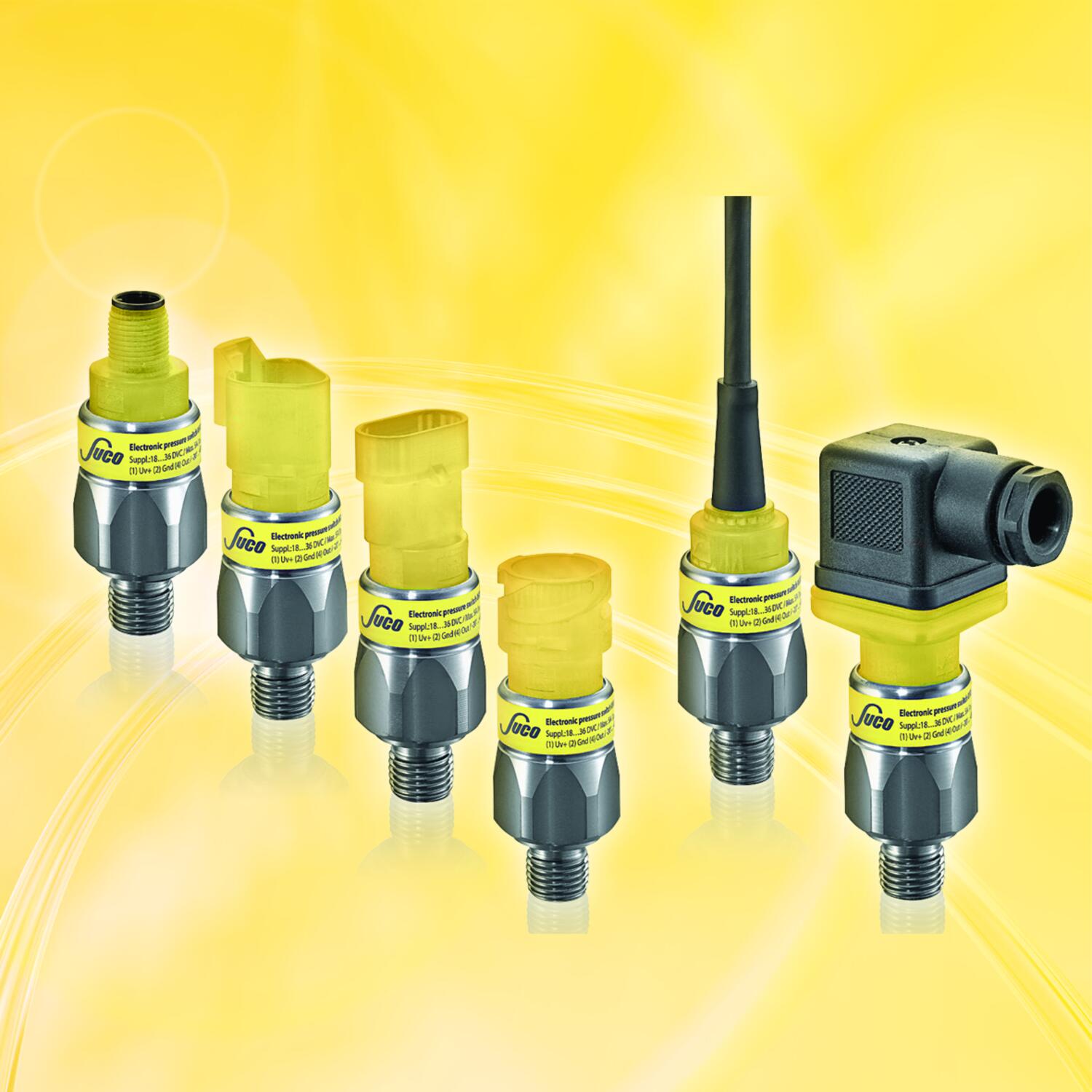

The SUCO 0500/0501 performance series electronic pressure switch offers a small compact electronic switch without compromising on quality which comes factory set (unadjustable by the user) with overpressure protection (up to 2x), has a long service life and is also attractively priced especially at high volumes. Using a ceramic sensor in thick film technology for a good operating temperature range and accuracy, there are six standard pressure ranges starting from 0..2 bar all the way up to 0..100 bar and a hysteresis of 1%-98%, available in normally open or normally closed with a PNP transistor output. The wetted parts are made of ceramic, stainless steel and either NBR, EPDM OR FKM ensuring excellent media compatibility, with six standard electrical connection options including Deutsch, DIN and M12 combined with two standard thread type options.
Â
Customer specific solutions are also available on request.
Â
Application examples
Â
Â
Â
Â
General Data |
|
|---|---|

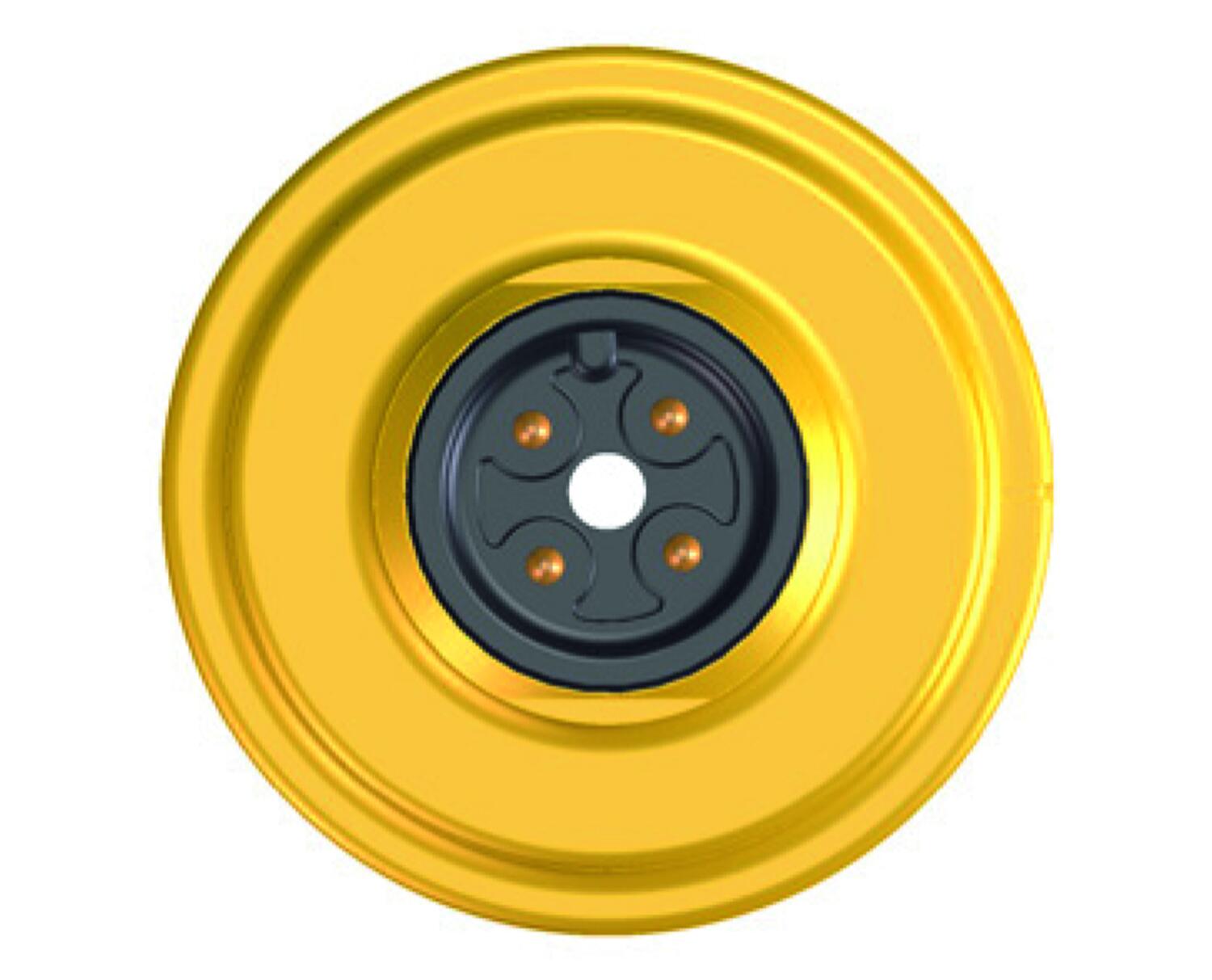

| Electrical connection | M12x1 |
| Output | PNP |
| Function | Normally open (SPST) |
| Adjustment range min | 0 bar |
| Pressure max | 4 bar |
| Burst pressure | 8 bar |
| Adjustment range max | 2 bar |

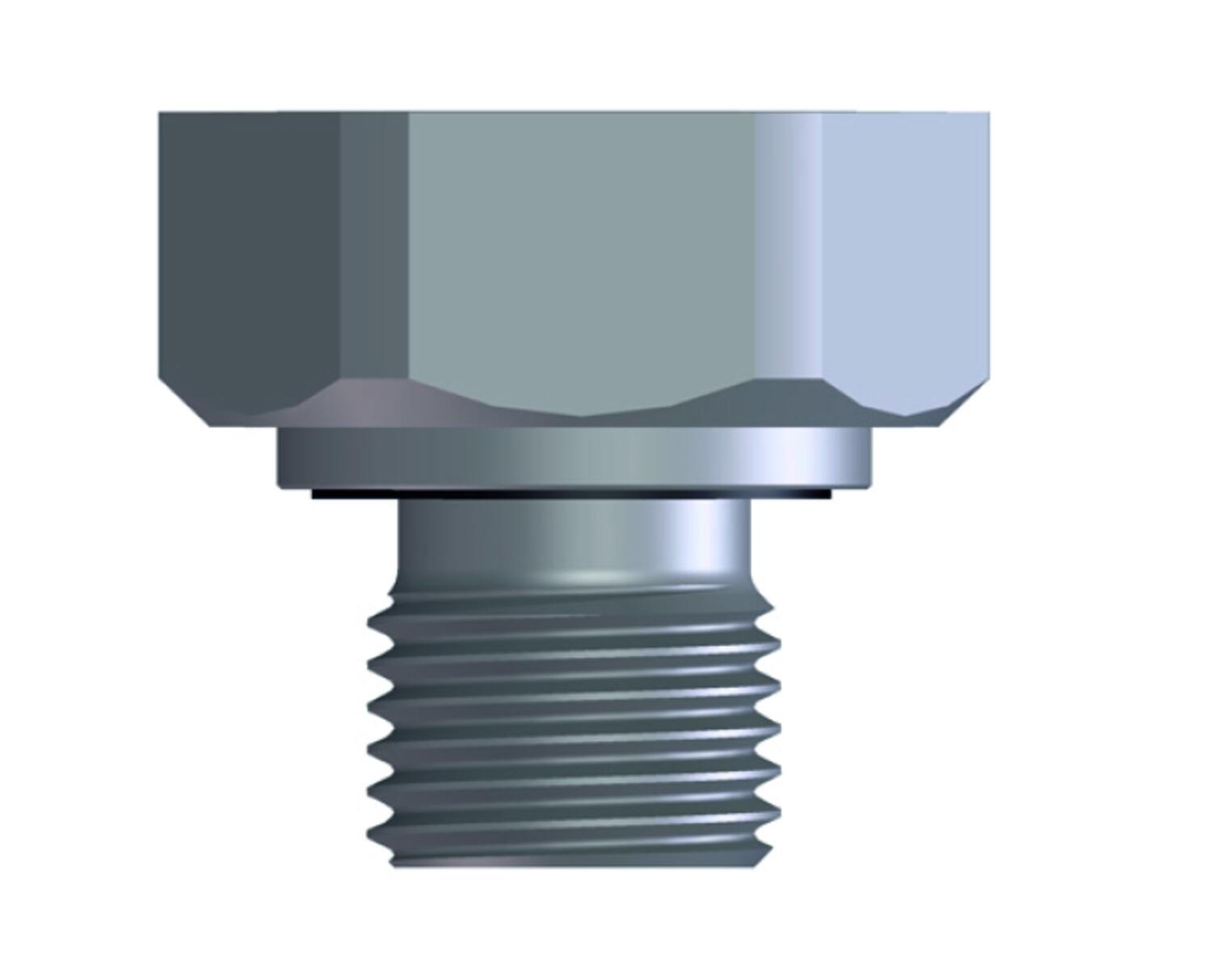

| Process connection | 1/4 BSP |
Temperature & Materials Data |
|
| Temperature ambient to | 100 °C |
| Material of wetted parts | NBR, Stainless steel 1.4305 |
| Material membrane | NBR |
| Temperature of media from | -30 °C |
| Temperature ambient from | -30 °C |
| Temperature of media to | 100 °C |
| Material of body | Stainless steel 1.4305 |
Additional Data |
|
| Switching point adjustment range | 3...100 % of adjustment range(full scale) nominal pressure, set at factory |
| Weight | 80 g |
*Invisible Heading* |
|
|---|---|
| Switching time | < 4 ms |
| Supply voltage dc max | 32 V DC |
| Supply voltage dc min | 9,6 V DC |
| Pressure rise | ≤ 1 bar/ms |
Safety & Approvals |
|
| IP class | IP67 |
| Vibration resistance | 20g: 4..2000 Hz sine wave, DIN EN 60068-2-6 |
| Hysteresis | 2...98% full scale, programmable at factory (maximum tolerance ±1.0% of adjustment range nominal pressure) |
| Repeatability | ±0.1 % of adjustment range (full scale) nominal pressure |
| Accuracy | ±0.5 % of adjustment range (Full scale) at room temperature |
| EMC | EMC 2014/30/EU; EN 61000-6-2:2005; EN 61000-6-3:2007 |
| Mechanical life expectancy | 5,000,000 pulsations at rise rates to 1,000 bar/s nominal pressure |
| Long term stability | ±0.1 % of adjustment range (full scale) per year |
| Shock resistance | 500m / s²; 11 ms half sine wave; DIN EN 60068-2-27 |
| Pressure range max | 2 bar |
| Pressure range min | 0 bar |
| Display | No |
The SUCO 0500/0501 performance series electronic pressure switch offers a small compact electronic switch without compromising on quality which comes factory set (unadjustable by the user) with overpressure protection (up to 2x), has a long service life and is also attractively priced especially at high volumes. Using a ceramic sensor in thick film technology for a good operating temperature range and accuracy, there are six standard pressure ranges starting from 0..2 bar all the way up to 0..100 bar and a hysteresis of 1%-98%, available in normally open or normally closed with a PNP transistor output. The wetted parts are made of ceramic, stainless steel and either NBR, EPDM OR FKM ensuring excellent media compatibility, with six standard electrical connection options including Deutsch, DIN and M12 combined with two standard thread type options.
Â
Customer specific solutions are also available on request.
Â
Application examples
Â
Â
Â
Â
.jpeg?as=1&iar=0&hash=C35BE4FB444DCD3D5B98C5DBA7502AEA)
This blog post demonstrates 7 strong reasons production plants choose the HYGHSPIN twin screw pump by Jung Process Systems
When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...
.jpeg?as=1&iar=0&hash=A3BFC175C33A8E0858884EF1A7B44582)
When it comes to solenoid valves, reliability and ease of maintenance are essential. That’s why our new Emerson, high flow solenoid valve is designed with unique features that streamline testing, commissioning, and ongoing operation.Â
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
Did you know that OEM Automatic has been successfully providing valve actuation solutions?
We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Electrical connection | Function | Pressure max | Burst pressure | Adjustment range max | Process connection | Material of wetted parts | Material membrane | Temperature of media from | Temperature of media to | Weight | IP class | Pressure range max | Pressure range min | Display | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NO, 0 - 2 Bar, G 1/4, NBR, M12x1
Art:
0500200411002
Copied
|
M12x1
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
2 bar
|
0 bar
|
No
|
| ||
NO, 0 - 2 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0500200411007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
NO, 0 - 2 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0500200411010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
NO, 0 - 2 Bar, G 1/4, NBR, Cable connection
Art:
0500200411011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
NO, 0 - 2 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0500200411013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
2 bar
|
0 bar
|
No
|
| ||
NO, 0 - 2 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0500200411004
Copied
|
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, EPDM, M12x1
Art:
0500200412002
Copied
|
M12x1
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0500200412007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0500200412010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, EPDM, Cable connection
Art:
0500200412011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0500200412013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0500200412004
Copied
|
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, FKM, M12x1
Art:
0500200413002
Copied
|
M12x1
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, FKM, AMP Superseal 1.5
Art:
0500200413007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, FKM, Deutsch DT04-3P
Art:
0500200413010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, FKM, Cable connection
Art:
0500200413011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, FKM, DIN EN 175301-803-A
Art:
0500200413013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, FKM, 15170-A1-4.1
Art:
0500200413004
Copied
|
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, TPE, M12x1
Art:
0500200417002
Copied
|
M12x1
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0500200417007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0500200417010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, TPE, Cable connection
Art:
0500200417011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0500200417013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 2 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0500200417004
Copied
|
|
Normally open (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, NBR, M12x1
Art:
0500400411002
Copied
|
M12x1
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
4 bar
|
0 bar
|
No
|
| ||
|
NO, 0 - 4 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0500400411007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0500400411010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, NBR, Cable connection
Art:
0500400411011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0500400411013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
4 bar
|
0 bar
|
No
|
| ||
|
NO, 0 - 4 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0500400411004
Copied
|
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, EPDM, M12x1
Art:
0500400412002
Copied
|
M12x1
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0500400412007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0500400412010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, EPDM, Cable connection
Art:
0500400412011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0500400412013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0500400412004
Copied
|
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, FKM, M12x1
Art:
0500400413002
Copied
|
M12x1
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, FKM, AMP Superseal 1.5
Art:
0500400413007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, FKM, Deutsch DT04-3P
Art:
0500400413010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, FKM, Cable connection
Art:
0500400413011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, FKM, DIN EN 175301-803-A
Art:
0500400413013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, FKM, 15170-A1-4.1
Art:
0500400413004
Copied
|
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, TPE, M12x1
Art:
0500400417002
Copied
|
M12x1
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0500400417007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0500400417010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, TPE, Cable connection
Art:
0500400417011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0500400417013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 4 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0500400417004
Copied
|
|
Normally open (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, NBR, M12x1
Art:
0500101411002
Copied
|
M12x1
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
10 bar
|
0 bar
|
No
|
| ||
|
NO, 0 - 10 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0500101411007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0500101411010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, NBR, Cable connection
Art:
0500101411011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0500101411013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
10 bar
|
0 bar
|
No
|
| ||
|
NO, 0 - 10 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0500101411004
Copied
|
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, EPDM, M12x1
Art:
0500101412002
Copied
|
M12x1
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0500101412007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0500101412010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, EPDM, Cable connection
Art:
0500101412011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0500101412013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0500101412004
Copied
|
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, FKM, M12x1
Art:
0500101413002
Copied
|
M12x1
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, FKM, AMP Superseal 1.5
Art:
0500101413007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, FKM, Deutsch DT04-3P
Art:
0500101413010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, FKM, Cable connection
Art:
0500101413011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, FKM, DIN EN 175301-803-A
Art:
0500101413013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, FKM, 15170-A1-4.1
Art:
0500101413004
Copied
|
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, TPE, M12x1
Art:
0500101417002
Copied
|
M12x1
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0500101417007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0500101417010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, TPE, Cable connection
Art:
0500101417011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0500101417013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 10 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0500101417004
Copied
|
|
Normally open (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, NBR, M12x1
Art:
0500161411002
Copied
|
M12x1
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
16 bar
|
0 bar
|
No
|
| ||
|
NO, 0 - 16 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0500161411007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0500161411010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, NBR, Cable connection
Art:
0500161411011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0500161411013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
16 bar
|
0 bar
|
No
|
| ||
|
NO, 0 - 16 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0500161411004
Copied
|
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, EPDM, M12x1
Art:
0500161412002
Copied
|
M12x1
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0500161412007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0500161412010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, EPDM, Cable connection
Art:
0500161412011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0500161412013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0500161412004
Copied
|
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, FKM, M12x1
Art:
0500161413002
Copied
|
M12x1
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, FKM, AMP Superseal 1.5
Art:
0500161413007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, FKM, Deutsch DT04-3P
Art:
0500161413010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, FKM, Cable connection
Art:
0500161413011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, FKM, DIN EN 175301-803-A
Art:
0500161413013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, FKM, 15170-A1-4.1
Art:
0500161413004
Copied
|
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, TPE, M12x1
Art:
0500161417002
Copied
|
M12x1
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0500161417007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0500161417010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, TPE, Cable connection
Art:
0500161417011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0500161417013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 16 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0500161417004
Copied
|
|
Normally open (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, NBR, M12x1
Art:
0500401411002
Copied
|
M12x1
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
40 bar
|
0 bar
|
No
|
| ||
|
NO, 0 - 40 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0500401411007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0500401411010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, NBR, Cable connection
Art:
0500401411011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0500401411013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
40 bar
|
0 bar
|
No
|
| ||
|
NO, 0 - 40 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0500401411004
Copied
|
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, EPDM, M12x1
Art:
0500401412002
Copied
|
M12x1
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0500401412007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0500401412010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, EPDM, Cable connection
Art:
0500401412011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0500401412013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0500401412004
Copied
|
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, TPE, M12x1
Art:
0500401417002
Copied
|
M12x1
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0500401417007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0500401417010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, TPE, Cable connection
Art:
0500401417011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0500401417013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 40 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0500401417004
Copied
|
|
Normally open (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, NBR, M12x1
Art:
0500102411002
Copied
|
M12x1
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
100 bar
|
0 bar
|
No
|
| ||
|
NO, 0 - 100 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0500102411007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0500102411010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, NBR, Cable connection
Art:
0500102411011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0500102411013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
100 bar
|
0 bar
|
No
|
| ||
|
NO, 0 - 100 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0500102411004
Copied
|
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, EPDM, M12x1
Art:
0500102412002
Copied
|
M12x1
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0500102412007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0500102412010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, EPDM, Cable connection
Art:
0500102412011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0500102412013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0500102412004
Copied
|
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, TPE, M12x1
Art:
0500102417002
Copied
|
M12x1
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0500102417007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0500102417010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, TPE, Cable connection
Art:
0500102417011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0500102417013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 100 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0500102417004
Copied
|
|
Normally open (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, NBR, M12x1
Art:
0500252411002
Copied
|
M12x1
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
250 bar
|
0 bar
|
No
|
| ||
|
NO, 0 - 250 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0500252411007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0500252411010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, NBR, Cable connection
Art:
0500252411011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0500252411013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
250 bar
|
0 bar
|
No
|
| ||
|
NO, 0 - 250 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0500252411004
Copied
|
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, EPDM, M12x1
Art:
0500252412002
Copied
|
M12x1
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0500252412007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0500252412010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, EPDM, Cable connection
Art:
0500252412011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0500252412013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0500252412004
Copied
|
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, TPE, M12x1
Art:
0500252417002
Copied
|
M12x1
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0500252417007
Copied
|
AMP Superseal
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0500252417010
Copied
|
Deutsch DT04-3P
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, TPE, Cable connection
Art:
0500252417011
Copied
|
Embedded 2m cable
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0500252417013
Copied
|
DIN EN 175301-803-A
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NO, 0 - 250 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0500252417004
Copied
|
|
Normally open (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, NBR, M12x1
Art:
0501200411002
Copied
|
M12x1
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
2 bar
|
0 bar
|
No
|
| ||
|
NC, 0 - 2 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0501200411007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0501200411010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, NBR, Cable connection
Art:
0501200411011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0501200411013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
2 bar
|
0 bar
|
No
|
| ||
|
NC, 0 - 2 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0501200411004
Copied
|
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, EPDM, M12x1
Art:
0501200412002
Copied
|
M12x1
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0501200412007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0501200412010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, EPDM, Cable connection
Art:
0501200412011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0501200412013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0501200412004
Copied
|
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, FKM, M12x1
Art:
0501200413002
Copied
|
M12x1
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, FKM, AMP Superseal 1.5
Art:
0501200413007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, FKM, Deutsch DT04-3P
Art:
0501200413010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, FKM, Cable connection
Art:
0501200413011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, FKM, DIN EN 175301-803-A
Art:
0501200413013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, FKM, 15170-A1-4.1
Art:
0501200413004
Copied
|
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, TPE, M12x1
Art:
0501200417002
Copied
|
M12x1
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0501200417007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0501200417010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, TPE, Cable connection
Art:
0501200417011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0501200417013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 2 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0501200417004
Copied
|
|
Normally Closed (SPST)
|
4 bar
|
8 bar
|
2 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, NBR, M12x1
Art:
0501400411002
Copied
|
M12x1
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
4 bar
|
0 bar
|
No
|
| ||
|
NC, 0 - 4 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0501400411007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0501400411010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, NBR, Cable connection
Art:
0501400411011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0501400411013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
4 bar
|
0 bar
|
No
|
| ||
|
NC, 0 - 4 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0501400411004
Copied
|
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, EPDM, M12x1
Art:
0501400412002
Copied
|
M12x1
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0501400412007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0501400412010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, EPDM, Cable connection
Art:
0501400412011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0501400412013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0501400412004
Copied
|
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, FKM, M12x1
Art:
0501400413002
Copied
|
M12x1
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, FKM, AMP Superseal 1.5
Art:
0501400413007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, FKM, Deutsch DT04-3P
Art:
0501400413010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, FKM, Cable connection
Art:
0501400413011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, FKM, DIN EN 175301-803-A
Art:
0501400413013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, FKM, 15170-A1-4.1
Art:
0501400413004
Copied
|
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, TPE, M12x1
Art:
0501400417002
Copied
|
M12x1
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0501400417007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0501400417010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, TPE, Cable connection
Art:
0501400417011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0501400417013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 4 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0501400417004
Copied
|
|
Normally Closed (SPST)
|
10 bar
|
20 bar
|
4 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, NBR, M12x1
Art:
0501101411002
Copied
|
M12x1
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
10 bar
|
0 bar
|
No
|
| ||
|
NC, 0 - 10 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0501101411007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0501101411010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, NBR, Cable connection
Art:
0501101411011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0501101411013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
10 bar
|
0 bar
|
No
|
| ||
|
NC, 0 - 10 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0501101411004
Copied
|
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, EPDM, M12x1
Art:
0501101412002
Copied
|
M12x1
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0501101412007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0501101412010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, EPDM, Cable connection
Art:
0501101412011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0501101412013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0501101412004
Copied
|
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, FKM, M12x1
Art:
0501101413002
Copied
|
M12x1
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, FKM, AMP Superseal 1.5
Art:
0501101413007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, FKM, Deutsch DT04-3P
Art:
0501101413010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, FKM, Cable connection
Art:
0501101413011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, FKM, DIN EN 175301-803-A
Art:
0501101413013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, FKM, 15170-A1-4.1
Art:
0501101413004
Copied
|
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, TPE, M12x1
Art:
0501101417002
Copied
|
M12x1
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0501101417007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0501101417010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, TPE, Cable connection
Art:
0501101417011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0501101417013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 10 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0501101417004
Copied
|
|
Normally Closed (SPST)
|
20 bar
|
35 bar
|
10 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, NBR, M12x1
Art:
0501161411002
Copied
|
M12x1
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0501161411007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0501161411010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, NBR, Cable connection
Art:
0501161411011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0501161411013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
16 bar
|
0 bar
|
No
|
| ||
|
NC, 0 - 16 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0501161411004
Copied
|
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, EPDM, M12x1
Art:
0501161412002
Copied
|
M12x1
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0501161412007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0501161412010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, EPDM, Cable connection
Art:
0501161412011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0501161412013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0501161412004
Copied
|
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, FKM, M12x1
Art:
0501161413002
Copied
|
M12x1
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, FKM, AMP Superseal 1.5
Art:
0501161413007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, FKM, Deutsch DT04-3P
Art:
0501161413010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, FKM, Cable connection
Art:
0501161413011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, FKM, DIN EN 175301-803-A
Art:
0501161413013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, FKM, 15170-A1-4.1
Art:
0501161413004
Copied
|
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
FKM, Stainless steel 1.4305
|
FKM
|
-20 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, TPE, M12x1
Art:
0501161417002
Copied
|
M12x1
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0501161417007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0501161417010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, TPE, Cable connection
Art:
0501161417011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0501161417013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 16 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0501161417004
Copied
|
|
Normally Closed (SPST)
|
40 bar
|
60 bar
|
16 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, NBR, M12x1
Art:
0501401411002
Copied
|
M12x1
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
40 bar
|
0 bar
|
No
|
| ||
|
NC, 0 - 40 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0501401411007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0501401411010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, NBR, Cable connection
Art:
0501401411011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0501401411013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
40 bar
|
0 bar
|
No
|
| ||
|
NC, 0 - 40 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0501401411004
Copied
|
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, EPDM, M12x1
Art:
0501401412002
Copied
|
M12x1
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0501401412007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0501401412010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, EPDM, Cable connection
Art:
0501401412011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0501401412013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0501401412004
Copied
|
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, TPE, M12x1
Art:
0501401417002
Copied
|
M12x1
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0501401417007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0501401417010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, TPE, Cable connection
Art:
0501401417011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0501401417013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 40 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0501401417004
Copied
|
|
Normally Closed (SPST)
|
100 bar
|
140 bar
|
40 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, NBR, M12x1
Art:
0501102411002
Copied
|
M12x1
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
100 bar
|
0 bar
|
No
|
| ||
|
NC, 0 - 100 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0501102411007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0501102411010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, NBR, Cable connection
Art:
0501102411011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0501102411013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
100 bar
|
0 bar
|
No
|
| ||
|
NC, 0 - 100 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0501102411004
Copied
|
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, EPDM, M12x1
Art:
0501102412002
Copied
|
M12x1
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0501102412007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0501102412010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, EPDM, Cable connection
Art:
0501102412011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0501102412013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0501102412004
Copied
|
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, TPE, M12x1
Art:
0501102417002
Copied
|
M12x1
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0501102417007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0501102417010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, TPE, Cable connection
Art:
0501102417011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0501102417013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 100 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0501102417004
Copied
|
|
Normally Closed (SPST)
|
150 bar
|
300 bar
|
100 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, NBR, M12x1
Art:
0501252411002
Copied
|
M12x1
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
1/4 BSP
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, NBR, AMP Superseal 1.5
Art:
0501252411007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, NBR, Deutsch DT04-3P
Art:
0501252411010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, NBR, Cable connection
Art:
0501252411011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, NBR, DIN EN 175301-803-A
Art:
0501252411013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, NBR, 15170-A1-4.1
Art:
0501252411004
Copied
|
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
NBR, Stainless steel 1.4305
|
NBR
|
-30 °C
|
100 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, EPDM, M12x1
Art:
0501252412002
Copied
|
M12x1
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, EPDM, AMP Superseal 1.5
Art:
0501252412007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, EPDM, Deutsch DT04-3P
Art:
0501252412010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, EPDM, Cable connection
Art:
0501252412011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, EPDM, DIN EN 175301-803-A
Art:
0501252412013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, EPDM, 15170-A1-4.1
Art:
0501252412004
Copied
|
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
EPDM, Stainless steel 1.4305
|
EPDM
|
-30 °C
|
125 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, TPE, DIN EN 175301-803-A
Art:
0501252417013
Copied
|
DIN EN 175301-803-A
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
110 g
|
IP65
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, TPE, M12x1
Art:
0501252417002
Copied
|
M12x1
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, TPE, AMP Superseal 1.5
Art:
0501252417007
Copied
|
AMP Superseal
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, TPE, Deutsch DT04-3P
Art:
0501252417010
Copied
|
Deutsch DT04-3P
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, TPE, Cable connection
Art:
0501252417011
Copied
|
Embedded 2m cable
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67
|
|
|
|
| ||
|
NC, 0 - 250 Bar, G 1/4, TPE, 15170-A1-4.1
Art:
0501252417004
Copied
|
|
Normally Closed (SPST)
|
375 bar
|
500 bar
|
250 bar
|
G1/4
|
TPE, Stainless steel 1.4305
|
TPE
|
-30 °C
|
110 °C
|
80 g
|
IP67, IP6K9K
|
|
|
|
|
Select a variant in the list
