Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Adjustment range max	1,5 bar
Adjustment range min	0,3 bar
Approvals	CSA US, RoHS II
Contact rating max	4 A
Deviation max	±0,2
Electrical connection	AMP Superseal
Function	Changeover (SPDT)
Hysteresis	10-30% depending on set value
IP class	IP67
Material membrane	NBR
Material of body	Zinc-plated steel
Material of wetted parts	Zinc-plated steel, NBR
Max switching frequency/min	200
Mechanical life expectancy	1 million exchanges

Pressure max	100 bar
Pressure range max	1,5 bar
Pressure range min	0,3 bar
Process connection	1/4 BSP
Shock resistance	294m / s²; 14 ms half sinusoidal wave; DIN EN 60068-2-27
Temperature ambient from	-20 °C
Temperature ambient to	80 °C
Temperature of media from	-30 °C
Temperature of media to	100 °C
Weight	100 g
Vibration resistance	10g: 5..200 Hz sine wave, DIN EN 60068-2-6
Voltage ac/dc max	48 V

Downloads

Suco pressure switches hex 27 with integrated connector datasheet

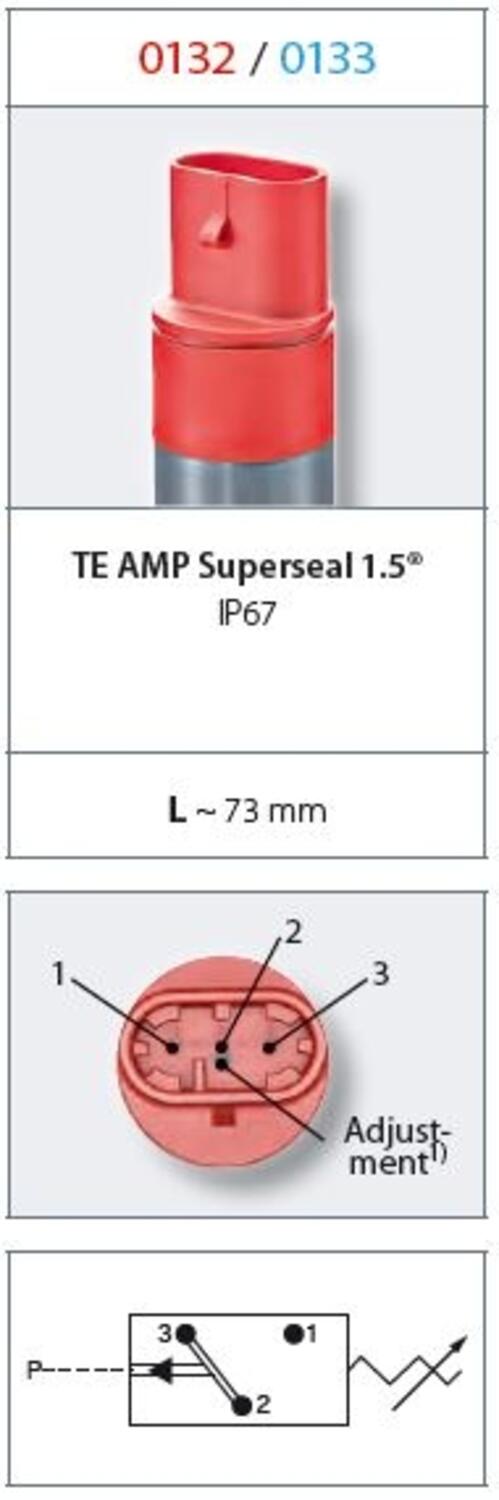

Measurements and connections

Product description

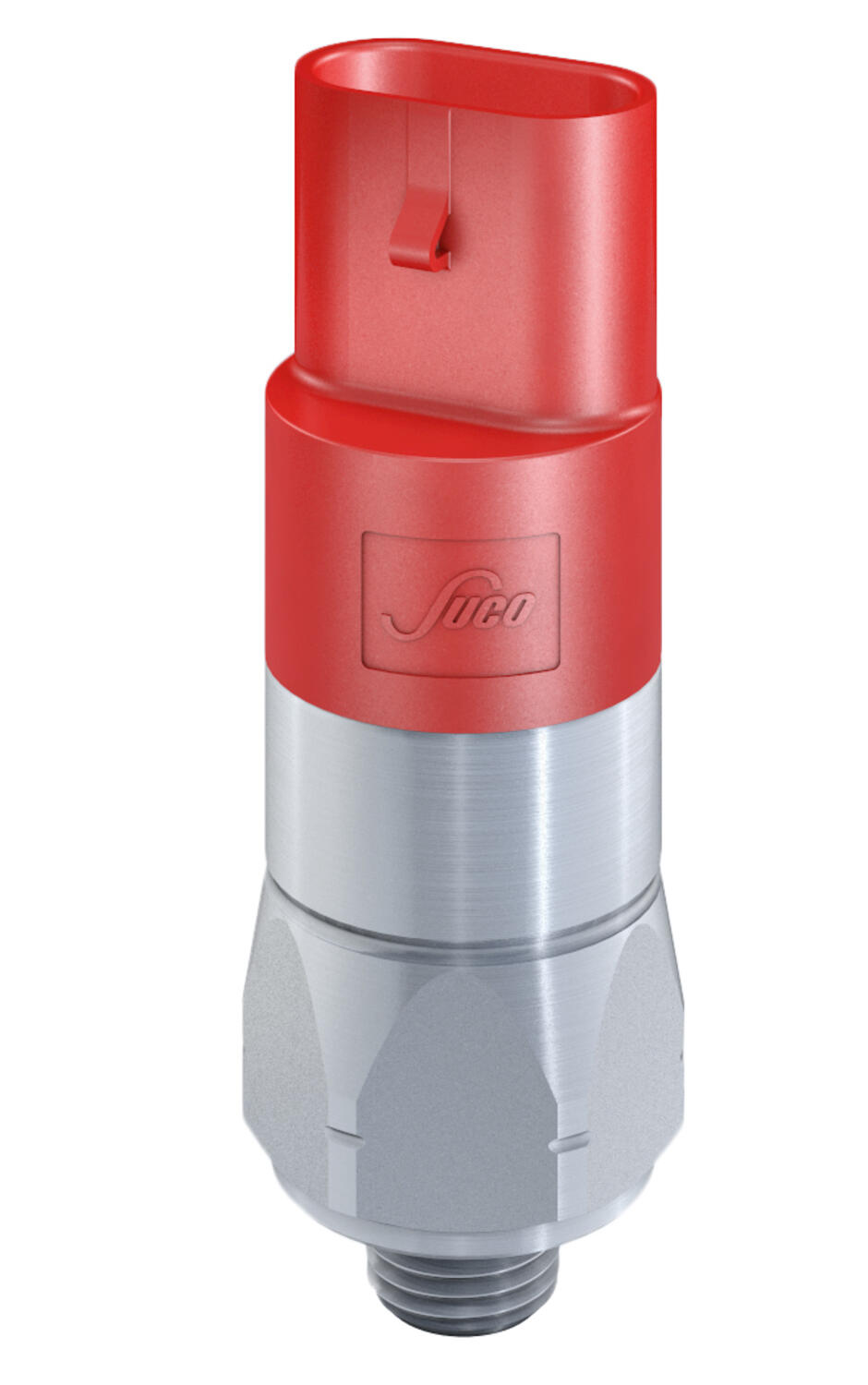

The 0132/0133 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated TE AMP Superseal 1.5® connector and a maximum voltage of 48 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

Common applications include automotive, mobile hydraulics, water applications and braking systems.

Accessories

Related products

Related

jungs process systems hyghspin

7 advantages of using HYGHSPIN twin screw pumps

This blog post demonstrates 7 strong reasons production plants choose the HYGHSPIN twin screw pump by Jung Process Systems

suco pressure switches

Select the pressure switch for you a step by step guide

When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...

emerson 327c

Product news Blog

Function test without opening the enclosure Emerson 327c

When it comes to solenoid valves, reliability and ease of maintenance are essential. That’s why our new Emerson, high flow solenoid valve is designed with unique features that streamline testing, commissioning, and ongoing operation.

IATECH, the industrial automation technology exhibition OEM automatic

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Valve actuation OEM automatic

Product news Company news

Our Valve Actuation Service

Did you know that OEM Automatic has been successfully providing valve actuation solutions?

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

	Parts	Adjustment range max	Adjustment range min	Deviation max	Material membrane	Material of wetted parts	Pressure max	Pressure range max	Pressure range min	Temperature of media from	Temperature of media to	Price
	0,3..1,5 bar, G1/4, CO, NBR, TE AMP Superseal® Art: 0132457031003 Copied	1,5 bar	0,3 bar	±0,2	NBR	Zinc-plated steel, NBR	100 bar	1,5 bar	0,3 bar	-30 °C	100 °C
	0,3..1,5 bar, G1/4, CO, EPDM, TE AMP Superseal® Art: 0132457032003 Copied	1,5 bar	0,3 bar	±0,2	EPDM	EPDM, Zinc-plated steel	100 bar			-30 °C	120 °C
	0,3..1,5 bar, G1/4, CO, FKM, TE AMP Superseal® Art: 0132457033003 Copied	1,5 bar	0,3 bar	±0,2	FKM	FKM, Zinc-plated steel	100 bar			-5 °C	120 °C
	1..10 bar, G1/4, CO, NBR, TE AMP Superseal® Art: 0132458031042 Copied	10 bar	1 bar	±0,5	NBR	Zinc-plated steel, NBR	300 bar	10 bar	1 bar	-40 °C	100 °C
	1..10 bar, G1/4, CO, EPDM, TE AMP Superseal® Art: 0132458032042 Copied	10 bar	1 bar	±0,5	EPDM	EPDM, Zinc-plated steel	300 bar			-30 °C	120 °C
	1..10 bar, G1/4, CO, FKM, TE AMP Superseal® Art: 0132458033042 Copied	10 bar	1 bar	±0,5	FKM	FKM, Zinc-plated steel	300 bar			-5 °C	120 °C
	10..50 bar, G1/4, CO, NBR, TE AMP Superseal® Art: 0132459031009 Copied	50 bar	10 bar	±3,0	NBR	Zinc-plated steel, NBR	300 bar	50 bar	10 bar	-40 °C	100 °C
	10..50 bar, G1/4, CO, EPDM, TE AMP Superseal® Art: 0132459032009 Copied	50 bar	10 bar	±3,0	EPDM	EPDM, Zinc-plated steel	300 bar			-30 °C	120 °C
	10..50 bar, G1/4, CO, FKM, TE AMP Superseal® Art: 0132459033009 Copied	50 bar	10 bar	±3,0	FKM	FKM, Zinc-plated steel	300 bar			-5 °C	120 °C
	10..100 bar, G1/4, CO, NBR, TE AMP Superseal® Art: 0132461031012 Copied	100 bar	10 bar	±3,0-5,0	NBR	Zinc-plated steel, NBR	300 bar	100 bar	10 bar	-40 °C	100 °C
	10..100 bar, G1/4, CO, EPDM, TE AMP Superseal® Art: 0132461032012 Copied	100 bar	10 bar	±3,0-5,0	EPDM	EPDM, Zinc-plated steel	300 bar			-30 °C	120 °C
	10..100 bar, G1/4, CO, FKM, TE AMP Superseal® Art: 0132461033012 Copied	100 bar	10 bar	±3,0-5,0	FKM	FKM, Zinc-plated steel	300 bar			-5 °C	120 °C
	50..200 bar, G1/4, CO, NBR, TE AMP Superseal® Art: 0133460031003 Copied	200 bar	50 bar	±5,0	NBR	Zinc-plated steel, NBR	600 bar	200 bar	50 bar	-40 °C	100 °C
	50..200 bar, G1/4, CO, EPDM, TE AMP Superseal® Art: 0133460032003 Copied	200 bar	50 bar	±5,0	EPDM	EPDM, Zinc-plated steel	600 bar			-30 °C	120 °C
	50..200 bar, G1/4, CO, FKM, TE AMP Superseal® Art: 0133460033003 Copied	200 bar	50 bar	±5,0	FKM	FKM, Zinc-plated steel	600 bar			-15 °C	120 °C
