| 12152_Fluid Port Connection Type | ANSI/DIN, Central Flange |
|---|---|
| 12154_Diaphragm Type | Convoluted |
| 12155_Material Air Section (Central Body & Air cover) | Conductive Polypropylene |
| 12156_Material Of Diaphragm | Santoprene |
| 12173_Max. Size Of Suspended Solids | 6,4 mm |
| 12175_Net Weight | 12 kg |
| 12273_Fluid Displacement Per Cycle | 0.85 litres |
| 12330_Operating Pressure | 1.5 - 7 bar |
| 12331_Max. Flow Rate | 200 LPM |
| Approvals | UKCA, CE |
| Country of origin | Spain |
| Material of valve ball | Santoprene |
|---|---|
| Material of valve seats | Polypropylene |
| Material of wetted parts | Conductive Polypropylene |
| Max suction lift - Dry | 5 m |
| Max suction lift - Wet | 8 m |
| Net Dimensions | 425mm x 243mm x 415mm |
| Pump size | 1" |
| Pump type | Non-Metallic |
| Tariff code | 8413508090 |
| Type | Key Model Pump |
.jpeg?as=1&iar=0&hash=C35BE4FB444DCD3D5B98C5DBA7502AEA)
This blog post demonstrates 7 strong reasons production plants choose the HYGHSPIN twin screw pump by Jung Process Systems
When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...
.jpeg?as=1&iar=0&hash=A3BFC175C33A8E0858884EF1A7B44582)
When it comes to solenoid valves, reliability and ease of maintenance are essential. That’s why our new Emerson, high flow solenoid valve is designed with unique features that streamline testing, commissioning, and ongoing operation.Â
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
Did you know that OEM Automatic has been successfully providing valve actuation solutions?
We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | 12152_Fluid Port Connection Type | 12154_Diaphragm Type | 12155_Material Air Section (Central Body & Air cover) | 12156_Material Of Diaphragm | 12173_Max. Size Of Suspended Solids | 12175_Net Weight | 12273_Fluid Displacement Per Cycle | 12330_Operating Pressure | 12331_Max. Flow Rate | Approvals | Country of origin | Material of valve ball | Material of valve seats | Material of wetted parts | Net Dimensions | Pump type | Type | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

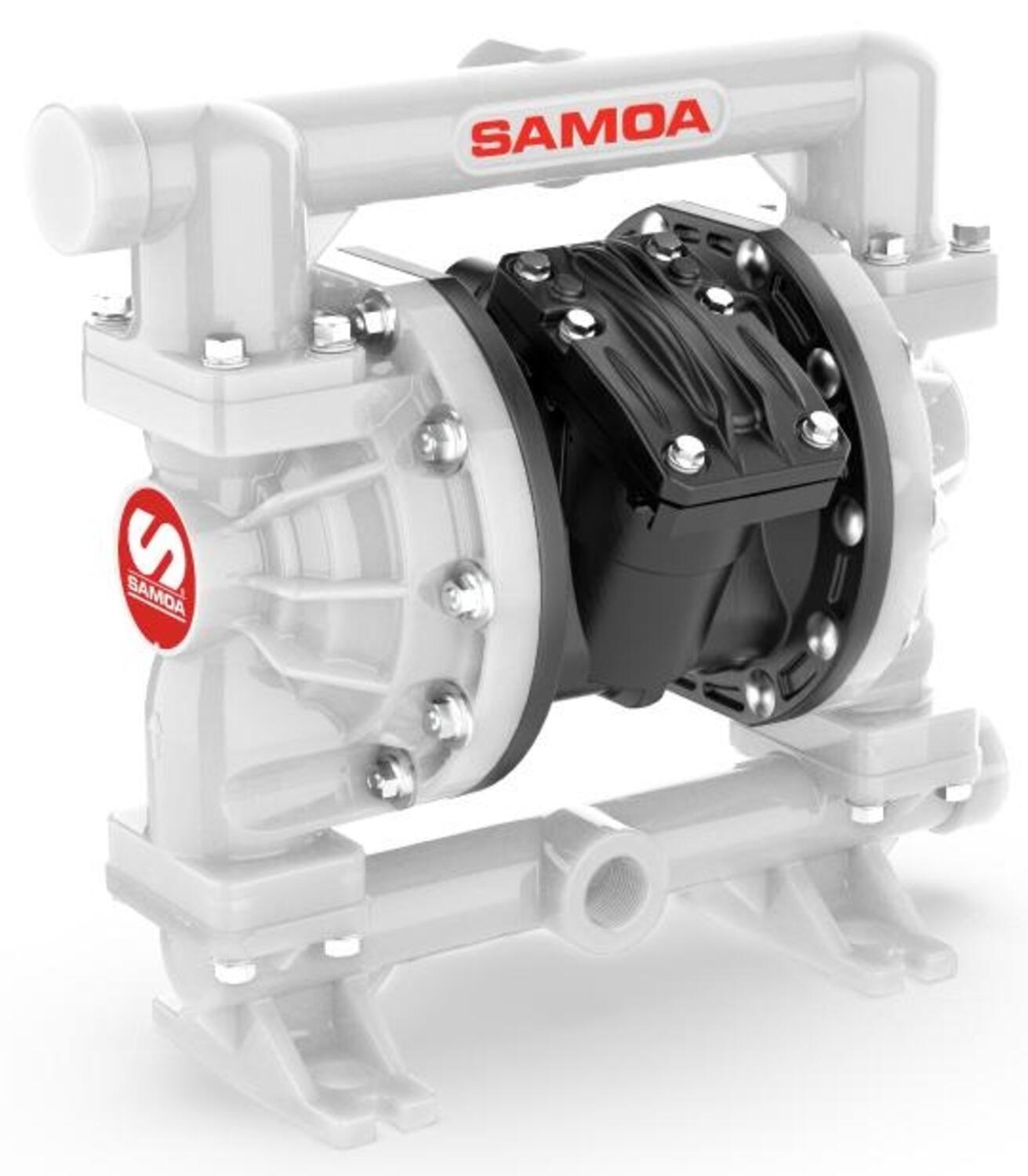

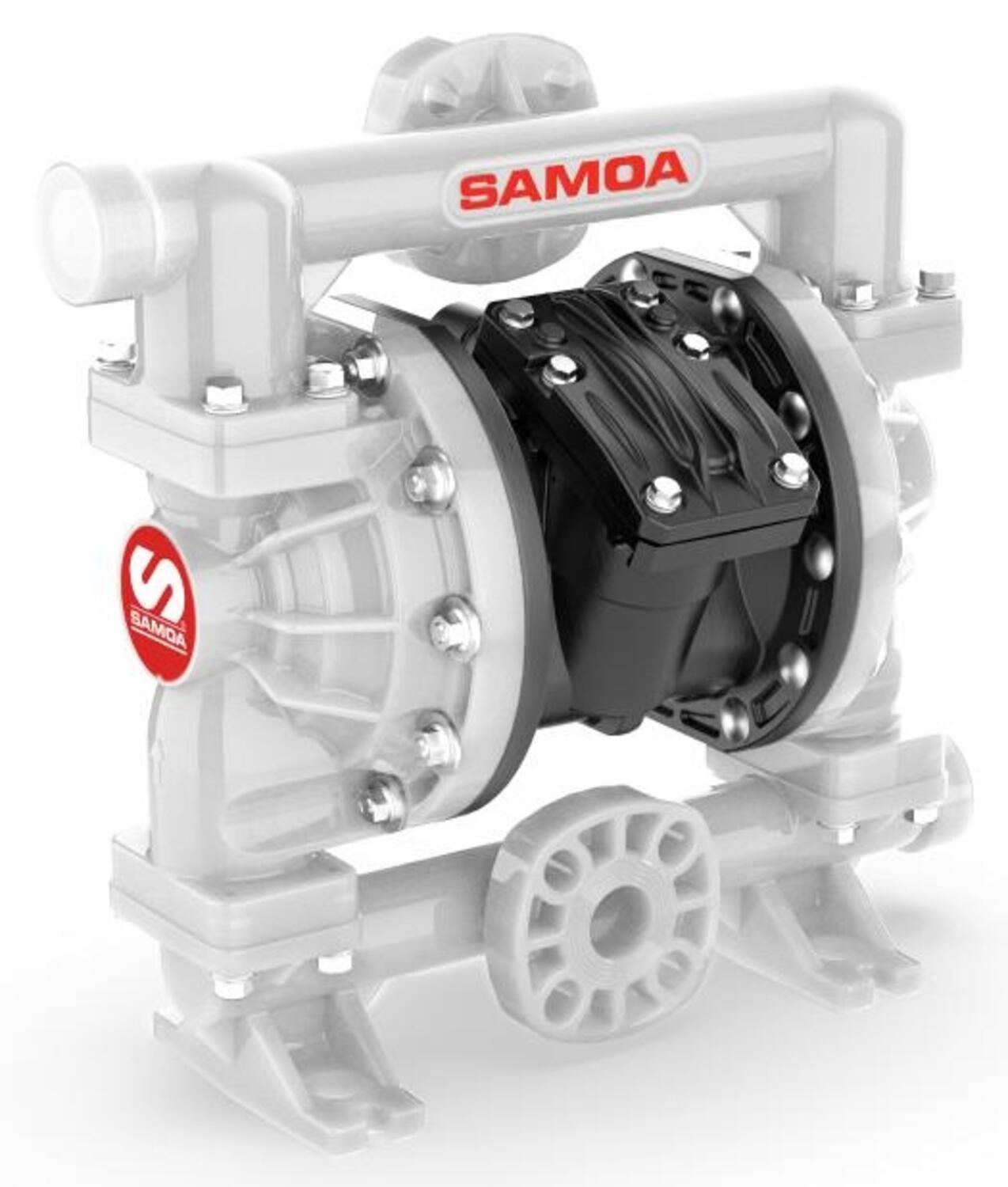

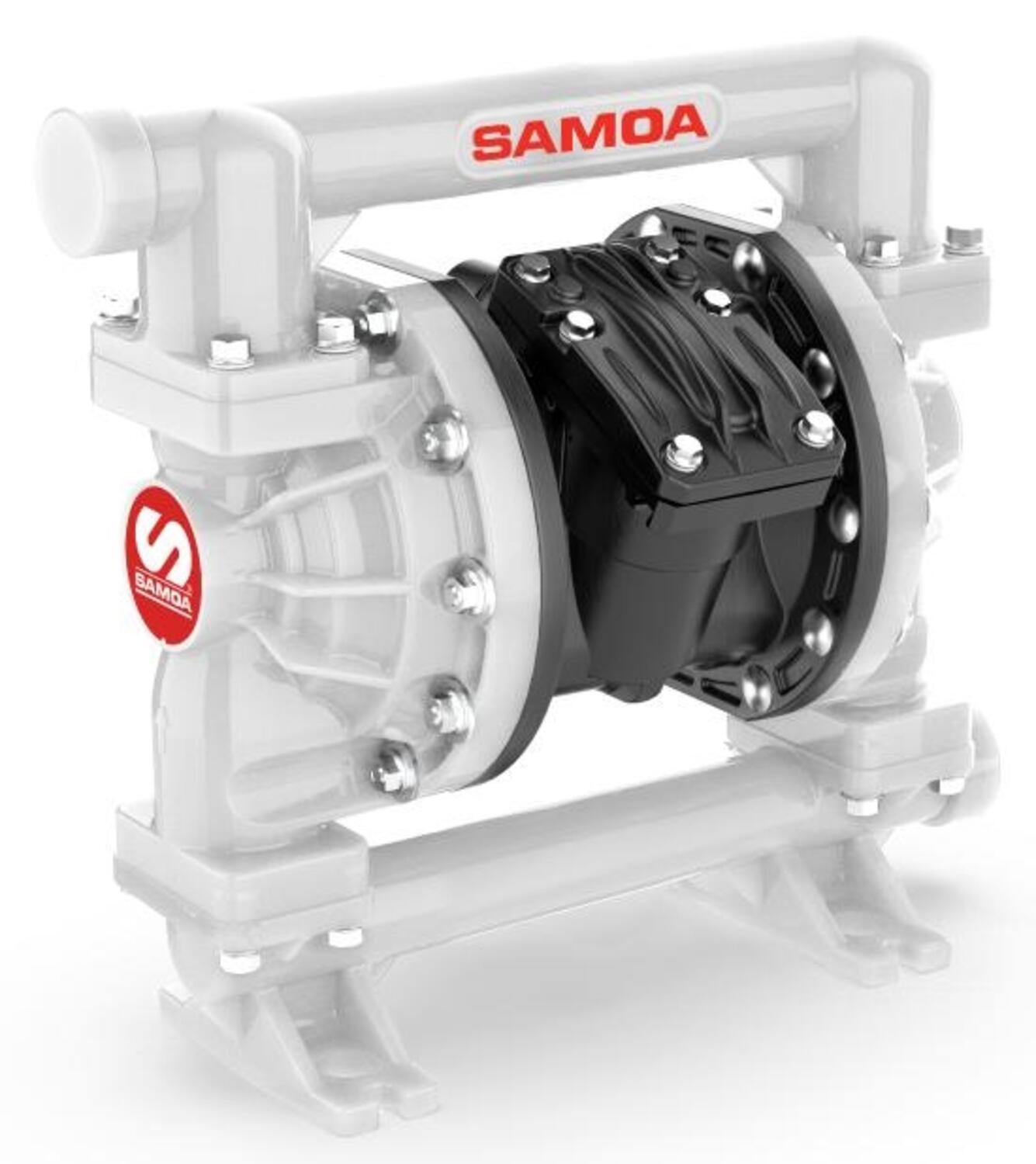

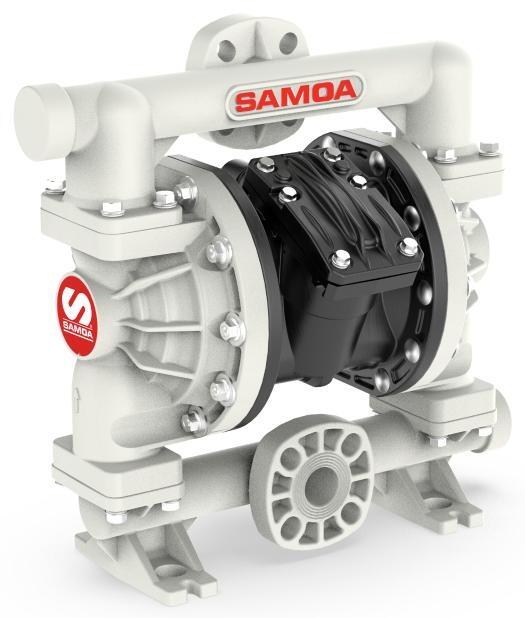

UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM, ATEX
Art:
UP10B-CBS-PMA
Copied
|
ANSI/DIN, Central Flange
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
12 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Polypropylene
|
Conductive Polypropylene
|
425mm x 243mm x 415mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Teflon, 200 LPM, ATEX
Art:
UP10B-CBS-PTZ
Copied
|
ANSI/DIN, Central Flange
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
12 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Polypropylene
|
Conductive Polypropylene
|
425mm x 243mm x 415mm
|
Non-Metallic
|
Key Model Pump
|
| ||

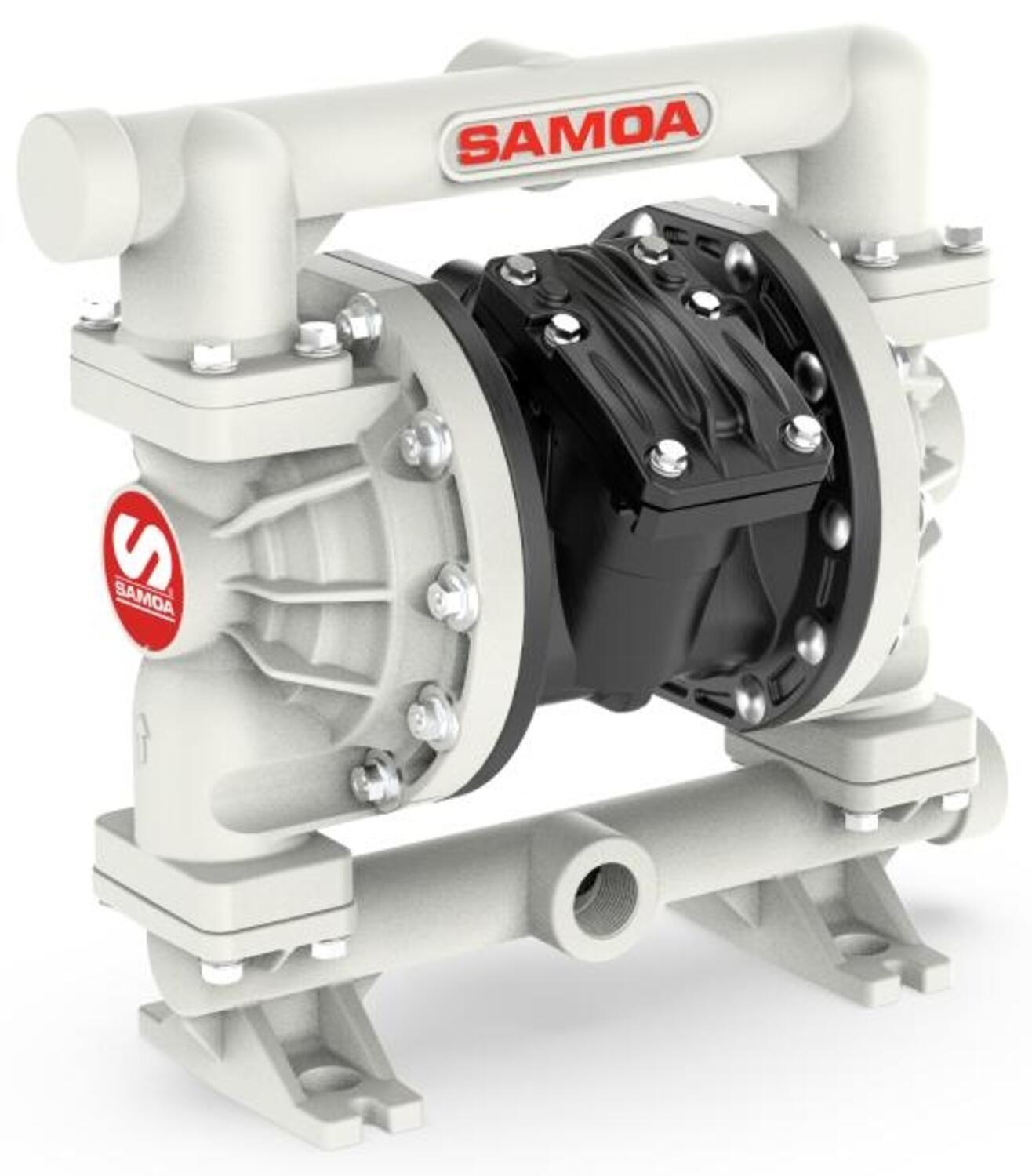

UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM
Art:
UP10B-CPS-MMA
Copied
|
ANSI/DIN, Central Flange
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Santoprene
|
Polypropylene
|
399mm x 243mm x 415mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Teflon, 200 LPM
Art:
UP10B-CPS-PTZ
Copied
|
ANSI/DIN, Central Flange
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
PTFE
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 415mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Viton, 200 LPM
Art:
UP10B-CPS-PVV
Copied
|
ANSI/DIN, Central Flange
|
Convoluted
|
Conductive Polypropylene
|
Viton
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Viton
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 415mm
|
Non-Metallic
|
Key Model Pump
|
| ||
UP10, AODD Pump, 1", Polypropylene, PVDF, Teflon, Santoprene, 200 LPM
Art:
UP10B-CWS-WMA
Copied
|
ANSI/DIN, Central Flange
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
14,1 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
PTFE
|
PVDF
|
425mm x 243mm x 415mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, PVDF, Teflon, 200 LPM
Art:
UP10B-CWS-WTZ
Copied
|
ANSI/DIN, Central Flange
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
14,1 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
PTFE
|
PTFE
|
PVDF
|
425mm x 243mm x 415mm
|
Non-Metallic
|
Key Model Pump
|
| ||

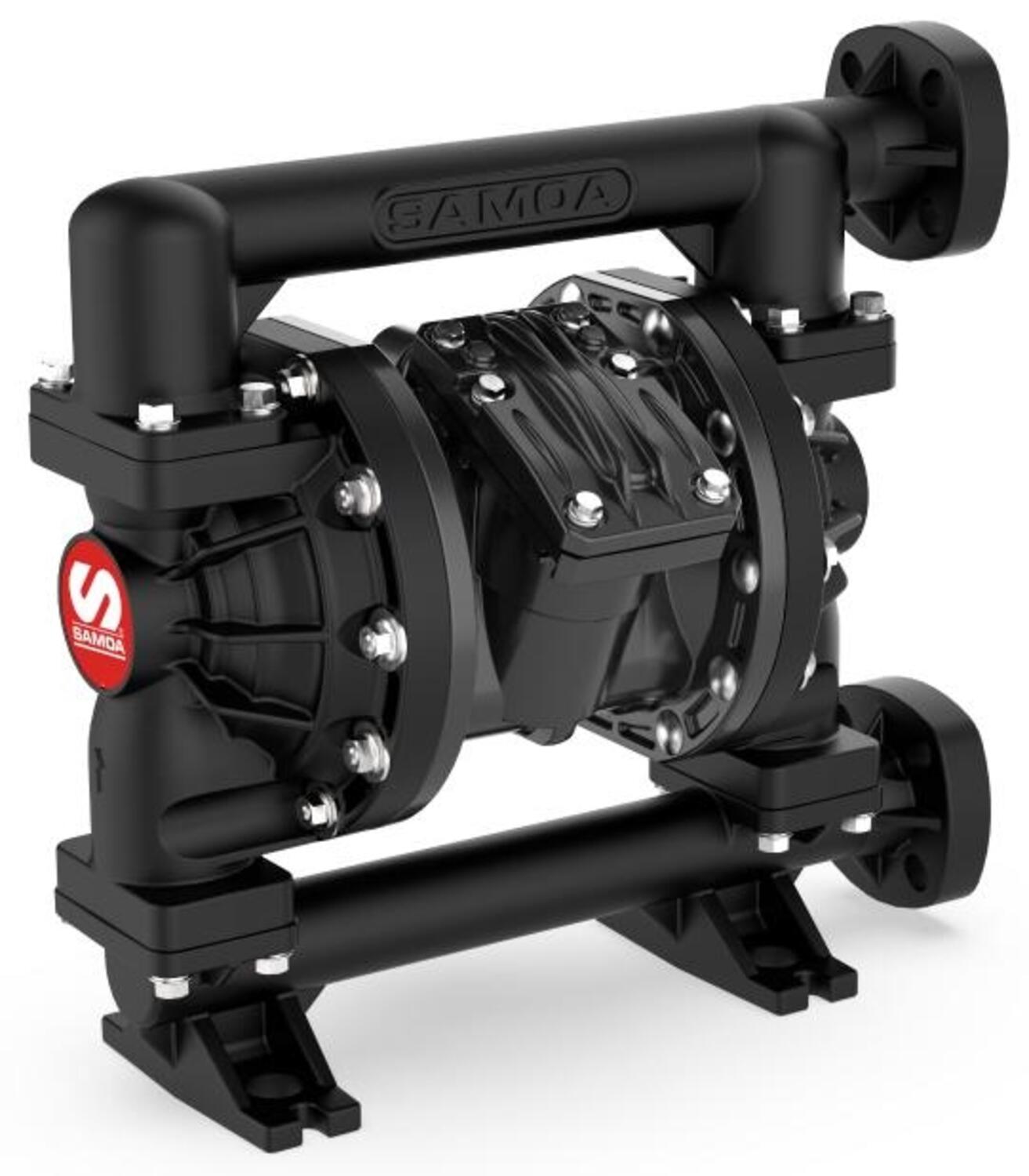

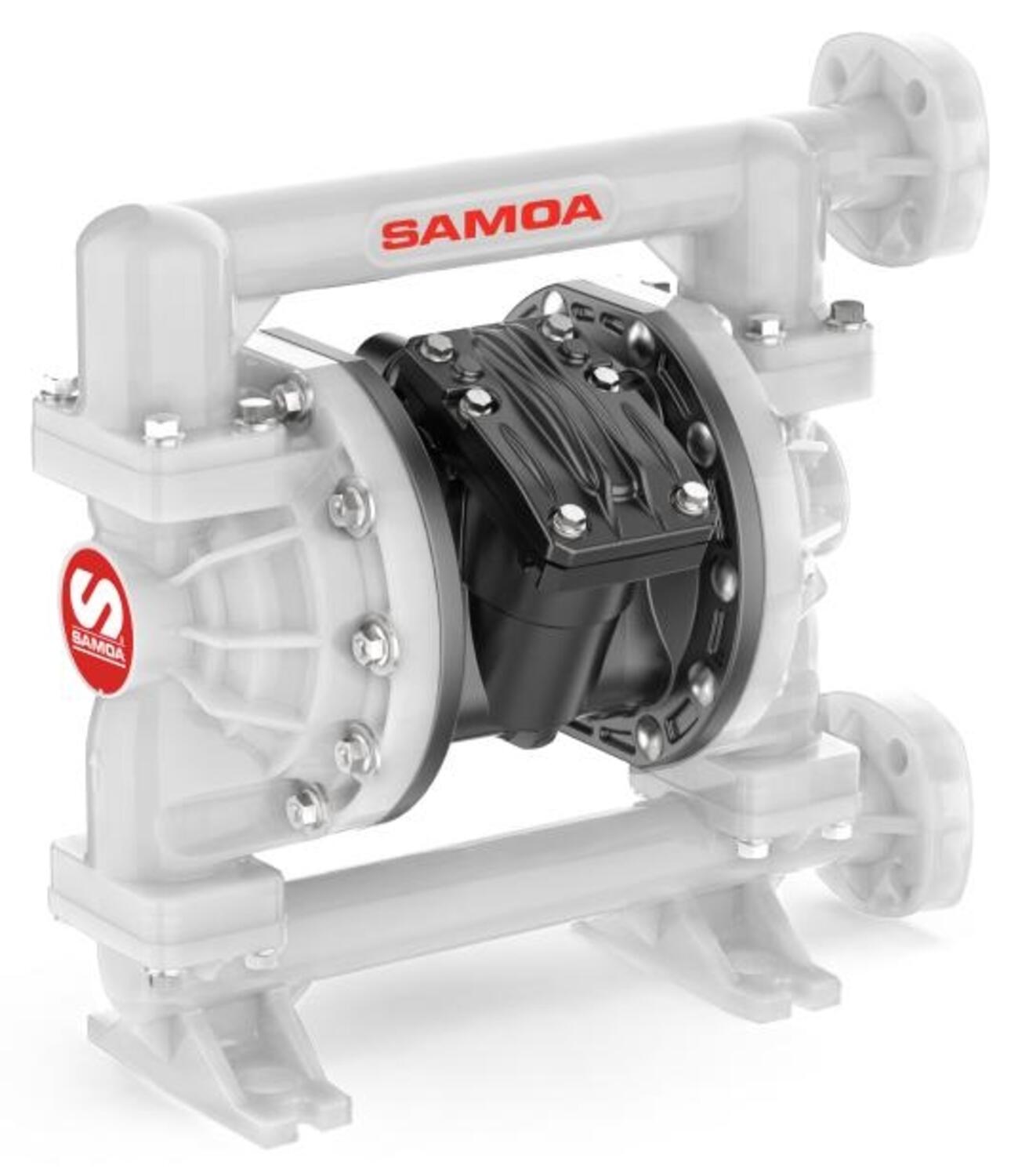

UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM, ATEX
Art:
UP10B-FBS-PMA
Copied
|
ANSI/DIN Side Flange
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
12 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Polypropylene
|
Conductive Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Teflon, 200 LPM, ATEX
Art:
UP10B-FBS-PTZ
Copied
|
ANSI/DIN Side Flange
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
12 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Polypropylene
|
Conductive Polypropylene
|
425mm x 243mm x 415mm
|
Non-Metallic
|
Key Model Pump
|
| ||
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM
Art:
UP10B-FPS-MMA
Copied
|
ANSI/DIN Side Flange
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Santoprene
|
Polypropylene
|
425mm x 243mm x 415mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Teflon, 200 LPM
Art:
UP10B-FPS-PTZ
Copied
|
ANSI/DIN Side Flange
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
PTFE
|
Polypropylene
|
Polypropylene
|
425mm x 243mm x 415mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Viton, 200 LPM
Art:
UP10B-FPS-PVV
Copied
|
ANSI/DIN Side Flange
|
Convoluted
|
Conductive Polypropylene
|
Viton
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Viton
|
Polypropylene
|
Polypropylene
|
425mm x 243mm x 415mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, PVDF, Teflon, Santoprene, 200 LPM
Art:
UP10B-FWS-WMA
Copied
|
ANSI/DIN Side Flange
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
14,1 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
PTFE
|
PVDF
|
425mm x 243mm x 415mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, PVDF, Teflon, 200 LPM
Art:
UP10B-FWS-WTZ
Copied
|
ANSI/DIN Side Flange
|
2-Piece
|
Conductive Polypropylene
|
TPE
|
6,4 mm
|
14,1 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
PTFE
|
PTFE
|
PVDF
|
425mm x 243mm x 415mm
|
Non-Metallic
|
Key Model Pump
|
| ||

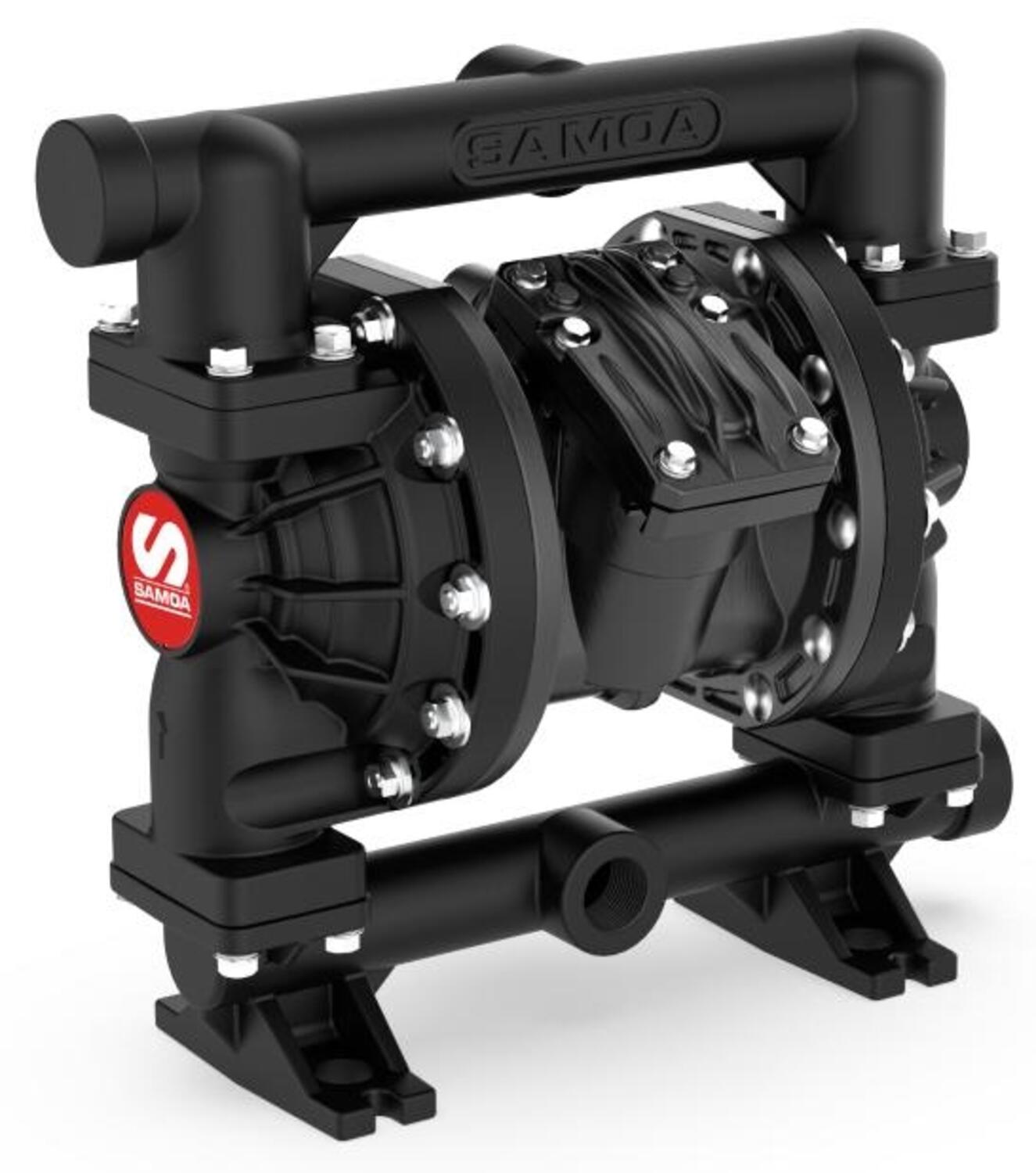

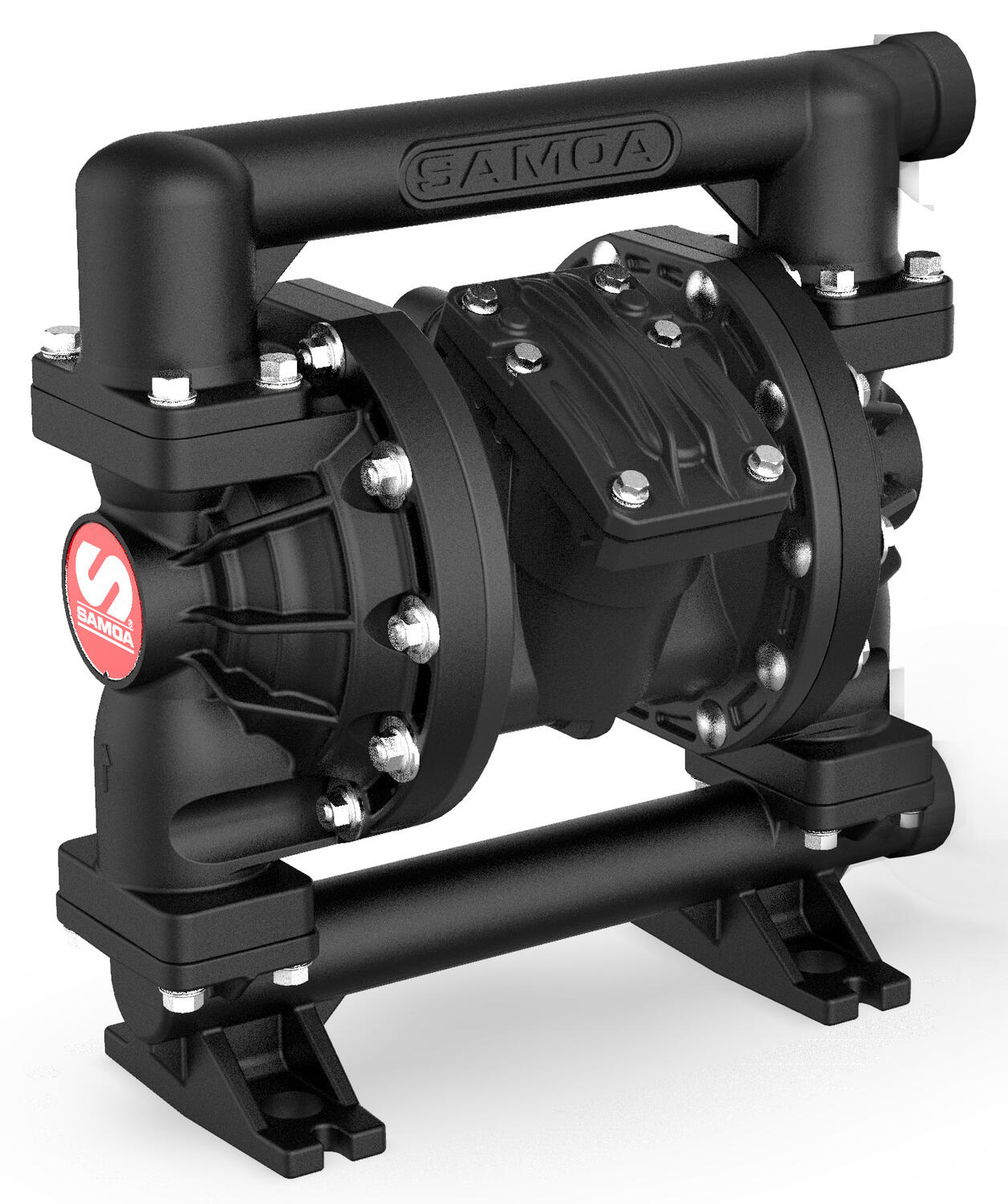

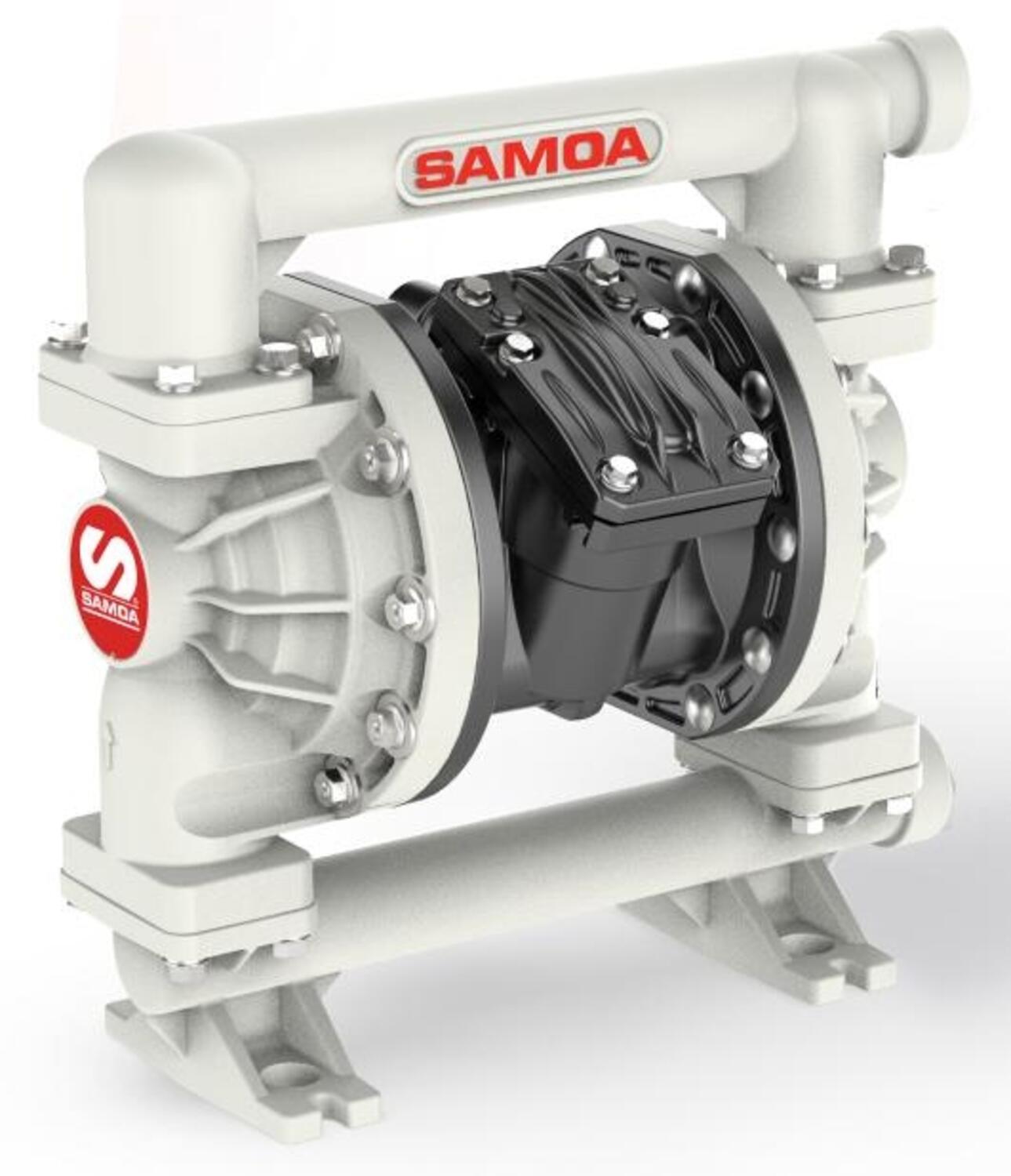

UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM, ATEX
Art:
UP10B-BBS-PMA
Copied
|
BSP Center Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
11,6 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Polypropylene
|
Conductive Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Teflon, 200 LPM, ATEX
Art:
UP10B-BBS-PTZ
Copied
|
BSP Center Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
11,6 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Polypropylene
|
Conductive Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM
Art:
UP10B-BPS-MMA
Copied
|
BSP Center Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Santoprene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Teflon, 200 LPM
Art:
UP10B-BPS-PTZ
Copied
|
BSP Center Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
PTFE
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
UP10, AODD Pump, 1", Polypropylene, PVDF, Teflon, 200 LPM
Art:
UP10B-BWS-WTZ
Copied
|
BSP Center Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
13,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
PTFE
|
PVDF
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||

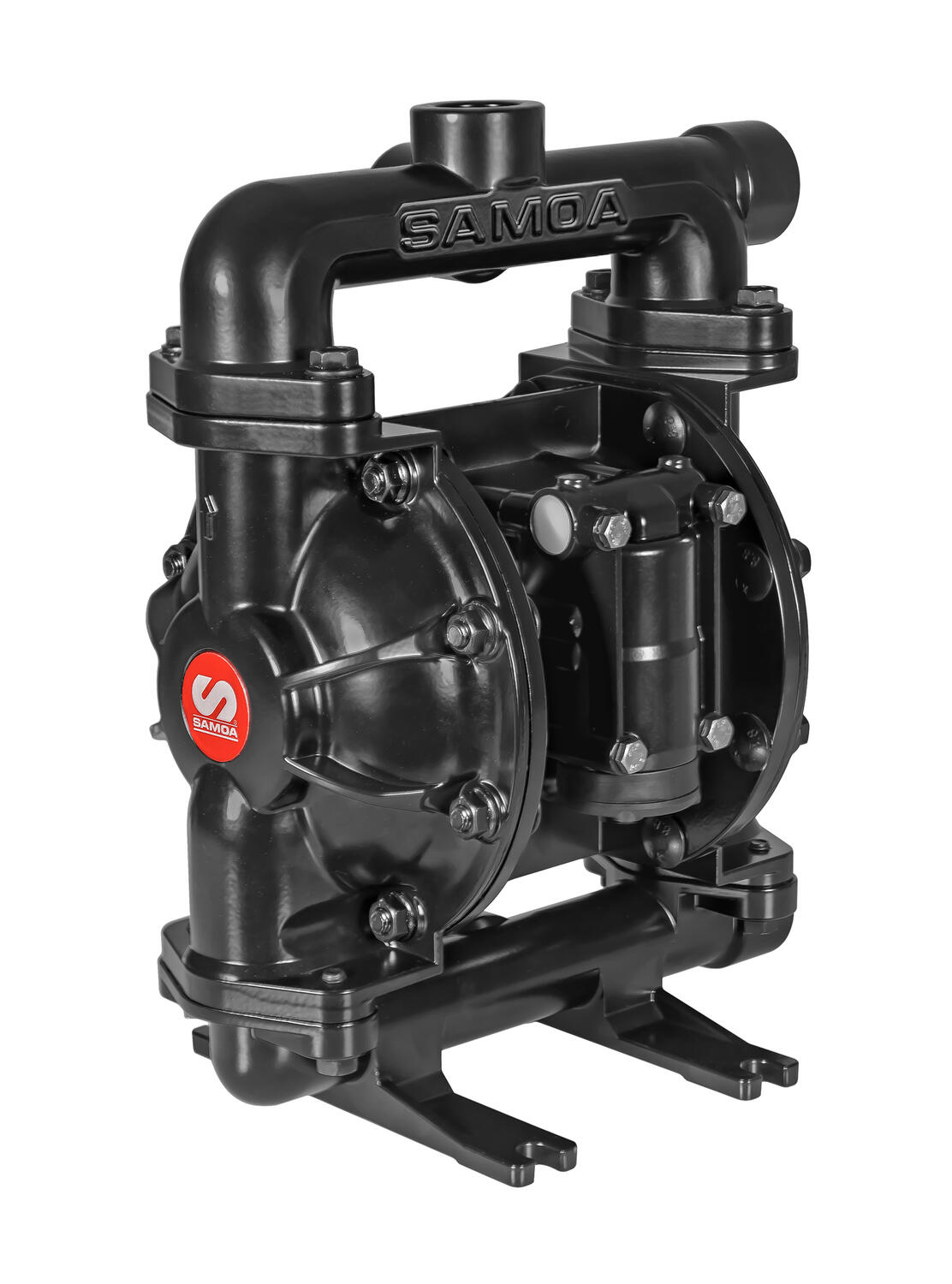

CP10, AODD Pump, 1", Aluminium, Teflon, 130 LPM, ATEX
Art:
CP10A-BAC-ATZ
Copied
|
BSP Multiple Ports
|
2-Piece
|
Aluminium
|
PTFE
|
3,2 mm
|
5,4 kg
|
0.40 litres
|
1.5 - 8 bar
|
130 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Aluminium
|
Aluminium
|
256mm x 182mm x 331mm
|
Metallic
|
Key Model Pump
|
| ||
|
CP10, AODD Pump, 1", Aluminium, NBR, 130 LPM, ATEX
Art:
CP10A-BAC-NNG
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Buna-N
|
3,2 mm
|
5,4 kg
|
0.40 litres
|
1.5 - 8 bar
|
130 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Buna-N
|
Buna-N
|
Aluminium
|
256mm x 182mm x 331mm
|
Metallic
|
Key Model Pump
|
| ||

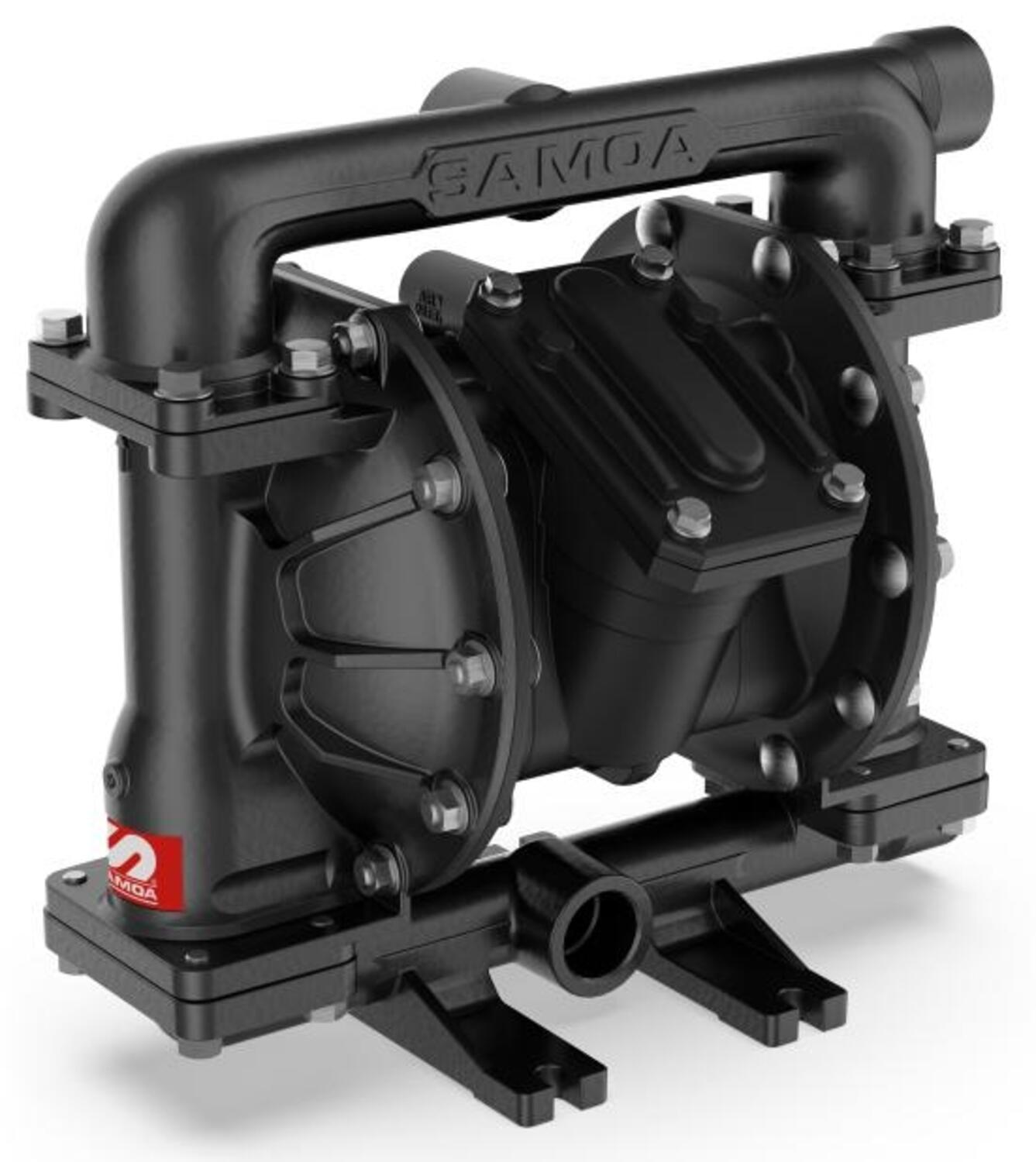

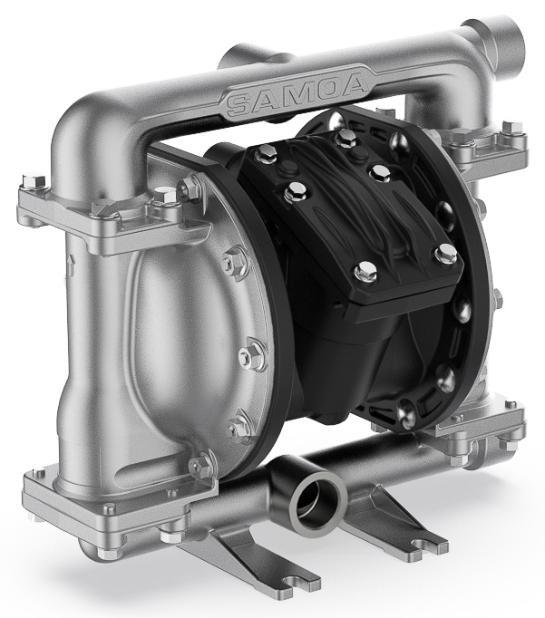

UP10, AODD Pump, 1", Aluminium, Teflon, 200 LPM, ATEX
Art:
UP10A-BAC-ATZ
Copied
|
BSP Multiple Ports
|
2-Piece
|
Aluminium
|
PTFE
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Aluminium
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Viton, 200 LPM, ATEX
Art:
UP10A-BAC-AVV
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Viton
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Viton
|
Aluminium
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, TPE, 200 LPM, ATEX
Art:
UP10A-BAC-HHC
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
TPE
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
TPE
|
TPE
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Santoprene, 200 LPM, ATEX
Art:
UP10A-BAC-MMA
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Santoprene
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, NBR, 200 LPM, ATEX
Art:
UP10A-BAC-NNG
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Buna-N
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Buna-N
|
Buna-N
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Ductile Iron, TPE, 200 LPM, ATEX
Art:
UP10A-BFC-HHC
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
TPE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
TPE
|
TPE
|
Ductile iron
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Ductile Iron, Santoprene, 200 LPM, ATEX
Art:
UP10A-BFC-MMA
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Santoprene
|
Ductile iron
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Ductile Iron, NBR, 200 LPM, ATEX
Art:
UP10A-BFC-NNG
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Buna-N
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Buna-N
|
Buna-N
|
Ductile iron
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Ductile Iron, 316 Stainless Steel, Teflon, 200 LPM, ATEX
Art:
UP10A-BFC-STZ
Copied
|
BSP Multiple Ports
|
2-Piece
|
Aluminium
|
PTFE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Stainless steel 316
|
Ductile iron
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Ductile Iron, 316 Stainless Steel, Viton, 200 LPM, ATEX
Art:
UP10A-BFC-SVV
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Viton
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Viton
|
Stainless steel 316
|
Ductile iron
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Santoprene, 200 LPM, ATEX
Art:
UP10A-BSS-MMA
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Santoprene
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Teflon, 200 LPM, ATEX
Art:
UP10A-BSS-STZ
Copied
|
BSP Multiple Ports
|
2-Piece
|
Aluminium
|
PTFE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, 316 Stainless Steel, Teflon, 200 LPM, ATEX
Art:
UP10B-BSS-STZ
Copied
|
BSP Multiple Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Viton, 200 LPM, ATEX
Art:
UP10A-BSS-SVV
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Viton
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Viton
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM, ATEX
Art:
UP10B-PBS-PMA
Copied
|
BSP Side Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
11,6 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Polypropylene
|
Conductive Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Teflon, 200 LPM, ATEX
Art:
UP10B-PBS-PTZ
Copied
|
BSP Side Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
11,6 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Polypropylene
|
Conductive Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM
Art:
UP10B-PPS-MMA
Copied
|
BSP Side Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Santoprene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Teflon, 200 LPM
Art:
UP10B-PPS-PTZ
Copied
|
BSP Side Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
PTFE
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
UP10, AODD Pump, 1", Polypropylene, PVDF, Teflon, 200 LPM
Art:
UP10B-PWS-WTZ
Copied
|
BSP Side Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
13,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
PTFE
|
PTFE
|
PVDF
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM, ATEX
Art:
UP10B-NBS-PMA
Copied
|
NPT Center Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
11,6 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Polypropylene
|
Conductive Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Teflon, 200 LPM, ATEX
Art:
UP10B-NBS-PTZ
Copied
|
NPT Center Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
11,6 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Polypropylene
|
Conductive Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM
Art:
UP10B-NPS-MMA
Copied
|
NPT Center Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Santoprene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Teflon, 200 LPM
Art:
UP10B-NPS-PTZ
Copied
|
NPT Center Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
PTFE
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, PVDF, Teflon, 200 LPM
Art:
UP10B-NWS-WTZ
Copied
|
NPT Center Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
13,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
PTFE
|
PVDF
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Teflon, 200 LPM, ATEX
Art:
UP10A-NAC-ATZ
Copied
|
NPT Multiple Ports
|
2-Piece
|
Aluminium
|
PTFE
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Aluminium
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Viton, 200 LPM, ATEX
Art:
UP10A-NAC-AVV
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Viton
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Viton
|
Aluminium
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, TPE, 200 LPM, ATEX
Art:
UP10A-NAC-HHC
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
TPE
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
TPE
|
TPE
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Santoprene, 200 LPM, ATEX
Art:
UP10A-NAC-MMA
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Santoprene
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, NBR, 200 LPM, ATEX
Art:
UP10A-NAC-NNG
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Buna-N
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Buna-N
|
Buna-N
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Ductile Iron, TPE, 200 LPM, ATEX
Art:
UP10A-NFC-HHC
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
TPE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
TPE
|
TPE
|
Ductile iron
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Ductile Iron, Santoprene, 200 LPM, ATEX
Art:
UP10A-NFC-MMA
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Santoprene
|
Ductile iron
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Ductile Iron, NBR, 200 LPM, ATEX
Art:
UP10A-NFC-NNG
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Buna-N
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Buna-N
|
Buna-N
|
Ductile iron
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Ductile Iron, 316 Stainless Steel, Teflon, 200 LPM, ATEX
Art:
UP10A-NFC-STZ
Copied
|
NPT Multiple Ports
|
2-Piece
|
Aluminium
|
PTFE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Stainless steel 316
|
Ductile iron
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Ductile Iron, 316 Stainless Steel, Viton, 200 LPM, ATEX
Art:
UP10A-NFC-SVV
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Viton
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Viton
|
Stainless steel 316
|
Ductile iron
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Santoprene, 200 LPM, ATEX
Art:
UP10A-NSS-MMA
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Santoprene
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel,Teflon, 200 LPM, ATEX
Art:
UP10A-NSS-STZ
Copied
|
NPT Multiple Ports
|
2-Piece
|
Aluminium
|
PTFE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, 316 Stainless Steel, Teflon, 200 LPM, ATEX
Art:
UP10B-NSS-STZ
Copied
|
NPT Multiple Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Viton, 200 LPM, ATEX
Art:
UP10A-NSS-SVV
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Viton
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Viton
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM, ATEX
Art:
UP10B-TBS-PMA
Copied
|
NPT Side Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
11,6 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Polypropylene
|
Conductive Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Teflon, 200 LPM, ATEX
Art:
UP10B-TBS-PTZ
Copied
|
NPT Side Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
11,6 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Polypropylene
|
Conductive Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM
Art:
UP10B-TPS-MMA
Copied
|
NPT Side Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Santoprene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Teflon, 200 LPM
Art:
UP10B-TPS-PTZ
Copied
|
NPT Side Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
PTFE
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, PVDF, Teflon, 200 LPM
Art:
UP10B-TWS-WTZ
Copied
|
NPT Side Ports
|
2-Piece
|
Conductive Polypropylene
|
PTFE
|
6,4 mm
|
13,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
PTFE
|
PTFE
|
PVDF
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Key Model Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Santoprene, 200 LPM, ATEX
Art:
UP10A-BAC-MSA
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Stainless steel 316
|
Santoprene
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Teflon, 200 LPM, ATEX
Art:
UP10A-BAC-SSZ
Copied
|
BSP Multiple Ports
|
2-Piece
|
Aluminium
|
PTFE
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Stainless steel 316
|
Stainless steel 316
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Teflon, 200 LPM, ATEX
Art:
UP10A-BAC-STZ
Copied
|
BSP Multiple Ports
|
2-Piece
|
Aluminium
|
PTFE
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Stainless steel 316
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Viton, 200 LPM, ATEX
Art:
UP10A-BAC-SVV
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Viton
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Viton
|
Stainless steel 316
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Ductile Iron, 316 Stainless Steel, Santoprene, 200 LPM, ATEX
Art:
UP10A-BFC-SMA
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Stainless steel 316
|
Ductile iron
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Stainless Steel, 316 Stainless Steel, Santoprene, Teflon, 200 LPM, ATEX
Art:
UP10S-BSS-MMA
Copied
|
BSP Multiple Ports
|
Convoluted
|
Stainless steel
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
PTFE
|
Santoprene
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Santoprene, 200 LPM, ATEX
Art:
UP10A-BSS-SMA
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Santoprene, 200 LPM, ATEX
Art:
UP10A-BSS-SSA
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Stainless steel 316
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Teflon, 200 LPM, ATEX
Art:
UP10A-BSS-SSZ
Copied
|
BSP Multiple Ports
|
2-Piece
|
Aluminium
|
PTFE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Stainless steel 316
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Stainless Steel, 316 Stainless Steel, Teflon, 200 LPM, ATEX
Art:
UP10S-BSS-STZ
Copied
|
BSP Multiple Ports
|
2-Piece
|
Stainless steel
|
PTFE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Santoprene, 200 LPM, ATEX
Art:
UP10A-NAC-MSA
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Stainless steel 316
|
Santoprene
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Teflon, 200 LPM, ATEX
Art:
UP10A-NAC-SSZ
Copied
|
NPT Multiple Ports
|
2-Piece
|
Aluminium
|
PTFE
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Stainless steel 316
|
Stainless steel 316
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Teflon, 200 LPM, ATEX
Art:
UP10A-NAC-STZ
Copied
|
NPT Multiple Ports
|
2-Piece
|
Aluminium
|
PTFE
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Stainless steel 316
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Viton, 200 LPM, ATEX
Art:
UP10A-NAC-SVV
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Viton
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Viton
|
Stainless steel 316
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Ductile Iron, 316 Stainless Steel, Santoprene, 200 LPM, ATEX
Art:
UP10A-NFC-SMA
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Stainless steel 316
|
Ductile iron
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Stainless Steel, 316 Stainless Steel, Santoprene, Teflon, 200 LPM, ATEX
Art:
UP10S-NSS-MMA
Copied
|
NPT Multiple Ports
|
Convoluted
|
Stainless steel
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
PTFE
|
Santoprene
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Santoprene, 200 LPM, ATEX
Art:
UP10A-NSS-SMA
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Santoprene, 200 LPM, ATEX
Art:
UP10A-NSS-SSA
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Stainless steel 316
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, Teflon, 200 LPM, ATEX
Art:
UP10A-NSS-SSZ
Copied
|
NPT Multiple Ports
|
2-Piece
|
Aluminium
|
PTFE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Stainless steel 316
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Stainless Steel, 316 Stainless Steel, Teflon, 200 LPM, ATEX
Art:
UP10S-NSS-STZ
Copied
|
NPT Multiple Ports
|
2-Piece
|
Stainless steel
|
PTFE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
|
PTFE
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Special Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, TPE, 200 LPM
Art:
UP10B-CPS-PHC
Copied
|
ANSI/DIN, Central Flange
|
Convoluted
|
Conductive Polypropylene
|
TPE
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
TPE
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 415mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM
Art:
UP10B-CPS-PMA
Copied
|
ANSI/DIN, Central Flange
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 415mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, NBR, 200 LPM
Art:
UP10B-CPS-PNG
Copied
|
ANSI/DIN, Central Flange
|
Convoluted
|
Conductive Polypropylene
|
Buna-N
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Buna-N
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 415mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, TPE, 200 LPM
Art:
UP10B-FPS-PHC
Copied
|
ANSI/DIN Side Flange
|
Convoluted
|
Conductive Polypropylene
|
TPE
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
TPE
|
Polypropylene
|
Polypropylene
|
425mm x 243mm x 415mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM
Art:
UP10B-FPS-PMA
Copied
|
ANSI/DIN Side Flange
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Polypropylene
|
Polypropylene
|
425mm x 243mm x 415mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, NBR, 200 LPM
Art:
UP10B-FPS-PNG
Copied
|
ANSI/DIN Side Flange
|
Convoluted
|
Conductive Polypropylene
|
Buna-N
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Buna-N
|
Polypropylene
|
Polypropylene
|
425mm x 243mm x 415mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, TPE, 200 LPM
Art:
UP10B-BPS-PHC
Copied
|
BSP Center Ports
|
Convoluted
|
Conductive Polypropylene
|
TPE
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
TPE
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM
Art:
UP10B-BPS-PMA
Copied
|
BSP Center Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, NBR, 200 LPM
Art:
UP10B-BPS-PNG
Copied
|
BSP Center Ports
|
Convoluted
|
Conductive Polypropylene
|
Buna-N
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Buna-N
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
CP10, AODD Pump, 1", Aluminium, TPE, 130 LPM, ATEX
Art:
CP10A-BAC-HHC
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
TPE
|
3,2 mm
|
5,4 kg
|
0.40 litres
|
1.5 - 8 bar
|
130 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
TPE
|
TPE
|
Aluminium
|
256mm x 182mm x 331mm
|
Metallic
|
Standard Pump
|
| ||
|
CP10, AODD Pump, 1", Aluminium, Santoprene, 130 LPM, ATEX
Art:
CP10A-BAC-MMA
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
3,2 mm
|
5,4 kg
|
0.40 litres
|
1.5 - 8 bar
|
130 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Santoprene
|
Aluminium
|
256mm x 182mm x 331mm
|
Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Santoprene, 200 LPM, ATEX
Art:
UP10A-BAC-AMA
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Aluminium
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, 316 Stainless Steel, Santoprene, 200 LPM, ATEX
Art:
UP10B-BSS-MMA
Copied
|
BSP Multiple Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Santoprene
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, TPE, 200 LPM, ATEX
Art:
UP10A-BSS-SHC
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
TPE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
TPE
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, NBR, 200 LPM, ATEX
Art:
UP10A-BSS-SNG
Copied
|
BSP Multiple Ports
|
Convoluted
|
Aluminium
|
Buna-N
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Buna-N
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, TPE, 200 LPM
Art:
UP10B-PPS-PHC
Copied
|
BSP Side Ports
|
Convoluted
|
Conductive Polypropylene
|
TPE
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
TPE
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM
Art:
UP10B-PPS-PMA
Copied
|
BSP Side Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, NBR, 200 LPM
Art:
UP10B-PPS-PNG
Copied
|
BSP Side Ports
|
Convoluted
|
Conductive Polypropylene
|
Buna-N
|
6,4 mm
|
10,5 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Buna-N
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, TPE, 200 LPM
Art:
UP10B-NPS-PHC
Copied
|
NPT Center Ports
|
Convoluted
|
Conductive Polypropylene
|
TPE
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
TPE
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM
Art:
UP10B-NPS-PMA
Copied
|
NPT Center Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, NBR, 200 LPM
Art:
UP10B-NPS-PNG
Copied
|
NPT Center Ports
|
Convoluted
|
Conductive Polypropylene
|
Buna-N
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Buna-N
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, Santoprene, 200 LPM, ATEX
Art:
UP10A-NAC-AMA
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Santoprene
|
6,4 mm
|
11,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Santoprene
|
Aluminium
|
Aluminium
|
348mm x 237mm x 317mm
|
Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, 316 Stainless Steel, Santoprene, 200 LPM, ATEX
Art:
UP10B-NSS-MMA
Copied
|
NPT Multiple Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Santoprene
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, TPE, 200 LPM, ATEX
Art:
UP10A-NSS-SHC
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
TPE
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
TPE
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Aluminium, 316 Stainless Steel, NBR, 200 LPM, ATEX
Art:
UP10A-NSS-SNG
Copied
|
NPT Multiple Ports
|
Convoluted
|
Aluminium
|
Buna-N
|
6,4 mm
|
17,5 kg
|
0.85 litres
|
1.5 - 8 bar
|
200 LPM
|
CE ATEX, UKCA, EAC
|
Spain
|
Buna-N
|
Stainless steel 316
|
Stainless steel 316
|
348mm x 237mm x 317mm
|
Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, TPE, 200 LPM
Art:
UP10B-TPS-PHC
Copied
|
NPT Side Ports
|
Convoluted
|
Conductive Polypropylene
|
TPE
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
TPE
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, Santoprene, 200 LPM
Art:
UP10B-TPS-PMA
Copied
|
NPT Side Ports
|
Convoluted
|
Conductive Polypropylene
|
Santoprene
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Santoprene
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Standard Pump
|
| ||
|
UP10, AODD Pump, 1", Polypropylene, NBR, 200 LPM
Art:
UP10B-TPS-PNG
Copied
|
NPT Side Ports
|
Convoluted
|
Conductive Polypropylene
|
Buna-N
|
6,4 mm
|
10,2 kg
|
0.85 litres
|
1.5 - 7 bar
|
200 LPM
|
UKCA, CE
|
Spain
|
Buna-N
|
Polypropylene
|
Polypropylene
|
399mm x 243mm x 386mm
|
Non-Metallic
|
Standard Pump
|
|
Select a variant in the list
