SAMOA

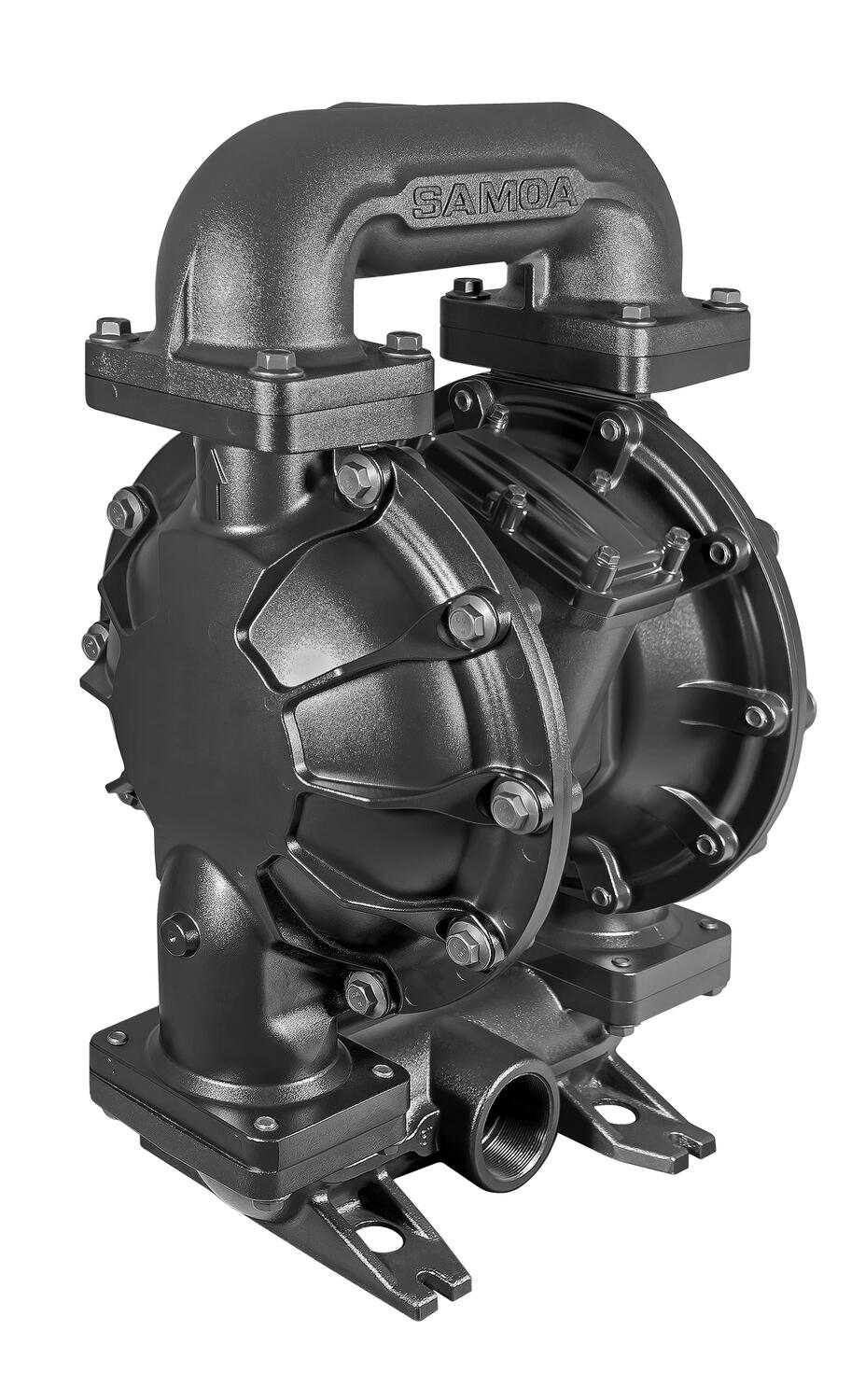

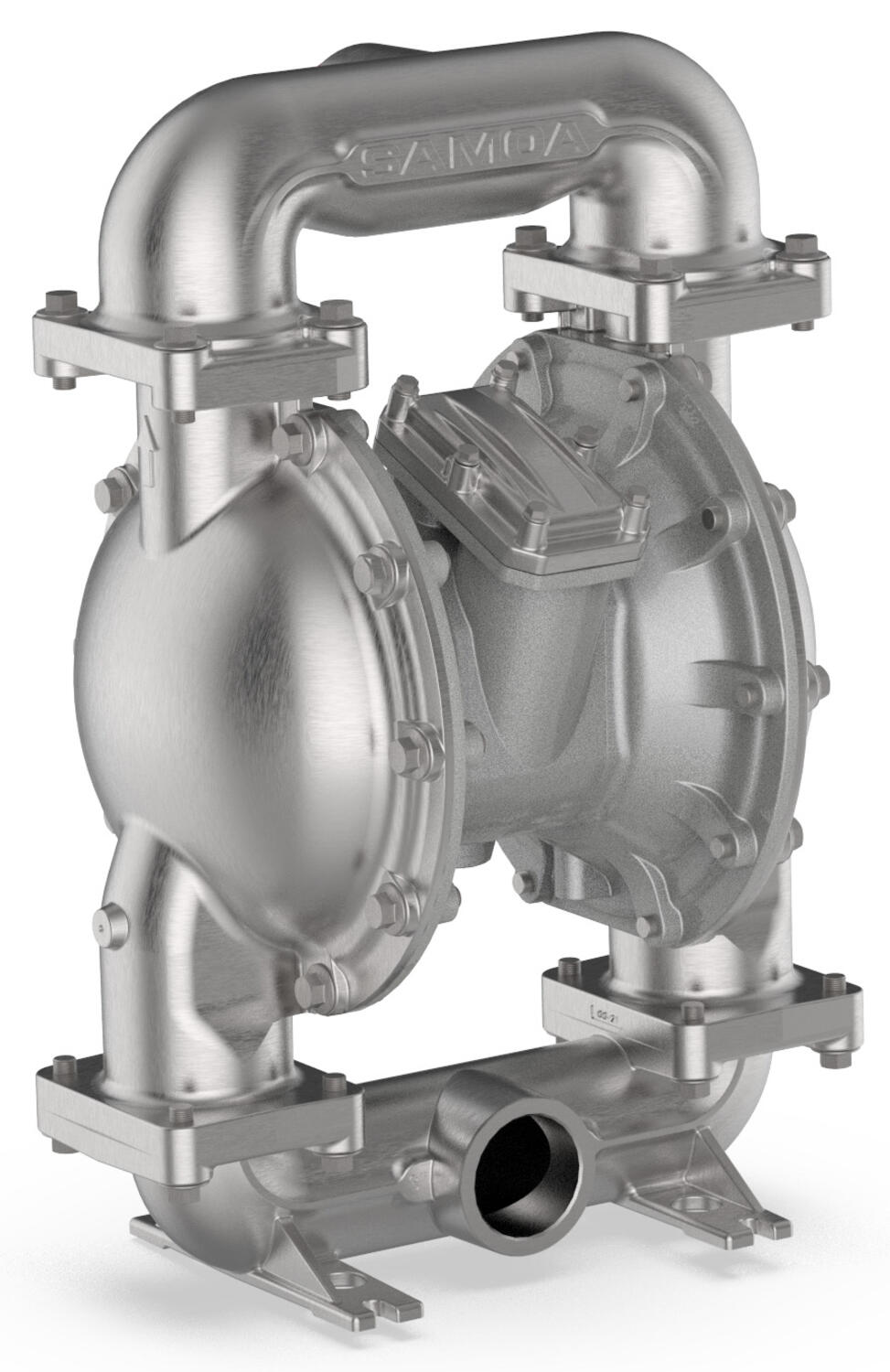

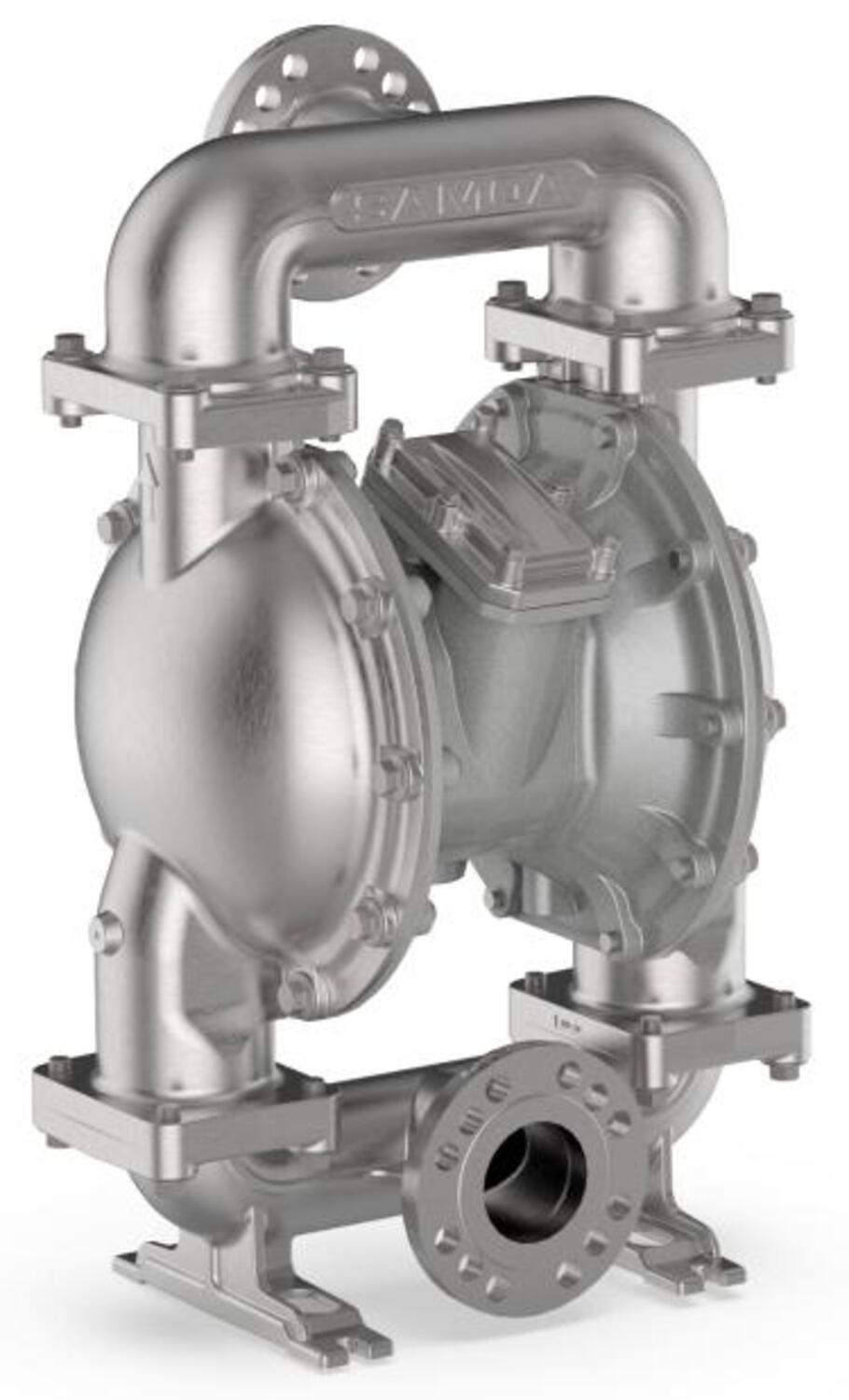

Samoa 3" Pneumatic Diaphragm Pump

Metallic

  • Pump Size 3"
  • Connection Types - BSP/NPT Center Ports, ANSI/DIN Center Flange
  • Max. Flow Rate 1000 LPM
  • Operating Pressure 1.5 - 8 bar

Selected variant

Available in several variants

Selected variant

Technical data

12152_Fluid Port Connection Type ANSI/DIN, Central Flange
12154_Diaphragm Type 2-Piece
12155_Material Air Section (Central Body & Air cover) Aluminium
12156_Material Of Diaphragm PTFE
12173_Max. Size Of Suspended Solids 12,7 mm
12175_Net Weight 71 kg
12273_Fluid Displacement Per Cycle 10 litres
12330_Operating Pressure 1.5 - 8 bar
12331_Max. Flow Rate 1000 LPM
Approvals CE ATEX, UKCA, EAC
Country of origin Spain
Material of valve ball PTFE
Material of valve seats Aluminium
Material of wetted parts Aluminium
Max suction lift - Dry 6 m
Max suction lift - Wet 8 m
Net Dimensions 575mm x 436mm x 905mm
Pump size 3"
Pump type Metallic
Tariff code 8413508090
Type Key Model Pump

Accessories

Related

Parts 12152_Fluid Port Connection Type 12154_Diaphragm Type 12155_Material Air Section (Central Body & Air cover) 12156_Material Of Diaphragm 12175_Net Weight Material of valve ball Material of valve seats Material of wetted parts Net Dimensions Type Price
ANSI/DIN, Central Flange
2-Piece
Aluminium
PTFE
71 kg
PTFE
Aluminium
Aluminium
575mm x 436mm x 905mm
Key Model Pump
ANSI/DIN, Central Flange
Convoluted
Aluminium
Viton
71 kg
Viton
Aluminium
Aluminium
575mm x 436mm x 905mm
Key Model Pump
ANSI/DIN, Central Flange
Convoluted
Aluminium
TPE
71 kg
TPE
TPE
Aluminium
575mm x 436mm x 905mm
Key Model Pump
ANSI/DIN, Central Flange
Convoluted
Aluminium
Santoprene
71 kg
Santoprene
Santoprene
Aluminium
575mm x 436mm x 905mm
Key Model Pump
ANSI/DIN, Central Flange
Convoluted
Aluminium
Buna-N
71 kg
Buna-N
Buna-N
Aluminium
575mm x 436mm x 905mm
Key Model Pump
ANSI/DIN, Central Flange
Convoluted
Aluminium
Santoprene
125 kg
Santoprene
Santoprene
Stainless steel 316
575mm x 436mm x 905mm
Key Model Pump
ANSI/DIN, Central Flange
Convoluted
Aluminium
Buna-N
125 kg
Buna-N
Buna-N
Stainless steel 316
575mm x 436mm x 905mm
Key Model Pump
ANSI/DIN, Central Flange
2-Piece
Aluminium
PTFE
125 kg
PTFE
Stainless steel 316
Stainless steel 316
575mm x 436mm x 905mm
Key Model Pump
ANSI/DIN, Central Flange
Convoluted
Aluminium
Viton
125 kg
Viton
Stainless steel 316
Stainless steel 316
575mm x 436mm x 905mm
Key Model Pump
BSP Center Ports
2-Piece
Aluminium
PTFE
64 kg
PTFE
Aluminium
Aluminium
575mm x 436mm x 820mm
Key Model Pump
BSP Center Ports
Convoluted
Aluminium
Viton
64 kg
Viton
Aluminium
Aluminium
575mm x 436mm x 820mm
Key Model Pump
BSP Center Ports
Convoluted
Aluminium
TPE
64 kg
TPE
TPE
Aluminium
575mm x 436mm x 820mm
Key Model Pump
BSP Center Ports
Convoluted
Aluminium
Santoprene
64 kg
Santoprene
Santoprene
Aluminium
575mm x 436mm x 820mm
Key Model Pump
BSP Center Ports
Convoluted
Aluminium
Buna-N
64 kg
Buna-N
Buna-N
Aluminium
575mm x 436mm x 820mm
Key Model Pump
BSP Center Ports
Convoluted
Aluminium
Viton
64 kg
Viton
Stainless steel 316
Aluminium
575mm x 436mm x 820mm
Key Model Pump
BSP Center Ports
Convoluted
Aluminium
Santoprene
115 kg
Santoprene
Santoprene
Ductile iron
575mm x 436mm x 820mm
Key Model Pump
BSP Center Ports
Convoluted
Aluminium
Buna-N
115 kg
Buna-N
Buna-N
Ductile iron
575mm x 436mm x 820mm
Key Model Pump
BSP Center Ports
2-Piece
Aluminium
PTFE
115 kg
PTFE
Stainless steel 316
Ductile iron
575mm x 436mm x 820mm
Key Model Pump
BSP Center Ports
Convoluted
Aluminium
Viton
115 kg
Viton
Stainless steel 316
Ductile iron
575mm x 436mm x 820mm
Key Model Pump
BSP Center Ports
Convoluted
Aluminium
Santoprene
118 kg
Santoprene
Santoprene
Stainless steel 316
575mm x 436mm x 820mm
Key Model Pump
BSP Center Ports
Convoluted
Aluminium
Buna-N
118 kg
Buna-N
Buna-N
Stainless steel 316
575mm x 436mm x 820mm
Key Model Pump
BSP Center Ports
2-Piece
Aluminium
PTFE
118 kg
PTFE
Stainless steel 316
Stainless steel 316
575mm x 436mm x 820mm
Key Model Pump
BSP Center Ports
Convoluted
Aluminium
Viton
118 kg
Viton
Stainless steel 316
Stainless steel 316
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
2-Piece
Aluminium
PTFE
64 kg
PTFE
Aluminium
Aluminium
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
Convoluted
Aluminium
Viton
64 kg
Viton
Aluminium
Aluminium
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
Convoluted
Aluminium
TPE
64 kg
TPE
TPE
Aluminium
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
Convoluted
Aluminium
Santoprene
64 kg
Santoprene
Santoprene
Aluminium
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
Convoluted
Aluminium
Buna-N
64 kg
Buna-N
Buna-N
Aluminium
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
Convoluted
Aluminium
Viton
64 kg
Viton
Stainless steel 316
Aluminium
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
Convoluted
Aluminium
Santoprene
115 kg
Santoprene
Santoprene
Ductile iron
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
Convoluted
Aluminium
Buna-N
115 kg
Buna-N
Buna-N
Ductile iron
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
2-Piece
Aluminium
PTFE
115 kg
PTFE
Stainless steel 316
Ductile iron
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
Convoluted
Aluminium
Viton
115 kg
Viton
Stainless steel 316
Ductile iron
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
Convoluted
Aluminium
Santoprene
118 kg
Santoprene
Santoprene
Stainless steel 316
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
Convoluted
Aluminium
Buna-N
118 kg
Buna-N
Buna-N
Stainless steel 316
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
2-Piece
Aluminium
PTFE
118 kg
PTFE
Stainless steel 316
Stainless steel 316
575mm x 436mm x 820mm
Key Model Pump
NPT Center Ports
Convoluted
Aluminium
Viton
118 kg
Viton
Stainless steel 316
Stainless steel 316
575mm x 436mm x 820mm
Key Model Pump
ANSI/DIN, Central Flange
2-Piece
Stainless steel
PTFE
132 kg
PTFE
Stainless steel 316
Stainless steel 316
575mm x 436mm x 905mm
Special Pump
ANSI/DIN, Central Flange
2-Piece
Aluminium
PTFE
125 kg
Stainless steel 316
440 Stainless Steel
Stainless steel 316
575mm x 436mm x 905mm
Special Pump
BSP Center Ports
2-Piece
Aluminium
PTFE
64 kg
Stainless steel 316
440 Stainless Steel
Aluminium
575mm x 436mm x 820mm
Special Pump
BSP Center Ports
Convoluted
Aluminium
Santoprene
115 kg
Santoprene
Stainless steel 316
Ductile iron
575mm x 436mm x 820mm
Special Pump
BSP Center Ports
2-Piece
Stainless steel
PTFE
125 kg
PTFE
Stainless steel 316
Stainless steel 316
575mm x 436mm x 820mm
Special Pump
NPT Center Ports
2-Piece
Aluminium
PTFE
64 kg
Stainless steel 316
440 Stainless Steel
Aluminium
575mm x 436mm x 820mm
Special Pump
NPT Center Ports
Convoluted
Aluminium
Santoprene
115 kg
Santoprene
Stainless steel 316
Ductile iron
575mm x 436mm x 820mm
Special Pump
NPT Center Ports
2-Piece
Stainless steel
PTFE
125 kg
PTFE
Stainless steel 316
Stainless steel 316
575mm x 436mm x 820mm
Special Pump
ANSI/DIN, Central Flange
2-Piece
Aluminium
PTFE
71 kg
PTFE
Stainless steel 316
Aluminium
575mm x 436mm x 905mm
Standard Pump
ANSI/DIN, Central Flange
Convoluted
Aluminium
Santoprene
125 kg
Santoprene
Stainless steel 316
Stainless steel 316
575mm x 436mm x 905mm
Standard Pump
BSP Center Ports
2-Piece
Aluminium
PTFE
64 kg
PTFE
Stainless steel 316
Aluminium
575mm x 436mm x 820mm
Standard Pump
BSP Center Ports
Convoluted
Aluminium
TPE
115 kg
TPE
TPE
Ductile iron
575mm x 436mm x 820mm
Standard Pump
BSP Center Ports
Convoluted
Aluminium
Santoprene
118 kg
Santoprene
Stainless steel 316
Stainless steel 316
575mm x 436mm x 820mm
Standard Pump
NPT Center Ports
2-Piece
Aluminium
PTFE
64 kg
PTFE
Stainless steel 316
Aluminium
575mm x 436mm x 820mm
Standard Pump
NPT Center Ports
Convoluted
Aluminium
TPE
115 kg
TPE
TPE
Ductile iron
575mm x 436mm x 820mm
Standard Pump
NPT Center Ports
Convoluted
Aluminium
Santoprene
118 kg
Santoprene
Stainless steel 316
Stainless steel 316
575mm x 436mm x 820mm
Standard Pump
