| 12152_Fluid Port Connection Type | BSP Side Ports |
|---|---|
| 12154_Diaphragm Type | Convoluted |
| 12155_Material Air Section (Central Body & Air cover) | Conductive Polypropylene |
| 12156_Material Of Diaphragm | Santoprene |
| 12173_Max. Size Of Suspended Solids | 1,6 mm |
| 12175_Net Weight | 2 kg |
| 12273_Fluid Displacement Per Cycle | 0.08 litres |
| 12330_Operating Pressure | 1.5 - 7 bar |
| 12331_Max. Flow Rate | 31 LPM |
| Approvals | CE ATEX, UKCA, EAC |
| Country of origin | Spain |
| Material of valve ball | PTFE |
|---|---|
| Material of valve seats | Polypropylene |
| Material of wetted parts | Conductive Polypropylene |
| Max suction lift - Dry | 3 m |
| Max suction lift - Wet | 7 m |
| Pump size | 3/8" |
| Pump type | Non-Metallic |
| Tariff code | 8413508090 |
| Type | Key Model Pump |
.jpeg?as=1&iar=0&hash=C35BE4FB444DCD3D5B98C5DBA7502AEA)
This blog post demonstrates 7 strong reasons production plants choose the HYGHSPIN twin screw pump by Jung Process Systems
When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...
.jpeg?as=1&iar=0&hash=A3BFC175C33A8E0858884EF1A7B44582)
When it comes to solenoid valves, reliability and ease of maintenance are essential. That’s why our new Emerson, high flow solenoid valve is designed with unique features that streamline testing, commissioning, and ongoing operation.Â
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
Did you know that OEM Automatic has been successfully providing valve actuation solutions?
We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | 12152_Fluid Port Connection Type | 12154_Diaphragm Type | 12156_Material Of Diaphragm | 12175_Net Weight | Approvals | Material of valve ball | Material of valve seats | Material of wetted parts | Net Dimensions | Type | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

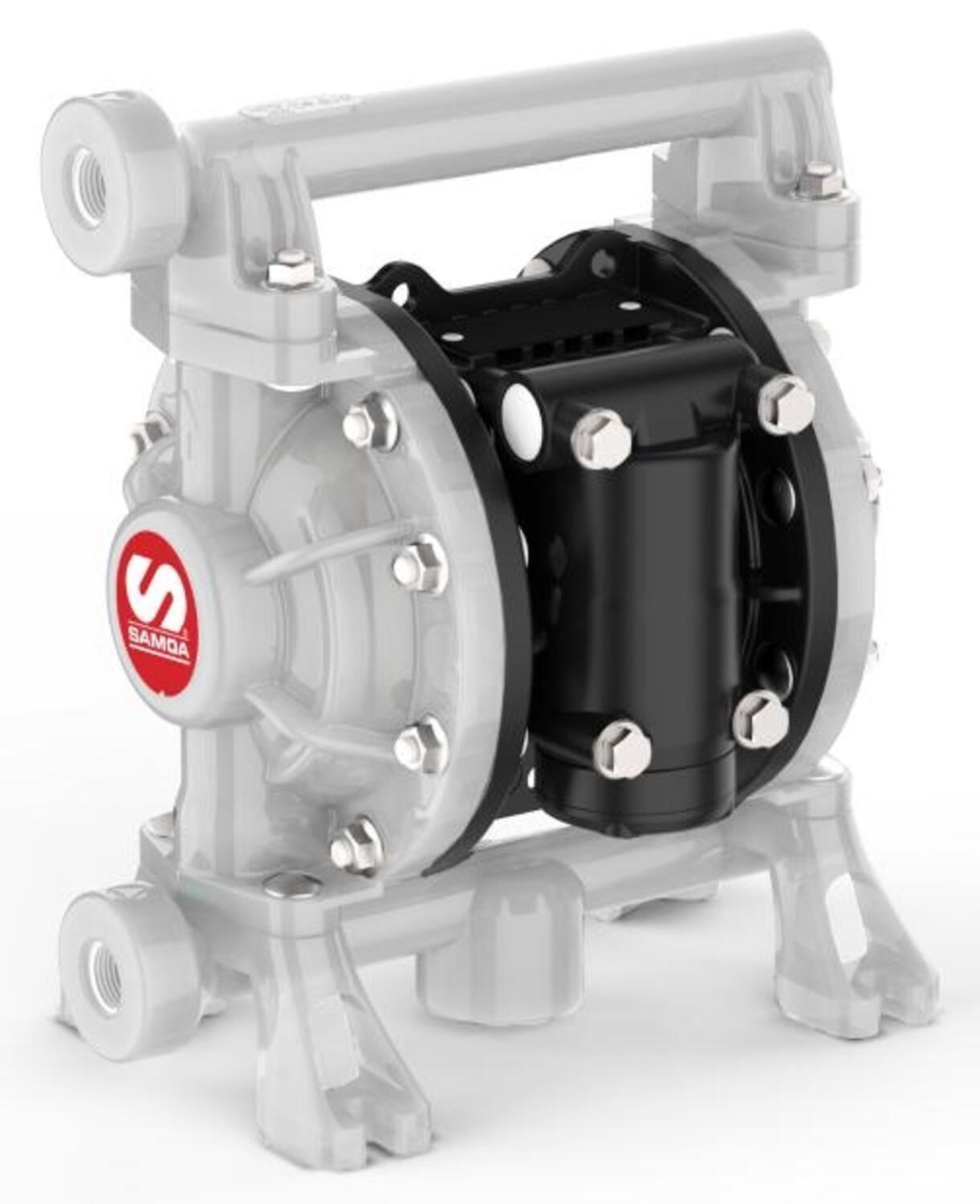

UP03, AODD Pump, 3/8", Polypropylene, Teflon, Santoprene, 31 LPM, ATEX
Art:
UP03B-BBS-PTA
Copied
|
BSP Side Ports
|
Convoluted
|
Santoprene
|
2 kg
|
CE ATEX, UKCA, EAC
|
PTFE
|
Polypropylene
|
Conductive Polypropylene
|
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Teflon, 31 LPM, ATEX
Art:
UP03B-BBS-PTZ
Copied
|
BSP Side Ports
|
2-Piece
|
PTFE
|
2 kg
|
CE ATEX, UKCA, EAC
|
PTFE
|
Polypropylene
|
Conductive Polypropylene
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polyropylene, Acetal, Santoprene, 31 LPM, ATEX
Art:
UP03B-BDS-CCA
Copied
|
BSP Side Ports
|
Convoluted
|
Santoprene
|
2,1 kg
|
CE ATEX, UKCA, EAC
|
Acetal
|
Acetal
|
Conductive Acetal
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
UP03, AODD Pump, 3/8", Polypropylene, Acetal, Teflon, 31 LPM, ATEX
Art:
UP03B-BDS-CCZ
Copied
|
BSP Side Ports
|
2-Piece
|
PTFE
|
2,1 kg
|
CE ATEX, UKCA, EAC
|
Acetal
|
Acetal
|
Conductive Acetal
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
UP03, AODD Pump, 3/8", Polypropylene, Teflon, Santoprene, 31 LPM
Art:
UP03B-BPS-PTA
Copied
|
BSP Side Ports
|
Convoluted
|
Santoprene
|
1,8 kg
|
CE, UKCA
|
PTFE
|
Polypropylene
|
Polypropylene
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Teflon, TPE, 31 LPM
Art:
UP03B-BPS-PTC
Copied
|
BSP Side Ports
|
Convoluted
|
TPE
|
1,8 kg
|
CE, UKCA
|
PTFE
|
Polypropylene
|
Polypropylene
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Teflon, NBR, 31 LPM
Art:
UP03B-BPS-PTG
Copied
|
BSP Side Ports
|
Convoluted
|
NBR
|
1,8 kg
|
CE, UKCA
|
PTFE
|
Polypropylene
|
Polypropylene
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Teflon, 31 LPM
Art:
UP03B-BPS-PTZ
Copied
|
BSP Side Ports
|
2-Piece
|
PTFE
|
1,8 kg
|
CE, UKCA
|
PTFE
|
Polypropylene
|
Polypropylene
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
UP03, AODD Pump, 3/8", Polypropylene, PVDF, Teflon, 31 LPM
Art:
UP03B-BWS-WTZ
Copied
|
BSP Side Ports
|
2-Piece
|
PTFE
|
2,3 kg
|
CE, UKCA
|
PTFE
|
PTFE
|
PVDF
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Teflon, Santoprene, 31 LPM, ATEX
Art:
UP03B-NBS-PTA
Copied
|
NPT Side Ports
|
Convoluted
|
Santoprene
|
2 kg
|
CE ATEX, UKCA, EAC
|
PTFE
|
Polypropylene
|
Conductive Polypropylene
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Teflon, 31 LPM, ATEX
Art:
UP03B-NBS-PTZ
Copied
|
NPT Side Ports
|
2-Piece
|
PTFE
|
2 kg
|
CE ATEX, UKCA, EAC
|
PTFE
|
Polypropylene
|
Conductive Polypropylene
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Acetal, Santoprene, 31 LPM, ATEX
Art:
UP03B-NDS-CCA
Copied
|
NPT Side Ports
|
Convoluted
|
Santoprene
|
2,1 kg
|
CE ATEX, UKCA, EAC
|
Acetal
|
Acetal
|
Conductive Acetal
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Acetal, Teflon, 31 LPM, ATEX
Art:
UP03B-NDS-CCZ
Copied
|
NPT Side Ports
|
2-Piece
|
PTFE
|
2,1 kg
|
CE ATEX, UKCA, EAC
|
Acetal
|
Acetal
|
Conductive Acetal
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Teflon, Santoprene, 31 LPM
Art:
UP03B-NPS-PTA
Copied
|
NPT Side Ports
|
Convoluted
|
Santoprene
|
1,8 kg
|
CE, UKCA
|
PTFE
|
Polypropylene
|
Polypropylene
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Teflon, TPE, 31 LPM
Art:
UP03B-NPS-PTC
Copied
|
NPT Side Ports
|
Convoluted
|
TPE
|
1,8 kg
|
CE, UKCA
|
PTFE
|
Polypropylene
|
Polypropylene
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Teflon, NBR, 31 LPM
Art:
UP03B-NPS-PTG
Copied
|
NPT Side Ports
|
Convoluted
|
NBR
|
1,8 kg
|
CE, UKCA
|
PTFE
|
Polypropylene
|
Polypropylene
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Teflon, 31 LPM
Art:
UP03B-NPS-PTZ
Copied
|
NPT Side Ports
|
2-Piece
|
PTFE
|
1,8 kg
|
CE, UKCA
|
PTFE
|
Polypropylene
|
Polypropylene
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, PVDF, Teflon, 31 LPM
Art:
UP03B-NWS-WTZ
Copied
|
NPT Side Ports
|
2-Piece
|
PTFE
|
2,3 kg
|
CE, UKCA
|
PTFE
|
PTFE
|
PVDF
|
202mm x 151mm x 237mm
|
Key Model Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Teflon, TPE, 31 LPM, ATEX
Art:
UP03B-BBS-PTC
Copied
|
BSP Side Ports
|
Convoluted
|
TPE
|
2 kg
|
CE ATEX, UKCA, EAC
|
PTFE
|
Polypropylene
|
Conductive Polypropylene
|
202mm x 151mm x 237mm
|
Standard Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Acetal, TPE, 31 LPM, ATEX
Art:
UP03B-BDS-CCC
Copied
|
BSP Side Ports
|
Convoluted
|
TPE
|
2,1 kg
|
CE ATEX, UKCA, EAC
|
TPE
|
Acetal
|
Conductive Acetal
|
202mm x 151mm x 237mm
|
Standard Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Teflon, TPE, 31 LPM, ATEX
Art:
UP03B-NBS-PTC
Copied
|
NPT Side Ports
|
Convoluted
|
TPE
|
2 kg
|
CE ATEX, UKCA, EAC
|
PTFE
|
Polypropylene
|
Conductive Polypropylene
|
202mm x 151mm x 237mm
|
Standard Pump
|
| ||
|
UP03, AODD Pump, 3/8", Polypropylene, Acetal, TPE, 31 LPM, ATEX
Art:
UP03B-NDS-CCC
Copied
|
NPT Side Ports
|
Convoluted
|
TPE
|
2,1 kg
|
CE ATEX, UKCA, EAC
|
TPE
|
Acetal
|
Conductive Acetal
|
202mm x 151mm x 237mm
|
Standard Pump
|
|
Select a variant in the list
