JUNG PROCESS SYSTEMS
The HYGHSPIN Double Flow extends the range of the HYGHSPIN series for high differential pressures of up to 50 bar, making it suitable for high-pressure applications.
Â

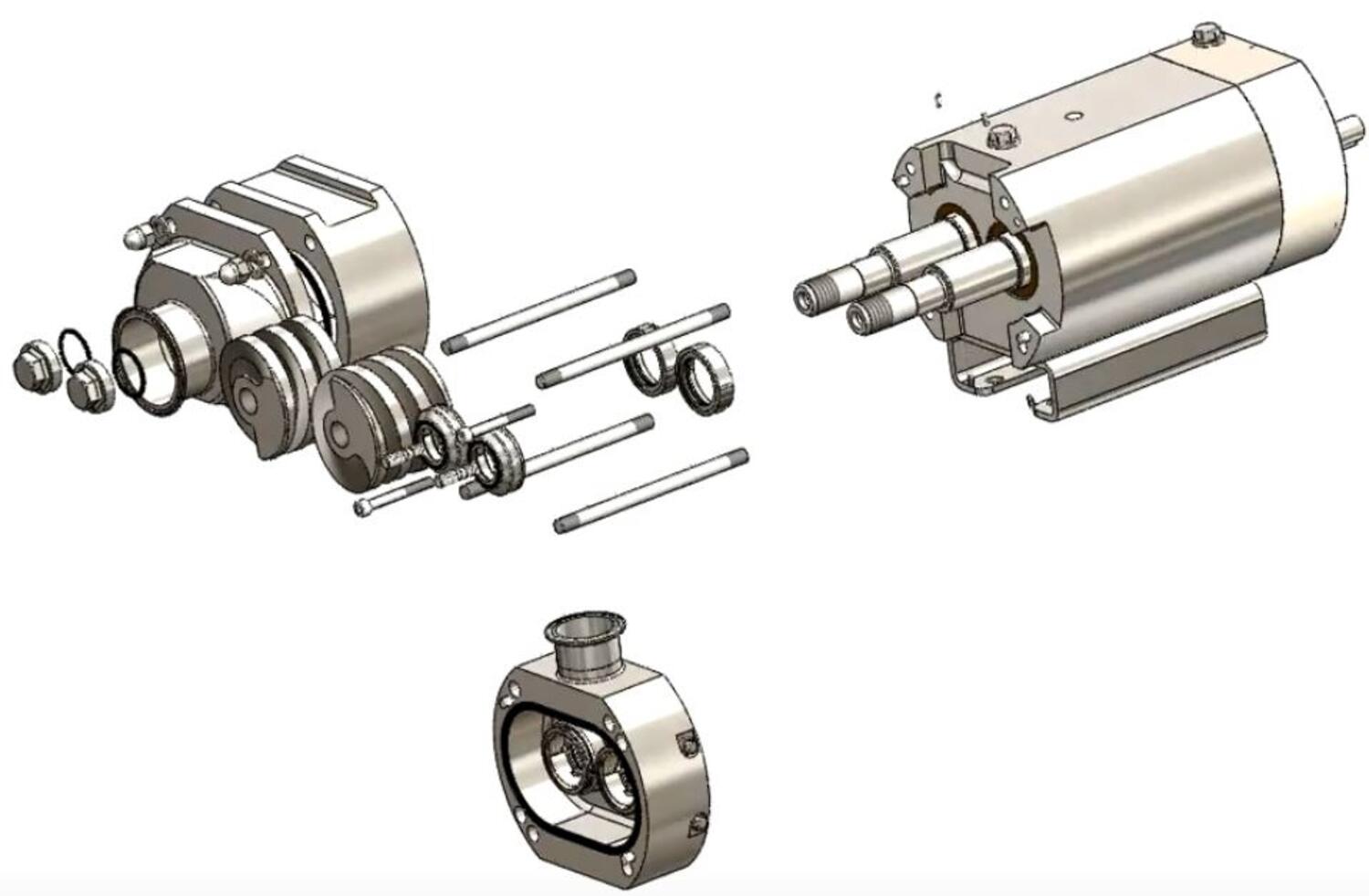

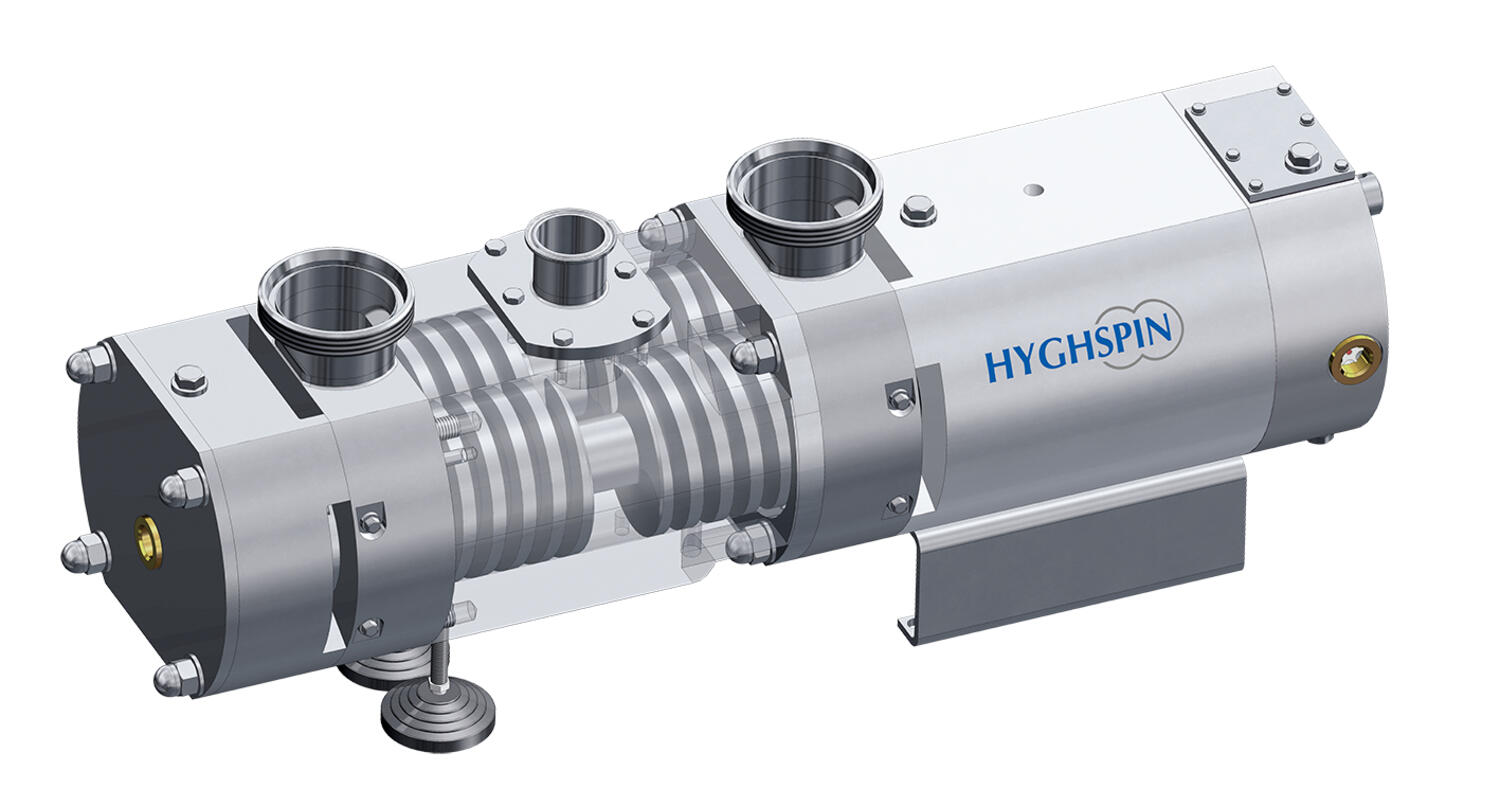

The HYGHSPIN Double Flow is a double flow twin screw pump made of stainless steel. It has two external inlet connections and one central outlet connection. A two-sided bearing controls the shaft deflection. The axial thrust caused by the high pressures is compensated internally. The shaft seals are arranged on the suction side. In brief, all the essential components are loaded only slightly despite the high differential pressures so that increased reliability and excellent durability is the result. The simultaneous utilisation of two stages also makes it possible to convey a large volume flow.
Â
The HYGHSPIN Double Flow is the hygienic and gentle handling solution for high pressure applications.
| Connection type | Different sizes and connector standards by arrangement |
|---|---|
| Differential pressure | 50 |
| Flow max | 40 m³/h |
| Material of elastomers | EPDM, FPM, HNBR (Nitrile rubber), FFPM |
| Material of wetted parts | Stainless steel 316/316L (1.4401/1.4404), Stainless steel 1.4462, 1.4404, Stainless Steel 1.4539 |
| Maximum diameter of solid material | 11,5 mm |
| Pump orientation | Horizontal, vertical or lateral |
|---|---|
| Temperature operational max | 180 °C |
| Temperature operational min | -10 °C |
| Viscosity | 0.5 - 1,000,000 mPas |
The HYGHSPIN Double Flow extends the range of the HYGHSPIN series for high differential pressures of up to 50 bar, making it suitable for high-pressure applications.
Â
The HYGHSPIN Double Flow is a double flow twin screw pump made of stainless steel. It has two external inlet connections and one central outlet connection. A two-sided bearing controls the shaft deflection. The axial thrust caused by the high pressures is compensated internally. The shaft seals are arranged on the suction side. In brief, all the essential components are loaded only slightly despite the high differential pressures so that increased reliability and excellent durability is the result. The simultaneous utilisation of two stages also makes it possible to convey a large volume flow.
Â
The HYGHSPIN Double Flow is the hygienic and gentle handling solution for high pressure applications.
.jpeg?as=1&iar=0&hash=C35BE4FB444DCD3D5B98C5DBA7502AEA)
This blog post demonstrates 7 strong reasons production plants choose the HYGHSPIN twin screw pump by Jung Process Systems
When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...
.jpeg?as=1&iar=0&hash=A3BFC175C33A8E0858884EF1A7B44582)
When it comes to solenoid valves, reliability and ease of maintenance are essential. Thatâs why our new Emerson, high flow solenoid valve is designed with unique features that streamline testing, commissioning, and ongoing operation.Â
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
Did you know that OEM Automatic has been successfully providing valve actuation solutions?
We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Additional information | Differential pressure | Flow max | Maximum diameter of solid material | Price | ||
|---|---|---|---|---|---|---|---|
Art:
JPS HYGHSPIN 90DF
Copied
|
|
50
|
40 m³/h
|
11,5 mm
|
| ||
|
Art:
JPS HYGHSPIN 125DF
Copied
|
Flow, differential pressure and diameter of solid material on demand
|
|
|
|
|
Select a variant in the list
