ASCO

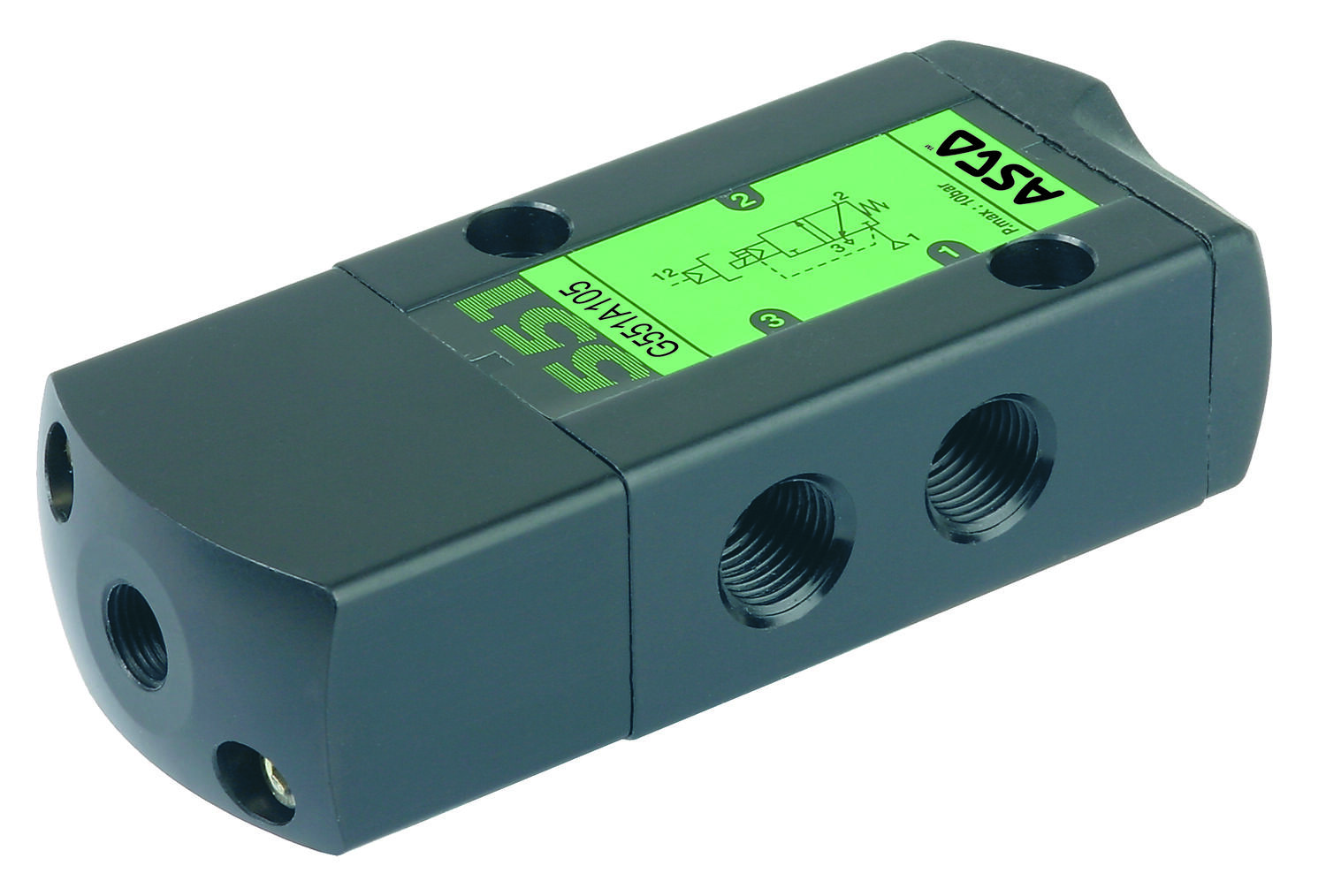

Air controlled slide valve for 1/4" connection or NAMUR. The 1/4" valve can be ordered in an environmental protection version, whereas it is standard with the NAMUR valve. Environmental protection means that all the internal parts of the valve are totally sealed against fluids, dust, corrosive substances etc. that may be present in the surroundings.
The 1/4" valve is ordered in 3/2 or 5/2 versions and can be single or manifold mounted for common supply. The NAMUR valve is delivered with two adapter plates as standard. The valve can then be adapted to 3/2 or 5/2 function by fitting the relevant plate.
General Data |
|
|---|---|
| IP class | IP65 |

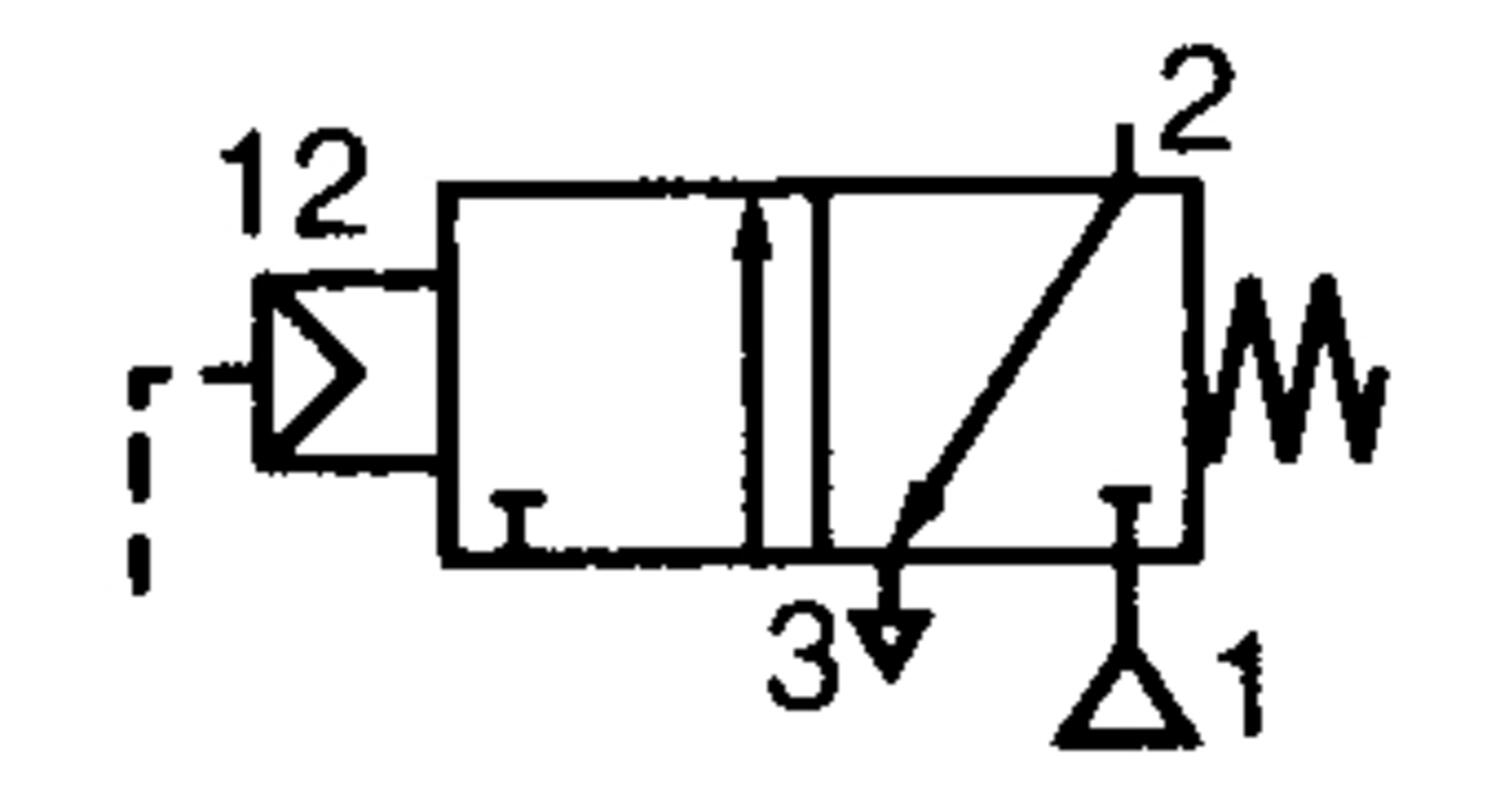

| Function | 3/2, Air-controlled with spring return, Normally Closed (SPST) |
| Connection | G1/4 |
Material Data |
|
| Material of seals | NBR, PUR |
| Material internal parts | Aluminium, POM, Stainless steel |
Additional Data |
|
|---|---|
| Weight | 0,43 kg |
| Pressure max | 10 bar |
| Approvals | IEC, TÜV |
| Type of valve | Air controlled |
| Short circuit protection | No |
| Pilot pressure max | 10 bar |
| Temperature operational min | -25 °C |
| Temperature operational max | 60 °C |
| Connection air | G1/8 |
| Differential pressure max | 10 bar |
| Differential pressure min | 0 bar |
| Flow max | 860 l/min |
| Manual operation | No |
| Material of body | Anodised aluminum |
| Mounting | Independent |
| Pilot pressure min | 2 bar |
Air controlled slide valve for 1/4" connection or NAMUR. The 1/4" valve can be ordered in an environmental protection version, whereas it is standard with the NAMUR valve. Environmental protection means that all the internal parts of the valve are totally sealed against fluids, dust, corrosive substances etc. that may be present in the surroundings.
The 1/4" valve is ordered in 3/2 or 5/2 versions and can be single or manifold mounted for common supply. The NAMUR valve is delivered with two adapter plates as standard. The valve can then be adapted to 3/2 or 5/2 function by fitting the relevant plate.
.jpeg?as=1&iar=0&hash=C35BE4FB444DCD3D5B98C5DBA7502AEA)
This blog post demonstrates 7 strong reasons production plants choose the HYGHSPIN twin screw pump by Jung Process Systems
When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...
.jpeg?as=1&iar=0&hash=A3BFC175C33A8E0858884EF1A7B44582)
When it comes to solenoid valves, reliability and ease of maintenance are essential. That’s why our new Emerson, high flow solenoid valve is designed with unique features that streamline testing, commissioning, and ongoing operation.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
Did you know that OEM Automatic has been successfully providing valve actuation solutions?
We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Function | Flow max | Mounting | Price | ||
|---|---|---|---|---|---|---|
Valve 3/2. Air-monost. G1/4"
Art:
G551A105
Copied
|
3/2, Air-controlled with spring return, Normally Closed (SPST)
|
860 l/min
|
Independent
|
| ||
|
Valve 3/2. Air-monost. G1/4"
Art:
G551A106
Copied
|
3/2, air operated, Normally Closed (SPST)
|
860 l/min
|
Independent
|
| ||
|
Valve 5/2 Air-spr. Flow 860 l/min G1/4
Art:
G551A117
Copied
|
5/2, Air-controlled with spring return
|
860 l/min
|
Independent
|
| ||
|
Valve 5/2 Air-air. Flow 860 l/min G 1/4
Art:
G551A118
Copied
|
5/2, air operated
|
860 l/min
|
Independent
|
| ||
|
Valve NAMUR. Air-spring return
Art:
G551A101
Copied
|
3/2-5/2, Air-controlled with spring return, NAMUR, Normally Closed (SPST)
|
700 l/min
|
NAMUR standard
|
| ||
|
Valve NAMUR. Air-air (bistable)
Art:
G551A102
Copied
|
3/2-5/2, air operated, NAMUR
|
700 l/min
|
NAMUR standard
|
|
Select a variant in the list
