ASCO

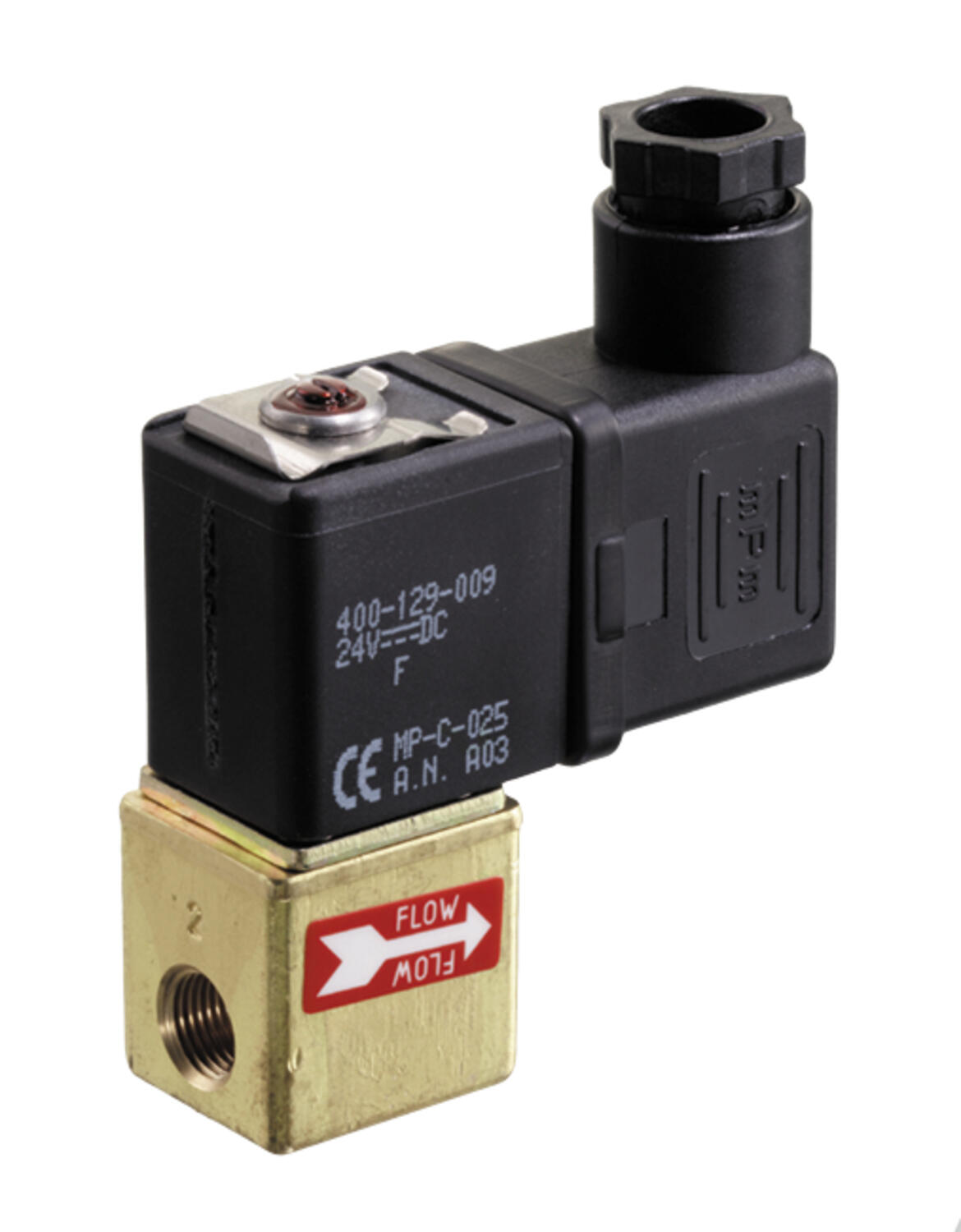

ASCO - 2/2 Proportional valve 1/8"

  • Normally closed
  • Compact version
  • Working pressure 0 to 8 bar
  • Housing in brass or stainless

Selected variant

Available in several variants

Selected variant

Technical data

General Data

Connection 1/8 BSP
Flow factor / flow coefficient 0,05
IP class IP65

Material Data

Material body Brass
Material seat Brass

Temperature Data

Temperature of media from 0 °C
Temperature of media to 50 °C

Additional Data

Pressure max 35 bar
Viscosity max 50 cSt
Weight 0,2 kg
Power consumption 6,3 W
Throughput 1,2 mm
Sensitivity <1%
Voltage dc 24 V
Temperature operational min 0 °C
Temperature operational max 40 °C
Material coil Epoxy
Differential air pressure max 8 bar
Differential pressure min 0 bar
Differential oil pressure max 5 bar
Differential pressure vacuum max 1 bar
Differential water pressure max 5 bar
Flow max 0,7 l/min
Function 1 2/2
Function 2 Normally Closed (SPST)
Material plunger Stainless steel
Material glide ring PTFE
Material seat seal FPM
Material spring Stainless steel

Downloads

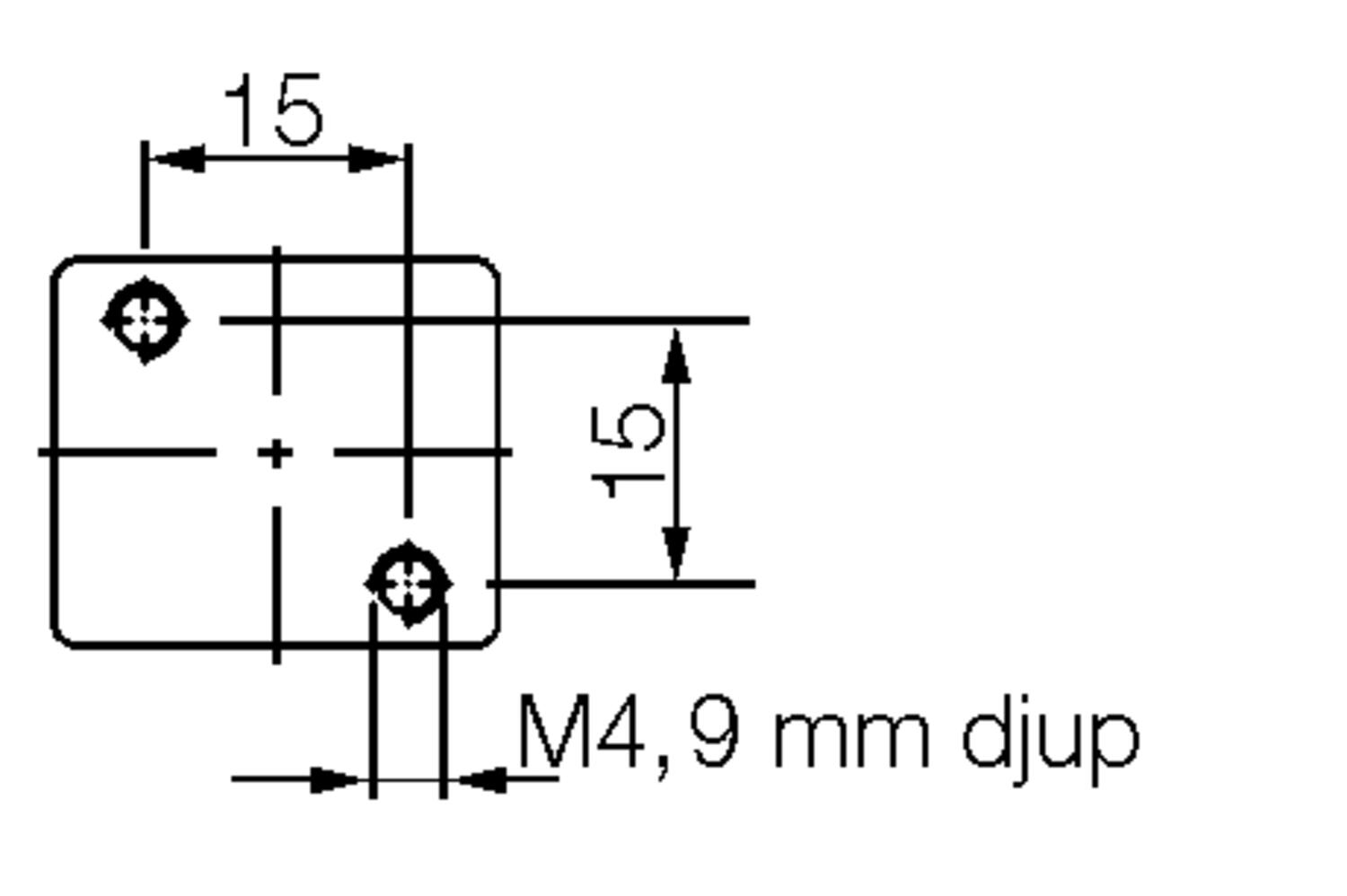

Measurements and connections

Accessories

Related

Parts Flow factor / flow coefficient Material body Material seat Throughput Differential air pressure max Differential oil pressure max Differential water pressure max Flow max Price
0,05
Brass
Brass
1,2 mm
8 bar
5 bar
5 bar
0,7 l/min
0,07
Brass
Brass
1,6 mm
8 bar
4 bar
4 bar
1,1 l/min
0,13
Brass
Brass
2,4 mm
4 bar
3 bar
3 bar
2,2 l/min
0,18
Brass
Brass
3,2 mm
2,5 bar
2,5 bar
2,5 bar
2,9 l/min
0,05
Stainless steel 303
Brass
1,2 mm
8 bar
5 bar
5 bar
0,7 l/min
0,07
Stainless steel 303
Stainless steel
1,6 mm
8 bar
4 bar
4 bar
1,1 l/min
0,13
Stainless steel 303
Stainless steel
2,4 mm
4 bar
3 bar
3 bar
2,2 l/min
0,18
Stainless steel 303
Stainless steel
3,2 mm
2,5 bar
2,5 bar
2,5 bar
2,9 l/min
