ASCO

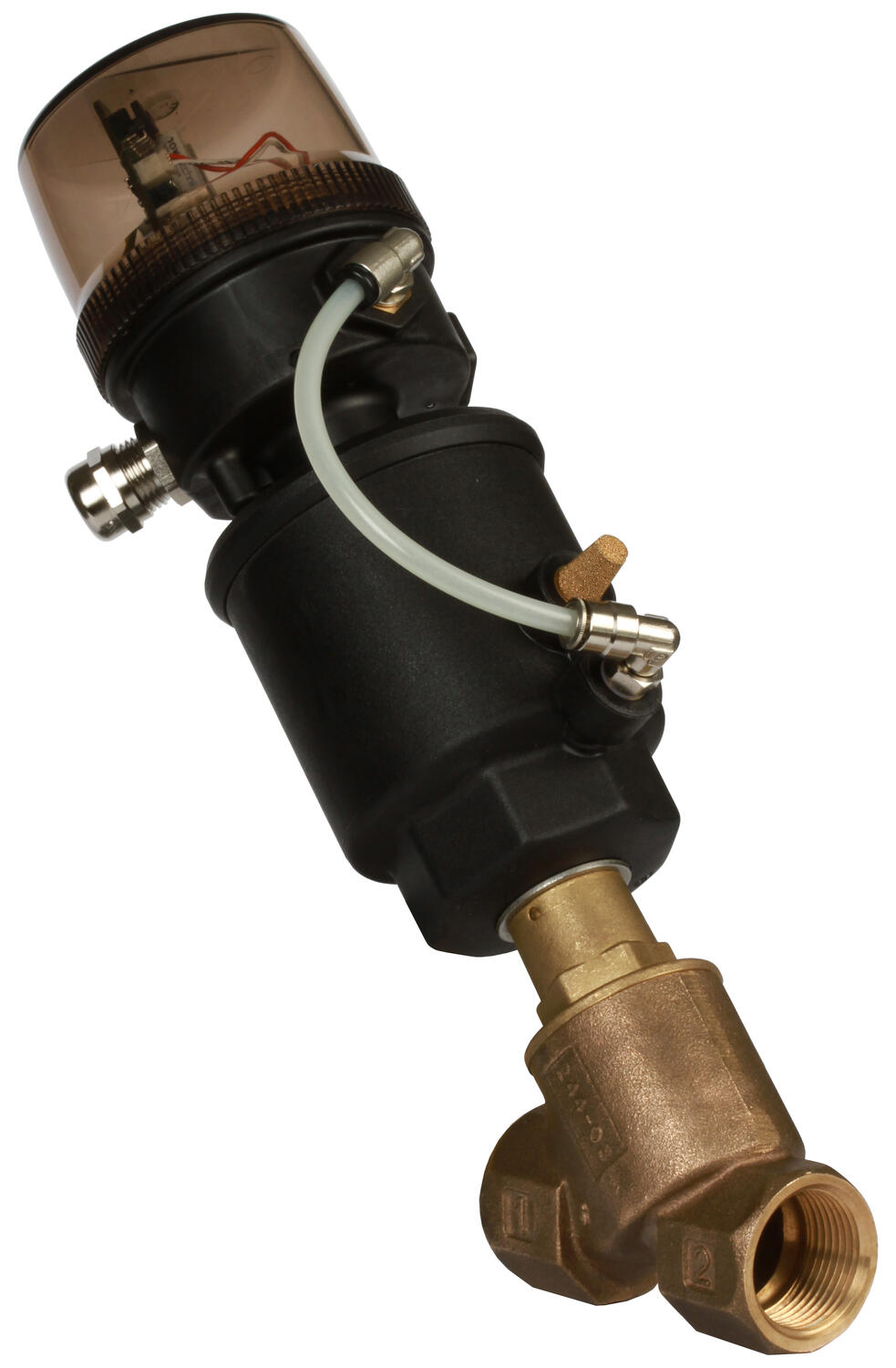

ASCO - 2/2 Proportional valve angle-seat valve

  • 2/2 normally closed
  • Gate signal 0-10 V, 0.20 mA or 4-20 mA
  • Working pressure 0 to 16 bar
  • Housing in bronze or stainless

Selected variant

Available in several variants

Selected variant

Technical data

General Data

IP class IP65
Flow factor / flow coefficient 7,1
Connection 3/4 BSP

Material Data

Material body Bronze

Temperature Data

Temperature of media from -10 °C
Temperature of media to 180 °C

Additional Data

Viscosity max 600 cSt
Pressure max 16 bar
Power consumption 3,6 W
Throughput 20 mm
Type of valve Proportional valve
Supply voltage ac/dc max 24 V
Pilot pressure max 8 bar
Repeatability <1 %
Temperature operational min 0 °C
Temperature operational max 50 °C
Connection air 1/8 BSP
Current max 0,15 A
Differential air pressure max 10 bar
Differential pressure max 10 bar
Differential pressure min 0 bar
Differential oil pressure max 10 bar
Differential water pressure max 10 bar
Differential steam pressure max 10 bar
Material disc Brass
Material disc sealing PTFE, Stainless steel
Flow max 118 l/min
Function 1 2/2
Function 2 Normally Closed (SPST)
Material of body Bronze
Material controls Reinforced polyamide
Material piston rod Stainless steel
Material piston rod seal PTFE
Pilot pressure min 4 bar

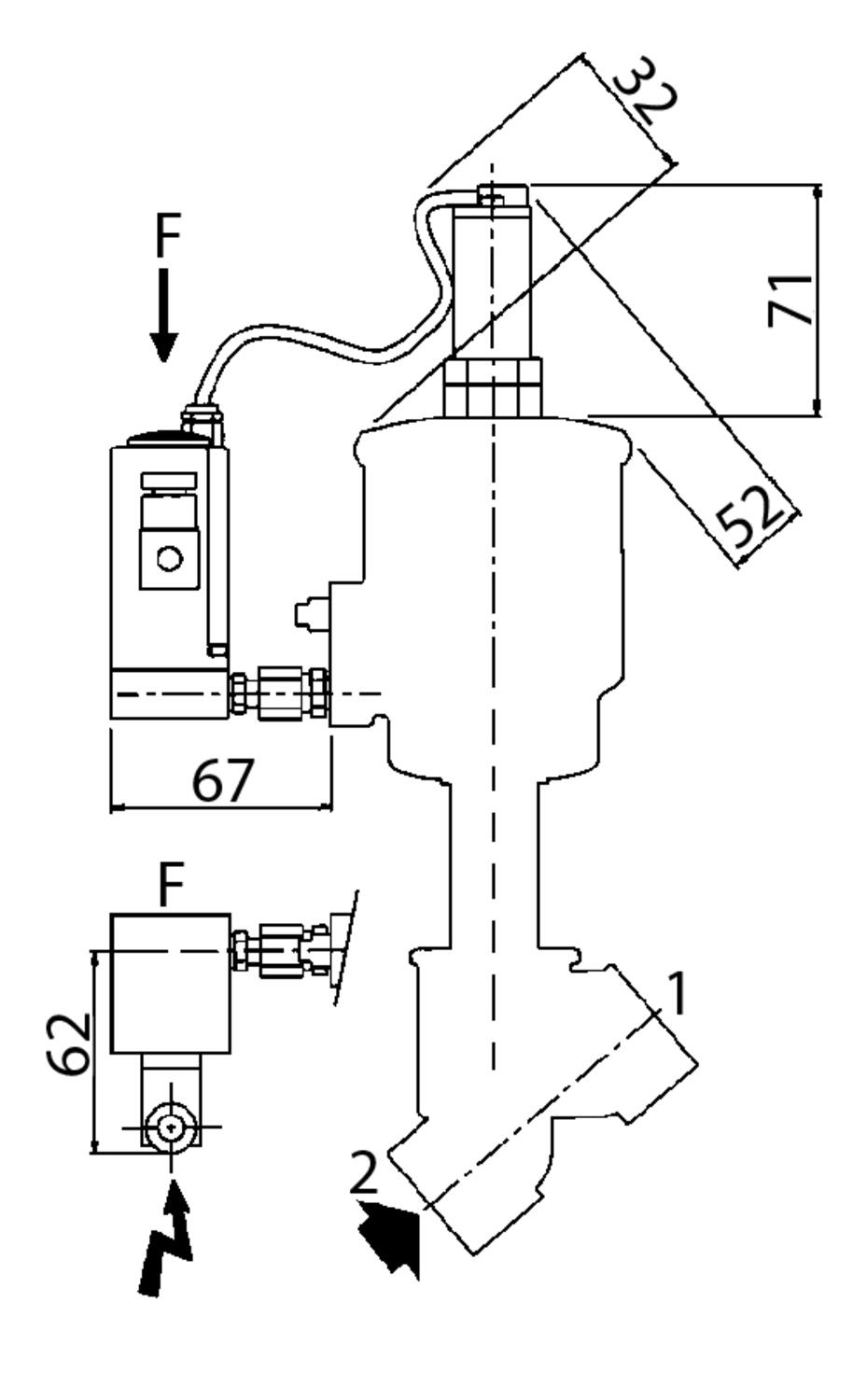

Measurements and connections

Accessories

Related products

Related

Parts Flow factor / flow coefficient Connection Material body Throughput Differential air pressure max Differential oil pressure max Differential water pressure max Differential steam pressure max Material disc Flow max Material of body Price
7,1
3/4 BSP
Bronze
20 mm
10 bar
10 bar
10 bar
10 bar
Brass
118 l/min
Bronze
7,1
3/4 BSP
Stainless steel 316L
20 mm
10 bar
10 bar
10 bar
10 bar
Stainless steel
118 l/min
15
G1
Bronze
25 mm
6 bar
6 bar
6 bar
6 bar
Brass
250 l/min
Bronze
15
G1
Stainless steel 316L
25 mm
6 bar
6 bar
6 bar
6 bar
Stainless steel
250 l/min
21
1 1/4 BSP
Bronze
32 mm
6 bar
6 bar
6 bar
6 bar
Brass
350 l/min
Bronze
21
1 1/4 BSP
Stainless steel 316L
32 mm
6 bar
6 bar
6 bar
6 bar
Stainless steel
350 l/min
29
1 1/2 BSP
Bronze
40 mm
4 bar
4 bar
4 bar
4 bar
Brass
483 l/min
Bronze
29
1 1/2 BSP
Stainless steel 316L
40 mm
4 bar
4 bar
4 bar
4 bar
Stainless steel
483 l/min
40
G2
Bronze
50 mm
3 bar
3 bar
3 bar
3 bar
Brass
667 l/min
Bronze
40
G2
Stainless steel 316L
50 mm
3 bar
3 bar
3 bar
3 bar
Stainless steel
667 l/min
72
2 1/2 BSP
Bronze
65 mm
2 bar
2 bar
2 bar
2 bar
Brass
1200 l/min
Bronze
72
1 1/2 BSP
Stainless steel 316L
65 mm
2 bar
2 bar
2 bar
2 bar
Stainless steel
1200 l/min
