General Data |
|
|---|---|
| IP class | IP65 |
| Flow factor / flow coefficient | 1,3 |
| Connection | 1/4 BSP |
Material Data |
|
| Material seat | Brass |
| Material of seals | NBR |
| Material body | Brass |
Temperature Data |
|
| Temperature of media from | -20 °C |
| Temperature of media to | 90 °C |
Additional Data |
|
|---|---|
| Weight | 0,7 kg |
| Close delay | 15 ms |
| Viscosity max | 65 cSt |
| Pressure max | 100 bar |
| Power consumption | 16,7 W |
| Throughput | 8 mm |
| Type of valve | Solenoid valve |
| Response time off | 60 ms |
| Voltage AC | 230 V |
| Temperature operational min | -20 °C |
| Temperature operational max | 50 °C |
| Material coil | Epoxy |
| Differential air pressure max | 100 bar |
| Differential pressure max | 100 bar |
| Differential pressure min | 0,7 bar |
| Differential oil pressure max | 100 bar |
| Differential water pressure max | 100 bar |
| Flow max | 21,7 l/min |
| Function 1 | 2/2 |
| Function 2 | Normally Closed (SPST) |
| Material flask | Stainless steel |
| Material plunger | Stainless steel |
| Material short-circuit ring | Copper |
| Material glide ring | PTFE |
| Material piston seal | PTFE |
| Material seat seal | Urethane |
.jpeg?as=1&iar=0&hash=C35BE4FB444DCD3D5B98C5DBA7502AEA)
This blog post demonstrates 7 strong reasons production plants choose the HYGHSPIN twin screw pump by Jung Process Systems
When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...
.jpeg?as=1&iar=0&hash=A3BFC175C33A8E0858884EF1A7B44582)
When it comes to solenoid valves, reliability and ease of maintenance are essential. That’s why our new Emerson, high flow solenoid valve is designed with unique features that streamline testing, commissioning, and ongoing operation.Â
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
Did you know that OEM Automatic has been successfully providing valve actuation solutions?
We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Flow factor / flow coefficient | Connection | Material seat | Material of seals | Material body | Weight | Close delay | Viscosity max | Pressure max | Power consumption | Throughput | Type of valve | Response time off | Temperature operational min | Temperature operational max | Material coil | Differential air pressure max | Differential pressure max | Differential pressure min | Differential oil pressure max | Differential water pressure max | Flow max | Material flask | Material plunger | Material short-circuit ring | Material glide ring | Material piston seal | Material seat seal | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

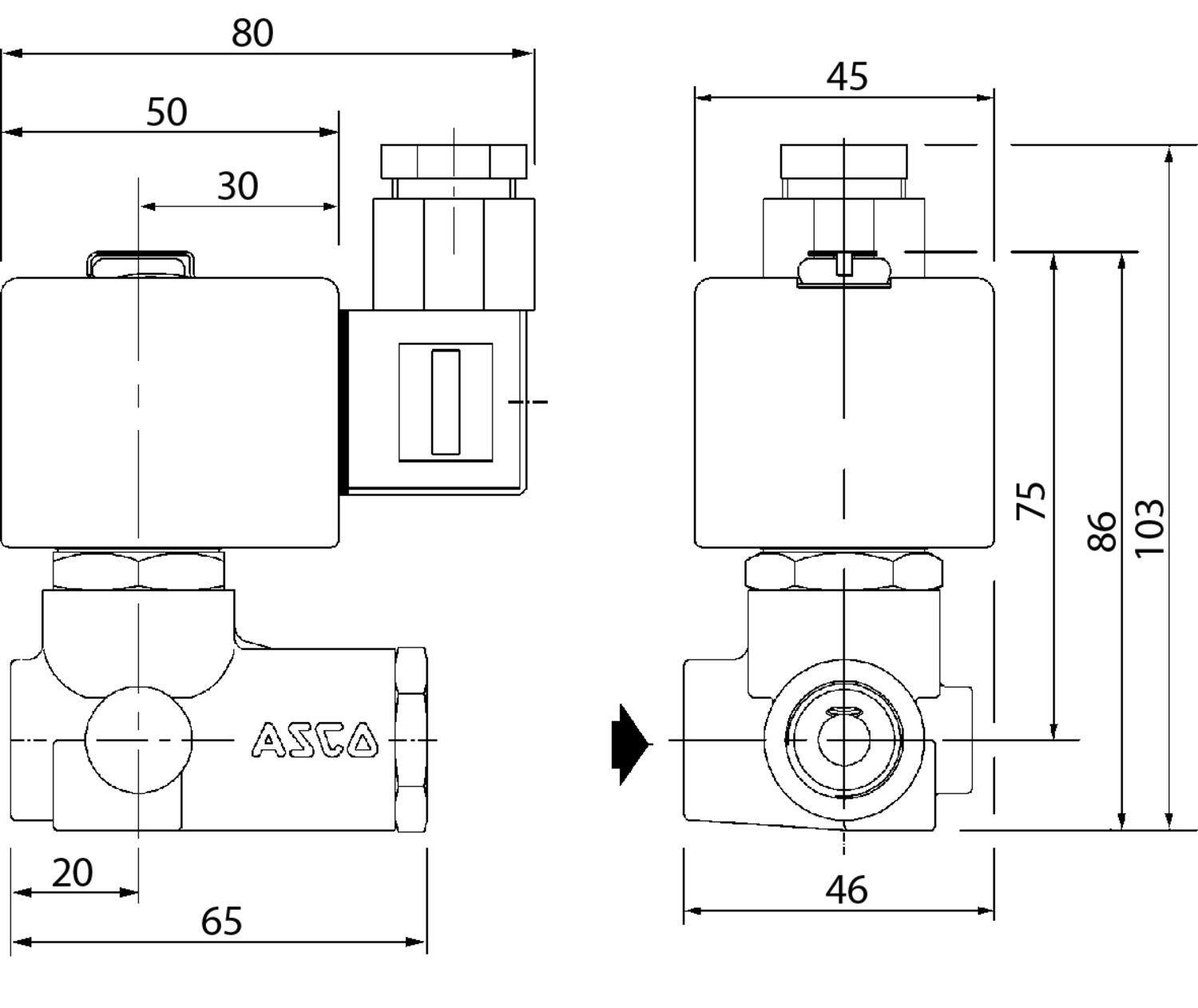

Solenoid valve 2/2 NC 1/4" 230/50
Art:
SCB223A125
Copied
|
1,3
|
1/4 BSP
|
Brass
|
NBR
|
Brass
|
0,7 kg
|
15 ms
|
65 cSt
|
100 bar
|
16,7 W
|
8 mm
|
Solenoid valve
|
60 ms
|
-20 °C
|
50 °C
|
Epoxy
|
100 bar
|
100 bar
|
0,7 bar
|
100 bar
|
100 bar
|
21,7 l/min
|
Stainless steel
|
Stainless steel
|
Copper
|
PTFE
|
PTFE
|
Urethane
|
| ||
|
Solenoid valve 2/2 NC 3/8" 230/50
Art:
SCB223A127
Copied
|
1,3
|
3/8 BSP
|
Brass
|
NBR
|
Brass
|
0,7 kg
|
15 ms
|
65 cSt
|
100 bar
|
16,7 W
|
8 mm
|
Solenoid valve
|
60 ms
|
-20 °C
|
50 °C
|
Epoxy
|
100 bar
|
100 bar
|
0,7 bar
|
100 bar
|
100 bar
|
21,7 l/min
|
Stainless steel
|
Stainless steel
|
Copper
|
PTFE
|
PTFE
|
Urethane
|
| ||
|
Solenoid valve 2/2 NC 1/2" 230/50
Art:
SCB223A103
Copied
|
2,7
|
1/2 BSP
|
Brass
|
NBR
|
Brass
|
0,9 kg
|
15 ms
|
65 cSt
|
100 bar
|
16,7 W
|
9 mm
|
Solenoid valve
|
60 ms
|
-20 °C
|
50 °C
|
Epoxy
|
100 bar
|
100 bar
|
1,8 bar
|
100 bar
|
100 bar
|
45 l/min
|
Stainless steel
|
Stainless steel
|
Copper
|
PTFE
|
PTFE
|
Urethane
|
| ||

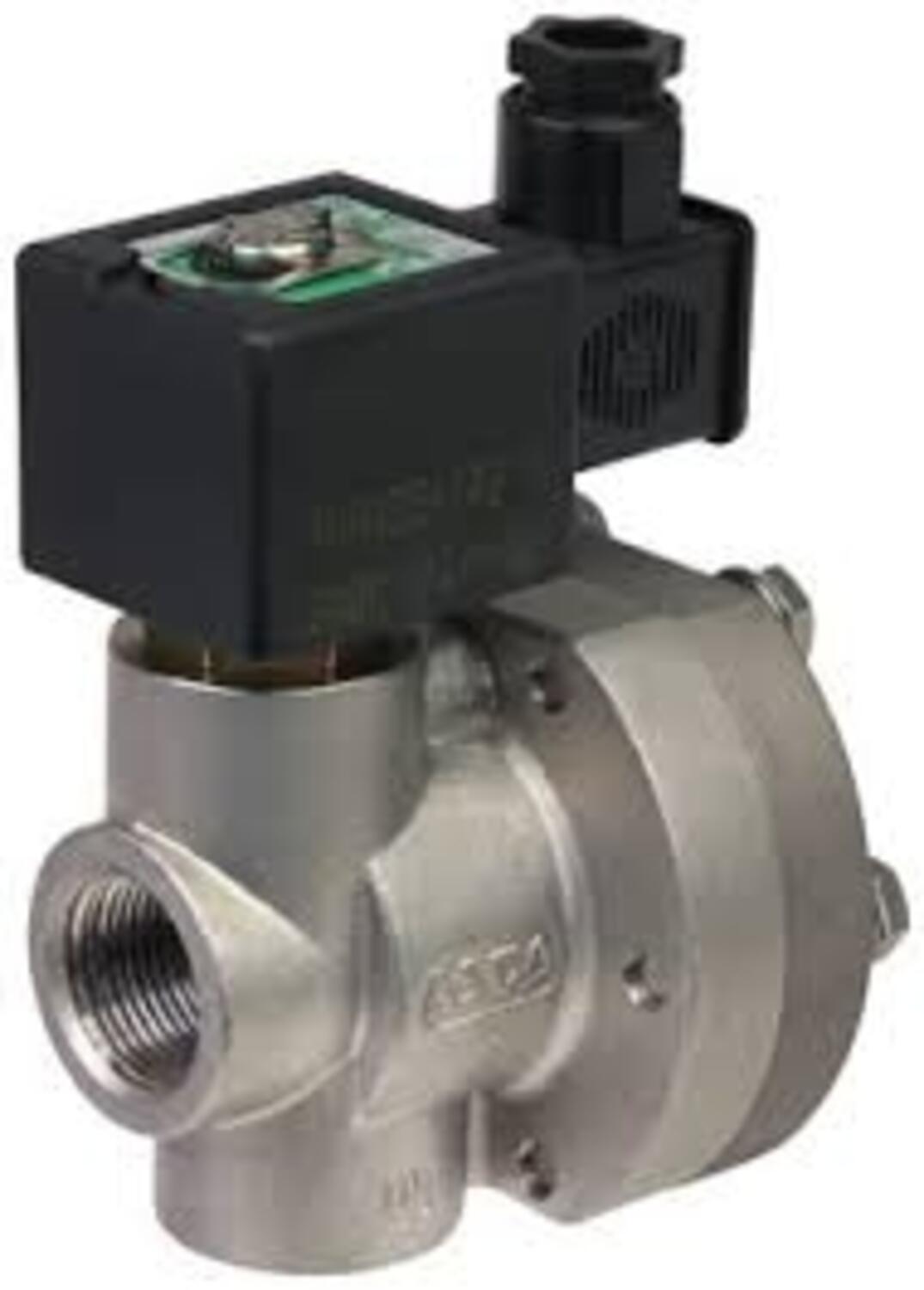

Solenoid valve. Stainless steel. 2/2 NC 1/2" 230/50
Art:
SCB223A010
Copied
|
|
1/2 BSP
|
|
|
Stainless steel AISI 304
|
|
|
|
|
|
9 mm
|
|
|
|
|
|
100 bar
|
100 bar
|
1,8 bar
|
100 bar
|
100 bar
|
45 l/min
|
|
|
|
|
|
|
| ||
|
Solenoid valve 2/2 NC 3/4" 230/50
Art:
SCB223B005
Copied
|
6,7
|
3/4 BSP
|
Brass
|
NBR
|
Brass
|
1,5 kg
|
15 ms
|
65 cSt
|
100 bar
|
16,7 W
|
19 mm
|
Solenoid valve
|
60 ms
|
-20 °C
|
50 °C
|
Epoxy
|
50 bar
|
50 bar
|
1,8 bar
|
50 bar
|
50 bar
|
112 l/min
|
Stainless steel
|
Stainless steel
|
Copper
|
PTFE
|
PTFE
|
Urethane
|
| ||
|
Solenoid valve. Stainless steel. 2/2 NC 3/4" 230/50
Art:
SCB223A012
Copied
|
|
3/4 BSP
|
|
|
Stainless steel AISI 304
|
|
|
|
|
|
19 mm
|
|
|
|
|
|
50 bar
|
50 bar
|
1,8 bar
|
50 bar
|
50 bar
|
112 l/min
|
|
|
|
|
|
|
|
Select a variant in the list
