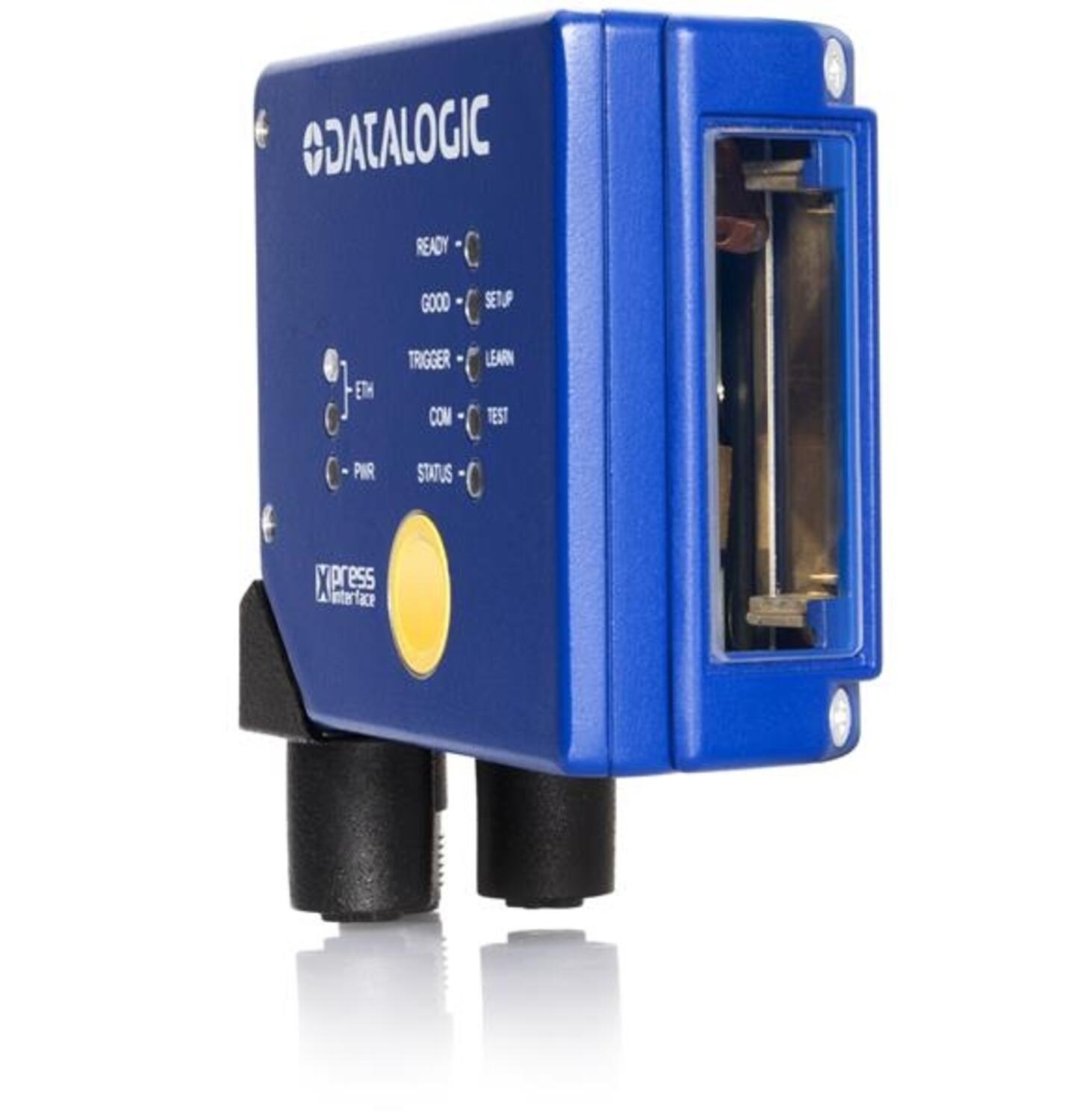

Datalogic DS2100N Laser Scanner

Industrial Laser Scanner

DS2100N has been developed for ease of use, while at the same time offering outstanding read performance. DS2100N is equipped with the innovative X-PRESS™ interface which facilitates installation and maintenance. Together with the high-performance optics and built-in code reconstruction, ACB™, high read capacity is guaranteed.



X-PRESS™ Datalogic's innovative X-PRESS™ interface is designed to simplify and facilitate installation and maintenance. Status and diagnostic information are displayed clearly on the reader by means of 5 LEDs. The multifunction button on the reader allows easy calibration of settings such as read range, read distance and code learning.



ACB™ (Advanced Code Builder)

Advanced Code Builder permits reading of damaged codes by linking together two parts of a code. ACB™ is effective when you want to read low-height codes, damaged codes and poorly printed codes.



Genius™

Windows-based configuration program which offers a simple way of installing the reader and using functions such as remote control, software update or diagnostic control.



Read more
  • Maximum Resolution Up To 0.12mm
  • Scan rate 500 to 1000 Scans/sec
  • Multilabel Reading
  • Advanced Code Reconstruction

Selected variant

Available in several variants
DATALOGIC.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

1D Code types Code 2/5, Code 39, Code 93, Code 128, EAN128, Codabar, Pharmacode, Plessey, ISBT128, UPC/EAN
Digital inputs 2
Digital outputs 2
Dimension (mm) 84 x 68 x 34
Distance max 300 mm
Distance min 50 mm
Integrated communication interface RS232/RS422/RS485, Aux RS232, ID-NET RS485
IP class IP65
Material of body Aluminium
Multi label reading Yes
Optics Linear
Power consumption 4 W
Programming options X-PRESS™ Human-machine interface, Genius™ (windows based) SW
Read speed 1000
Readable code types 1D / Linear Codes
Resolution 0.12mm
Supply voltage 10-30 V DC
Temperature operational max 45 °C
Temperature operational min 0 °C
Weight 330 g

Downloads

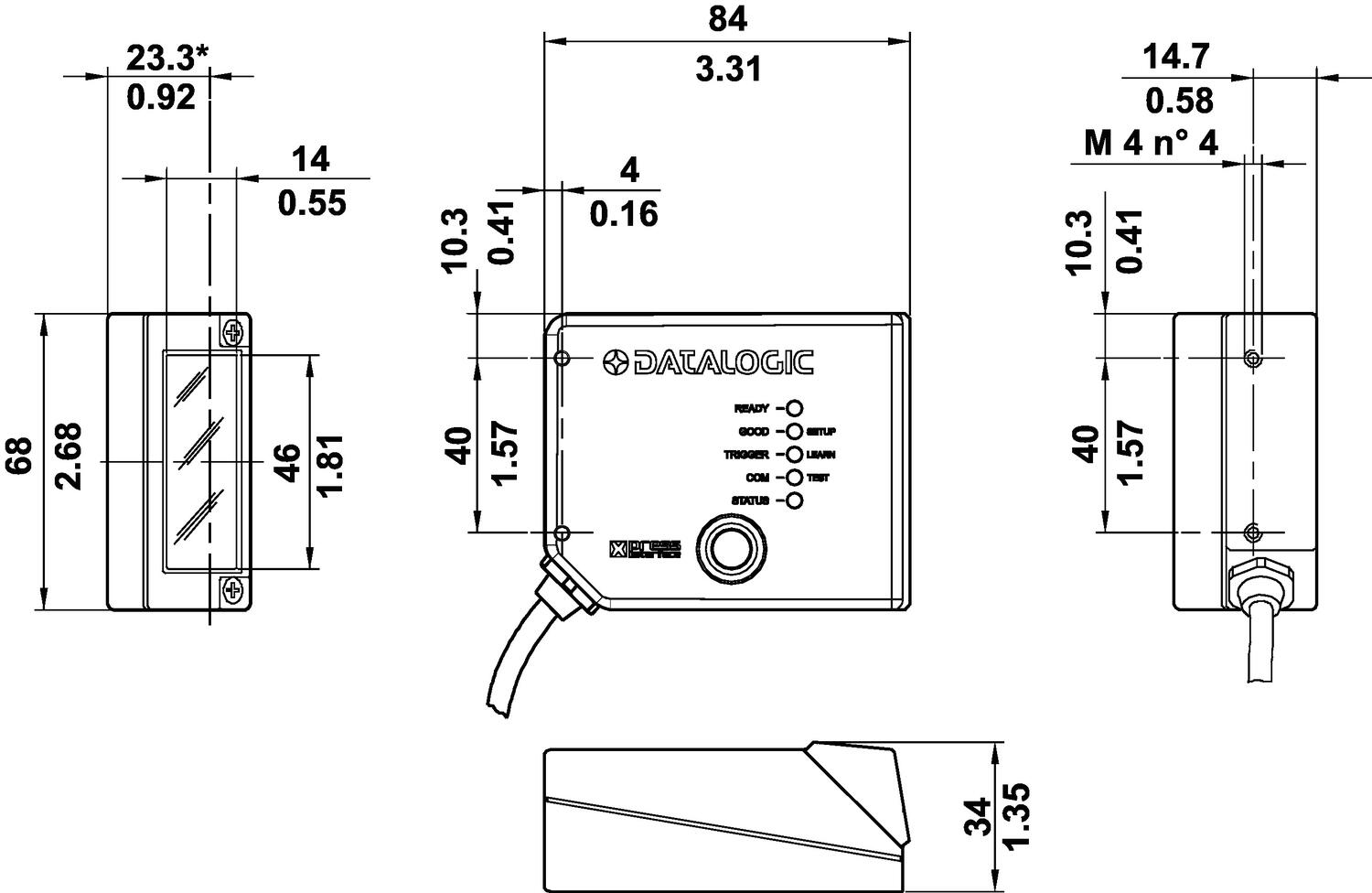

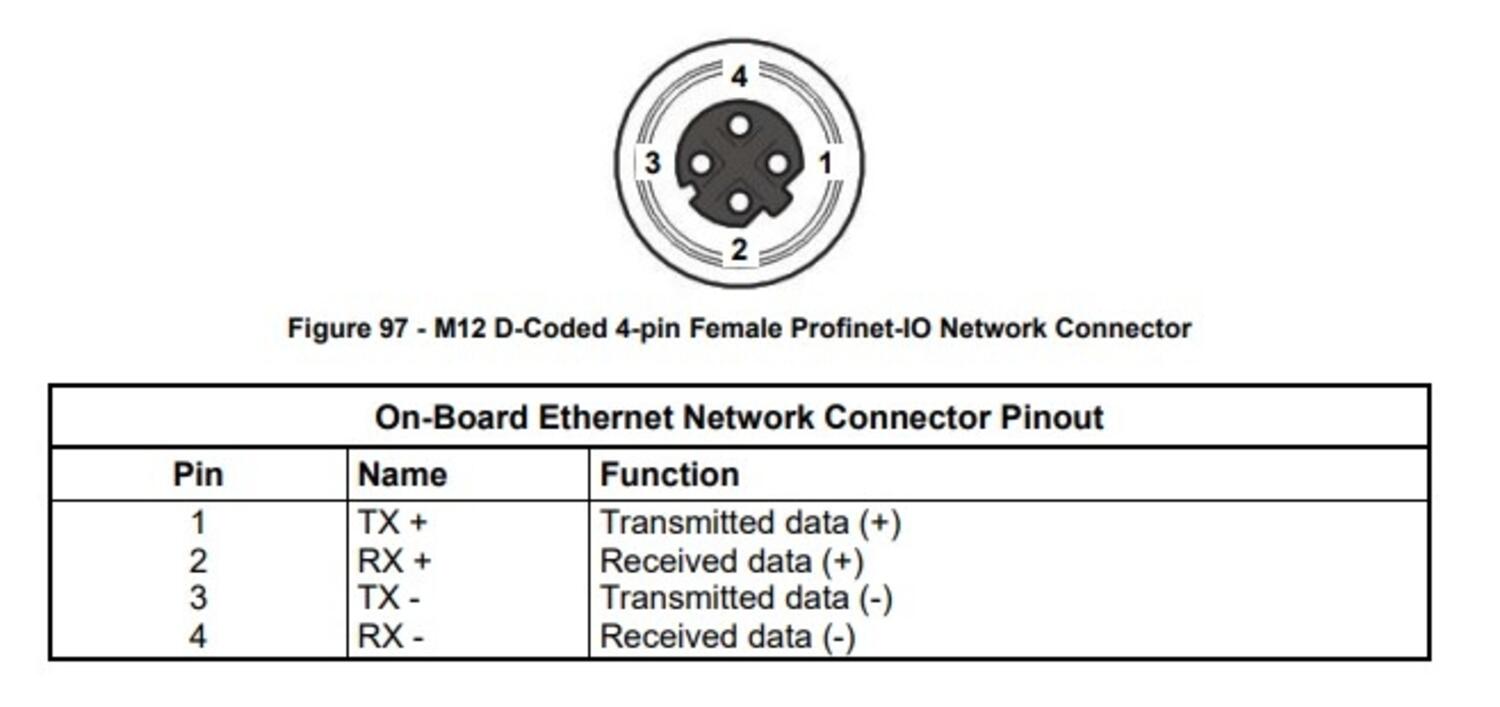

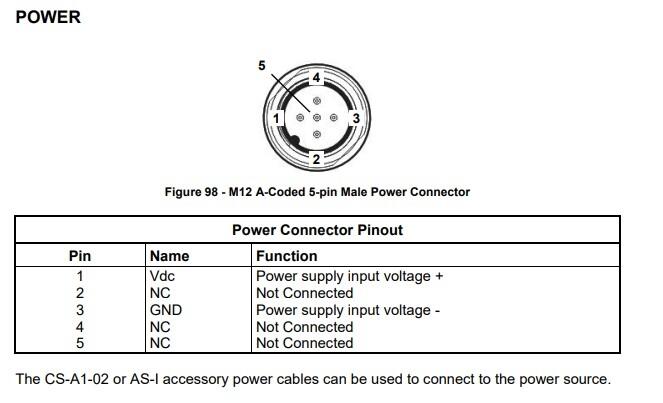

Measurements and connections

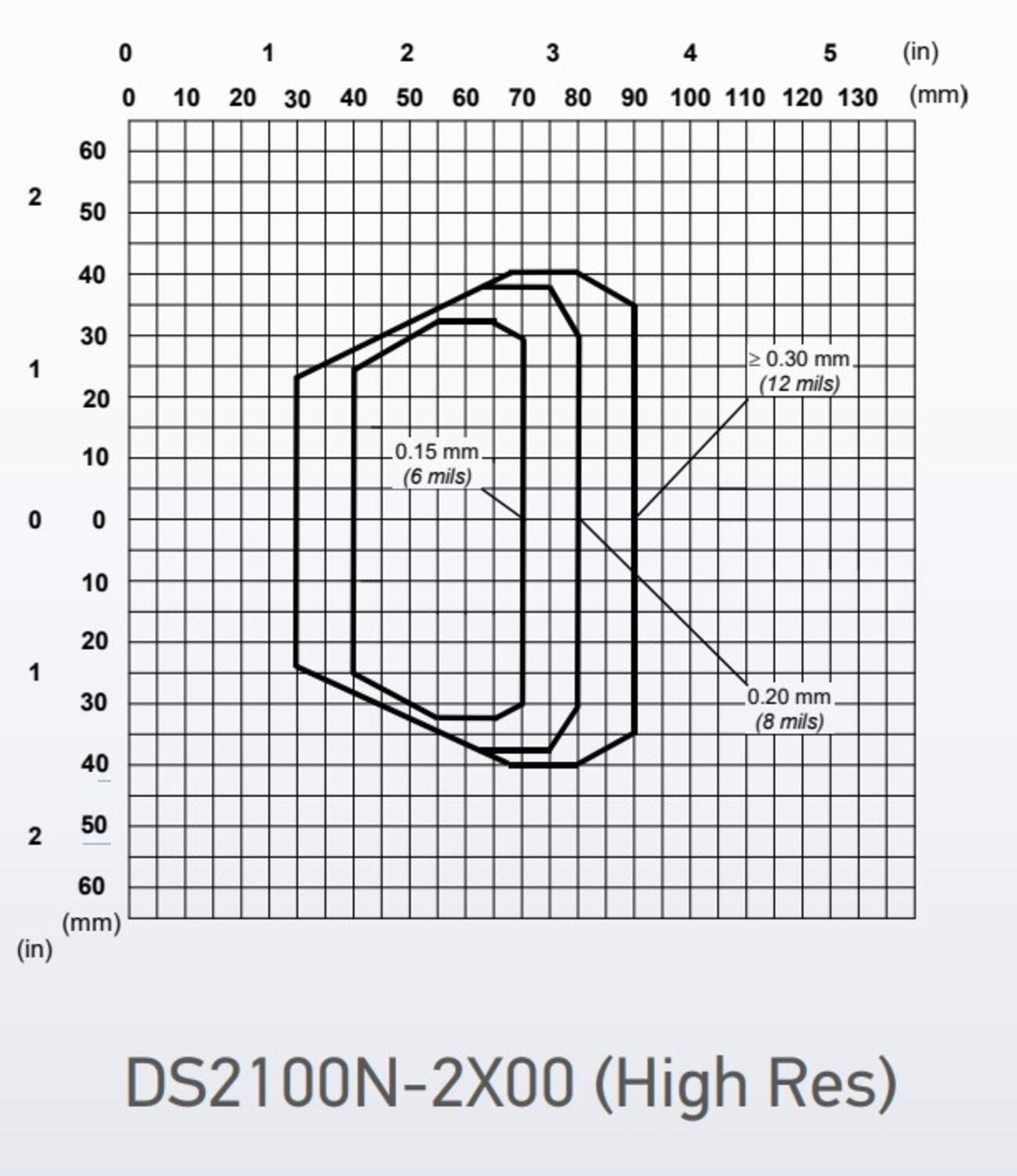

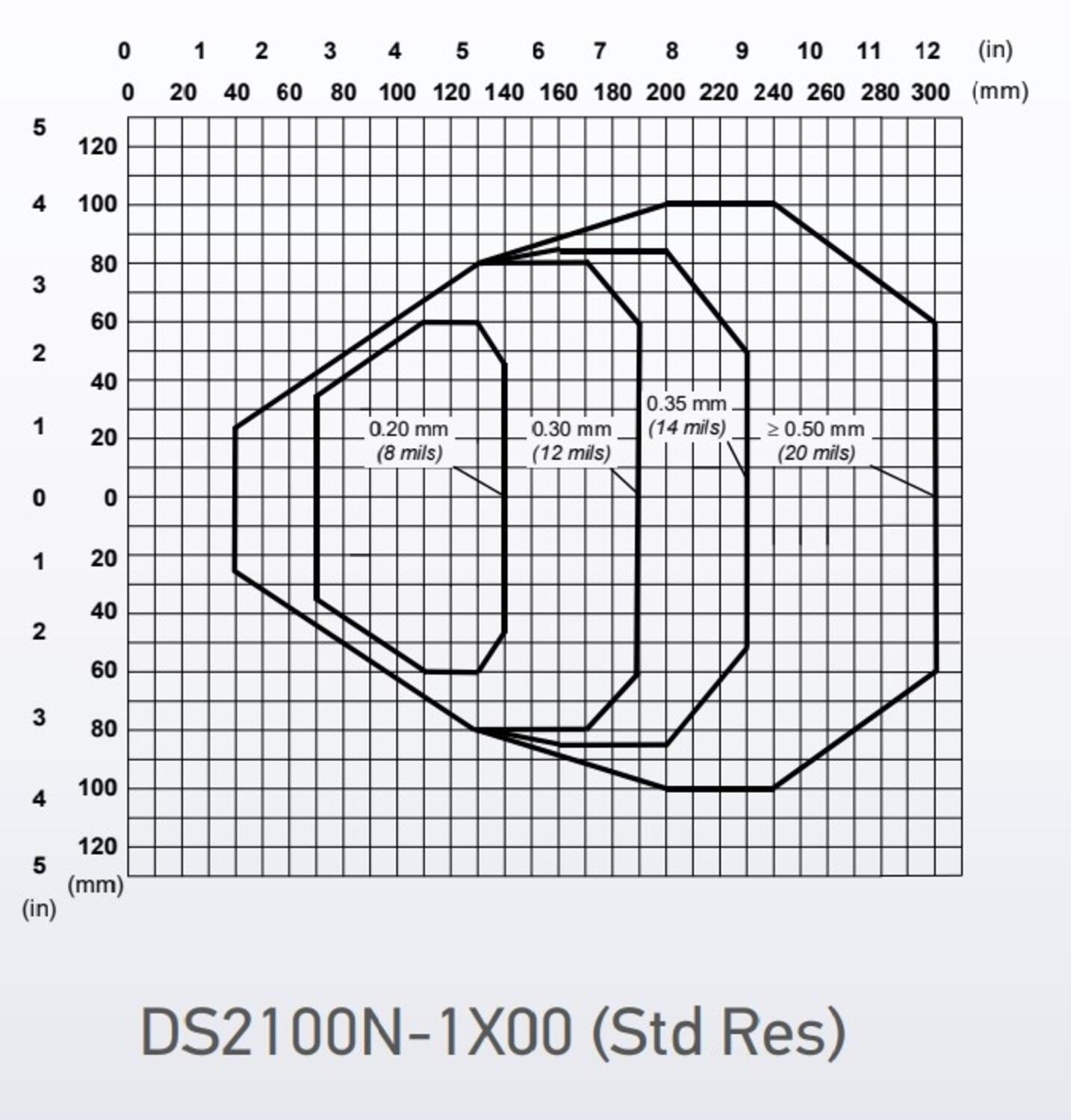

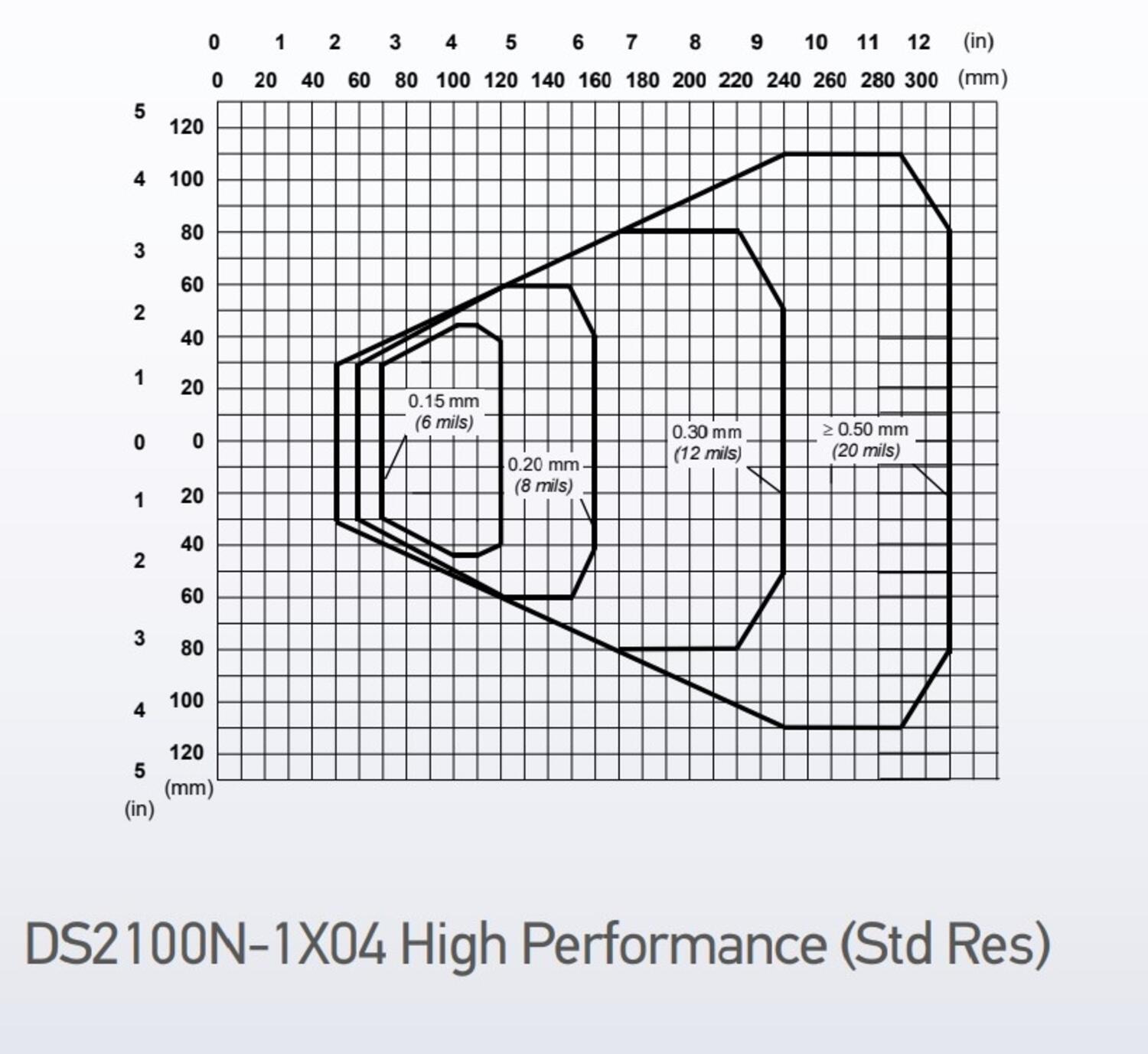

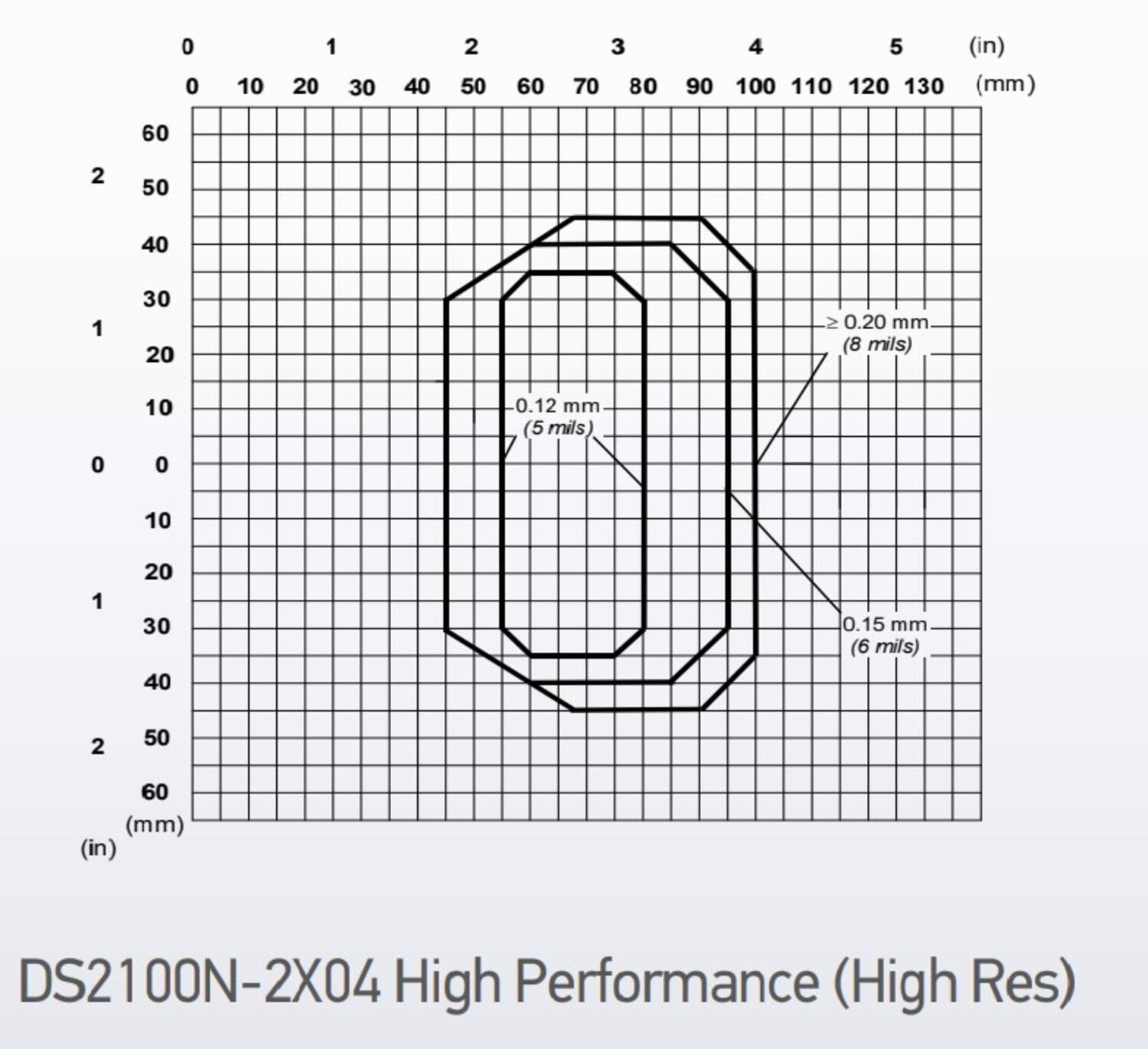

Technical illustrations

Product description

DS2100N has been developed for ease of use, while at the same time offering outstanding read performance. DS2100N is equipped with the innovative X-PRESS™ interface which facilitates installation and maintenance. Together with the high-performance optics and built-in code reconstruction, ACB™, high read capacity is guaranteed.



X-PRESS™ Datalogic's innovative X-PRESS™ interface is designed to simplify and facilitate installation and maintenance. Status and diagnostic information are displayed clearly on the reader by means of 5 LEDs. The multifunction button on the reader allows easy calibration of settings such as read range, read distance and code learning.



ACB™ (Advanced Code Builder)

Advanced Code Builder permits reading of damaged codes by linking together two parts of a code. ACB™ is effective when you want to read low-height codes, damaged codes and poorly printed codes.



Genius™

Windows-based configuration program which offers a simple way of installing the reader and using functions such as remote control, software update or diagnostic control.



Accessories

Related products

Related

hokuyu
Product news

The Smallest Safety Laser Scanner on the market by Hokuyu

Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

ATEX hazardous environments and OEM ATEX products
Blog

ATEX - Learn about explosion safety in hazardous environments

ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.

Sensor and safety engineer tony maton OEM automatic
Company news Product news

Our Newest Sensor and Safety Engineer

We’re thrilled to welcome Tony Maton, our new Sales Engineer at OEM Automatic! Tony brings a wealth of knowledge and expertise in industrial automation and machine safety

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Dimension (mm) Integrated communication interface Optics Weight Price
Standard resolution, RS232/485, Linear, Standard performance
Art:
DS2100N-1200 Copied
84 x 68 x 34
RS232/RS422/RS485, Aux RS232, ID-NET RS485
Linear
330 g
High resolution, RS232/485, Raster, Standard performance
Art:
DS2100N-2210 Copied
84 x 68 x 34
RS232/RS422/RS485, Aux RS232, ID-NET RS485
Raster
330 g
High resolution, RS232/485, Linear, Standard performance
Art:
DS2100N-2200 Copied
84 x 68 x 34
RS232/RS422/RS485, Aux RS232, ID-NET RS485
Linear
330 g
Standard resolution, RS232/485, Raster, Standard performance
Art:
DS2100N-1210 Copied
84 x 68 x 34
RS232/RS422/RS485, Aux RS232, ID-NET RS485
Raster
330 g
Standard resolution, RS232/485, Linear, High performance
Art:
DS2100N-1204 Copied
84 x 68 x 34
RS232/RS422/RS485, Aux RS232, ID-NET RS485
Linear
330 g
Standard resolution, RS232/485, Raster, High performance
Art:
DS2100N-1214 Copied
84 x 68 x 34
RS232/RS422/RS485, Aux RS232, ID-NET RS485
Raster
330 g
High resolution, RS232/485, Linear, High performance
Art:
DS2100N-2204 Copied
84 x 68 x 34
RS232/RS422/RS485, Aux RS232, ID-NET RS485
Linear
330 g
High resolution, RS232/485, Raster, High performance
Art:
DS2100N-2214 Copied
84 x 68 x 34
RS232/RS422/RS485, Aux RS232, ID-NET RS485
Raster
330 g
Standard resolution, Ethernet, Linear, Standard performance
Art:
DS2100N-1300 Copied
104 x 69 x 38
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
Linear
281 g
Standard resolution, Ethernet, Raster, Standard performance
Art:
DS2100N-1310 Copied
104 x 69 x 38
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
Raster
281 g
Standard resolution, Ethernet, Linear, High performance
Art:
DS2100N-1304 Copied
104 x 69 x 38
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
Linear
281 g
Standard resolution, Ethernet, Raster, High performance
Art:
DS2100N-1314 Copied
104 x 69 x 38
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
Raster
281 g
Standard resolution, Profinet IO, Linear, Standard performance
Art:
DS2100N-1400 Copied
104 x 86 x 38
PROFINET , Ethernet TC/PIP
Linear
308 g
Standard resolution, Profinet IO, Raster, Standard performance
Art:
DS2100N-1410 Copied
104 x 86 x 38
PROFINET , Ethernet TC/PIP
Raster
308 g
Standard resolution, Profinet IO, Linear, High performance
Art:
DS2100N-1404 Copied
104 x 86 x 38
PROFINET , Ethernet TC/PIP
Linear
308 g
Standard resolution, Profinet IO, Raster, High performance
Art:
DS2100N-1414 Copied
104 x 86 x 38
PROFINET , Ethernet TC/PIP
Raster
308 g
High resolution, Ethernet, Linear, Standard performance
Art:
DS2100N-2300 Copied
104 x 69 x 38
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
Raster
281 g
High resolution, Ethernet, Linear, High performance
Art:
DS2100N-2304 Copied
104 x 69 x 38
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
Linear
281 g
High resolution, Ethernet, Raster, Standard performance
Art:
DS2100N-2310 Copied
104 x 69 x 38
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
Linear
281 g
High resolution, Ethernet, Raster, High performance
Art:
DS2100N-2314 Copied
104 x 69 x 38
EtherNet/IP, Ethernet TCP/IP, RS232/RS422/RS485, Aux RS232, ID-NET RS485
Raster
281 g
High resolution, Profinet IO, Linear, Standard performance
Art:
DS2100N-2400 Copied
104 x 86 x 38
PROFINET , Ethernet TC/PIP
Raster
308 g
High resolution, Profinet IO, Linear, High performance
Art:
DS2100N-2404 Copied
104 x 86 x 38
PROFINET , Ethernet TC/PIP
Linear
308 g
High resolution, Profinet IO, Raster, Standard performance
Art:
DS2100N-2410 Copied
104 x 86 x 38
PROFINET , Ethernet TC/PIP
Linear
308 g
High resolution, Profinet IO, Raster, High performance
Art:
DS2100N-2414 Copied
104 x 86 x 38
PROFINET , Ethernet TC/PIP
Raster
308 g
