Kuebler - Absolute-coded Angular Transmitter Sendix M3663 / M3683, magnetic, SSI, Ø36 mm
Sendix M3663 / M3683 is a magnetically encoded absolute encoder with the latest in multicore technology with "Energy Harvesting". Energy Harvesting technology is based on magnetic recharging, eliminating both battery and gear.
With its magnetic coding, the pulse sensor becomes more shockproof and insensitive. The high IP rating allows the Sendix M3663 / M3683 for outdoor environments and mobile applications.
- Housing diameter Ø36 mm
- SSI - interface
- New multicolor technology
- IP67
Selected variant
Technical data
| Connection | Cable, M12 |
|---|---|
| Housing diameter | 36 mm |
| IP class | IP65, IP67 |
| Mounting | Shoulder |
| Output | SSI |
| Resolution MT | Max. 24 bit |
| Resolution ST | 10-14 bit |
| Sensor type | Absolute |
| Shaft diameter max | 10 mm |
|---|---|
| Shaft diameter min | 6 mm |
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 10 V DC |
| Temperature operational max | 85 °C |
| Temperature operational min | -40 °C |
| Version | Multiturn |
Product description
Sendix M3663 / M3683 is a magnetically encoded absolute encoder with the latest in multicore technology with "Energy Harvesting". Energy Harvesting technology is based on magnetic recharging, eliminating both battery and gear.
With its magnetic coding, the pulse sensor becomes more shockproof and insensitive. The high IP rating allows the Sendix M3663 / M3683 for outdoor environments and mobile applications.

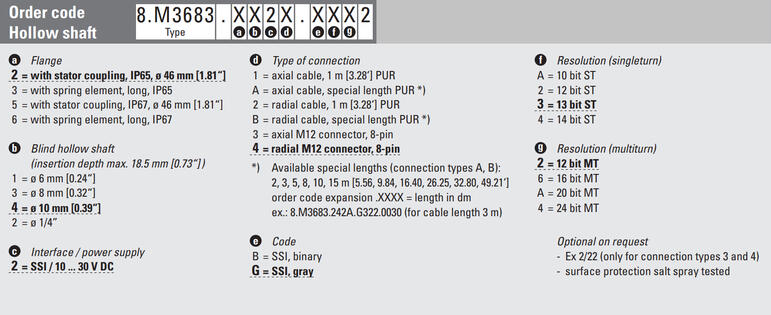

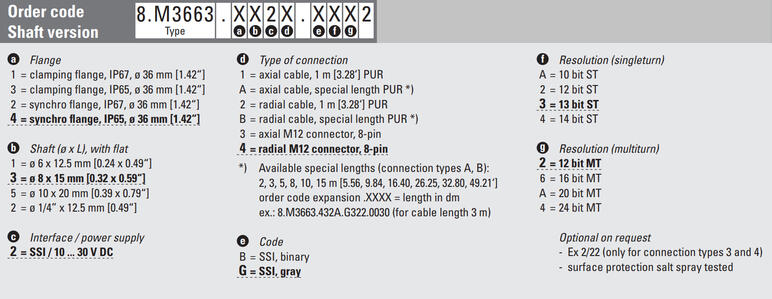

Ordering information
Please refer to the images below for ordering information.
