Kuebler - Absolute-coded Angular Transmitter Sendix 5853/5873, Optical, SSI, Ø58 mm
Sendix 5853/5873 is a series of robust absolute encoded SSI axis sensors for demanding environments. Thanks to its rugged construction with Safety-Lock ™ and the fully cast housing, the sensor can also handle the more demanding applications where the requirements are high. The wide temperature range combined with the high enclosure class allows the sensor to be used outdoors as well as applications where large temperature changes occur. The LED indication facilitates diagnostics of the sensor in place and saves time when troubleshooting.
- Housing diameter Ø58 mm
- SSI-Interface
- High shock resistance
- High degree of enclosure
Selected variant
Technical data
| Connection | Cable, M12, M23 contact |
|---|---|
| Housing diameter | 58 mm |
| IP class | IP65, IP67 |
| Mounting | Shoulder |
| Output | SSI |
| Sensor type | Absolute |
| Shaft diameter max | 10 mm |
| Shaft diameter min | 6 mm |
|---|---|
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 5 V DC |
| Temperature operational max | 90 °C |
| Temperature operational min | -40 °C |
| Version | Singleturn |
Product description
Sendix 5853/5873 is a series of robust absolute encoded SSI axis sensors for demanding environments. Thanks to its rugged construction with Safety-Lock ™ and the fully cast housing, the sensor can also handle the more demanding applications where the requirements are high. The wide temperature range combined with the high enclosure class allows the sensor to be used outdoors as well as applications where large temperature changes occur. The LED indication facilitates diagnostics of the sensor in place and saves time when troubleshooting.

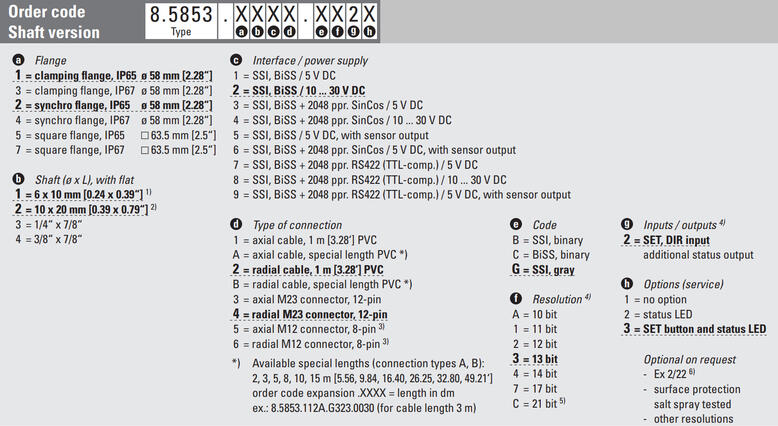

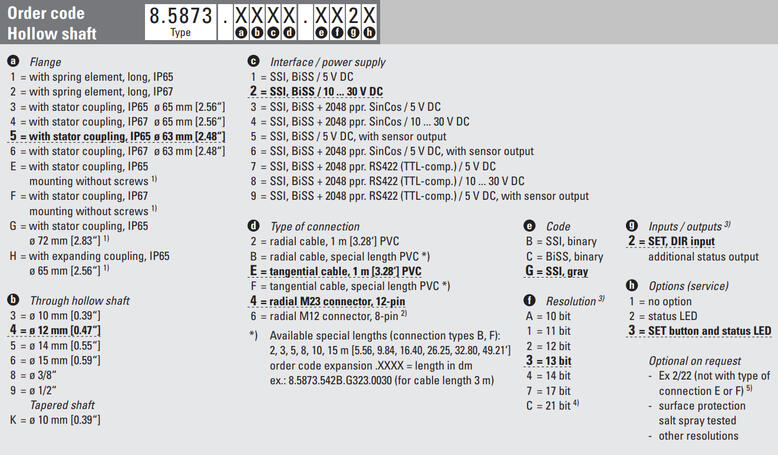

Ordering information
Please refer to the images below for ordering information.
